Brief overview
- Tyre pressures .......................................................................................................... 0.04
- Adjusting the seats and the driver's position ......................................... 1.10 1.12
- Child restraint devices ............................................................................... 1.21 1.29
- Warning lights ............................................................................................. 1.34 1.37
- Audible and visual signals ........................................................................ 1.44 1.47
- De-icing/demisting .................................................................................................. 1.49
- Running in, driving .................................................................................... 2.02 2.14
- Heating/Air conditioning .......................................................................... 3.04 3.19
- Opening the bonnet ............................................................................................... 4.02
- Levels (engine oil, windscreen washer, etc.) .......................................... 4.03 4.09
- Emergency spare wheel ............................................................................. 5.02 5.05
- Practical advice (changing the bulbs, fuses, repairs,
troubleshooting) ........................................................................................... 5.02 5.36
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 0.02 (Black plate)

NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 0.03
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 -page5
0.03
CONTENTS
Sections
1
2
3
4
5
6
7
Getting to know your vehicle ............................................................
Driving ...............................................................................................................
Your comfort .................................................................................................
Maintenance ..................................................................................................
Practical advice ...........................................................................................
Technical specifications ........................................................................
Alphabetical index ....................................................................................
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 0.03 (Black plate)

NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 0.04
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 -page6
0.04
Versions 1.2 16V 1.4 8V 1.4 16V 1.6 16V 1.5 dCi
Tyre sizes 175/65R14
175/70R13 175/65R14 175/70R13 175/65R14 185/60R14 185/60R14 175/55R14 175/65R14
185/60R14
Normal use
-Front 1.9 1.9 2.2 2.2 2.2 2.2
-Rear 1.8 1.8 2.0 2.0 2.0 2.0
Full load(1)
-Front 2.0 2.0 2.3 2.3 2.3 2.3
-Rear 2.0 2.0 2.1 2.1 2.1 2.1
Emergency spare wheel 2.0 2.0 2.3 2.3 2.3 2.3
Size of wheel rims 5.5 J 14
5.5 B 13 5.5 J 14 5.5 B 13 5.5 J 14 5.5 J 14 5.5 J 14
TYRE INFLATION PRESSURES WHEN COLD (in bar or kg/cm² when cold)
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 0.04 (Black plate)

NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 0.05
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 -page7
0.05
Tyre safety and use of chains
Refer to the information on tyres in Section 5 for maintenance information and, depending on the version, the conditions
under which snow chains may be fitted to the vehicle.
(1) Special characteristic of vehicles which are fully laden (maximum permissible all-up weight) and towing a trailer:the
maximum speed must be restricted to 60 mph (100 km/h) and the tyre pressure increased by 0.2 bar.
Refer to the information on weights in Section 6.
Tyre inflation pressures when cold (in bar or kg/cm² when cold)
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 0.05 (Black plate)

NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 0.06
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 -page8
0.06
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 0.06 (Black plate)

NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.01
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 -page9
1.01
Section 1: Getting to know your vehicle
Keys ......................................................................................................................................................... 1.02 - 1.03
Doors ....................................................................................................................................................... 1.04 - 1.05
Renault Anti-Intruder Device (RAID) ............................................................................................................. 1.06
Engine immobiliser ........................................................................................................................................... 1.07
Headrests - Seats ................................................................................................................ .................. 1.08 - 1.09
Seat belts ................................................................................................................................................ 1.10 - 1.11
Methods of restraint ............................................................................................................................. 1.12 1.17
in addition to front seat belts .................................................................................. 1.11 1.15 - 1.17
lateral protection equipment ........................................................................................................... 1.16
Rear seat belts ...................................................................................................................................... 1.18 1.20
For child safety .................................................................................................................................... 1.21 1.29
Rear-view mirror and door mirrors ...................................................................................................... 1.30 - 1.31
Steering wheel adjustment ............................................................................................................................... 1.31
Driver's position ..................................................................................................................................... 1.32 - 1.33
Control instruments ............................................................................................................................. 1.34 1.42
Clock/Temperature sensor ................................................................................................................................ 1.43
Lighting and exterior signals ................................................................................................................ 1.44 - 1.45
Headlight beam adjustment ............................................................................................................................. 1.46
Horn and hazard lights .................................................................................................................................... 1.47
Windscreen wipers ........................................................................................................................................... 1.48
De-icing/Demisting ........................................................................................................................................... 1.49
Fuel tank (filling with fuel) .................................................................................................................. 1.50 - 1.51
NU779-1_G1-ENG.qxp 10-Apr-06 16:20 Page 1.01 (Black plate)
.
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.01 (Black plate)

2
3
1
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.02
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 10
1.02

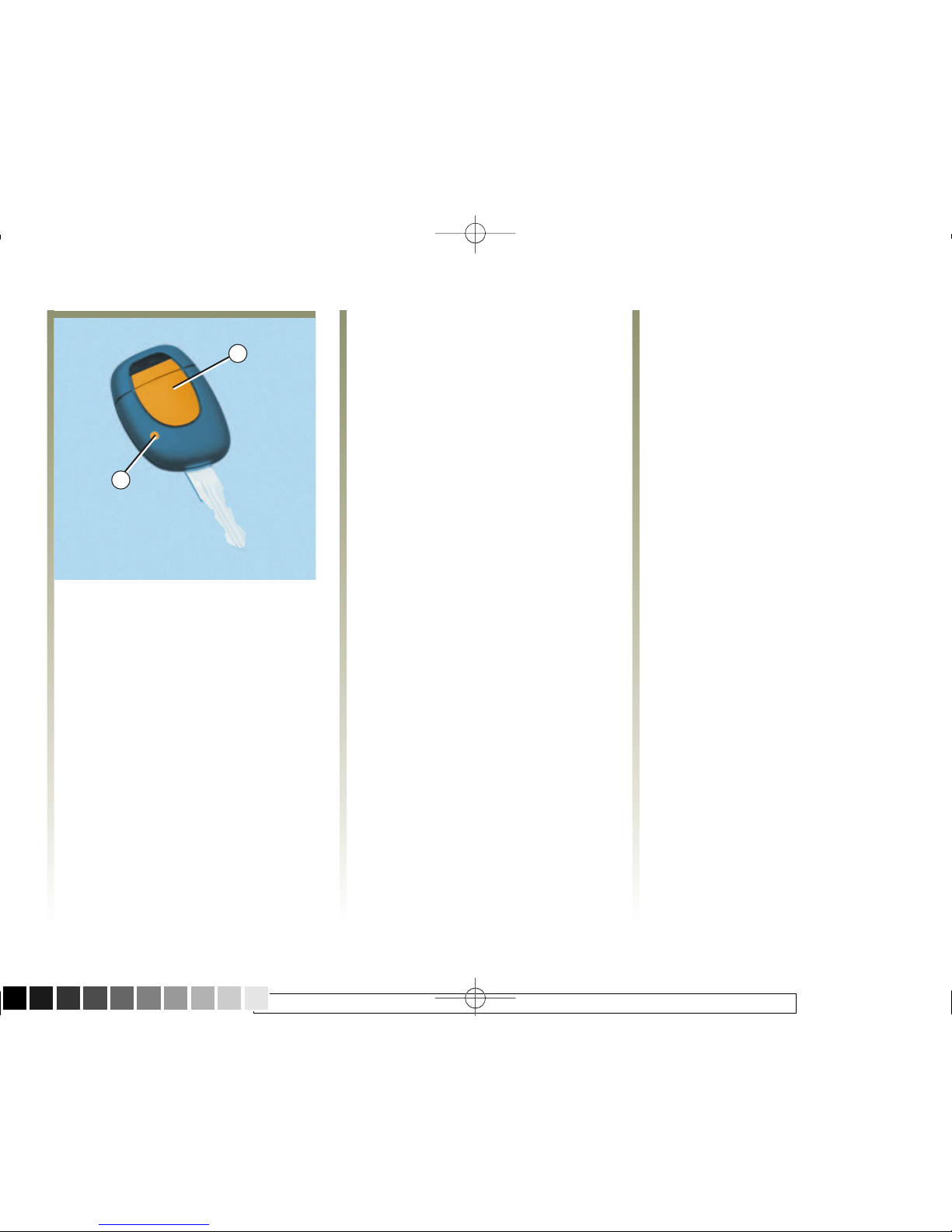

KEYS / RADIO FREQUENCY REMOTE CONTROL UNIT
1Coded key for ignition, key for
doors, luggage compartment and
fuel filler flap.
2Remote control door locking unit,
coded ignition key, key for doors
and fuel filler cap.
If you lose your keys or remote
control unit, or need another set,
contact your RENAULT Dealer.
- To replace a remote control, it will
be necessary to take the vehicle to
your RENAULT Dealer because
both the vehicle and the remote
control are needed to initialise the
system.
- It is not possible to use more than
two remote control units for one
vehicle.
- Make sure that the batteries are
always in good condition; they
have a service life of
approximately two years.
Driver's responsibility
If there is a child (or a pet) in the vehicle, never leave it unattended
with the key in the ignition. With the key in the ignition the child
could start the engine or operate electrical equipment such as the
electric windows and there is a risk that he or she may be injured (by
trapping his or her neck, arm, hand, etc.). Risk of serious injury.
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.02 (Black plate)

2
3
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.03
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 11
1.03
RADIO FREQUENCY REMOTE CONTROL UNIT (continued)
Doors are locked and unlocked
using remote control unit 2.
It is supplied with power by a
battery which must be replaced
when battery warning light 3no
longer lights up. (Refer to the
information on Locking remote
control: batteries).
Locking/unlocking the doors
Press the remote control for
approximately one second to lock or
unlock the doors. (Indicator light 3
will come on.)
- The hazard warning lights flash
twice to indicate that the doors
have been locked.
Note: depending on the vehicle, if
a door or the boot is open or not
properly closed, the hazard
warning lights will not flash.
- The hazard warning lights flash
once to indicate that the doors
have been unlocked.
Theremotecontrolunit
operating range
This varies according to the
environment: therefore take care
when handling the remote control
that you do not inadvertently lock
or unlock the doors.
Note: on certain vehicles, if a door is
not opened within approximately
30 seconds of the doors being
unlocked with the remote control,
the doors will lock again
automatically.
Interference
Interference by factors in the
immediate vicinity (external
installations or the use of
equipment operating on the same
frequency as the remote control)
may affect the operation of the
remote control unit.
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.03 (Black plate)

1
2
3
5
4
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.04
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 12
1.04
OPENING THE DOORS
Opening the doors from the
outside
Front: use the key to unlock one of
the front door locks 2. Slip your
hand under handle 1and pull it
towards you.
Rear: lift unlocking button 3from
the inside and pull the door handle.
Opening the doors from inside
the vehicle
Pull handle 4.
Lights on warning buzzer
If you have left the lights switched
on after switching off the ignition, a
warning buzzer will sound when a
door is opened to warn you that the
lights are still on (risk of battery
discharge etc.).
Childproof locks
Thesemakeitimpossibleforthe
rear doors to be opened from the
inside. Move lever 5on each door
and check from the inside that both
doors are securely locked.
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.04 (Black plate)

1
2
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.05
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 -page13
1.05
LOCKING THE DOORS
Manual locking
Front: use the key if outside or, if
inside, press down knob 1when the
door is closed.
Rear:pressdownknob1in each
door.
If you decide to keep the
doors locked when you are
driving, remember that it
may be more difficult for
those assisting you to gain access to
your vehicle in the event of an
emergency.
Electric central locking
This enables the four doors and
the boot to be locked or unlocked
simultaneously.
Press the red spot on the switch 2
to lock the doors.
The front door mechanism cannot
be locked if the door is open.
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.05 (Black plate)

1
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.06
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 14
1.06
RAID (RENAULT ANTI-INTRUDER DEVICE)
You must first decide if you want to
activate this function.
To activate
With the ignition on, press the
central door locking button 1on the
locking side (red dot) for about
5 seconds, until you hear the beep.
To deactivate it
With the ignition on, press the
central door locking button 1on the
unlocking side (opposite the red
dot) for approximately 5 seconds,
until you hear the beep.
If you decide to keep the
doors locked when you
are driving, remember
that it may be more
difficult for those assisting you
to gain access to your vehicle in
the event of an emergency.
Operating principle
When the vehicle moves off, the
system locks the doors
automatically as soon as you reach a
speed of approximately 4 mph
(7 km/h).
The door is unlocked:
- by opening a front door.
Note: If a rear door is opened, it
will automatically be locked again
when the vehicle reaches a speed
of approximately 4 mph
(7 km/h).
- by pressing the door unlocking
button 1.
Operating faults
If you notice that the system is not
operating correctly, check first that
all the doors have been properly
closed If they are closed correctly,
contact your RENAULT Dealer.
Also make sure that locking has not
been deactivated inadvertently. If
this is the case, reactivate the
system as described above
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.06 (Black plate)

1
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.07
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 15
1.07
ENGINE IMMOBILISER
This prevents the vehicle being
driven by anyone not in possession
of the vehicle's coded ignition key.
Operating principle
The vehicle is automatically
protected a few seconds after the
key is removed from the ignition.
If the vehicle does not recognise the
ignition key code, indicator light 1
will flash continuously and the
engine cannot be started.
Any work or
modification to the
engine immobiliser
(computer, wiring, etc.)
may be dangerous. It must be
carried out by trained RENAULT
network personnel.
Indicator light
System operational indicator light
When the ignition is switched on,
indicator light 1comes on for
approximately three seconds and
then goes out. The vehicle has
recognised the code. You may start
the engine.
Vehicle protection indicator light
A few seconds after the ignition has
been switched off, indicator light 1
will flash constantly.
The vehicle will not be protected
until the key has been taken out of
the ignition.
Operating fault warning light
After the ignition has been switched
on, if warning light 1continues to
flash or remains continuously lit,
this indicates a system operating
fault.
In all cases, it is essential to contact
a RENAULT Dealer, who alone is
qualified to repair the engine
immobiliser.
If the coded ignition key is faulty,
use the second key (supplied with
the vehicle).
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.07 (Black plate)

1
2
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.08
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 16
1.08
HEADRESTS
To adjust the height
Press tab 1and simultaneously
slide the headrest to the required
position.
To remove the headrest
Press the headrest guide tabs 1
and 2.
To refit the headrest
Insert the rods into the holes, with
the notches facing forwards, and
lower the headrest to the desired
height.
Storage position
When the headrest is fully
lowered, it is in the storage
position: do not use this position
when someone is sitting in the
rear seats.
The headrest is a safety
component. Ensure that
it is fitted and in the
correct position: the top
of your head should be in line
with the top of the headrest.
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.08 (Black plate)

3
2
1
4
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.09
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 18
FRONT SEATS
To move a seat forwards or
backwards
Lift bar 1or lever 3to unlock the
seat.
Once in the desired position,
release the lever or bar and check
that it is correctly locked.
To raise or lower the driver's seat
Move lever 2.
To tilt the seatback
Turn the wheel 4and tilt the
seatback to the desired position.
We would advise you not to
recline the seatbacks too far
to ensure that the
effectiveness of the seat
belts is not reduced.
Make sure the seatback is locked in
place correctly.
Nothing should be placed on the
floor (area in front of driver) as
these objects may slide under the
pedals during braking manoeuvres,
thus obstructing their use.
1.09
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.09 (Black plate)

1
2
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.10
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 19
SEAT BELTS
Always wear your seat belt when
travelling in your vehicle. You must
also comply with the legislation of
the particular country you are in.
Before driving off:
- first ensure that your driving
position is correct
- then adjust your seat belt to
provide maximum protection.
Incorrectly adjusted seat
belts may cause injuries
in the event of an
accident.
Even pregnant women should
wear a seat belt. In this
eventuality, ensure that the lap
belt is not exerting too much
pressure on the abdomen but do
not allow any slack.
Adjusting your driving position
-Sit well back in your seat (having
removed your coat or jacket).
This is essential to ensure your
back is positioned correctly.
-Adjusting the distance between
theseatandthepedals.
Your seat should be as far back as
possible while still allowing you
to be able to fully depress the
clutch pedal. The seatback should
be adjusted so that your arms are
slightly bent when you hold the
steering wheel.
-Adjusting the position of your
headrest.
For safety reasons, the top of your
head should be in line with the top
of the headrest.
-Adjusting the height of the seat.
This adjustment allows you to
select the seat position which
offers you the best possible vision.
-Adjust the position of the steering
wheel.
Adjusting the seat belts
Sit with your back firmly against the
seatback.
Shoulder strap 1should be as close
to the base of your neck as possible
but not on it.
The lap strap 2should be worn flat
over your thighs and against your
pelvis.
The seat belt should be worn as
close to your body as possible;
avoid wearing clothes that are too
thick, or holding any objects that
could obstruct the seat belt, etc.
1.10
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.10 (Black plate)

3
45
6
6
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.11
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 20
FRONT SEAT BELTS
Adjusting the front seat belt
shoulder strap height
Press button 3to select the position
you require so that shoulder strap 1
is worn as described above.
Make sure that the seat belt is
locked in position correctly after
you have adjusted it.
To fasten
Unwind the belt slowly and
smoothly and ensure that tongue 4
locks into buckle 6(check that it is
locked by pulling tongue 4). If the
belt jams, allow it to run back before
attempting to unwind it again.
To fasten (continued)
If your belt becomes completely
jammed:
- pull the belt slowly but firmly so
that just over an inch (3 cm)
unwinds;
- then allow the belt to rewind
automatically,
-unwinditagain,
- if the fault is still present, contact
your RENAULT Dealer.
Unlocking
Press button 5on buckle 6and the
seat belt will be rewound by the
inertia reel.
Guide the buckle to help the
operation.
Seat belt reminder
warning light
This lights up continuously
if the driver's seat belt is not
fastened and, when the vehicle
reaches a speed of approximately
6 mph (10 km/h), it flashes and a
bleep sounds for approximately
90 seconds before the light returns
to continuously lit status.
1.11
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.11 (Black plate)

1
NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.12
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 21
RESTRAINT SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS
These are:
Seat belt pretensioners
Force limiter.
Airbags for driver and
passenger.
These systems are designed to act
independently or together when the
vehicle is subjected to a frontal
impact.
There are three possibilities,
depending on the force of the
impact:
- protection is provided by the belt
only;
- the pretensioner is triggered to
rectify belt position and take up
play in the belt;
- the airbag and the force limiter are
also triggered when there are
severe impacts.
Side airbags are provided to
activate in the event of severe
side impacts.
Front seat belt pretensioners
The system is not operational until
a few seconds after the ignition has
been switched on.
In the event of a significant frontal
impact, a computer triggers the seat
belt buckle pretensioner igniter and
sets a piston 1in motion. This
piston immediately retracts the seat
belt buckle, pulling the seat belt
against the body and thereby
improving its efficiency.
- After an accident, have
the entire restraint
system checked
- No operation whatsoever is
permitted on any part of the
pretensioner system (computer,
wiring) and the system
components must not be reused
on any other vehicle, even if
identical.
- Only qualified RENAULT
personnel may work on the
pretensioner system; otherwise
the system may trigger
accidentally and cause injury.
- Testing of the electric trigger
system may only be carried out
by a specially trained technician
using special equipment.
- When the vehicle is scrapped,
contact your RENAULT Dealer
for disposal of the pretensioner
and airbag gas generators.
1.12
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.12 (Black plate)

NU779-1_G1-FRA.qxd 24/04/06 13:18 Page 1.13
CLIO-TRICORPS NU737-5 C:\Documentum\Checkout\NU737_5_T1-ENG.win 30/9/2005 9:57 - page 22
RESTRAINT SYSTEMS IN ADDITION TO THE FRONT SEAT BELTS (continued)
Force limiter
Above a certain severity of impact,
this mechanism is used to limit the
force of the belt against the body so
that it is at an acceptable level.
Driver and passenger airbags
These may be provided for the
driver and the front passenger.
Thepresenceofthisequipmentis
indicated by the words “Airbag” on
the steering wheel and the
dashboard, and a label on the base
of the windscreen or on the sun
visor.
Each airbag system consists of:
- an airbag and gas generator fitted
on the steering wheel for the
driver and in the dashboard for the
front passenger;
- a computer for both systems,
which includes the impact sensor
and a monitor controlling the
electrical trigger system for the gas
generator;
- A single warning light on
the instrument panel.
1.13
NU779-1_G1-ENG.qxp 4/27/2006 11:08 AM Page 1.13 (Black plate)
