Renault Kangoo User manual

NU750_1_Gcv-FRA.qxd 24/06/05 15:04 Page 1
RENAULT s.a.s. Société par Actions Simplifiée au capital de 533 941 113 / 13-15, quai Le Gallo - 92100 Boulogne-Billancourt
R.C.S. Nanterre 780 129 987 - SIRET 780 129 987 03591 / Tél. : [phone]
x76 - KANGOO NU 750-2 C:\Documentum\Checkout\NU750_2_Tcv-ENG.win 7/9/2005 15:57 -page1
Driver's handbook – 82 000 581 919 – NU 750-2 – 06/2005 – Edition anglaise

NU750_1_Gcv-FRA.qxd 24/06/05 15:04 Page 3
x76 - KANGOO NU 750-2 C:\Documentum\Checkout\NU750_2_Tcv-ENG.win 7/9/2005 15:57 -page2
has chosen ELF
For all engines
All types of petrol
and LPG engines
For all engines
Manual gearbox
Automatic gearbox
Kangoo 4×4 final drive
ELF EXCELLIUM LDX 5W-40 ACEA A3 / B3 / B4
Optimum performance and maximum protection in the most severe conditions
All types of driving
ELF EVOLUTION SXR 5W-40 ACEA A3 / B3 / B4
Optimum performance
All types of driving
ELF EVOLUTION SXR 5W-30 ACEA A5 / B5
Fuel economy, engine protection and respect for the environment
All types of driving
ELF COMPETITION ST 10W-40 ACEA A3 / B3 / B4
ELF TURBO DIESEL 10W-40 ACEA B3 / B4
Other RENAULT approved lubricants for normal use
TRANSELF TRJ 75W-80 API GL5
RENAULTMATIC D3 Syn DEXRON III
TRANSELF UNIVERSAL 80W-90 API GL5
RENAULT recommends approved ELF lubricants.
When topping up or changing the oil, we recommend you use only the original lubricants.
Consult your RENAULT Dealer or visit the site www.lubricants.elf.com

NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 0.02
Quick overview
- Tyre pressures .............................................................................................................................. 0.04
- Adjusting the seats and driver’s position .......................................................... 1.22 ➟1.25
- Child restraint devices ............................................................................................. 1.34 ➟1.45
- Warning lights ............................................................................................................. 1.52 ➟1.77
- De-icing/Demisting .................................................................................................................... 1.80
- Visible and audible warning signals ................................................................................... 1.81
- Running in, driving ................................................................................................... 2.02 ➟2.21
- Heating/air conditioning ......................................................................................... 3.04 ➟3.10
- Opening the bonnet ................................................................................................................... 4.02
- Levels (engine oil, windscreen washer, etc.) ................................................... 4.03 ➟4.11
- Emergency spare wheel ........................................................................................... 5.02 ➟5.04
- Practical advice (changing the bulbs, fuses, repairs,
operating faults) .......................................................................................................... 5.02 ➟5.40
0.02
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 0.02 (Black plate)

NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 0.03
CONTENTS
Sections
Getting to know your vehicle ................................................................ 1
Driving ................................................................................................................ 2
Your comfort .................................................................................................. 3
Maintenance ................................................................................................... 4
Practical advice ............................................................................................ 5
Technical specifications .......................................................................... 6
Alphabetical index ...................................................................................... 7
0.03
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 0.03 (Black plate)

NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 0.04
Tyre pressures when cold (in bar)
0.04
Tyre sizes 165/70 R 14 C 165/70 R 14 165/70 R 14 165/70 R 14 165/70 R 14
reinforced reinforced reinforced
Normal use
- Front 2.6 2.4 2.5 2.2 2.3
- Rear 3.4 3.0 3.2 2.2 2.3
Full load use and/or motorway
driving (1)
- Front 2.6 2.4 2.5 2.4 2.4
- Rear 3.4 3.0 3.2 2.6 2.6
Emergency spare wheel
- identical to other 4 wheels 3.4 – 3.2 2.6 2.6
- for temporary use – 2.9 (13") – – –
Wheel sizes 5.5 J 14 5.5 J 14 5.5 J 14 5.5 J 14 5.5 J 14
Tyre safety and use of chains
Refer to the information on tyres in section 5 for advice on tyre maintenance and, depending on the version, the use of
chains.
(1) Special note concerning vehicles used at full load (maximum permissible all-up weight) and towing a trailer
The maximum speed must be limited to 60 mph (100 km/h) and the tyre pressure increased by 0.2 bar.
Refer to the information on weights in section 6 for more details.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 0.04 (Black plate)

NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.01
Section 1: Getting to know your vehicle
Keys ........................................................................................................................................................................... 1.02
Radio frequency remote control unit .................................................................................................. 1.03 ➟1.06
Doors .......................................................................................................................................................... 1.07 ➟1.13
Renault Anti-Intruder Device (RAID) ................................................................................................................. 1.14
Engine immobiliser ................................................................................................................................... 1.15 - 1.16
Headrests ..................................................................................................................................................... 1.17 - 1.18
Roof flap ....................................................................................................................................................... 1.19 - 1.20
Partition .................................................................................................................................................................... 1.21
Front seats ................................................................................................................................................................ 1.22
Rear view mirrors ................................................................................................................................................... 1.23
Seat belts .................................................................................................................................................... 1.24 ➟1.27
Restraint systems in addition to front seat belts ............................................................................... 1.28 ➟1.33
Side protection devices ......................................................................................................................................... 1.32
Child safety ............................................................................................................................................... 1.34 ➟1.45
Driver’s position ....................................................................................................................................... 1.46 ➟1.51
Instrument panel ...................................................................................................................................... 1.52 ➟1.77
Clock ............................................................................................................................................................. 1.78 - 1.79
Rear screen and windscreen de-icing and demisting ..................................................................................... 1.80
Audible and visual warnings ............................................................................................................................... 1.81
Headlight beam adjustment ................................................................................................................................. 1.82
External lighting and signals ................................................................................................................... 1.83 - 1.84
Screen wash/wipe ...................................................................................................................................... 1.85 - 1.86
Fuel tank ...................................................................................................................................................... 1.87 - 1.88 1.01
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.01 (Black plate)

12
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.02
1.02
KEYS
1Coded key for ignition switch,
doors and fuel filler cap. 2Key for ignition switch, doors and fuel filler cap.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.02 (Black plate)

3
1
2
4
5
7
6
ABC
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.03
1.03
RADIO FREQUENCY REMOTE CONTROL: general information
Radio frequency remote control A
1Key for ignition switch, doors and
fuel filler cap.
2Battery warning light.
Radio frequency remote control B
3Key for ignition switch, doors and
fuel filler cap.
4Battery warning light.
Radio frequency remote control C
5Unlocking the front doors and,
depending on the vehicle, sliding
side doors.
Unlocking the doors and luggage
compartment.
6Locking the doors and luggage
compartment.
7Locking/Unlocking the luggage
compartment and, depending on
the vehicle, sliding side doors.
Driver’s responsibility
Never leave the vehicle unattended with the key in the ignition if
there is a child (or animal) in the vehicle. With the key in the
ignition, he or she could start the engine or operate electrical
equipment such as the electric windows and there is a risk that the child
may be injured by trapping his or her neck, arm, hand, etc. Risk of serious
injury.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.03 (Black plate)

NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.04
1.04
RADIO FREQUENCY REMOTE CONTROL UNIT: general information (continued)
Remote control unit operating
range
This varies according to the
environment: therefore take care
when handling the remote control
that you do not inadvertently lock or
unlock the doors.
Note: on certain vehicles, if a door is
not opened within approximately 30
seconds of the door being unlocked
by remote control, the doors will
lock again automatically.
Interference
Interference may be caused to the
operation of the remote control by
factors in the immediate vicinity
(external installations or the use of
equipment operating on the same
frequency as the remote control).
If you lose your keys or remote
control unit, or need another set,
contact your RENAULT Dealer.
- If a remote control unit is
replaced, it will be necessary to
take the vehicle to your
RENAULT Dealer because both
the vehicle and the remote
control are needed to initialise
the system.
- Depending on the vehicle, you
have the option of using up to
four remote control units.
Contact your RENAULT Dealer.
If the remote control unit will not
operate:
- Make sure that the batteries are
always in good condition; they
have a service life of
approximately two years.
See Radio frequency remote
control: batteries in Section 5 for
the battery replacement procedure.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.04 (Black plate)

AB
1
2
4
3
E
D
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.05
1.05
RADIO FREQUENCY REMOTE CONTROL: use
Remote control units Aand Bare
used to lock and unlock the doors.
They are supplied by a battery
which must be replaced when the
battery warning light 2or 4no
longer lights up (see Remote control
locking: batteries).
Locking/unlocking the doors
Remote control unit A
Press the remote control for
approximately one second to lock or
unlock the doors. (indicator light 2
will come on.)
Remote control unit B
Press the remote control unit for
approximately one second
(indicator light 4comes on) to lock
(side D) or to unlock (side E).
The side mounted indicators and
hazard warning lights flash twice to
indicate that the doors have been
locked.
Note: depending on the vehicle, if
either a door or the luggage
compartment is open or not
properly closed, the hazard warning
lights will not flash.
The hazard warning lights and side
mounted indicators flash once to
indicate unlocking.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.05 (Black plate)

5
6
C6
7
C
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.06
1.06
RADIO FREQUENCY REMOTE CONTROL UNIT: use (continued)
Remote control unit Clocks and
unlocks the doors.
It is powered by a battery which
must be replaced (see Radio
frequency remote control: battery in
Section 5).
Locking the doors
Pressing button 7locks all the doors
and luggage compartment.
Pressing button 6locks/unlocks the
luggage compartment and,
depending on the vehicle, the
sliding side doors.
The side indicators and hazard
warning lights flash twice to
indicate that the doors have been
locked.
Unlocking the doors
A short press on button 5unlocks
the front doors and, depending on
the vehicle, the sliding side doors.
Pressing and holding button 5
unlocks all the doors and luggage
compartment.
A short press on button 6unlocks
the luggage compartment and,
depending on the vehicle, the
sliding side doors.
The hazard warning lights and side
mounted indicators flash once to
indicate unlocking.
Special notes (for some countries):
- pressing button 5unlocks the
driver’s door only.
- pressing and holding button 5
unlocks all the doors and the
luggage compartment.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.06 (Black plate)

1
2
3
4
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.07
1.07
DOORS
Front door

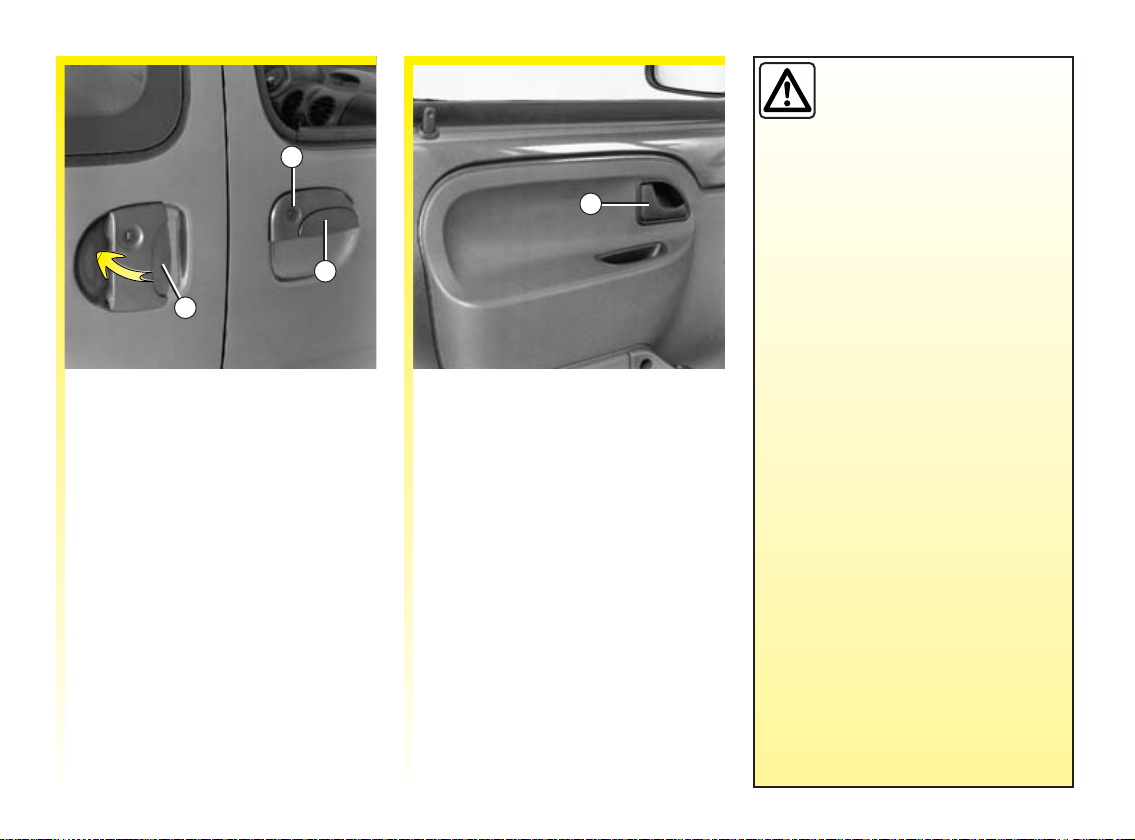

Opening manually from the outside
Unlock using the key after inserting
it fully into one of the front door
locks 1. Place your hand behind
handle 2and pull it towards you.
Opening from the inside
Move handle 4or 6.
Sliding side door
Opening manually from the outside
Unlock the door using a key in the
same way as a front door, place your
hand behind handle 3and slide the
door towards the rear of the vehicle
until it locks in position.
Closing from the inside
Use handle 5to close the door
completely.
Check that it is correctly locked.
Recommendations for the
sliding side door (left or
right-hand side)
Appropriate precautions
must be taken when opening or
closing the sliding door, as is the
case for any of the vehicle’s doors.
- Check that the door will not come
into contact with any person, part
of your body, animal or object.
- Only use the handles on the
inside and outside of the door to
operate it.
- Take care when opening and
closing the door.
- Take particular care when the
vehicle is parked on a slope: open
the door with care until it is fully
open and latches into its locking
position.
- Before moving off, always ensure
that the door is properly closed.
- Do not use the lower support as a
step.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.07 (Black plate)

7
5
6
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.08
1.08
DOORS (continued)
Lights-on reminder buzzer
If you have left the lights switched
on after turning off the ignition, a
warning buzzer will sound when a
door is opened (to prevent discharge
of the battery, etc.).
oThis warning light
indicates that a door is not
shut properly.
Childproof locks
To prevent the side door from being
opened from the inside, move lever
7and check from inside the vehicle
that it is locked correctly.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.08 (Black plate)

2
3
1
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.09
1.09
DOORS (continued)

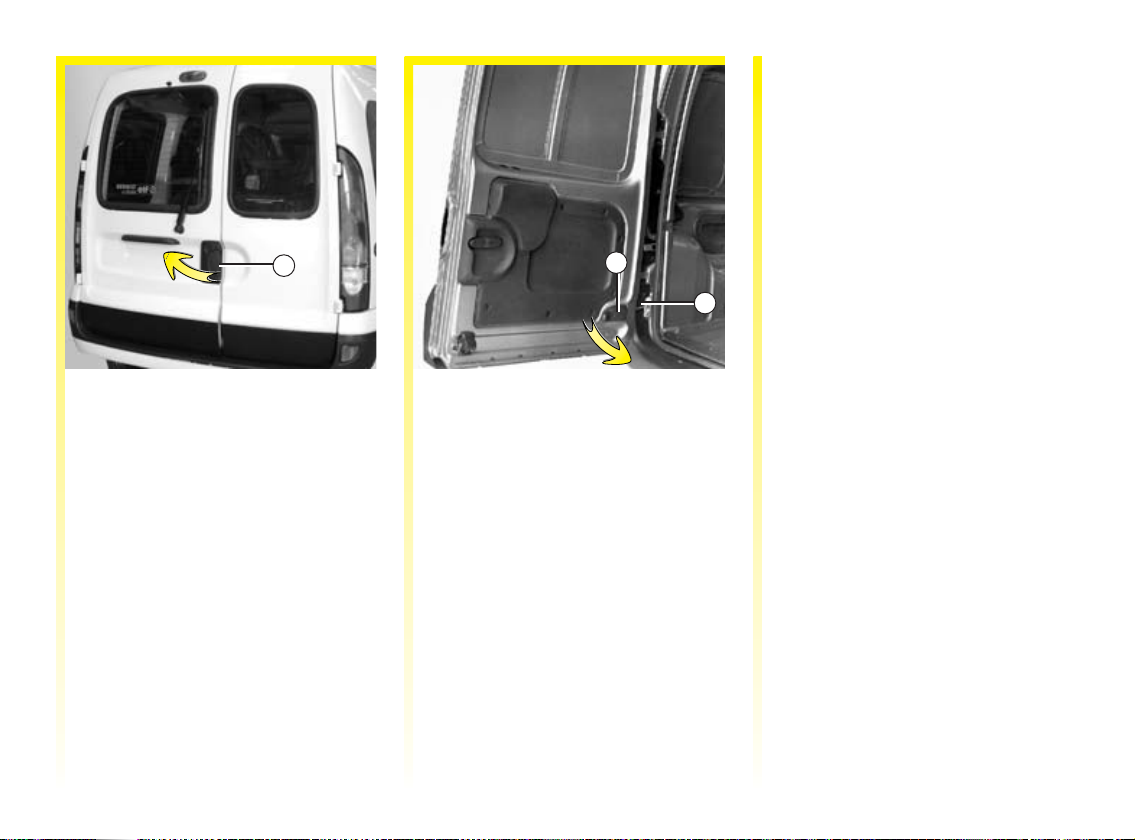

Rear hinged doors
Opening manually from the outside
Unlock using the same key as for the
front doors.
Place your hand behind handle 1
and pull it towards you.
To open the rear doors completely
To open the doors fully, move catch
2, open the door fully so that stay 3
is released.
Proceed in the same way for the
other door.
Locking manually from the outside
First close the small door and then
close the large door.
Door stays 3will lock into their
locations automatically.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.09 (Black plate)

45
6
7
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.10
1.10
DOORS (continued)
Rear hinged doors (continued)
Opening from the inside
The small door can be opened from
inside the vehicle by turning handle
4downwards.
Tailgate
Opening manually from the outside
To unlock, insert the ignition key
into lock 5.
Place your hand behind handle 6
and lift to open.
Close the luggage compartment door
by shutting it firmly but carefully.
Do not pull on the hydraulic struts
to do this.
Make sure it is correctly locked in
position by trying to lift it at 7.
If the vehicle is parked on
the hard shoulder with
luggage compartment
door open, the rear lights
may be obscured. You should
make other road users aware of
the presence of your vehicle by
using a warning triangle or other
equipment specified by the road
traffic regulations of the country
concerned.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.10 (Black plate)

1
2
1
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.11
1.11
LOCKING THE DOORS
Electric central locking
This enables all the doors to be
locked simultaneously.
Lock by pressing the opposite side
to the figurine on switch 1.
Check that buttons 2are pressed
down fully.
Manual locking
Front door
Use the key if outside or, if inside
the vehicle, press down button 2
fully when the door is closed.
If you decide to keep the
doors locked when you
are driving, remember
that it may be more
difficult for those assisting you to
gain access to the passenger
compartment in the event of an
emergency.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.11 (Black plate)

34
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.12
1.12
LOCKING THE DOORS (continued)
Sliding side door (right-hand
side)
From outside, insert the key fully
into lock 3and lock the door. From inside, fully depress button 4,
with the door closed.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.12 (Black plate)

NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.13
1.13
LOCKING THE DOORS (continued)
Second sliding side door (located on
the fuel filler cap side).
This door does not have a lock on
the outside. It is locked or unlocked
from outside the vehicle using the
remote control (at the same time as
the other doors) or from the inside
by moving the locking button (same
for the other side door).
Opening and closing operations are
the same as for the other sliding side
door.
Special information when filling
with fuel:
Depending on the vehicle, when the
fuel filler cap is removed during
refuelling:
- the doors lock then unlock
immediately, except for the side
door which remains locked,
- only the side door locks.
This is to prevent the door from
striking against the filler nozzle
during refuelling.
When the fuel tank has been filled,
refit the cap. The locking button is
operational again.
For vehicles without remote control
locking, the door is always locked
and it is therefore possible to unlock
it from the inside.
Note: if the door was open before the
fuel filler cap was removed, it will
not lock.
To ensure that it does not collide
with the fuel pump filler nozzle
while the fuel tank is being filled,
close the door, taking precautions to
ensure that no one is injured. It will
then lock automatically.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.13 (Black plate)

1
1
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.14
1.14
RENAULT ANTI-INTRUDER DEVICE (RAID)
Depending on the vehicle, pressing
unlocking button 1or opening a
front door unlocks:
- all the doors and the luggage
compartment;
- the front doors and the sliding side
doors;
- the front doors.
Note: if a rear door is opened, it
will automatically lock again when
the vehicle reaches a speed of
approximately 5 mph (8 km/h).
Operating faults
If you note that the system is not
operating correctly (automatic
locking does not take place), first
check that all the doors have been
properly closed. If they are closed
correctly, consult your RENAULT
Dealer.
Also make sure that locking has not
accidentally been deactivated.
If this is the case, switch the ignition
off and on again and reactivate the
system as described above.
You must first decide if you want to
activate this function.
To activate
With the ignition on, press button 1
on the locking side (opposite the
symbol) for approximately 5
seconds, until you hear the beep.
To deactivate
With the ignition on, press button 1
on the locking side (opposite the
symbol) for approximately 5
seconds, until you hear the beep.
Operating principle
When the vehicle moves off, the
system automatically locks the
doors as soon as a speed of 5 mph (8
km/h) is reached.
If you decide to keep the
doors locked when you
are driving, remember
that it may be more
difficult for those assisting you to
gain access to your vehicle in the
event of an emergency.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.14 (Black plate)

11
1
NU750_2_G1-FRA.qxd 28/07/05 13:22 Page 1.15
1.15
ENGINE IMMOBILISER
- Vehicle protection warning light
A few seconds after the ignition
has been switched off, indicator
light 1will flash constantly.
The vehicle will not be protected
until the key has been taken out of
the ignition.
Immobiliser warning light ê
This prevents the vehicle
being driven by anyone not in
possession of the vehicle’s coded
ignition key.
Operating principle
The vehicle is automatically
protected for a few seconds after the
key is removed from the ignition.
If the vehicle does not recognise the
ignition key code, warning light 1
will flash continuously and the
engine cannot be started.
- System operational indicator light
When the ignition is switched on,
warning light 1comes on for
approximately three seconds and
then goes out. You can then start
the engine. The vehicle has
recognised the code and the engine
can be started.
Any unauthorised work carried out on the engine immobiliser
(computers, wiring, etc.) could be dangerous.
It must be carried out by a qualified RENAULT Technician.
NU750_2_G1-ENG.qxp 9/9/2005 2:40 PM Page 1.15 (Black plate)
