Renault Modus User manual

NU710_6_Gcv-FRA 9/03/05 17:32 Page 1
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_Tcv-ENG.win 3/5/2005 11:55 -page1
The driver's handbook – 82 00 526 485 – NU 710-6 – 02/2005 – Edition anglaise

NU710_6_Gcv-FRA 9/03/05 17:32 Page 3
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_Tcv-ENG.win 3/5/2005 11:55 -page2
has chosen ELF
For all
engines
For all
petrol engines
For all
engines
5-speed manual gearbox
6-speed manual gearbox
Automatic gearbox
ELF EXCELLIUM LDX 5W-40 ACEA A3 / B4
Optimum performance and maximum protection in the most severe conditions
All types of driving
ELF EVOLUTION SXR 5W-40 ACEA A3 / B4
Optimum performance
All types of driving
ELF EVOLUTION SXR 5W-30 ACEA A5 / B5
Fuel economy, engine protection and respect for the environment
All types of driving
ELF COMPETITION ST 10W-40 ACEA A3 / B4
ELF TURBO DIESEL 10W-40 ACEA B3 / B4
Other RENAULT approved lubricants for normal use
Elf has developed special lubricants for each Renault gearbox:
Tranself TRJ 75W80, Tranself TRT 75W80, Tranself TRP 75W80, Tranself TRX 75W80 for manual
gearboxes, Renaultmatic D3Syn and Renaultmatic D2 for automatic gearboxes.
These fluids actively contribute to your vehicle's performance. (*)
RENAULT recommends using approved ELF products when topping up or changing the oil.
(*) Refer to your vehicle's Maintenance Service Booklet for information regarding which grade of oil to use.
Consult your RENAULT Dealer or visit www.lubricants.elf.com

NU710_6_G1-FRA 4/03/05 9:32 Page 0.02
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page2
0.02
Brief overview
•Tyre pressures .............................................................................................. 0.04 - 0.05
•Adjusting the seats and driving position ............................................... 1.11 ➟1.17
•Child restraint systems ............................................................................. 1.25 ➟1.37
•Warning lights (instrument panel) ........................................................... 1.42 ➟1.72
•Starting/stopping the engine ...................................................................... 2.03 - 2.04
•Driving ........................................................................................................ 2.02 ➟2.34
Tyre Pressure Monitor .......................................................................... 2.13 ➟2.16
Electronic Stability Program: ESP ................................................................... 2.17
Traction control: ..................................................................................... 2.18 - 2.19
Emergency brake assist ..................................................................................... 2.22
Cruise control/speed limiter ................................................................ 2.23 ➟2.29
•Heating/air conditioning ........................................................................... 3.02 ➟3.16
•Bonnet/maintenance .................................................................................. 4.02 ➟4.14
•Practical advice (changing bulbs, fuses, breakdown,
operating faults) ......................................................................................... 5.02 ➟5.35
•Emergency spare wheel ............................................................................ 5.02 ➟5.05

NU710_6_G1-FRA 4/03/05 9:32 Page 0.03
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 - page 3
0.03
CONTENTS
Sections
1
2
3
4
5
6
7
Getting to know your vehicle ............................................................
Driving ...............................................................................................................
Your comfort .................................................................................................
Maintenance ..................................................................................................
Practical advice ...........................................................................................
Technical specifications ........................................................................
Alphabetical index ....................................................................................

NU710_6_G1-FRA 4/03/05 9:32 Page 0.04
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 - page 4
0.04
TYRE PRESSURES (in bar or kg/cm2when cold)
Tyre sizes 165/65 R15 81 T
185/60 R15 84 H 185/55 R16 87 H 185/60 R15 88 H 175/65 R15 88 H
Wheel sizes 5,5 J 15
6J15 6J16 6J15 6J15
Non-motorway use
•Front 2,2 2,4 2,3 2,3
•Rear 2 2 2 2,1
Motorway use (1)
•Front 2,3 2,5 2,4 2,4
•Rear 2 2 2 2,2
Emergency spare wheel 2,3 2,5 2,4 2,4
Vehicles fitted with Tyre Pressure Monitor
All tyre pressures need to be increased by 0.2 bar.
Tyre safety and use of chains
Refer to the information on tyres in Section 5 for maintenance information and, depending on the version, the conditions under
which snow chains may be fitted to the vehicle.
(1) Special note concerning vehicles used when fully laden (maximum permissible all-up weight) and towing a trailer.
Themaximumspeedmustbelimitedto60 mph (100 km/h) and the tyre pressures increased by 0.2 bar.
Refer to the information on Weights in Section 6.

NU710_6_G1-FRA 4/03/05 9:32 Page 0.05
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page5
0.05
TYRE PRESSURES (in psi. when cold)
Tyre sizes 165/65 R15 81 T
185/60 R15 84 H 185/55 R16 87 H 185/60 R15 88 H 175/65 R15 88 H
Wheel sizes 5,5 J 15
6J15 6J16 6J15 6J15
Non-motorway use
•Front 32353333
•Rear 29 29 29 30
Motorway use (1)
•Front 33363535
•Rear 29 29 29 32
Emergency spare wheel 33 36 35 35
Vehicles fitted with Tyre Pressure Monitor
All tyre pressures need to be increased by 3 PSI.
Tyre safety and use of chains
Refer to the information on tyres in Section 5 for maintenance information and, depending on the version, the conditions under
which snow chains may be fitted to the vehicle.
(1) Special note concerning vehicles used when fully laden (maximum permissible all-up weight) and towing a trailer.
Themaximumspeedmustbelimitedto60 mph (100 km/h) and the tyre pressures increased by 3psi.
Refer to the information on Weights in Section 6.

NU710_6_G1-FRA 4/03/05 9:32 Page 0.06
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page6
0.06

NU710_6_G1-FRA 4/03/05 9:32 Page 1.01
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page7
1.01
Section 1: Getting to know your vehicle
Key / Radio frequency remote control unit: general information, use, deadlocking .................... 1.02 ➟1.04
Doors ..................................................................................................................................................... 1.05 ➟1.08
Renault anti-intruder device (RAID) ............................................................................................................... 1.09
Engine immobiliser ........................................................................................................................................... 1.10
Headrest - Seats .................................................................................................................................... 1.11 ➟1.13
Seat belts ............................................................................................................................................... 1.14 ➟1.17
Additional restraint systems ............................................................................................................... 1.18 ➟1.24
in addition to the front seat belts ................................................................................... 1.18 ➟1.21
in addition to the rear seat belts ................................................................................................. 1.22
side restraints ................................................................................................................................ 1.23
Child safety ........................................................................................................................................... 1.25 ➟1.37
Driver’s position ................................................................................................................................... 1.38 ➟1.41
Instrument panel .................................................................................................................................. 1.42 ➟1.72
Trip computer and warning system ............................................................................................... 1.58 ➟1.72
Information display .......................................................................................................................................... 1.70
Clock .................................................................................................................................................................. 1.71
External temperature ........................................................................................................................................ 1.72
Steering wheel .................................................................................................................................................. 1.73
Rear-view mirrors .................................................................................................................................. 1.74 - 1.75
Audible and visual warnings .......................................................................................................................... 1.76
Lighting and exterior signals .............................................................................................................. 1.77 ➟1.81
Headlight beam adjustment ............................................................................................................................. 1.82
Screen wash/wipe ................................................................................................................................ 1.83 ➟1.85
Fuel tank (filling with fuel) .................................................................................................................. 1.86 - 1.87

3
1
2
4
NU710_6_G1-FRA 4/03/05 9:32 Page 1.02
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page8
1.02

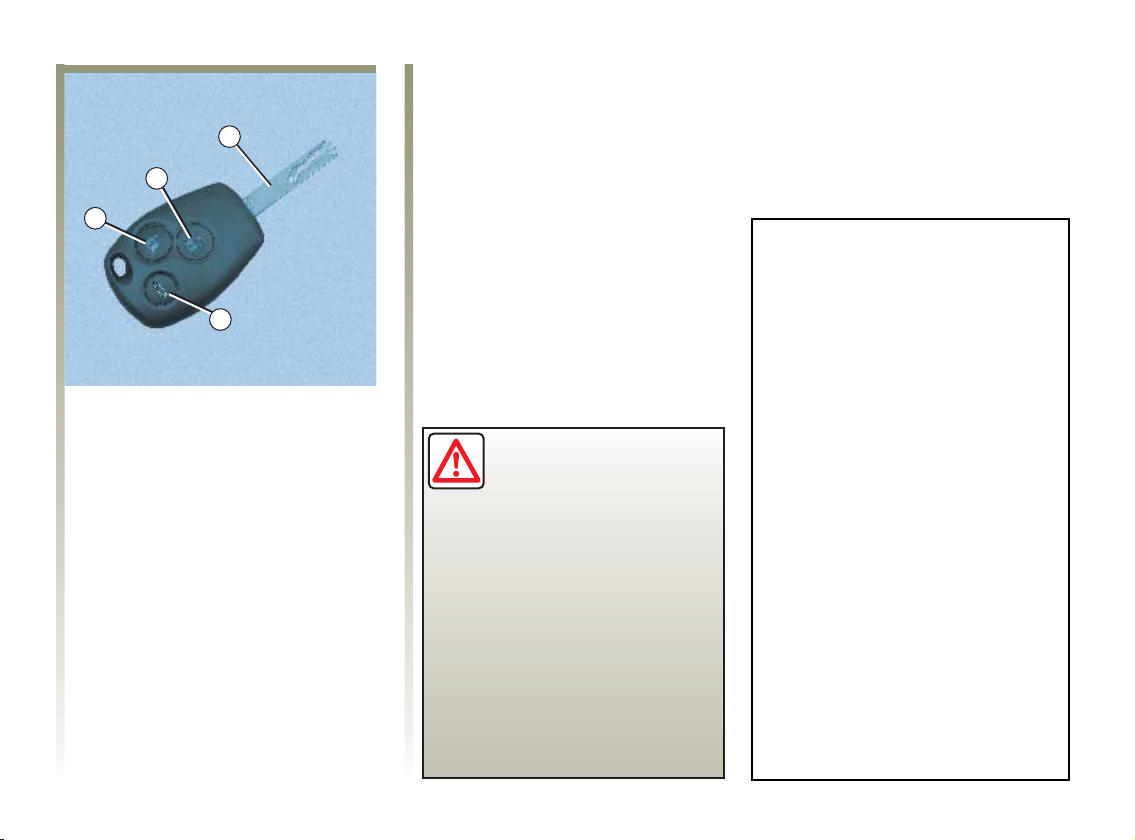

KEY / RADIO FREQUENCY REMOTE CONTROL: general information
Radio frequency remote control
unit
1- Locking all doors and the
tailgate.
2- Unlocking all doors and the
tailgate.
3- Driver's door and ignition key.
4- Locking / Unlocking the tailgate
only (for remote control units
with three buttons).
Radio frequency remote control
range
This varies according to the
environment. It is therefore
important when handling the
remote control to ensure that you do
not lock or unlock the vehicle by
inadvertently pressing the buttons.
Interference
The presence of certain objects
(metal objects, mobile telephones,
or an area with strong
electromagnetic radiation, etc.),
close to the key may create
interference and affect the operation
of the system.
Driver's responsibility
Never leave the vehicle
unattended with the key
in the ignition if there is a
child (or animal) in the vehicle.
They might start the engine or
operate electrical equipment
such as the electric windows,
and there is a risk that they may
trap part of their body (neck,
arms,hands,etc.).
Risk of serious injury.
If you lose your keys or need
another set of keys (or a remote
control unit), contact your
RENAULT Dealer.
•It will be necessary to take the
vehicle to your RENAULT Dealer
if you need to replace a key
because both the vehicle and all
the keys are needed to initialise
the system.
•No more than four remote
control units may be used for one
vehicle.
If the remote control unit will not
operate:
Make sure that the batteries are
always in good condition, they last
for approximately two years.
In this case, refer to the information
on the radio frequency remote
control batteries in Section 5

1
2
1
2
4
NU710_6_G1-FRA 4/03/05 9:32 Page 1.03
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page9
1.03
KEY / RADIOFREQUENCY REMOTE CONTROL: use
Unlocking the doors
Press unlocking button 2.
Unlocking is indicated by one flash
of the hazard warning lights and the
indicator lights.
Special notes (for some countries):
- pressing button 2once opens only
the driver's door,
- pressing button 2twice in
succession unlocks the other
doors.
Locking the doors
Press locking button 1.
The indicator lights and hazard
warning lights flash twice to
indicate that the doors have been
locked:
If an opening element (door, tailgate
or tailgate hatch is opened or not
properly closed, the opening
elements will quickly lock then
unlock without the hazard warning
lights or indicator lights flashing.
Unlocking / Locking the tailgate
only (for certain countries)
Press button 4to unlock or lock the
luggage compartment.
The hazard warning lights and
indicator lights flash once to
indicate unlocking if the vehicle
doors are locked.
The hazard warning lights and
indicator lights flash twice to
indicate that the tailgate is locked if
the vehicle doors are locked.

1
NU710_6_G1-FRA 4/03/05 9:32 Page 1.04
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page10
1.04
DEADLOCKING
Deadlocking the doors and
tailgate (for some countries)
This allows you to lock the doors
and luggage compartment and to
prevent the doors from being
opened with the interior handles
(by breaking the window and then
trying to open the doors from the
inside).
To activate deadlocking
Press button 1twice in quick
succession.
The indicator lights and hazard
warning lights flash five times to
indicate that the doors have been
locked.
Never use deadlocking if
someone is still inside the
vehicle.

12
NU710_6_G1-FRA 4/03/05 9:32 Page 1.05
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page11
1.05

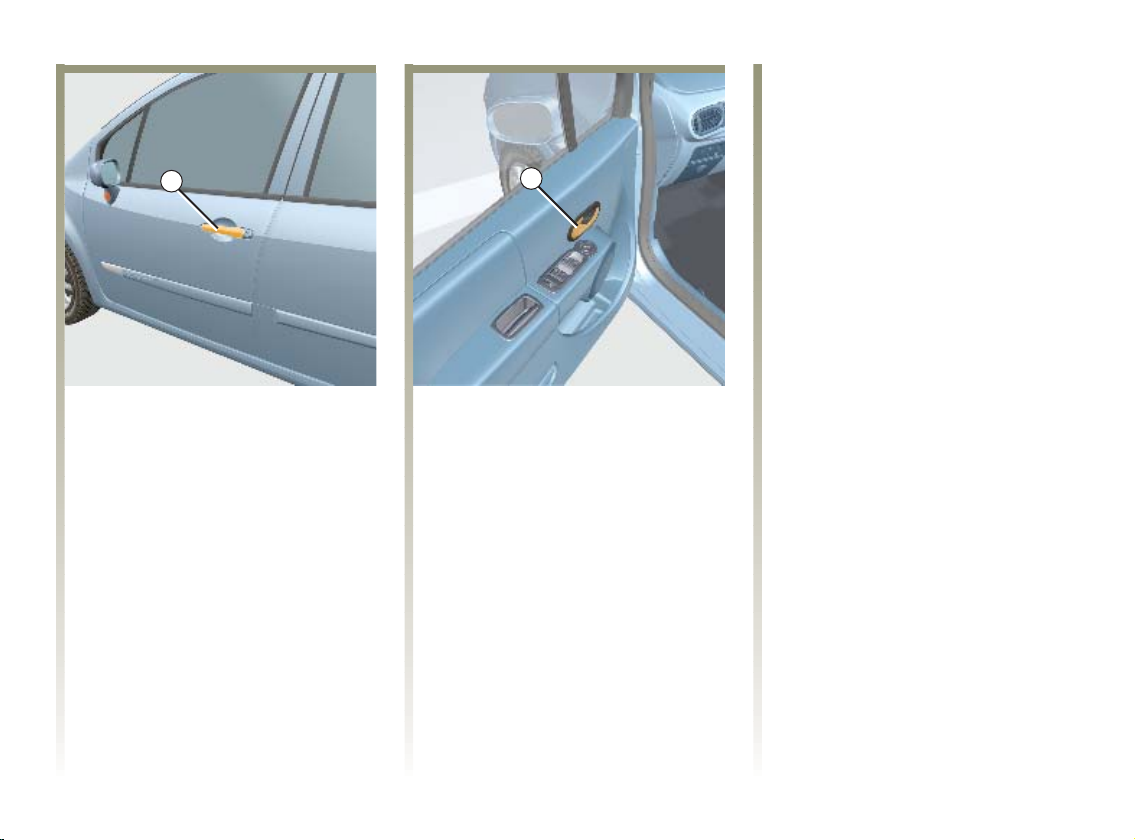

OPENING AND CLOSING THE DOORS
Opening the doors from the outside
After the vehicle has been locked
using the remote control or the key,
pull handle 1.
Opening the doors from the
inside
Pull handle 2.
Lights on warning buzzer
If you have turned off the ignition
and left the lights switched on an
alarm will sound when a door is
opened.
Door/tailgate/tailgate hatch open
reminder
If an opening element (door, tailgate
hatch or tailgate) is open or not
closed properly, the “tailgate open”
or “door open”message (depending
on opening element) will be
displayed on the instrument panel
with a warning light when the
vehicle reaches a speed of
approximately6mph(20km/h).

4
3
NU710_6_G1-FRA 4/03/05 9:32 Page 1.06
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page12
1.06
OPENING AND CLOSING THE DOORS (continued)
Child safety
Vehicles fitted with switch 3with
integrated indicator light
Press switch 3to lock the rear doors
and prevent operation of the rear
electric windows.
The indicator light built into the
switch lights up to confirm that the
doors are locked.
If there is a fault, you will
hear a beep and the
integrated indicator light
will not light up.
If the battery has been
disconnected, the rear
central door locking must
be reactivated by pressing
switch 3.
Safety of rear occupants
The driver can inhibit
operation of the rear
electric windows and doors
by pressing switch 3on the side of
the drawing.
Driver's responsibility
Never leave the vehicle unattended
with the key in the ignition if there
is a child (or pet inside). With the
key in the ignition it would be
possible to operate the electric
windows and there is a risk that the
child may be seriously injured (by
trapping his or her neck, arm,
hand, etc.). If something gets
trapped, reverse the direction of
travel as soon as possible by
pressing the relevant switch.
Other cases
To make it impossible for the rear
doors to be opened from the inside,
move lever 4on each door and
check from the inside that the doors
are securely locked.

2
3
1
NU710_6_G1-FRA 4/03/05 9:32 Page 1.07
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page13
1.07

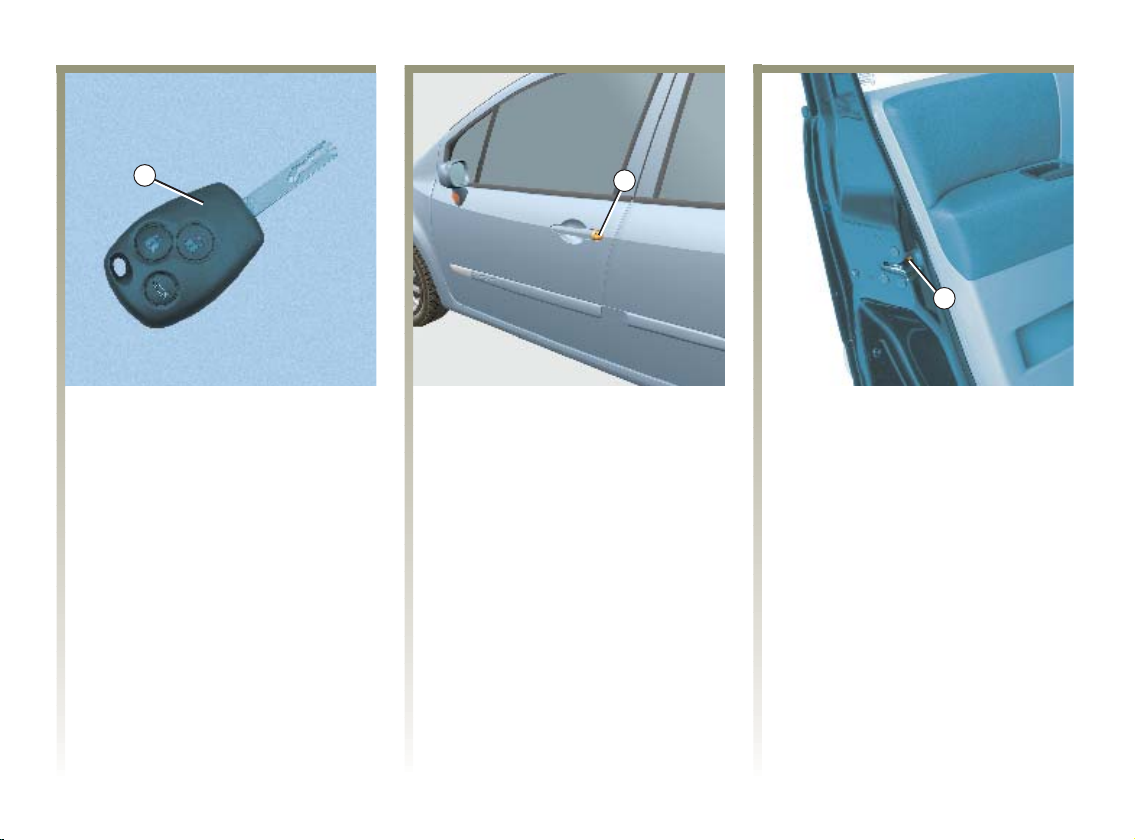

LOCKING/UNLOCKING THE DOORS
Locking/unlocking from the
outside
This is done using the RENAULT
remote control 1: refer to the
information on key / radio
frequency remote control: general
information in Section 1.
Special circumstance: using the key
Insert the key into lock 2then
unlock by turning upwards or lock
by turning downwards, then return
the key to its original position.
Remove the key.
Open the door.
Operating faults
Each door can be locked manually if
there is an electrical fault.
With the door open, turn screw 3
with the key and close the door
again. This means that the door is
now locked from the outside.
The front left-hand door may only
be opened from the inside or by
using the key.

4
NU710_6_G1-FRA 4/03/05 9:32 Page 1.08
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page14
1.08
LOCKING/UNLOCKING THE DOORS (continued)

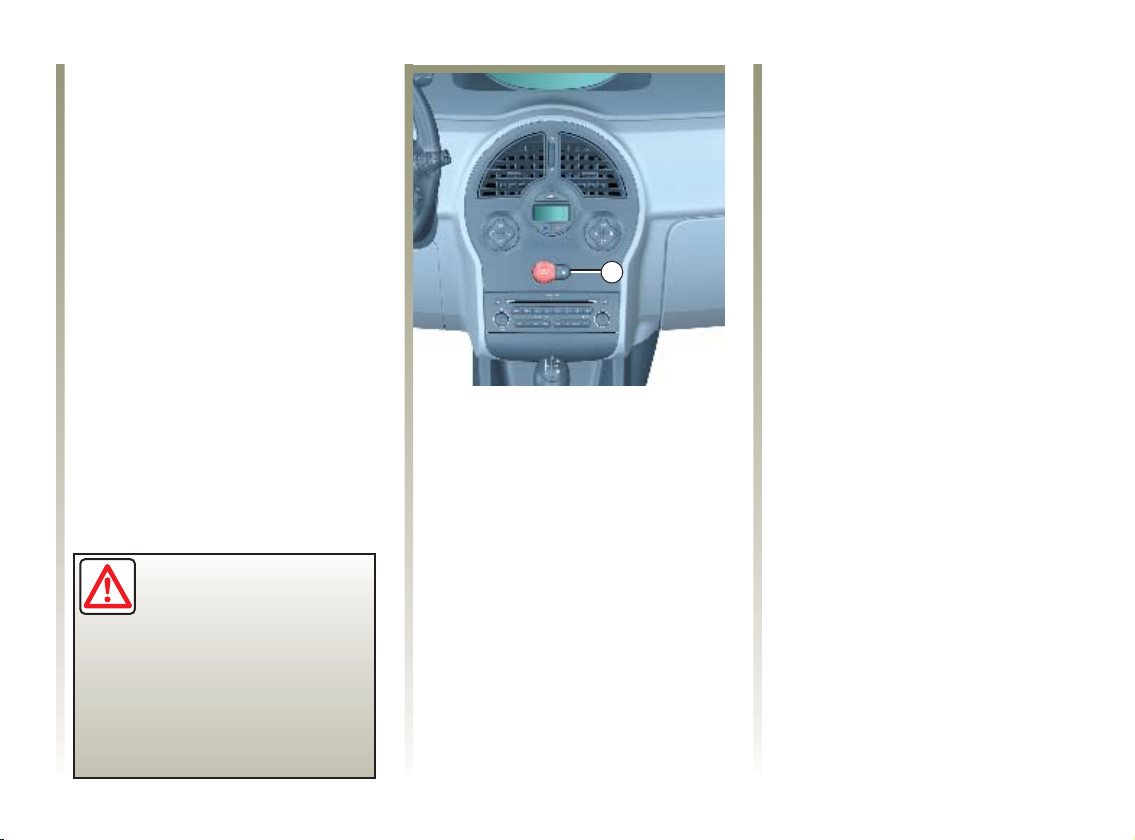

Locking / unlocking from inside:
button 4
It controls the doors, tailgate or
tailgate hatch and the fuel filler flap.
If an opening element (door, tailgate
or tailgate hatch) is open or not
properly closed, the opening
elements lock/unlock rapidly.
In some instances it may be
necessary to lock the vehicle with
one of the opening elements open,
(transporting an object in the boot
for example). In this case, with the
engine switched off, press button 4
formorethanfivesecondstolock
all the doors and tailgate.
Doors and tailgate locking
status indicator light
The indicator light integrated in
switch 4shows whether or not the
doors and tailgate are locked:
- the light is on when the doors are
locked;
- the light goes out when the
opening elements are unlocked.
When you lock the doors, the
indicator light remains lit for
approximately one minute then
goes out.
Driver's responsibility
Never leave your vehicle
with the key in the
ignition.
If you decide to keep the doors
locked whilst driving, remember
that it may be more difficult for
those assisting you to gain access
to your vehicle in the event of an
emergency.

1
NU710_6_G1-FRA 4/03/05 9:32 Page 1.09
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page15
1.09

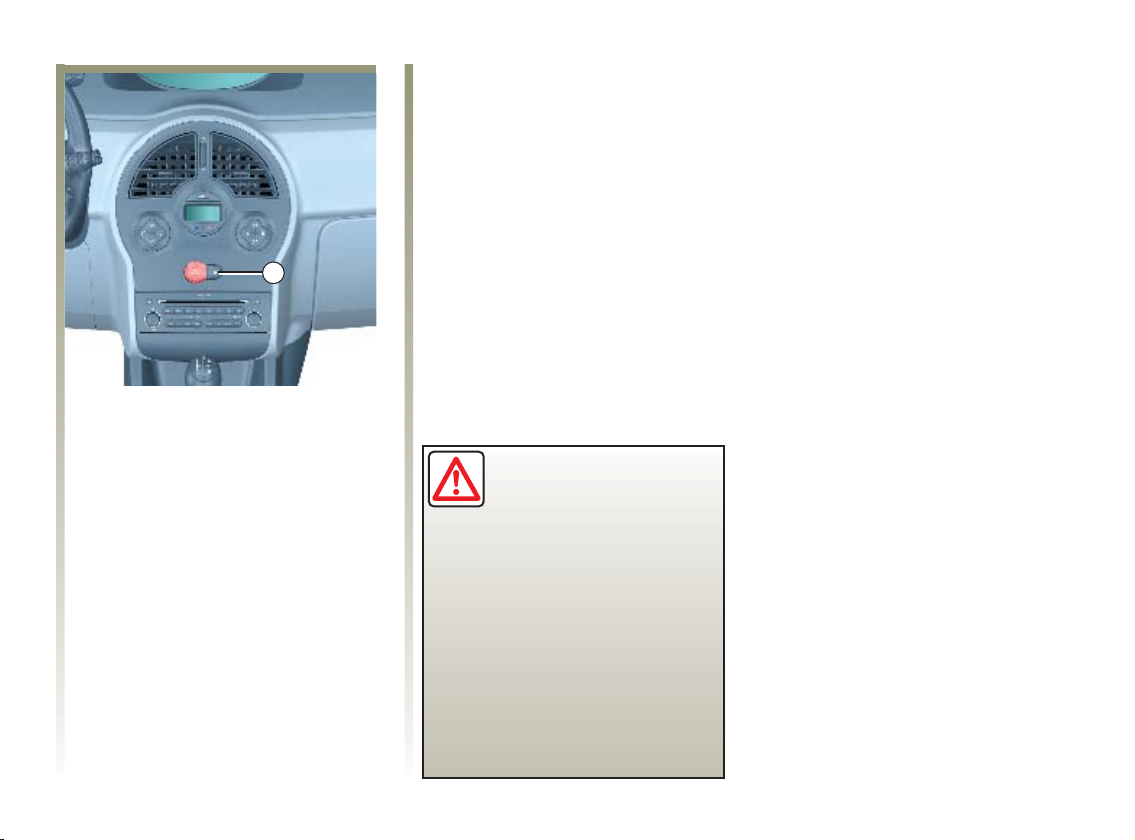

RAID (RENAULT ANTI-INTRUDER DEVICE)
You can decide to activate this
function if you wish.
To activate
With the ignition on, press central
door locking button 1for about five
seconds, until one beep is heard.
To deactivate
With the ignition on, press central
door locking button 1for about five
seconds, until one beep is heard.
If you decide to keep the
doors locked whilst
driving, remember that it
may be more difficult for
those assisting you to gain access
to your vehicle in the event of an
emergency.
Operating principle
When the vehicle moves off, the
system locks the doors
automatically as soon as you reach a
speedof6mph(10km/h).
The door is unlocked:
- by pressing door unlocking button 1.
- by opening a door when
stationary.
Note: If a door is opened, it will
automatically be locked again
when the vehicle reaches a speed
of approximately 6 mph (10 km/h).
Operating faults
If you notice a fault (automatic
locking does not work, warning
light incorporated in button 1does
not light up when the doors are
locked, etc.) first check that that all
thedoorsareproperlyclosed.If
they are closed correctly, contact
your RENAULT Dealer.

1
1
NU710_6_G1-FRA 4/03/05 9:32 Page 1.10
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page16
1.10
ENGINE IMMOBILISER
This prevents the vehicle being
driven by anyone not in possession
of the vehicle's coded ignition key.
The vehicle is automatically
protected a few seconds after the
engine is switched off.
Any unauthorised work
carried out on the engine
immobiliser (computers,
wiring, etc.) could be
dangerous. It must be carried out
by trained RENAULT network
personnel.
Operating principle
When the engine is started, warning
light 1remains lit for a few seconds
then goes out (refer to the
information on Starting the engine
in Section 2).
If the code is not recognised, the
warning light flashes rapidly and
the vehicle will not start.
Indicator lights
Vehicle protection indicator light
After the ignition has been switched
off, warning light 1flashes and the
vehicle is protected.
Operating fault warning light
If the warning light continues to
flash or stays lit up permanently
following an attempt to start the
engine, this indicates a fault in the
system.
In this case, use the second
key(suppliedwiththevehicle).If
the fault is still present, contact a
RENAULT Dealer as only a
RENAULT Dealer is qualified to
repair the engine immobiliser
system.

2
1
NU710_6_G1-FRA 4/03/05 9:32 Page 1.11
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page17
1.11

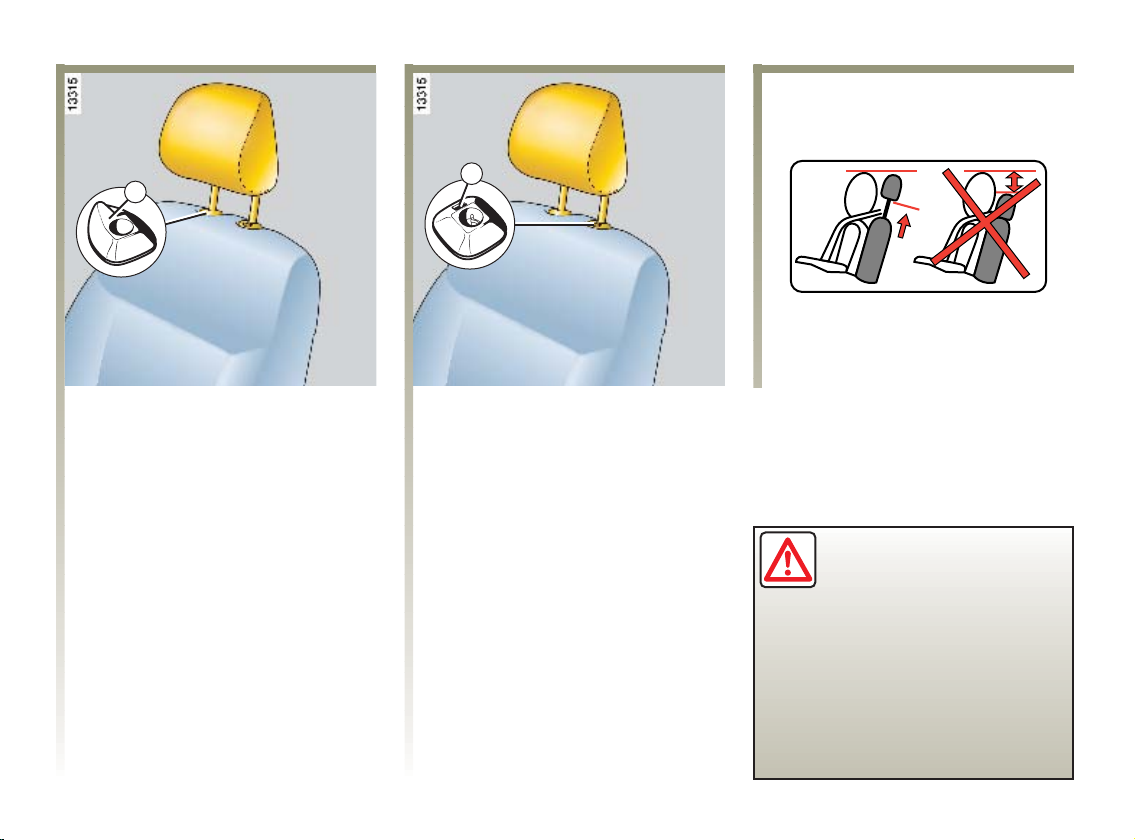

FRONT HEADREST
To fit the headrest
Slide it upwards to the required
height.
To lower the headrest
Move tab 1forwards and lower the
headrest to the required height.
To remove the headrest
Press button 2and lift the headrest
to release it.
To refit the headrest
Insert the headrest rods into the
sleeves, with the notch facing the
front.
Move tab 1forwards and lower the
headrest to the required height.
The headrest is a safety
component. Ensure that it
is fitted and in the correct
position: the top of your
head should be in line with the top
of the headrest.

A
12
NU710_6_G1-FRA 4/03/05 9:32 Page 1.12
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page18
1.12
REAR HEADREST
Positions for use
Press tab Aof lock 1and raise the
headrest to maximum height to use
it in the high position. Lower it until
it locks to use it in the low position.
To remove the headrest
Press tab Aon locks 1and 2then
take out the headrest.
To refit the headrest
Insert the rods into the sleeves,
press the tabs on both rods and
lower the headrest.
Storage position
Press lock 2and lower the headrest
completely.
The fully-lowered position of the
headrest is a storage position: it
should not be used when the seat is
occupied.
The headrest is important
for safety. Ensure that it is
fitted and in the correct
position.

1
3
4
2
NU710_6_G1-FRA 4/03/05 9:32 Page 1.13
J77 - NU710-5 C:\Documentum\Checkout\NU710_6_T1-ENG.win 2/5/2005 9:37 -page19
1.13

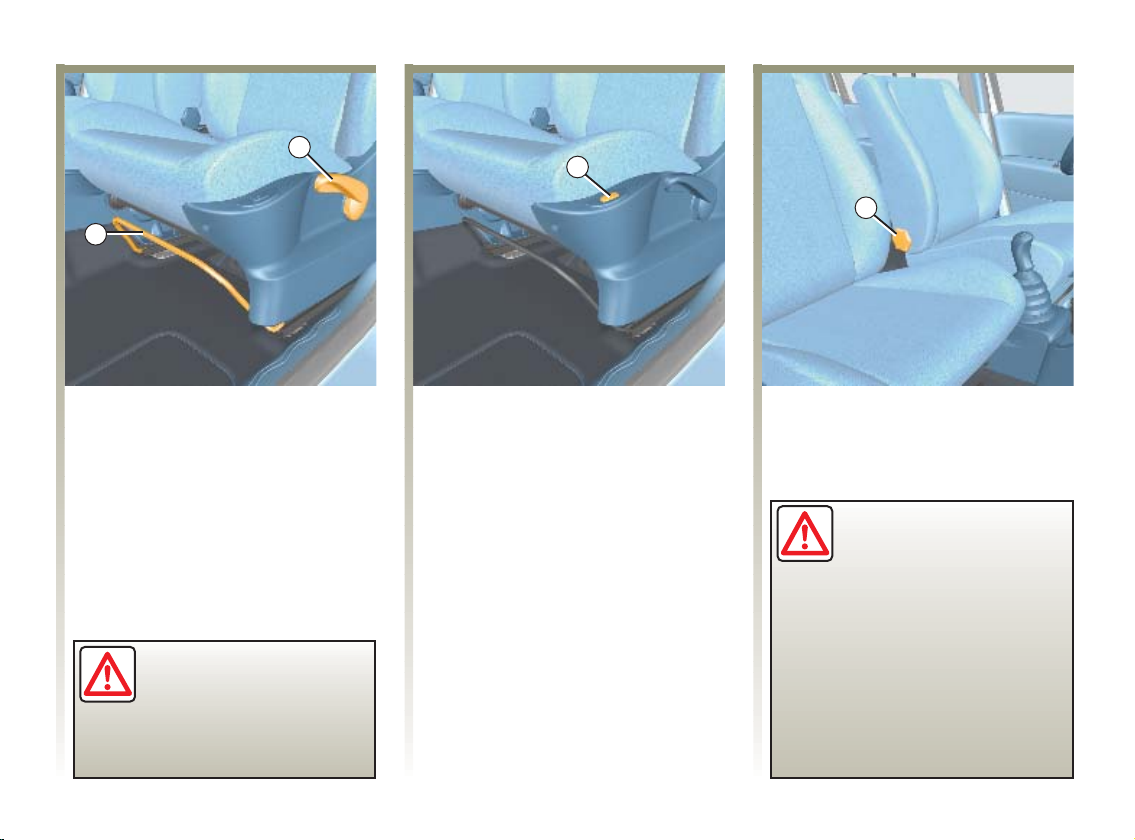

FRONT SEATS
To move a seat forwards or
backwards
Lift lever 1underneath the seat to
release. Once in the desired
position, release the lever and check
that the seat is correctly locked.
For safety reasons, only
adjust the seats when the
vehicle is stationary.
To adjust the height of the driver’s
seat:
Move lever 2as many times as
necessary:
- upwards to raise it,
- downwards to lower it.
Heated seats
With the ignition switched on, press
switch 3on the required seat. The
indicator light in the switch lights
up.
To tilt the seatback
Turn tumblewheel 4and tilt the
seatback to the desired position.
So that the effectiveness
of the seat belts is not
reduced, we would
advise you to wear the
seat belt against your shoulder.
Nothing should be placed on the
floor (area in front of driver), as
such objects may slide under the
pedals during sudden braking
manoeuvres and obstruct their
use.
