0.01
Welcome to your new RENAULT
This driver’s handbook contains all the information you will need:
• to get to know your Renault, to use it to the best advantage and to benefit from all the latest technical developments
which are incorporated in it.
• to ensure that it is always running well by following the simple, but strict, advice concerning regular maintenance.
• to enable you to deal quickly with minor faults which do not require specialist attention.
The few minutes you spend reading this handbook will be amply rewarded by the information which it provides and the
technical innovations it will bring to your attention. If certain points are still unclear, the technicians in our Network will
be happy to provide you with any additional information you may require.
The following symbols are used in this handbook to help you while you are reading it:
To indicate a risk, danger or safety advice.
The description of the models given in this handbook is based on the technical specifications known at the date this
document was produced. The handbook covers all equipment (standard or optional) which is available for these
models, but their presence on the vehicle depends on the version, options selected and country of marketing.
Certain equipment which is due to be made available during the year may also be included in this handbook.
Enjoy driving your new Renault.
Copying or translation, in part or in full, is forbidden without written permission from Renault, 92100 Billancourt 2002.

QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 - page 4
0.02
Brief overview
• Tyre pressures .............................................................................................. 0.04 - 0.05
• Adjusting the seats and driving position ............................................... 1.11 ¬1.14
• Child restraints ........................................................................................... 1.24 ¬1.36
• Warning lights ............................................................................................ 1.42 ¬1.52
• Horn and headlamp flash ............................................................. 1.55 ¬1.57 - 1.62
• De-icing .................................................................................................................... 1.61
• Running in, driving ................................................................................... 2.02 ¬2.30
• Heating/air conditioning ........................................................................... 3.04 ¬3.22
• Opening the bonnet ............................................................................................... 4.02
• Levels (engine oil, windscreen washer, etc.) .......................................... 4.03 ¬4.11
• Emergency spare wheel ............................................................................ 5.02 ¬5.05
• Practical advice (changing the bulbs, fuses, repairs, operating
incidents) .................................................................................................... 5.02 ¬5.34

QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 - page 5
0.03
CONTENTS
Sections
1
2
3
4
5
6
7
Getting to know your car .....................................................................
Driving ...............................................................................................................
Your comfort .................................................................................................
Maintenance ..................................................................................................
Practical advice ...........................................................................................
Technical specifications ........................................................................
Alphabetical index ....................................................................................

QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 - page 6
0.04
Tyre inflation pressures when cold (in bar)
Versions 1.2
1.2 16V
1.4 16V
1.6 16V 2.0 16V 1.5 dCi 1.9 dCi
Tyre sizes 175/65 R14 T
185/55 R15 H
175/65 R14 T
185/55 R15 H
195/45 R16 195/50 R15 175/65 R14 T
185/55 R15 H
Normal use (2)
• Front 1.9 2.2(1) 2.3 2.3 2.2
•Rear 1.822.12.12
Motorway use (2)
• Front 2 2.3(1) 2.7 2.5 2.3
• Rear 2 2.1(1) 2.2 2.2 2.1
Wheel sizes 5.5 J 14
6.0 J 15
7 J 16 7 J 16 5.5 J 14
6.0 J 15
Tyre safety and use of chains
Refer to the information on tyres in Section 5 for information on maintenance and, depending on the version, the
conditions under which snow chains may be fitted to the vehicle.
Special features of the 2.0 16V version
The tyres on this vehicle cannot be fitted with chains. If you wish to fit snow chains, you must use special equipment.
Consult your Renault Dealer.
(1) Vehicle with automatic transmission: add 0.1 bar.
(2) Special note concerning vehicles used under full load (maximum permissible all-up weight) and towing a trailer:
Maximum speed must be limited to 60 mph (100 km/h) and the tyre pressure increased by 0.2 bar (or 3PSI).
Refer to the information on weights in Section 6 for more details.

QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page7
0.05
Tyre pressures when cold (in PSI) (continued)
Versions 1.2
1.2 16V
1.4 16V
1.6 16V 2.0 16V 1.5 dCi 1.9 dCi
Tyre sizes 175/65 R14 T
185/55 R15 H
175/65 R14 T
185/55 R15 H
195/45 R16 195/50 R15 175/65 R14 T
185/55 R15 H
Normal use
•Front 28 32(1) 33 33 32
•Rear 2629303029
Motorway use (2)
• Front 29 33 (1) 39 36 33
• Rear 28 30(1) 32 32 30
Wheel sizes 5.5 J 14
6.0 J 15
7 J 16 7 J 16 5.5 J 14
6.0 J 15
Tyre safety and use of chains
Refer to the information on tyres in Section 5 for information on maintenance and, depending on the version, the
conditions under which snow chains may be fitted to the vehicle.
Special features of the 2.0 16V version
The tyres on this vehicle cannot be fitted with chains. If you wish to fit snow chains, you must use special equipment.
Consult your Renault Dealer.
(1) Vehicle with automatic transmission: add 3PSI.
(2) Special note concerning vehicles used under full load (maximum permissible all-up weight) and towing a trailer:
Maximum speed must be limited to 60 mph (100 km/h) and the tyre pressure increased by 0.2 bar (or 3PSI).
Refer to the information on weights in Section 6 for more details.

QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page8
0.06

QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page9
1.01
Section 1: Getting to know your car
Keys - plip remote control unit ............................................................................................................ 1.02 - 1.03
Doors ....................................................................................................................................................... 1.04 - 1.05
Automatic locking of doors when driving ..................................................................................................... 1.06
Engine immobiliser system ................................................................................................................... 1.07 - 1.08
Head restraints - Seats ......................................................................................................................... 1.09 ¬1.12
Seat belts/Methods of restraint in addition to the front seat belts ................................................. 1.13 ¬1.23
Child safety ........................................................................................................................................... 1.24 ¬1.36
Clock and external temperature ...................................................................................................................... 1.37
Driving position ................................................................................................................................... 1.38 ¬1.41
Instruments ........................................................................................................................................... 1.42 ¬1.49
On-board computer .......................................................................................................................... 1.50 ¬1.52
Rear-view mirrors .................................................................................................................................. 1.53 - 1.54
Steering wheel .................................................................................................................................................. 1.54
Lighting and external signals ............................................................................................................... 1.55 - 1.56
Headlight beam adjustment ............................................................................................................................. 1.57
Wipers ................................................................................................................................................... 1.58 ¬1.60
De-icing .............................................................................................................................................................. 1.61
Visible and audible warning signals ............................................................................................................... 1.62
Fuel tank (filling with fuel) .................................................................................................................. 1.63 - 1.64

1
2
QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page10
1.02
KEYS / RADIO FREQUENCY REMOTE CONTROL

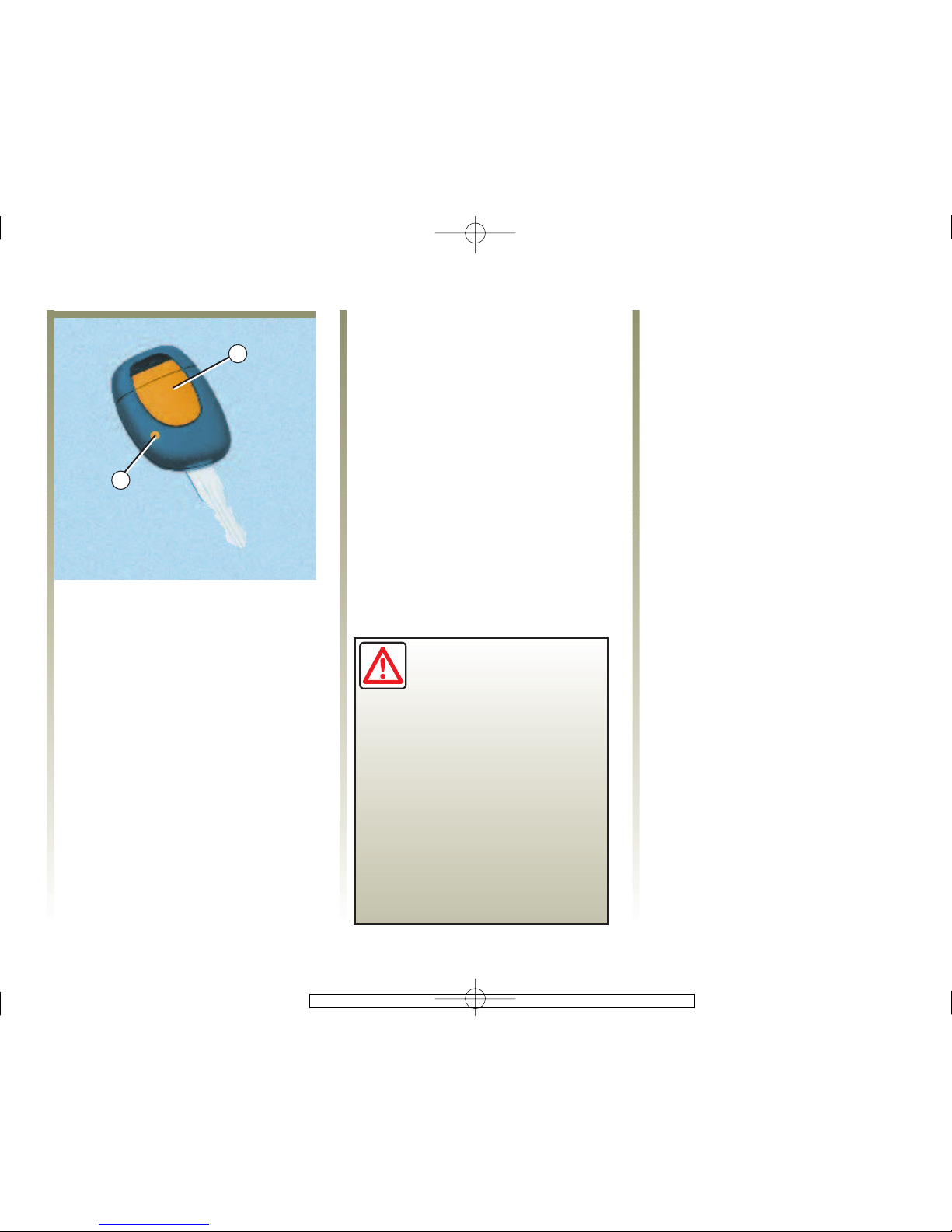

1Remote control coded ignition
key, key for doors and fuel filler
cap.
The plip remote control 1locks and
unlocks the doors.
It is supplied with power by a
battery which has to be replaced
when the battery tell-tale light 2no
longer comes on. (Refer to the
information on the radio frequency
remote control batteries.)
If there is a child (or
animal) in the car, never
leave it unattended with
the key in the ignition.
With the key in the ignition it
would be possible to operate
electrical equipment such as the
window risers and there is a risk
that the child may be seriously
injured (by trapping his or her
neck, arm, hand, etc.).
Locking/unlocking the doors
Press the remote control for
approximately one second to lock or
unlock the doors. (Tell-tale light 2
will switch on.)
- The hazard warning lights flash
twice to indicate that the doors
have been locked.
Note: Depending on the vehicle, if
eitheradoorortailgateisopenor
not properly closed or if a rear
interior light remains in the
“continuous lighting” position
(see information on interior lights
in section 3), the hazard warning
lights will not flash.
- The hazard warning lights flash
once to indicate that the doors
have been unlocked.

QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page11
1.03
RADIO FREQUENCY REMOTE CONTROL (continued)
The range within which the remote
control will operate
This varies according to the
environment: therefore take care
when handling the remote control
that you do not inadvertently lock
or unlock the doors.
Note: On certain vehicles, if a door
is not opened within approximately
30 seconds of unlocking the door
using the remote control, the doors
will lock again automatically.
Interference
Interference may be caused to the
operation of the remote control by
factors in the immediate vicinity
(external installations or the use of
equipment operating on the same
frequency as the remote control).
If you lose your keys or need
another set of keys (or a remote
control), contact your RENAULT
Dealer.
• If a remote control unit is
replaced, it will be necessary to
take the vehicle to your
RENAULT Dealer because both
the vehicle and all the remote
control units are needed to
initialise the system.
• No more than two remote controls
can be used on one vehicle.
• Make sure that the batteries are
always in good condition - they
last for approximately two years.

1
2
5
4
3
QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page12
1.04
OPENING THE DOORS
Opening the doors from the
outside
Front: Use the key to unlock the
front door lock 2.Slipyourhand
under the handle 1and pull it
towards you.
Rear: When the front door is open,
lift the unlocking knob 3from
inside and pull the door handle.
Opening the doors from inside
the vehicle
Move handle 4.
Lights on warning buzzer
If you have left the lights switched
on after turning off the ignition, a
warning buzzer will sound when a
door is opened (risk of battery
discharge).
Childproof locks
To prevent the rear doors being
opened from inside the vehicle,
move lever 5on each door and
check from inside the car that both
doors are securely locked.

2
1
QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page13
1.05
LOCKING THE DOORS
Manual locking
Front: Use the key from the outside.
Rear: Press down knob 1in each
door.
Electric central locking
This enables the doors and
the luggage compartment to be
locked or unlocked simultaneously.
Lock by pressing the indicator light
on switch 2.
The front door mechanism cannot
be locked if the door is open.
Opening status warning light
The warning light on switch 2
informs you of the closure status of
the doors and tailgate:
- the light comes on when the doors
are locked;
- when a door is opened (or
incorrectly closed) the indicator
light goes out.
When you lock the doors using the
plip remote control, the indicator
light remains lit for approximately
one minute then goes out.
If you decide to keep the
doors locked when you
are driving, remember
that it may be more
difficult for those assisting you
to gain access to your vehicle in
the event of an emergency.

1
QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page14
1.06
AUTOMATIC LOCKING OF DOORS, ETC. WHEN DRIVING
You must first decide if you want to
activate this function.
To activate
With the ignition on, press the
central door locking button 1for
approximately 5 seconds, until you
hear the beep.
To deactivate
With the ignition on, press the
central door locking button 1for
approximately 5 seconds, until you
hear the beep.
If you decide to keep the
doors locked when you
are driving, remember
that it may be more
difficult for those assisting you
to gain access to your vehicle in
the event of an emergency.
Operating principle
When the vehicle moves off, the
system automatically locks the
doors,etc.assoonasaspeedof4
mph (6 km/h) is attained. The
indicator light on button 1light ups.
Unlocking occurs automatically:
- if a front door is opened.
Note: If a rear door is opened, this
will be locked again automatically
when the vehicle attains a speed of
approximately 4 mph (6 km/h).
- by pressing the door unlocking
button 1.
Operating incident
If you note that the system is not
operating correctly (automatic
locking does not take place, the
indicator light on button 1does not
light up when the doors, etc. are
locked), first of all check that all the
doors, etc. are properly closed.
However, if they are closed
correctly, consult your Renault
Dealer.
Also make sure that locking has not
been deactivated inadvertently. If
this occurs, switch the ignition off
and on again and reactivate it as
described above.

1
QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page15
1.07
ENGINE IMMOBILISER
This prevents the engine being
started by anyone who does not
have the coded key for the vehicle.
Any operation on or
modification to the
immobiliser system
(computers, wiring, etc.)
may be dangerous. It must be
carried out by qualified
RENAULT personnel.
Operating principle
The vehicle is automatically
protected a few seconds after the
key has been removed from the
ignition.
When the ignition is switched on,
warning light 1comesonforafew
seconds then goes out.
The vehicle has recognised the code
and the engine may be started.
If the code of the ignition key is not
recognised by the vehicle, warning
light 1will flash continuously and
the engine cannot be started.

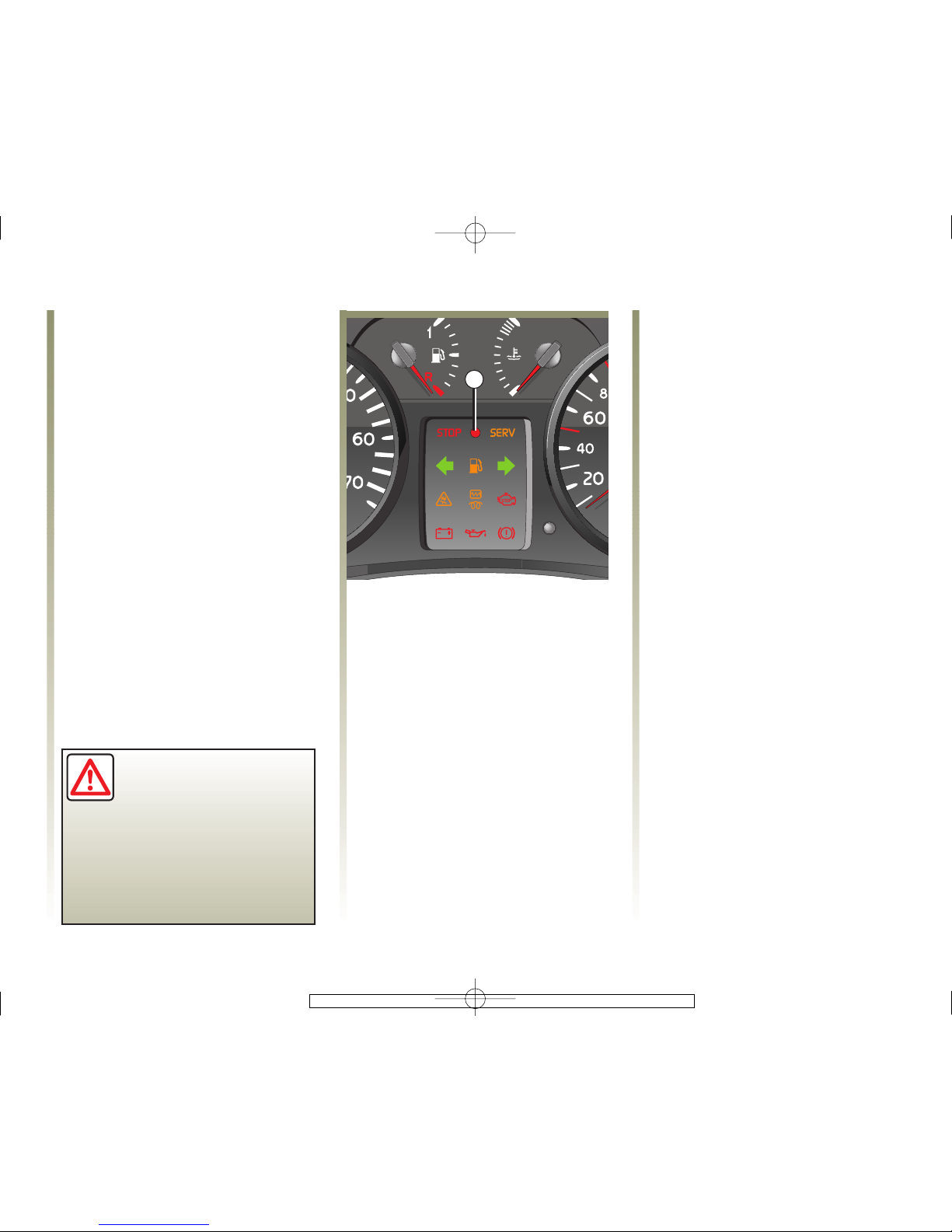

Indicator light
System operational indicator light
When the ignition is switched on,
indicator light 1lights up
continuously for approximately
three seconds and then goes out.
You can then start the engine.
Vehicle protection indicator light
A few seconds after the ignition has
been switched off, indicator light 1
will flash continuously.
The vehicle will not be protected
until the key has been taken out of
the ignition.

1
2
QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page16
1.08
ENGINE IMMOBILISER (continued)
Warning light to indicate that the
system is not operating correctly
When the ignition has been
switched on, if warning light 1
continues to flash or remains on, it
indicates that the system is not
operating correctly.
In all instances, you must contact a
RENAULT Dealer, who are the only
people authorised to repair the
engine immobiliser system.
If the coded ignition key is faulty,
use the second key (supplied with
the vehicle).

A1
1
QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page17
1.09

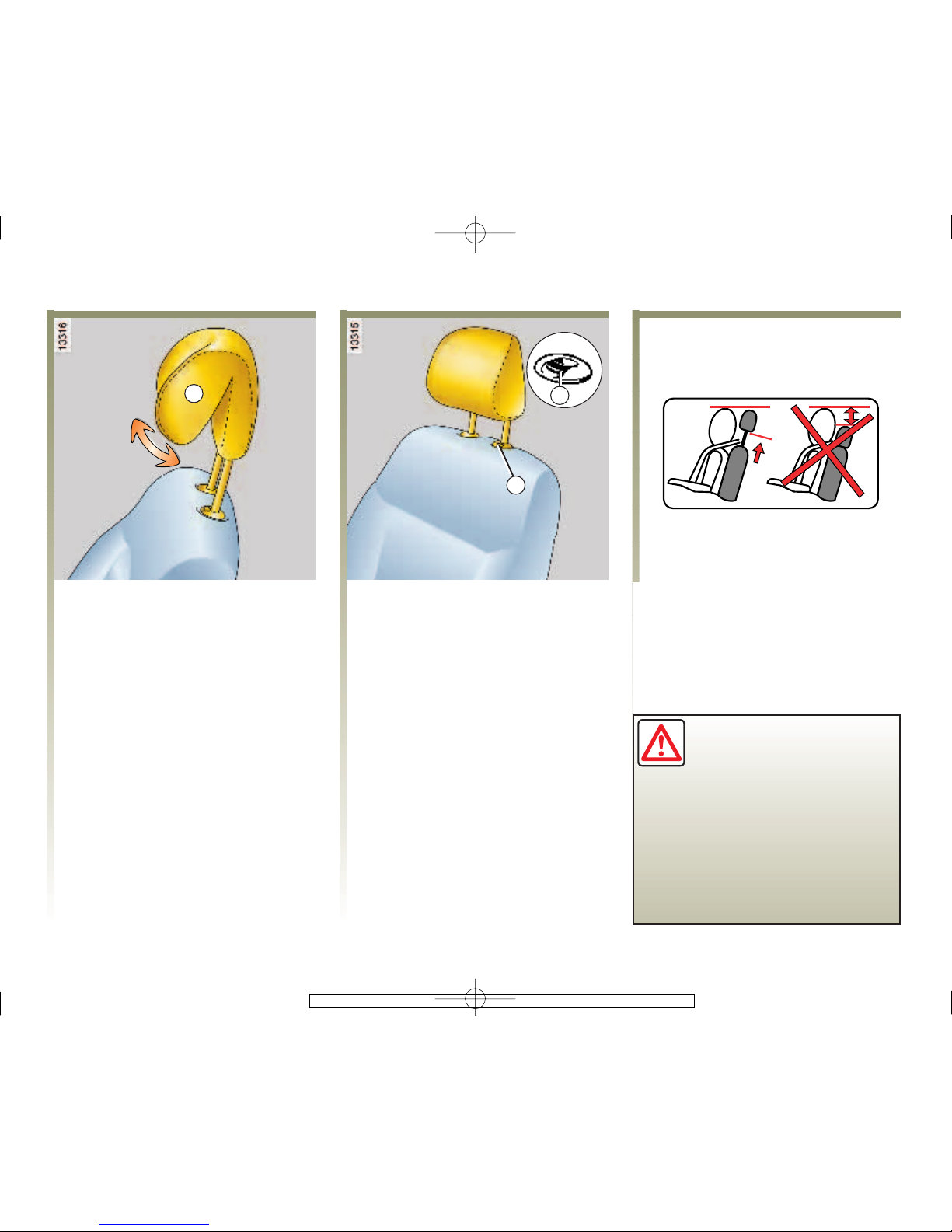

HEAD RESTRAINTS
To raise or lower the headrest
Pull the headrest towards you (i.e.
towards the front of the vehicle) and
slide it up or down at the same time.
To adjust the angle of the headrest
On certain vehicles the angle of the
headrest can be adjusted. To do this,
move the front section Aof the
headrest forwards or backwards
until it feels comfortable.
To remove the headrest
First incline the seatback towards
the rear.
Raise the headrest until it is at the
highest possible setting. Lift up
tab 1and then pull the headrest
upwards until it is released.
To refit the headrest
Insert the rods into the sleeves, with
the notches facing the front.
Lower the headrest until it locks in
position.
The head restraint is
important for safety: ensure
that it is positioned
correctly. The distance
between your head and the head
restraint should be as small as
possible, and the top of the head
restraint should be as close as
possible to the top of your head.

1
1
QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page18
1.10

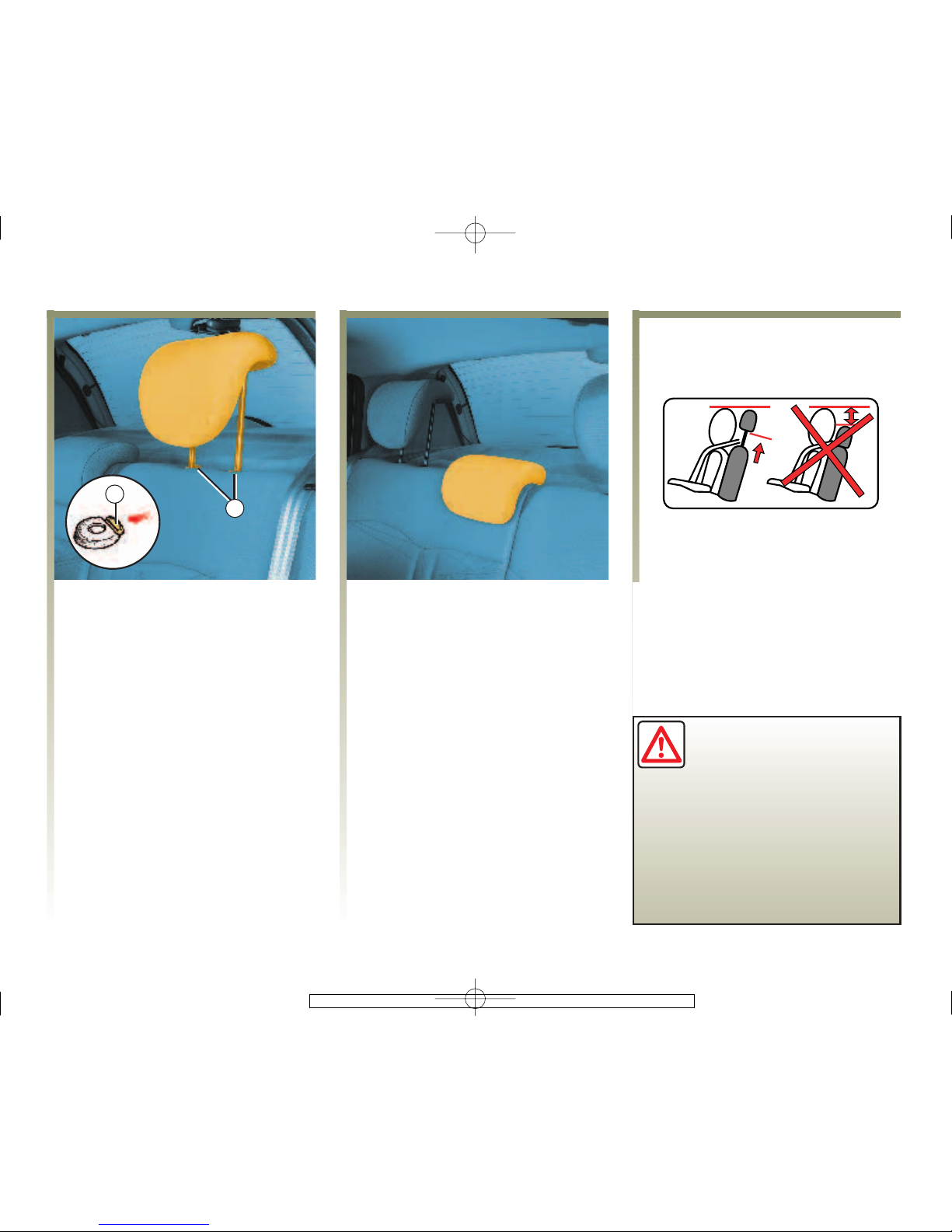

REAR HEAD RESTRAINTS
To adjust the height
Simply slide it up.
To remove it
Press tab 1.
To refit the headrest
Insert the rods into the sleeves, with
the notches to the front, and lower
the headrest to the desired height.
Storage position
When the headrest is fully lowered,
it is in the storage position; do not
use this position when someone is
sitting in the rear seats.
The head restraint is
important for safety: ensure
that it is positioned
correctly. The distance
between your head and the head
restraint should be as small as
possible, and the top of the head
restraint should be as close as
possible to the top of your head.

2
3
4
1
QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page19
1.11

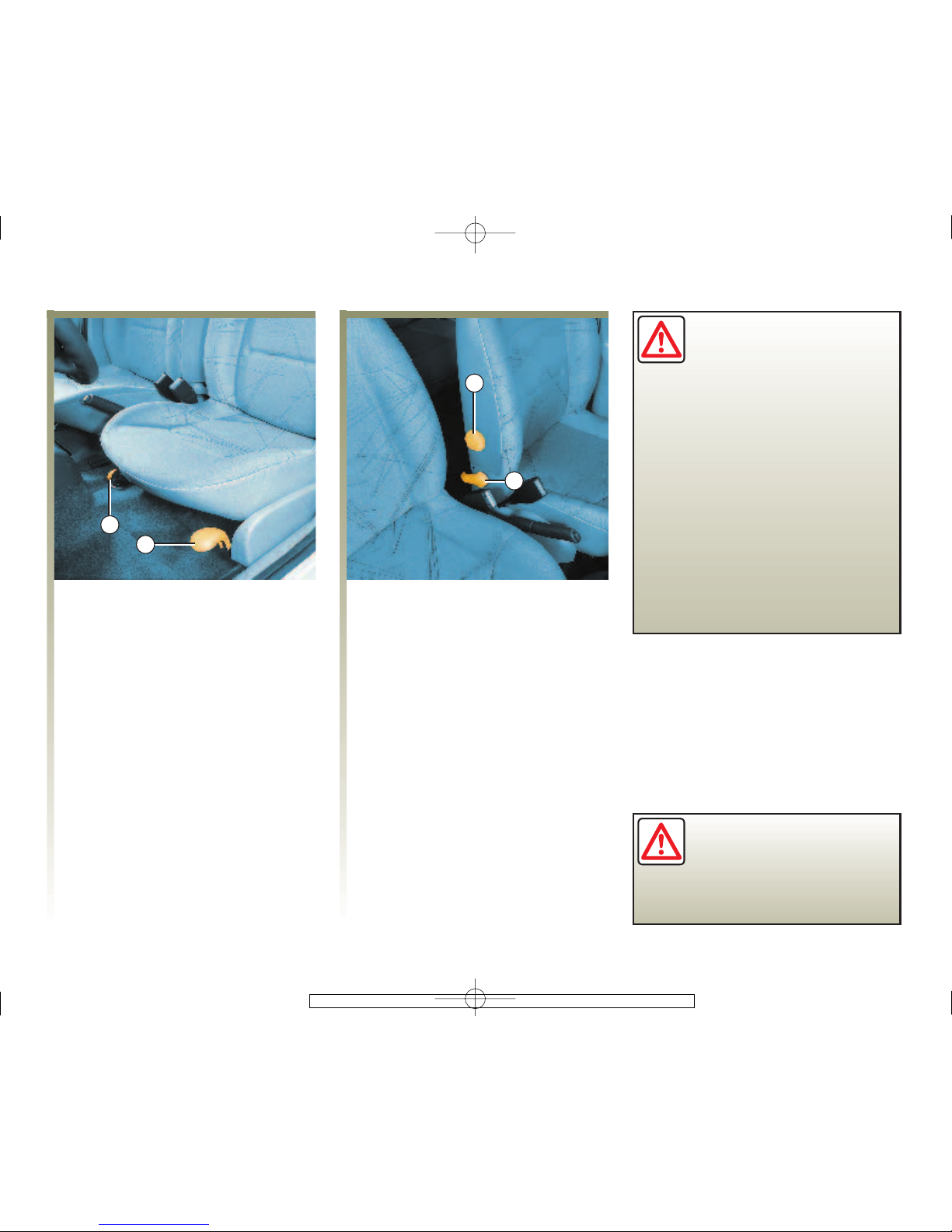

FRONT SEATS
To move forwards or backwards:
Lift lever 2to unlock the seat.
Release the lever when the seat is in
the required position and ensure it
is locked in place.
To raise or lower the driver’s seat:
Lift lever 1.
To tilt the seatback:
Move handle 4and tilt the seat to
the required position.
To adjust the lumbar support on the
driver’s seat:
Turn wheel 3.
So that the effectiveness of
the seat belts is not
reduced, we would advise
you not to recline the
seatbacks excessively.
Make sure the seatback is locked in
place correctly.
No objects should be placed on the
floor (area in front of driver) as
such objects may slide under the
pedal during braking manoeuvres,
thus obstructing its use.
For safety reasons, adjust
the seats only when the
vehicle is stationary.

5
6
QXBIUDB*T[G 3DJH 
nu654-6 - CLIO II C:\Documentum\Checkout\nu654-6_eng_T1.WIN 4/11/2002 13:44 -page20
1.12
FRONT SEATS (continued)
Access to the rear seats
(three-door versions)
Lift lever 5and slide the seat
forwards.
To return the seat to its original
position (memorised position) on
the driver's side, slide the seat
backwards until it locks.

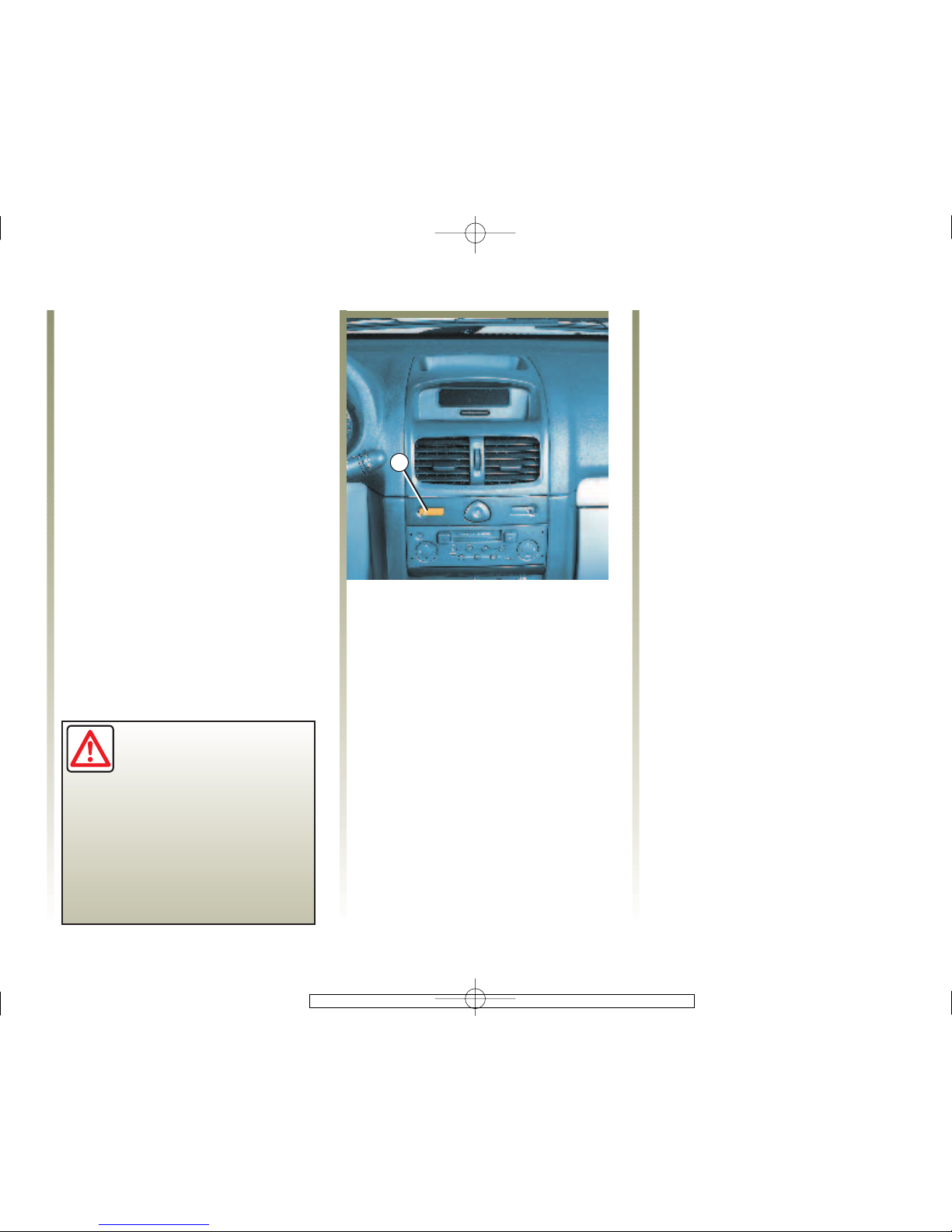

Heated seats
With the ignition switched
on, press the switch located on the
rail cover 6. An indicator light will
light up on the instrument panel.
The system is not necessarily
activated if the indicator light is lit
up. The system has a thermostat and
only operates when the passenger
compartment temperature is less
than 12°C (with a tolerance of plus
or minus 4°C).
