Owner’s Manual for the S-500 Renlita Door
11 1/16" 1'-2 15/16"
Congratulations on your purchase of a new Renlita door.
that your robust, sleek Renlita door will provide you with many years of enjoyment.
We pride ourselves in satisfying customers, so please contact us if you are not
Operating a Motorized Door
Unlock the shoot bolt at the bottom of the door.
The installer will give you a remote control or
mount a control unit on your wall. Consult the
user manual for your motor to understand how to
use your control device.

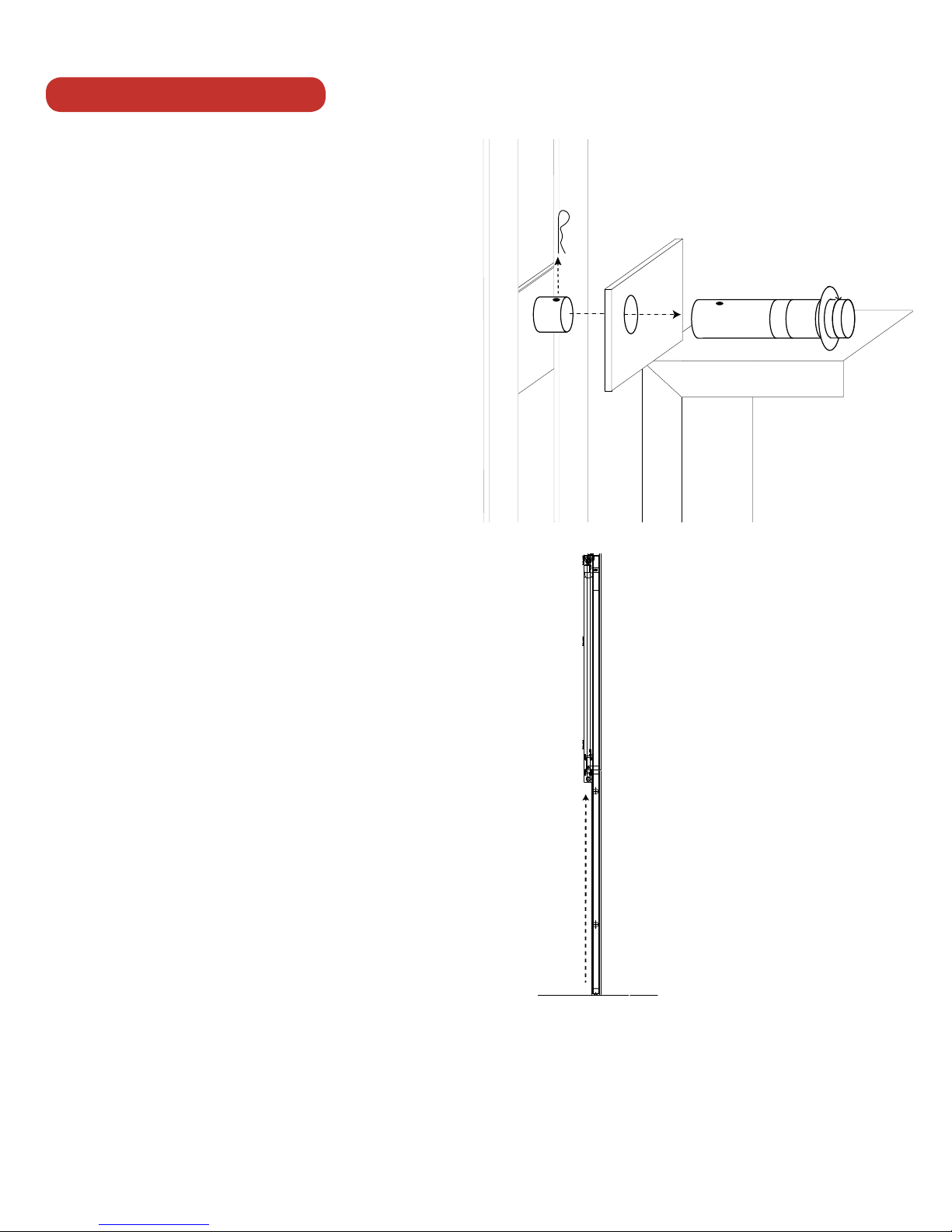

To operate your door manually, you need
to disconnect the door from the trolley by
disconnecting the door’s cam pin from the sleeve
on the trolley. (See the illustration to the right.)
The next section explains how to manually open
your door.
Operating a Manual Door
Unlock the shoot bolt at the bottom of the door.
Open your door manually by lifting the bottom
and slowly guiding it upward until it gently rests
in its open position. (See the illustration on the
bottom right.) Be careful not to allow the
door to slam open or shut because that will
eventually cause damage to the door, possibly
making it dangerous to use.
Close the door by gently pulling the bottom
down until the door closes fully.
Safety Features for Motorized Doors:
Photo Beam- The installer will place sensors
that project a photo beam across the inside of
the doorway six inches from the ground. These
sensors communicate with the motor while the
door is closing so that if anything breaks the
beam, the motor will automatically return the
door to fully open.
Obstruction Sensing- Each motor will
memorize the amount of force necessary to
close the door so that it can read interference
with the door’s movement and return the door
to fully open if the door encounters something
while it’s closing.
Operang your door
Trolley
Sleeve
Door
Trolley Pin
Regular Cleaning
Follow these steps to clean the powder coating on your door’s steel members. If your door has
cladding on either side, consult the manufacturer of the cladding to know how best to clean it.
1. Remove residues with a wet sponge.
2. Use a soft brush or a cloth and a mild household cleaner to clean the steel members of your door.
3. Rinse the door with clean water.
What not to do
Do not use cleaners that require you to wear gloves because they could damage the powder
coating; the damage may not appear for up to twelve months.
Do not use nylon or steel wool scourers on the powder coating.
When you need a replacement
to operate.
technician in your area.
Caring for your door
Yearly Check Up
Joint Lubrication:

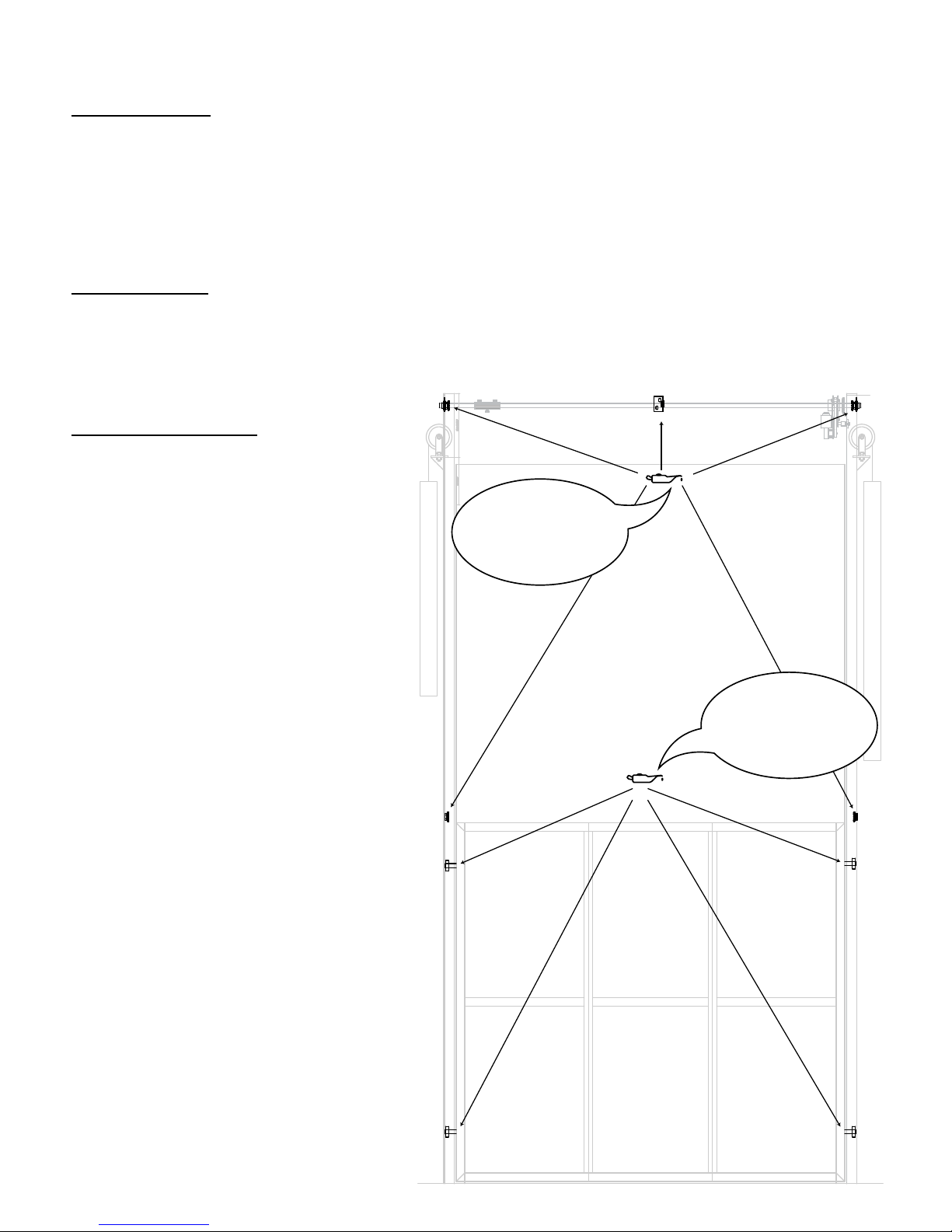

Lubricate the areas noted in the diagram with a graphite-based lubricant every twelve months.
List of items to lubricate:
Support bracket (1 or more)
Sprockets (only on doors with motors, 4)
Cable thimbles and axles (4)
Cable Inspection:

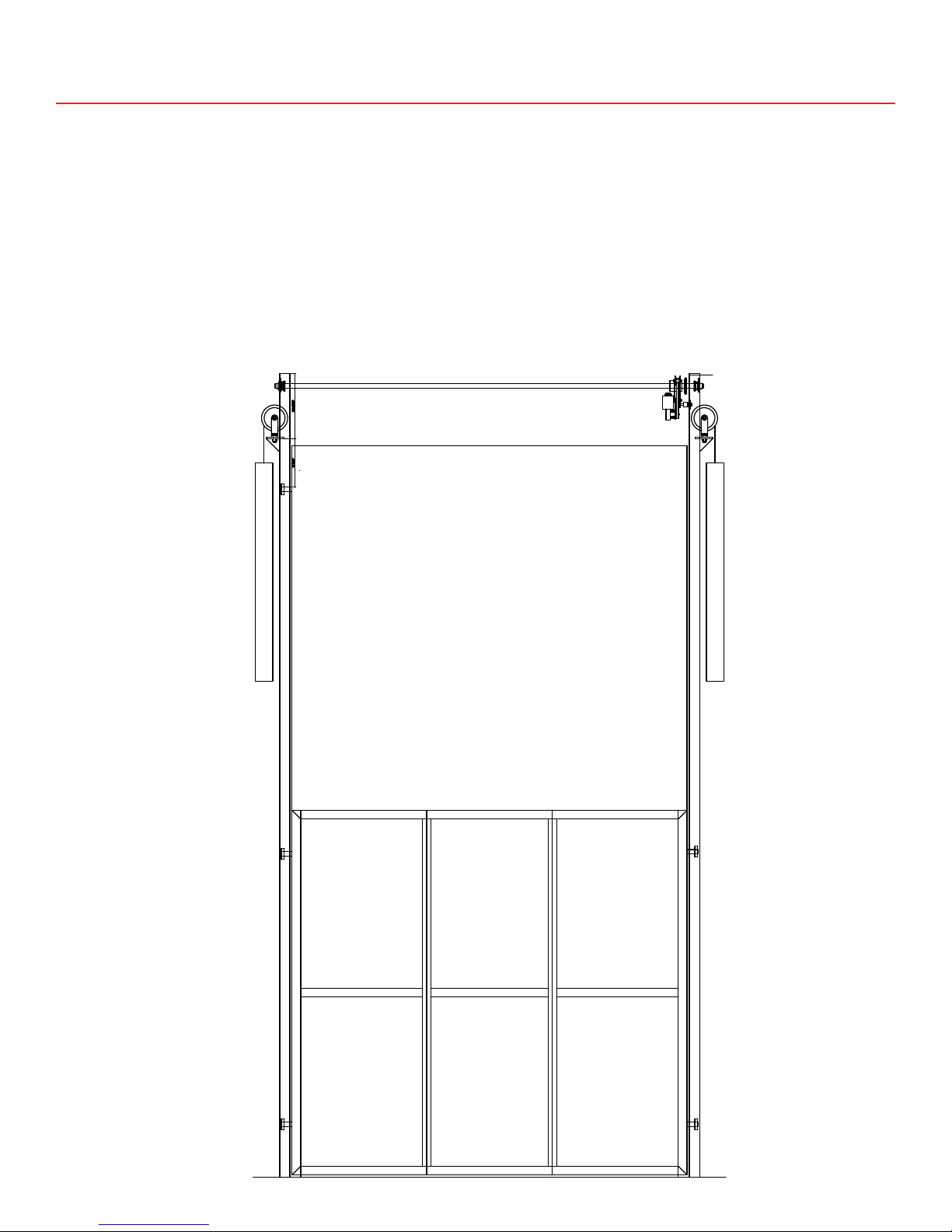

Inspect the cables every twelve months for frays or other damage by removing the counterweight covers
and watching the cables while the door moves. Do not put your hand next to a cable while the door is
moving. The dotted rectangles in the drawing show where the covers should be. Contact Renlita Doors
We provide a can of paint with the
door in case at some time you need
apply the paint, shake the can well, hold
the nozzle 8 – 12 inches from the surface,
and apply the paint in light coats to the
blemished spot.
11 1/16" 1'-2 15/16"
Apply grease to the
support bracket and
chain sprockets.
Apply grease to the
axles, rollers, and
cable thimbles.
Sales
903-583-7500
Technical Support
903-583-7500
Renlita Doors North America, LLC
P.O. Box B
Bonham, TX 75418
other innovative products from Renlita Doors.
Contact us
Limited Warranty
RENLITA DOORS NORTH AMERICA, LLC (Renlita Overhead Doors) warrants to the original purchaser
within one year from date of installation, if a product sold under this warranty proves to be defective
in material or workmanship through normal use and service according to maintenance and operations
Overhead Doors will replace or repair (at Renlita Overhead Doors option) the defective product.
In addition to general warranty, Renlita Overhead Doors warrants the steel frame against rust, in
painted non-damaged condition for a period of two years from original purchase. This warranty does
not apply to scratched, dented, damaged or corroded areas of the frame.
Warranties do not cover damage due to: accident, casualty, vandalism, abuse, harmful fumes or foreign
warranties extend to or cover any damages or claims with respect to any product that in any way or
degree have been altered, processed, misused, or improperly handled or installed.
Renlita Overhead Doors makes no other warranties, representations or covenants, expressed or
implied with respect to this product, as to any matter whatsoever, including but not limited to
warranties, representations or covenants as to workmanship, design, capacity, quality, condition,
responsible for any incident or consequential damages arising out of the breach of this limited
warranty, including but not limited to damage to buildings, other property, or other injuries or
damages sustained b any persons whomsoever, or the recovery of any direct or indirect costs such as
shipping, installation labor charges, paint or painting, or other building materials.
state to state. All claims under these warranties shall require proof of purchase and be addressed to
Renlita Doors North America, LLC P.O. Box B, Bonham, TX 75418
Warranty Informaon
