Residentia Esatto EE70T User manual
User Mnul
Exactly what
you need
Model Code/s:
EE70T
Online:
esatto.house
Product:
70cm Electric Cooktop
User Manual 02
Congratulations on purchasing your new electric cooktop. The Esatto brand is proudly
distributed within Australia by esidentia Group Pty Ltd.
Please refer to the warranty card at the rear of this manual for information regarding
your product’s parts and labour warranty, or visit us online at www.residentia.group
At esidentia Group, we are customer obsessed and our Support Team are there
to ensure you get the most out of your appliance. Should you want to learn more
about recommended cooking temperatures, the various features of your cooktop,
and importantly taking care of your appliance when cleaning, our Support Team
are here to help. You can use our online Support Centre at anytime by visiting
http://support.residentiagroup.com.au, or you can contact us via calling us on
1300 11 HELP (4357).
It is important that you read through the following use and care manual thoroughly to
familiarise yourself with the installation and operation requirements of your appliance
to ensure optimum performance.
Again, thank you for choosing an Esatto appliance and we look forward to being of
service to you.
Kind Regards,
The esidentia Team
Residentia Group
—
Head Office.
118 Campbell Street
Collingwood, VIC
Australia 3066
—
ACN.
600 546 656
—
Online.
residentia.group
Postage.
PO Box 341, Mt Eliza
Victoria Australia 3930
Telephone.
1300 11 4357
Email.
support@residentiagroup.com.au
esatto.house03
02
Welcome
04
Safety
Instructions
Contents
06
Your Esatto
Cooktop
07
Installation
Instructions
10
Operating your
Cooktop
17
Cleaning &
Maintenance/
17
Technical
Data
18
Troubleshooting
19
Purchase
Details
20
Warranty
Information
User Manual 04
This cooktop must only be installed by a suitably
qualified and licenced person and in accordance with
the instructions provided. Incorrect installation may
cause harm to persons, damage property and void
the product’s warranty.
IMPORTANT!
The electricity supply to the cooktop must be cut off before
any adjustments or maintenance work is undertaken.
WARNING
When using this product, basic precautions should always
be taken including the following:
► This cooktop is designed for domestic household use
and for the cooking and frying of domestic foodstuffs.
IMPORTANT!
The adjacent furniture and all materials used in the
installation must be able to withstand a minimum
temperature of 85°C above the ambient temperature
of the room it is located in, whilst in use.
► Certain types of vinyl or laminate kitchen cabinetry
are particularly prone to heat damage or discolouration
at temperatures above the guidelines given.
► Any damage caused by the cooktop being installed in
contravention of this temperature limit, will be the
liability of the owner.
► Your new cooktop is guaranteed against electrical or
mechanical defects, subject to certain exclusions that
are noted in the Warranty Terms and Conditions (at the
rear of this user manual). The foregoing does not affect
your statutory rights.
► The use of this cooktop for any other purpose or in any
other environment, without the express agreement
of Residentia Group, will invalidate any warranty or
liability claim.
► You should not use this appliance to store items on or
as a work surface.
► No modifications to the appliance are permitted by
Residentia Group.
► You should not store or place flammable or highly
flammable liquids/materials on top of or near the
appliance. Items made from aluminium, plastic
or plastic film should also be kept away from the
appliance, as they may fuse to the surface.
► Repairs may only be carried out by authorised service
agents.
► Your Esatto cooktop is not to be used by children or
persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,
unless they have been given supervision or instruction.
► Any film or stickers that are present on the cooktop
when it is delivered should be removed before use.
► Care should be used when utilising the cooktop,
otherwise there is a risk of burns being caused.
► You should not allow the electrical connection cables
to come into contact with the cooktop surface when
it is hot or any hot cookware.
► If fat and oil overheats, then it can ignite extremely
quickly. For this reason, when cooking with fat and
oil the appliance should not be left unattended.
► Make sure that all of the cooking zones are switched
off after use.
► Cleaning of the cooktop should be carried out on a
regular basis, once the cooktop has cooled down.
► Great care should be taken whilst using this appliance
and when following the cleaning procedure.
► You should not use a steam jet or any other high
pressure cleaning equipment to clean the appliance.
Safety Instructions
esatto.house05
DECLARATION OF CONFORMITY
The manufacturer declares that the cooktop is built using
certified materials and requires the appliance to be installed
in accordance with the standards currently in force. This
appliance must be used by a trained person for domestic
purposes only.
TO AVOID DAMAGING YOUR COOKTOP
► The ceramic glass can be damaged by objects falling
onto it.
► The ceramic glass edge can be damaged by knocks
from cookware.
► Cast iron and cast aluminium cookware with damaged
bases may scratch the ceramic surface if they are
dragged across it.
► Pans should be lifted on and off the cooktop surface
and not dragged.
► Cooking zones should not be switched on without
cookware placed on it. Also the cookware should
not be empty.
UNPACKING
During transportation, protective packaging was used to
protect the appliance against any damage. After unpacking,
please dispose of all elements of packaging in a way that will
not cause damage to the environment. All materials used for
packaging the appliance are environmentally friendly; they
are 100% recyclable and are marked with the appropriate
symbol.
► During unpacking, the packaging materials (polythene
bags, polystyrene pieces, etc.) should be kept out of
reach of children.
DISPOSAL OF THE APPLIANCE
Old appliances should not simply be disposed of with
normal household waste, but should be delivered to a
collection and recycling centre for electric and electronic
equipment. A symbol shown on the product, the instruction
manual or the packaging shows that it is suitable for
recycling.
Materials used inside the appliance are recyclable and
are labelled with information concerning this. By recycling
materials or other parts from used devices you are
making a significant contribution to the protection of
our environment.
Information on appropriate disposal centres for used
devices can be provided by your local authority.
User Manual 06
Your Esatto Cooktop
PAG E 07
It’s important to carefully read the following installation instructions before beginning the installation of your cooktop.
IMPORTANT!
The connection of this cooktop must be carried out by a suitably qualified and licensed person, in
accordance with the current version of the following:
► AS/NZS 3000: 2007 Wiring Regulations
► 2010 Electricity Safety Regulations
► The installation instructions within this user manual
INSTALLATION INSTRUCTIONS

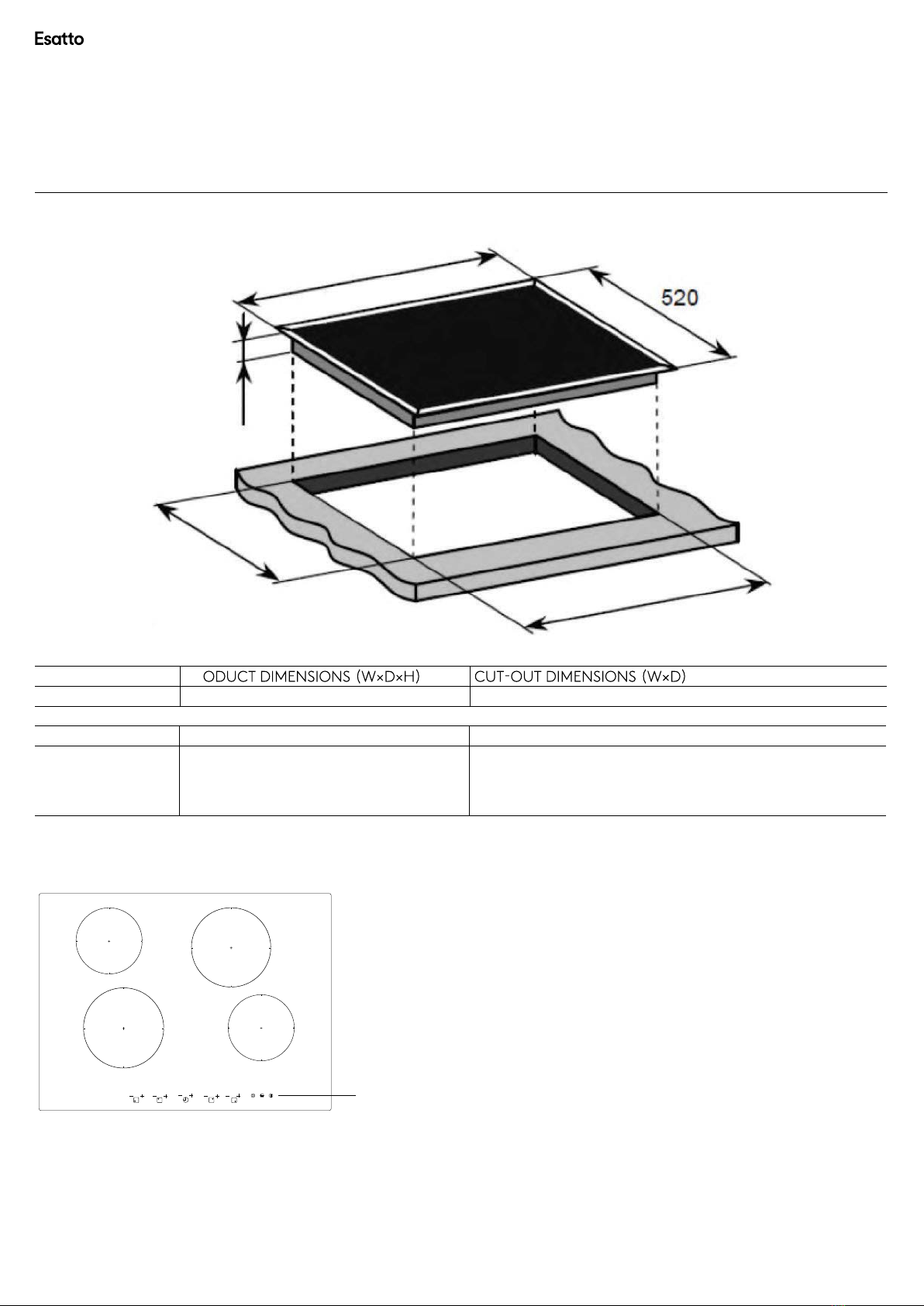

Cut out the work surface according tothe sizes shown inthe drawing.
For the purpose ofinstallation anduse,
a minimum of50mm space shall be
preserved aroundthe hole.
Be
sure the thickness ofthe work surface isat least 30mm. Please select
heat-resistant work surface material
toavoid larger deformation caused by
the heat radiation from the hotplate. Asshown below:
L(mm)W(mm)H(mm)D(mm)A(mm)B(mm)X(mm)
700520 55 51 560 490 50 mini
Under anycircumstances, make sure the ceramic cooker hob iswell ventilated
andthe airinlet andoutlet
arenot blocked.
Ensure the ceramic cooker hob isin
good work state. Asshown below:
Note: The safety distance betweenthe hotplate andthe cupboard above
the hotplate should beat least 760mm.
USER MANUAL PAGE 06
SPECIFICATIONS
MODELPR
560mm × 490mm
MODEL BURNERS OTHER
2 × 1.80 kW radiant zones (Ø 190mm)
2 × 1.20 kW radiant zones (Ø 155mm)
Touch control operation
4 × Individual residual heat indicators
Framless design
CERAMIC COOKTOP SURFACE LAYOUT
1
2
3
4
YOUR INALTO COOKTOP
TOUCH CONTROLS
700mm × 520mm × 55mm
EE70T
EE70T
700
55
490
560
1
23
4
1.80kW zone (Ø 190mm)
1.20kW zone (Ø 155mm)
1.80kW zone (Ø 190mm)
1.20kW zone (Ø 155mm)
esatto.house07
Installation Instructions
PAG E 07
It’s important to carefully read the following installation instructions before beginning the installation of your cooktop.
IMPORTANT!
The connection of this cooktop must be carried out by a suitably qualified and licensed person, in
accordance with the current version of the following:
► AS/NZS 3000: 2007 Wiring Regulations
► 2010 Electricity Safety Regulations
► The installation instructions within this user manual
INSTALLATION INSTRUCTIONS
Cut out the work surface according tothe sizes shown inthe drawing.
For the purpose ofinstallation anduse,
a
minimum of50mm space shall be
preserved aroundthe hole.
Be
sure the thickness ofthe work surface isat least 30mm. Please select
heat-resistant work surface material
to
avoid larger deformation caused by
the heat radiation from the hotplate. Asshown below:
L(mm)W(mm)H(mm)D(mm)A(mm)B(mm)X(mm)
700520 55 51 560 490 50 mini
Under anycircumstances, make sure the ceramic cooker hob iswell ventilated
andthe airinlet andoutlet
arenot blocked.
Ensure the ceramic cooker hob isin
good work state. Asshown below:
Note: The safety distance betweenthe hotplate andthe cupboard above
the hotplate should beat least 760mm.
USER MANUAL PAGE 06
SPECIFICATIONS
MODELPR
560mm × 490mm
MODEL BURNERS OTHER
2 × 1.80 kW radiant zones (Ø 190mm)
2 × 1.20 kW radiant zones (Ø 155mm)
Touch control operation
4 × Individual residual heat indicators
Framless design
CERAMIC COOKTOP SURFACE LAYOUT
1
2
3
4
YOUR INALTO COOKTOP
TOUCH CONTROLS
700mm × 520mm × 55mm
EE70T
EE70T
700
55
490
560
1
23
4
1.80kW zone (Ø 190mm)
1.20kW zone (Ø 155mm)
1.80kW zone (Ø 190mm)
1.20kW zone (Ø 155mm)
AS/NZS 3000 Wiring Rules
650mm
A B C D E
650mm 50mm 20mm AIR
INTAKE
AIR EXIT
5mm
User Manual 08
US ER MANUAL PAGE 08
INSTALLATION INSTRUCTIONS

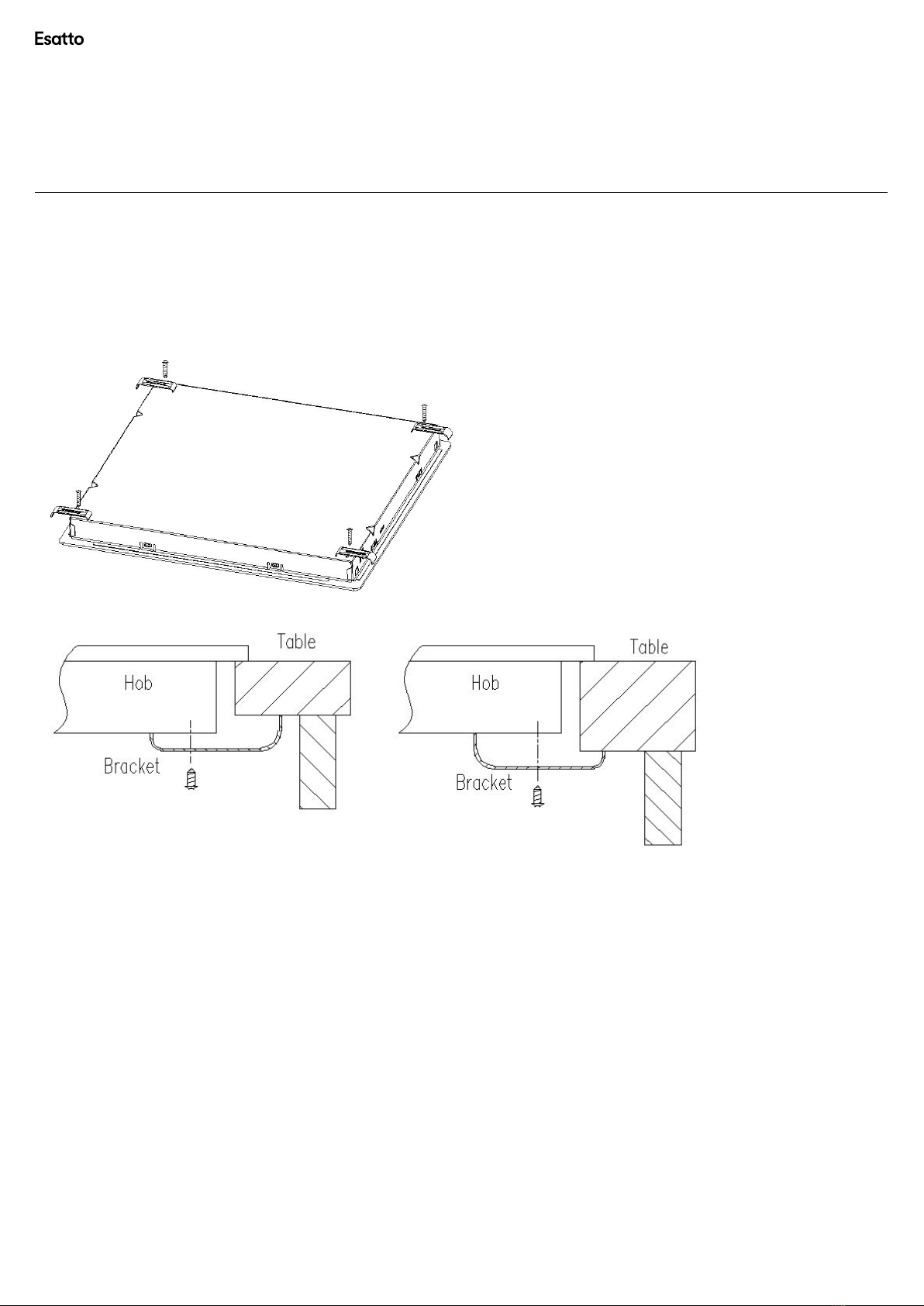

LOCATING THE FI ING BRACKETS
The unit should beplaced onastable, smooth surface (use the packaging). Donot
apply force onto the controls
protruding from the hob.
Fixthe hobonthe work surface byscrew four brackets onthe bottom ofhob(see
picture) after installation.
Adjust the bracket position tosuit for different work surface’s thickness.
The ceramic cooker hob must be installed by qualified personnel or technicians.
We haveprofessionals at
your service.
Please never conduct the operation by
yourself.
Theceramic cooker hobshall notbe mounted to cooling equipment,
dishwashers and rotary dryers.
The ceramic cooker hobshall be installed such that better heat radiation can be
ensured to enhance its
reliability.
Thewalland induced heating zone above thework surface shall withstand heat.
To avoid any damage, the sandwich layer andadhesive must be resistant to
heat.
A steam cleaner is not to be used.
This ceramic can be connected only to asupply with system impedance nomore
than 0.427 ohm. In case
necessary, please consult your supply authority for
system impedance information.
►
►
►
►
►
►
►
CAUTIONS!
x
PAGE 09
The power supply should be connected incompliance with the relevant standard,
or a single-pole
circuit
breaker.
The method ofconnection is shown below.
CONNECTING THE HOB TO THE MAINS POWER SUPPLY
►
If the cable is damaged or needs replacing, this should be done by an
after-sales technician using
the proper tools, so as to avoid anyaccidents.
If the appliance is being connected directly to the mains supply, an omnipolar
circuit breaker must
be
installed with aminimum gap of 3mm between the
contacts.
The installer must ensure that the correct electrical connection has been made
and that it complies
with safety regulations.
The cable must not be bent or compressed.
The cable must be checked regularly and only replaced by aproperly qualified
person.
►
►
►
►
►
DISPOSAL: Do not
dispose this product
as unsorted municipal
waste. Collection of
such waste separately
for special treatment is
necessary.
This appliance is labeled in compliance with European directive
2002/96/EC for Waste Electrical and Electronic Equipment (WEEE).
By ensuring that this appliance is disposed of correctly, you will help
prevent any possible damage to the environment and to human
health, which might otherwise be caused if it were disposed of in the
wrong way.
The symbol on the product indicates that it may not be treated as
normal household waste. It should be taken to a collection point for
the recycling of electrical and electronic goods.
This appliance requires specialist waste disposal. For further
information regarding the treatment, recover and recycling of this
product please contact your local council, your household waste
disposal service, or the shop where you purchased it.
For more detailed information about treatment, recovery and
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased
the product.
esatto.house09
US ER MANUAL PAGE 08
INSTALLATION INSTRUCTIONS
LOCATING THE FI ING BRACKETS
The unit should beplaced onastable, smooth surface (use the packaging). Donot
apply force onto the controls
protruding from the hob.
Fixthe hobonthe work surface byscrew four brackets onthe bottom ofhob(see
picture) after installation.
Adjust the bracket position tosuit for different work surface’s thickness.
The ceramic cooker hob must be installed by qualified personnel or technicians.
We haveprofessionals at
your service.
Please never conduct the operation by
yourself.
Theceramic cooker hobshall notbe mounted to cooling equipment,
dishwashers and rotary dryers.
The ceramic cooker hobshall be installed such that better heat radiation can be
ensured to enhance its
reliability.
Thewalland induced heating zone above thework surface shall withstand heat.
To avoid any damage, the sandwich layer andadhesive must be resistant to
heat.
A steam cleaner is not to be used.
This ceramic can be connected only to asupply with system impedance nomore
than 0.427 ohm. In case
necessary, please consult your supply authority for
system impedance information.
►
►
►
►
►
►
►
CAUTIONS!
x
PAGE 09
The power supply should be connected incompliance with the relevant standard,
or a single-pole
circuit
breaker.
The method ofconnection is shown below.
CONNECTING THE HOB TO THE MAINS POWER SUPPLY
►
If the cable is damaged or needs replacing, this should be done by an
after-sales technician using
the proper tools, so as to avoid anyaccidents.
If the appliance is being connected directly to the mains supply, an omnipolar
circuit breaker must
be
installed with aminimum gap of 3mm between the
contacts.
The installer must ensure that the correct electrical connection has been made
and that it complies
with safety regulations.
The cable must not be bent or compressed.
The cable must be checked regularly and only replaced by aproperly qualified
person.
►
►
►
►
►
DISPOSAL: Do not
dispose this product
as unsorted municipal
waste. Collection of
such waste separately
for special treatment is
necessary.
This appliance is labeled in compliance with European directive
2002/96/EC for Waste Electrical and Electronic Equipment (WEEE).
By ensuring that this appliance is disposed of correctly, you will help
prevent any possible damage to the environment and to human
health, which might otherwise be caused if it were disposed of in the
wrong way.
The symbol on the product indicates that it may not be treated as
normal household waste. It should be taken to a collection point for
the recycling of electrical and electronic goods.
This appliance requires specialist waste disposal. For further
information regarding the treatment, recover and recycling of this
product please contact your local council, your household waste
disposal service, or the shop where you purchased it.
For more detailed information about treatment, recovery and
recycling of this product, please contact your local city office, your
household waste disposal service or the shop where you purchased
the product.
User Manual 10
Operating Your Cooktop
US ER MANUAL PAGE 10
BEFORE FIRST USE
IMPORTANT!You should clean the ceramic cooktop surface (refer to the “Cleaning and Maintenance” section).
► You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate
any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.
► Do not burn off more than one zone at once.
► You must place a saucepan filled half full with cold water on each cooking zone as you burn it off.
TOUCH CONTROLS
OPERATING YOUR COOKTOP
1.Power regulating key
2. Timer regulating key
3. keylock control
4. ON/OFF control
1 1 2 1 1 534
► All operations are performed by means of the touch controls that can be found on the control panel at the front .
TOP VIEW
PAGE 11
Do not use cookware with jagged edges or a curved base.
CHOOSING THE RIGHT COOKWARE
Makesure that thebase of your pan is smooth, sits flat against theglass, and is
thesamesize as
thecooking zone. Always centre your pan on thecooking zone.
OPERATING YOUR COOKTOP
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.
The controls respond totouch, soyou don’t need toapply anypressure.
Use the ballofyour finger, not its tip.
You will hear a beep each time a touch isregistered.
Makesure the controls arealways clean, dry, andthat there isnoobject (e.g. a
utensil or
a cloth) covering them. Even a thin film ofwater may makethe
controls difficult tooperate.
USING THE TOUCH CONTROLS
►
►
►
►
esatto.house11
US ER MANUAL PAGE 10
BEFORE FIRST USE
IMPORTANT!You should clean the ceramic cooktop surface (refer to the “Cleaning and Maintenance” section).
► You should switch on one cooking zone at a time, for 5 minutes at the maximum setting. This will help to eliminate
any new smell that exists and evaporate any humidity that has formed on the heating elements during transit.
► Do not burn off more than one zone at once.
► You must place a saucepan filled half full with cold water on each cooking zone as you burn it off.
TOUCH CONTROLS
OPERATING YOUR COOKTOP
1.Power regulating key
2. Timer regulating key
3. keylock control
4. ON/OFF control
1 1 2 1 1 534
► All operations are performed by means of the touch controls that can be found on the control panel at the front .
TOP VIEW
PAGE 11
Do not use cookware with jagged edges or a curved base.
CHOOSING THE RIGHT COOKWARE
Makesure that thebase of your pan is smooth, sits flat against theglass, and is
thesamesize as
thecooking zone. Always centre your pan on thecooking zone.
OPERATING YOUR COOKTOP
Always lift pans off the ceramic hob – do not slide, or they may scratch the glass.
The controls respond totouch, soyou don’t need toapply anypressure.
Use the ballofyour finger, not its tip.
You will hear a beep each time a touch isregistered.
Makesure the controls arealways clean, dry, andthat there isnoobject (e.g. a
utensil or
a cloth) covering them. Even a thin film ofwater may makethe
controls difficult tooperate.
USING THE TOUCH CONTROLS
►
►
►
►
User Manual 12
Do not use cookware with jagged edges or a curved base.

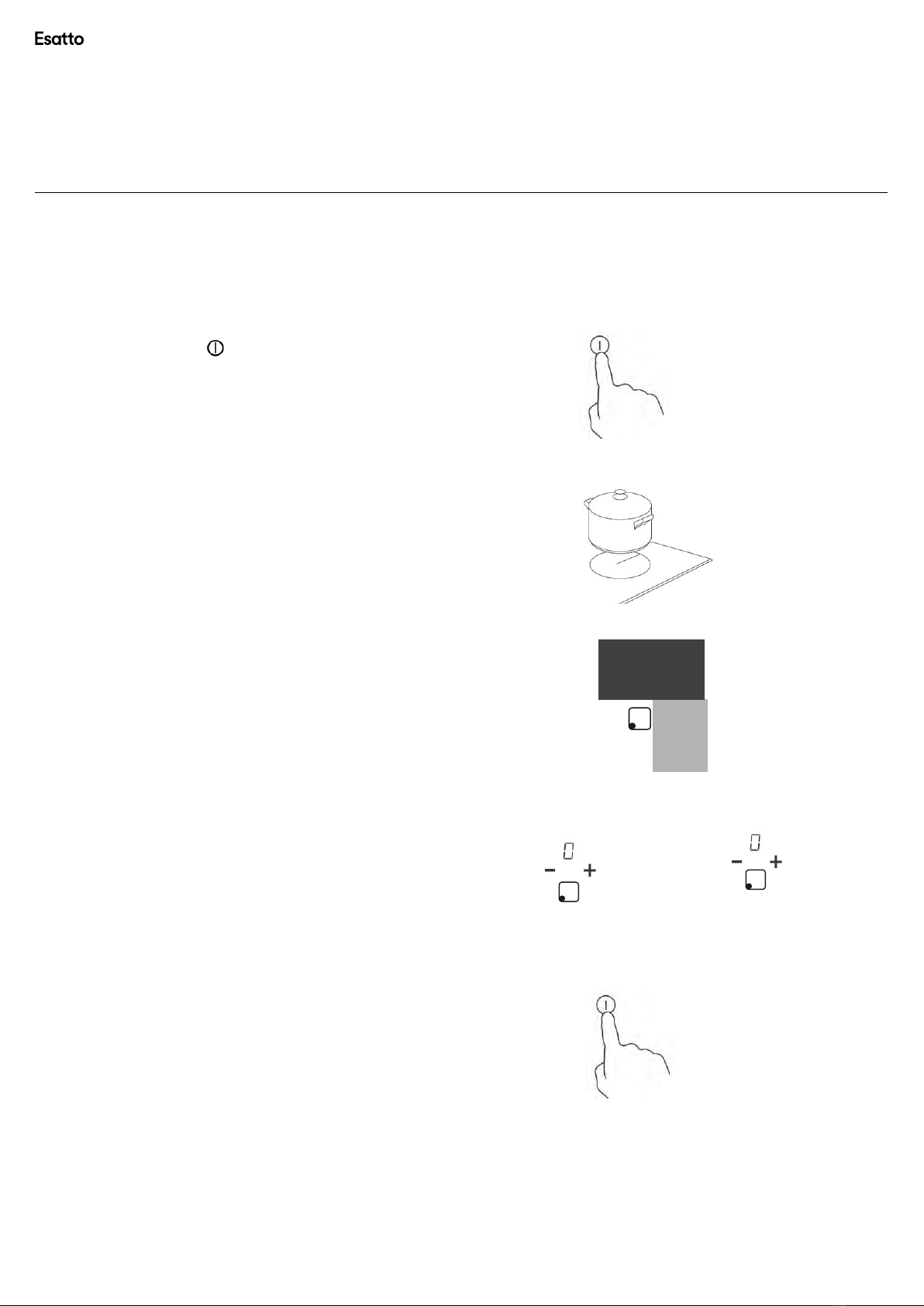

TO START COOKING
US ER MANUAL PAGE 12
After power on,thebuzzer beeps once, all the indicators light up for1second
then go out, indicating that theceramic hobhas entered thestate of standby
mode.
1. Touch theON/OFF
control. all theindicators
show “-“.
2.Place a suitable pan onthe cooking zone that
you wish to use.
Makesure thebottom of thepan and thesurface
of thecooking
zone are clean and dry.
►
►
3. Select a heat setting by touching the “-“ or “+” control.
If
youdon’t choose aheat setting within 1
minute, the Induction hob will
automatically
switch off.
Youwill need to start againat
step 1.
You
can modify theheat setting at any time
during cooking.
Turn thecooking zone offby scrolling down to
“
0
”
or
touching
“-”and “+”
control together.
Make
sure thedisplay shows
“
0
”
Turn the whole cooktop off by touching the ON/OFF control.
►
►
WHEN YOU HAVE FINISHED COOKING
►
►
RESIDUAL HEAT INDICATORS
► After a zone is switched off, the corresponding cooking zone will show an “H” in the control panel. This means that
the temperature of the zone still high enough to cause injury.
► The residual heat indicator will go out when the surface has cooled down to a safe temperature.
IMPORTANT! The residual heat indicator will disappear if the mains supply to the product is cut.
Warning! It is still possible to burn yourself on a cooktop zone, even when the residual heat indicator has gone
off. Always use caution when using the cooktop.
► The residual heat also can be used as an energy saving function if you want to heat further pans,use the hotplate
that is still hot.
You can lock the controls toprevent unintended use (for example children
accidentally turning the
cooking zones on).
When the controls are locked, all the controls except the ON/OFF control are
disabled.
Touch the keylock control. The timer indicator will show “Lo“
Makesure the ceramic hob is turned on.
Touch andhold the keylock control for a while.
You can nowstart using your ceramic hob.
When the hob is in the lock mode, all the controls aredisable except the ON/OFF ,
you can always turn the ceramic hob off with the ON/OFF control in an emergency,
butyou shall unlock the hob first in the next operation
When thehobhas been operating forsome time, there will be some residual
heat. The
“ H ”appears to warnyouto keep away from it.
safety feature of the hob is auto shut down. This occurs whenever you forget to
switch off a cooking zone.
The default shutdown times areshown in
the table below:
Power level 123456789
Default working timer (hour) 888444222
LOCKING THE CONTROLS
►
►
TO LOCK THE CONTROLS
TO UNLOCK THE CONTROLS
►
►
►
►
AUTO SHUTDOWN
PAGE 13
esatto.house13
Do not use cookware with jagged edges or a curved base.
TO START COOKING
US ER MANUAL PAGE 12
After power on,thebuzzer beeps once, all the indicators light up for1second
then go out, indicating that theceramic hobhas entered thestate of standby
mode.
1. Touch theON/OFF
control. all theindicators
show “-“.
2.Place a suitable pan onthe cooking zone that
you wish to use.
Makesure thebottom of thepan and thesurface
of thecooking
zone are clean and dry.
►
►
3. Select a heat setting by touching the “-“ or “+” control.
If
youdon’t choose aheat setting within 1
minute, the Induction hob will
automatically
switch off.
Youwill need to start againat
step 1.
You
can modify theheat setting at any time
during cooking.
Turn thecooking zone offby scrolling down to“0”or
touching
“-”and “+”
control together.
Make
sure thedisplay shows“0”
Turn the whole cooktop off by touching the ON/OFF control.
►
►
WHEN YOU HAVE FINISHED COOKING
►
►
RESIDUAL HEAT INDICATORS
► After a zone is switched off, the corresponding cooking zone will show an “H” in the control panel. This means that
the temperature of the zone still high enough to cause injury.
► The residual heat indicator will go out when the surface has cooled down to a safe temperature.
IMPORTANT! The residual heat indicator will disappear if the mains supply to the product is cut.
Warning! It is still possible to burn yourself on a cooktop zone, even when the residual heat indicator has gone
off. Always use caution when using the cooktop.
► The residual heat also can be used as an energy saving function if you want to heat further pans,use the hotplate
that is still hot.
You can lock the controls toprevent unintended use (for example children
accidentally turning the
cooking zones on).
When the controls are locked, all the controls except the ON/OFF control are
disabled.
Touch the keylock control. The timer indicator will show “Lo“
Makesure the ceramic hob is turned on.
Touch andhold the keylock control for a while.
You can nowstart using your ceramic hob.
When the hob is in the lock mode, all the controls aredisable except the ON/OFF ,
you can always turn the ceramic hob off with the ON/OFF control in an emergency,
butyou shall unlock the hob first in the next operation
When thehobhas been operating forsome time, there will be some residual
heat. The
“ H ”appears to warnyouto keep away from it.
safety feature of the hob is auto shut down. This occurs whenever you forget to
switch off a cooking zone.
The default shutdown times areshown in
the table below:
Power level 123456789
Default working timer (hour) 888444222
LOCKING THE CONTROLS
►
►
TO LOCK THE CONTROLS
TO UNLOCK THE CONTROLS
►
►
►
►
AUTO SHUTDOWN
PAGE 13
User Manual 14
USING THE TIMER
OPERATING YOUR COOKTOP
Youcan use thetimer in twodifferent ways:
Youcan use it as aminute minder. In this case,thetimer will notturn any
cooking zone offwhen thesettime is up.
Youcan setit to turn oneor more cooking zonesoffafter thesettime is up.
Youcan setthetimer up to 99 minutes.

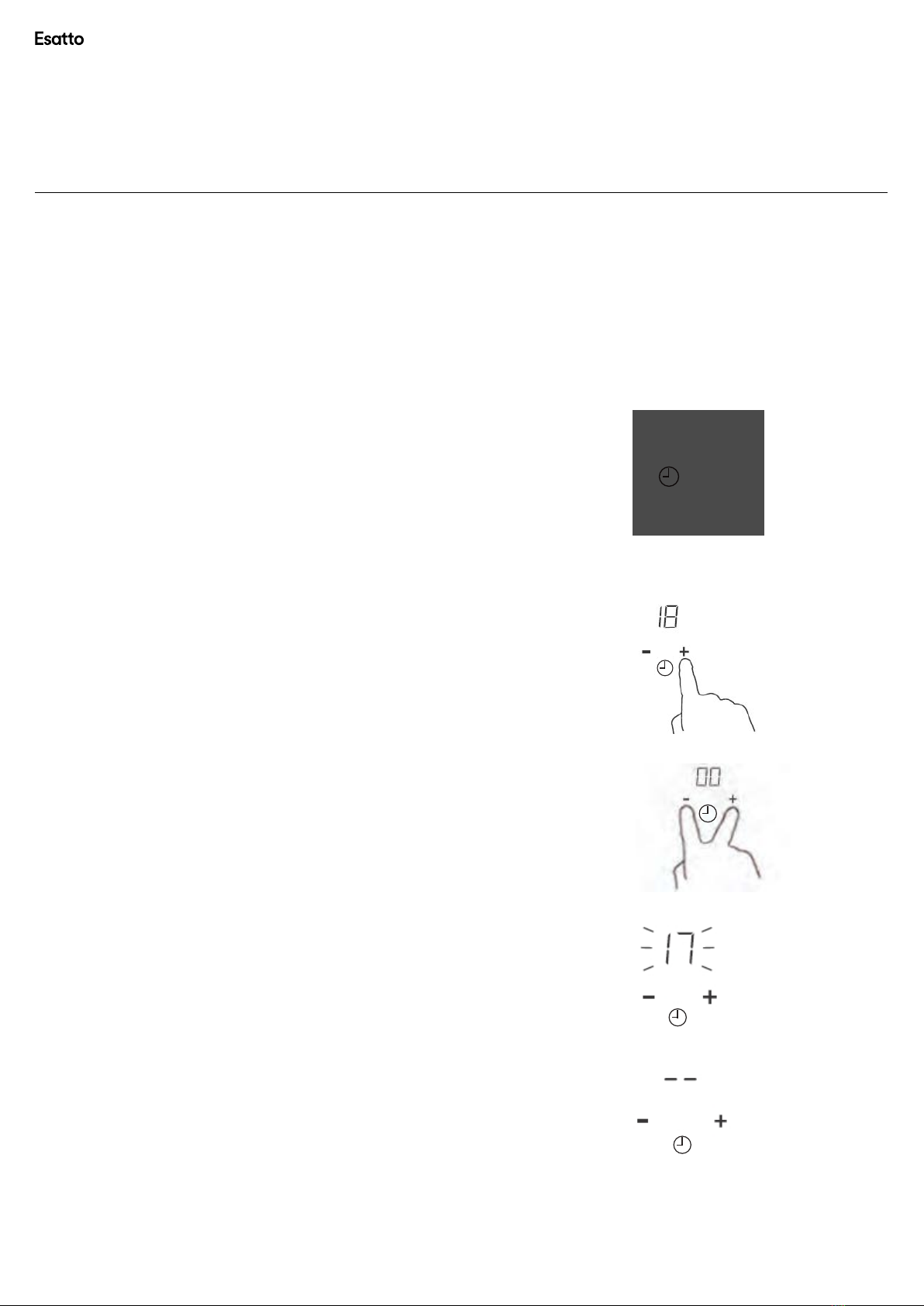

If you are not selecting any cooking zone
Makesure thecooktop is turned on.
Note: youcan use theminute minder even if you’re notselecting any cooking
zone.
Touch”+” the controls of the timer. The minder
indicator will start flashing and “10”will show
in thetimer display.
Setthetime by touching the“-“ or ”+” control
of thetimer.
Touch the“-“ or ”+” control of thetimer
once to decrease or increase by 1minute.
Touch and hold th
“
-“ or “+” control of the
timer to decrease or increase by 10 minutes.
Touching the“-“ and ”+” together, thetimer
is
cancelled,
and the”00”will show in theminute
display.
►
►
►
USING THE TIMER AS A MINUTE MINDER
►
►
►
►
►
►
When thetime is set, it will begin to count down
immediately.
Thedisplay will show the remaining
time and thetimer indicator
will flash for5seconds.
Buzzer will bips for30 seconds and thetimer
indicator shows “- - “
when thesetting time
finished.
►
►
US ER MANUAL PAGE 14
SETTING THE TIMER TO TURN ONE OR MORE COOKING ZONES OFF
►
►
If the timer is set on one zone:
Touch the”-“ or ”+” of thecorresponding cooking
zone that want to set the timer for.
.
Set the time by touching the “-“ or “+” control of the
timer.
Touch the “-“ or “+” control of thetimer
once will decrease or increase by 1minute.
Touch and hold the ”-“ or “+”control of thetimer
will decrease or increase by 10 minutes.
Touching the ”-“ and “+” together, the timer is
cancelled, and the ”00”will show in theminute
display.
►
you
►
►
►
►
When thetime is set, it will begin to count down
immediately. Thedisplay will show theremaining
time and thetimer indicator flash for5seconds.
NOTE: Thered dotnext to power level indicator
will illuminate indicating that zone is selected.
When cooking timer expires, thecorresponding
cooking zone will be switch offautomatically.
Other cooking zone will keep operating if they are turned on previously.
PAGE 15
esatto.house15
USING THE TIMER
OPERATING YOUR COOKTOP
Youcan use thetimer in twodifferent ways:
Youcan use it as aminute minder. In this case,thetimer will notturn any
cooking zone offwhen thesettime is up.
Youcan setit to turn oneor more cooking zonesoffafter thesettime is up.
Youcan setthetimer up to 99 minutes.
If you are not selecting any cooking zone
Makesure thecooktop is turned on.
Note: youcan use theminute minder even if you’re notselecting any cooking
zone.
Touch”+” the controls of the timer. The minder
indicator will start flashing and “10”will show
in thetimer display.
Setthetime by touching the“-“ or ”+” control
of thetimer.
Touch the“-“ or ”+” control of thetimer
once to decrease or increase by 1minute.
Touch and hold th“-“ or “+” control of the
timer to decrease or increase by 10 minutes.
Touching the“-“ and ”+” together, thetimer
is cancelled,
and the”00”will show in theminute
display.
►
►
►
USING THE TIMER AS A MINUTE MINDER
►
►
►
►
►
►
When thetime is set, it will begin to count down
immediately.
Thedisplay will show the remaining
time and thetimer indicator
will flash for5seconds.
Buzzer will bips for30 seconds and thetimer
indicator shows “- - “
when thesetting time
finished.
►
►
US ER MANUAL PAGE 14
SETTING THE TIMER TO TURN ONE OR MORE COOKING ZONES OFF
►
►
If the timer is set on one zone:
Touch the”-“ or ”+” of thecorresponding cooking
zone that want to set the timer for.
.
Set the time by touching the “-“ or “+” control of the
timer.
Touch the “-“ or “+” control of thetimer
once will decrease or increase by 1minute.
Touch and hold the ”-“ or “+”control of thetimer
will decrease or increase by 10 minutes.
Touching the ”-“ and “+” together, the timer is
cancelled, and the ”00”will show in theminute
display.
►
you
►
►
►
►
When thetime is set, it will begin to count down
immediately. Thedisplay will show theremaining
time and thetimer indicator flash for5seconds.
NOTE: Thered dotnext to power level indicator
will illuminate indicating that zone is selected.
When cooking timer expires, thecorresponding
cooking zone will be switch offautomatically.
Other cooking zone will keep operating if they are turned on previously.
PAGE 15
User Manual 16

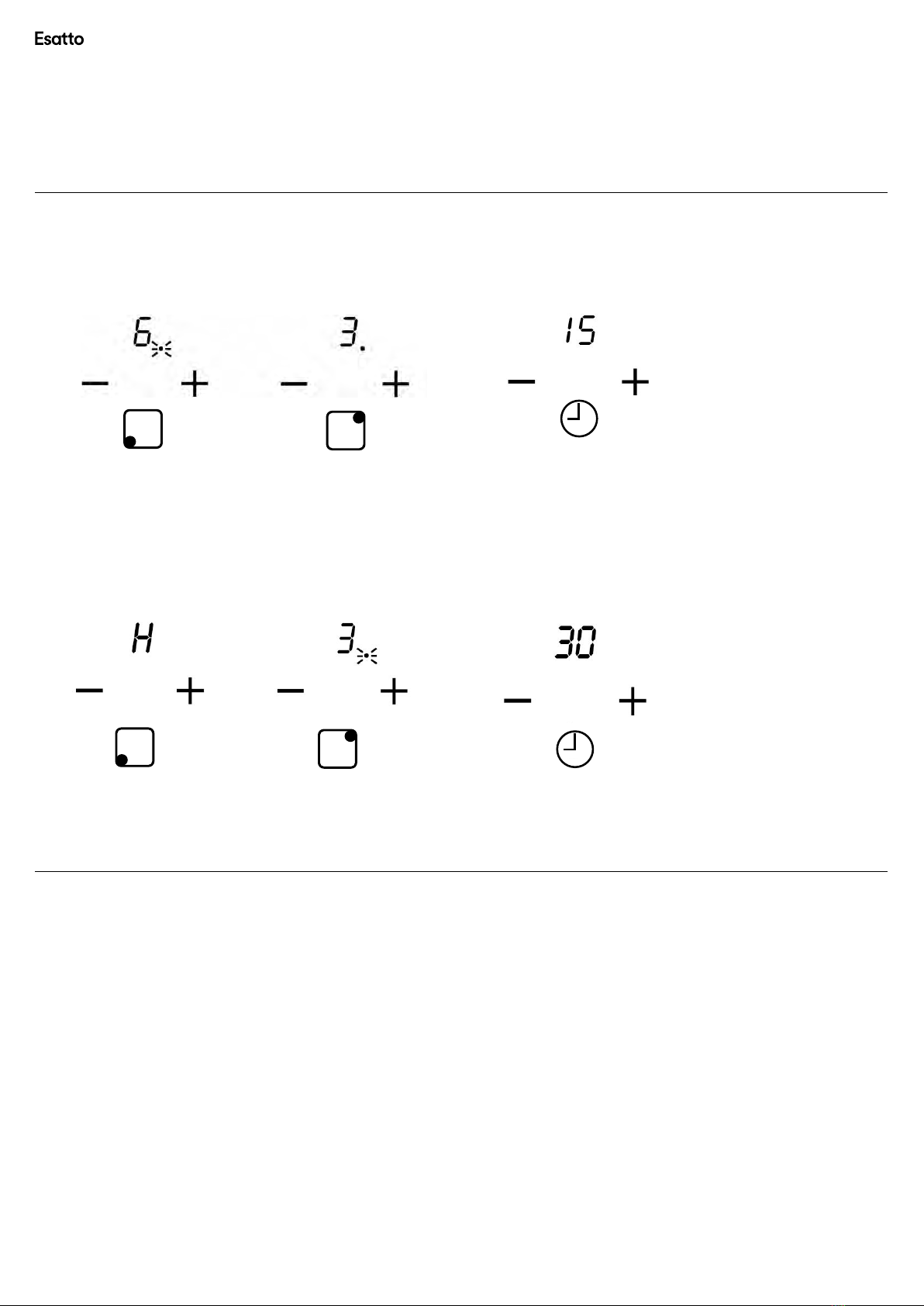

When yousetthetime forseveral cooking zones simultaneously, decimal dots
of therelevant cooking zones are on.Theminute display shows themin. timer.
Thedotof thecorresponding zone flashes.
(setto 15 minutes) (setto 45 minutes)
Once thecountdown timer expires, thecorresponding zone will switch off.
Then it will show thenewmin. timer and thedotof corresponding zone will
flash.
(setto 30 minutes)
If the timer is set on more zone:than one
►
►
US ER MANUAL PAGE 16
OPERATING YOUR COOKTOP
COOKTOP GUIDELINES
► The first few times the cooktop is used, it may give off a burning smell. This smell will disappear completely with
repeated use.
► The cooktop surface is fitted with cooking areas of different diametre and power.
► The positions where the heat will radiate from are clearly marked on the cooktop. The saucepans must be positioned
exactly on these zones for efficient heating to occur. Pans should have the same diametre as the cooking zone that they
are being used on.
► You should not use saucepans with rough bottoms, as this can scratch the ceramic surface.
► Before use, make sure that the bottoms of the saucepans are clean and dry.
► When cold, the bottom of the pans should be slightly concave, as they expand when hot and lie flat on the surface of
the cooktop.
► This will allow the heat to transfer more easily.
► The best thickness for the bottom of the pans is 2–3 mm of enameled steel and 4–6 mm for stainless steel with
sandwich type bottoms.
► If these rules are not followed, then there will be a great loss of heat and energy. Heat not absorbed by the saucepan,
will spread to the cooktop, frame and surrounding cabinets.
► Preferably cover pans with a lid to permit cooking at a lower heat.
► Always cook vegetables and potatoes, etc. in as little water to reduce cooking times.
► Food or liquid that has high sugar content may damage the cooktop if it comes into contact with the ceramic cooktop
surface. Any spillages should be wiped up immediately, however this may not prevent the cooktop surface from
becoming damaged.
IMPORTANT! The ceramic cooktop surface is tough; however it is not unbreakable and can be damaged especially if
pointed or hard objects are allowed to fall on it with some force.
Warning! Do not use the cooktop if the surface becomes broken or cracked. You should contact the Residentia
Group Support team immediately.
PAGE 17
esatto.house17
When yousetthetime forseveral cooking zones simultaneously, decimal dots
of therelevant cooking zones are on.Theminute display shows themin. timer.
Thedotof thecorresponding zone flashes.
(setto 15 minutes) (setto 45 minutes)
Once thecountdown timer expires, thecorresponding zone will switch off.
Then it will show thenewmin. timer and thedotof corresponding zone will
flash.
(setto 30 minutes)
If the timer is set on more zone:than one
►
►
US ER MANUAL PAGE 16
OPERATING YOUR COOKTOP
COOKTOP GUIDELINES
► The first few times the cooktop is used, it may give off a burning smell. This smell will disappear completely with
repeated use.
► The cooktop surface is fitted with cooking areas of different diametre and power.
► The positions where the heat will radiate from are clearly marked on the cooktop. The saucepans must be positioned
exactly on these zones for efficient heating to occur. Pans should have the same diametre as the cooking zone that they
are being used on.
► You should not use saucepans with rough bottoms, as this can scratch the ceramic surface.
► Before use, make sure that the bottoms of the saucepans are clean and dry.
► When cold, the bottom of the pans should be slightly concave, as they expand when hot and lie flat on the surface of
the cooktop.
► This will allow the heat to transfer more easily.
► The best thickness for the bottom of the pans is 2–3 mm of enameled steel and 4–6 mm for stainless steel with
sandwich type bottoms.
► If these rules are not followed, then there will be a great loss of heat and energy. Heat not absorbed by the saucepan,
will spread to the cooktop, frame and surrounding cabinets.
► Preferably cover pans with a lid to permit cooking at a lower heat.
► Always cook vegetables and potatoes, etc. in as little water to reduce cooking times.
► Food or liquid that has high sugar content may damage the cooktop if it comes into contact with the ceramic cooktop
surface. Any spillages should be wiped up immediately, however this may not prevent the cooktop surface from
becoming damaged.
IMPORTANT! The ceramic cooktop surface is tough; however it is not unbreakable and can be damaged especially if
pointed or hard objects are allowed to fall on it with some force.
Warning! Do not use the cooktop if the surface becomes broken or cracked. You should contact the Residentia
Group Support team immediately.
PAGE 17
By ensuring proper cleaning and maintenance of your Esatto cooktop,
you can ensure that it will have a long and fault free operation.
WARNING! Do not start cleaning the cooktop until it has completely cooled.
CLEANING YOUR CERAMIC COOKTOP
► Any residues that are left on the cooktop surface from cleaning agents will damage it.
You should remove any residues with warm water mixed with a little washing up liquid.
► Abrasive cleaners or sharp objects will damage the cooktop surface; you should clean
it using warm water mixed with a little washing up liquid.
► Although it is easier to clean some deposits whilst the cooktop surface is still warm, you
should take care not to burn yourself if cleaning the cooktop surface when it is still warm.
After each use:
► Wipe the cooktop over with a damp cloth.
► Dry the cooktop by rubbing the surface with a clean cloth.
Type of deposit Remove immediately? Remove when the cooktop
has cooled down?
What should I use to
remove the deposit?
Sugar or food/liquid
containing sugar
Yes No Ceramic cooktop scraper
Tin foil or plastic Yes No Ceramic cooktop scraper
Fat splashes No Yes Ceramic cooktop cleaner
Metallic discolouration No Yes Ceramic cooktop cleaner
Water splashes or water rings No Yes Ceramic cooktop cleaner
USING A SPECIALIST CERAMIC COOKTOP CLEANER
It is possible to purchase a specialist ceramic cooktop cleaner/conditioner.
You should follow the instructions given by the manufacturer of the cleaner
and ensure that it is suitable for use on your appliance.
Cleaning & Maintenance
Technical Data
ELECTRICAL DETAILS Rated Voltage: 220 - 240 Volts, 50-60 Hz
Supply Connection: 30A (double pole switch fuse outlet with 3mm contact gap)
Max Rated Inputs: 6.0kW
Mains Supply Lead: 3 core x 4mm² (not supplied)
User Manual 18
Troubleshooting
Tips & Hints
Please read the issues below carefully and try all relevant steps.
If none of this helps, please contact us on 1300 11 4357 for further advice
or to schedule a technician to inspect your cooktop.
THE COOKING ZONES
ARE NOT FUNCTIONING
Please check...
That your cooktop is plugged in and there is
power to the wall socket.
Hint: Check the mains power or the isolation
switch.
If your cooktop has a Control Lock or Child
Lock function, check that it is switched off.
THE RESIDUAL HEAT INDICATOR
DOES NOT APPEAR
Please note...
If the cooking zone has only been turned
on for less than 30 seconds, the residual heat
indicator will not appear.
If the cooking zone does appear to be
hotter than 50° C or has been activated for
longer than 30 seconds, and the residual heat
indicator has not come on, please contact our
Support Team on 1300 11 4357 for advice.
THE COOKTOP IS HUMMING
WHEN A ZONE IS SELECTED
Please note...
This is normal—the sound will disappear
when the zone heats up.
If the humming sound continues once
the zone is fully at heat, please contact our
Support Team on 1300 11 4357 for advice.
THE COOKING ZONES HAVE
BECOME DISCOLOURED
Please note...
This maybe caused by burnt on remnants of
food. This will not affect the working of the
appliance however you should make sure that
the cleaning instructions are being followed
regularly.
THE COOKTOP IS DIRTY
AFTER COOKING
Please note...
Once it has cooled down, your cooktop
should be cleaned after every use. Any
residues that are left on the cooktop surface
from cleaning agents will damage it. You
should remove any residues with warm water
mixed with a little washing up liquid.
Hint: For physical deposits on the surface,
a specialist ceramic cooktop cleaner/
conditioner should be purchased. Please
follow the instructions with this product.
THERE IS A METALLIC SHEEN
ON THE GLASS
Please note...
This is often caused by pots with aluminium
or copper bases.
Hint: Specialist ceramic cleaner should
remove the marks. Your cooktop should
be cleaned regularly, as spills that are allowed
to burn into the surface may
react with the ceramic glass and become
much harder to remove.
THE ELEMENTS STAY ON HIGH
Please...
Contact our Support Team on 1300 11 4357 to
arrange for a technician to visit.
THE GLASS IS SCRATCHED
Please note...
Scratches are often caused by using cookware
with rough-edges. Please ensure pots and
pans have smooth bases.
THE COOKTOP IS
NOT TURNING OFF
Please...
Ensure the child lock is disabled.
Hint: On some models you may have to touch
the zone control twice to disable.
Please note that if an engineer is asked to attend whilst the product is under warranty and finds that the problem
is not the result of an appliance fault, then you may be liable for the cost of the call out charge.
esatto.house19
Purchase Details
For future reference, please record the following
information which can be found on the rating plate and the
date of purchase which can be found on your sales invoice.
The rating plate of your cooktop is located on the
underneath of the appliance. Therefore please fit the
duplicate data plates or label on the outside of the
cupboard to sure that the label can be easily seen
during operation.
STORE DETAILS
STORE NAME
|
ADDRESS
|
TELEPHONE
|
PURCHASE DATE
|
PRODUCT DETAILS
MODEL NO.
|
SERIAL NO.*
|
* Your serial number can be found on the underside of the cooktop.
User Manual 20
WARRANTY TERMS & CONDITIONS
COOKING APPLIANCES
(BUILT-IN OVENS, COOKTOPS)
This document sets out the terms and conditions of the
product warranties for Residentia Group Appliances. It is
an important document. Please keep it with your proof of
purchase documents in a safe place for future reference
should you require service for your Appliance.
1. IN THIS WARRANTY
(a) ‘acceptable quality’ as referred to in clause 10 of this
warranty has the same meaning referred to in the ACL;
(b) ‘ACL’ means Trade Practices Amendment (Australian
Consumer Law) Act (No.2) 2010;
(c) ‘Appliance’ means any Residentia Group product
purchased by you accompanied by this document;
(d) ‘ASR’ means Residentia Group authorised service
representative;
(e) ‘Residentia Group’ means Residentia Group Pty Ltd
of 118 Campbell St, Collingwood VIC, ACN 600 546
656 in respect of Appliances purchased in Australia;
(f ) ‘major failure’ as referred to in clause 10 of this
warranty has the same meaning referred to in the ACL
and includes a situation when an Appliance cannot
be repaired or it is uneconomic for Residentia Group,
at its discretion, to repair an Appliance during the
Warranty Period;
(g) ‘Warranty Period’ means:
(i) where the Appliance is used for personal,
domestic or household use (i.e. normal
single family use) as set out in the instruction
manual, the Appliance is warranted against
manufacturing defects for 24 months, following
the date of original purchase of the Appliance;
(h) ‘you’ means the purchaser of the Appliance not having
purchased the Appliance for re-sale, and ‘your’ has a
corresponding meaning.
2. This warranty only applies to Appliances purchased
and used in Australia and is in addition to (and does
not exclude, restrict, or modify in any way) any
non-excludable statutory warranties in Australia.
3. During the Warranty Period Residentia Group or its
ASR will, at no extra charge if your Appliance is readily
accessible for service, without special equipment and
subject to these terms and conditions, repair or replace
any parts which it considers to be defective. Residentia
Group or its ASR may use remanufactured parts to
repair your Appliance. You agree that any replaced
Appliances or parts become the property of Residentia
Group. This warranty does not apply to light globes,
batteries, lters or similar perishable parts.
4. Parts and Appliances not supplied by Residentia Group
are not covered by this warranty.
Warranty Information
Table of contents
Other Residentia Cooktop manuals
