Response Electronics miGuard A1R User manual

INSTRUCTIONS
A1R
lines open 0900 to 1700 Monday to Friday
“ whatever your question, we’re just a phone call away “
0345 257 1000
miGuard Customer Helpline
Wireless Solar Siren Alarm System
Solar Siren, PIR Motion Sensor, Door/Window
Magnetic Sensor, Remote Control

Congratulations on your purchase of the
miGuard Solar Siren Alarm System
1 x Solar Siren
1 x Pet Friendly PIR Motion Sensor
1 x Door/Window Magnetic Sensor
1 x Remote Control
All Batteries and Fixings
Instructions
a. Read the instructions thoroughly
b. Remove all the contents from their packaging
c. Consider the most appropriate positioning
of each Accessory
d. Avoid mounting Sensors near metal objects or
electrical wiring.
Before Installation:
PACK CONTENTS
1. PIR MOTION SENSOR
Features
Two Lens PIR : pet tolerant to 25 kgs, with a vertical
and horizontal detection range of 110°
Digital dual-core fuzzy logic control chip and
intelligent analysis: effectively identifies signal
interference and body movement.
Automatic temperature compensation and anti-air
turbulence technology/control: automatically adapts
to environmental changes, thereby saving energy.
Automatic SMS notification of a low battery condition
when connected to a miGuard GSM Alarm System.
LED Indication
Flashes every 2 seconds: self-testing state
Flashes twice: self-testing finished, enters working mode
Flashes once: movement is detected
Flashes once every 3 seconds: low battery indication
(immediate battery change recommended).
If the PIR is connected to a miGuard GSM Alarm System,
an SMS alert will automatically be sent to the registered
user.
Appearance
1.Detection Window
2.LED Indicator
3.Adjustable Bracket
3
Installation
Avoid mounting the Sensor in areas where draughts
may be present or where the temperature may
fluctuate greatly, such as near to: windows, air
conditioning, heating, refrigeration units, cooking
appliances and direct sunlight.
Where possible, mount the Sensor in the corner of
the room so that the logical path of an intruder
would cut across the fan detection pattern (see
diagrams overleaf). A PIR responds more effectively
to movement across the device than to movement
directly towards it.
PCB Layout
Test Mode
Infrared Sensor: Detects movement and triggers
alarm signal when the system is armed.
Tamper Switch: If the casing is opened when in
‘working state’ the tamper switch will be triggered
and generate an alarm signal.
Working Mode
1. Remove the activation strip. Fit the retaining screw
supplied.
2. Self-testing will commence for 1 minute, indicated
by the LED flashing every 2 seconds.
3. To enter Test Mode press the Test Button at the
back of the PIR. The LED will then flash once
when movement is detected, for up to 3 minutes.
Test Button
1. To test in Working Mode, walk in front of the Sensor
- the LED should illuminate once when movement
is detected.
2. If the Sensor is triggered twice in 3 minutes it will
enter into power saving (sleep mode). If no
movement is detected within the next 3 minutes,
the Sensor will return to normal working mode.

Features
The Sensor can be fitted to doors, windows, and
any other object that opens and closes.
Transmits a signal to the Control Panel/Siren when
contact is broken.
Appearance & PCB Layout
2. DOOR/WINDOW SENSOR
LED
Transmitter Magnet
LED Indication
Flashes once: door/window opened, transmitter
sends signal to the Control Panel/Siren
Flashes rapidly: low battery indication, (immediate
battery change recommended)
AA
Tamper
Zone
4. Fit the Sensor in a position that will cover your
desired protection area:
a. Fix the bracket to the wall with the fixings kit
supplied. For optimum performance set the
the height of the bracket to 2 metres above
ground level.
b. Adjust angle of the PIR Sensor to cover the
required detection area.
PIR Installation continued…
5. To test, walk in front of the Sensor - the LED
should illuminate once when movement is
detected. If the Sensor is triggered twice in 3
minutes, it will enter into power saving (sleep
mode). If no movement is detected within the
next 3 minutes, the Sensor will return to normal
working mode.
Top view Side
2m
Ground
Power Supply DC 3V (AA 1.5V LR6 Battery x 2)
Static Current ≤ 90uA
Alarm Current ≤ 9.5mA
Detection Area 8m/110°
Transmitting Distance ≤80m ﴾in open area﴿
Pet Immunity ≤ 25kg
Radio Frequency 433 MHz
Housing Material ABS Plastic
Operating Temperature -10°C~50°C
Relative Humidity ≤ 80% ﴾non‐condensing﴿
PIR Sensor Dimensions
(L x W x D) 108 x 52 x 36.8 mm
Bracket Dimensions
(L x W x D) 52 x 30 x 26.5 mm
Specification

The Remote Control enables you to quickly and
conveniently Arm and Disarm your Alarm System.
In the event of an emergency when in or near your
property, pressing the SOS button will trigger an
alarm condition on the Control Panel/Siren.
Features
LED Indication
Flashes once: transmits the signal
Low Light Level: low battery indication, (immediate
battery change recommended)
Specification
Buttons/Functions
See over.
Installation
Specification
Power Supply DC3V CR2025 Lithium Battery
Transmitting Distance ≤80m ﴾in open area﴿
Radio Frequency 433 MHz
Housing Material ABS Plastic
Operating Temperature -10°C~50°C
Relative Humidity ≤ 80% ﴾non‐condensing﴿
Dimensions (L x W x D) 58 x 31 x 9.5mm
-10°C~55°C
DC 1.5V (AA 1.5V LR6 Battery x 1pc)
433MHz
≤ 30uA ≤ 40mA
≤80m ﴾in open area﴿
71 x 34 x 17.5mm
51 x 12 x 13.5mm
Power Supply
Static Current Alarm Current
Transmitting Distance
Radio Frequency
Housing Material ABS Plastic
Operating Temperature
Relative Humidity
Sensor Dimensions (LxWxD)
Magnet Dimensions (LxWxD)
≤ 80% ﴾non‐condensing﴿
3. REMOTE CONTROL
1. Remove the activation strip from the battery
compartment.
2. Remove the backing paper from one side of each
double-sided adhesive strips. Fix one adhesive strip
to the back of the Magnet and one to the back of
the Transmitter (alternatively for permanent fixing
use the screws supplied).
3. Peel off the other side of each adhesive strip.
Mount the Magnet on the door and the
Transmitter on the door frame (small triangles
facing each other), with less than a 6mm
separation between the two.
4. When opening the door a small red indicator
lights up briefly, this indicates that the
Transmitter has sent a signal to the Control Panel.
LED
LED
Appearance
LED Indicator
Panic
Disarm
Part Arm *
(Home Mode)
Arm
Key-ring Clasp
* Note: Part Arm Function does not work
with Siren Controlled Alarm Systems

REMOTE CONTROL BUTTONS/FUNCTIONS
SOS
+
+
Panic
Mute Arm
Arm Press to Arm the Control Panel/Siren and all Accessories (Full Arm)
Press to Disarm the System
Disarm
Part Arm
(Home Arm)
Does not work with Siren Controlled Systems
(operational for Control Unit Systems only)
Press to activate Panic Alarm (SOS)
Mute Disarm
Press to Arm the System with the Solar Siren in Mute/Silent Mode
Press to Disarm the System with the Solar Siren in Mute/Silent Mode
Fit the Siren to the outside of the building in a position that is clearly visible and at a height which is relatively
inaccessible to an intruder.
Although the Siren is designed to work on any aspect wall, for optimum performance try to avoid fixing it to a
North facing wall, or to a wall with shadows cast by walls, trees and roof overhangs.
For optimum radio signal reception mount the Solar Siren a minimum distance of 1 metre away from any
external or internal metalwork (drainpipes, gutters, radiators, etc)
Positioning
4. SOLAR SIREN
Positioning
Positioning
Layout
Positioning
Jumper setup
Rear
Anti-tamper
Switch
Sirens
Learn Button
Inner Tamper Switch
Alarm LED Indicators
9V
Start-up
Battery
Rechargeable 3.7V
1800mAh Lithium Battery
Rear Cover Tamper Socket
Status LED Indicator *
30 seconds (default)
2minutes
5minutes
Siren Duration Setting
Volume Setting
High (default) Mute Low

1. Press the Learn Button (0.5 seconds), the system goes into Learn Mode
after one beep is heard.
2. Press the Test Button on the additional Accessory or trigger the
Accessory once.
3. The Wireless Accessory is learned successfully after a second beep.
4. If two beeps are heard, the accessory is already linked.
5. To finish learning the Accessories, press the Learn Button
again to exit Learn Mode after one beep.
Connecting the Wireless Accessories
Remove the fixing screw from
the bottom edge of the siren
housing and carefully remove
the front cover.
Hold the mounting plate in
position and mark the positions
of the four mounting holes.
There is a Spirit Level inside the
case to help ensure that the
Siren is level.
Drill four holes, fit the wall
plugs, and then fit the fixing
screws supplied, in the holes.
Hinge the front cover locating
tabs over the top edge of the
back plate and carefully push
the base of the siren cover into
place. Secure the siren cover in
place by refitting the fixing
screw in the bottom edge of
the cover.
Test Mode Enter/Exit Learning Status using a connected Remote Control
1. If the Siren has been fitted as a standalone system, additional
Accessories can easily be learnt to the Siren without the need to
dismount the Siren from the wall, as follows:
2. Press Unlock on the Remote Control 3 times (within 5 seconds) to
enter Test Mode.
3. Press Home Arm 3 times (within 5 seconds) to enter Learn Mode.
A long beep is heard from the Siren indicating that it is in Learn
Mode. Press the Test Button on the additional Accessory or trigger the
Accessory once.
4. The Siren will beep again to indicate that the Accessory has been
successfully connected with the Siren.
5. Press Lock on the Remote Control to exit Learn Mode, it will emit one
beep.
6. The System is now Armed, press Unlock to Disarm the System.
1. Test Mode prevents the Siren’s tamper switch from triggering an
alarm during maintenance or when changing the battery.
2. When the Remote Control is connected with the Siren, press
Unlock 3 times (within 5 seconds) to enter Test Mode, the Siren will
emit a long beep indicating that the system is now in Test Mode.
During this period the Siren will not alarm but will beep if the
tamper switch or the connected Sensors are triggered.
3. Press Lock on the Remote Control to exit Test Mode after a short
beep.
4. The System is now Armed. Press Unlock to Disarm the System.
Prior to installation connect the 9V Battery and press the Power on/off button
Installation
Backup Power 3.7V 1800mAh Rechargeable Lithium Battery
Solar Panel Output Current 2000LUX illumination ≥4mA (in sunlight)
Maximum Alarm Current ≤ 500mA
Wireless Receiving Distance ≤ 80m ﴾free space﴿
Operating Temperature -10°C~ +55°C
Relative Humidity ≤ 80%RH ﴾non‐condensing﴿
Maximum Siren Volume 110dB
Standby Current ≤ 1.mA
Standby Time ≤ 45 days ﴾no sunlight﴿
Wireless Receiving Frequency ≤ 433 MHz
Dimensions (L x W x D) 309 x 230 x 79.8 mm
Specification
The Siren will sound and the strobe light will flash upon
activation of a connected Accessory.
Disarming the System will stop the siren sounding. If not
disarmed the Siren Status Indicator will flash once every 2
seconds for one hour (visual notification of an alarm event).
There is a built-in 15 second exit delay on arming the system
to allow time to leave the property.
An optional 15 second entry delay is available by setting the
Sensors to Single Delay Zone.

www.responseelectronics.com
Response Electronics Limited
Roman House, Lysons Avenue, Ash Vale, Surrey, GU12 5QF
email: [email protected]

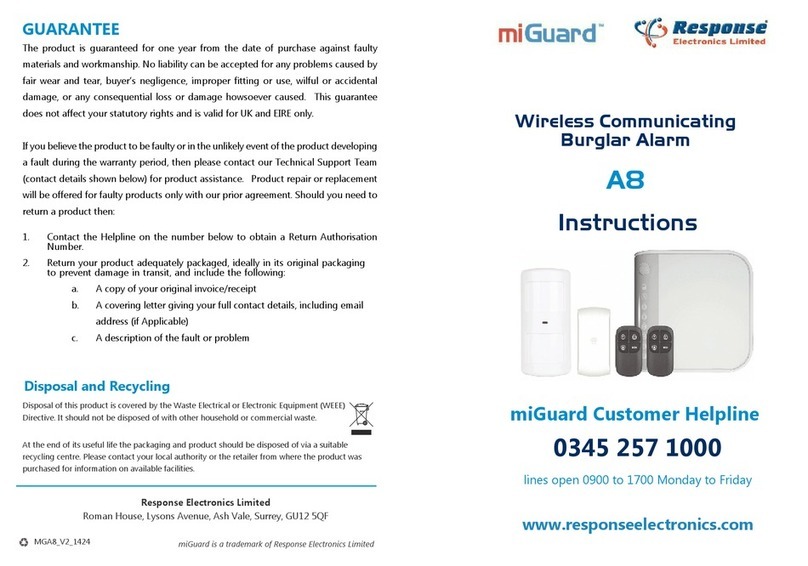

The product is guaranteed for one year from the date of purchase against faulty materials and
workmanship. No liability can be accepted for any problems caused by fair wear and tear,
buyer’s negligence, improper fitting or use, wilful or accidental damage, or any consequential
loss or damage howsoever caused. This guarantee does not affect your statutory rights and is
valid for UK and EIRE only.
If you believe the product to be faulty or in the unlikely event of the product developing a fault
during the warranty period, then please contact our Technical Support Team (contact details
shown below) for product assistance. Product repair or replacement will be offered for faulty
products only with our prior agreement. Should you need to return a product then:
1. Contact the Helpline on the number below to obtain a Return Authorisation Number
2. Return your product adequately packaged, ideally in its original packaging to prevent damage
in transit, and include the following:
a. A copy of your original invoice/receipt
b. A covering letter giving your full contact details, including email address (if applicable)
c. A description of the fault or problem
GUARANTEE
Disposal and Recycling
Disposal of this product is covered by the Waste Electrical or Electronic Equipment (WEEE)
Directive. It should not be disposed of with other household or commercial waste.
At the end of its useful life the packaging and product should be disposed of via a suitable
recycling centre. Please contact your local authority or the retailer from where the
product was purchased for information on available facilities.
lines open 0900 to 1700 Monday to Friday
“ whatever your question, we’re just a phone call away “
0345 257 1000
Customer Helpline
miGuard is a trademark of Response Electronics Limited © copyright 2014 All rights reserved
MGA1R_V3_1526
