Retekess TT120 User manual

OK
Model:TT120
Lithiumbattery:1500MAH 3.7v
Chargingvoltage :DC5V
S/N2002R1201100001
Henan Eshow Electronic Commerce Co., Ltd
Audio Guide System
MADEIN CHINA
10
7
46
5
9
8
1
2
3
Audio Guide System
TT120

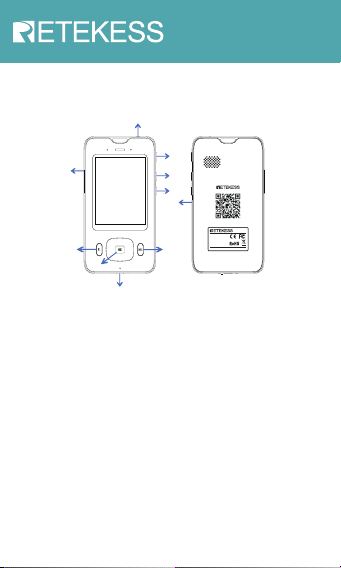

Product Overview
1.Power On/Off Button
2.Volume Up Button
3.Volume Down Button
4.Play/Pause/Replay Button (Short press to Play or Pause
the audio. After one audio is finshed, you could short play
this button to reply the audio. )
5.Confirm Button (After selecting the language you need
to listen, press this button to confirm)
6.Select Language Button (English/German/French/
Spanish/Italian/Russian/Chinese）
Note: You need to inbuilt playback file in different languages
if you want customers to be able to select the language to listen)
7.Charging Port
8.Earphone Jack
9.TF Card Port
10.Reset Button

Functions
● GPS and BDS triggers option, built-in high sensitivity
ceramic antenna, fast and accurate to locate the receiver.
● 2.8” TNT HD full-color screen with 240 * 320 resolution
● Automatic detection of altitude and temperature and always
show on the display, visitors can view this information in real
time
● RFID wireless trigging tech, automatic positioning and
audio play, automated guide without narrator
● Built-in multiple languages can be freely converted
Installation Before Use

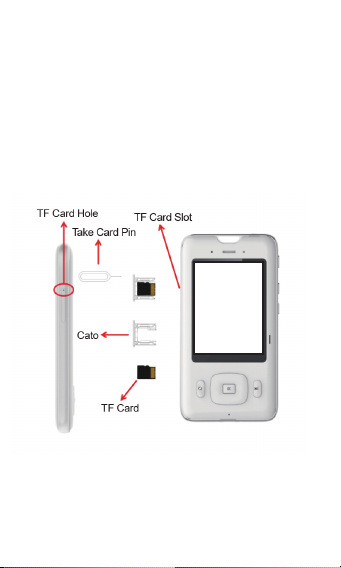

Insert Card: Put the TF card to the cato, then insert the cato
into the card slot of the device (Please be careful not to
reverse the direction of the card)
Pull Out Card: Insert the pin in the TF card hold and press,
the cato will pop up automatically. Then remove the pin,
and finally pull out the card cato and take the TF card.

The Inbuilt Playback File Configuration Format of the TF Card
in the Audio Guide System
(Note: The audio guide system must be off while connecting it
to the PC with a data line, then turn it on after it connect well)
In order to make the audio guide system work properly, the
inbuilt player file must be configured well according to the
following requirements before using the equipment.
1, Create a named TRAVEL folder on the TF card, then all the
other files are placed under the corresponding subfolders of
the TRAVEL folder. The subfolders include:
A, CHN: Chinese audio file. It includes audio player file
“travelplay”, Chinese name display file “travelshow” and all the
Chinese audio files which in MP3 format.
B, ENGLISH: English audio file. It includes audio player file
“travelplay”, English name display file “travelshow” and all the
English audio files which in MP3 format.
NOTE: ALL THE OTHER LANGUAGES FILES FORMAT ARE
SAME AS THE CHINESE AND ENGHLISH FILES.
C, Trigger configuration file “travelpos”, used for the audio
guide system to trigger audio broadcasts based on longitude
and latitude calculations
2, Use the NOTEPAD to open the audio player file“travelplay”
and name display file “travelshow” , the details format should
be as following:
“travelplay” source file
3|70002100,70002100.mp3;70002101,70002101.mp3;700021
02,70002102.mp3;
3 is for the number of attractions
70002100is the ID assigned to each attraction
70002100.mp3 is the audio file in MP3 format corresponding to
the attraction
| is the separator in English input method
, is the comma in English input method
“travelshow”source file
3|70002100,(Sea World);70002101,(Citizens
Center);70002102,(Lotus Hill)

3 is for the number of attractions
70002100is the ID assigned to each attraction
(Sea World) is the attraction name for the corresponding
attraction
| is the separator in English input method
, is the comma in English input method
“travelpos” source file (this file only need when the audio guide
system uses GPS trigger )
3|104.062136,30.543444,100,70002100;104.064342,30.54461
2,100,70002101;104.068287,30.552838,100,70002102;
3 is for the number of attractions
104.062136 is the longitude of the attraction (East longitude is
positive number, west longitude is negative number. The
positive signs can be omitted)
30.543444 is the latitude of the attraction (North latitude is
positive, south latitude is negative. The positive signs can be
omitted.)
300 is stand for the trigger radius from the attraction, the unit is
“m”
70002100is the ID assigned to each attraction
| is the separator in English input method
, is the comma in English input method
; is the semicolon in English input method
These files can be edited with Notepad, and then saved in
ANSI format.
The main TRAVEL folder and other mentioned subfolders
above must be created and assigned the corresponding files
(Language folders can be created as needed). Otherwise,
when the visitors select the language on the audio guide
systen, the device will not play properly attractions audio and
not display the correct attraction name.
RFID tag writer Operation
The tag writer need to connect with the PC through the USB
cable while using

You need to install the driver for the first use of the tag writter
(The drivers for Win7 and Win10). After the driver is installed,
please check if the installation is successful or not as follows:
My Computer--Management--Computer Management--Ports,
if you could found the CP210X USB to UART, that shows
done. (Figure 1)

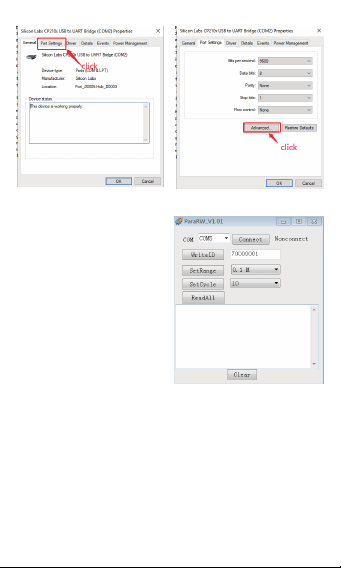

The COM3 in the above picture, if the number after COM is
greater than 9, you need to change it to a port which less than
10. (Figure 2/3/4)
(Figure 1)
(Figure 2)

After the driver is successfully installed, open the configuration
tool (Figure 5)
Configuration steps
1.Put the Trigger on the Tag Writer
2.Select the correct port
3.Click “Connect”
4.Write ID--which assigned to the attraction (8 bytes)
Set Range--Set the transmission range of the Trigger
Set Cycle--Set the number of send per second of Trigger
(Used to control the power consumption of the Trigger)
Read All--Read all the data of the Trigger
Clear-- Clear all the data in the display box
5.There is a text prompt when the operation is successful.
(Figure 3) (Figure 4)
(Figure 5)

Local Government Regulations
When radios are used as a consequence of employment, the Local
Government Regulations requires users to be fully aware of and able to
control their exposure to meet occupational requirements.
RF ENERGY EXPOSURE AND PRODUCT SAFETY GUIDE
Before using this radio, read this guide which
contains important operating instructions for
safe usage and rf energy awareness and
control for compliance with applicable
standards and regulations.
ATTENTION!
Unauthorized modification and adjustment
Changes or modifications not expressly approved by the party
responsible for compliance may void the user’s authority granted by the
local government radio management departments to operate this radio
and should not be made. To comply with the corresponding requirements,
transmitter adjustments should be made only by or under the supervision
of a person certified as technically qualified to perform transmitter
maintenance and repairs in the private land mobile and fixed services as
certified by an organization representative of the user of those services.
Replacement of any transmitter component (crystal, semiconductor, etc.)
not authorized by the local government radio management departments
equipment authorization for this radio could violate the rules.
Exposure awareness can be facilitated by the use of a product label
directing users to specific user awareness information. Your Retekess
radio has a RF Exposure Product Label. Also, your Retekess user
manual, or separate safety booklet includes information and operating
instructions required to control your RF exposure and to satisfy
compliance requirements.
FCC Requirements:
•This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions:

CE Requirements:
•(Simple EU declaration of conformity) Henan Eshow Electronic
Commerce Co.,Ltd declares that the radio equipment type is in
compliance with the essential requirements and other relevant provisions
of RED Directive 2014/53/EU and the ROHS Directive 2011/65/EU and
the WEEE Directive 2012/19/EU; the full text of the EU declaration of
conformity is available at the following internet address:
www.retekess.com.
•Disposal
The crossed-out wheeled-bin symbol on your product, literature, or
packaging reminds you that in the European Union, all electrical and
electronic products, batteries, and accumulators (rechargeable batteries)
must be taken to designated collection locations at the end of their
working life. Do not dispose of these products as unsorted munic-
ipal waste. Dispose of them according to the laws in your area.
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
•This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more
of the following measures:

RF Warning Statements
The device has been evaluated to meet general RF exposure
requirement. The device can be used in portable exposure condition
without restriction.
Small Parts. Not for children under 3 years.
RF Exposure Information
•DO NOT operate the radio without a proper antenna attached, as this
may damage the radio and may also cause you to exceed RF exposure
limits. A proper antenna is the antenna supplied with this radio by the
manufacturer or an antenna specifically authorized by the manufacturer
for use with this radio, and the antenna gain shall not exceed the
specified gain by the manufacturer declared.
•To avoid interference, turn off the radio in areas where signs are posted
to do so.
•DO NOT operate the transmitter in areas that are sensitive to
electromagnetic radiation such as hospitals, aircraft, and blasting sites.
IC Requirements:
Licence-exempt radio apparatus
This device contains licence-exempt transmitter(s)/receiver(s) that
comply with Innovation, Science and Economic Development
Canada’s licence-exempt RSS(s). Operation is subject to the
following two conditions:
(1) This device may not cause interference.
(2) This device must accept any interference, including interference
that may cause undesired operation of the device.
Le présent appareil est conforme aux CNR d’Industrie Canada
applicables aux appareils radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage;
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.

WARNING
• Use the lowest volume necessary to do your
job.
• Turn up the volume only if you are in noisy
surroundings.
• Turn down the volume before adding headset
or earpiece.
• Limit the amount of time you use headsets or
earpieces at high volume.
• When using the radio without a headset or
earpiece, do not place the radio's speaker
directly against your ear
• Use careful with the earphone maybe possible
excessive sound pressure from earphones and
headphones can cause hearing loss
Note: Exposure to loud noises from any source
for extended periods of time may temporarily or
permanently affect your hearing. The louder the
radio's volume, the less time is required before
your hearing could be affected. Hearing damage
from loud noise is sometimes undetectable at
first and can have a cumulative effect.
WARNING
•This radio meets the RF exposure guidelines
when used with the Retekess accessories
supplied or designated for the product. Use of
other accessories may not ensure compliance
with the RF exposure guidelines and may
violate regulations.
•For a list of Retekess-approved accessories for
your radio model, visit the following website:
http://www.Retekess.com

Guarantee
Model Number:
Serial Number:
Purchasing Date:
Dealer: Telephone:
User’s Name: Telephone:
Country: Address:
Post Code: Email:
Remarks:
1.This guarantee card should be kept by the user, no
replacement if lost.
2.Most new products carry a two-year manufacturer’s
warranty from the date of purchase.
3.The user can get warranty and after-sales service as
below:
• Contact the seller where you buy.
• Products Repaired by Our Local Repair Center
4.For warranty service, you will need to provide a receipt
proof of purchase from the actual seller for verification
Exclusions from Warranty Coverage:
1.To any product damaged by accident.
2.In the event of misuse or abuse of the product or as a
result of unauthorized alterations or repairs.
3.If the serial number has been altered, defaced, or
removed.

Henan Eshow Electronic Commerce Co., Ltd
Add: 7/F, Sanjiang Building, No.170 Nanyang Road, Huiji District,
Zhengzhou, Henan, China
EU Importer: Germany Retevis Technology GmbH
Address: Uetzenacker 29,38176 wendeburg
Facebook: facebook.com/RetekessWirelessSystem
E-mail: [email protected]
Web: www.retekess.com
MADE IN CHINA
