INSTALLATION
Welcome
Thank you for purchasing a RetroAntenna® Power Antenna. This antenna features fully automatic
operation. Please note that this antenna does not work with antenna systems requiring a switch. Our
antenna uses a standard end that is designed to t most applications. However, some factory radios for
1995 and newer Fords, 1988 and newer GMs, and some imports use a unique connector and may need
an adapter. Contact a local car audio shop for the correct adapter for your application if one is required.
Installing the Antenna
1. Disconnect the battery before you begin the installation. Make sure the area for the antenna
has enough clearance to house the antenna. The PA01 antenna requires 11 1/2 inches or 29cm of
clearance. The PA03 requires 8 1/2 inches or 22cm of clearance.
Note: Six mounting bases are provided with the antenna: ve of varying angles with one adjustable
mount installed on the antenna (see Figure 1).
2. Remove the preinstalled mounting base from the new antenna. Select the proper base with the
correct angle for your fender (see Figure 1). The ve xed angle bases require a 7/8 inch or 22mm
hole. The adjustable base requires a 1 inch or 25mm hole.
Note: If no adequate hole exists, a 1/8 inch or 3mm pilot hole must be drilled then enlarged with a hole
saw or drill bit to one of the sizes listed above depending on the base you will use.
3. Remove all burrs, paint or dirt from the underside of the hole.
4. Install the new antenna from the underside of the fender and assemble the base above the fender
(see Figure 2). Be sure the retainer rests evenly on the underside of the fender to alleviate any possible
damage to the vehicle or antenna. Align the mast vertically by slightly tightening the antenna mounting
nut while adjusting the mast to be vertical.
5. Secure the bottom of the motor assembly with the supplied metal strap. There are holes in the strap
designed to accommodate various mounting positions. It may be necessary to bend the strap to mount
the motor assembly. Be sure the black ground wire is secured properly to a clean chassis point for
proper operation. If the black ground wire is not properly grounded, the antenna will not function.
6. With the bottom of the antenna motor assembly secured with the mast at the desired angle and the
retainer resting evenly on the underside of the fender, tighten the mounting nut rmly to secure the
antenna assembly. Do not over tighten the nut. Over tightening the nut may strip or break the mounting
threads or damage the contact spring causing improper antenna operation.
7. Attach the drain tube to the bottom of the motor assembly and route it to the outside of the car. Avoid
kinking or bending the drain tube (see Figure 2).
8. Route the electrical wiring and coaxial cable into the dash area inside the vehicle interior to plug it
into your radio (see Figure 2). A 5/8 inch or 16mm hole will be required to route the wire through the
rewall. Avoid routing cables through the engine compartment, and near hot or high current parts.
Antenna cables may pick up interference from high current parts and wiring. Finally plug the antenna
into your radio and reconnect the battery.
Electrical Wiring
For radios with a power antenna wire, connect the blue wire from the antenna to the power antenna
wire from the radio (usually blue), then connect the coaxial cable from the antenna to the radio (see
Figure 3).The red power wire from the antenna can be connected at the fuse block, battery or any other
constant +12 volt location.
IMPORTANT NOTES
• For optimum operation and reception, you must periodically clean the mast with a damp cloth. Always
clean the mast while it is fully extended. Do not oil or gress the antenna or motor assembly. Doing so
will damage the motor.
• This power antenna is designed to withstand extremely cold temperatures, but under severe icing
conditions the antenna could fail to extend or retract. If this happens, turn the radio on and o󰀨 three or
four times to help free the antenna mast. The antenna motor will not be damaged if the mast does not
extend. A special clutch protects the motor from any possible damge from a frozen mast.
• Always remember to retract the antenna when entering a car wash or low clearance areas.
• There are no user serviceable parts in the motor assembly, and it should never be taken apart.

• Periodically inspect the drain tube for blockage or kinks.
• Damage caused by disassembly, unathorized accessories or incorrect wiring will void your warranty.
Black (-) to chassis
ground from antenna
Red (battery +12 volt)
wire from antenna
Blue switched wire
to antenna lead
Coaxial cable
from antenna
Antenna input
5 amp fuse
to red wire
Radio
Fuseblock
Fuseblock
Switched
Switched wire
from radio
Ignition switch
Unswitched
Battery
0
8
23
3
15
30

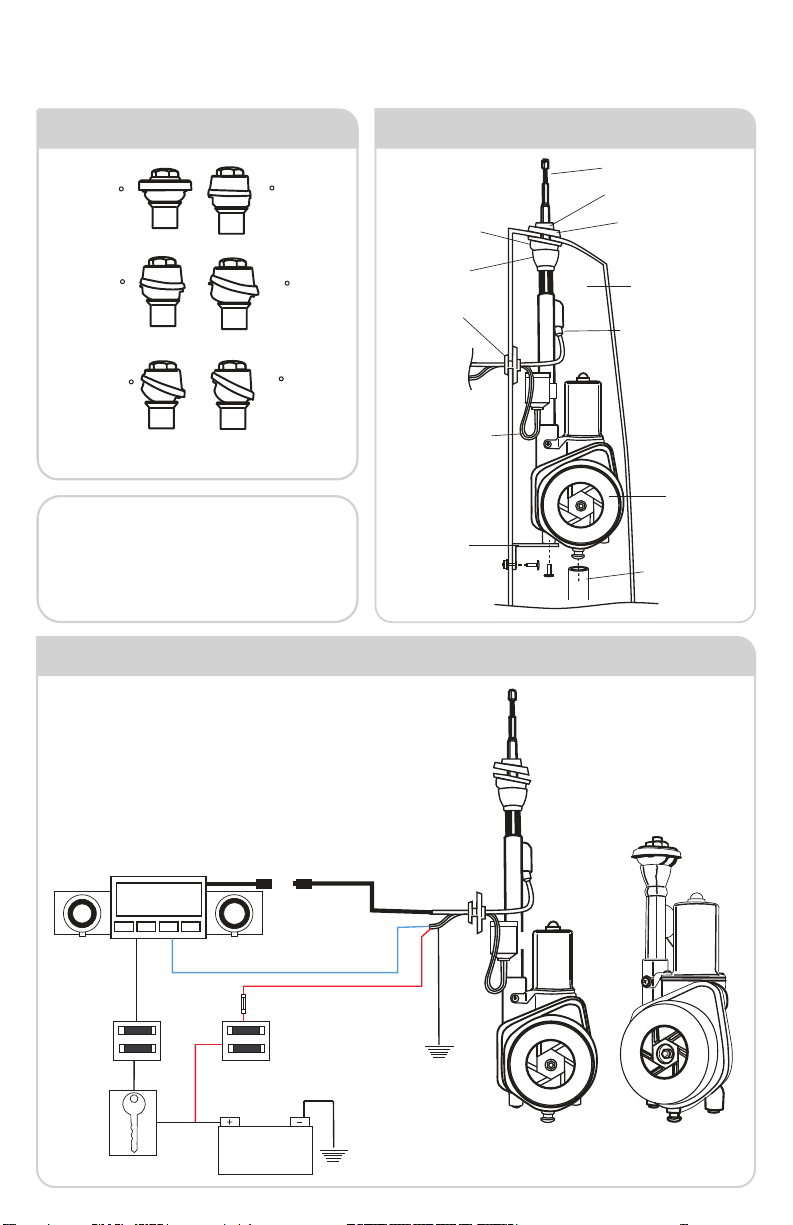

Included mounting bases
Figure 1
Adjustable
Mounting Base
Metal
Retainer Cup
Mounting Nut
Antenna Mast
Angle Base
Underside
of Fender
Antenna Input
From Radio
Motor Assembly
Drain Tube
Mounting Hole
Wiring to Radio
Metal Strap
Figure 2
Figure 3
Replacement Antenna Masts
Replacement antenna masts are
available. To purchase a replacement
mast, call us at 702.483.2222 or visit our
website: www.retromanufacturing.com.
