REV.247 REV900 User manual

5B
5A
Frame
Column
Short feet
End pipe
U shape end pipe
Outer pipe
Connection pipe
Cable clamp
Rubber grip
Rubber washer
Hole cap
Control Box / Hand control
Hand control
AC cable
Motor extension cable
Screws
Screw for motor house / Outer pipe, M6x16mm
Screw for feet, M10x16mm
Screw for tabletop, Ø5x20mm
PACKING LIST
pcs
1
1
1
1
2
2
4
2
9
2
pcs
1
1
1
pcs
4
4
9
Maximum 6Nm
Maximum 10Nm
Maximum 10Nm
< 6Nm
Tightening torque
Tailstock
Screw for motor house and outer pipe
Screw for feet and tabletop
Screw for hand control
Make sure all screws are tightened, also after a period of use!
WARNING
Carefully arrange all the cables not to be damaged by tabletop screws.
Reset the desk before use
Press both up and down buttons at the same time for 3 seconds.
Continue pressing the buttons until both columns are in lowest
position. When finish reset, the control box makes a sound and the
buttons can be released. Now the system is operational.

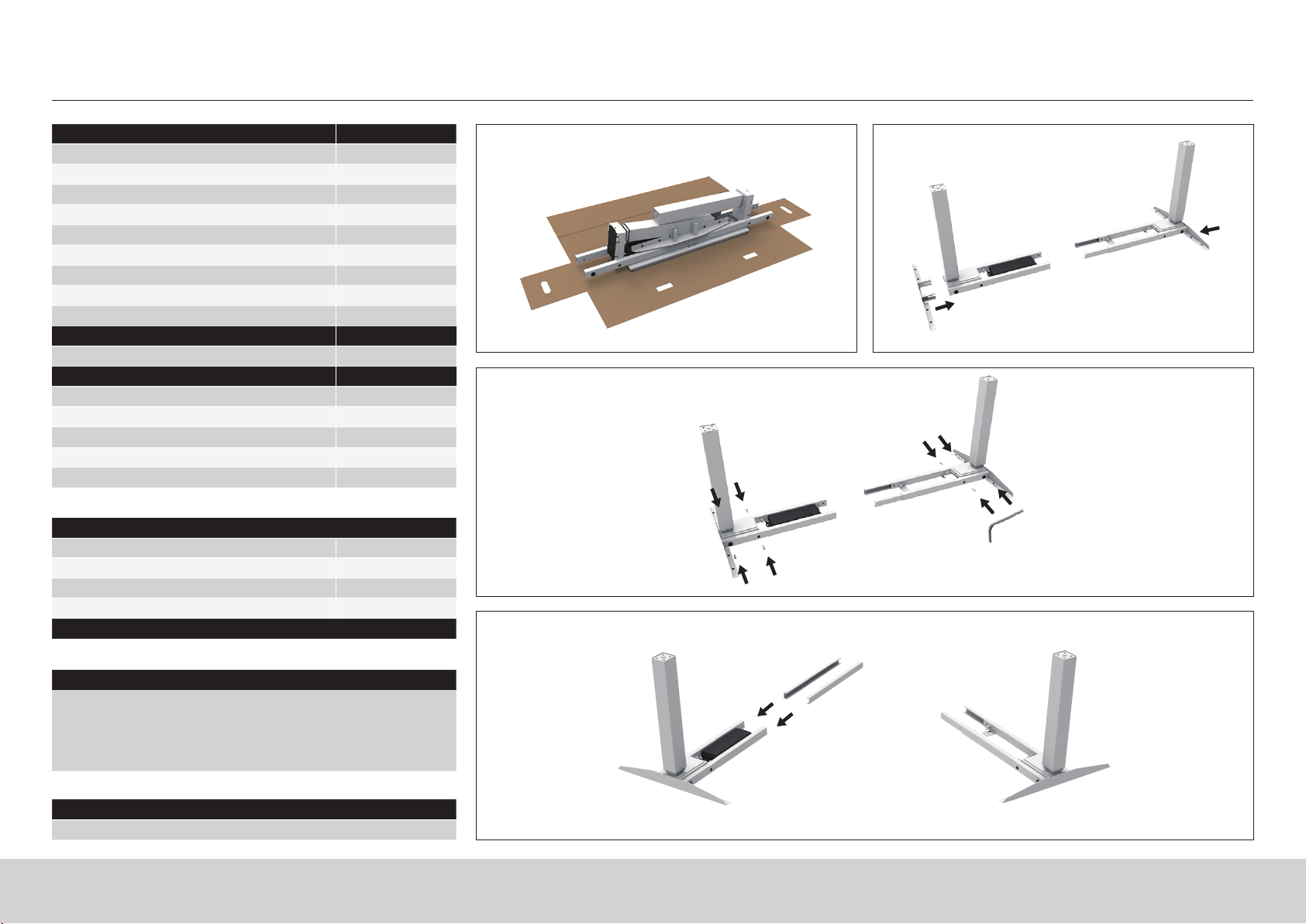

Step 1
Step 2
Step 4
Step 3
Step 5
REV900 - ASSEMBLY MANUAL
1
www.rev-247.com | 800.743.7738

Frame
Column
Long feet
End pipe
Outer pipe
Connection pipe
Cable clamp
Rubber grip
Rubber washer
Hole cap
Control box / Hand control
Control box
Screws
Screw for motor house / Outer pipe, M6x16mm
Screw for feet, M10x16mm
Tailstock for connection pipe, M10x20mm
Screw for tabletop, Ø5x20mm
Screw for hand control, Ø4x22mm
PACKING LIST
pcs
2
2
2
4
2
8
4
16
4
pcs
1
pcs
8
8
8
14
2
Maximum 6Nm
Maximum 10Nm
Maximum 10Nm
< 6Nm
Tightening torque
Tailstock
Screw for motor house and outer pipe
Screw for feet and tabletop
Screw for hand control
Make sure all screws are tightened, also after a period of use!
WARNING
Carefully arrange all the cables not to be damaged by tabletop screws.
Reset the desk before use
Press both up and down buttons at the same time for 3 seconds.
Continue pressing the buttons until both columns are in lowest
position. When finish reset, the control box makes a sound and the
buttons can be released. Now the system is operational.
Step 3
Step 4
Step 1 Step 2
2
www.rev-247.com | 800.743.7738

x12
x23 x2
Step 8
Step 9
Step 10
Step 5
Step 6
Step 7
x8
3
Adjust frame
length
Adjust frame
length
