REVELL GLACIER DUO User manual

REVEL SAUNAS
USER MANUAL

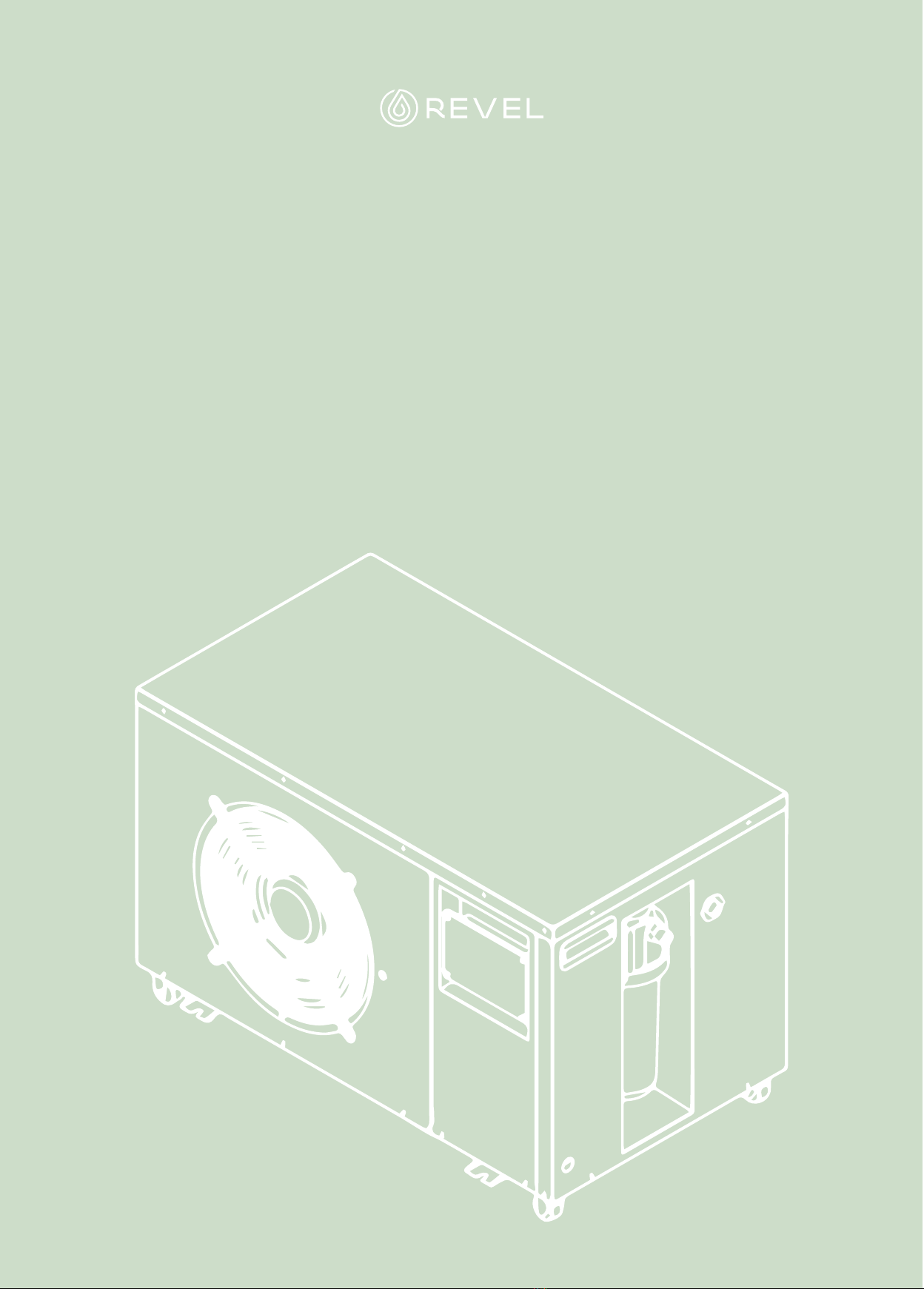

GLACIER DUO Ice Bath
Due to our continued product improvement, product illustrated on this
instruction manual may vary slightly from the actual product.

PRODUCT
INTRODUCTION

PRODUCT INTRODUCTION
Water outlet
Water inlet
Temperature controller
Axial fan
MODEL (water chiller)
Setting temperature range
Filtration
0-zone/UV

Water pump type
9000BTU
OFactory default 25OC)
Optional
Optional (30-50mg/hr)
DN15 Inner Thread
Non-self printing

usage environment. depends on

PRODUCT INTRODUCTION
O3
Uv
ICON NAME DESCRIPTION
press once to stop cooling/ heating, and then press
again to turn on cooling / heating
Press once to enter the target temperature setting,
press and hold for 6 seconds to enter the menu, and
enter the correct menu password to enter the menu
Used to adjust parameters upward
Used to adjust parameters downward
Used to turn on/off the O3 / UV output
Run key
Set key
Up key
Down key
Sterilizer
ICON NAME HENGLIANG REPRESENTATIVE EXTINGUISH REPRESENTS FLASHING REPRESENTATIVE
Refrigeration
lamp
Constant
temperature
Heating lamp
Defrost lamp
Networking
lamp
Cooling
Target temperature reached
Heating in progress
Defrosting
Connected to internet
Stop refrigeration
Not at target temperature
Stop heating
Stop defrosting
Not connected to internet
Compressor is delaying
--
Compressor is delaying
Compressor is delaying

Sterilizer


3. Service life is around 20000 hours.


PRODUCT INTRODUCTION
Filteration


element.




CODE FAULT
DESCRIPTION CAUSE OF FAILURE RESTRICT WORK OBJECTS
Water
temperature


Low voltage
fault
High voltage
fault
Current over-
load


not properly installed
Water shortage leads to no short circuit


The compressor pressure is too low,

low pressure detection port of the main

The compressor pressure is too high,

high-pressure detection port of the

When the compressor is
working, the current value
exceeds the set value of F13
Compressor, fan,
four- way valve
Water pump, compressor, fan,
four- way valve
E1
E3

E5
E6
EH
EL
EE
CCC
Compressor, fan,
four- way valve
Compressor, fan,
four- way valve
Compressor, fan,
four- way valve
Ultra high
temperature


exceeds the set value of F11
Compressor, fan,
four- way valve
Ultra low tem-
perature fault


exceeds the set value of F12
Compressor, fan,
four- way valve
Communication
failure
Poor contact of communication
interface and communication line to

communication chip
The system works normally
The equipment
needs
maintenance
The equipment has reached
the set service life, please
contact the engineer
Stop all work

SAUNA
INSTALLATION
USAGE
PRECAUTIONS

INSTALLATION AND USAGE PRECAUTIONS
Installation and usage precautions


2. The elliptical model has a maximum capacity of 600L, and it is recommended to drain water to a distance of 5-10cm from the top

3. Water injection (using household water)




scratch the surface.


years, depending on the frequency of use.
9. The compressor has the same noise output of a standard house freeze, which is a normal phenomenon
when the chiller is working.


INSTALLATION PRECAUTIONS
WARNING
• 

Note: lt is recommended to install a leakage protector on the power supply.
Please refer to the unit for the exact position of INLET & OUTLET .

。
• 

• 
installation and maintenance codes and rules and have rich installation and maintenance experience.
• 
avoided
• 
exchanger and water tank may freeze which resulting in cracking. If not in use, please drain water.
• 
WARNING:
• Do Not Inhale Ozone. Remove Immediately to Fresh Air if exposed. Keep Out of Reach of Children.
• 
• Ozone Health Information-If exposed to ozone, get to fresh air immediately. Seek doctor's advice if exposed to ozone. Ozone half-life


and ozone destructor with the ozone generator.
• Short term inhalation of high concentrations of ozone and long term inhalation of low concentrations of ozone can cause serious
harmful physiological effects.
• 
• Disconnect all power to pool equipment prior to installation, maintenance, or removal of the Hydroxzone ozone Generator.
• 
• 
NOTE: The instructions in this document provide general installation guides. Consult your dealer for specific installation
instructions. Check system for any visible shipping damage. If damage has occurred, contact the delivery company and your
dealer immediately. Before beginning installation, please verify that all listed parts are on hand.
