Unpacking Instruction
s
Revel®Ultima Voice™2 Pedestal
Harman Specialty Group
3 Oak Park Drive
Bedford, MA 01730-1413
USA
Tel [phone]
Fax [phone]
www.revelspeakers.com
Customer Service
Tel [phone]
Fax [phone] (Sales)
Fax [phone] (Service)
Revel Part No. 353273-001 | Rev 0 | 03/07
Thank you for purchasing the Ultima Voice™2 Pedestal for your Revel®Ultima Voice™2 Loudspeaker.
Follow the instructions below to unpack the pedestal.
UNPACKING
Step 1: Place the packing carton upside-down
and fully open the bottom flaps.
Step 2: Without allowing the flaps to close,
invert the packing carton. Lift the packing
carton off of the pedestal, leaving the packing
material in place.
Step 3: To complete unpacking the pedestal,
remove the Unpacking & Installation
Instructions sheet from the end pad and refer
to the “Unpacking” instructions.
Step 4: Remove the Top End Pad from the top of the pedestal.
Step 5: Lift the pedestal from the Bottom End Pad. Put both end
pads aside.
Step 6: Remove the cloth bag. Handle carefully to ensure that the
pedestal isn’t scuffed or bumped.
You are now ready to begin the Pedestal installation procedure.
Turn this sheet over to begin.
NOTE: Save all original packaging materials.
Accessory
Top End
Bottom End Pad
Protective Bag
Pedestal
Bag
Pad

Installation Instruction
s
Revel®Ultima Voice™2 Pedestal
Harman Specialty Group
3 Oak Park Drive
Bedford, MA 01730-1413
USA
Tel [phone]
Fax [phone]
www.revelspeakers.com
Customer Service
Tel [phone]
Fax [phone] (Sales)
Fax [phone] (Service)
Revel Part No. 353273-001 | Rev 0 | 03/07
Thank you for purchasing the Voice2 Pedestal for your Revel®Ultima Voice™2 Loudspeaker. Follow
the instructions below to install the pedestal.

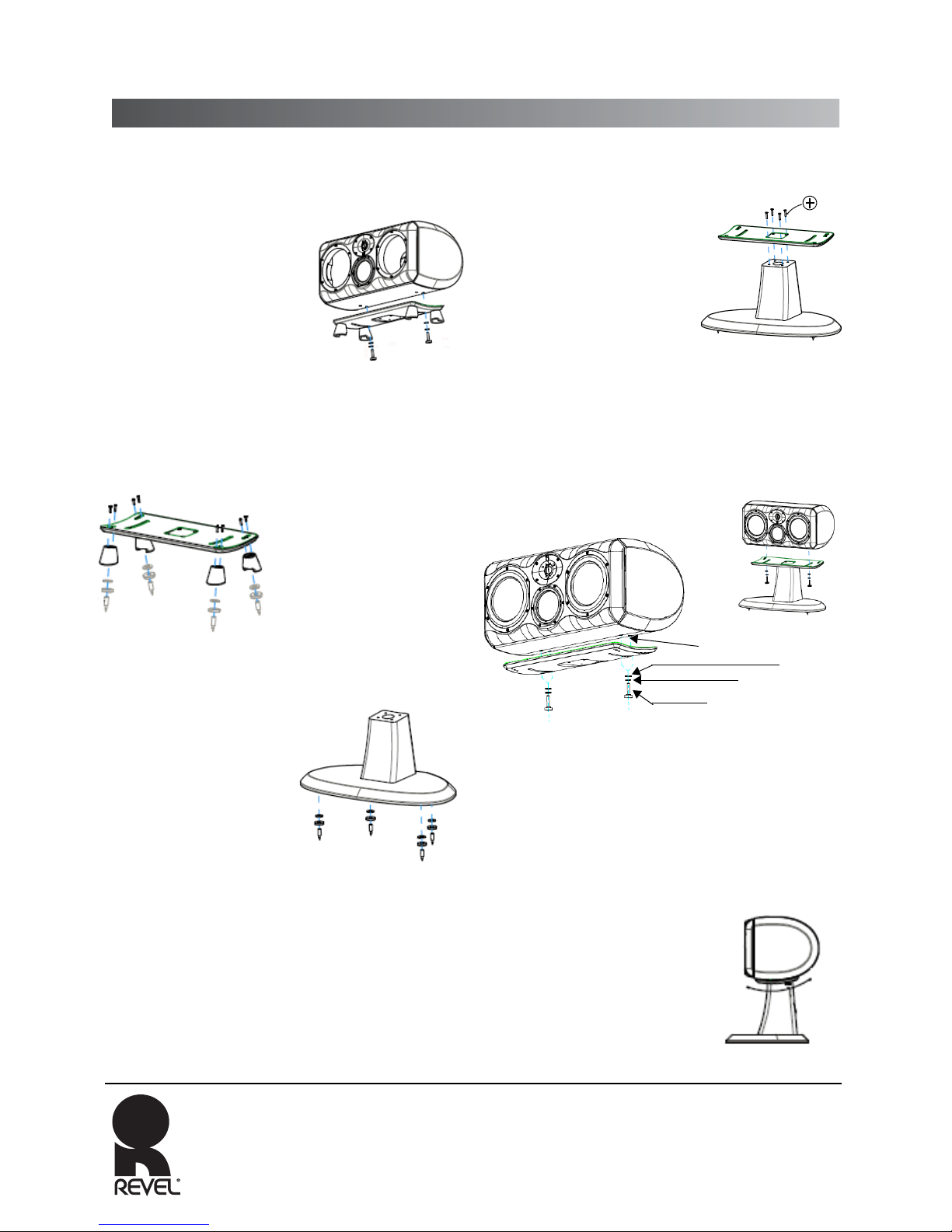

INSTALLATION
Step 1: Set the Ultima
Voice™2 Loudspeaker
upside down on a soft
non-scratch surface.
Step 2: Remove the speaker
from its cradle by carefully
removing the tilt
adjustment knobs, felt washers, and metal washers.
Note: Keep the knobs and washers together as
they’ll be re-used in Step 6.
Step 3: If the combination
spikes/glides were installed
on the cradle, remove the
spikes, felt washers, and
knurled locking rings. If
the combination spikes/
glides were not installed,
continue to Step 4.
Step 4: Remove the feet and screws from the
cradle. Put them aside.
Step 5: Install the
combination spikes/
glides with the felt
washers and knurled
locking rings to the
bottom of the pedestal.
Hand-tighten the spikes
firmly, but do NOT over-
tighten.
Note: If the combination spikes/glides were not
previously installed on the cradle, the hardware will
be with the loudspeaker hardware accessories.
Note: Refer to the Ultima Voice™2 Loudspeaker
Owner’s Manual for further instructions on how to
install the combination spikes/glides to the bottom
of the pedestal.
Step 6: Use the four Phillips
head screws located in the
Pedestal accessories bag to
install the cradle to the top
of the pedestal. Tighten the
screws firmly but do NOT
over-tighten.
Step 7: Install the loudspeaker onto the cradle/
pedestal assembly. Insert each threaded tilt
adjustment knob first through a metal washer and
then through a felt washer before inserting it into
one of the threaded inserts toward the rear of the
loudspeaker.
Step 8: Slide the loudspeaker in the cradle to
adjust the tilt. When the loudspeaker has been
appropriately positioned, firmly hand-tighten the
tilt adjustment knobs to lock the loudspeaker in
place. Do NOT over-tighten.
Front & rear tilt
adjustment threaded inserts
Felt washer
Metal washer
Lockdown knob
