Revez HD-TRIO User manual

1
Preface
Please read this manual carefully before using your Digital Satmeter for the first time.
This operating manual will help you in the
ЬAppropriate,
ЬSafe
ЬFavorable
The technical specifications and operating methods included in this manual are subject to changes without notice. In case of
any inquires after a period of usage, please contact the manufacturer.

Safety Precaution
Please read the safety instructions carefully before operating the device.
Please follow all warnings and instructions on the equipment and in the operating manual.

Safety of persons
Ensure that nobody can be hurt by falling tools or parts of the sate antenna during the adjustment and installation of the
antenna. For own security, use a rope on sloping roofs.

Attention for adapter
The devise should only be operated with the supplied AC adapter at the mains. Do not open the meter or the included AC
adapter. There is danger of life through electric shock! Wrong usage of the ports can lead to the destruction of the measuring
device.

Proceed carefully with the measuring device:
ЬAvoid low temperatures (below 0 °C) or to high humidity.
ЬThe TFT display can be damaged by mechanical impacts.
ЬAvoid excessive input voltages. Please refer to the technical data

Do not operate with the device:
ЬIf it has visible damage,
ЬIf there are loose parts in the device,
ЬIf the device was located outdoors or in damp rooms a extended period of time.

Main Supply:
Before operating, please check the units operating voltage is 90~240V AC 50/60Hz.

Overload:
Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this
may result in electric shock.

2

Liquid:
The receiver shall not be exposed to dripping or splashing water, and that no objects filled with liquids, such as base, shall be
placed on the apparatus.

Ventilation:
Keep the slots on top of the receiver uncover to allow sufficient airflow to the unit. Do not put the receiver on soft furnishings
or carpets. Do not expose there receiver to direct light or do not place it near a heater or in humid conditions. Do not stack
other electronic equipments on top of the receiver.

Cleaning:
Plug out the receiver from the wall outlet before cleaning. Clean the receiver by a soft cloth or mild solution of washing-up
liquid (no solvents).

Location:
Put the receiver indoor in order to avoid lightening, raining or sunlight.

Uncover:
Do not remove the cover, to reduce the risk of electric shock. Contact qualified and licensed service personnel to repair the
receiver, or contact your dealer.

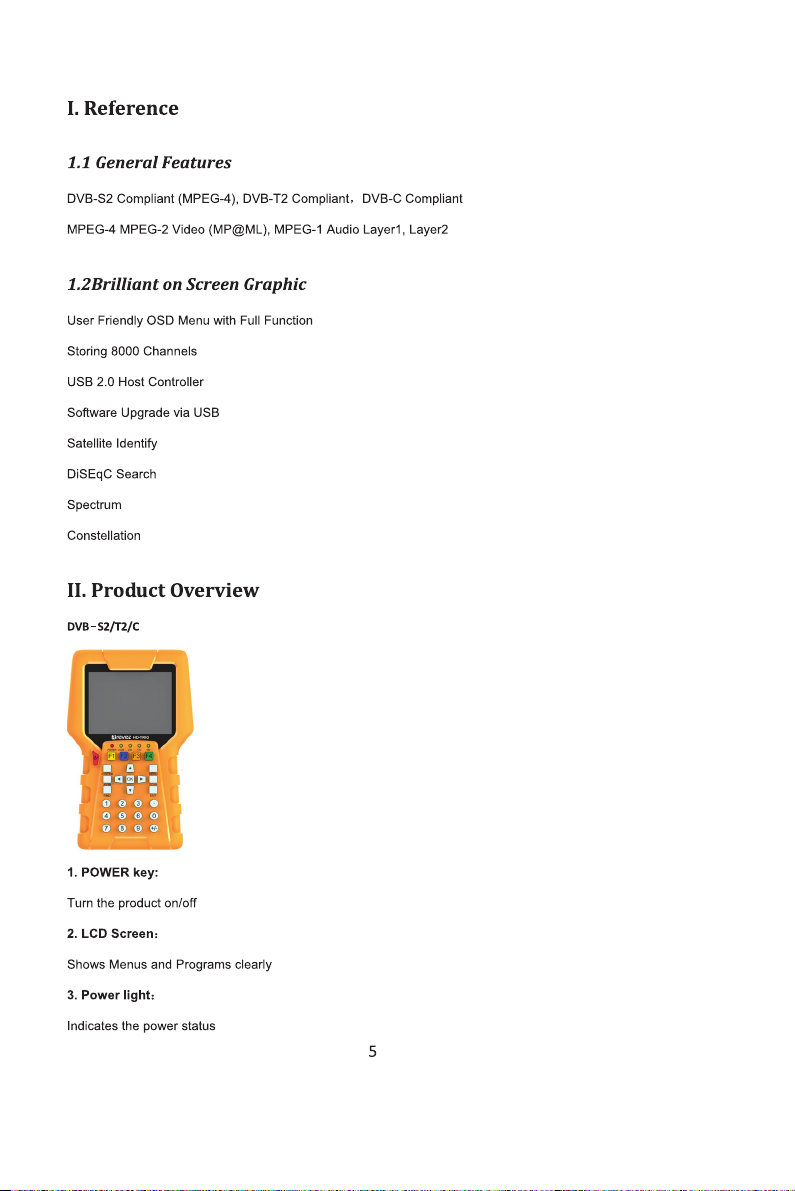

6
Red: the product is power on
Green: the product is power off
4. LOCK light
˖
This light will be on when signal is locked
5.13V/18V light: Indicate the 13V/18V
6. Function key
˖
Made of 4 keys, F1 - F4
7. Arrow key and OK key
˖
Press the Arrow key to select the right item then press OK key to confirm
8. SYSTEM key
˖
Enter the settings menu, you can set all system parameters products
9. AV IN key:
Use this product as a television
10. FIND key:
Enter the menu of measurement signal, you can measure the signal about transponder quickly.
11. MENU key:
Enter the main menu
12. EXIT key
˖
Exit from the present menu and back to the previous menu
13. SCAN key
˖
In the S2 modelˈit is blind scanˈin the T and C modelˈit is auto search
14. USB Port:
One USB Host Port
15.HDMI Port
˖
Use HDMI line connect to TV
15.ON/OFF
˖
Switch the battery on/off
III. Connection with Other Device
The following chapter shows you the connections among product, ANT and other equipment, please read this
first if you are not sure about the connection, and it will guide you to the correct connection.

7
You can connect one receiver directly to the ANT IN.
IV. Detailed operation Guide
You should installation the receiver when powering on your product for the first time after purchase.
4.1 Powering On
1. Connect the power cord of the product to a wall outlet.
2.Power on by pressing the POWER button on the panel.

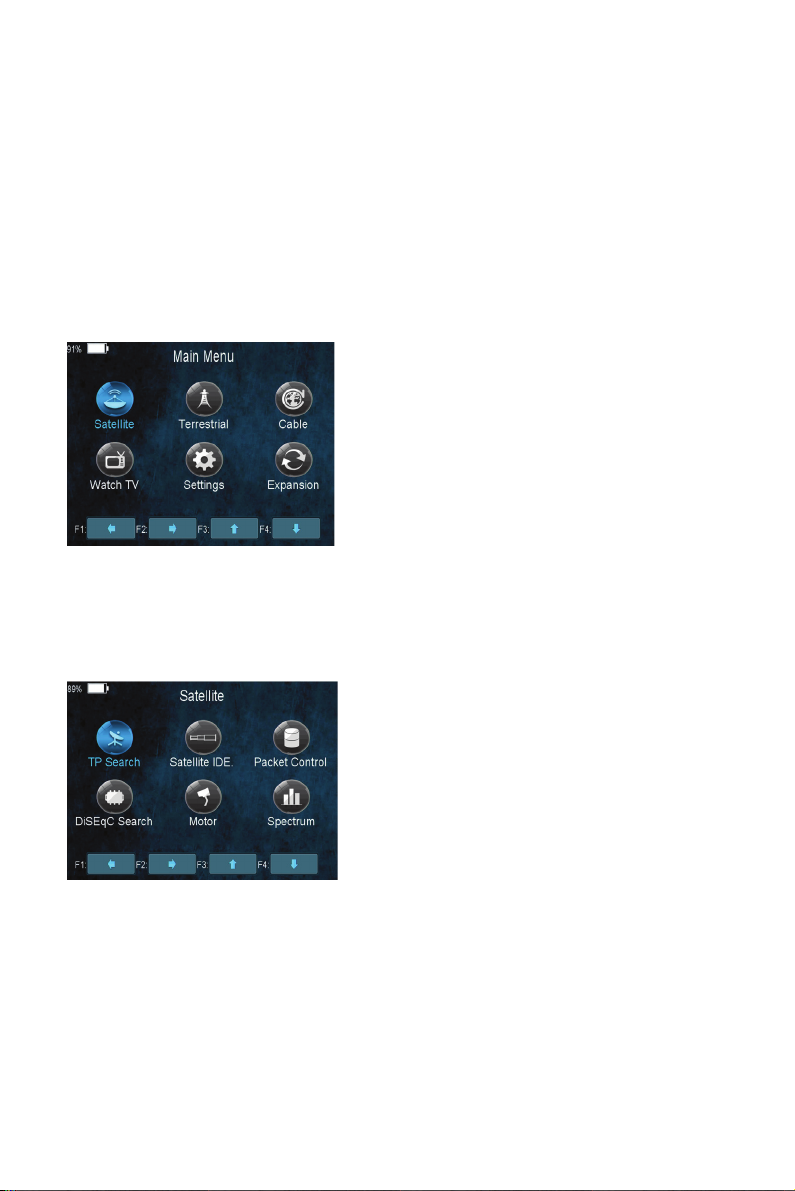

4.2 Satellite
Main Menu-> satellite
Press OK enter the satellite model

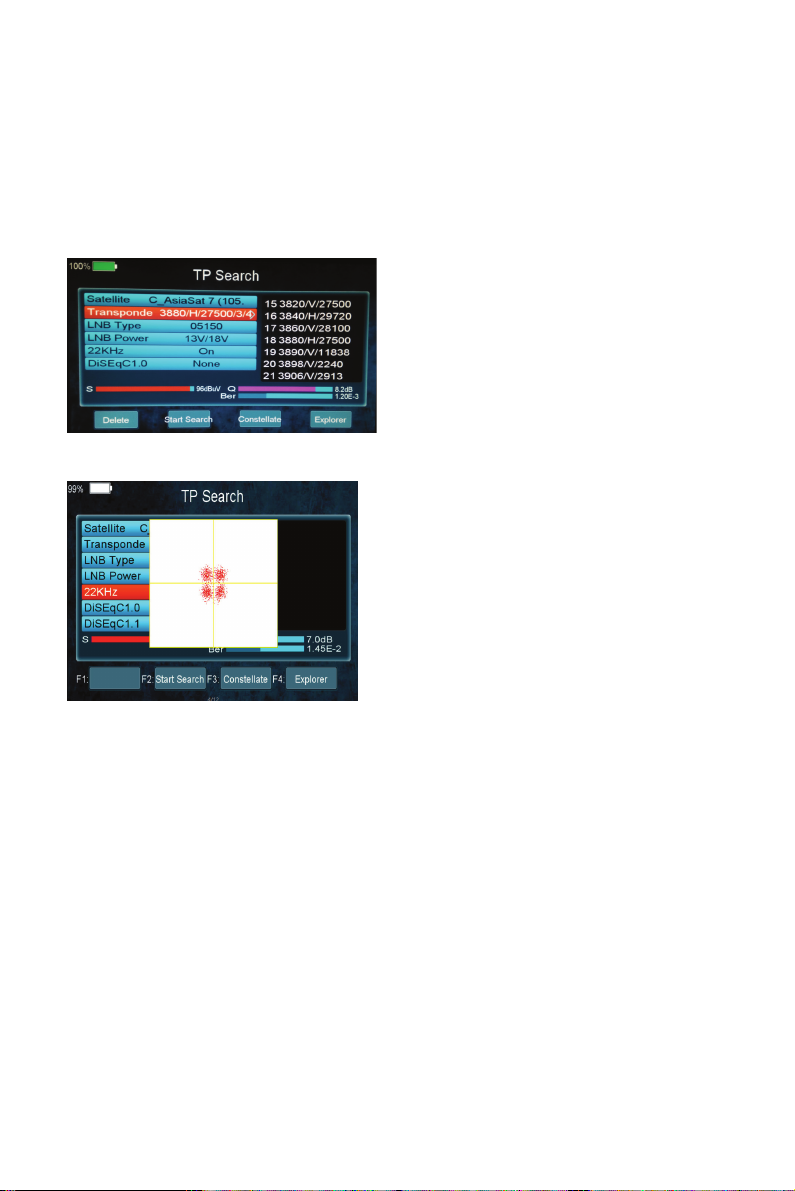

4.2.1 TP Search
Main Menu-> Satellite -> TP Search
Press OK enter the TP search, first, you should select satellite, in this picture, you also can delete, move, and rename the

8
satellite. When you fixed on a satellite, then press OK the following window will appear. Use [
S
/
T
]button to move cursor,
it’ll show the satellite name, Transponder , LNB , 22KHz, DiSEqC port . When all parameters confirm, press F2 button search the
channels. You also can press F1 to delete the satellite, or press F3 to view the constellation, or press F4 to explorer the signal
information.
you can display constellation by F3 button.
4.2.2 Satellite IDE.
Main Menu-> Satellite ->Satellite IDE.

If you don’t know the signal information of some usual sat, in this menu, please wait a moment, it will find the satellite
identify.

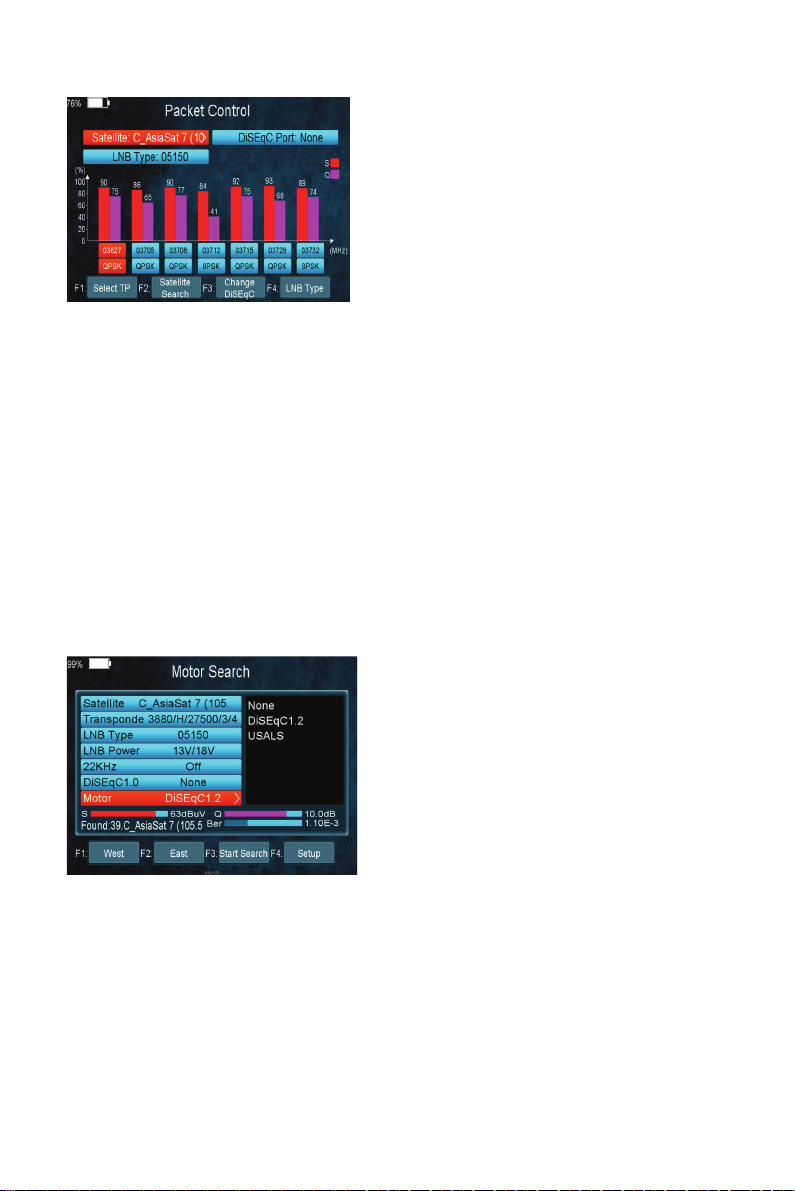

4.2.3 Packet Control
Main Menu-> Satellite -> Packet Control
In this menu, you can know the strength and quality of each transponder under the satellite.

9
4.2.4 DiSEqC Search
Main Menu-> Satellite -> DiSEqC Search
Press OK enter the DiSEqC searchˈin this menu, connect the DiSEqC port, the view will be display the sat which can
connect, then you can search the channel by DiSEqC. Press F4 button to switch LNB Type.
4.2.5 Motor Search
Main Menu-> satellite -> Motor
Press OK enter the Motor search, select satellite and any transponder, if signal and quality OK press F3 button to start search,
press F1 button turning Motor to west. Press F2 button turning Motor to east. Press the F4 button you can search by Motor;
however, you should set up the Angle about the sat use the Angle button first of all.

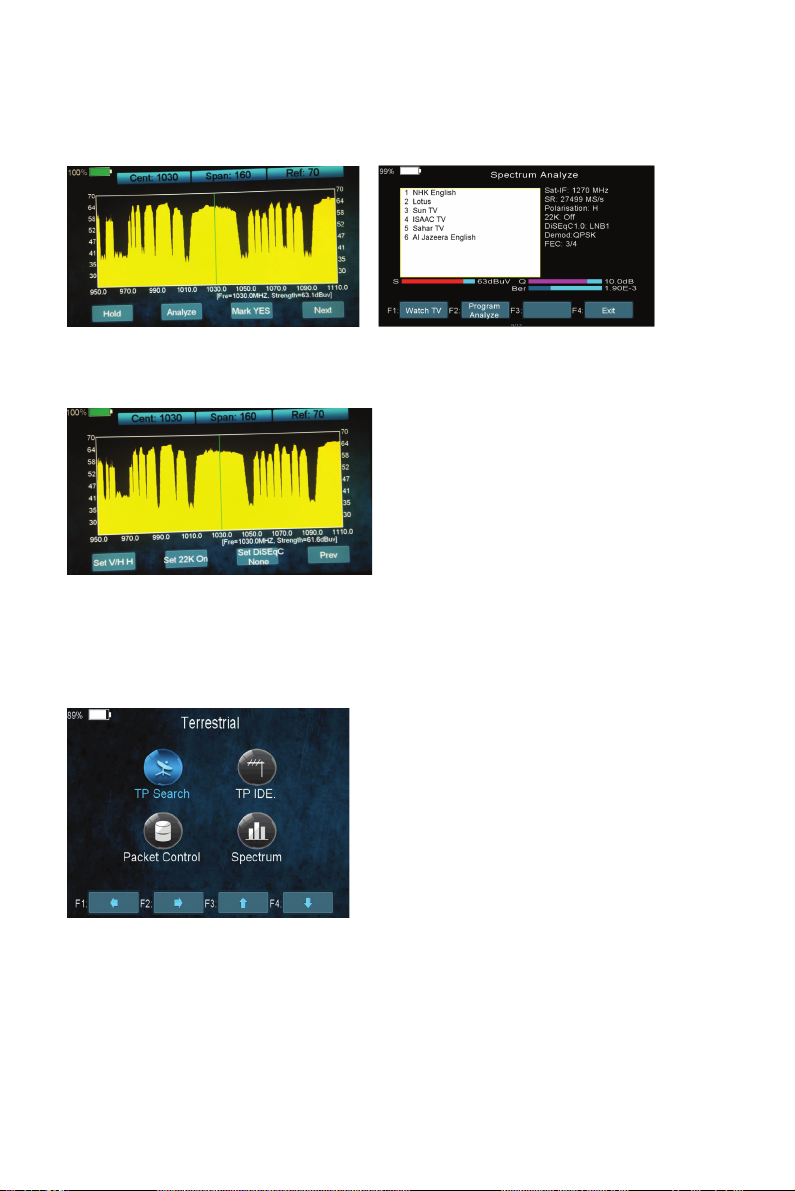

4.2.6 Spectrum
Main Menu-> satellite -> Spectrum
In this menu, you can know the strength of all transponders.

10
Press the F1 button to keep the spectrum , and press the F2 button to analyze spectrum , and press the F3 button to mark
spectrum , and press F4 button to next page.
Press the F1 button to change Polarization control Hor / Ver, and press F2 button to switch 22khz signal on or off, and Press the
F3 button to switch DiSEqC , and press F4 button to previous page .
4.3 TERRESTRIAL
Main Menu-> TERRESTRIAL
Press OK enter the terrestrial model

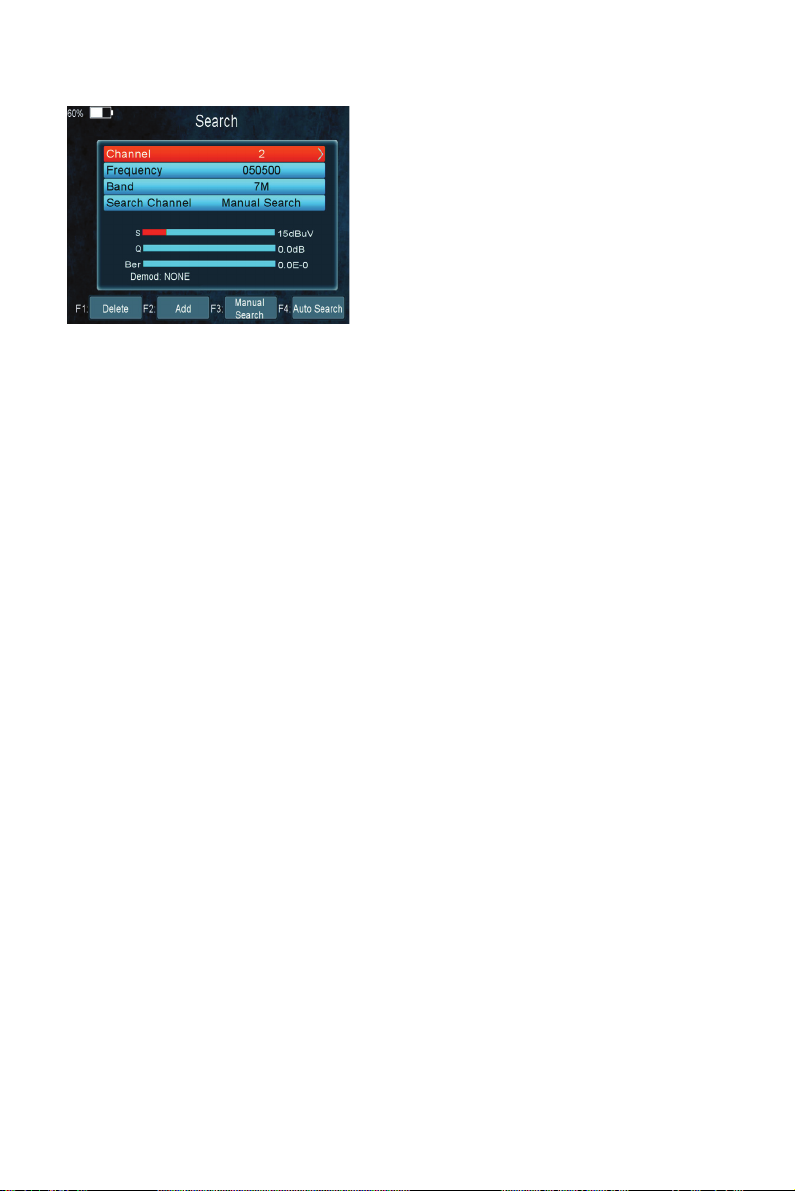

4.3.1 TP Search
Main Menu-> TERRESTRIAL-> TP Search

11
In this menu, you can Delete, Add, Manual Search, Auto Search transponders.
¾Delete
In this menu, when you highlight the channel item, you can press the
W
/
X
key to choose the transponder which you want to
delete, then press the F1 key to delete.
¾Add
You can add the transponder which you want with the F2 key. Here you can input new Frequency, BandWidth. Press the OK
key to confirm the setting, then this new transponder will be added to the Transponder list.
¾Manual Search
You can Manual Search the transponder which you want with the F3 key. You will be asked to confirm whether only search FTA
channels or not. If you select “Yes”, you will only search FTA channels.
¾Auto Search
You can search all transponders with the F4 key.
4.3.2 TP IDE
Main Menu-> Terrestrial-> TP IDE.
In this menu, you can know the exact information about the transponder and you can also Delete, Add, Manual Search,
Auto Search transponders and save the picture of this interface.

12
1. MER: Modulation error rate
2.SNR: It will show you the Carrier to Noise Ratio of the transponder you selected.
3.Pre BER˖Forward Error Correction
4.Post BER˖Afterward Error Correction
5. Strength: It will show you the strength of the transponder you selected.
6. Modulate: Modulation efficiency.
4.3.3 Packet Control
Main Menu-> TERRESTRIAL-> Packet Control
In this menu, you can know the strength and quality of each transponder.
4.3.4 Spectrum
Main Menu-> TERRESTRIAL->Spectrum

13
In this menu, you can know the strength of all transponders.
1.
W
/
X
: Press the
W
/
X
key to change the transponder.
2.
S
/
T
: Press the
S
/
T
key to change the range of the Y-axis.
3. Low Speed/High Speed: Press the F3 key to change the speed of refresh rate.
4. Save Spectrum: Press the F4 key to save the picture of spectrum.
4.4. Cable
Main Menu-> Cable
Press OK enter the Cable model
4.4.1 TP Search
Main Menu-> Cable -> TP Search

14
In this menu, you can Delete, Add, Manual Search, network search, blind search.
¾ Delete
In this menu, when you highlight the channel item, you can press the
W
/
X
key to choose the transponder which you want to
delete, then press the F1 key to delete.
¾Add
You can add the transponder which you want with the F2 key. Here you can input new Frequency, BandWidth. Press the OK
key to confirm the setting, then this new transponder will be added to the Transponder list. You can also highlight the channel
item and press the OK key to enter the transponder list, then highlight the New TP item and press the OK key to add the new
transponder.
¾Manual Search
You can Manual Search the transponder which you want with the F3 key. You will be asked to confirm whether only search FTA
channels or not. If you select “Yes”, you will only search FTA channels.
¾network search
˖
You can network search transponders with the F4 key.
¾blind search
˖
you can search all transponders with scan key.
4.4.2 TP IDE
Main Menu-> Cable -> TP IDE.
In this menu, you can know the exact information about the transponder and you can also Delete, Add, Manual Search, Auto
Search transponders and save the picture of this interface.

15
1. MER: Modulation error rate
2.Pre BER˖Forward Error Correction
3.Post BER˖Afterward Error Correction
4. Strength: It will show you the strength of the transponder you selected.
5. Modulate: Modulation efficiency.
4.4.3 Packet Control
Main Menu-> Cable-> Packet Control
In this menu, you can know the strength and quality of each transponder.
4.4.4 Spectrum
Main Menu-> Cable -> Spectrum
In this menu, you can know the strength of all transponders.

16
1.
W
/
X
: Press the
W
/
X
key to change the transponder.
2.
S
/
T
: Press the
S
/
T
key to change the range of the Y-axis.
3. Low Speed/High Speed: Press the F3 key to change the speed of refresh rate.
4. Save Spectrum: Press the F4 key to save the picture of spectrum.
4.5 Watch TV
Main Menu-> Watch TV
Press OK enter the Watch TV menu, in this menu, you can press the F1 button to select any satellite or press the F2 button to
enter the Channel/Radio menu, press the up/down key jump to next/previous channel.
Press the F3 button to watch Full Screen.
Press the F4 button to analyze program.

17
4.6 Settings
4.6.1 System
Main Menu-> Settings-> System
In this menu, you can set all the settings here by pressing the
W
/
X
key.
Press OK enter the setting menu, in this menu, you can set OSD Transparency /signal Audio tone / TV Screen Format/ volume/
language adjust display currently. Factory Reset˖Erase all channels and restore the factory default settings.
1. Menu Language: Set the menu language.
2. Audio1: Set the preferred audio language.
3. Audio2: Set the sub-prime audio language.
4. Power Out 12V:If you set it on ,it will support 12V voltage.
5. DVBT Power:If you set it on ,it will provide voltage for T Tuner.
6. Fan Control:If you set it on ,it will open the fan.
7. Signal Audio : If you set “ON”, in the TP Search interface when you highlight a transponder with signal, it will sound
automatically. If you set “OFF”, in the TP Search interface when you highlight a transponder
with signal, it will not sound.
4.6.2 OSD Setup
Menu->Settings>OSD Setup
1. Display Mode: Set the HD format between 1080p, 1080i, 720p, 480i, 480p.
2. TV Type: Set the TV Type on PAL/NTSC/Auto state.

18
3. Screen Mode: Set the display format according to the screen ratio. Select TV screen mode either 4:3 or 16:9 according to the
TV type, or press the MODE button of RCU directly.
4. OSD Timeout: Set the display time of the program information.
4.6.3 Times
Menu->Settings>Times
1. Time Settings
In this menu, you will set the time mode, time zone and summer time
2. Sleep Timer
Set the time to make receiver sleep automatically.
4.6.4 Factory Default
Main Menu-> SETTINGS-> Factory Default
In this menu, you can restore the product to the factory default and also setup it according to the wizard.
1. All: All data and settings will be deleted.
Tip: If you select “Yes” all data and setting will be lost. Then wait a moment, you will enter the wizard menu where you can set
the parameter according your mind.
2. Channel List Only: All channels data will be deleted.
3. Radio Channel Only: All radio channels data will be deleted.
4. Scramble Channel Only: All scramble channels data will be deleted.
4.6.5 Color Settings
Main Menu-> SETTINGS-> Color Settings
