Revolv RSH1QE4M1SP24K User manual

The RSH1(B,Q)E Series of heat pumps offers
exceptional performance. The unit,when combined
with our engineered coils or air handlers, offers a
full line of quality, split system cooling equipment.
RSH1(B,Q)E Series
High Efficiency Heat Pump
14 SEER Residential System
1.5 – 4 Ton Capacity
FEATURES and BENEFITS
• Designed Using Galvanized Steel: With a polyester
urethane coat finish, it passes 950 hours of salt spray
per ASTM Std. B117.
• Permanently Lubricated Motor – A heavy duty PSC
motor for long lasting reliability and quiet operation.
Requires no maintenance and is completely protected
from rain and snow.
• Composite Base Pan – Absorbs sound and is corrosion
resistant. Composite is also stronger and lighter than
steel.
• Louvered Condenser Guard – Durable metal guard
protects the coil from yard hazards and extreme weather.
• Removable Top Grille Assembly – Allows ease of
service from the top without disconnecting fan motor
leads.
• High Pressure Switch – Protects against abnormally
high system pressures. Auto-reset feature prevents
nuisance service visits.
• Liquid Line Filter Drier–RSH1QD-Factory installed;
RSH1BD-Field installed
• One PieceTop/Orifice – Designed for maximum airflow
and quiet operation.
• Five Minute Restart Time Delay – When the unit shuts
down, a five minute delay keeps the unit from restarting,
eliminating the highest cause for compressor failure.
• Easy Compressor and Control Access – Designed to
make servicing easier for the contractor, access panels
are provided to all controls and the compressor from the
side of the unit.
• Fixed Orifice – Integrated in liquid line service valve for
easy change-out.
• Micro-Channel Coils – All aluminum coils in all models
which provides high corrosion resistance.
• Servicer-Friendly Jacket: Side panels can be easily
removed and replaced without removing the top grill.
TECHNICAL
SPECIFICATIONS

2

3

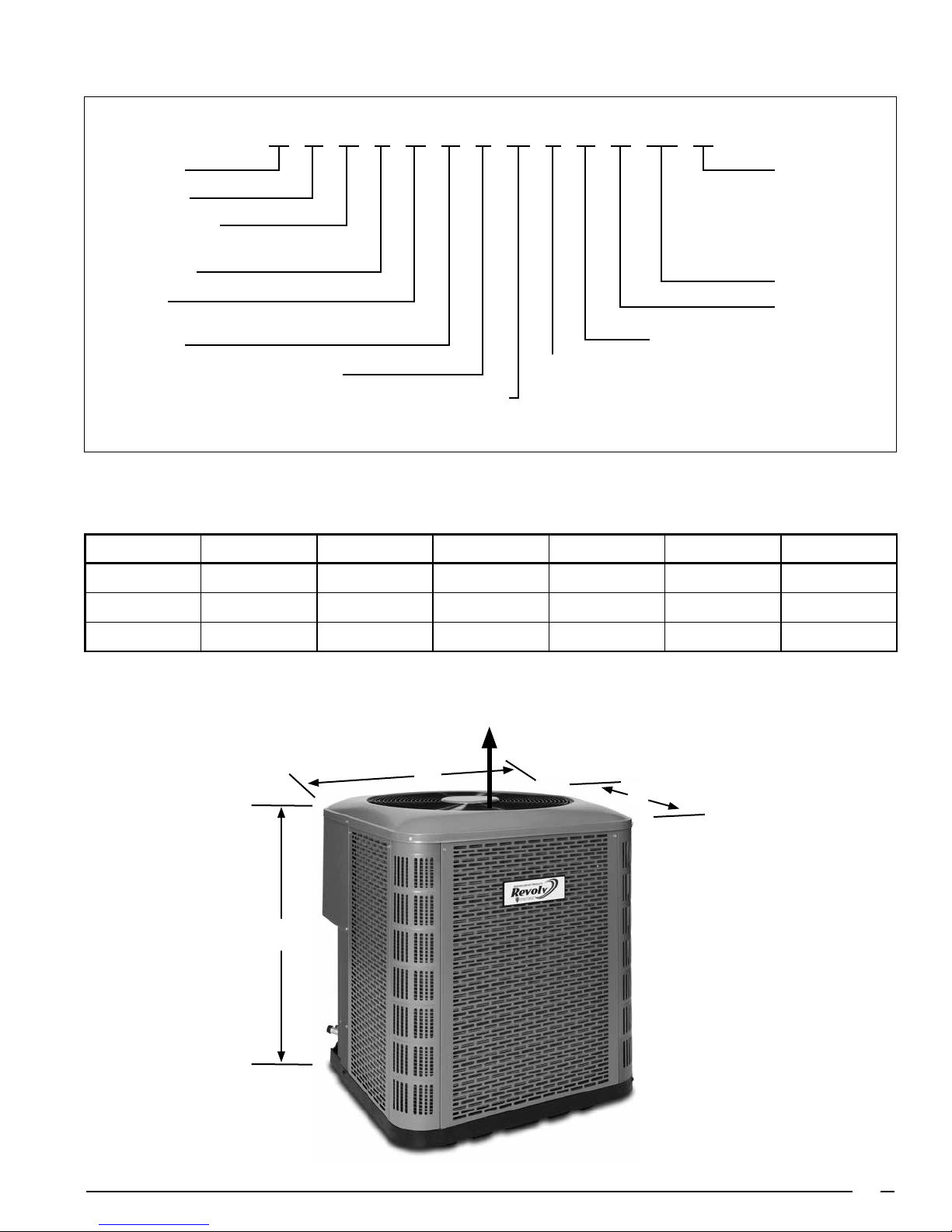

DIMENSIONS
AIR CONDITIONER OUTDOOR SECTION
RSH1(B,Q)E 18K 24K 30K 36K 42K 48K
H 33.25 33.25 41.25 45.25 45.25 45.25
W 31.75 31.75 31.75 31.75 31.75 31.75
D 31.75 31.75 31.75 31.75 31.75 31.75
MODEL IDENTIFICATION CODES
R S H 1 B E 4 M 1 S N 18 K
Jacket Style
Split System
Voltages
C - 208/230-3-60
D - 460-3-60
E - 220/240-1-50
G - 380/420-3-50
K - 208/230-1-60
Metering Device
N - None
X - TXV
P - Piston
E - EXV
Compressor
S - Scroll
R - Rotary
E - Recip
Stages
1 - Single
2 - Two
V - Inverter
Size (MBTU)
A - Air Conditioner
H - Heat Pump
M - Micro-Channel
C - Copper Coil
Design Series
B - Brazed
Q - Quick Connect
E - 14 SEER
F - 16 SEER
G - 18-20 SEER
X - Export
Refrigerant
4 - R-410a
Air Discharge
Allow Adequate Clearance for Airflow
H
W
D

4
PHYSICAL AND ELECTRICAL SPECIFICATIONS / OUTDOOR UNITS
14 SEER — High Efficiency — Single Phase
(1) Operating Voltage Range: 187v min. - 253v max.
(2) HACR Type Circuit Breakers may be used.
(3) Requires 7/8" to 1-1/8" reducer from line to unit.
Notes:
Additional charge for line sets above 15 feet.
Values based on suction line as follows with 3/8" liquid line.
a) 3/4" = 0.6 oz. per additional foot.
b) 7/8" = 0.7 oz. per additional foot.
c) 1 1/8" = 0.8 oz. per additional foot.
Model Number RSH1(B,Q)E 18K 24K 30K 36K 42K 48K
Electrical Data
Volts-Cycles-Phase (1) 208/230-60-1
Total Amps 9.9 14.4 13.7 15.1 19.4 21.3
Delay Fuse Max. (2) 20 30 25 30 40 45
Min. Circuit Ampacity 12.1 17.7 16.9 18.6 23.9 26.3
Fan Motor
Type PSC
Amps 0.9 0.9 0.9 1.0 1.5 1.5
HP 0.13 0.13 0.13 0.20 0.25 0.25
Compressor Data RLA 9.0 13.4 12.8 14.1 17.9 19.8
LRA 46.0 58.3 64.0 77.0 112.0 109.0
Refrigerant suction line O.D.
NOTE: Liquid line is 3/8" O.D. for entire
length."
0-24 ft. 3/4" 3/4" 3/4" 7/8" 7/8" 7/8"
25-39 ft. 3/4" 3/4" 3/4" 7/8" 7/8" 7/8"
40-75 ft. 3/4" 3/4" 3/4" 7/8" 7/8" 7/8"
Approximate Weight (lbs.) Net 185 192 208 212 252 234
Ship 196 203 220 225 245 247
Sound Rating db 75 75 75 76 79 79
RSH1(B,Q)E ACCESSORIES
Description Part Number
Start Assist Kit - Provides additional starting torque for the compressor motor when operating
with low line voltage or high operating temperatures. 912933
Fan Delay Kit (TDR) - 80-second fan delay. 918476
Insulated Pre-Charged Line Sets - A line set consists of a liquid line, an insulated suction line,
service gaugeports, and the quick-connect coupling. 15, 20, 25, 30, 40, and 50 ft. lengths are
available. Lines are factory pre-charged such that no additional refrigerant charge is required
on matched systems.
Outdoor Thermostat - Two-stage logic provides ability to lock out electric strips down to
balance point and bring on in stages. 913852

5
PANEL REMOVAL AND REPLACEMENT INSTRUCTIONS
Removing Panels:
1. Remove screws.
2. Pull up on panel.
3. Rotate bottom of panel out.
4. Pull panel off.
Reinstalling Panels:
1. Place panel back in towards top of unit.
2. Rotate bottom of panel inwards.
3. Push panel down until it fills gap at
bottom of unit.
4. Replace screws.

6
SYSTEM HEATING AND COOLING CAPACITIES
14+ SEER — High Efficiency — Single Phase
All ratings are with time delay relay.
See current AHRI Directory for certified combinations and ratings.
www.ahridirectory.org
With RG1 & RG7 Gas Furnace
Outdoor Unit Indoor Unit Coil Height BTUH SEER EER Heating Capacity
BTUH @ 47˚F HSPF CFM
RSH1BE4M1SP18K C8(B,D)AMX24U-B 18" 17900 14 11.5 17000 7.7 660
RSH1BE4M1SP24K C8(B,D)AMX24U-B 18" 23600 14 11.5 22600 8.2 980
RSH1BE4M1SP30K C8(B,D)AMX30U-B 18" 28000 14 11.5 28000 8.5 1200
RSH1BE4M1SP36K C8(B,D)AMX36U-B 18" 34000 14 11.5 34000 8.5 1200
RSH1BE4M1SP42K C8(B,D)AMX42U-B 24" * 40500 14 11.5 42500 8.5 1355
RSH1QE4M1SP24K C8QAMX24U-B 18" 23600 14 11.5 22600 8.2 810
RSH1QE4M1SP30K C8QAMX30U-B 18" 28000 14 11.5 28000 8.5 980
RSH1QE4M1SP36K C8QAMX36U-B 18" 34000 14 11.5 34000 8.5 1200
RSH1QE4M1SP42K C8QAMX42U-B 24" * 40500 14 11.5 42500 8.5 1355
*Requires 922594 M1/M7 24" Coil Box
With RE9 Furnace
Outdoor Unit Indoor Unit Coil Height BTUH SEER EER Heating Capacity
BTUH @ 47˚F HSPF CFM
RSH1BE4M1SP18K C8(B,D)AMX24U-B 18" 17900 14 11.5 17000 7.7 660
RSH1BE4M1SP24K C8(B,D)AMX24U-B 18" 23600 14 11.5 22600 8.2 980
RSH1BE4M1SP30K C8(B,D)AMX30U-B 18" 28000 14 11.5 28000 8.5 1200
RSH1BE4M1SP36K C8(B,D)AMX36U-B 18" 34000 14 11.5 34000 8.5 1200
RSH1BE4M1SP42K C8(B,D)AMX42U-B 24" 40500 14 11.5 42500 8.5 1355
RSH1BE4M1SP48K C8(B,D)AMX49U-B 28" 46000 14 11.5 47000 8.5 1460
RSH1QE4M1SP24K C8QAMX24U-B 18" 23600 14 11.5 22600 8.2 810
RSH1QE4M1SP30K C8QAMX30U-B 18" 28000 14 11.5 28000 8.5 980
RSH1QE4M1SP36K C8QAMX36U-B 18" 34000 14 11.5 34000 8.5 1200
RSH1QE4M1SP42K C8QAMX42U-B 24" 40500 14 11.5 42500 8.5 1355
RSH1QE4M1SP48K C8QAMX49U-B 28" 46000 14 11.5 47000 8.5 1460
