Rexton VSPM-212 User manual

Auto-sensing
Video Switch Splitter
with EDID Function
PP5-VIT342Z-000 RoHS
The final specification is the actual product based.
Features and functions may be added or changed
after the manual was written. Please visit our
website to download the latest version of manual
for reference.
◘
◘
Package Contents
● Video Switch Splitter
● Power Adapter Set
Power Adapter with necessary AC Cord
or
Plug-in Power Adapter
● User's Manual
x 1
x 1
x 1
Features
● Duplicate one DVI/HDMI or DisplayPort input to two DVI/HDMI outputs
● Two input sources selectable
● Auto-sensing function enables the system to automatically select the
latest video source
● Push button for easy computer selection
● Simple LED indicatior makes operation user-friendly
● EDID Copy functions effect simultaneously of all video sources
● Alternatively perform the default or the copied EDID for the connected
display device
● HDCP content protection support
● HDMI 1.3b transmitter, up to 2.5Gbps supporting 1080p with 12-bit
deep color
● Fully compliant HDMI output, up to 225 MHz TMDS clock
● Automatically power-saving when input is lost
● Plug-n-Play system configuration
● Compatible with most of the popular screen resolution to XGA, SXGA,
UXGA, WSXGA ….Full HD, WUXGA system.
1. Plug a monitor to the video output port.
2. Plug one or two VIDEO sources to video input ports.
3. Apply the power to the unit.
Installation
Operation
● Prior to the installation, please power off all devices that will be connected to
this system.
● Ensure that all devices you will connect are properly grounded.
● Place cables away from fluorescent lights, air conditioners, and machines that
are likely to generate electrical noise.
Product Description User's Manual
1. Port Selection
Press Select button to select DP or HDMI/DVI source to display
2. Mode Setting: Normal mode setting & Priority mode setting
Press and hold Select button for 2 sec. to enter Mode Setting, the Input LED
flashes indicating which mode is currently in (factory default: Normal Mode)
press EDID COPY button once to the next mode (DP-Priority→HDMI/DVI-Priority
→Normal mode), and finally release Select button to exit Mode Setting.
*If users press and hold Select button but don’t press EDID COPY button
afterwards, it will escape from Mode Setting and returns to normal status
A Port Select Button Select video source DP or DVI/HDMI
(Manual Mode only)
B EDID Copy Button
1. Press this button 3~6 seconds to copy the
connected monitor's EDID data
2. Press this button 9~15 seconds for EDID
Auto Mixing
Vi VIDEO Connector Connect to the video source
Vo VIDEO Connector Connect to the monitor
Li Input LED Indicator Port Selection LED
EDID Copy LED
Lo Output LED Indicator Video output status (see LED Indicator)
Connection Pattern
VSPD-212
Specifications
A
B
Symptom Possible Cause Solution
Video does not
display on some
ports
DVI sp ecif i c atio n of
the source devices
doesn’t match the DVI
specification of DVI
cable and/or the DVI
display device
There are three DVI standards: DVI-I,
DVI-D, and DVI-A. Make sure that DVI
specifications of the source devices,
cables, and monitors all match.
NOTE: Some monitors are able to
support multiple DVI signals.
Check if the splitter unit has been
connected to the source computer
before the computer powered on
Erratic behavior Splitter may not receive
enough power
Please check the power adapter
attached to the splitter if it matches
the system specifications, and if it is
functioning properly.
No t r e c e i v i n g
picture or sound
Wrong installation
process
The video splitter requires at least one
monitor connection before powering on
the source device.
The signal source may
require the display
device that is HDCP
compliant.
Check if the display monitor is HDCP
compliant. HDCP prevents the transfer
of digital content to unauthorized HDMI
devices.
The display monitor is
added to the unit by
hot-plug, but the video
source may not support
hot-plug.
Check if the video source supports hot-
plug.
If it doesn’t , shut down the sourc e
device and reboot it again.
The attached devices
are not well connected.
Check if you have connected your
components correctly
Troubleshooting
VSPD-212
VSPM-212
Priority:
1.Set up DP or HDMI/DVI as the priority display source.
2.When there’s no video input in Priority port, it automatically displays the other one
(if there’s a video source in that port).
3.Users can press Select button to switch to the other port. After re-powering, the
system displays the priority one no matter which port is selected before. However, in
normal mode, the system automatically memory the last setting status.
Normal Mode Input LED
Normal mode slow-flashing blue & green alternatively
Priority Mode Input LED
DP-Priority quick-flashing blue
HDMI/DVI-Priority quick-flashing green NOTICE:
1. At least one monitor connection to the splitter unit is required when powering
on the source device.
2. The splitter unit is required to connect to the computer before the computer
powered on.
3. It is recommended using identical brand and type of displays.
If not, setting up equivalent resolution for each display is suggested.
4. The quality of the output signal will depend largely upon the quality of video
source, cable and display device used. Low quality cables degrade output
signal causing elevated noise levels. Please use the proper cable and make
sure the display device is capable of handling the resolution and refresh rate
selected. Interference from nearby electrical devices can have an adverse
effect on signal quality as well.
NOTE: If users encounter no screen display in computer connection, you may...
1. Make sure the device cables are correctly and firmly attached.
2. Set your display device’s (TV, monitor, etc.) input source as DVI/HDMI.
3. Check the PC BIOS configuration about the video output setting.
4. Connect your video source to the display DIRECTLY to check if the video
signal gets through.
3. EDID Algorithm
In some cases display problems may occur due to incorrect EDID communication
between the display monitor and the unit or inappropriate EDID data
programmed by display manufactures. This function allows the system either to
read the necessary EDID information from the unit or to copy EDID from EDID
compliant displays.
NOTICE: After applying EDID Algorithm functions as described below, in some
situations, users may need to re-plug the video cable, or even reboot the
connected source system to have new setting become effective.
3-1 EDID Copy (EDID Ghost)
If the unit is insufficient for EDID of the attached displays, it is suggested copying
EDID from the displays.
Copy (new) monitor EDID
Step 1. Apply the power to the unit.
Step 2. Connect the (EDID compliant) monitor to the Video Port 1 on the Unit
and power on the monitor.
Step 3. Press the EDID Copy button for 3~6 sec. and release the button RIGHT
AFTER the Input LED flashes green.
Step 4. The LED flashes red and green alternately and then lights green
indicating the copy successfully.
 Otherwise, if the Input LED flashes RED, it means that
 a. The monitor is not properly connected.
 b. The monitor is not powered on.
 c. EDID data of the monitor is not applicable. Try to repeat Step 3 to 4 again.
3-2 EDID Auto-mixing
Automatically detect the specifications of the connected monitors.
Step 1. Apply the power to the unit.
Step 2. Press the button EDID COPY (9~15 sec.) and release the button RIGHT
AFTER the Input LED flashes [green] & [red].
Step 3. The Input LED flashes [green + red] & [red] alternately (2 sec.) and then
returns to normal status; it indicates that the setting is completed.
4. Factory Default Setting
In case your settings are misbehaving, resetting it to the factory default (including
EDID Setting and Priority Setting) might be just the way you are looking for.
Step 1. Press and hold the button “EDID COPY” and apply power to the Unit.
Step 2. Release the button RIGHT AFTER the Input LED flashes red
Step 3. The LED flashes red and green alternately and then lights green
indicating the setting successfully.
Output Port LED Indicator
Output Port LED Indicator (Red+Blue)
LED STATUS
Output device ready? Video Source detected
Emits RED and goes off
twice NO NO
Flashes BLUE twice NO Yes
Emits RED with BLUE
flashing twice Monitor detected NO
Steady blue Monitor detected Yes
Steady purple Monitor detected
(HDCP compliant)
Yes
(HDCP compliant)
VSPD-212 VSPM-212
Video Input DisplayPort x 1
DVI-D x 1
DisplayPort x 1
HDMI x 1
Video Output DVI-D x 2 HDMI x 2
Compliance DisplayPort Dual Mode
HDMI 1.3b
LED
Indicators
Input x 1 (Triple color) x 1 (Triple color)
Output x 2 (Dual color) x 2 (Dual color)
Video Resolution (max.) Full HD 1080p (1920 x 1080)
Frequency Range 25~225 MHz
Button Input Selection x1
EDID Copy x 1
Power Supply DC 5V
Dimensions H x W x D 20 x 83 x 59 mm 20 x 130 x 59 mm
Weight 150(g) 195(g)
Vi
Li
Lo
DC in
Vo Vo
Vi

This manual suits for next models

1

Popular Switch manuals by other brands

H3C S12500 Series Reference

H3C

H3C S12500 Series Reference

Accusys ExaSAN SW16-G3 user guide

Accusys

Accusys ExaSAN SW16-G3 user guide

Panduit ATLONA AT-UHD-SW-510W-KIT installation guide

Panduit

Panduit ATLONA AT-UHD-SW-510W-KIT installation guide

ANTAIRA LMP-0501-24 Series user manual

ANTAIRA

ANTAIRA LMP-0501-24 Series user manual

Barox PC-PIGE500-GBTE user manual

Barox

Barox PC-PIGE500-GBTE user manual

TRENDnet TEG-30284 Quick installation guide

TRENDnet

TRENDnet TEG-30284 Quick installation guide

D-Link des-1010g user guide

D-Link

D-Link des-1010g user guide

Smartwares SH5-SET-RD instruction manual

Smartwares

Smartwares SH5-SET-RD instruction manual

EtherWAN EX17242 installation guide

EtherWAN

EtherWAN EX17242 installation guide

Veris Industries Hawkeye 949 installation guide

Veris Industries

Veris Industries Hawkeye 949 installation guide

enphase Enpower EP200G101-M240US00 Quick install guide

enphase

enphase Enpower EP200G101-M240US00 Quick install guide

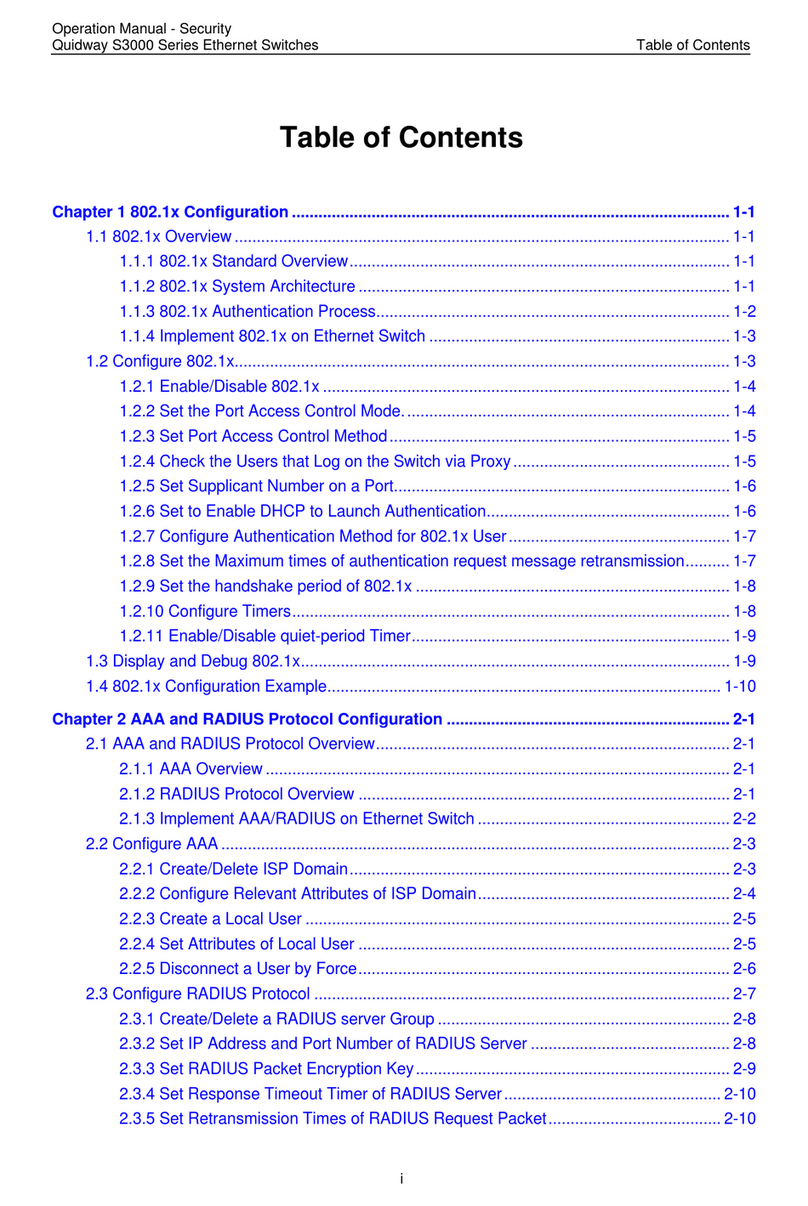

Quidway S3000 Series Operation manual

Quidway

Quidway S3000 Series Operation manual

Hama 00039859 user manual

Hama

Hama 00039859 user manual

Comtech EF Data Radyne RCS11 Installation and operation manual

Comtech EF Data

Comtech EF Data Radyne RCS11 Installation and operation manual

NETGEAR FS605 Brochure & specs

NETGEAR

NETGEAR FS605 Brochure & specs

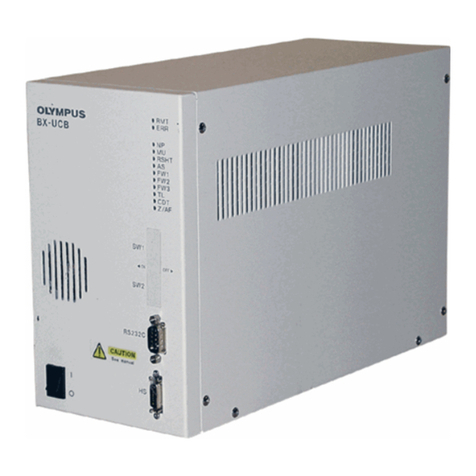

Olympus BX-UCB instructions
