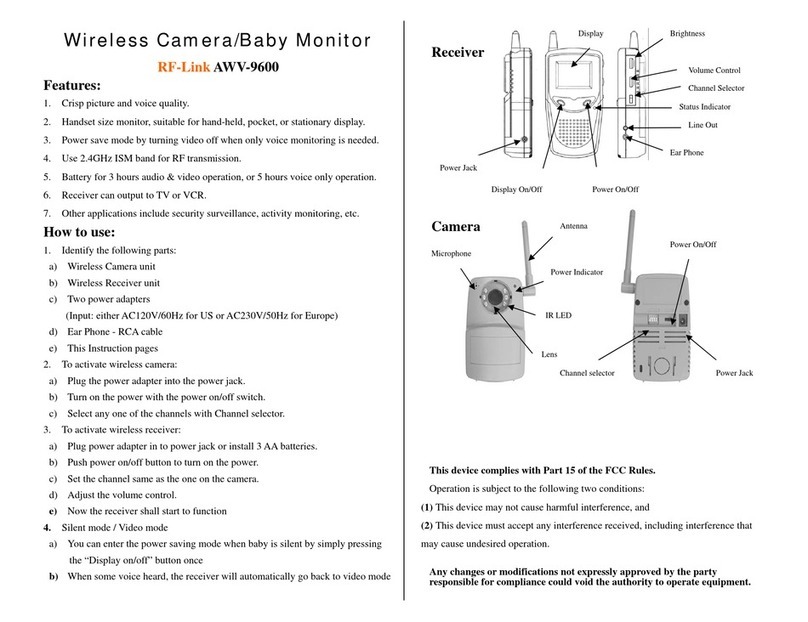

RF-Link AWV9600 User manual

Wireless Baby Monitor
Features:
1. Crisp picture and voice quality.
2. Handset size monitor, suitable for hand-held, pocket, or stationary display.
3. Power save mode by turning video off when only voice monitoring is needed.
4. Use 2.4GHz ISM band for RF transmission.
5. Battery for 3 hours audio/video operation, or 5 hours voice only operation.
6. Receiver can output to TV or VCR.
7. Other applications include security surveillance, activity monitoring, etc.
How to use:
1.) Identify the following parts:
a.) Wireless Camera unit
b.) Wireless Receiver unit
c.) Two power adapters
(Input: either AC120V/60Hz for US or AC230V/50Hz for Europe)
d.) Ear Phone - RCA cable
e.) This Instruction
2.) The necessary steps for wireless camera:
a.) Plug the adapter into the power port.
b.) Turn on the power with the power on/off switch.
c.) Select any one of the channels with Channel selector.
3.) The necessary steps for wireless receiver:
a.) Plug the adapter into the power port or put in 3 units of AA
battery.
b.) Push power on/off button to turn on the power.
c.) Set the channel same as the one on the camera.
d.) Adjust the volume control.
e.) Display on/off button for full function or power save
purpose.
Brightness
Vo l u m e
Channel Selector
Display
Status Indicator
Power On/OffDisplay On/Off
Power port
Ear Phone
Line Out
Antenna
Power Indicator
Lens
LED
Microphone
Power port
Power On/Off
Channel selector
Camera
Receiver
DOC0000-0202

Notice:
1.) The Baby Monitor can transmit and receive audio and video signals
on four distinct frequencies, or channels. This allows you to monitor
up to four different cameras using a single receiver, to monitor a single
camera with two receivers, or to use any other combination of
transmitters and receivers.
2.) If baby monitor reception is not clear, select a different channel for
both the camera and receiver.
3.) Do not place camera in direct sunlight or high light, or expose to
excessive dust or humidity. Never aim camera directly into the sun.
4.) There is a Power indicator on the top-front of camera to show the
power-on status.
5.) For the receiver, under normal operations, the green power-on signal
flash slowly, but when the power is low, the green signal will flash fast
and the system will automatically shut down. There is no audible or
video warning prior to shutdown.
6.) The receiver is designed for portability and convenience. It can be
held in your hand and carried around, stored in a packet, or placed at a
comfortable viewing angle on a flat surface.
Specifications:
1. Frequency range: 2400-2483MHz
2. Channel: 4 Channels
3. Video format support: NTSC or PAL-S
Transmitter (Camera)
4. V/A modulation type: FM/FM
5. Lens: F1.8, f6.0mm
6. View angle: 120∘
7. Image sensor: 1/4” CMOS image sensor
8. Effect pixels: 510 (H) x 492 (V)
9. Resolution: More than 230 TV lines
10. Minimum illumination: 5 Lux (F1.8)
11. Auto white balance: Auto
12. Auto electronic exposure: 1/60-1/15000 second
13. Video signal format: Composite video sync. Positive
14. Power consumption: DC12V/300mA
Receiver
15. Receive sensitivity: -85dBm
16. Display screen & type: 1.8” (4.6cm) diagonal TFT LCD
17. Display resolution: 558(W)*234(H) dot
18. View angle: Up:17∘Down:35∘
Left & Right: 45∘
19. Headphone output power: 15mW into 32 Ohms headphone
20. A/V output: 3.5 mm Phone jack
21. Battery type: “AA” battery X 3
22. Adaptor: DC6V/600mA regulated
23. Standby current : 30mA
