Rf-t FDC CFTH User manual

Rf-Technologies nv - Lange Ambachtstraat 40 - 9860 Oosterzele - België - Tel +32 9 362 31 71 - Fax +32 9 362 33 07 - www.rft.be - [email protected]
FDC CFTH
K20-B 06/2013
Beginning or end of range switch
1
3
2
FDC CFTH Beginning or end of range switch
K20-B
06/2013
2
Product Presentation
By the beginning or end of range switch FDC CFTH, it is possible to indicate the open or closed position of the damper.
list of Parts
Description Characteristics Number
1Position switch * FCU / DCU / FCB / DCB 1
2Terminal block WAGO 1
3Fixing screws for terminal block DIN 7981 Ø 2,9 x 9,5 2
Label "KIT" (yellow) ETIK-D042 1
* A bipolar contact is composed of two switches
detailed characteristics
fdc cfth
1Position switches 1mA...6A, DC 5V...AC 250V
2Maintenance Maintenance free
3Ambient temperature -30°C up to 50°C
electrical wiring diagram
Fig. CFTH
FCU
1211
10
DCB
NONFC
15 1614
13
FCB
NONFC
9
8
7
56
DCU
NONFCNONFC
• DCU: Beginning of range unipolar switch (option)
• FCU: End of range unipolar switch (option)
• DCB: Beginning of range bipolar switch (option)
• FCB: End of range bipolar switch (option)
FDC CFTH Beginning- or end of range switch
K20-B
06/2013
3
aPPlications cfth
oPeration cfth
fig. CU4
fig. CR2 fig. CU2 fig. CA2
fig. CU2-15
Manual rearmation:
Use the enclosed hex key and turn clockwise (2)
Manual unlocking:
Use the unlocking button (1)
Automatic unlocking:
When the fusible link melts at 72°
Fig. CFTH
1
2
4
FDC CFTH Beginning- or end of range switch
K20-B
06/2013
2. Fix the position switch to the
mechanism.
3. Fix the terminal block with two
screws.
4. Connect position switch to the
terminal block according to the
wiring diagram:
Blue = normally open
Black = common
Grey = normally closed
5. Fit the covers.
6. Apply the yellow label 'KIT' and
ll in the information.
mounting
Dismantling of the switch
Mounting of the switch
1.
Remove the covers.
2. Dismantle the screws of the
terminal block.
3. Remove the switch.
If the product is manipulated in any other way than described in this manual, Rf-Technologies will decline any
responsibility and the guarantee will immediately expire!

Popular Switch manuals by other brands

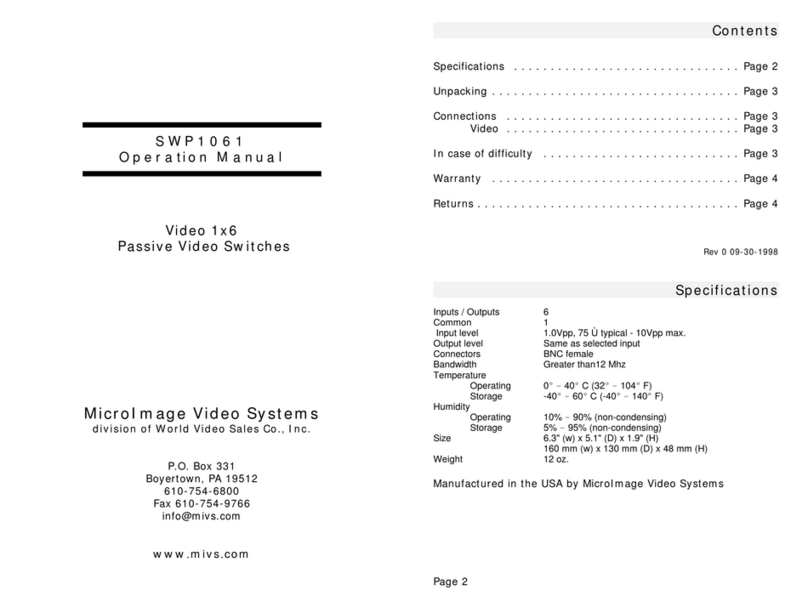

World Video Sales MicroImage Video Systems SWP1061 Operation manual

World Video Sales

World Video Sales MicroImage Video Systems SWP1061 Operation manual

Ubiquiti POE-50-60W quick start guide

Ubiquiti

Ubiquiti POE-50-60W quick start guide

Raritan CS16(R) user manual

Raritan

Raritan CS16(R) user manual

EuroLite LVH-3 user manual

EuroLite

EuroLite LVH-3 user manual

Edimax SP-1101W Quick installation guide

Edimax

Edimax SP-1101W Quick installation guide

Ruijie RG-S6930-2C Hardware  installation and reference guide

Ruijie

Ruijie RG-S6930-2C Hardware installation and reference guide

ONV ONV-POE33016PF user guide

ONV

ONV ONV-POE33016PF user guide

Leviton A1221 installation instructions

Leviton

Leviton A1221 installation instructions

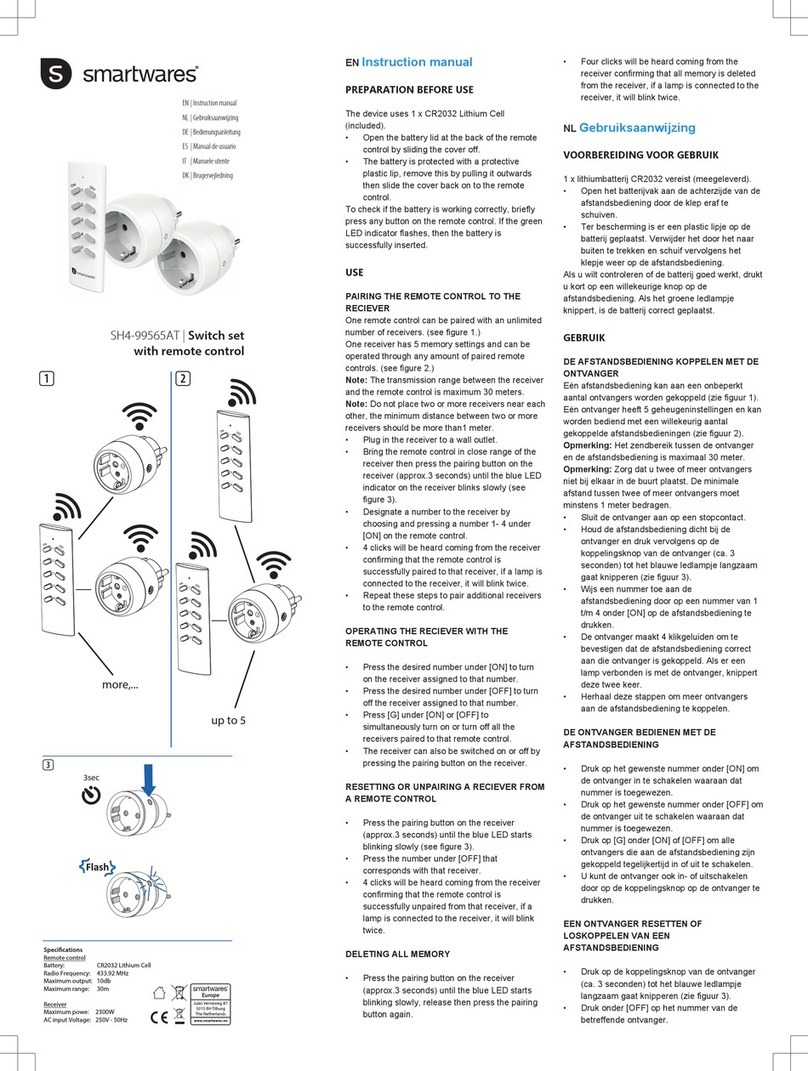

Smartwares SH4-99565AT quick start guide

Smartwares

Smartwares SH4-99565AT quick start guide

Honeywell C6097B manual

Honeywell

Honeywell C6097B manual

Agilent Technologies 34945A user guide

Agilent Technologies

Agilent Technologies 34945A user guide

ADC ICX-250 user manual

ADC

ADC ICX-250 user manual

AMX UDM-0808-SIG quick start guide

AMX

AMX UDM-0808-SIG quick start guide

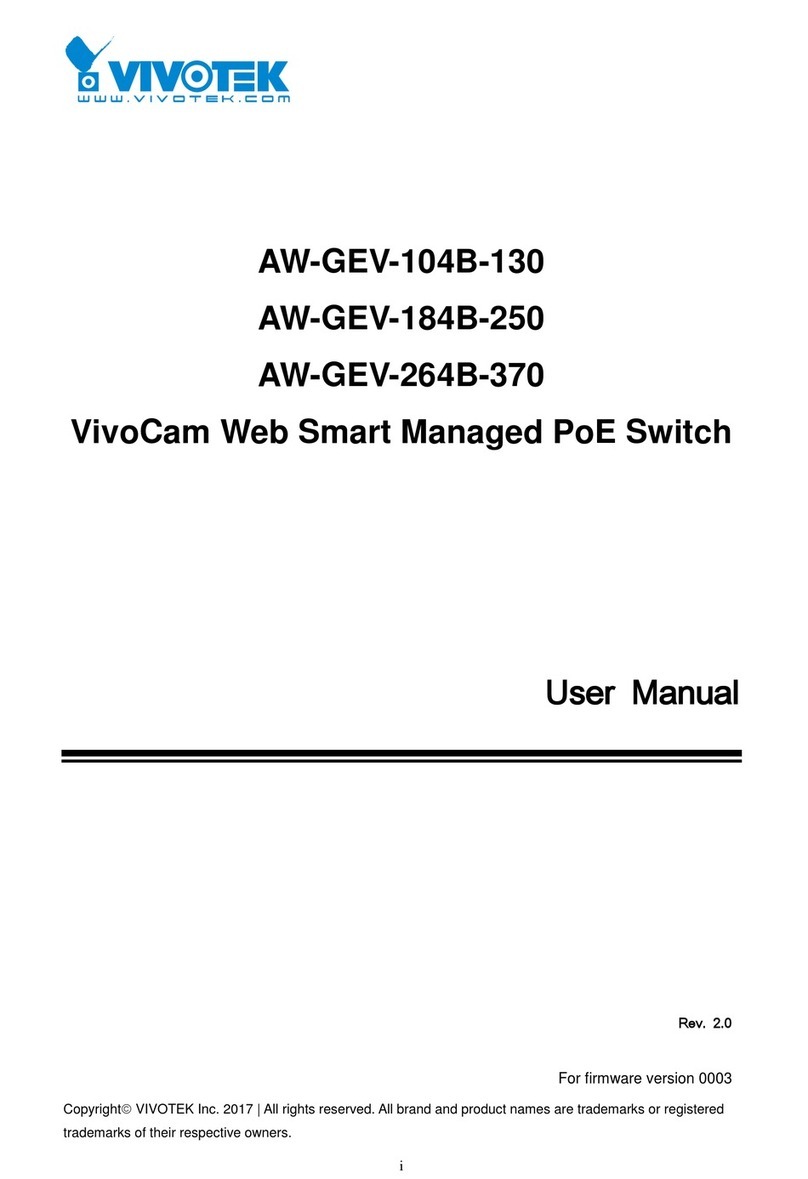

Vivotek VivoCam AW-GEV-104B-130 user manual
