Rheem 850 Series Technical Document

This water heater must be installed and serviced by a qualified person.
Please leave this guide with the householder.
Owner’s Guide
and
Installation Instructions
Gas Domestic Outdoor Water Heater
850 series 330, 360 models

An electronic copy of these Owner’s Guide and Installation Instructions
can be downloaded from rheem.com.au and rheem.co.nz.
PATENTS
This water heater may be protected by one or more patents or registered designs
in the name of Rheem Australia Pty Ltd.
TRADEMARKS
®Registered trademark of Rheem Australia Pty Ltd.
TM Trademark of Rheem Australia Pty Ltd.
Note: Every care has been taken to ensure the accuracy in preparation of this
publication. No liability can be accepted for any consequences,
which may arise as a result of its application.
Warning: Upon completion of the installation and commissioning
of the water heater, leave this guide with the householder or
responsible officer. DO NOT leave this guide inside of the cover of the
water heater, as it may interfere with the safe operation of the water
heater or ignite when the water heater is turned on.
RHEEM AUSTRALIA PTY LTD A.B.N. 21 098 823 511
www.rheem.com.au, www.rheem.co.nz
For Service Telephone
131031 AUSTRALIA 0800 657 335 NEW ZEALAND

3
CONTENTS
HOUSEHOLDER
This booklet contains important information about your
new water heater, including terms of the Rheem warranty.
We recommend you read pages 9 to 26,
and the terms of the Rheem warranty on pages 4 to 8.
The other pages are intended for the installer but may be of interest.
Warranty.......................................................................................4
Safety, Warnings, Installation Notes .........................................9
About Your Water Heater..........................................................13
Maintenance Requirements......................................................17
Water Supplies...........................................................................19
Save A Service Call ...................................................................23
Installation..................................................................................27
Connections –Plumbing ..........................................................36
Commissioning..........................................................................40
Lighting The Water Heater........................................................42
Draining The Water Heater .......................................................46

4
RHEEM GAS DOMESTIC MAINS PRESSURE WATER HEATER
WARRANTY - AUSTRALIA AND NEW ZEALAND ONLY
1.1
1.2
1.3
1.4
1.5
2.1
GAS WATER HEATER –STELLAR 850 SERIES 330, 360 MODELS
1. THE RHEEM WARRANTY –GENERAL
This warranty is given in Australia by Rheem Australia Pty Limited ABN 21 098
823 511 of 1 Alan Street, Rydalmere New South Wales, and in New Zealand
by Rheem New Zealand Limited of 475 Rosebank Road Avondale Auckland
1026.
Rheem offer a trained and qualified national service network who will repair or
replace components at the address of the water heater subject to the terms of
the Rheem warranty. Rheem Service, in addition can provide preventative
maintenance and advice on the operation of your water heater. The Rheem
Service contact number in Australia is 131031, with Contact Centre personnel
available 24 hours, 7 days a week to take your call and if necessary to arrange
a service call for during normal working hours Monday to Friday (hours subject
to change) or in New Zealand on 0800 657 335.
For details about this warranty, you can contact us in Australia on 131031 or
by email at [email protected] (not for service bookings), or in
New Zealand on 0800 657 335 or by email at [e-mail]
(not for service bookings).
The terms of this warranty and what is covered by it are set out in sections 2
and 3 and apply to water heaters manufactured after 23rd April 2018.
If a subsequent version of thiswarranty is published, the terms of that warranty
and what is covered by it will apply to water heaters manufactured after the
date specified in the subsequent version.
2. TERMS OF THE RHEEM WARRANTY AND EXCLUSIONS TO IT
Rheem may reject a claim under this warranty in its sole discretion if:
a) You do not arrange for a major service to be conducted on your water
heater in the fifth year after installation, in accordance with Rheem’s
recommendation in the Owner’s Guide and Installation Instructions; and
b) The fault giving rise to the warranty claim would have been detected and
rectified during that major service.
2.2 The decision of whether to repair or replace a faulty component is at Rheem’s
sole discretion.
2.3 If you require a call out and we find that the fault is not covered by the Rheem
warranty, you are responsible for our standard call out charge. If you wish to
have the relevant component repaired or replaced by Rheem, that service will
be at your cost.

RHEEM GAS DOMESTIC MAINS PRESSURE WATER HEATER
WARRANTY - AUSTRALIA AND NEW ZEALAND ONLY
5
GAS WATER HEATER –STELLAR 850 SERIES 330, 360 MODELS
2.4 Where a failed component or cylinder is replaced under this warranty, the
balance of the original warranty period will remain effective. The replacement
does not carry a new Rheem warranty.
2.5 Where the water heater is installed outside the boundaries of a metropolitan
area as defined by Rheem or further than 25 km from either a regional Rheem
branch office or an Accredited Rheem Service Agent’s / Centre's office, the
cost of transport, insurance and travelling between the nearest branch office
or Rheem Accredited Service Agent’s / Centre’s office and the installed site
shall be the owner’s responsibility.
2.6 Where the water heater is installed in a position that does not allow safe or
ready access, the cost of that access, including the cost of additional materials
handling and/or safety equipment, shall be the owner’s responsibility. In other
words, the cost of dismantling or removing cupboards, doors or walls and the
cost of any special equipment to bring the water heater to floor or ground level
or to a serviceable position is not covered by this warranty.
2.7 This warranty only applies to the original and genuine Rheem water heater in
its original installed location and any genuine Rheem replacement parts.
2.8 The Rheem warranty does not cover faults that are a result of:
a) Accidental damage to the water heater or any component (for example:
(i) Acts of God such as floods, storms, fires, lightning strikes and the like;
and (ii) third party acts or omissions).
b) Misuse or abnormal use of the water heater.
c) Installation not in accordance with the Owner’s Guide and Installation
Instructions or with relevant statutory and local requirements in the State
or Territory in which the water heater is installed.
d) Connection at any time to a water supply that does not comply with the
water supply guidelines as outlined in the Owner’s Guide and Installation
Instructions.
e) Repairs, attempts to repair or modifications to the water heater by a person
other than Rheem Service or a Rheem Accredited Service Agent / Centre.
f) Faulty plumbing or faulty gas supply.
g) Failure to maintain the water heater in accordance with the Owner's Guide
and Installation Instructions.
h) Transport damage.
i) Fair wear and tear from adverse conditions (for example, corrosion).
j) Cosmetic defects.

RHEEM GAS DOMESTIC MAINS PRESSURE WATER HEATER
WARRANTY - AUSTRALIA AND NEW ZEALAND ONLY
6
GAS WATER HEATER –STELLAR 850 SERIES 330, 360 MODELS
2.9 Subject to any statutory provisions to the contrary, this warranty excludes any
and all claims for damage to furniture, carpet, walls, foundations or any other
consequential loss either directly or indirectly due to leakage from the water
heater, or due to leakage from fittings and/ or pipe work of metal, plastic or
other materials caused by water temperature, workmanship or other modes of
failure.
2.10 If the water heater is not sized to supply the hot water demand in accordance
with the guidelines in the Rheem water heater literature, any resultant fault will
not be covered by the Rheem warranty.
2.11 In New Zealand this warranty excludes to the extent permissible all implied
warranties set out in the Sale of Goods Act 1908 (New Zealand) and all
guarantees set out in the Consumers Guarantees Act 1993 (New Zealand) to
the extent that the goods are acquired for the purpose of resupply in trade
consumption in the course of a process of production or manufacture or
repairing or treating in trade other goods or fixtures on land.

RHEEM GAS DOMESTIC MAINS PRESSURE WATER HEATER
WARRANTY - AUSTRALIA AND NEW ZEALAND ONLY
7
GAS WATER HEATER –STELLAR 850 SERIES 330, 360 MODELS
3. WHAT IS COVERED BY THE RHEEM WARRANTY
FOR THE WATER HEATERS DETAILED IN THIS DOCUMENT
3.1 Rheem will repair or replace a faulty component of your water heater if it fails
to operate in accordance with its specifications as follows:
What components
are covered
The period from the date
of installation in which
the fault must appear in
order to be covered
What coverage you receive
850 series 330, 360 models
All components
Year 1
Repair and/or replacement of the
faulty component, free of charge,
including labour.
The cylinder and
SuperFlue
(if the water heater
is installed in a
single-family
domestic dwelling)
Years 2 & 3
Repair and / or replacement of
the cylinder or SuperFlue, free of
charge, including labour.
Years 4 to 10
Replacement cylinder or
SuperFlue, free of charge.
Installation and repair labour
costs are the responsibility of the
owner.
The cylinder and
SuperFlue
(if the water heater
is not installed in a
single-family
domestic dwelling)
Years 2 to 5
Replacement cylinder or
SuperFlue, free of charge.
Installation and repair labour
costs are the responsibility of the
owner.
4. ENTITLEMENT TO MAKE A CLAIM UNDER THIS WARRANTY
4.1 To be entitled to make a claim under this warranty you need to:
a) Be the owner of the water heater or have consent of the owner to act on
their behalf
b) Contact Rheem Service without undue delay after detection of the defect
and, in any event, within the applicable warranty period.
4.2 You are not entitled to make a claim under this warranty if your water heater:
a) Does not have its original serial numbers or rating labels.
b) Is not installed in Australia or New Zealand.

RHEEM GAS DOMESTIC MAINS PRESSURE WATER HEATER
WARRANTY - AUSTRALIA AND NEW ZEALAND ONLY
8
GAS WATER HEATER –STELLAR 850 SERIES 330, 360 MODELS
5. HOW TO MAKE A CLAIM UNDER THIS WARRANTY
5.1 If you wish to make a claim under this warranty, you need to:
a) Contact Rheem on 131031 in Australia or 0800 657 335 in New Zealand
and provide owner’s details, address of the water heater, a contact number
and date of installation of the water heater or if that’s unavailable, the date
of manufacture and serial number (from the rating label on the water
heater).
b) Rheem will arrange for the water heater to be tested and assessed on-
site.
c) If Rheem determines that you have a valid warranty claim, Rheem will
repair or replace the water heater in accordance with this warranty.
5.2 Any expenses incurred in the making of a claim under this warranty will be
borne by you.
6. THE AUSTRALIAN CONSUMER LAW
6.1 In Australia, our goods come with guarantees that cannot be excluded under
the Australian Consumer Law. You are entitled to a replacement or refund for
a major failure and for compensation for any other reasonably foreseeable loss
or damage. You are also entitled to have the goods repaired or replaced if the
goods fail to be of acceptable quality and the failure does not amount to a major
failure.
6.2 The Rheem warranty (set out above) is in addition to any rights and remedies
that you may have under the Australian Consumer Law.
7. THE CONSUMER GUARANTEES ACT 1993 (NEW ZEALAND)
7.1 In New Zealand, our goods come with guarantees that cannot be excluded
under the Consumer Guarantees Act 1993 (New Zealand). If the goods fail to
comply with the applicable guarantees set out under the Consumer
Guarantees Act 1993 (New Zealand) being the guarantee as to acceptable
quality, the guarantee as to correspondence with description or the guarantee
as to repair and parts, or if thegoods fail tocomply with any express guarantee
given by Rheem, then you are entitled to a replacement or refund and for
compensation for any other reasonably foreseeable loss or damage.
7.2 The Rheem warranty (set out above) is in addition to any rights and remedies
that you may have under the Consumer Guarantees Act 1993 (New Zealand).

9
SAFETY, WARNINGS, INSTALLATION NOTES
It is important you read the following safety and warnings information.
SAFETY AND WARNINGS
This water heater is only intended to be operated by persons who have the
experience or the knowledge and the capabilities to do so.
This water heater is not intended to be operated by persons with reduced
physical, sensory or mental capabilities i.e. the infirm, or by children. Children
should be supervised to ensure they do not interfere with the water heater.
This water heater is supplied with a thermostat, an over-temperature cut-out,
and a combination temperature pressure relief valve. These devices must not
be tampered with or removed. The water heater must not be operated unless
each of these devices is fitted and is in working order.
The Rheem warranty may not cover faults if relief valves or other safety
devices are tampered with or if the installation is not in accordance with
these instructions.
Do not modify this water heater.
Do not use or store flammable
materials in or near this water heater.
Flammable liquids (such as petrol),
combustible materials (such as
newspapers) and similar articles must be
kept well away from the water heater and
the flue terminal.
Do not spray aerosols in the vicinity of
this water heater while it is in operation.
Propellants and gases in many aerosol
sprays contain hydrocarbons which are
flammable. Gases from aerosol sprays
may also become corrosive when drawn
into a flame.
Do not store swimming pool chemicals, household cleaners, etc., near the
water heater.
Do not place articles on or against this water heater, or in contact with the
flue terminal. Ensure the flue terminal is not obstructed in any way at any
time.

SAFETY, WARNINGS, INSTALLATION NOTES
10
The water heater will operate until a water temperature of up to 65°C is
reached, depending upon the thermostat setting.
Refer to “How Hot Should The Water Be?” on page 13 and “Temperature
Adjustment” on page 14.
The lever on the temperature pressure relief valve and expansion control
valve (if fitted) requires to be operated every six (6) months to clear any
deposits and to ensure the valve and its drain line are not blocked.
Refer to “Relief Valves” on page 10 and “Minor Maintenance Every Six
Months” on page 17.
For continued safety of this water heater it must be installed, operated and
maintained in accordance with the Owner’s Guide and Installation
Instructions.
Servicing of a water heater must only be carried out by qualified personnel.
Phone Rheem Service or their nearest Accredited Service Agent.
Only a person qualified to install or service a water heater can drain the water
heater, if this is required.

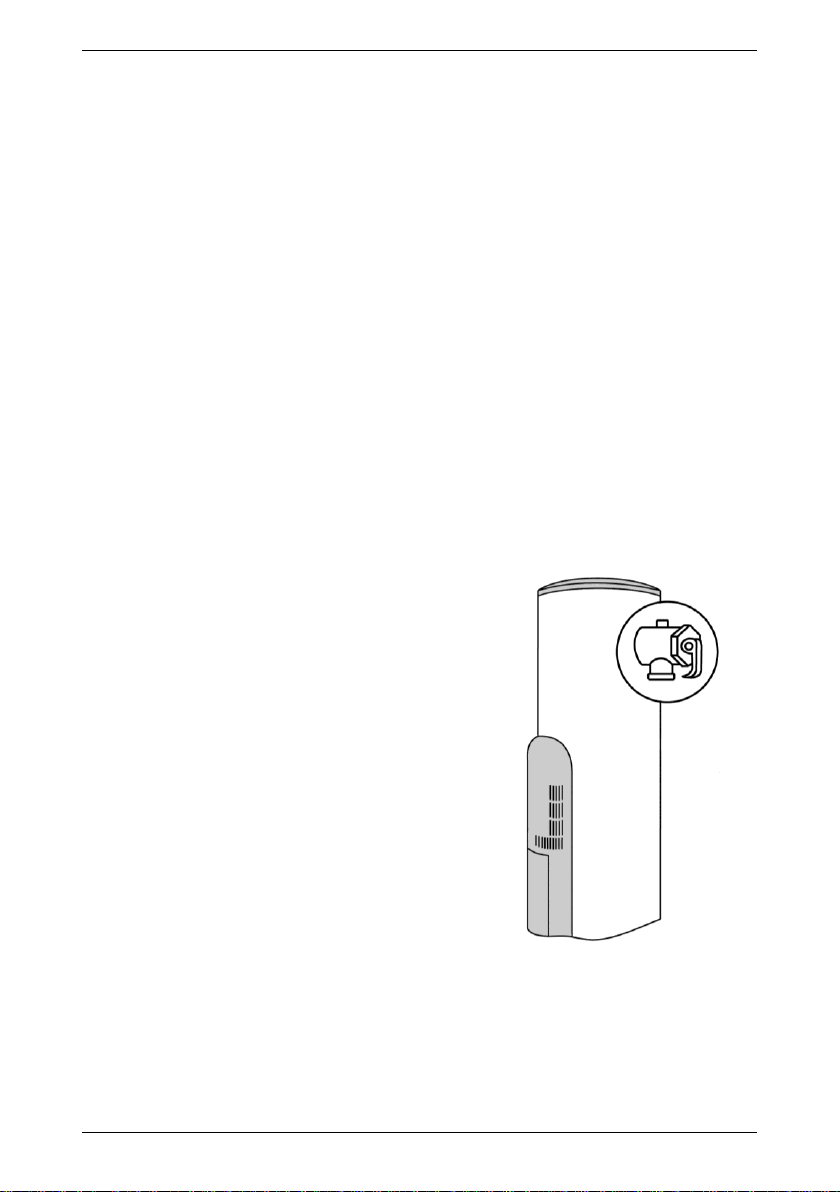

RELIEF VALVES
Temperature Pressure Relief Valve
This water heater incorporates a temperature
pressure relief valve located near the top of the
water heater. This valve is essential for the
water heater’s safe operation.
It is possible for the valve to discharge a
quantity of water through the drain line during
each heating period. This quantity should be
equal to approximately 1/50 of the hot water
used, as water expands by this volume when
heated.
Expansion Control Valve
In many areas, including South Australia,
Western Australia, New Zealand and scaling
water areas, it is mandatory an expansion
control valve is fitted to the cold water line to
the water heater.
The expansion control valve will discharge the quantity of water from its drain
line during the heating period instead of the temperature pressure relief valve as
it has a lower pressure rating.

SAFETY, WARNINGS, INSTALLATION NOTES
11
Valve Operation
Continuous leakage of water from either valve and its drain line may indicate a
problem with the water heater. Refer to “Temperature Pressure Relief Valve or
Expansion Control Valve Running” on page 24.
Warning: Never block the outlet of either valve or their drain lines for any
reason. A relief valve drain must be left open to atmosphere, and be installed in
a continuously downward direction.
In locations where water pipes are prone to freezing, the relief valve drain line
must be insulated and not exceed 300 mm in length before discharging into a
tundish through an air gap.

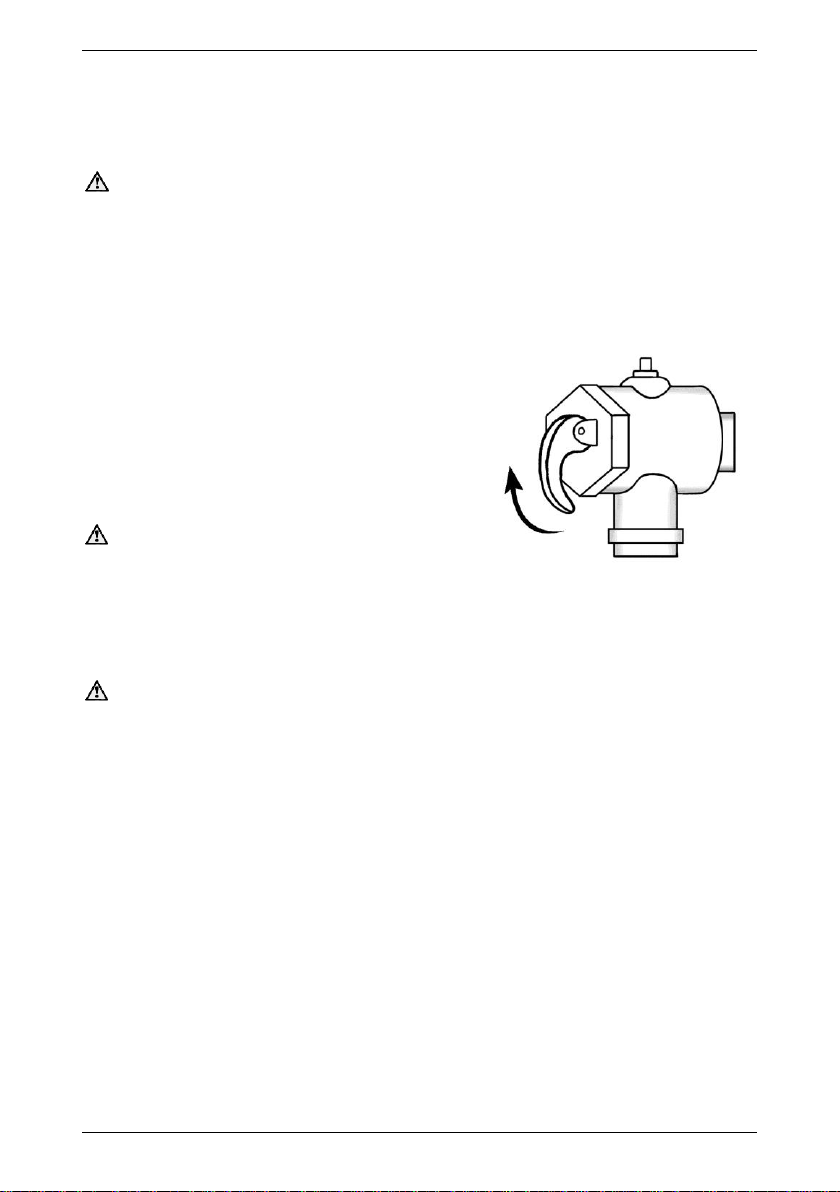

Operate the easing lever on the temperature
pressure relief valve and expansion control
valve once every six (6) months to clear any
deposits and ensure the valve and its drain line
are not blocked. It is very important the lever
is raised and lowered gently. Refer to “Minor
Maintenance Every Six Months” on page 17.
Warning: Water discharged from the
temperature pressure relief valve drain line will
be hot. Exercise care to avoid any splashing of
water by standing clear of the drain line’s point
of discharge when operating either valve’s
easing lever.
Warning: Failure to operate the easing lever on the relief valve once every
six (6) months may result in the water heater cylinder failing.
If water does not flow freely from the drain line when the lever is lifted, then the
water heater must be checked. Phone Rheem Service or their nearest Accredited
Service Agent / Centre to arrange for an inspection.
The temperature pressure relief valve should be replaced at intervals not
exceeding five (5) years and the expansion control valve should be checked for
performance or replaced at intervals not exceeding five (5) years. The checking
of the valves performance or replacement should occur more frequently in areas
where there is a high incidence of water deposits. Refer to “Water Supplies” on
page 19.
lift until water
flows from the
drain line –
lower gently
drain
line

SAFETY, WARNINGS, INSTALLATION NOTES
12
INSTALLATION NOTES
This water heater must be installed:
by a qualified person,
in accordance with the installation instructions,
in compliance with the Plumbing Code of Australia (PCA) and Plumbing
Standard AS/NZS 3500.4,
This water heater is suitable for outdoor installation only.
This water heater is intended to be permanently connected to the water
mains and not connected by a hose-set. A braided flexible hose or semi-
flexible connector may be used for connection to the water heater, where
permitted by AS/NZS 3500.4.
in compliance with the Gas Installations Standard AS/NZS 5601.1,
in compliance with all local codes and regulatory authority requirements,
in New Zealand also conforming to Clauses G11, G12 and H1 of the New
Zealand Building Code.
Installation and commissioning requirements and details for the installing
plumber are contained on pages 27 to 45.
Mains pressure water supply
The water heater is designed to operate at mains pressure by connecting directly
to the mains water supply.
The water heater is supplied with a temperature pressure relief valve with a
pressure rating of 1400 kPa. If an expansion control valve has been installed on
the cold water line to the water heater, this should have a pressure rating of
1200 kPa.
The maximum mains water supply pressure for the water heater is 1120 kPa if
an expansion control valve is not installed, or 960 kPa if an expansion control
valve is installed. If the mains supply pressure in your area exceeds these values,
a pressure limiting valve must be installed.
The supply pressure should be greater than 350 kPa for true mains pressure
operation to be achieved.
Securing of the water heater
The top of the water heater is to be secured to the wall or screen with the wall
brackets provided using fasteners suitable for the wall or screen type and
application. Refer to “Wall Brackets”on page 30 for additional information.

13
ABOUT YOUR WATER HEATER
WATER HEATER APPLICATION
This water heater is designed for use in a single family domestic dwelling for the
purpose of heating potable water. Its use in an application other than this may
shorten its life.

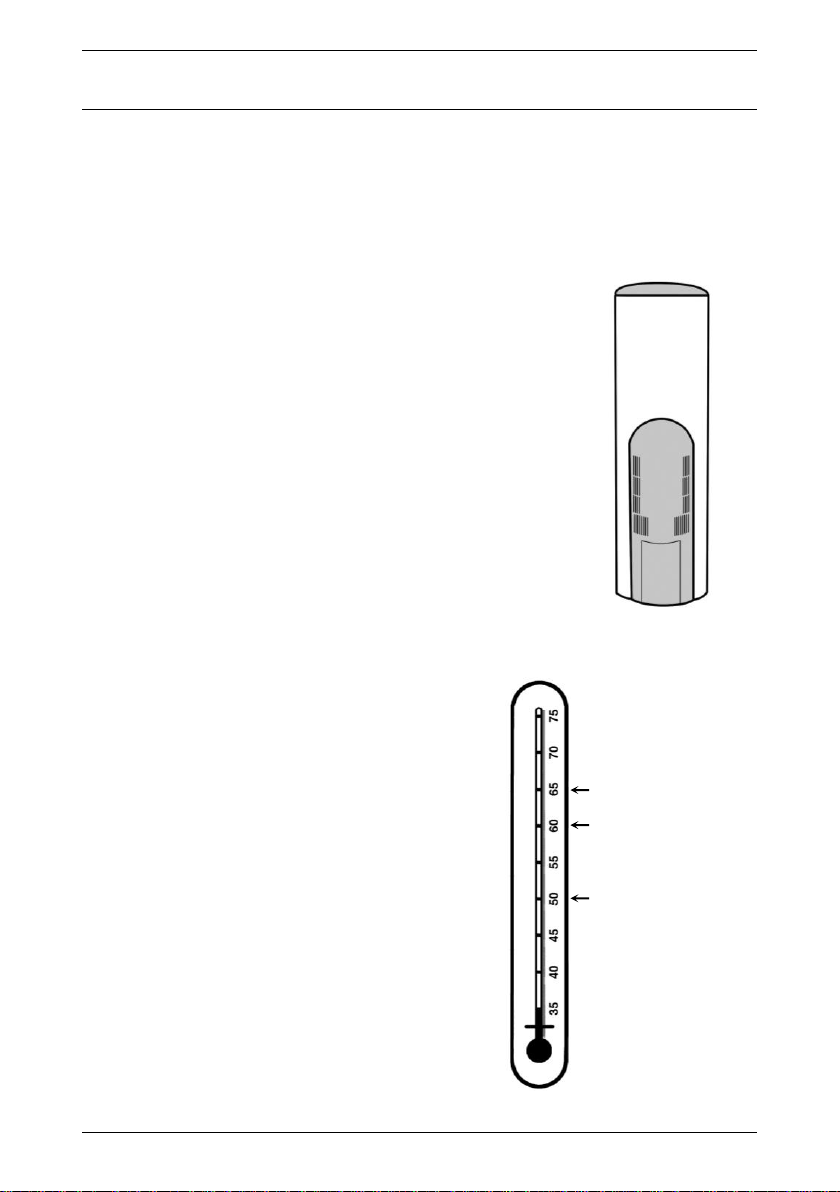

MODEL TYPE
The Rheem®water heater model you have chosen is
suitable for outdoor installation only. The model is a high
efficiency, quick recovery 850 series Stellar™ natural gas
water heater.
Water is stored in a vitreous enamel lined steel cylinder
and heated by a gas burner located under the cylinder.
The heat produced by the burner is transferred to the
water through the base, top and wall of the cylinder and
through the wall of a flue pipe which passes through the
centre of the cylinder. A flue baffle in this flue ensures the
efficiency of the water heater is correct. The gas supply
to the burner is controlled by the thermostat so the water
is heated to a constant temperature. Automatic safety
controls are fitted to the water heater to provide safe and
efficient operation.
HOW HOT SHOULD THE WATER BE?
The water heater features a user adjustable
thermostat, which allows you to personally
choose the most suitable temperature for your
hot water needs. Refer to “Temperature
Adjustment” on page 14.
To meet the requirements of the National
Plumbing Standard the temperature of the
stored water must not be below 60°C.
Note: Australian Standard AS 3498 and New
Zealand Building Code Clause G12 requires
that a water heater provides the means to
inhibit the growth of Legionella bacteria in
potable water. This water heater can satisfy
these AS 3498 and Clause G12 requirements
provided it is operating and the thermostat
setting is 60°C or higher, including when it is
used as an in-series booster water heater for a
solar water heater.
maximum thermostat
setting
maximum
recommended supply
temperature to
bathrooms and
ensuites
minimum
recommended stored
water temperature

ABOUT YOUR WATER HEATER
14
HOTTER WATER INCREASES THE RISK OF SCALD INJURY
This water heater can deliver hot water at temperatures up to 65°C depending
upon the thermostat setting, sufficiently hot to cause severe scalding. Water at
these temperatures may have been plumbed to fixtures where water hotter than
50°C is allowed, such as the kitchen and laundry.
Check the water temperature before use, such as when entering a shower or
filling a bath or basin, to ensure it is suitable for the application and will not cause
scald injury.
We recommend and it may also be required by regulations that an approved
temperature limiting device be fitted into the hot water pipe work to the bathroom
and ensuite when this water heater is installed. This will keep the water
temperature below 50°C at the bathroom and ensuite. The risk of scald injury will
be reduced and still allow hotter water to the kitchen and laundry.

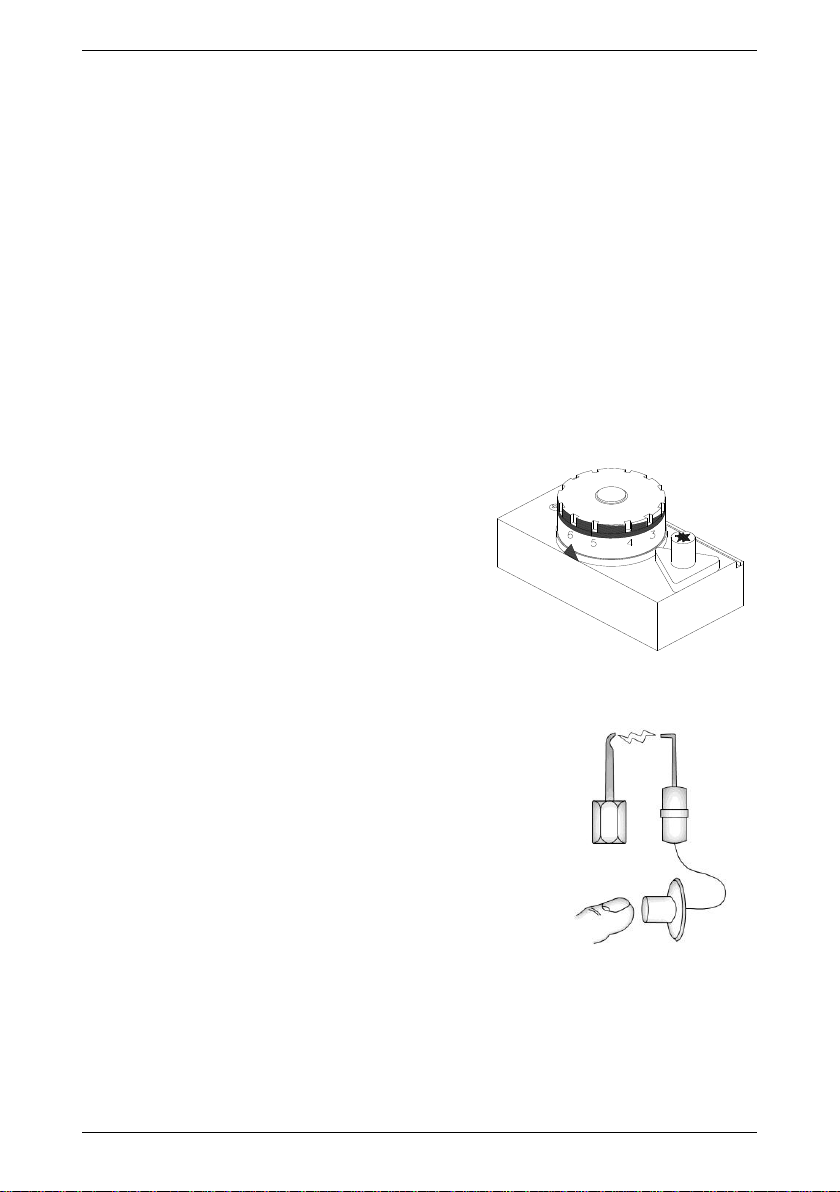

TEMPERATURE ADJUSTMENT
The temperature adjusting dial is on the gas
valve, located behind the access cover on the
lower front of the water heater. A setting of ‘6’
will normally maintain the water temperature
at about 60°C. Each number represents a
temperature difference of approximately 6°C.
To increase the water temperature to 65°C,
turn the gas control knob anticlockwise to a
setting of ‘7’. Refer to “Hotter Water Increases
the Risk of Scald Injury” on page 14.
PIEZO IGNITION
The “Piezo” push button igniter makes lighting the pilot
flame of your water heater very easy. Simply follow the
instructions on the label attached to the back of the
access cover. There is no need for matches to light the
water heater.
PILOT IGNITER
A permanent pilot flame burns to ignite the main
burner automatically. Heat from the pilot is absorbed
by the water.

ABOUT YOUR WATER HEATER
15
PRECAUTIONS
The water heater must be maintained in accordance with the Owner’s Guide and
Installation Instructions. Refer to “Maintenance Requirements” on page 17 and
to “Anode Inspection and Replacement” on page 20.
If this water heater is to be used where an uninterrupted hot water supply is
necessary for your application or business you should ensure that you have
back-up redundancy within the hot water system design. This should ensure the
continuity of hot water supply in the event that this water heater were to become
inoperable for any reason. We recommend you seek advice from a plumber or
specifier about your needs and building back-up redundancy into your hot water
supply system.
TO TURN OFF THE WATER HEATER
If it is necessary to turn off the water heater:
Shut down the gas control (refer to “Close Down Procedure” on page 45).
Close the gas isolation valve at the inlet to the gas control.
Close the cold water isolation valve at the inlet to the water heater.
TO TURN ON THE WATER HEATER
Open the cold water isolation valve fully at the inlet to the water heater.
Open the gas isolation valve fully at the inlet to the gas control.
Light the water heater (refer to “Lighting the Water Heater” on page 42).
GOING ON HOLIDAYS
If you are going on holiday for more than a few days the thermostat can be set
to the “” (pilot) position to conserve energy (refer to point 1 of “Close Down
Procedure” on page 45). If it is necessary to turn off the water heater, refer to “To
Turn Off The Water Heater” on page 15.
VICTORIAN CUSTOMERS
Notice to Victorian Customers from the Victorian Building Authority. This water
heater must be installed by a licensed person as required by the Victorian
Building Act 1993.
Only a licensed person will give you a Compliance Certificate, showing that the
work complies with all the relevant Standards. Only a licensed person will have
insurance protecting their workmanship for 6 years. Make sure you use a
licensed person to install this water heater and ask for your Compliance
Certificate.

ABOUT YOUR WATER HEATER
16
DOES THE WATER CHEMISTRY AFFECT THE WATER HEATER?
The water heater is suitable for most public water supplies, however some water
chemistries may have detrimental effects on the water heater, its components
and fittings. Refer to “Water Supplies” on page 19.
If you are in a known harsh water area or you are not sure of your water
chemistry, have your water checked against the conditions described on
pages 19 to 22.
HOW LONG WILL THE WATER HEATER LAST?
The water heater is supported by a manufacturer’s warranty (refer to page 4).
There are a number of factors that will affect the length of service the water
heater will provide. These include but are not limited to the water chemistry, the
water pressure, the water temperature (inlet and outlet) and the water usage
pattern. Refer to “Precautions” on page 15.

17
MAINTENANCE REQUIREMENTS
MINOR MAINTENANCE EVERY SIX MONTHS
It is recommended minor maintenance be performed every six (6) months. Minor
maintenance can be performed by the dwelling occupant.
The minor maintenance includes:
Operate the easing lever on the temperature pressure relief valve. It is very
important the lever is raised and lowered gently. Refer to “Relief Valves”
on page 10.
Warning: Water discharged from the temperature pressure relief valve
drain line will be hot. Exercise care to avoid any splashing of water by
standing clear of the drain line’s point of discharge when operating the valve’s
easing lever.
Operate the easing lever on the expansion control valve (if fitted). It is very
important the lever is raised and lowered gently. Refer to “Relief Valves”
on page 10.
SERVICE EVERY TWELVE MONTHS
For safe and efficient operation, it is recommended a service be conducted on
the water heater every twelve (12) months.
Warning: Servicing of a water heater must only be carried out by qualified
personnel. Phone Rheem Service or their nearest Accredited Service
Agent / Centre.
Note: The service and routine replacement of any components, if required, are
not included in the Rheem warranty. A charge will be made for this work. Only
genuine replacement parts should be used on this water heater.
The annual service includes the following actions:
Inspect and flush the temperature pressure relief valve.
Inspect and flush the expansion control valve (if fitted).
Check and if necessary adjust the inlet gas pressure.
Check the piezo igniter, gas control and thermocouple.
Check the operation of and clean the pilot light and main burner.
Visually check the unit for any potential problems.
Inspect all connections.

MAINTENANCE REQUIREMENTS
18
MAJOR SERVICE EVERY FIVE YEARS
It is recommended a major service be conducted on the water heater every
five (5) years.
Warning: Servicing of a water heater must only be carried out by qualified
personnel. Phone Rheem Service or their nearest Accredited Service
Agent / Centre.
Note: The major service and routine replacement of any components, such as
an anode and relief valve(s), are not included in the Rheem warranty. A charge
will be made for this work. Only genuine replacement parts should be used on
this water heater.
The major service includes the following actions:
Replace the temperature pressure relief valve.
Inspect and flush the expansion control valve (if fitted). If required, replace
the valve.
Inspect and if required, replace the anodes.
If an anode is not replaced, it should be replaced within five (5) years of this
service (refer to “Anode Inspection and Replacement” on page 20).
Check and if necessary adjust the inlet gas pressure.
Check the piezo igniter, gas control and thermocouple.
Check the operation of and clean the pilot light and main burner.
Visually check the unit for any potential problems.
Inspect all connections.
Note: The water heater may need to be drained during this service. After the
completion of the service, the water heater will take some time to reheat the
water. Hot water may not be available for a while.

19
WATER SUPPLIES
This water heater must be installed in accordance with this advice to be
covered by the Rheem warranty.
This water heater is manufactured to suit the water conditions of most public
reticulated water supplies. However, there are some known water chemistries
which can have detrimental effects on the water heater and its operation and / or
life expectancy. If you are unsure of your water chemistry, you may be able to
obtain information from your local water supply authority. This water heater
should only be connected to a water supply which complies with these guidelines
for the Rheem warranty to apply.
ANODE
The vitreous enamel lined cylinder of the water heater is only covered by the
Rheem warranty when the total dissolved solids (TDS) content in the water is
less than 2500 mg/L and when the correct colour coded anode is used. If an
incorrect colour coded anode is used in the water heater, any resultant faults will
not be covered by the Rheem warranty. In addition, the use of an incorrect colour
coded anode may shorten the life of the water heater cylinder.
The correct colour coded anode must be selected and fitted to the water heater
in accordance with the following advice and the Anode Selection chart on
page 20 for the Rheem warranty to apply to the water heater cylinder.
Total Dissolved Solids
Anode colour code
0 –40 mg/L
Green
40 –150 mg/L
Green or Black
150 –400 mg/L
Black
400 –600 mg/L
Black or Blue
600 –2500 mg/L
Blue
2500 mg/L +
Blue (no cylinder warranty)
The changing of anodes must be carried out by a qualified person.
Note: Some water analysis reports may state the conductivity of the water rather
than the level of total dissolved solids. Conductivity, measured in microsiemens
per centimetre (µS / cm), is directly proportional to the TDS content of the water.
TDS, in mg / L, is approximately 70% of the conductivity in µS / cm.

WATER SUPPLIES
20
ANODE INSPECTION AND REPLACEMENT
The anodes installed in your water heater will slowly dissipate whilst protecting
the cylinder. The life of the cylinder may be extended by replacing the anodes.
For water supplies which are either softened or desalinated, or where the water
supply may alternate between a water tank and a reticulated public supply or
another supply, or where there is a variable supply (e.g. from a bore or public
reticulated supply from various water sources), each anode must be inspected
(and replaced if there is any sign of depletion) within five (5) years of its
installation, and within every three (3) years thereafter.
For all water supplies, if the anodes are not replaced during a major service (refer
to “Major Service Every Five Years” on page 18) then the maximum time after its
installation when the anodes should be replaced for this water heater is
ten (10) years.
CAUTION
If the water supply has a TDS greater than 150 mg/L and a green anode has not
been changed to a black anode, or if the TDS is greater than 600 mg/L and the
anode has not been changed to a blue anode, there is the possibility the anode
may become overactive and hydrogen gas could accumulate in the top of the
water heater during long periods of no use.
If, under these conditions, the water heater has not been used for two or more
weeks the following procedure should be carried out before using any electrical
appliances (automatic washing machines and dishwashers) which are
connected to the hot water supply.
The hydrogen, which is highly flammable, should be vented safely by opening a
hot tap and allowing the water to flow. There should be no smoking or naked
flame near the tap whilst it is turned on. Any hydrogen gas will be dissipated.
This is indicated by an unusual spurting of the water from the tap. Once the water
runs freely, any hydrogen in the system will have been released.
(3570)
Green
150
2500
600
400
TOTAL DISSOLVED SOLIDS (TDS) mg/L
(CONDUCTIVITY - μS/cm)
(215)
(570)
(860)
Black
40
(60)
Blue
Blue
ANODE SELECTION
above
2500 mg/L (3570 μS/cm),
no warranty applies to a
vitreous enamel lined
water heater cylinder
warranty applies to a vitreous enamel lined
water heater cylinder if the correct coloured anode
is used for the TDS / conductivity level of the water
