Rheem Raypak Hi Delta FlexGas 302CD Owner's manual

SUPPLEMENTAL INSTALLATION AND
OPERATING INSTRUCTIONS
Catalog No. 1000.58D Effective: 05-15-17 Replaces: 10-14-14 P/N 241295 Rev. 5
Patent No. 6,904,873; Other patent pending
FOR YOUR SAFETY: Do not store or use gasoline or other flammable vapors and liquids
or other combustible materials in the vicinity of this or any other appliance. To do so may
result in an explosion or fire.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire department.
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This manual should be maintained in legible condition and kept adjacent to the heater or in another safe place for
future reference.
For Hi Delta Models
302CD–2342CD
FlexGas®
NOTE: THIS MANUAL IS SUPPLEMENTAL FOR THE FLEXGAS MODELS OF
THE HI DELTA HEATERS. THIS MANUAL ADDRESSES THE SPECIFIC DIF-
FERENCES BETWEEN THESE HEATERS AND STANDARD HI DELTA
MODELS. Please refer to the standard Installation and Operating Instruction manuals
(Catalogs 1000.502 and 1000.512 as appropriate) for installation requirements which are
not related to the gas supply.

2
Rev. 5 reflects the following:
Changes to: updated to C models

Raypak strongly recommends that this manual be
reviewed thoroughly before installing your i Delta
heater equipped with FlexGas. Raypak also recom-
mends that the appropriate i Delta Installation and
Operating Instruction manual (1000.502 for 302C-
902C or 1000.512 for 992C – 2342C) be thoroughly
read before attempting to install these heaters. Fac-
tory warranty does not apply to heaters that have been
improperly installed or operated. (Refer to the warranty
at the back of the standard i Delta manuals.)
Installation and service must be performed by a quali-
fied installer, service agency or gas supplier. If, after
reviewing these manuals, you still have questions
which these manuals do not answer, please contact
the manufacturer or your local Raypak representative.
Thank you for purchasing a Raypak product. We hope
you will be satisfied with the high quality and durability
of our equipment.
Model Identifi ation
The model identification number and heater serial
number are found on the heater rating plate located on
the lower right outside jacket of the heater. The model
number will have the form 9 1262CD or similar
depending on the heater size and configuration. The
letter(s) in the first group of characters identifies the
application ( = ydronic eating, W = Domestic
ot Water (D W), P = Pool). The number which fol-
lows identifies the firing mode (1 or 4 = on-off, 3 =
2-stage, 8 = 3-stage and 9 = 4-stage). NOTE: Not all
these firing options are available on all heaters.
Refer to the i Delta manual for available firing
options. The second group of characters identifies the
size of the heater (four numbers representing the
approximate MBTU input), and, where applicable, a
letter, indicating the manufacturing series. The final
character is the letter “D” which designates the heater
as a FlexGas equipped heater.
Ratings and Certifi ations
Standards:
• ANSI Z21.13 · CSA 4.9 - latest edition, Gas-Fired
ot Water Boilers
• CAN 3.1 - latest edition, Industrial and Commer-
cial Gas-Fired Package Boilers
• ANSI Z21.56 · CSA 4.7 - latest edition, Gas-Fired
Pool eaters
• ANSI Z21.10.3 · CSA 4.3 - latest edition, Gas
Water eaters
3
WARNING: Do not use this heater if any part has
been under water. Immediately call a qualified serv-
ice technician to inspect the heater and to replace
any part of the control system and any gas control
which has been under water.
WARNING: Should overheating occur or the gas
supply valve fail to shut off, do not turn off or discon-
nect the electrical supply to the heater. Instead, shut
off the gas supply at a location external to the heater.
WARNING: Risk of electrical shock. More than one
disconnect switch may be required to de-energize
the equipment before servicing.
WARNING: This FlexGas heater is intended for
operation on Natural Gas as the primary fuel. DO
NOT use this heater on Propane Gas as the primary
fuel.
Model Input
(MBTUH)
Pipe Size
(Nat)
Pipe Size
(LP)
302CD 300 1-1⁄4”3⁄4”
402CD 399 1-1⁄4”3⁄4”
502CD 500 1-1⁄4”3⁄4”
652CD 650 1-1⁄4”3⁄4”
752CD 750 1-1⁄4” 1-1⁄4”
902CD 900 1-1⁄4” 1-1⁄4”
992CD 990 2” 1-1⁄4”
1262CD 1260 2” 1-1⁄4”
1532CD 1530 2” 1-1⁄4”
1802CD 1800 2” 1-1⁄4”
2072CD 2070 2” 1-1⁄4”
2342CD 2340 2” 1-1⁄4”
Table 1: FlexGas Specifications

4
All Raypak heaters are National Board Approved, and
design-certified and tested by the Canadian Stan-
dards Association (CSA) for the U.S. and Canada.
Each heater is constructed in accordance with Section
IV of the American Society of Mechanical Engineers
(ASME) Pressure Vessel Code, and bears either the
ASME “ ” stamp for boilers or “ LW” stamp for water
heaters. The heater also complies with the latest edi-
tion of AS RAE 90.1 Standard.
Rated inputs are suitable for up to 4,500 ft elevation
without de-rating. Consult the factory for installations
at altitudes over 4,500 ft above sea level.
Component Lo ations
Installation Codes
Installations must follow these codes:
•Local, state, provincial, and national codes, laws,
regulations and ordinances
•National Fuel Gas Code, ANSI Z223.1/NFPA 54 –
latest edition (NFGC)
• National Electrical Code, ANSI/NFPA 70 - latest
edition (NEC)
For Canada only: CAN/CGA B149 Installation Code
(B149.1) and CSA C22.1 C.E.C. Part 1 (C22.1)
Gas Supply
This heater will be connected to 2 different gas sup-
plies (Natural Gas and Propane Gas).
Each gas piping must have a separate sediment trap
ahead of the gas controls. Pounds-to-inches regula-
tors must be installed to reduce the gas supply
pressure to a maximum of 10.5 in. WC for natural gas
and 13.0 in. WC for propane gas. The regulator should
be placed a minimum distance of 10 times the pipe
diameter upstream of the heater gas controls.
The heater must be isolated from the gas supply pip-
ing system by closing the manual shut-off valves
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psi
(3.45 kPa). Relieve test pressure in the gas supply line
prior to reconnecting the heater and its manual shut-off
valves to the gas supply lines. FAILURE TO FOLLO
THIS PROCEDURE MAY DAMAGE THE GAS
VALVES. Over-pressurized gas valves are not cov-
ered by warranty. The heater and its gas connections
shall be leak-tested before placing the appliance in
operation. Use soapy water for leak test. DO NOT use
an open flame.
WARNING: Altering any Raypak pressure vessel
by installing replacement heat exchangers, tube
bundle headers, or any ASME parts not manufac-
tured and/or approved by Raypak will instantly void
the ASME and CSA ratings of the vessel and any
Raypak warranty on the vessel. Altering the ASME or
CSA ratings of the vessel also violates national,
state, and local approval codes.
Fig. 1: Component Locations – Back
CAUTION: The heater must be disconnected from
the gas supply during any pressure testing of the gas
supply system at test pressures in excess of 1/2 psi
(3.45 kPa).
FlexGas cover not shown for clarity
NOTE: Maintain upright orientation of all compo-
nents as shown in Fig. 1.

5
Gas Supply Pressure
A minimum of 5.0 in. WC and a maximum of 10.5 in.
WC upstream gas pressure is required under load and
no-load conditions for natural gas. A minimum of 8.0
in. WC and a maximum of 13.0 in. WC is required for
propane gas. The gas pressure regulator(s) supplied
on the heater is for low-pressure service. If upstream
gas pressures exceed 14.0 in. WC, intermediate gas
pressure regulators, of the lockup type, must be
installed.
When connecting additional gas utilization equipment
to the gas piping system, the existing piping must be
checked to determine if it has adequate capacity for
the combined load.
The gas valve pressure regulator(s) on the i Delta
heater are nominally preset at 3.5 in. WC. The pres-
sure regulator on the FlexGas propane system is
nominally set at 2.2 ± 0.1 in. WC. This can be verified
by measuring the propane gas pressure at the upper

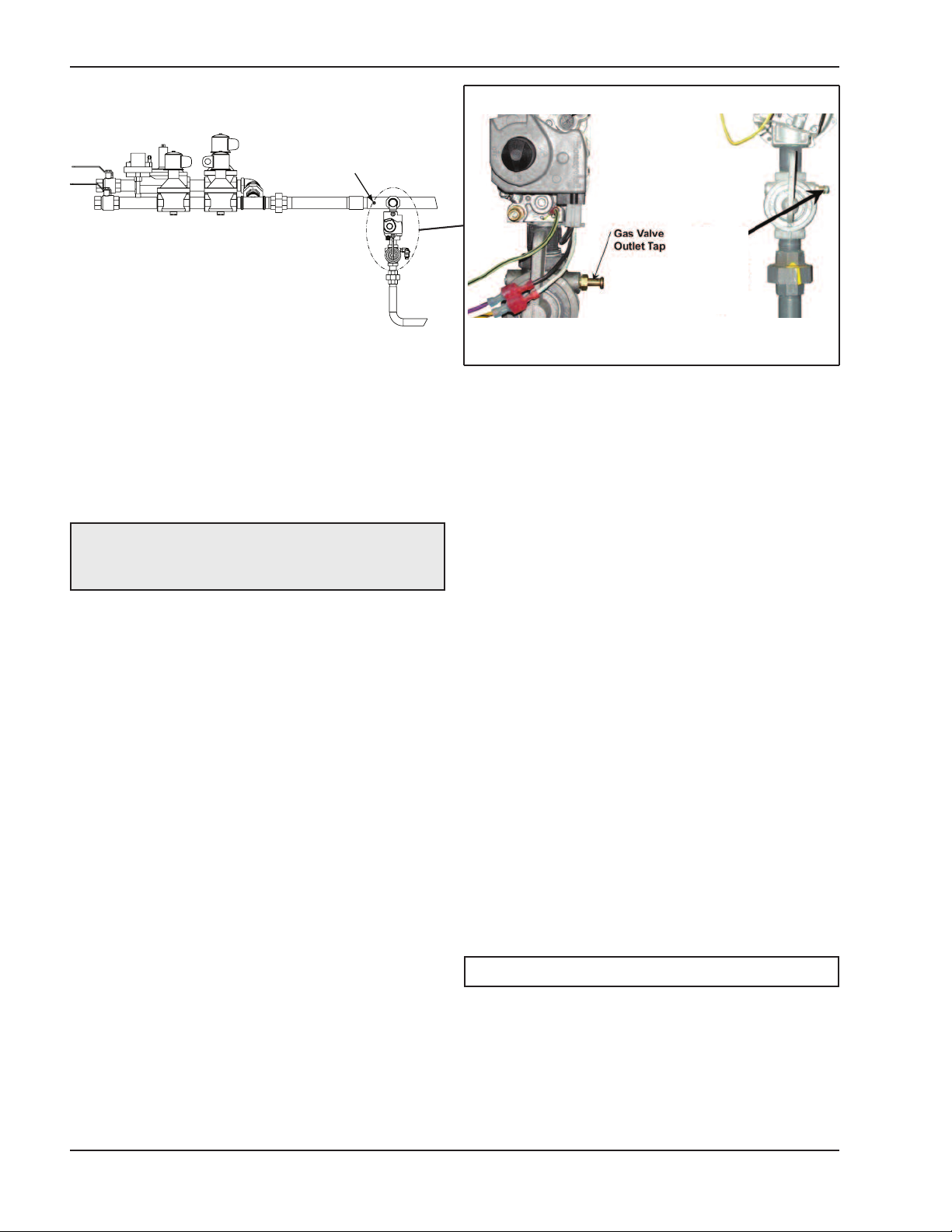

manifold pressure tap shown in Fig. 5. The pressure at
the gas valve(s) outlet tap, measured with a manome-
ter, while in operation should be 3.5 ± 0.1 in. WC for
natural gas. A nominal pressure of 1.3 in. WC will be
observed at the individual heater gas valve outlet taps
on propane gas. See Fig. 5 for gas pressure measure-
ment locations.
Bleeds/Vents
This FlexGas gas train is equipped with an propane
gas regulator and low gas pressure switch (optional on
302CD-902CD) which may need to be vented to the
outdoors as required by state and local codes. If these
components are required to be vented, the cover must
be removed and vent lines installed into the compo-
nents and ran to a suitable location outside the
building in compliance with the NFGC. See Fig.3.
CAUTION: Do not use Teflon tape on gas line pipe
thread. A pipe compound rated for use with natural
and propane gases is recommended. Apply sparing-
ly only on male pipe ends, leaving the two end
threads bare.
CAUTION: Support gas supply piping with hang-
ers, not by the heater or its accessories. Make sure
the gas piping is protected from physical damage
and freezing, where required.
Low Gas Pressure Switch
(Optional on 302CD-902CD)

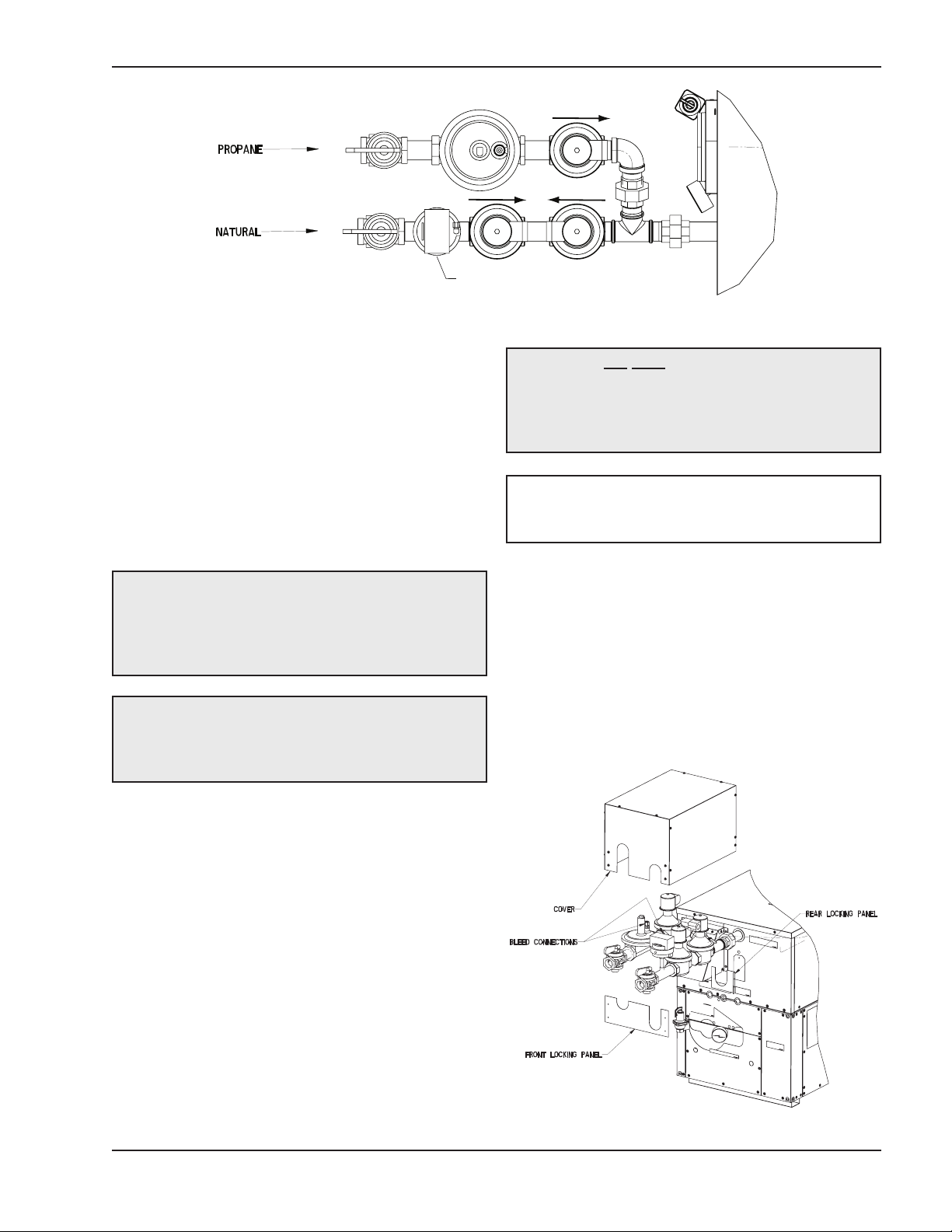

Fig. 2: Gas Supply Connection - Top View
NOTE: DO NOT adjust the FlexGas propane regu-
lator setting without verifying proper operation
including the use of a flue gas analyzer.
Fig. 3: FlexGas Cover Removal & Vent Locations
CAUTION: DO NOT adjust the individual heater
gas valve pressure settings when firing with
propane gas. Propane adjustments (if neces-
sary) should ONLY be made to the FlexGas
propane regulator.

6
Start-up
For Your Safety
This appliance has a hot surface igniter(s). It is
equipped with an ignition device(s) which automatical-
ly lights the burners. Do not try to light the burners by
hand.
BEFORE OPERATING, smell all around the appli-
ance area for gas. Be sure to smell near the floor
because some gas is heavier than air and will settle on
the floor.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
telephone in your building.
• Immediately call your gas supplier from a neigh-
bor’s telephone. Follow the gas supplier’s
instructions.
• If you cannot reach your gas supplier, call the fire
department.
• Use only your hand to push in or turn the gas con-
trol knob. Never use tools. If the knob will not turn
by hand, do not try to repair it, call a qualified serv-
ice technician. Forced or attempted repair may
result in a fire or explosion.
• Do not use this appliance if any part has been
under water, immediately call a qualified service
technician to inspect the appliance and to replace
Initial Start-up
Tools Needed:
• (1) 12-0-12, 24” scale U-tube manometer
• (4) 6-0-6, 12” scale U-tube manometers (min.)
• (1) Screwdriver
• (1) Multi-meter
• (1) 3/16” Allen wrench
WARNING: If you do not follow these instructions
exactly, a fire or explosion may result causing prop-
erty damage, personal injury or loss of life.
NOTE: Digital manometers are not recommended.
any part of the control system and any gas control
which has been under water.
• Check around unit for debris and remove combus-
tible products, i.e. gasoline, etc.
Pre Start-up Che k
1. Verify heater is filled with water.
2. Check system piping for leaks. If found, repair
immediately.
3. Vent air from system. Air in system can interfere
with water circulation.
4. Purge air from gas lines up to FlexGas gas train.
Propane Supply Pressure
Test Point
Models: 302CD-902CD Models: 992CD-
2342CD
Gas Valve
Output Tap
Fig. 4: FlexGas Gas Pressure Measurement Locations

7
Preparation
Che k Power Supply
With multi-meter at incoming power in i Delta heater,
check voltage between:
ot - Common (≈120 VAC)
ot - Ground (≈120 VAC)
Common - Ground (< 1 VAC)
Atta h Manometers to Measure Pressures
1. Turn off main gas valves.
2. Attach 24” scale manometer to the first main gas
shut-off valve pressure tapping.
3. Attach (1) 12” scale manometer to the outlet side
of the second main gas shut-off valve pressure
tapping.
4. Attach (1) 12” scale manometer near the fan-prov-
ing switch. Pull black cap from air pressure switch
tee and connect the manometer. NOTE: Retain
caps for reinstallation later.
Che k Gas Supply Pressure
1. Slowly turn on main gas shut-off valve.
2. Read the gas supply pressure from the manome-
ter; minimum supply pressure for natural gas is 5.0
in. WC, recommended supply is 7.0 in. WC, mini-
mum supply pressure for propane gas is 8.0 in.
WC (dynamic readings, all stages firing).
3. If the pressure is > 14.0 in. WC, turn off the valve.
4. Check if the service regulator is installed and/or
adjust the service regulator.
FlexGas System Start-up
1. Turn off unit. Ensure that the switch on the
FlexGas control is in the position marked “NAT”.
See Fig. 6 for FlexGas control operation. Ensure
the manual valve on the natural gas supply is open
and the manual valve on the propane supply is
closed.
2. Turn on the unit, wait 15 seconds, and the igniter
should glow. Look into sight glass located at each
end of the heater to check igniter operation. Gas
valves should open in 45-60 seconds.
3. If burner does not light on first trial. It will retry, up
to three times.
4. Main burner ignition: Check manifold gas pres-
sure at gas valve outlet pressure tap. This should
read 3.5 ± 0.1 in. WC for natural gas. If the natural
gas manifold pressure is not within 3.5 ± 0.1 in.
WC, follow the instructions in the i Delta I&O
manual for adjusting manifold pressure. If a flue
gas analyzer is used, the CO2 on natural gas
should be 7.5-8.5% and CO should be less than
150 ppm.
5. When acceptable operation on Natural Gas is con-
firmed, turn the gas selector key on the FlexGas
control to “OFF”.
6. Close the manual valve on the natural gas supply
then open the manual valve on the propane sup-
ply. When the heater shuts off, turn the FlexGas
control key counter-clockwise to the “PRO” posi-
tion.
7. Wait 15 seconds, and the igniter should glow. Look
into sight glass located at each end of the heater
to check igniter operation. Gas valves should open
in 45-60 seconds.
WARNING: This FlexGas heater is intended for
operation on Natural Gas as the primary fuel. DO
NOT use this heater with Propane Gas as the pri-
mary fuel.
NOTE: Do not adjust i Delta valve(s) or manifold
settings when operating on propane. These should
only be adjusted while firing natural gas.
WARNING: Do not turn on gas at this time.
WARNING: If Common - Ground is > 1 VAC,
STOP: Contact electrician to correct ground failure.
Failure to do this may burn out 120V-24V trans-
former, or may cause other safety control damage or
failure.
NOTE: The fan(s) pressure is already factory set to
1.4 in. ± .1 in. WC (up to 4500 ft altitude). If adjust-
ment(s) is required, consult the appropriate i Delta
manual.

From PRO to NAT:
1. Turn the boiler off (power switch on front control
panel).
2. Turn FlexGas key to “OFF”.
3. Close PRO manual valve.
4. Open NAT manual valve.
5. Turn FlexGas key to “NAT”.
6. Turn the boiler on.
Safety Inspe tion
1. Check all thermostats and high limit settings.
2. During the following safety checks leave ma-
nometers hooked up, check and record.0
3. If other gas-fired appliances in the room are on the
same gas main, check all pressures on the i
Delta with all other equipment running.
4. Check thermostats for ON-OFF operation.
5. Check high limits for ON-OFF operation.
6. While in operation, check flow switch operation.
7. Check the low gas pressure switch. (For proper
adjustment, use the attached manometers, if
available, to set pressure. The scales on the
switch are approximate only.) Low gas pressure
switch (if equipped) must be set at 5.0 in. WC for
natural gas.
Follow-Up
Safety checks must be recorded as performed.
Turn heater on. After main burner ignition:
1. Check manometer for proper reading.
2. Cycle heater several times and re-check readings.
3. Turn unit off.
4. Remove all manometers and replace caps and
screws.
8
8. If burner does not light on first trial. It will retry, up
to three times.
9. Main burner ignition: Check upper manifold gas
pressure.
10. If the pressure readings differ by more than ± 0.1
in. WC, remove screw cover from the gas pres-
sure regulator on the FlexGas fuel train and adjust
until upper manifold pressure is nominally 2.2 ±
0.1 in. WC (manifold pressure 1.3 ± 0.1 in. WC). If
a flue gas analyzer is used, the CO2 on propane
should be 9.0-10.0% and CO should be less than
150 ppm.
11. Replace the screw cover.
12. Turn the gas selector key on the FlexGas control
panel to “OFF”.
13. Close the manual valve on the propane gas supply
and open the manual valve on the natural gas
supply. Turn the gas selector key on the FlexGas
control clockwise to “NAT”. The heater is now
ready for operation.
FlexGas Operation - Changing Fuels
From NAT to PRO:
1. Turn the boiler off (power switch on front control
panel).
2. Turn FlexGas key to “OFF”.
3. Close NAT manual valve.
4. Open PRO manual valve.
5. Turn FlexGas key to “PRO”.
6. Turn the boiler on.
NOTE: Reset Low Gas Pressure Switch (when
equipped) if necessary. Refer to Fig. 2 for location.
CAUTION: Special manifold and air settings may
be required. Verify rating plate and blower housing.
CAUTION: Once the natural gas pressures are
established, DO NOT adjust the i Delta gas valves
to attain the required propane pressures.
Adjustments must be made to the FlexGas propane
regulator.

9
5. Replace all gas pressure caps.
6. Check for gas leaks one more time.
7. Restart unit.
Fig. 5: FlexGas Control Panel
Fig. 6 iring Diagram
Wiring Diagram

10

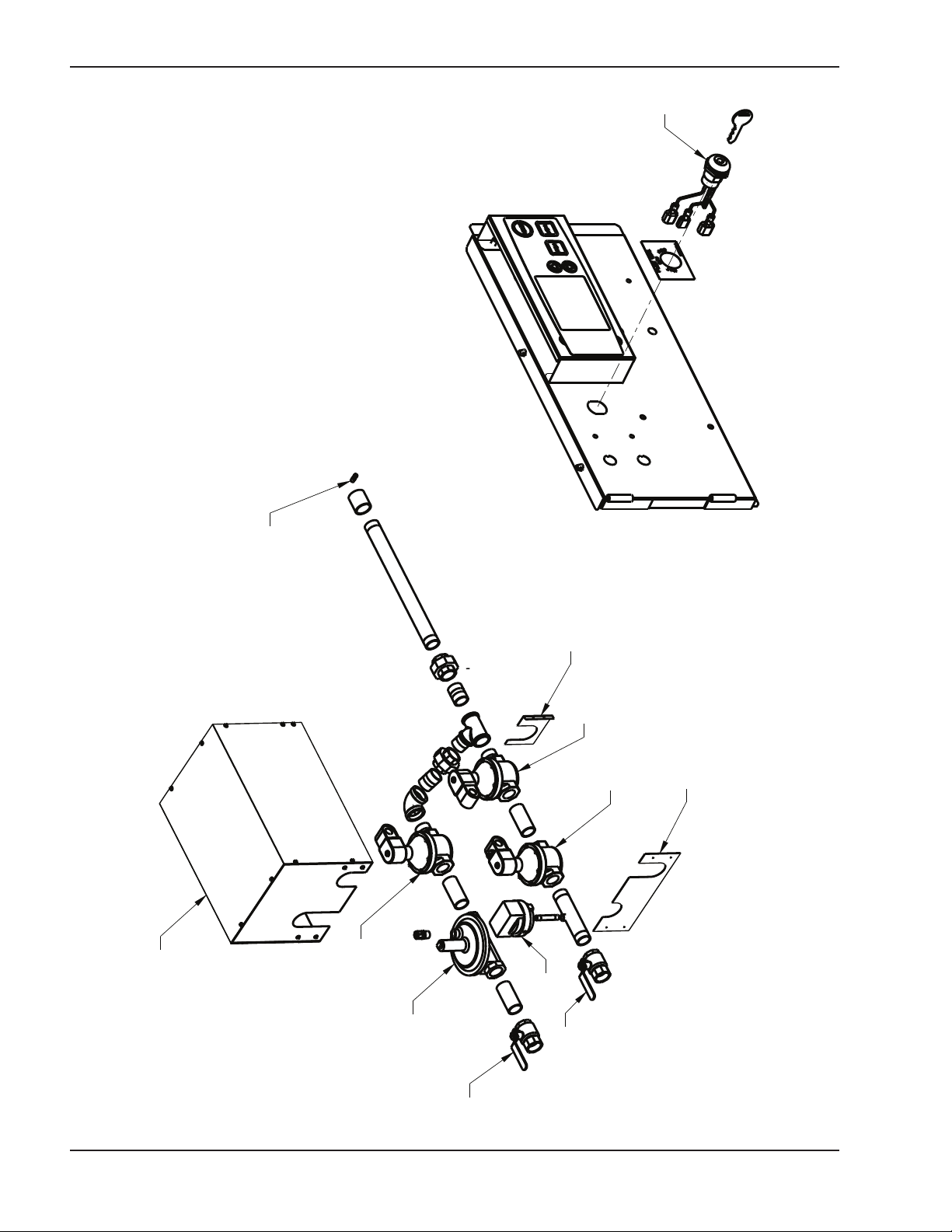

1-S
2-G
6-G
5-G
4-G
1-S
1-G
1-S
7-G
8-G
1-G
1-C

11
CALL OUT DESCRIPTION302CD-652CD752CD-902CD992CD-1262CD1532CD-2342CD
F349110F349110F349110F349110Y DECALSSAHCTIWSYEKC-1
1-G GAS SOLENOID VALVE (NAT) 011910F 011910F 011911F 011911F
2-G GAS SOLENOID VALVE (PRO) 012125F 011910F 011910F 011910F
4-GMANUAL GAS VALVE (NAT) 011945F 011945F 007665F 007665F
5-GMANUAL GAS VALVE (PRO) 011944F 011945F 011945F 011945F
F849110F749110F749110F649110EVLAVROTALUGERSAGG-6
F324700F324700F324700F324700EVLAVELDEELBG-7
8-G LOW GAS PRESSURE SWITCH007187F007187F007187F007187F
F
059110F059110F949110F949110REVOCNIARTSAGS-1

Raypak, Inc., 2151 Eastman Avenue, Oxnard, CA 93030 [phone] Fax [phone]
Litho in U.S.A.
www.raypak.com
