RHINO SE4 User manual

© 2005Alamo Group Inc.
RHINO®
1020 S. SangamonAve.
Gibson City, IL 60936
800-446-5158
Email: [email protected]
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
SE4
ROTARY MOWER
Rev 09-05 S/N 16874 -Current Part No.00760866P

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsare potentially hazardous. Thereisno substitute foracautious, safe-minded operatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Readand understand the complete Warranty Statement foundin this Manual. Fill out the Warranty RegistrationForm
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.

PARTS
SECTION
Parts Section – 1

Parts Section – 2
©2005 Alamo Group Inc.
Formaximumsafetyandtoguaranteeoptimumproductreliability,alwaysuse
genuineServis-RhinoParts. Theuseofinferiorreplacementpartsmaycause
prematureorcatastrophicfailurewhich couldresultinseriousinjuryordeath.
Directanyquestionsregardingpartsto:
Thefollowinginstructionsareofferedtohelpeliminateneedlessdelayanderrorinprocessing
purchaseordersfortheequipment in thissection.
1. ThePartsSectionispreparedinlogicalsequenceandgroupingofpartsthatbelongtothe
basic machine featured in this manual. Part Numbers and Descriptions are given to help
locatethepartsandquantitiesrequired.
2. The Purchase Order must include the name and address of the person or organization
orderingtheparts,whoshouldbecharged,andifpossible,theserialnumberofthemachine
forwhichtheparts are ordered.
3. ThePurchaseOrdermustclearlylistthequantityofeachpart,thecompleteandcorrectpart
number (be sure to include all periods), and the basic name of the part.
4. TheManufacturerreservestherighttosubstitutepartswhereapplicable.
5. Somepartsareunlisteditemswhicharespecialproductionitemsnotnormallystockedand
are subject to special handling. Request a quotation for such parts before sending a
PurchaseOrder.
6. TheManufacturerreservestherighttochangepriceswithoutpriornotice.

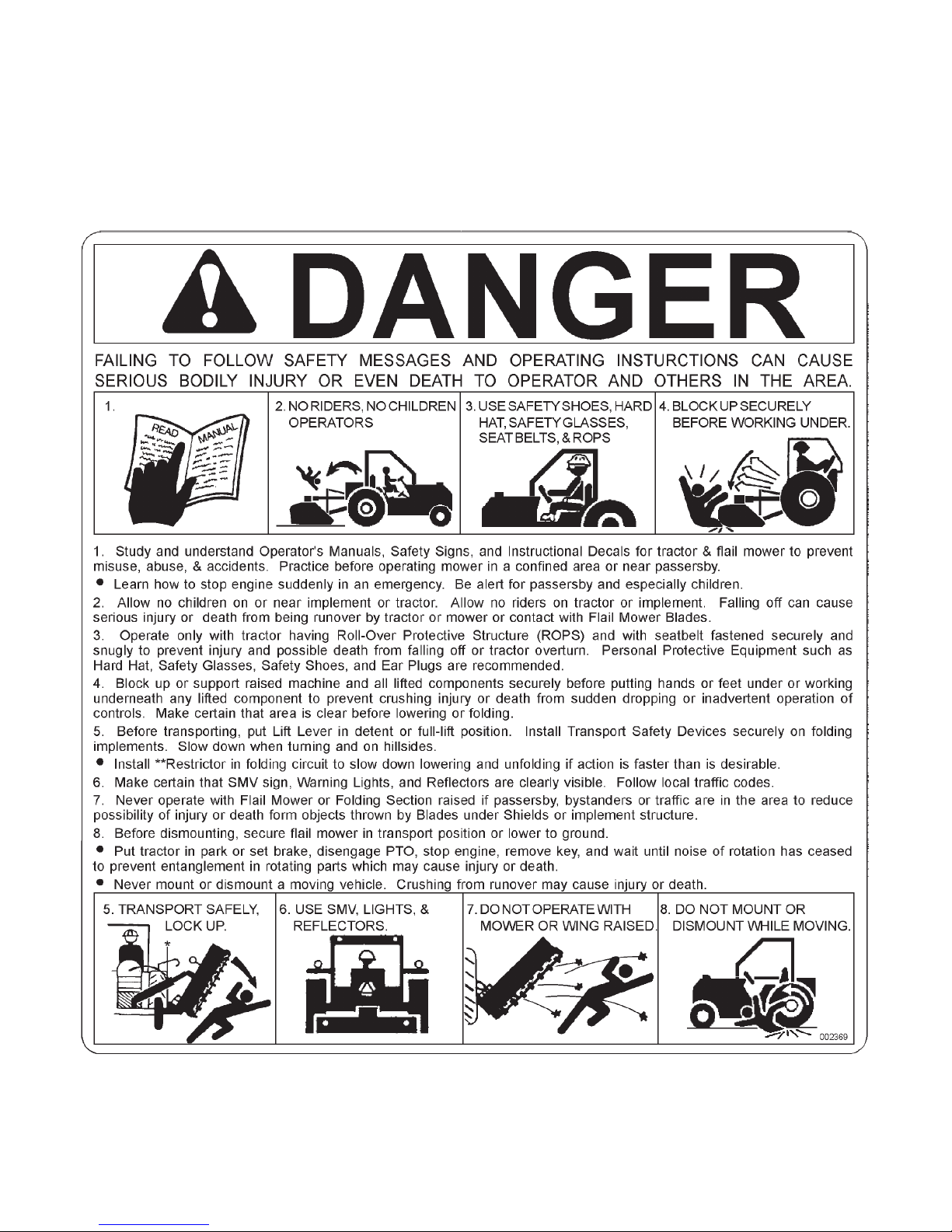

NOTE: PleaserefertoTheSafetySectioninthefrontofthisManualfortheproper
PartNumberwhenorderingReplacementSafetyDecals.
PARTS ORDERING GUIDE
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]

PART NAME INDEX
DRIVELINE ASSEMBLY S/N 16873 -BELOW Rev 10-04..................................................................................................... 8
DRIVELINE ASSEMBLY S/N 16874 -CURRENT Rev 09-05 .............................................................................................. 10
FRONT DEFLECTORS ASSEMBLY.................................................................................................................................... 11
GEARBOX ASSEMBLY.......................................................................................................................................................... 6
HYDRAULIC RELIEF ASSEMBLY (OPTION)...................................................................................................................... 13
MAIN ASSEMBLY................................................................................................................................................................... 4
OFFSET ADAPTER (OPTION) ............................................................................................................................................ 14
REAR DEFLECTORS ASSEMBLY...................................................................................................................................... 12
SAFETY DECAL SHEETS ................................................................................................................................................... 15
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 3

MAIN ASSEMBLY
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 4

MAIN ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
00773753 - MAIN ASSEMBLY
1 00770773 1 LOCKNUT
2 00770772 1 BOLT
3 00757949R 1 BAR TOP LINK
4 00770781 4 BOLT
5 00766542 1 BUSHING
6 00603500 2 HITCH PIN (CAT 1)
7 00770777 4 LOCKNUT
8 00766505 2 A-FRAME BAR
9 00773564 2 REAR BRACE
10 00755881 5 LOCKNUT
11 00766610 1 MOUNTING FLAT
12 00761655P 1 GEARBOX
13 00762365 2 BOLT
14 02957510 1 BOLT
15 00768968 9 LOCKNUT
16 02963669 2 BOLT
17 00036900 1 COTTER PIN
18 15B2000 1 WASHER
19 00773768 1 TAILWHEEL BEAM
20 00773565R 1 CASTER FORK
21 00773566 1 SPINDLE
22 9143009 1 LOCKNUT
23 00761402 2 BLADE BOLT
24 00773812 2 SUCTION BLADE
25 00761535 2 WASHER
26 00750226 2 LOCKNUT
27 00766590R 1 DISHPAN
28 00606000 1 COTTER PIN
29 00758692 1 SLOTTED NUT
30 7192 1 SNAP RING
31 02958784 2 BOLT
32 00773755R 1 MAIN FRAME
33 00762423 2 WASHER
34 00772590 1 SHIELD BRACKET
35 00766611 1 GAUGE WHEEL MOUNT
36 00770066 1 CABLE & PINS ASSY
37 001465 1 GREASE FITTING
38 00772588 1 SHIELD PLATE
39 03101646 2 LOCKWASHER
40 00773567 1 TIRE RIM ASSEMBLY
41 00766086 1 FLATWASHER
42 00772291 2 HITCH LUG
43 02958788 4 BOLT
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 5

GEARBOX ASSEMBLY
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 6

GEARBOX ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
00761655 - GEARBOX ASSY
1 00564700 1 INPUT SHAFT
2 00564200 1 SEAL
3 00563700 3 BALL BEARING
4 00564300 1 INPUT CAP
5 00564400 AR GASKET
6 00752481 1 INPUT GEAR
7 00564100 3 RETAINING RING
8 00563900 1 HOUSING
9 00564800 1 BEARING
10 00752480 1 OUTPUT PINION & SHAFT
11 00757682 1 BEARING SPACER
12 00760928 AR GASKET .25
00760929 AR GASKET .10
13 02161100 10 LOCKWASHER
14 00011400 10 BOLT
15 00563500 1 SEAL
17 00606000 1 COTTER PIN
18 7202 1 SLOTTED NUT
19 6192 1 WASHER
20 00757683 1 OUTPUT CAP
21 7A81324 1 BOLT
22 7192 1 RETAINING RING
23 00001800 1 LOCKNUT
00765444 1qt QT,ALAMO 000 GEAR LUBE
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 7

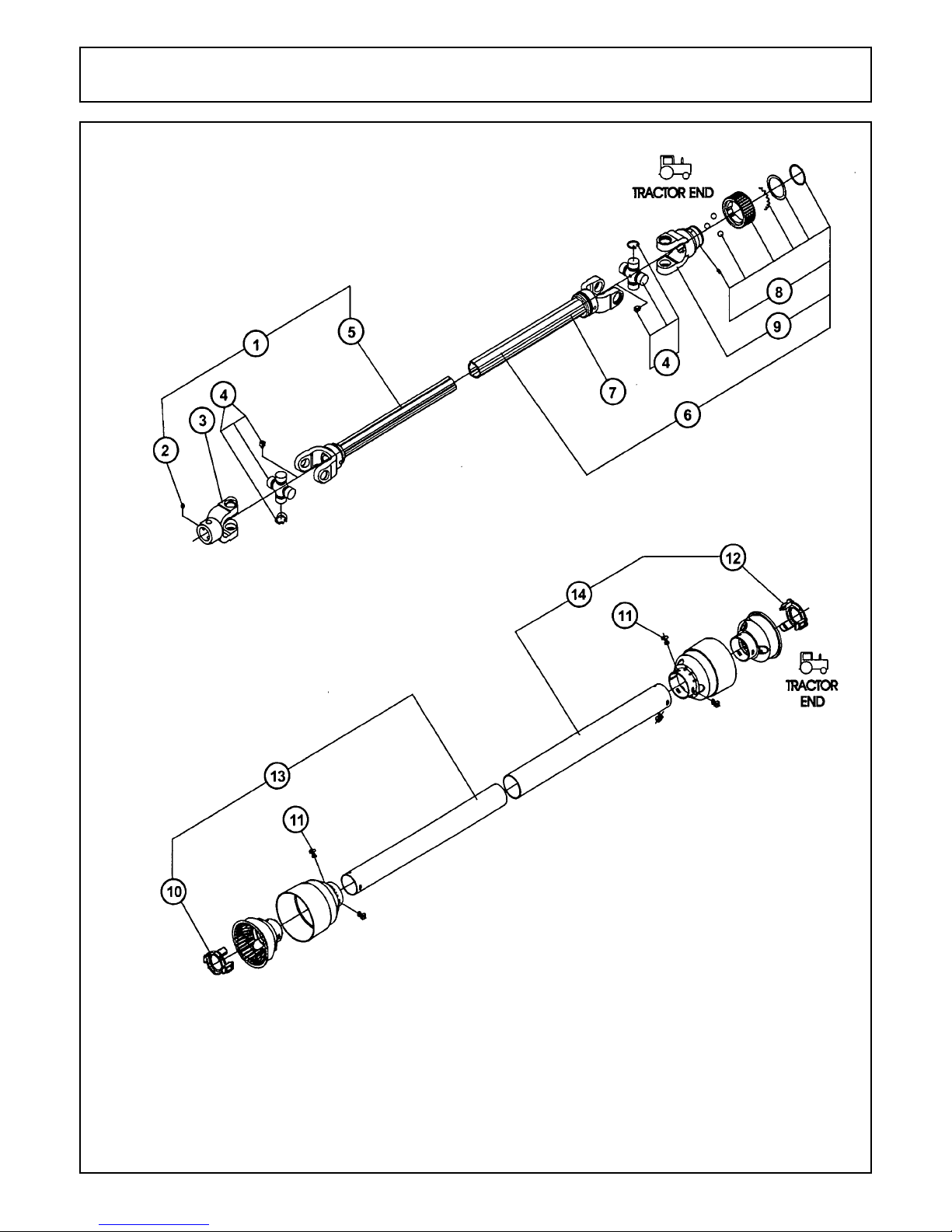

DRIVELINE ASSEMBLY S/N 16873 -BELOW Rev 10-04
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 8

DRIVELINE ASSEMBLY S/N 16873 -BELOW Rev 10-04
ITEM PART NO. QTY. DESCRIPTION
00759161B - DRIVELINE ASSEMBLY
1 00768296 1 INNER SHAFT & SHIELD ASSY
2 001465 1 GREASE FITTING
3 00768257 1 SHEAR BOTL YOKE
4 00756231 2 CROSS & BEARING KIT
5 00768295 1 INNER TUBE ASSEMBLY
6 00768294 1 OUTER SHAFT & SHIELD ASSY
7 00768293 1 OUTER TUBE ASSEMBLY
8 00770391 1 TWIST COLLAR KIT
9 00759170 1 YOKE ASSEMBLY
10 00764506 1 INNER TUBE BEARING
11 00754330 6 LOCKING PIN
12 00764507 1 OUTER TUBE BEARING
13 00775112 1 INNER HALF SHIELD ASSEMBLY
14 00775113 1 OUTER HALF SHIELD ASSEMBLY
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 9

DRIVELINE ASSEMBLY S/N 16874 -CURRENT Rev 09-05
ITEM PART NO. QTY. DESCRIPTION
00759161C - DRIVELINE
1 00764500A 1 ASY,YOKE COLLAR - COMPLETE
2 00756231 2 CROSS & BEARING KIT SERIES 40
3 ---------------- 1 OUTER YOKE
4 00759169 1 PIN ROLL 8mm X 60mm
5 ---------------- 1 OUTER TUBE WITH LABEL
6 ---------------- 1 INNER TUBE
7 00759165 1 PIN ROLL INNER TUBE
8 ---------------- 1 INNER YOKE
9 00777329A 1 YOKE, 1-3/8 BORE SP
10 00764506 1 COLLAR-INNER-GUARD-RETAINER
11 00754330 6 BOLT, NYLON - SAFETY SHIELD]
12 00764507 1 COLLAR-OUTER-GUARD-RETAINER
13 00768342 1 SHIELD, ASY, CMPLT
14 ---------------- 1 FEMALE TUBE YOKE WITH LABEL
15 ---------------- 1 MALE TUBE YOKE
16 ---------------- 1 HALF FEMALE GUARD
17 ---------------- 1 HALF FEMALE GUARD
18 00768294 1 SHAFT, ASY, OUTER W/SHIELD
19 00768296 1 SHAFT, ASY, INNER W/SHIELD
20 ---------------- 1 DANGER LABEL FOR OUTER TUBE
21 ---------------- 1 DANGER LABEL FOR OUTER GUARD TUBE
22 00774079 1 KIT,SLIDE COLLAR REPAIR
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 10

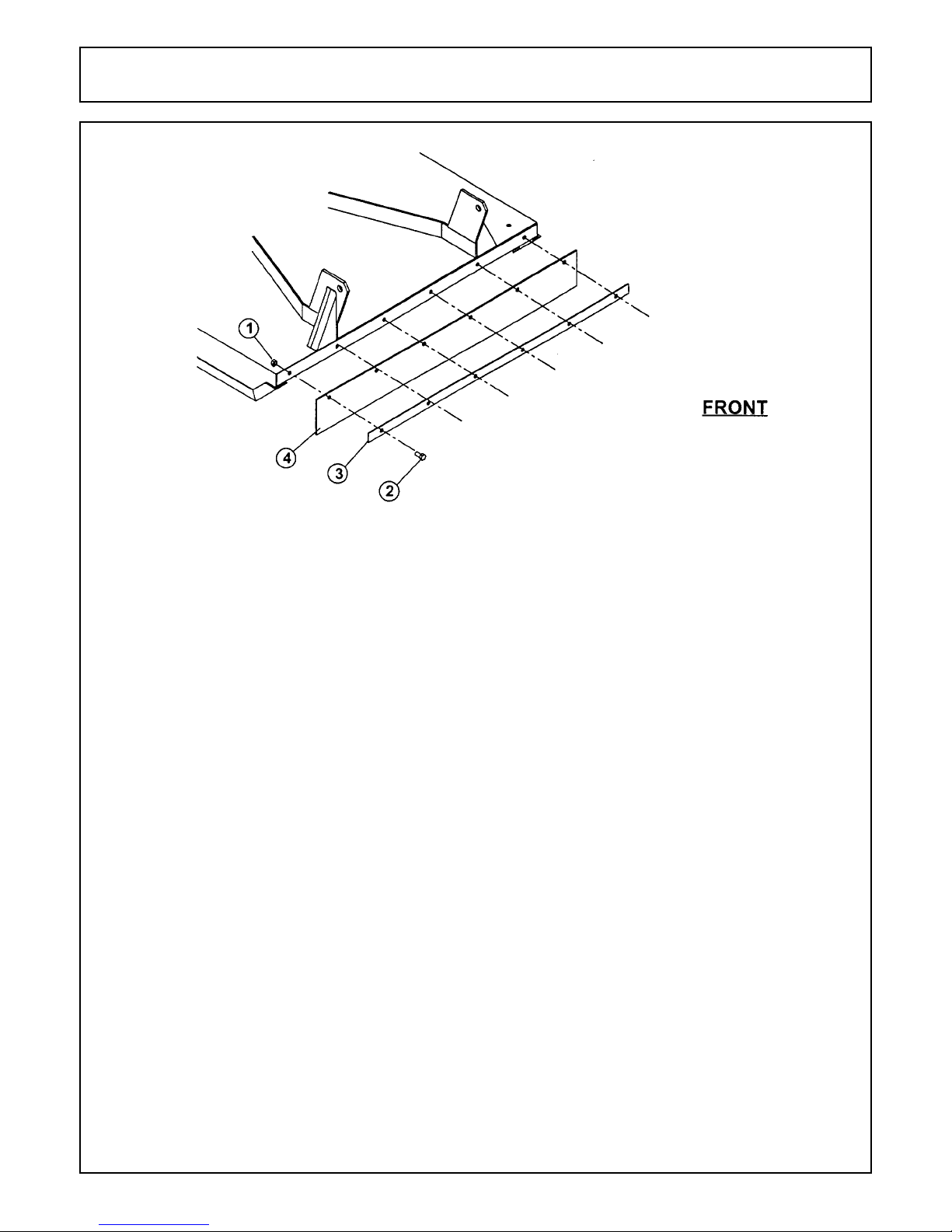

FRONT DEFLECTORS ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
00773940 - FRONT DEFLECTOR ASSY
1 00001800 6 LOCKNUT
2 00748823 6 BOLT
3 00773944 1 DEFLECTOR STRAP
4 00773943 1 DEFLECTOR
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 11

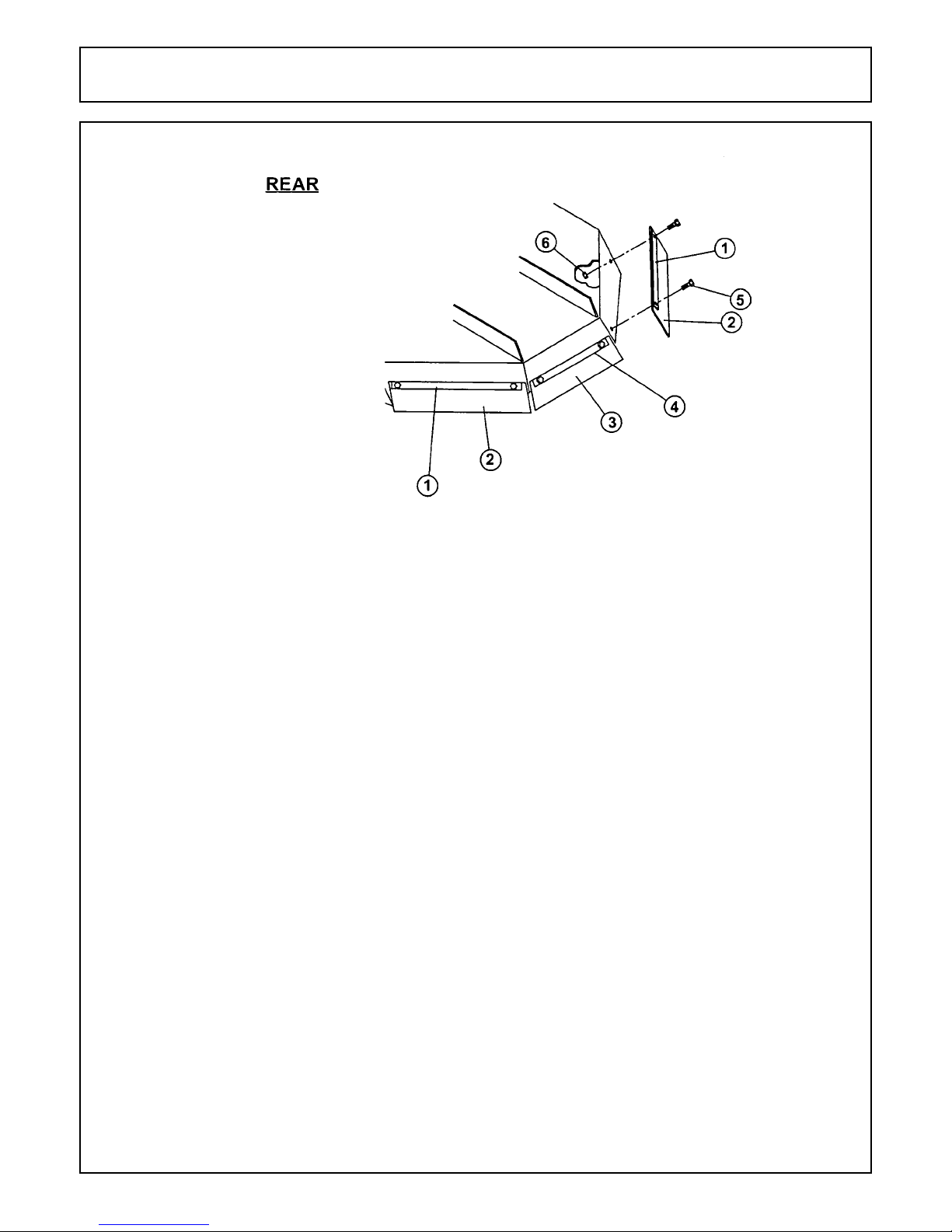

REAR DEFLECTORS ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
00761603 - REAR DEFLECTOR ASSY
1 00761597 2 SIDE STRAP
2 00761596 2 SIDE DEFLECTOR
3 00761598 1 CENTER DEFLECTOR
4 00761599 1 CENTER STRAP
5 7A181310 6 BOLT
6 00001800 6 LOCKNUT
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 12

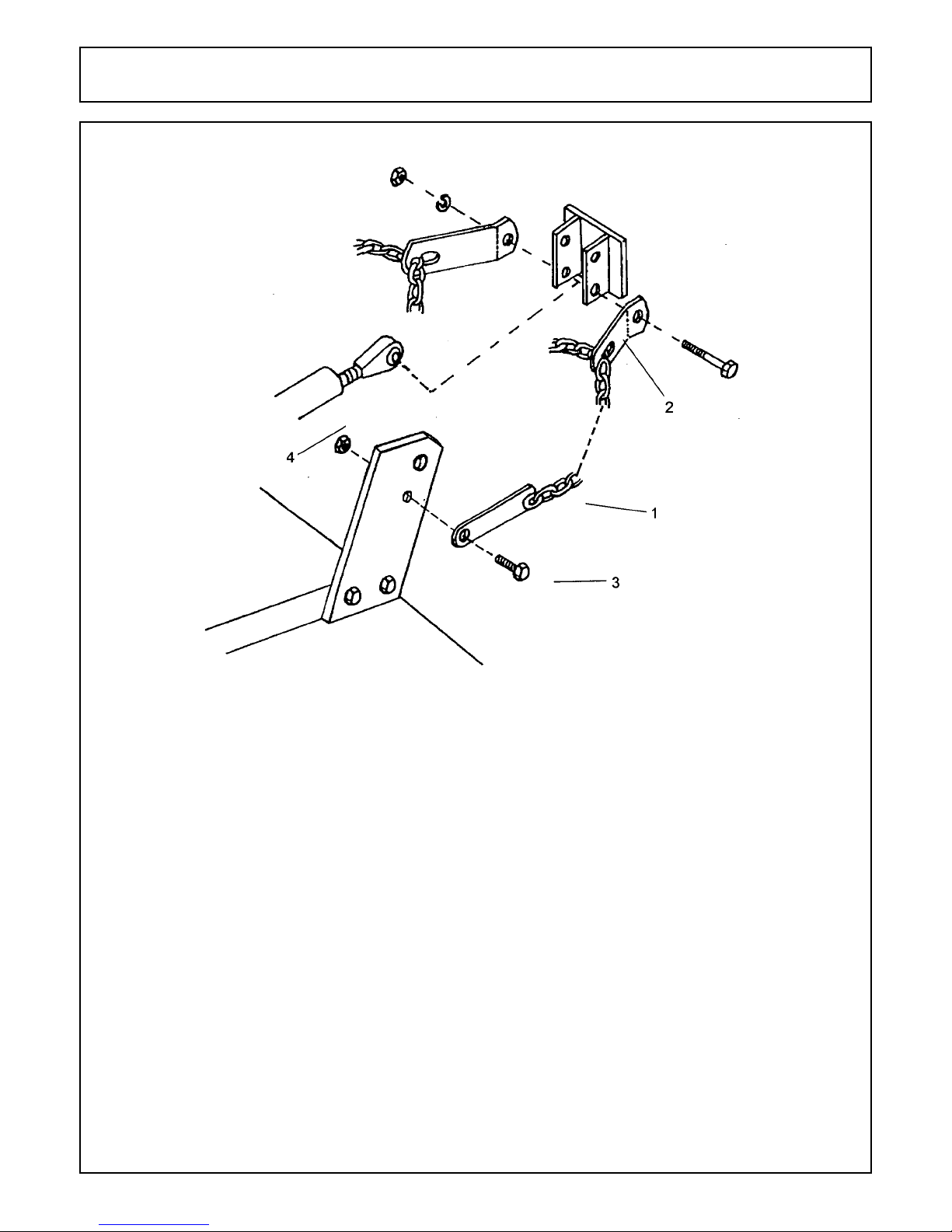

HYDRAULIC RELIEF ASSEMBLY (OPTION)
ITEM PART NO. QTY. DESCRIPTION
1 8709 2 CHAIN ASSEMBLY
2 8708 2 BRACKET
3 02845500 2 BOLT
4 00695100 2 NUT
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 13

OFFSET ADAPTER (OPTION)
ITEM PART NO. QTY. DESCRIPTION
0702310000 - OFFSET ADAPTER
1 0702310100 1 ADAPTER MAINFRAME
2 0702310001 1 BRACE BAR
3 0702310300 1 BRACE LUG AND CHAIN
4 0702310200 1 ADJUSTABLE LIFT LUG
5 511027 2 WRIST PIN
6 7A14924 2 BOLT
7 15B1400 4 WASHER
8 423013 4 BUSHING
9 5JRC1490 2 LOCKNUT
10 3W6 2 RETAING PIN
11 02030400 4 BOLT
12 00001300 4 LOCKWASHER
13 00001200 4 HEX NUT
14 7AH5121636 1 BOLT
15 595062 1 SPACER
16 00748539 1 LOCKNUT
17 7AH5101816 2 BOLT
18 00749136 2 LOCKNUT
19 743013 2 BUSHING
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 14

SAFETY DECAL SHEETS
ITEM PART NO. QTY. DESCRIPTION
1 00776481 1 SHEET,MANUALCANISTER DECAL
2 00773310 1 KIT, DECAL SHEET SE-4
3 2738332 2 DECAL, RED OBLONG REFLECTOR (NOT SHOWN)
SE4 (Oct-04) S/N 16874 -Current Rev 09-05
©2007 Alamo Group Inc. Parts Section – 15

LIMITED WARRANTY
1. LIMITED WARRANTIES
1.01.Servis-Rhino warrants for one year from the purchase date to the original non-commercial, governmental, or municipal
purchaser (“Purchaser”) and warrants for six months to the original commercial or industrial purchaser (“Purchaser”)
that the goods purchased are free from defects in material or workmanship.
1.02.Manufacturer will replace for the Purchaser any part or parts found, upon examination at one of its factories, to be
defective under normal use and service due to defects in material or workmanship.
1.03.This limited warranty does not apply to any part of the goods which has been subjected to improper or abnormal use,
negligence, alteration, modification, or accident, damaged due to lack of maintenance or use of wrong fuel, oil, or
lubricants, or which has served its normal life. This limited warranty does not apply to any part of any internal
combustion engine, or expendable items such as blades, shields, guards, or pneumatic tires except as specifically found
in your Operator’s Manual.
1.04.Except as provided herein, no employee, agent, Dealer, or other person is authorized to give any warranties of any
nature on behalf of Manufacturer.
2. REMEDIES AND PROCEDURES.
2.01.This limited warranty is not effective unless the Purchaser returns the Registration and Warranty Form to Manufacturer
within 30 days of purchase.
2.02.Purchaser claims must be made in writing to the Authorized Dealer (“Dealer”) from whom Purchaser purchased the
goods or an approved Authorized Dealer (“Dealer”) within 30 days after Purchaser learns of the facts on which the
claim is based.
2.03.Purchaser is responsible for returning the goods in question to the Dealer.
2.04.If after examining the goods and/or parts in question, Manufacturer finds them to be defective under normal use and
service due to defects in material or workmanship, Manufacturer will:
(a) Repair or replace the defective goods or part(s) or
(b) Reimburse Purchaser for the cost of the part(s) and reasonable labor charges (as determined by Manufacturer)
if Purchaser paid for the repair and/or replacement prior to the final determination of applicability of the warranty
by Manufacturer.
The choice of remedy shall belong to Manufacturer.
2.05.Purchaser is responsible for any labor charges exceeding a reasonable amount as determined by Manufacturer and
for returning the goods to the Dealer, whether or not the claim is approved. Purchaser is responsible for the trans-
portation cost for the goods or part(s) from the Dealer to the designated factory.
3. LIMITATION OF LIABILITY.
3.01.MANUFACTURER DISCLAIMS ANY EXPRESS (EXCEPT AS SET FORTH HEREIN) AND IMPLIED WARRANTIES
WITH RESPECT TO THE GOODS INCLUDING, BUT NOT LIMITED TO, MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE.
3.02.MANUFACTURER MAKES NO WARRANTY AS TO THE DESIGN, CAPABILITY, CAPACITY, OR SUITABILITY FOR
USE OF THE GOODS.
3.03.EXCEPT AS PROVIDED HEREIN, MANUFACTURER SHALL HAVE NO LIABILITY OR RESPONSIBILITY TO
PURCHASER OR ANY OTHER PERSON OR ENTITY WITH RESPECT TO ANY LIABILITY, LOSS, OR DAMAGE
CAUSED OR ALLEGED TO BE CAUSED DIRECTLY OR INDIRECTLY BY THE GOODS INCLUDING, BUT NOT
LIMITED TO, ANY INDIRECT, SPECIAL, CONSEQUENTIAL, OR INCIDENTAL DAMAGES RESULTING FROM
THE USE OR OPERATION OF THE GOODS OR ANY BREACH OF THIS WARRANTY. NOT WITHSTANDING THE
ABOVE LIMITATIONS AND WARRANTIES, MANUFACTURER’S LIABILITY HEREUNDER FOR DAMAGES
INCURRED BY PURCHASER OR OTHERS SHALL NOT EXCEED THE PRICE OF THE GOODS.
3.04.NO ACTION ARISING OUT OF ANY CLAIMED BREACH OF THIS WARRANTY OR TRANSACTIONS UNDER
THIS WARRANTY MAY BE BROUGHT MORE THAN TWO (2) YEARS AFTER THE CAUSE OF ACTION HAS
OCCURRED.
4. MISCELLANEOUS.
4.01.Proper Venue for any lawsuits arising from or related to this limited warranty shall be only in Guadalupe County,
Texas.
4.02.Manufacturer may waive compliance with any of the terms of this limited warranty, but no waiver of any terms shall
be deemed to be a waiver of any other term.
4.03.If any provision of this limited warranty shall violate any applicable law and is held to be unenforceable, then the
invalidity of such provision shall not invalidate any other provisions herein.
4.04.Applicable law may provide rights and benefits to purchaser in addition to those provided herein.
KEEP FOR YOUR RECORDS
ATTENTION: Purchaser should fill in the blanks below for his reference when buying repair parts and/or for proper machine
identification when applying for warranty.
Servis-Rhino Implement Model _______________________________ Serial Number________________________________
Date Purchased __________________________________________ Dealer ______________________________________
ATTENTION:
READ YOUR OPERATOR'S MANUAL
SERVIS-RHINO
R
1020S. SangamonAve.
GibsonCity,IL60936
800-446-5158
Email:[email protected]
RHINO®

TO THE OWNER/OPERATOR/DEALER
Tokeepyourimplementrunningefficientlyandsafely,readyourmanualthoroughlyandfollowthesedirectionsand
theSafety Messages in thisManual. The Table of Contentsclearly identifies each sectionwhere you caneasily
findtheinformationyouneed.
The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety
requirementsoftractoroperators:
REQUIREDOFTHEOWNER:
1. ProvideaRoll-Over-ProtectiveStructurethatmeetstherequirementsofthisStandard;and
2. ProvideSeatbelts thatmeet the requirements ofthis paragraph of this Standardand SAE J4C; and
3. Ensure that each employee uses such Seatbelt while the tractor is moving; and
4. EnsurethateachemployeetightenstheSeatbeltsufficientlytoconfinetheemployeetotheprotected
areaprovidedbytheROPS.
REQUIREDOFTHEOPERATOR
1. Securely fasten seatbelt if the tractor has a ROPS.
2. Wherepossible, avoid operating thetractornearditches,embankments,andholes.
3. Reduce speed when turning, crossing slopes, and on rough, slick, or muddy surfaces.
4. Stay off slopes too steep for safe operation.
5. Watch where you are going - especially at row ends, on roads, and around trees.
6. Do not permit others to ride.
7. Operate the tractor smoothly - no jerky turns, starts, or stops.
8. Hitchonly tothe drawbarand hitch pointsrecommended bythe tractor manufacturer.
9. When the tractor is stopped, set brakes securely and use park lock, if available.
Keep children away from danger all day, every day...
Equip tractors with rollover protection (ROPS) and keep all machinery
guards in place...
Please work, drive, play and live each day with care and concern for
your safety and that of your family and fellow citizens.
