RHINO FINISHING MOWERS GK6072 User manual

GK6072
60" & 72" Rear Discharge
Finishing Mowers
Published08/01 P/N 00767471C
OPERATOR'S MANUAL
This Operator's Manual is an integral part of the safe operation
of this machine and must be maintained with the unit at all
times. READ, UNDERSTAND, and FOLLOW the Safety and
Operation Instructions contained in this manual before
operating the equipment.
© 2004Alamo Group Inc.
RHINO®
1020S. SangamonAve.
GibsonCity,IL60936
800-446-5158
Email:[email protected] $0.00

TOTHEOWNER/OPERATOR/DEALER
WARRANTY INFORMATION:
Read and understand the complete Warranty Statement found in this Manual. Fill out the Warranty Registration Form in full and
return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card and on the Warranty
Form that you retain. The use of "will-fit" parts will void your warranty and can cause catastrophic failure with possible injury
or death.
All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded operator who
recognizesthepotentialhazardsandfollowsreasonablesafetypractices. Themanufacturerhasdesignedthisimplementtobeused
with all its safety equipment properly attached to minimize the chance of accidents.
BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!

In order to reduce accidents and enhance the safe operation of mowers, Alamo Group Ag Division, in
cooperationwithotherindustrymanufacturershasdevelopedtheAEM/FEMAIndustrialandAgricultural
MowerSafety Practices video and guidebook.
Thevideowillfamiliarizeandinstructmower-tractoroperatorsinsafepracticeswhenusing industrialand
agriculturalmowingequipment. ItisimportantthatEveryMowerOperatorbeeducatedintheoperationof
theirmowing equipmentand beable torecognize thepotential hazards that can occur while operating a
mower. Thisvideo,alongwiththemoweroperator’smanualandthewarningmessagesonthe mower,will
significantlyassistinthisimportanteducation.
YourAuthorizedAlamoAg Dealermayhaveshownthisvideoandpresented you a DVDVideowhenyou
purchasedyour mower. If youor anymower operator havenot seenthis video,WatchtheVideo,Read
thisOperator’sManual,and Completethe VideoGuidebook beforeoperatingyournewmower.If you
do not understand any of the instructions included in the video or operator’s manual or if you have any
questionsconcerning safety ofoperation, contactyour supervisor, dealer orAlamoGroupAg.
IfyouwouldlikeaVHSvideotapeofthevideo,pleaseemailAEMV[email protected]orFaxAEM
VHSVideoat [phone] or mail in acompleted copy of the formon the back of thispage toAEM
VHSVideo1502EWalnut Street,Seguin,TX78155.andrequest theVHS videoversion. Pleaseinclude
yourname,mailingaddress,mowermodelandserialnumber.
Everyoperatorshouldbetrainedforeachpieceofequipment(TractorandMower),understandtheintended
use,andthepotential hazards beforeoperatingtheequipment.
Safety Training
MakestheDifference


BE SAFE!


BEALERT!
 
 
 BE ALIVE!


BE TRAINED
beforeoperating
theMower!

Alamo Group Ag. Division is willing to provide
one (1) AEM Mower Safety Practices Video
Please Send Me: VHS Format – AEM/FEMA Mower Operator Safety Video
DVD Format – AEM/FEMA Mower Operator Safety Video
Mower Operator’s Manual
AEM Mower Operator’s Safety Manual
RequesterName: Phone:
RequesterAddress:
City
State
Zip Code
MowerModel: Serial Number:
Date Purchased: DealerSalesperson:
DealershipName: Dealership Location:
Mailto: AEM Video Services
1502 E Walnut street
Seguin, TX 78155
Or Fax to: [phone]
OrEmail to: AEMV[email protected]

TABLE OF CONTENTS
SAFETYSECTION ......................................................................................................................................... 1-1
Safety Information ..........................................................................................................................................1-2
DecalLocation.............................................................................................................................................. 1-11
SafetyDecals ............................................................................................................................................... 1-12
Federal Laws & Regulations ................................................................................................................1-14
INTRODUCTIONSECTION ............................................................................................................................ 2-1
ASSEMBLY SECTION ..................................................................................................................................3-1
A-Frame Attachment ......................................................................................................................................3-2
CasterWheelAttachments............................................................................................................................. 3-3
OPERATIONSECTION .................................................................................................................................. 4-1
MAINTENANCE SECTION ............................................................................................................................5-1
Lubrication Information...................................................................................................................................5-2
Gearbox .........................................................................................................................................................5-3
Gauge Wheel Assemblies..............................................................................................................................5-3
DrivelineLubrication.......................................................................................................................................5-4
Blade Spindle Lubrication...............................................................................................................................5-4
Blade Servicing ..............................................................................................................................................5-5
BladeSharpening...........................................................................................................................................5-5
Blade Removal and Installation......................................................................................................................5-5
Belt Adjustment Procedure ............................................................................................................................5-6
BeltRemoval/Installation................................................................................................................................. 5-6
Storage ........................................................................................................................................................... 5-7
TorqueSettings .............................................................................................................................................. 5-7
BladeSpindleServiceInstructions.................................................................................................................. 5-8
DrivelineShieldServiceInstructions................................................................................................................ 5-9

SAFETY
SECTION
Safety Section 1-1

Safety Section 1-2GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
Asafeandcarefuloperatoris thebestoperator. Safety isofprimary importancetothemanufac-
turer and should be to the owner/operator. Most accidents can be avoided by being aware of
yourequipment, yoursurroundings, andobserving certainprecautions. The firstsection ofthis
manual includes a list of Safety Messages that, if followed, will help protect the operator and
bystandersfrom injuryor death. Readand understandthese SafetyMessages beforeassem-
bling,operating orservicingthis implement. Thisequipment should onlybe operated bythose
personswho havereadthe Manual,who are responsibleand trained, andwho knowhowto do
sosafely andresponsibly.
TheSafety Alert Symbol combined with aSignalWord, as seen below, is usedthroughout this
manual and on decals which are attached to the equipment. The Safety Alert Symbol means:
“ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED!” The Symbol and Signal
Wordareintendedtowarntheowner/operatorofimpendinghazardsandthedegreeofpossible
injuryfacedwhenoperatingthisequipment..
CAUTION! ThelowestlevelofSafetyMessage;warnsofpossibleinjury. Decals
located on the Equipment with this Signal Word are Black and Yellow.
WARNING! Serious injury or possible death! Decals are Black and Orange.
DANGER! Imminentdeath/criticalinjury. DecalsareRedandWhite.(SG-1)
Practice all usual and customary safe working precautions and
above all---remember safety is up to YOU. Only YOU can prevent
serious injury or death from unsafe practices.
READ, UNDERSTAND, and FOLLOW the following Safety
Messages. Serious injury or death may occur unless care is
taken to follow the warnings and instructions stated in the Safety
Messages. Always use good common sense to avoid hazards.
(SG-2)

Safety Section 1-3
GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY
Si no lee Ingles, pida ayuda a alguien que
si lo lea para que le traduzca las medidas
de seguridad. (SG-3)
PELIGRO! ¡LEAEL
INSTRUCTIVO!
DANGER! Never operate the Tractor or Implement until you have read and
completelyunderstandthisManual,theTractorOperator’s Manual,
andeachoftheSafetyMessagesfoundintheManualorontheTractor
andImplement. Learnhowtostopthetractor engine suddenly inan
emergency. Never allow inexperienced or untrained personnel too
operatetheTractorandImplementwithoutsupervision. Makesure
the operator has fully read and understood the manuals prior to
operation. (SG-4)
WARNING! Make certain that the “Slow Moving Vehicle” (SMV) sign is installed in
such a way as to be clearly visible and legible. When transporting the
EquipmentusetheTractorflashingwarninglightsandfollowalllocaltraffic
regulations.(SG-6)
WARNING! Operate this Equipment only with a Tractor equipped with an
approved roll-over-protective system (ROPS). Always wear seat
belts. Serious injury or even death could result from falling off the
tractor--particularly during a turnover when the operator could be
pinned under the ROPS. (SG-7)
WARNING! DonotmodifyoralterthisImplement. DonotpermitanyonetomodifyoralterthisImplement,
any of its components or any Implement function. (SG-8)
DANGER! BEFOREleavingthetractorseat,alwaysengagethebrakeand/orset
thetractortransmissioninparkinggear,disengagethe PTO, stop the
engine,removethekey,andwaitforallmovingpartstostop. Placethe
tractorshiftleverintoalowrangeorparkinggeartopreventthetractor
fromrolling. NeverdismountaTractorthatismovingorwhiletheengine
is running. Operate the Tractor controls from the tractor seat only.
(SG-9)
WARNING! Alwaysmaintain the safetydecals in good readablecondition. If thedecals are missing,damaged,
or unreadable,obtainandinstallreplacementdecals immediately. (SG-5)

Safety Section 1-4GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
DANGER! NeverallowchildrenorotherpersonstorideontheTractororImplement.
Falling off can result in serious injury or death. (SG-10)
DANGER! Neverallowchildrento operate or rideontheTractor or Implement.
(SGM-11)
WARNING! Do not mount the Tractor while the tractor is
moving. Mount the Tractor only when the
Tractor and all moving parts are completely
stopped.
(SG-12)
DANGER! Start tractor only when properly seated in the Tractor seat. Starting a
tractoringear can result ininjury or death. Read theTractoroperators
manual for proper starting instructions. (SG-13)
DANGER! NeverworkundertheImplement,theframework,or
any lifted component unless the Implement is
securelysupportedorblockeduptopreventsudden
or inadvertent falling which could cause serious
injury or even death. (SG-14)
WARNING! The operator and all support personnel should wear hard hats,
safety shoes, safety glasses, and proper hearing protection at all
timesforprotectionfrominjuryincludinginjuryfromitemsthrownby
the equipment. (SG-16)
DANGER! Do not operate this Equipment with hydraulic oil
leaking. Oilisexpensiveanditspresencecouldpresentahazard. Do
not check for leaks with your hand! Use a piece of heavy paper or
cardboard. High-pressure oil streams from breaks in the line could
penetratetheskinandcausetissuedamageincludinggangrene. Ifoil
does penetrate the skin, have the injury treated immediately by a
physician knowledgeable and skilled in this procedure. (SG-15)
CAUTION! PROLONGED EXPOSURE TO LOUD NOISE MAY CAUSE PER-
MANENT HEARING LOSS! Tractors with or without an Implement
attached can often be noisy enough to cause permanent hearing
loss. We recommend that you always wear hearing protection if the
noise in the Operator’s position exceeds 80db. Noise over 85db
over an extended period of time will cause severe hearing loss.
Noiseover90db adjacent to theOperatorover an extended periodof
time will cause permanent or total hearing loss. Note: Hearing loss
from loud noise [from tractors, chain saws, radios, and other such
sources close to the ear] is cumulative over a lifetime without hope
of natural recovery. (SG-I7)

Safety Section 1-5
GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY
WARNING! Transportonlyat safe speeds. Serious accidents andinjuriescan result
fromoperatingthisequipmentatunsafespeeds. Understand the Tractor
and Implement and how it handles before transporting on streets and
highways. MakesuretheTractorsteeringand brakes are in good condi-
tionandoperateproperly.
Beforetransportingthe Tractor and Implement, determinethesafe
transportspeeds for you andthe equipment. Make sure you abide by
thefollowingrules:
Beawareoftheoperatingconditions. DonotoperatetheTractor with weak orfaultybrakes. Whenoperatingdown
a hill or on wet or rain slick roads, the braking distance increases: use extreme care and reduce your speed.
When operating in traffic always use the Tractor’s flashing warning lights and reduce your speed. Be aware of
traffic around you andwatch out for the other guy. (SG-19)
Test the equipment at a slow speed in turns. Increase the speed
through the turn only after you determine that it is safe to operate
at a higher speed. Use extreme care and reduce your speed when
turning sharply to prevent the tractor and implement from turning
over. Determine the maximum safe turning speed for you and this
equipmentbeforeoperatingonroadsorunevenground.
Only transport the Tractor and Implement at the speeds that you
have determined are safe and which allow you to properly control the
equipment.
Test the tractor at a slow speed and increase the speed slowly.
Apply the Brakes smoothly to determine the stopping
characteristicsof the Tractor andImplement.
As you increase the speed of the Tractor the stopping distance
increases. Determine the maximum safe transport speed for
you and this Equipment.
2.
1.
3.
WARNING! Never attempt to lubricate, adjust, or remove material from the
Implementwhileitisinmotionorwhiletractorengineisrunning. Make
sure the tractor engine is off before working on the Implement.
(SG-20)
WARNING! Periodically inspect all moving parts for wear and replace when
necessary with authorized service parts. Look for loose fasteners,
worn or broken parts, and leaky or loose fittings. Make sure all pins
have cotter pins and washers. Serious injury may occur from not
maintaining this machine in good working order. (SG-21)
WARNING! Always read carefully and comply fully with the manufacturers instruc-
tions when handling oil, solvents, cleansers, and any other chemical
agent. (SG-22)
DANGER! Never run the tractor engine in a closed building or without adequate
ventilation. The exhaust fumes can be hazardous to your health.
(SG-23)

Safety Section 1-6GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY

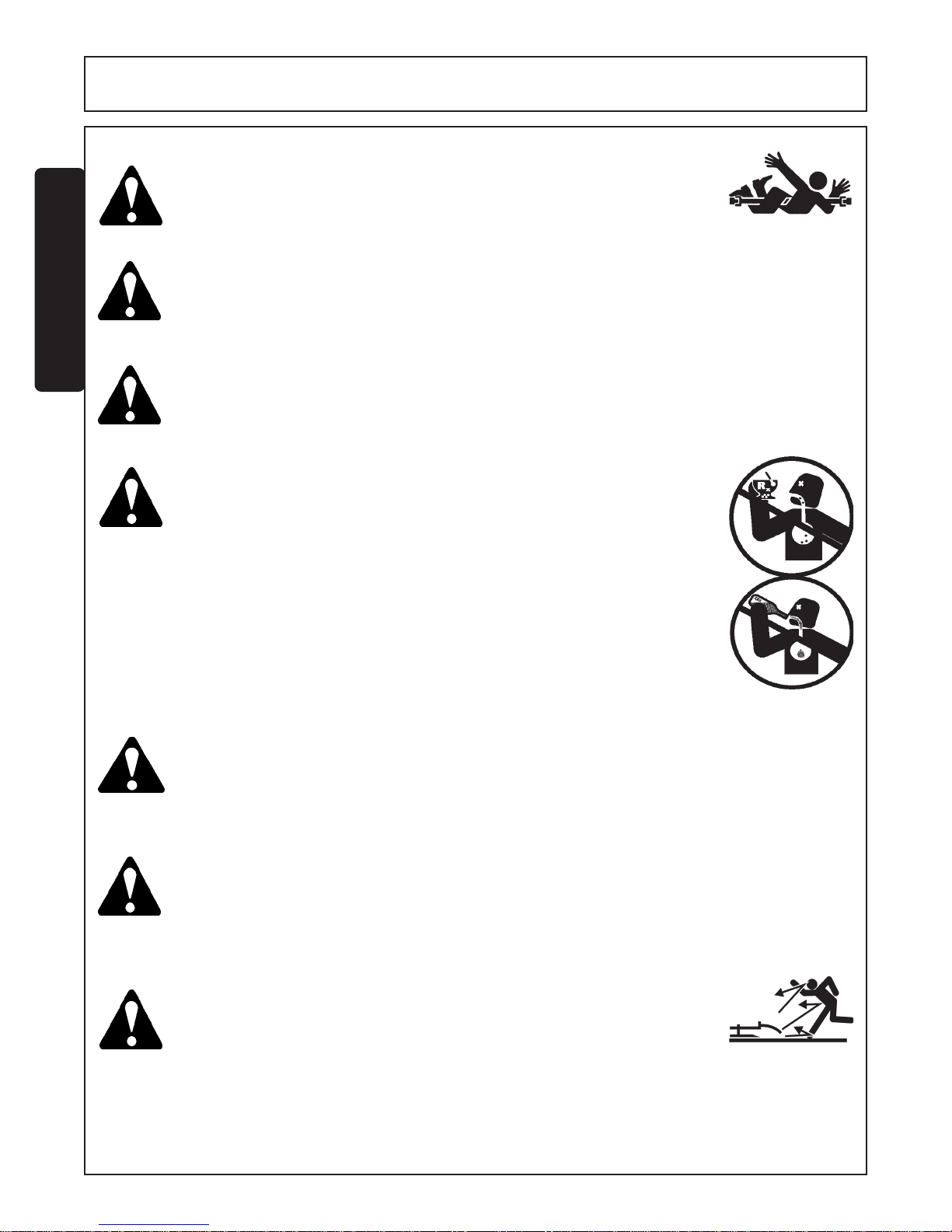

DANGER! KEEPAWAYFROMROTATINGELEMENTStoprevententanglement
andpossible seriousinjury or death. (SG-24)
DANGER! Never allow children to play on or around Tractor or Implement. Children can slip or fall off the
Equipment and be injured or killed. Children can cause the Implement to shift or fall crushing
themselves or others. (SG-25)
WARNING! Do not exceed the rated PTO speed for the Implement. Excessive PTO speeds can cause
Implementdrivelineorblade failures resulting in seriousinjuryordeath. (SG-26)
DANGER! NEVER use drugs or alcohol immediately before or while operating the
Tractor and Implement. Drugs and alcohol will affect an operator’s
alertness and coordination and therefore affect the operator’s ability to
operate the equipment safely. Before operating the Tractor or Imple-
ment,an operatoron prescription or over-the-counter medication must
consult a medical professional regarding any side effects of the medi-
cation that would hinder their ability to operate the Equipment safely.
NEVER knowingly allow anyone to operate this equipment when their
alertness or coordination is impaired. Serious injury or death to the
operator or others could result if the operator is under the influence of
drugs or alcohol. (SG-27)
WARNING! Mowonlyinconditionswhereyouhaveclearvisibilityindaylightorwithadequateartificiallighting.
Nevermowindarknessorfoggyconditionswhereyoucannotclearlyseeatleast100yardsinfront
andtothesidesofthetractorandmower. Makesurethatyoucanclearlyseeandidentifypassersby,
steepslopes,ditches,drop-offs,overheadobstructions,powerlines,debrisandforeignobjects. If
you are unable to clearly see this type of items discontinue mowing. (SGM-1)
DANGER! Thereareobviousandhiddenpotentialhazardsintheoperationofthis
Mower. REMEMBER! Thismachineisoftenoperatedinheavybrush
and in heavy weeds. The Blades of this Mower can throw objects if
shields are not properly installed and maintained. Serious injury or
evendeathmayoccurunlesscareistakentoinsurethesafetyofthe
operator, bystanders, or passersby in the area. Do not operate this
machinewithanyoneintheimmediate area. Stop mowing if anyone
is within 100 yards of mower. (SGM-2)
DANGER! OperatetheTractorand/orImplementcontrolsonlywhileproperlyseatedintheTractorseatwith
theseatbeltsecurelyfastenedaroundyou. InadvertentmovementoftheTractororImplementmay
cause serious injury or death. (SG-29)

Safety Section 1-7
GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY

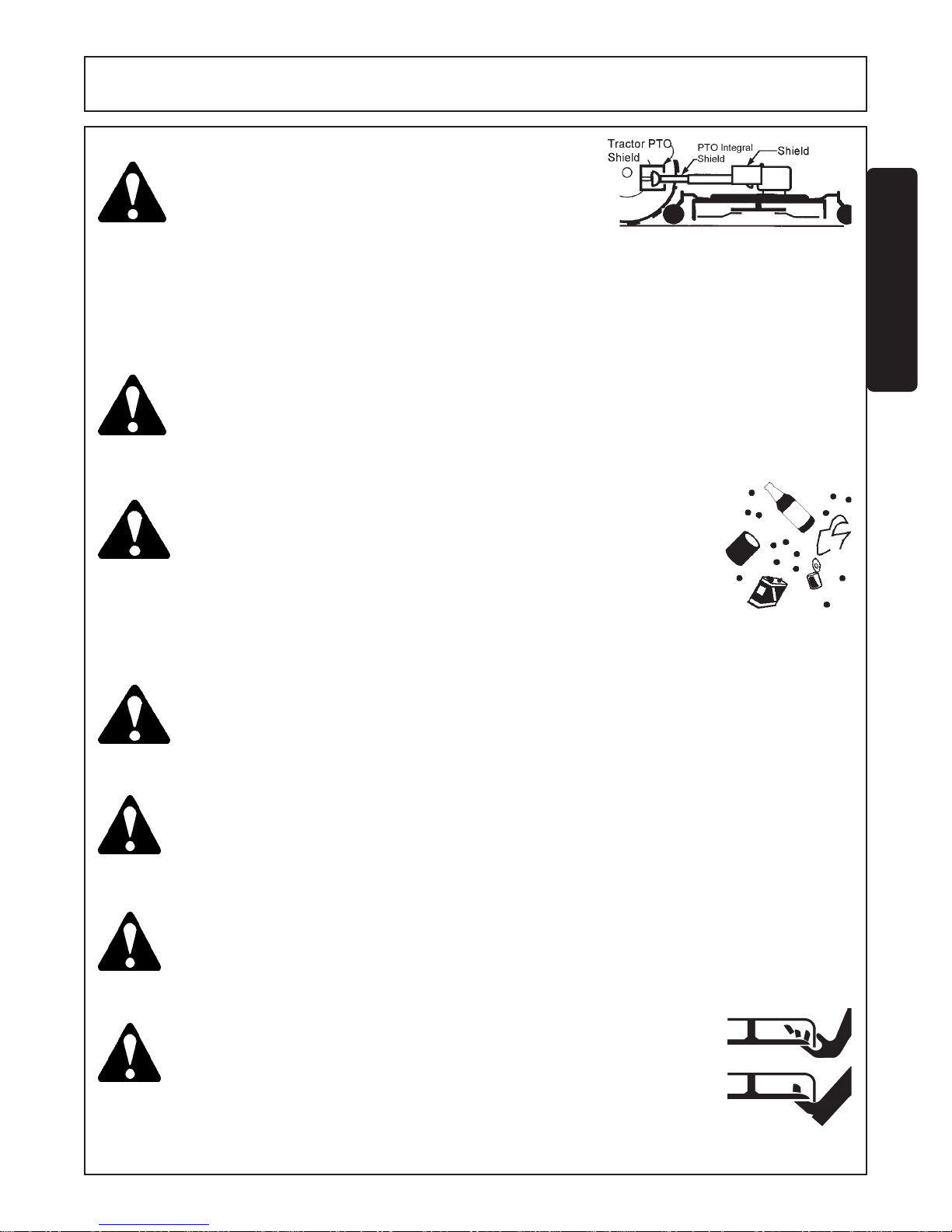

DANGER! AllSafetyShields,GuardsandSafetydevicesincluding
(butnotlimitedto)-theDeflectors,ChainGuards,Steel
Guards,GearboxShields,HydraulicTankShields,and
Retractable Door Shields should be used and main-
tained in good working condition. All safety devices
should be inspected carefully at least daily for missing
orbrokencomponents. Missing,broken,or wornitems
must be replaced at once to reduce the possibility of
injury or death from thrown objects, entanglement, or
blade contact. (SGM-3)
DANGER! Therotatingpartsofthismachinehavebeendesignedandtestedforruggeduse. However,
they could fail upon impact with heavy, solid objects such as steel guard rails and concrete
abutments. Such impact could cause the broken objects to be thrown outward at very high
velocities. Toreducethepossibilityofpropertydamage,seriousinjury,orevendeath,never
allow the cutting blades to contact such obstacles. (SGM-4)
WARNING! Manyvariedobjects,suchaswire,cable,rope,orchains,canbecomeentangledintheoperating
partsofthemowerhead. Theseitemscouldthenswingoutsidethehousingatgreatervelocities
thantheblades. Suchasituationisextremelyhazardousandcouldresultinseriousinjuryoreven
death. Inspectthecuttingareaforsuchobjectsbeforemowing. Removeanylikeobjectfromthe
site. Never allow the cutting blades to contact such items. (SGM-6)
WARNING! Mow at the speed that you can safely operate and control the tractor and mower. Safe mowing
speeddependsonterrainconditionandgrasstype,density,andheightofcut. Normalgroundspeed
rangeisfrom0to5mph. Use slowmowingspeedswhenoperatingonornearsteepslopes,ditches,
drop-offs,overheadobstructions,powerlines,orwhendebrisandforeignobjectsaretobeavoided.
(SGM-7)
WARNING! Avoidmowinginreversedirectionwhenpossible. Checktomakesuretherearenopersonsare
behindthemoweranduseextremecarewhenmowinginreverse. Mowonlyataslowgroundspeed
whereyoucansafelyoperateandcontrolthetractorandmower. Nevermowanareainthereverse
directionthatyou have not inspectedandremoveddebris or foreign material. (SGM-8)
WARNING! Donot put handsor feet undermower decks. Blade Contactcan result
serious injury or even death. (SGM-9)
WARNING! Extremecareshouldbetakenwhenoperatingnearlooseobjectssuch
as gravel, rocks, wire, and other debris. Inspect the area before
mowing. Foreignobjectsshouldberemovedfromthesitetoprevent
machinedamageand/orbodilyinjuryorevendeath. Anyobjectsthat
cannotberemovedmustbeclearlymarkedandcarefullyavoidedby
the operator. Stop mowing immediately if blades strike a foreign
object. Repair all damage and make certain rotor or blade carrier is
balancedbeforeresumingmowing.(SGM-5)

Safety Section 1-8GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
DANGER! Replacebentorbrokenbladewithnewblades. NEVERATTEMPTTOSTRAIGHTENBLADES
SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE WITH
SUBSEQUENT FAILURE AND POSSIBLE SERIOUS INJURY FROM THROWN BLADES.
(SGM-10)
DANGER! Always disconnect the main PTO Driveline from the Tractor before performing service on the
Mower. Never work on the Mower with the tractor PTO driveline connected and running. Blades or
Drivelines could turn without warning and cause immediate entanglement, injury or death. (SRM-3)
WARNING! Do not let the Blades turn when the Mower Deck is raised for any
reason, including clearance or for turning. Raising the Mower
deck exposes the Cutting Blades which creates a potentially
serious hazard and could cause serious injury or even death from
objects thrown from the Blades. (SRM-7)
WARNING! Never leave Tractor and Implemented unattended while the implement is in the lifted position.
Accidentaloperationofliftingleverorahydraulicfailure may cause sudden drop of unit with
injuryordeathbycrushing. Toproperly parktheimplementwhendisconnectingitfromthetractor,
lower the stand and put the retaining pin securely in place, or put a secure support under the A-
Frame. Lower the implement carefully to the ground. Do not put hands or feet under lifted
components. (S3PT-1)
WARNING! Be particularly careful when transporting the Implement with the Tractor. Turn curves or go up hills
only at a low speed and using a gradual steering angle. Rear mounted implements move the
center of gravity to the rear and remove weight from the front wheels. Make certain, by adding
front ballast, that at least 20% of the tractor’s weight is on the front wheels to prevent rearing up,
loss of steering control or Tractor tip-over. Slow down on rough or uneven surfaces to prevent
loss of steering control which could result in property damage or possible injury. Do not transport
unless 3-Point lift lever is fully raised and in the latched transport position. Dropping implement in
transport can cause serious damage to the tractor and/or Implement and possibly cause the
operator or others to be injured or killed. (S3PT-2)
DANGER! Make sure the PTO shield is installed when using PTO-driven equipment.
Always replace the PTO shield if it is damaged or missing. (S3PT-8)
WARNING! The rotating parts of this machine continue to rotate even after the PTO has been turned off. The
operator should remain in his seat for 60 seconds after the brake has been set, the PTO
disengaged, the tractor turned off, and all evidence of rotation has ceased. (S3PT-10)
“Wait a minute...Save a life!”
WARNING! DonotmowwithtwomachinesinthesameareaexceptwithCabtractorswiththewindowsclosed.
(SGM-11)
WARNING! Relieve hydraulic pressure prior to doing any maintenance or repair work
on the Implement. Place the Implement on the ground or securely
blocked up, disengage the PTO, and turn off the tractor engine. Push
and pull the Remote Cylinder lever in and out several times prior to
starting any maintenance or repair work. (S3PT-9)

Safety Section 1-9
GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY

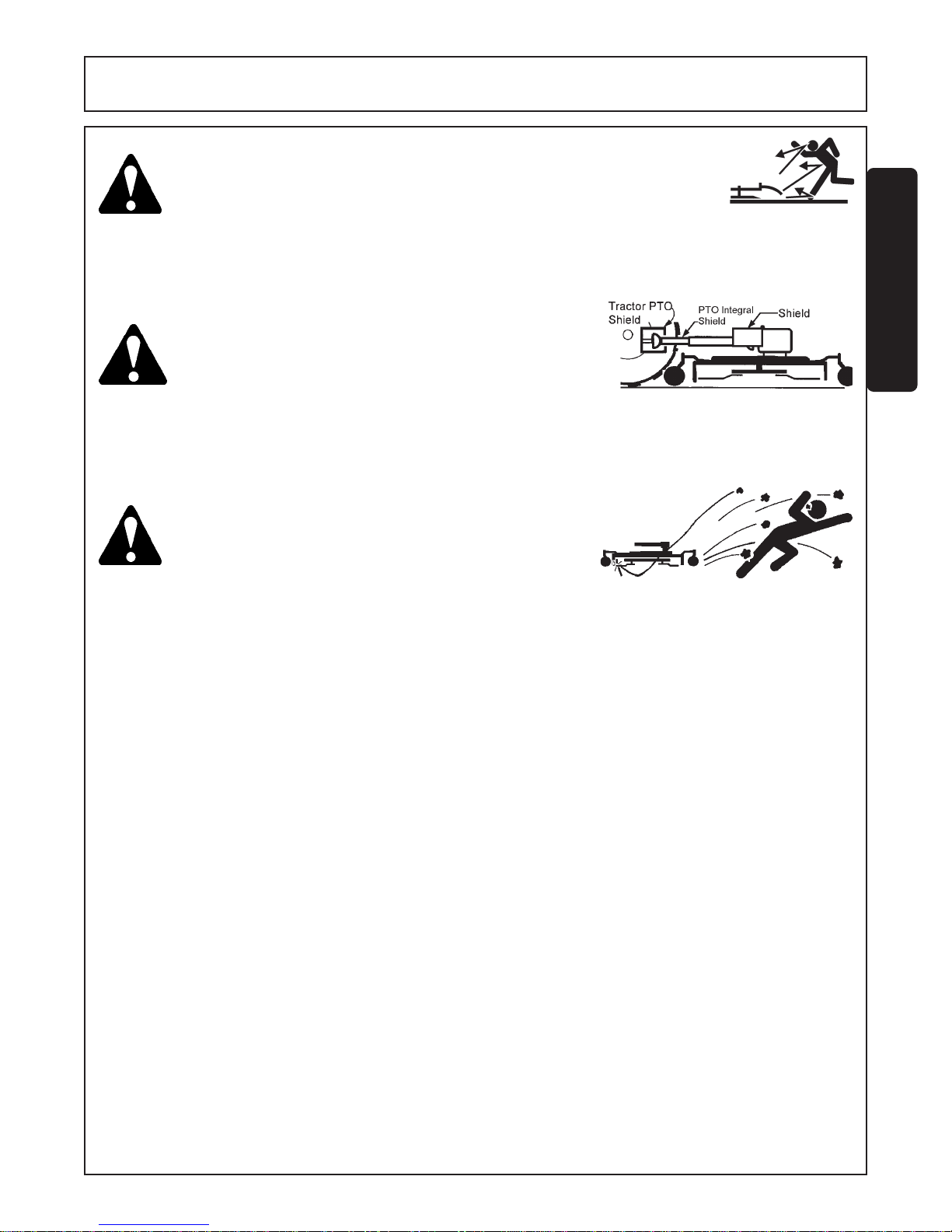

DANGER! Thereareobviousandhiddenpotentialhazardsintheoperationofthis
Mower. REMEMBER! Thismachineisoftenoperatedin weedsand
inheavygrass. TheBladesofthisMowercanthrowobjectsifshields
arenot properlyinstalledandmaintained. Seriousinjuryorevendeath
may occur unless care is taken to insure the safety of the operator,
bystanders, or passersby in the area. Do not operate this machine
with anyone in the immediate area. Stop mowing if anyone is within
100 yards of mower. (SFM-1)
DANGER! AllSafetyShields,GuardsandSafetydevicesincluding
(but not limited to) - the Discharge Deflectors, Steel
Guards,GearboxShields,BeltShileds,andPTOShields
should be used and maintained in good working condi-
tion. Allsafetydevicesshouldbeinspectedcarefullyat
leastdailyformissingorbrokencomponents. Missing,
broken, or worn items must be replaced at once to
reduce the possibility of injury or death from thrown
objects, entanglement, or blade contact. (SFM-2)
DANGER! RotaryMowersarecapable under adverse conditions
of throwing objects for great distances (100yardsor
more) and causing serious injury or death. Follow
safety messages carefully
-Mower Deck Shielding, and Discharge Deflector are installed
and in good, working condition;
-Mower section is running close to and parallel with the ground
without exposed Blades;
-Passersby are outside the existing thrown-object zone;
-All areas have been thoroughly inspected and all foreign material
such as rocks, cans, glass, andgeneraldebris has been removed.
NOTE: Where there are grass and weeds high enough to hide debris that could be struck
by the blades, the area should be: inspected and large debris removed, mowed at an
intermediate height, inspected closely with any remaining debris being removed, and
mowed again at desired final height. (This will also reduce power requiredto mow, reduce
wear and tear on the Mower drivetrain, spread cut material better, eliminate streaking, and
make the final cut more uniform.) (SFM-3)
STOP MOWINGIFPASSERSBYAREWITHIN 100YARDSUNLESS:

Safety Section 1-10GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
DANGER! Replacebentorbrokenbladewithnewblades. NEVERATTEMPTTOSTRAIGHTENORWELD
ON BLADES SINCE THIS WILL LIKELY CRACK OR OTHERWISE DAMAGE THE BLADE
WITHSUBSEQUENTFAILUREANDPOSSIBLESERIOUSINJURYFROMTHROWNBLADES.
(SGM-10)
PARTSINFORMATION
Servis-Rhinomowersusebalancedandmatchedsystemcomponentsforbladecarriers,blades,cuttershafts,
knives,knifehangers,rollers,drivetraincomponents,andbearings. ThesepartsaremadeandtestedtoServis-
Rhino specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of
“will fit” parts may reduce mower performance, void mower warranties, and present a safety hazard. Use
genuine Servis-Rhino mower parts for economy and safety. (SPRM-1)
SEEYOURSERVIS-RHINODEALER
In addition to the design and configuration of this Implement, including Safety Signs and Safety Equipment,
hazard control and accident prevention are dependent upon the awareness, concern, prudence, and proper
trainingofpersonnel involved in theoperation,transport,maintenance, and storage ofthemachine. Refer also to
Safety Messages and operation instruction in each of the appropriate sections of the Tractor and Equipment
Manuals. Pay close attention to the Safety Signs affixed to theTractor and Equipment. (SG-18)

Safety Section 1-11
GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
SAFETY

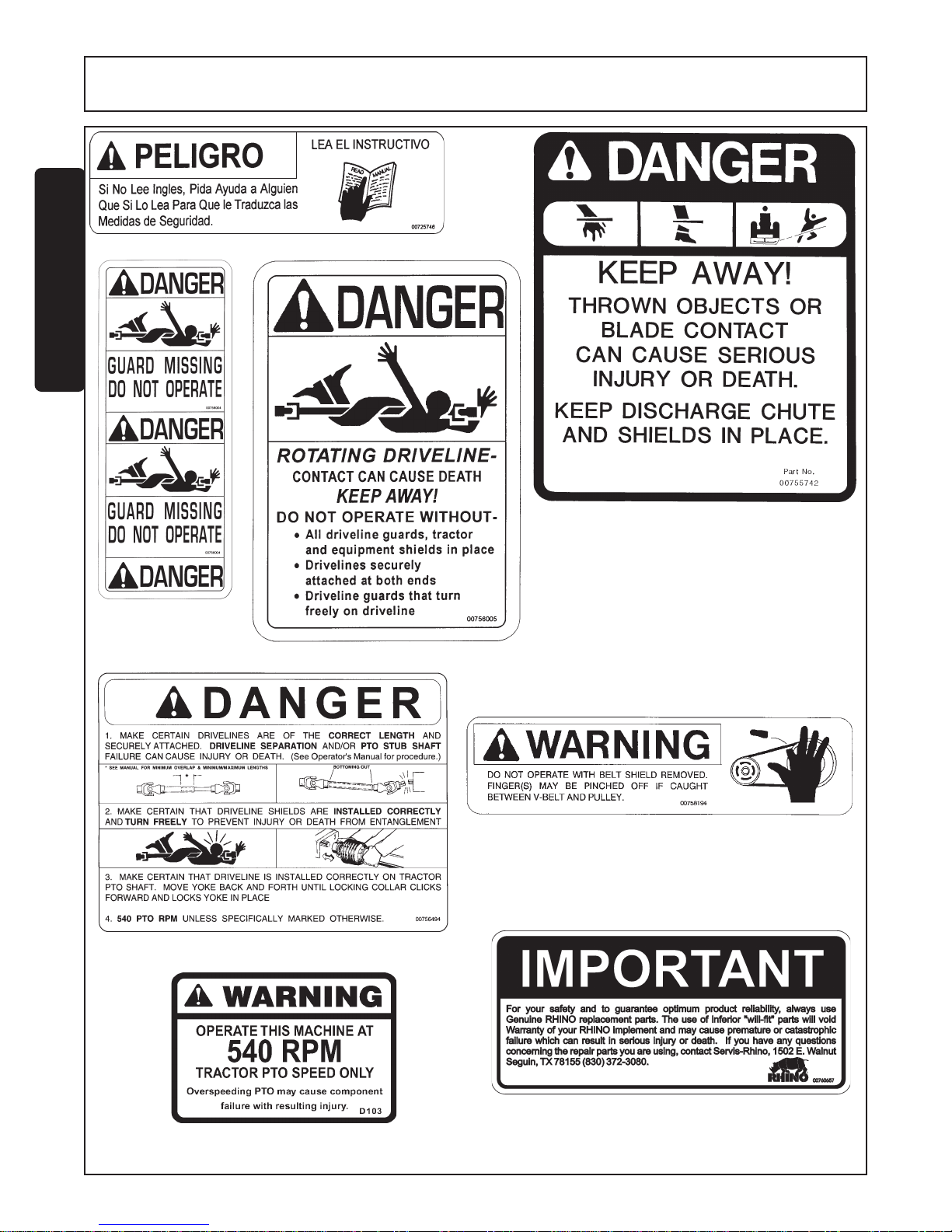

ITEM PARTNO. QTY LEVEL DESCRIPTION
1 00725746 1 PELIGRO TranslateSafetyMaterial
2 00749117 1 DANGER Multi-Hazard
3 00755742 1 DANGER CuttingBlades/ThrownObjects
4 00756004 ((1)) DANGER DrivelineShieldMissing-DoNotOperate
4A 00775933 2 WARNING Shield Missing. Do Not Operate
5 00756005 ((1)) DANGER RotatingDriveline/Entanglement
6 00756494 1 DANGER DrivelineHazards
6A 00769737 1 DANGER Blades/ThrownObjects
7 00758194 2 WARNING V-Belt Pinch Point
8 00760657 1 IMPORTANT GenuineRhinoParts
8A 00773723 1 PELIGRO RotatingDrivelineTranslation
9 D103 1 WARNING 540RPM
10 03200347 * REFLECTOR SMV
11 00755691 1 INSTRUC Lube, Blade Bolt
12 00763977 1 INSTRUC NoticetoOwner
13 99101 6 LOGONAME RhinoName(2x7-3/8)
14 00771819 2 NAME GROUNDSKEEPER
14A 00767476 1 NAME GK60
00767477 1 NAME GK72
15 nfs 1 SERIALPLATE FM Serial Plate
16 2738332 2 REFLECT RedReflectors
17 00776481 1 INSTRUCT OperatorsManualInside
18 00776031 1 --------------- Canister,OperatorsManual
19 00767471C 1 --------------- OperatorsManual
20 10058000 3 --------------- Bolt
21 00017000 3 --------------- Lockwasher
22 00024100 3 --------------- Flatwasher
23 02959924 3 --------------- Locknut
*FurnishedbyTractorManufacturer
(())InstalledbyD/LManufacturer
10
3
2
6
7
1
12 13
13
4
8
11
9
515
4A
14
14A
4A
8A
14
16
16
6A
19
20 21
17 18
22
17
23
NOTE: Rhino supplies
safety decals on this
product to promote safe
operation. Damage to the
decals may occur while in
shipping, use, or
reconditioning.Rhinocares
about the safety of its
customers,operators, and
bystanders, and will
replace the safety decals
on this product in the field,
free of charge (Some
shipping and handling
charges may apply).
Contact your Rhino dealer
to order replacement
decals.

Safety Section 1-12GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
5 - 00756005
2 - 00749117 - Not Shown
(See Inside Front Cover of Manual)
8 - 00760657
7 - 00758194
9 - D103
6 - 00756494
3 - 00755742
4 - 00756004
1 - 00725746
R 04-09-99

14 -00771819
12 - 00763977
13 - 99101
11-00755691
8A-00773723
4A-00775933
17-00776481

Safety Section 1-14GK607208/01
© 2004 Alamo Group Inc.
SAFETY
SAFETY
Thissectionisintendedtoexplaininbroadtermstheconceptandeffectoffederal laws and regulations concerning
employerandemployee equipment operators. This sectionisnot intended as alegalinterpretation of the lawand
should not be considered as such.
Employer-Employee Operator Regulations
U.S.Public Law 91-596 (TheWilliams-Steiger Occupational andHealth Act of1970) OSHA
This Act Seeks:
“...to assure so far as possible every working man and woman in the nation safe and healthful
workingconditionsandto preserve our humanresources...”
DUTIES
Sec. 5 (a) Each employer-
(1) shall furnish to each of his employees employment and a place of employment which are free
from recognized hazards that are causing or are likely to cause death or serious physical harm to
his employees;
(2) shall comply with occupational safety and health standards promulgated under this Act.
(b) Each employee shall comply with occupational safety and health standards and all rules,
regulations and orders issued pursuant to this Act which are applicable to his own actions
andconduct.
OSHA Regulations
OSHAregulations state in part: “At the time of initial assignment and at least annually thereafter,
theemployershallinstructeveryemployeeinthesafeoperation and servicing of all equipment with
whichthe employee is, orwillbe involved.”
EmployerResponsibilities:
Toensure employee safetyduringTractor and Implementoperation, it isthe employer’sresponsibility to:
1. Traintheemployee in the properandsafeoperation of the TractorandImplement.
2. Requirethatthe employee read and fullyunderstandthe Tractor and Implement Operator’smanual.
3. Permitonlyqualified and properly trainedemployees to operate theTractorand Implement.
4. MaintaintheTractorandImplementin a safe operational condition and maintainallshieldsandguardsonthe
equipment.
5. EnsuretheTractorisequipped with a functional ROPS andseatbelt and require thattheemployee operator
securely fasten the safety belt and operate with the ROPS in the raised position at all times.
6. Forbidthe employee operator tocarry additional riders ontheTractor or Implement.
7. ProvidetherequiredtoolstomaintaintheTractorandImplementinagoodsafeworkingconditionandprovide
thenecessarysupport devices tosecurethe equipment safely whileperformingrepairs and service.
8. Requirethat the employeeoperator stop mowing if bystandersor passerbys comewithin 100 yards.
Child Labor Under 16 Years of Age
Someregulations specify that noone under theage of 16 mayoperate power machinery. It isyour responsibility
to know what these regulations are in your own area or situation. (Refer to U.S. Dept. of Labor, Employment
StandardAdministration,Wage & HomeDivision,Child Labor Bulletin #102.)
FEDERAL LAWS AND REGULATIONS
