RHINO TW60 User manual

© 2007Alamo Group Inc.
RHINO®
1020 S. SangamonAve.
Gibson City, IL60936
800-446-5158
Email: [email protected]
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
TW60/72
Rotary Mower
Rev5/17 Part No. 00759048P EffectiveSerial No.TW60-16298ThroughCurrent
EffectiveSerialNo.TW72-31177ThroughCurrent

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsare potentiallyhazardous. Thereisno substituteforacautious, safe-mindedoperatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Readand understand the complete Warranty Statementfound inthis Manual. Fill outthe WarrantyRegistration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.

PARTS
SECTION
Parts Section – 1

Parts Section – 2
©2007 Alamo Group Inc.
Formaximumsafetyandtoguaranteeoptimumproductreliability,alwaysuse
genuineServis-RhinoParts. Theuseofinferiorreplacementpartsmaycause
prematureorcatastrophicfailurewhichcouldresultinseriousinjuryordeath.
Directanyquestions regarding parts to:
Thefollowinginstructionsareofferedtohelpeliminateneedlessdelayanderrorinprocessing
purchaseordersfortheequipmentinthissection.
1. ThePartsSectionispreparedinlogicalsequenceandgroupingofpartsthatbelongtothe
basic machine featured in this manual. Part Numbers and Descriptions are given to help
locatethepartsand quantities required.
2. The Purchase Order must include the name and address of the person or organization
orderingtheparts,whoshouldbecharged,andifpossible,theserialnumberofthemachine
forwhich the partsare ordered.
3. ThePurchaseOrdermustclearlylistthequantityofeachpart,thecompleteandcorrectpart
number (be sure to include all periods), and the basic name of the part.
4. TheManufacturerreservestherighttosubstitutepartswhereapplicable.
5. Somepartsareunlisteditemswhicharespecialproductionitemsnotnormallystockedand
are subject to special handling. Request a quotation for such parts before sending a
PurchaseOrder.
6. TheManufacturer reservestherighttochangepriceswithout priornotice.
NOTE: Pleaserefer to The SafetySection in the frontof this Manual forthe proper
PartNumberwhenorderingReplacementSafetyDecals.
PARTS ORDERING GUIDE
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]

PART NAME INDEX
A-FRAME ASSEMBLY ........................................................................................................................................................... 4
BLADE CARRIER ASSEMBLY ............................................................................................................................................ 12
BLADE PAN ASSY TW60 S/N 14790-16202 TW72 S/N 24620-30802 Pub 07-05............................................................. 10
BLADE PAN ASSY TW60 S/N 16203-Current TW72 S/N 30803-Current Pub 07-05 ......................................................... 8
CASTER WHEEL AND HUB ASSEMBLY............................................................................................................................ 18
CHECK CHAIN ASSEMBLY................................................................................................................................................. 34
DRIVELINE ASSEMBLY......................................................................................................................................................... 7
FRONT DEFLECTOR ASSY TW60 S/N 16297 -BELOW Pub 11-05.................................................................................. 21
FRONT DEFLECTOR ASSY TW60 S/N 16298 -CURRENT Pub 11-05............................................................................. 20
FRONT DEFLECTOR ASSY TW72 S/N 31176 -BELOW Pub 11-05.................................................................................. 23
FRONT DEFLECTOR ASSY TW72 S/N 31177 -CURRENT Pub 11-05............................................................................. 22
FRONT SINGLE & DOUBLE CHAIN GUARD ASSY - TW60 & TW72 S/N-CURRENT Rev 07-06 ................................... 26
FRONT SINGLE & DOUBLE CHAIN GUARD ASSY - TW60 S/N 14789 -BELOW............................................................ 27
FRONT SINGLE & DOUBLE CHAIN GUARD ASSY - TW72 S/N 24619 -BELOW............................................................ 28
GEARBOX ASSEMBLY (540 RPM) Rev 08-05................................................................................................................... 14
OFFSET ADAPTER ASSEMBLY......................................................................................................................................... 33
REAR CHAIN GUARD ASSEMBLY 60................................................................................................................................ 29
REAR CHAIN GUARD ASSEMBLY 72................................................................................................................................ 30
REAR DEFLECTOR ASSEMLBY TW60 Rev 08-07............................................................................................................ 24
REAR DEFLECTOR ASSEMLBY TW72 Rev 08-07............................................................................................................ 25
REAR DOUBLE CHAIN GUARD ASSEMBLY 60................................................................................................................ 31
REAR DOUBLE CHAIN GUARD ASSEMBLY 72................................................................................................................ 32
SAFETY DECAL SHEETS ................................................................................................................................................... 35
SHIELDS AND COVERS........................................................................................................................................................ 6
SKID SHOE ASSEMBLY...................................................................................................................................................... 19
SLIP CLUTCH ASSEMBLY.................................................................................................................................................. 13
TAILWHEEL ASSEMBLY..................................................................................................................................................... 16
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 3

A-FRAME ASSEMBLY
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 4

A-FRAME ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00758819 2 A-FRAME LEG (TW60)
00758817 2 A-FRAME LEG (TW72)
2 00759042 2 REAR BRACE (TW60)
00759030 2 REAR BRACE (TW72)
3 00757949 1 TOGGLE LINK
4 00695100 4 LOCKNUT
5 02675800 2 BOLT
6 02845500 2 BOLT
7 00756077 2 WASHER
8 00037200 1 LOCKNUT
9 02025700 1 BOLT
10 2196 2 LYNCH PIN
11 00775243 2 WRIST PIN
12 00757953 1 BUSHING
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 5

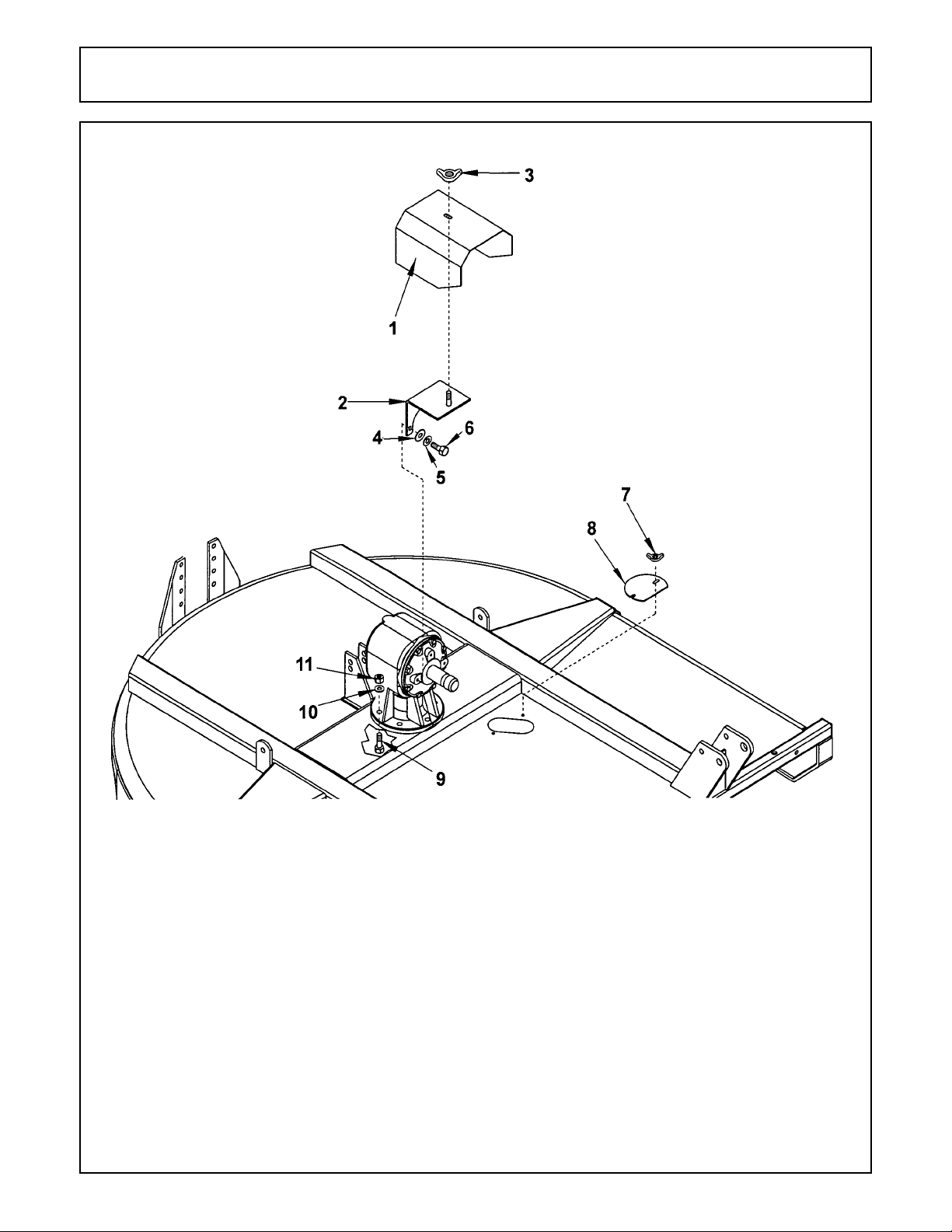

SHIELDS AND COVERS
ITEM PART NO. QTY. DESCRIPTION
1 00775571 1 WELDMENT SHIELD
2 00775573 1 SHIELD BRACKET
3 5F8130 1 WINGNUT
4 00011100 3 WASHER
5 00012101 3 LOCKWASHER
6 00002000 3 BOLT
7 5F5180 2 WINGNUT
8 5710121 1 COVER PLATE
9 00750952 6 BOLT
10 00756077 6 WASHER
11 00695100 6 LOCKNUT
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 6

DRIVELINE ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
00775818 - DRIVELINE ASSEMBLY
1 00775353 1 YOKE
2 00189700 2 CROSS & BEARING KIT
3 00756934 2 SPRING PIN
4 00775317 1 INBOARD YOKE
5 7413 1 INNER PROFILE
6 00775377 1 PROFILE & SLEEVE W.A.
7 00775318 1 INBOARD YOKE
8 00775425 1 FRICTION CLUTCH
9 00775366 1 OUTER SHIELD HALF
10 00775367 1 INNER SHIELD HALF
11 00767954 1 YOKE QD KIT
12 8393 2 BEARING RING
13 00759217 2 SCREW
14 8974 1 SUPPORT BEARING
15 1416601 1 GREASE FITTING
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 7

BLADE PAN ASSY TW60 S/N 16203-Current TW72 S/N 30803-Current Pub 07-05
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 8

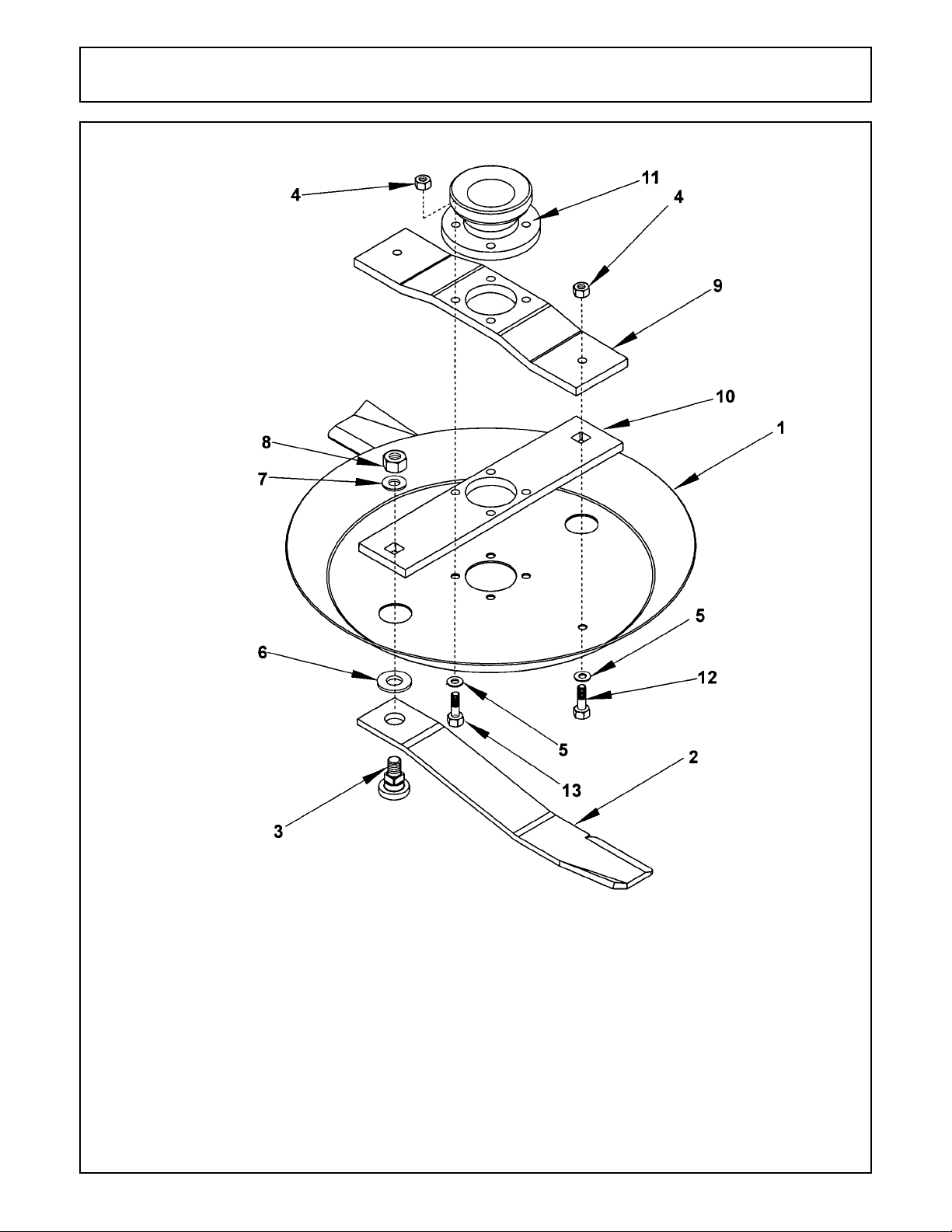

BLADE PAN ASSY TW60 S/N 16203-Current TW72 S/N 30803-Current Pub 07-05
ITEM PART NO. QTY. DESCRIPTION
1 00775242 1 BLADE PAN
2 02977466 1 BLADE (TW72)
02977467 1 BLADE (TW60)
3 8251 2 BLADE BOLT
4 00695100 6 LOCKNUT
5 00756077 6 WASHER
6 7516 2 BLADE WASHER
7 9216 2 WASHER
8 5JRC16140 2 LOCKNUT
9 00775240 1 BLADE BAR (FORMED)
10 00775241 1 BLADE BAR (UNFORMED)
11 00775244 1 HUB
12 00008300 2 BOLT
13 00600700 4 BOLT
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 9

BLADE PAN ASSY TW60 S/N 14790-16202 TW72 S/N 24620-30802 Pub 07-05
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 10

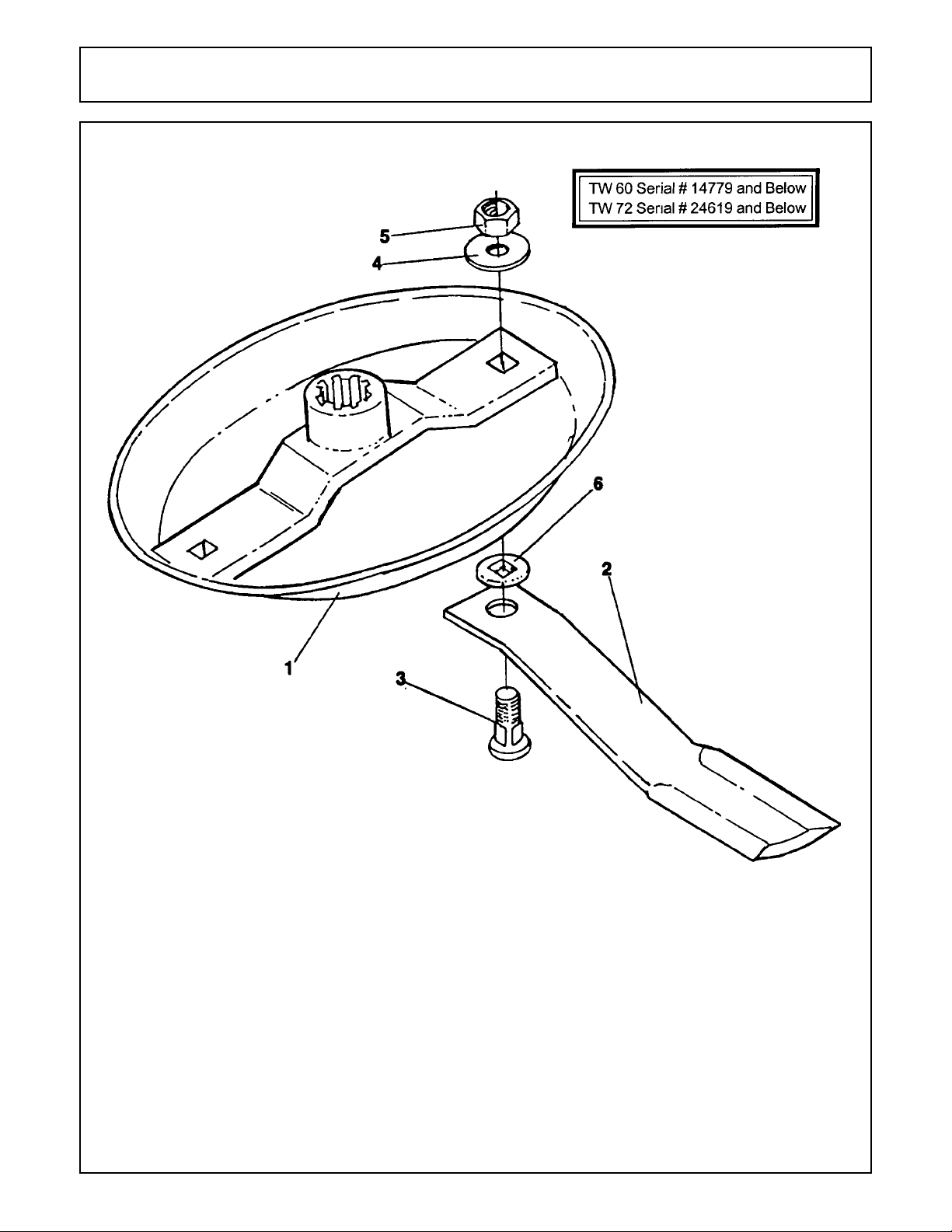

BLADE PAN ASSY TW60 S/N 14790-16202 TW72 S/N 24620-30802 Pub 07-05
ITEM PART NO. QTY. DESCRIPTION
1 00775242 1 BLADE PAN
2 00775233 1 BLADE (TW72)
00775267 1 BLADE (TW60)
3 8251 2 BLADE BOLT
4 00695100 6 LOCKNUT
5 00756077 6 WASHER
6 00758579 2 BLADE WASHER
7 9216 2 WASHER
8 5JRC16140 2 LOCKNUT
9 00775240 1 BLADE BAR (FORMED)
10 00775241 1 BLADE BAR (UNFORMED)
11 00775244 1 HUB
12 00008300 2 BOLT
13 00600700 4 BOLT
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 11

BLADE CARRIER ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
00758592 - 60" BLADE CARRIER ASSEMBLY
00758605 - 72" BLADE CARRIER ASSEMBLY
1 00758590 1 BLADE PAN
2 8589 1 pair 60" BLADE (CCW)
8588 1 pair 72" BLADE (CCW)
3 8264 2 BLADE BOLT W/NUT
4 9216 2 WASHER
5 5JRC16140 2 LOCKNUT
6 7516 2 BLADE WASHER
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 12

SLIP CLUTCH ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
00775425 - SLIP CLUTCH ASSY
1 00775321 1 FLANGE YOKE
2 8366 2 FRICTION DISC
3 00775322 1 HUB
4 00775323 1 THRUST PLATE
5 00775324 1 BELLEVILLE SPRING
6 00775325 6 BOLT
7 00775326 6 LOCKNUT
8 00775327 2 LOCKNUT
9 00775328 2 BOLT
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 13

GEARBOX ASSEMBLY (540 RPM) Rev 08-05
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 14

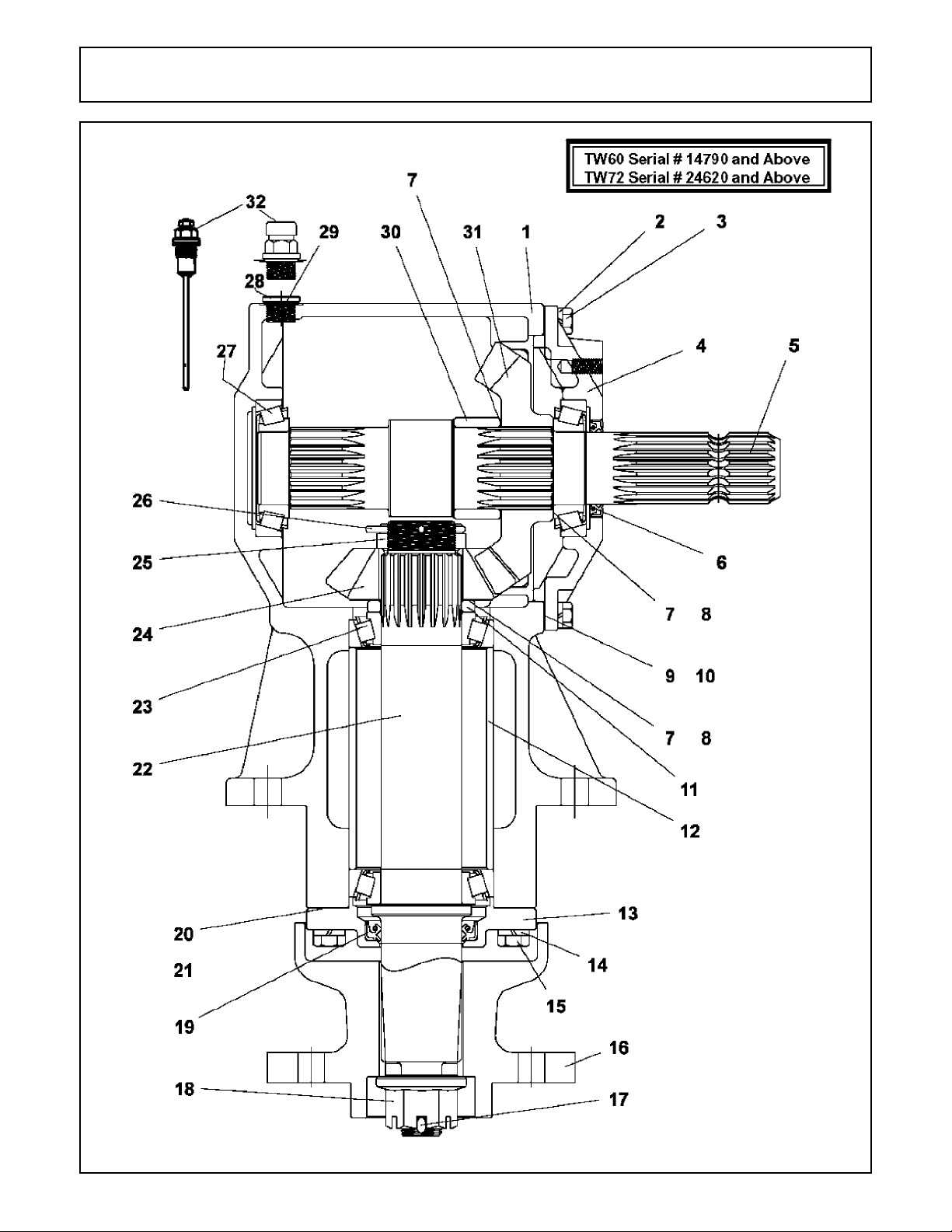

GEARBOX ASSEMBLY (540 RPM) Rev 08-05
ITEM PART NO. QTY. DESCRIPTION
00775919A 1 GEARBOX ASSEMBLY
1 00775921 1 HOUSING
2 00755954 8 LOCKWASHER
3 00758659 8 BOLT
4 00758664 4 INPUT CAP
5 00758689 1 INPUT SHAFT
6 00773640 1 INPUT SEAL
7 00758667 AR SHIM
8 00758668 AR SHIM
9 00758646 AR INPUT CAP GASKET
10 00758647 AR INPUT CAP GASKET
11 00759977 1 SPACER
12 00775923 1 OUTPUT SPACER
13 00758663 1 OUTPUT CAP
14 00758672 4 LOCKWASHER
15 02959661 4 BOLT
16 00775244 1 BLADE HUB
17 00606000 1 COTTER PIN
18 00758692 1 FLANGED NUT
19 00758674 1 OIL SEAL
20 00758676 AR GASKET
21 00758677 AR GASKET
22 00775922 1 OUTPUT SHAFT
23 00769938 2 BEARING ASSEMBLY
24 00758693 1 13 TOOTH GEAR
25 00762121 1 BEARING ADJUSTING NUT
26 00770421 1 COTTER PIN
27 00755615 2 BEARING ASSEMBLY
28 00770737 1 DRAIN PLUG
29 00769321 3 SEALING WASHER
30 00758657 1 SPACER
31 00758694 1 19 TOOTH GEAR
32 00762114 1 VENT PLUG
00777693 1 ASY,DIP STICK BREATHER
00765444 3qts QT,ALAMO 000 GEAR LUBE
NOTE: Gearboxes with Rhino On Side Use Dipstick Breather
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 15

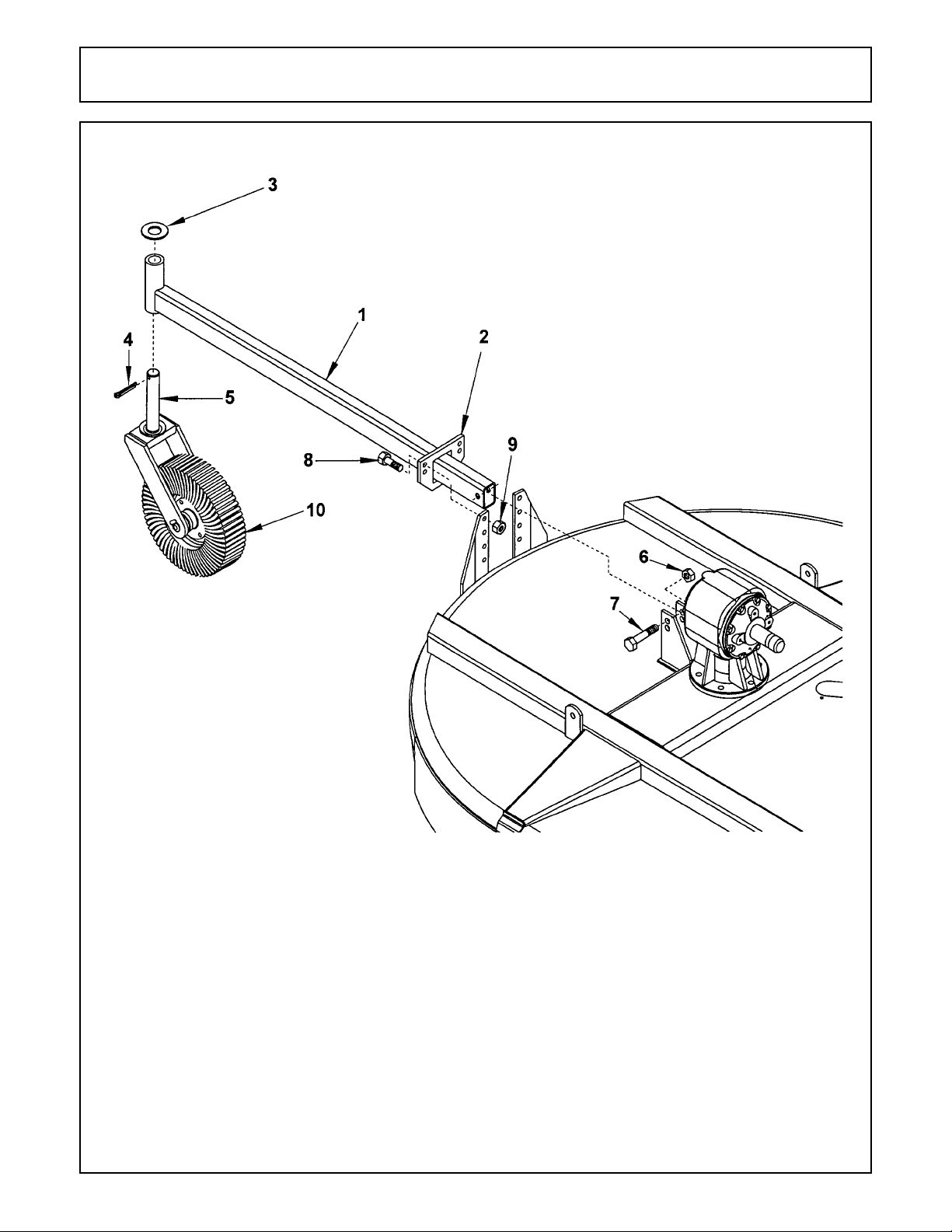

TAILWHEEL ASSEMBLY
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 16

TAILWHEEL ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
1 00775629 1 TAILWHEEL BEAM (TW60)
00775628 1 TAILWHEEL BEAM (TW72)
2 702302R 1 POSITIONING BRACKET
3 1582400 2* WASHER
4 00758899 1* COTTER PIN
5 0585020210 1* CASTER FORK
6 00695100 1 LOCKNUT
7 02845700 1 BOLT
8 00748823 2 BOLT
9 00001800 2 LOCKNUT
10 00776220 1 CASTER FORK & WHEEL ASSEMBLY
* These Items are part of Caster Fork & Wheel Assemby #00776220
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 17

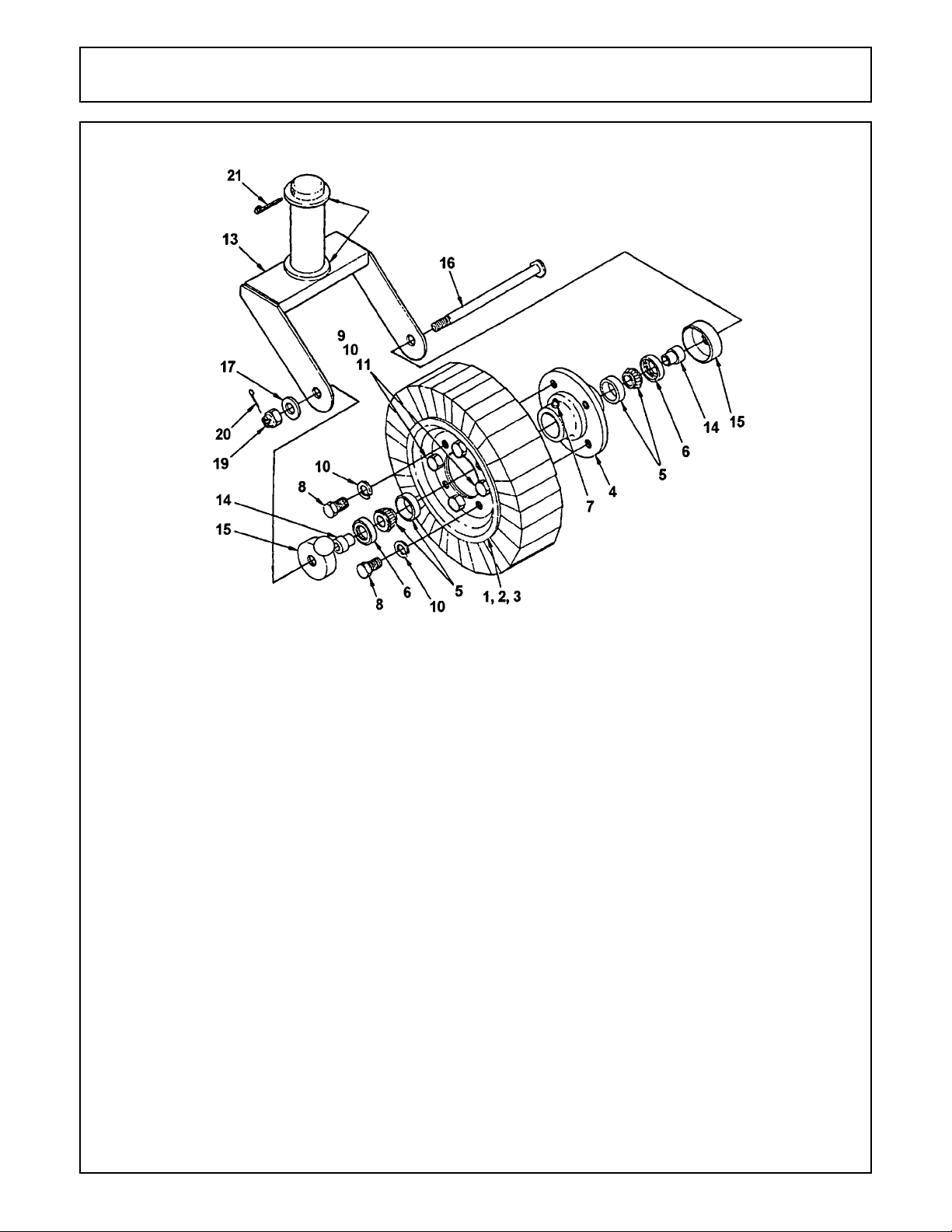

CASTER WHEEL AND HUB ASSEMBLY
ITEM PART NO. QTY. DESCRIPTION
00776220 1 CASTER WHEEL AND HUB ASSEMBLY
1 373024H 1 TIRE WHEEL ASSEMBLY
2 373024A 1 TIRE
3 373024B 1 8" DIA. WHEEL (BOLTED ASSY.)
4 00776214 1 HUB
5 00776213 2 BEARING CONE & CUP
6 00776219 2 OIL SEAL
7 00772082 1 GREASE FITTING (THREADED)
8 00776216 4 BOLT
9 7A6166 4 BOLT
10 00776215 4 FLATWASHER
11 00012101 4 LOCKWASHER
12 00013901 4 NUT
13 0585020210A 1 CASTER FORK WELDMENT
14 00772017 2 BUSHING
15 00772018 2 DUST CAP
16 00776211 1 SPINDLE BOLT
17 02822500 1 WASHER
18 15B2400 2 FLATWASHER
19 00776212 1 CASTELLATED NUT
20 00771620 1 COTTER PIN
21 00758899 1 COTTER PIN
TW60/72 (Nov-05) S/N TW60 16298 - TW72 31177 - Current Rev 08-07
©2007 Alamo Group Inc. Parts Section – 18
