RHINO Twister Series User manual
R
© 2011Alamo Group Inc.
RHINO®
1020 S. SangamonAve.
Gibson City, IL60936
800-446-5158
Email: [email protected]
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
3XE733DUW1R3
Zero Turn Mower
TWISTER
®
TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingpartsare potentiallyhazardous. Thereisno substituteforacautious, safe-mindedoperatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
Readand understand the complete Warranty Statementfound inthis Manual. Fill outthe WarrantyRegistration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.
PARTS
SECTION
3DUWV6HFWLRQ±
PART NAME INDEX
,1&877,1*'(&.$66(0%/<
,1&877,1*'(&.$66(0%/<
&$123<.,7237,21$/
&/87&+3803'5,9(%(/76.$:$6$.,
&/87&+3803'5,9(%(/76.2+/(5
&21752/3$1(/
'(&$/.,7&21752/3$1(/
'(&$/.,76$)(7<
'(&./,)7$66(0%/<
(/(&75,&$/$66(0%/<
)5$0($66(0%/<
)5217&$67(5:+((/6
)8(/6833/<6<67(0
+<'5$8/,&7$1.$1'+26(6
.$:$6$.,(1*,1(+3
.2+/(5(1*,1(+3
/,*+7.,7237,21$/
08/&+,1*.,7237,21$/
3$5.,1*%5$.(&21752/6
5($5+,7&+$66(0%/<
52//29(53527(&7,216<67(05236
6($76
63,1'/($66(0%/<
67((5,1*&21752/6
75$16$;/($66(0%/</()7+$1'
75$16$;/($66(0%/<5,*+7+$1'
75$16$;/(02817,1*$66(0%/<
785)7,5($66(0%/<
©2011 Alamo Group Inc. Parts Section -3
TWISTER

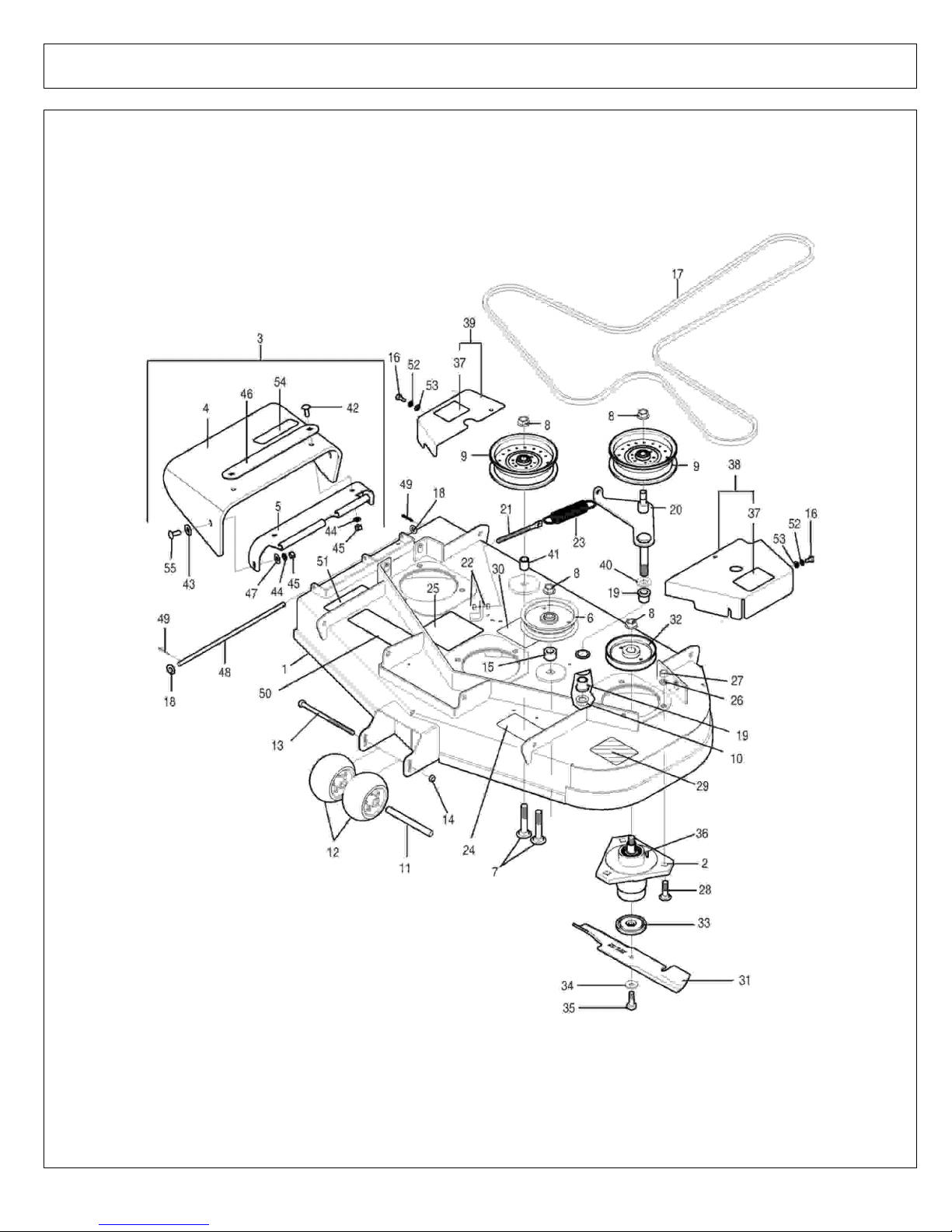

44IN. CUTTING DECK ASSEMBLY
©2011 Alamo Group Inc. Parts Section -4
TWISTER
44IN. CUTTING DECK ASSEMBLY
Continued...
ITEM PART NO. QTY. DESCRIPTION
1 50062864 1 DECK FRAME W/ SAFETY DECALS
2 50049843 3 SPINDLE ASSEMBLY
3 50060788 1 DISCHARGE CHUTE ASSEMBLY
4 50060786 1 DISCHARGE CHUTE
5 50060784 1 INNER BAND
6 88663 1 IDLER
7 45051BH 2 CARRIAGE BOLT 5/8” X 3” GR.5 YZ
8 45109BH 3 LOCKNUT 5/8”, FLANGED YZ
9 50053434 2 FLANGED IDLER PULLEY
10 45189BH 1 LOCKNUT 3/4”, FLANGED, GR. G NF YZ
11 50029093 1 BUSHING
12 50025511 2 ROLLER, ANTI SCALP
13 45089BH 1 CAPSCREW 3/8” X 7” GR.5 YZ
14 45180BH 2 LOCKNUT 3/8”, CENTERLOCK YZ
15 50049740 1 SPACER, DECK IDLER
16 45094BH 4 CAPSCREW 5/16” X 3/4” GR. G NF YZ
17 97315 1 BELT FOR 44” DECK
18 45063 2 FLATWASHER 3/8” YZ
19 50055032 2 FLANGED BUSHING 3/4” X 1” X 1”
20 50062851 1 IDLER WELDMENT, 3/4” PIVOT (SEE NOTE)
21 88669 1 TENSION ROD
22 45073 2 HEX NUT 3/8”
23 50055708 1 EXTENSION SPRING
24 50043280 1 DANGER DECAL
25 50029499 1 DECAL, BELT INSTALLATION
26 45111BH 9 LOCKWASHER 1/2” YZ
27 45070BH 9 HEX NUT 1/2” YZ
28 45048BH 9 CARRIAGE BOLT 1/2” X 1-1/4” GR.5
29 50028246 1 NON SKID SURFACE
30 50043277 1 DECAL, DANGER?
31 50056496 3 BLADE, CW PARALLEL UP-LIFT, 15.13”
32 50045587 3 SHEAVE 5.00”
33 88754 1 BLADE WASHER
34 44040BH 1 SAFETY WASHER, HEAVY DUTY YZ
35 44508BH 1 CAPSCREW 1/2” X 1-1/2” GR.8 NF YZ
36 88753 3 WOODRUFF KEY 606
37 50012615 2 WARNING DECAL
38 50049673 1 BELT SHIELD, L.H. W/ DECAL
39 50049672 1 BELT SHIELD, R,H. W/ DECAL
40 45061BH 1 FLATWASHER 3/4” YZ
41 50053435 1 SPACER, IDLER
©2011 Alamo Group Inc. Parts Section -5
TWISTER
44IN. CUTTING DECK ASSEMBLY
Continued...
ITEM PART NO. QTY. DESCRIPTION
42 45119BH 2 CARRIAGE BOLT 3/8” X 1” GR.5 YZ
43 45067BH 2 FLATWASHER 7/16” YZ
44 45113 4 LOCKWASHER 3/8” YZ
45 45073 4 HEX NUT 3/8” YZ
46 50060787 1 OUTER BAND
47 45063 3 FLATWASHER 3/8” YZ
48 50064108 1 PIN WELDMENT
49 45206 2 COTTER PIN 1/8” X 3/4” YZ
50 94134 1 WARNING DECAL
51 83056 1 WARNING DECAL
52 45114 4 LOCKWASHER 5/16” YZ
53 45065BH 4 FLATWASHER 5/16” YZ
54 50063815 1 DECAL, DISCHARGE CHUTE
55 45174BH 2 CARRIAGE BOLT 3/8” X 1-1/4” GR.5 YZ
©2011 Alamo Group Inc. Parts Section -6
TWISTER
PAGE LEFT BLANK INTENTIONALLY
52IN. CUTTING DECK ASSEMBLY
©2011 Alamo Group Inc. Parts Section -7
TWISTER
52IN. CUTTING DECK ASSEMBLY
Continued...
ITEM PART NO. QTY. DESCRIPTION
1 50062865 1 DECK FRAME W/ SAFETY DECALS
2 50049843 3 SPINDLE ASSEMBLY
3 50060788 1 DISCHARGE CHUTE ASSEMBLY
4 50060786 1 DISCHARGE CHUTE
5 50060784 1 INNER BAND
6 88663 1 IDLER
7 45051BH 2 CARRIAGE BOLT 5/8” X 3” GR.5 YZ
8 45109BH 6 LOCKNUT 3/4”, FLANGED NF YZ
9 50053434 2 FLANGED IDLER PULLEY
10 45189BH 1 LOCKNUT 3/4”, FLANGED GR. G NF YZ
11 50029093 1 BUSHING, ROLLER
12 50025511 4 ROLLER, ANTI SCALP
13 45089BH 1 CAPSCREW 3/8” X 7” GR.5 YZ
14 45106BH 2 LOCKNUT 3/8”, FLANGED YZ
15 50064408 1 PIN WELDMENT
16 45094BH 8 CAPSCREW 5/16” X 3/4” GR. G NF YZ
17 45114 8 LOCKWASHER 5/16” YZ
18 45206 2 COTTER PIN 1/8” X 3/4” YZ
19 50055032 2 FLANGED BUSHING 3/4” X 1” X 1”
20 50062858 1 IDLER WELDMENT, 1/2” PIVOT BOLT (SEE NOTE)
21 50054988 1 TENSION ROD
22 45073 6 HEX NUT 3/8”
23 50055028 1 EXTENSION SPRING
24 50043280 1 DANGER DECAL
25 50029499 1 DECAL, BELT INSTALLATION
26 45111BH 9 LOCKWASHER 1/2” YZ
27 45070BH 9 HEX NUT 1/2” YZ
28 45048BH 9 CARRIAGE BOLT 1/2” X 1-1/4” GR.5
29 50029106 1 NON SKID SURFACE
30 50043277 1 DECAL, DANGER?
31 50056498 3 BLADE 18.13” CW PARALLEL UP-LIFT
32 50053430 3 SHEAVE 5.25”
33 88754 3 SPACER, BLADE
34 44040BH 3 SAFETY WASHER, HEAVY DUTY YZ
35 44508BH 3 CAPSCREW 1/2” X 1-1/2” GR.8 NF YZ
36 88753 3 WOODRUFF KEY 606
37 83056 3 WARNING DECAL
38 50049675 1 BELT SHIELD, L.H. W/ DECAL
39 50049674 1 BELT SHIELD, R,H. W /DECAL
40 50012615 1 WARNING DECAL
41 45065BH 4 FLATWASHER 5/16” YZ
©2011 Alamo Group Inc. Parts Section -8
TWISTER
52IN. CUTTING DECK ASSEMBLY
Continued...
ITEM PART NO. QTY. DESCRIPTION
42 1550119 1 DRIVE BELT
43 50027488 2 BUSHING, ROLLER
44 45131BH 2 CAPSCREW 3/8” X 4” GR.5 YZ
45 50049722 1 BRACKET, L.H.GAUGE WHEEL
46 50053435 1 SPACER, IDLER
47 50049740 1 SPACER, IDLER
48 45061BH 1 FLATWASHER 3/4” YZ
49 94134 1 WARNING DECAL
50 45119BH 4 CARRIAGE BOLT 3/8” X 1” GR.5 YZ
51 45067BH 4 FLATWASHER 7/16” YZ
52 45113 4 LOCKWASHER 3/8” YZ
53 50060787 1 OUTER BAND
54 45063 4 FLATWASHER 3/8” YZ
55 50049845 1 BRACKET, R.H. GAUGE WHEEL
56 50049846 1 GAUGE WHEEL KIT, R.H. (OPTIONAL)
57 50063815 1 DECAL, DISCHARGE CHUTE
58 45174BH 2 CARRIAGE BOLT 3/8” X 1-1/4” GR.5 YZ
©2011 Alamo Group Inc. Parts Section -9
TWISTER
PAGE LEFT BLANK INTENTIONALLY
CANOPY KIT (OPTIONAL)
©2011 Alamo Group Inc. Parts Section -10
TWISTER
CANOPY KIT (OPTIONAL)
Continued...
ITEM PART NO. QTY. DESCRIPTION
1 20224 4 CAPSCREW 3/8” X 2-1/2”
2 44186BH 2 CAPSCREW 1/4” X 1” YZ
3 50053378 8 FENDER WASHER
4 50053379 2 U-BOLT 3/8”
5 50053380 1 INSTRUCTION SHEET
6 50053381 6 BOLT, SELF-TAPPING 1/4” X 3/4”
7 15583 8 LOCKNUT 3/8” FLANGED
8 15584 2 LOCKNUT 1/4” FLANGED
9 45062BH 2 FLATWASHER 3/8”YZ
10 50053384 8 RUBBER WASHER
11 50053388 1 CANOPY
12 50053389 2 CANOPY BRACKET
13 50053390 1 TUBE SUPPORT
14 50053391 1 MOUNT WELDMENT
©2011 Alamo Group Inc. Parts Section -11
TWISTER
CLUTCH PUMP DRIVE BELTS KAWASAKI
©2011 Alamo Group Inc. Parts Section -12
TWISTER
CLUTCH PUMP DRIVE BELTS KAWASAKI
Continued...
ITEM PART NO. QTY. DESCRIPTION
1 45103 3 LOCKNUT 1/2” FLANGED YZ
2 50049638 1 SPACER
3 50049649 1 IDLER, FLAT
4 50037071 1 LOCKING BOLT 7/16” X 2-3/4”
5 50034847 1 LOCKWASHER 7/16” YZ
6 50040824 1 CLUTCH ASSY. FOR 52” DECK
7 50049635 1 BELT, PUMP DRIVE
8 19455 1 KEY .25” X .25” X .875”
9 50049628 1 SHEAVE, ENGINE
10 44181BH 4 CAPSCREW 3/8” X 1-1/2”
11 45094BH 2 CAPSCREW 5/16” X 3/4” GR.5 YZ
12 45108 2 LOCKNUT 5/16” YZ
13 50064858 1 CLUTCH STOP
14 45181BH 1 CARRIAGE BOLT 1/2” X 3” GR.5 YZ
15 50053459 1 BUSHING , FLANGED1/2” X 3/4” 1-1/2”
16 50054974 1 PUMP IDLER ARM WELD.
17 45059BH 1 FLATWASHER 1/2” YZ
18 45080BH 1 CAPSCREW 1/2” X 2 GR.5 YZ
19 50054988 1 TENSION ROD
20 90931 1 EXTENSION SPRING
21 45146BH 1 JAMNUT 3/8” YZ
22 45073 2 HEX NUT 3/8”
23 45113 4 LOCKWASHER 3/8” YZ
©2011 Alamo Group Inc. Parts Section -13
TWISTER
CLUTCH PUMP DRIVE BELTS KOHLER
©2011 Alamo Group Inc. Parts Section -14
TWISTER
CLUTCH PUMP DRIVE BELTS KOHLER
Continued...
ITEM PART NO. QTY. DESCRIPTION
1 45103 3 LOCKNUT 1/2” FLANGED YZ
2 50049638 1 SPACER
3 50049649 1 IDLER, FLAT
4 50037071 1 LOCKING BOLT 7/16” X 2-3/4”
5 50034847 1 LOCKWASHER 7/16” YZ
6 50053429 1 CLUTCH ASSY. FOR 44” DECK
50040824 1 CLUTCH ASSY. FOR 52” DECK
7 50049635 1 BELT, PUMP DRIVE
8 19455 1 KEY .25” X .25” X .875”
9 50049628 1 SHEAVE, ENGINE
10 50056678 4 CAPSCREW, WASHER HD. 3/8” X 1-3/8”
11 45094BH 2 CAPSCREW 5/16” X 3/4” GR.5 YZ
12 45108 2 LOCKNUT 5/16” YZ
13 50064858 1 CLUTCH STOP
14 45181BH 1 CARRIAGE BOLT 1/2” X 3” GR.5 YZ
15 50053459 1 BUSHING , FLANGED1/2” X 3/4” 1-1/2”
16 50054974 1 PUMP IDLER ARM WELD.
17 45059BH 1 FLATWASHER 1/2” YZ
18 45080BH 1 CAPSCREW 1/2” X 2 GR.5 YZ
19 50054988 1 TENSION ROD
20 90931 1 EXTENSION SPRING
21 45146BH 1 JAMNUT 3/8” YZ
22 45073 2 HEX NUT 3/8”
©2011 Alamo Group Inc. Parts Section -15
TWISTER
CONTROL PANEL
©2011 Alamo Group Inc. Parts Section -16
TWISTER
