RHINO HDSS Series User manual

© 2015 Alamo Group Inc.
RHINO®
1020 S. SangamonAve.
Gibson City, IL60936
800-446-5158
Email: [email protected]
PART'S MANUAL
An Operator's Manual was shipped with the equipment in the
Manual Canister. This Operator's Manual is an integral part of
the safe operation of this machine and must be maintained
with the unit at all times. READ, UNDERSTAND, and FOLLOW
the Safety and Operation Instructions contained in this manual
before operating the equipment. If the Operator's Manual is
not with the equipment, contact your dealer or Servis-Rhino
(800-446-5158) to obtain a Free copy before operating the
equipment.
Published12/15 P/N 00789168P
HDSS SERIES
SUB-SOILERS
MODELS
HDSS1L, HDSS2L, HDSS1S, HDSS2S

TO THE OWNER/OPERATOR/DEALER
Allimplementswithmovingparts arepotentiallyhazardous. There isnosubstitute foracautious, safe-mindedoperatorwho
recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to
be used with all its safety equipment properly attached to minimize the chance of accidents.
BEFOREYOUSTART!! Read the safety messages on the implement and shown in your manual.
Observe the rules of safety and common sense!
WARRANTY INFORMATION:
ReadandunderstandthecompleteWarrantyStatementfound in this Manual. Fill out the Warranty Registration Form
in full and return it within 30 Days. Make certain the Serial Number of the Machine is recorded on the Warranty Card
andontheWarrantyFormthatyouretain.Theuseof"will-fit"partswillvoidyourwarrantyandcancausecatastrophic
failure with possible injury or death.

PARTS
SECTION
Parts Section – 1

Parts Section – 2
©2015 Alamo Group Inc.
Formaximumsafetyandtoguaranteeoptimumproductreliability,alwaysuse
genuineServis-RhinoParts. Theuseofinferiorreplacementpartsmaycause
prematureorcatastrophicfailurewhichcouldresultinseriousinjuryordeath.
Directany questionsregarding partsto:
Thefollowinginstructionsareofferedtohelpeliminateneedlessdelayanderrorinprocessing
purchaseorders fortheequipment inthis section.
1. ThePartsSectionispreparedinlogicalsequenceandgroupingofpartsthatbelongtothe
basic machine featured in this manual. Part Numbers and Descriptions are given to help
locatethe partsand quantitiesrequired.
2. The Purchase Order must include the name and address of the person or organization
orderingtheparts,whoshouldbecharged,andifpossible,theserialnumberofthemachine
forwhich the partsare ordered.
3. ThePurchaseOrdermustclearlylistthequantityofeachpart,thecompleteandcorrectpart
number (be sure to include all periods), and the basic name of the part.
4. TheManufacturerreservestherighttosubstitutepartswhereapplicable.
5. Somepartsareunlisteditemswhicharespecialproductionitemsnotnormallystockedand
are subject to special handling. Request a quotation for such parts before sending a
PurchaseOrder.
6. TheManufacturerreservestherightto changeprices withoutprior notice.
NOTE: Pleaserefer toThe Safety Sectionin thefront ofthis Manual forthe proper
PartNumberwhenorderingReplacementSafetyDecals.
PARTS ORDERING GUIDE
RHINO®
1020 S. Sangamon Ave.
Gibson City, IL 60936
800-446-5158
Email: [email protected]

TABLE OF CONTENTS
HDSS SERIES SUB-SOILERS
MODELS
HDSS1L, HDSS2L, HDSS1S, HDSS2S
HDSS1L SUBSOILER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-1-1
HDSS2L SUBSOILER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-1-2
HDSS1S SUBSOILER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-1-3
HDSS2S SUBSOILER ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-1-4
HDSS2S SUBSOILER DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-1-5

December,2012
HEAVY DUTY SUB-SOILER
MODEL HDSS1L
1 LONG SHANK
Ref. Part Des ription Qty.
No. No. Req’d.
1 50071923 HDSS1L Frame Weldment 1
2 50005860 Cotter, Hair Pin .148 2
3 99342 Pull Pin Cat. I/II 2
4 50017304 Lynch Pin 2
5 92503 Locknut 1 NF Nylock 1
6 44625 Hhcs 5/8 X 4-3/4 G5 Zp 1
7 45321BH Locknut 3/4 Nylock Cp 1
8 45020BH Locknut 5/8 Nylock Cp 1
9 50071922 Capscrew 3/4'' X 4'' (P2) 1
10 19087 Capscrew 1 X 4 G5 Zp 1
11 19427BH Roll Pin 1/2 X 2-1/4 1
12 50071921 Large HDSS Shank 1
13 50071920 HDSS Foot 1
14 50071919 Parking Stand 2
15 50071918 1
16 50071925 1
17 50057097 1
18 90960BH 1
19 00725746 1
A-Frame Spacer
Model Decal, HDSS1L
Caution Decal
Warning Decal
Decal,Peligro
28-1-1

December,2012
28-1-2

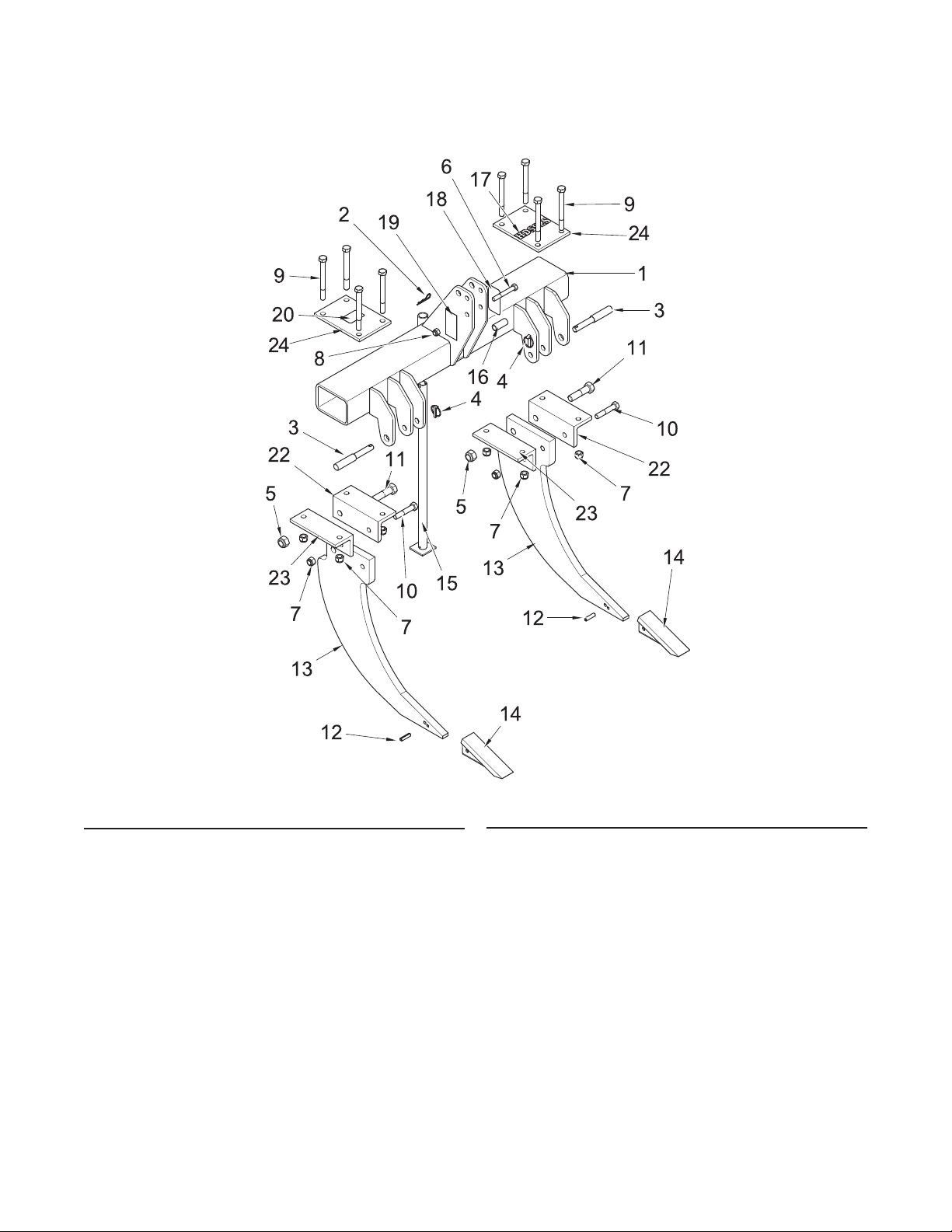

HEAVY DUTY SUB-SOILER
MODEL HDSS2L
2 LONG SHANKS
Ref. Part Des ription Qty.
No. No. Req’d.
1 50071924 HDSS2L Frame Weldment 1
2 50005860 Cotter, Hair Pin .148 2
3 99342 Pull Pin Cat. I/II 2
4 50017304 Lynch Pin 2
5 92503 Locknut 1 NF Nylock 2
6 44625 Capscrew 5/8 X 4-3/4 G5 Zp 1
7 45321BH Locknut 3/4 Nylock Cp 10
8 45020BH Locknut 5/8 Nylock Cp 1
9 45294BH Capscrew 3/4 x 8 Gr.5Zp 8
10 50071922 Capscrew 3/4'' X 4'' (P2) 2
11 19087 Capscrew 1 X 4 G5 Zp 2
12 19427BH Roll Pin 1/2 X 2-1/4 2
Ref. Part Des ription Qty.
No. No. Req’d.
13 50071921 Large HDSS Shank 2
14 50071920 HDSS Foot 2
15 50071919 Parking Stand 1
16 50071918 A-Frame Spacer 1
17 50071924 Model Decal, HDSS1L 1
18 50057097 Caution Decal 1
19 90960BH Warning Decal 1
20 00725746 Decal,Peligro 1
22 50071942 Angle Plate LH 2
23 50071943 Angle Plate RH 2
24 50071944 Shank Plate 2

December,2012
HEAVY DUTY SUB-SOILER
MODEL HDSS1S
1 SMALL SHANK
Ref. Part Des ription Qty.
No. No. Req’d.
1 50071923 HDSS1S Frame Weldment 1
2 50005860 Cotter, Hair Pin .148 2
3 99342 Pull Pin Cat. I/II 2
4 50017304 Lynch Pin 2
5 92503 Locknut 1 NF Nylock 1
6 44625 Capscrew 5/8 X 4-3/4 G5 Zp 1
7 45321BH Locknut 3/4 Nylock Cp 1
8 45020BH Locknut 5/8 Nylock Cp 1
9 50071922 Capscrew 3/4'' X 4'' (P2) 1
10 19087 Capscrew 1 X 4 G5 Zp 1
11 19427BH Roll Pin 1/2 X 2-1/4 1
12 50071936 Small HDSS Shank 1
13 50071920 HDSS Foot 1
14 50071919 Parking Stand 2
15 50071918 1
16 50071938 1
17 50057097 1
18 90960BH 1
19 00725746 1
A-Frame Spacer Model
Decal, HDSS1S
Caution Decal
Warning Decal
Decal,Peligro
28-1-3

December,2012
28-1-4
HEAVY DUTY SUB-SOILER
MODEL HDSS2S
2 SMALL SHANKS
Ref. Part Des ription Qty.
No. No. Req’d.
1 50071924 HDSS2S Frame Weldment 1
2 50005860 Cotter, Hair Pin .148 2
3 99342 Pull Pin Cat. I/II 2
4 50017304 Lynch Pin 2
5 92503 Locknut 1 NF Nylock 2
6 44625 Capscrew 5/8 X 4-3/4 G5 Zp 1
7 45321BH Locknut 3/4 Nylock Cp 10
8 45020BH Locknut 5/8 Nylock Cp 1
9 45294BH Capscrew 3/4 x 8 Gr.5Zp
10 50071922 Capscrew 3/4'' X 4'' (P2) 2
11 19087 Capscrew 1 X 4 G5 Zp 2
12 19427BH Roll Pin 1/2 X 2-1/4 2
Ref. Part Des ription Qty.
No. No. Req’d.
13 50071936 Small HDSS Shank 2
14 50071920 HDSS Foot 2
15 50071919 Parking Stand 1
16 50071918 A-Frame Spacer 1
17 50071940 Model Decal, HDSS2S 1
18 50057097 Caution Decal 1
19 90960BH Warning Decal 1
20 00725746 Decal,Peligro 1
22 50071942 Angle Plate LH 2
23 50071943 Angle Plate RH 2
24 50071944 Shank Plate 2

ITEM PART NO. QTY LEVEL
1 LOGO
1 LOGO
1 LOGO
1 LOGO
DESCRIPTION
Model HDSS1L
Model HDSS1S
Model HDSS2L
Model HDSS2S
1 SERIAL NO.
1 CAUTION
1 WARNING
1 DANGER
1. 50071925
50071938
50071927
50071940
2. NFS
3. 50057097
4. 9060BH
5. 00725746
6. 54691 1 LOGO
Serial Number
Read Operator’s Manual
Implement Adjustments
Translate
Rhino Name
HEAVY DUTY SUB-SOILER
DECALS
28-1-5
