Riccar SUPRALITE RSL1 User manual

Thank you for purchasing our product. To ensure you get the
best results from your SupraLite vacuum cleaner, please read this manual first.
This manual should be kept for future reference.
To locate your nearest Authorized Riccar Dealer for sales or service,
please visit our website at www.riccar.com
or call 877-302-4746
™
Vacuum Cleaner
Owner’s Manual
Model RSL1
RSL2
RSL2C

KEY REPLACEMENT PARTS
Genuine SupraLite Vacuum Filter Bags: RSL-6
Genuine SupraLite Vacuum Agitator Belt: B014-0814

Getting Started:
• Safety instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
• Wire and grounding instructions . . . . . . . . . . . . . . . . . . . . . . . . . 3
• Assembling the vacuum cleaner . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Vacuum Features:
• On/off switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
• Edge cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
• Automatic carpet height adjustment . . . . . . . . . . . . . . . . . . . . . . 6
How To:
• Change the vacuum bag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
• Remove/install the bottom plate. . . . . . . . . . . . . . . . . . . . . . . . . 8
• Change the belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
• Replace the headlight bulb . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
• Reset the circuit breaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
For Best Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
TABLE OF CONTENTS
1

2
1. Do not leave appliance when
plugged in. Unplug from outlet
when not in use and before
servicing.
2. WARNING: ELECTRIC SHOCK
COULD OCCUR IF USED OUT-
DOORS OR ON WET SURFACES.
3. Do not allow to be used as a toy.
Close attention is necessary
when used by or near children.
4. Use only as described in this
manual. Use only manufacturer's
recommended parts.
5. Do not use with damaged cord or
plug. If appliance is not working
as it should, has been dropped,
damaged, left outdoors, or
dropped into water, return it to
your Authorized Vacuum Dealer.
6. Do not pull or carry by cord, use
cord as a handle, close a door on
cord, or pull cord around sharp
edges or corners. Do not run
appliance over cord. Keep cord
away from heated surfaces.
7Do not unplug by pulling on cord.
To unplug, grasp the plug, not the
cord.
8. Do not handle plug or appliance
with wet hands.
9. Do not put any object into
openings. Do not use with any
opening blocked; keep free of
dust, lint, hair and anything that
may reduce air flow.
10 Keep hair, loose clothing, fingers
and all parts of body away from
openings and moving parts.
11. Do not pick up anything that is
burning or smoking, such as
cigarettes, matches or hot
ashes.
12. Do not use without dust bag
and/or filters in place.
13. Turn off all controls before
unplugging.
14. Use extra care when cleaning on
stairs.
15. Do not use to pick up flammable
or combustible liquids such as
gasoline or use in areas where
they may be present.
16. Do not attempt to service the
unit while appliance is plugged in.
17. Do not vacuum up water or any
other liquid.
18. For grounded models: connect to
a properly grounded outlet only.
See Grounding Instructions.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
When using an electrical appliance, basic precautions should always be followed.
WARNING – To reduce the risk of fire, electric shock or injury:
SAVE THESE INSTRUCTIONS

POLARIZATION INSTRUCTIONS – HOUSEHOLD MODELS
3
Models RSL1 and RSL2
To reduce the risk of electric shock, this
appliance is equipped with a polarized
alternating current line plug (a plug having
one blade wider than the other). This plug
will fit into the power outlet only one way.
This is a safety feature. If you are unable to
insert the plug fully into the outlet, try
reversing the plug. If the plug should still
fail to fit, contact a qualified electrician to replace the obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
GROUNDING INSTRUCTIONS – COMMERCIAL MODELS
Model RSL2C
This appliance must be grounded. If it
should malfunction or break down,
grounding provides a path of least
resistance for electric current to
reduce the risk of electric shock. This
appliance is equipped with a cord hav-
ing an equipment-grounding conductor
and grounding plug. The plug must be
plugged into an appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
This appliance is for use on a nominal 120-volt circuit and has a grounding
attachment plug that looks like the illustration above. Make sure that the appli-
ance is connected to an outlet having the same configuration as the plug. No
adapter should be used with this appliance.
WARNING: Improper connection of the equipment-grounding conductor can
result in a risk of electric shock. Check with a qualified electrician or service
person if you are in doubt as to whether the outlet is properly grounded. Do not
modify the plug provided with the appliance. If it will not fit the outlet, have a
proper outlet installed by a qualified electrician.
GROUNDING
GROUNDED
OUTLET BOX
GROUNDED
OUTLET

4
The vacuum cleaner handle is packed
as a separate component that requires
assembly.
VACUUM ASSEMBLY PROCEDURE
Installing the handle:
1. Release the handle bracket from
the handle tube by removing the
two screws (diagram 1).
2. Place handle onto the handle
tube, aligning holes with pegs
(diagram 2).
ASSEMBLING THE VACUUM
1
2
Handles
Nozzle
Cloth Bag
Power
cord
IMPORTANT NOTE: Under no circumstances should you plug in the vacuum
cleaner prior to complete assembly.

5
3. Place the handle bracket back
into position (diagram 3).
4. Secure with two screws removed
in step 1.
Positioning the power cord:
(Models RSL1 only.)
1. Loosen, but do not remove, the
screw holding the upper cord
hook (diagram 4).
2. Position the cord between the
cord hook and the vacuum tube
(diagram 5). Re-tighten the screw.
3. Once the cord is secured by the
cord hook, proceed with wrap-
ping the cord.
ASSEMBLING THE VACUUM
3
4
5

NOTE: Your vacuum cleaner will either
have the on/off button on the base of
the unit (see diagram 6) or on the vac-
uum handle (see diagram 6A). Please
note the type of vacuum cleaner you
are using when starting or stopping the
machine.
On/Off switch on base: Locate the
switch on the back side of the nozzle to
the left of the handle tube. Simply
press the switch with your foot to turn
the machine on or off.
On/Off switch on handle: Locate the
switch on the top of the vacuum han-
dle. Using your thumb, push the switch
forward to turn the machine on and pull
the switch backward to turn the
machine off.
Always turn the vacuum cleaner off
before unplugging it from the electrical
outlet.
6
ON/ OFF SWITCH
EDGE CLEANER
AUTOMATIC CARPET HEIGHT ADJUSTMENT
The edge cleaning feature provides improved cleaning of carpets near walls
and stationary furniture. For maximum edge cleaning, place the left side of the
nozzle against the wall or stationary furniture.
Your upright vacuum cleaner is designed with an automatic, self-adjusting rug
nozzle. No manual adjustments are required. The height of the nozzle is
instantly and automatically adjusted to the carpet pile height. This self-
adjusting feature allows the rug nozzle to float evenly over all carpet pile
surfaces.
6
6A

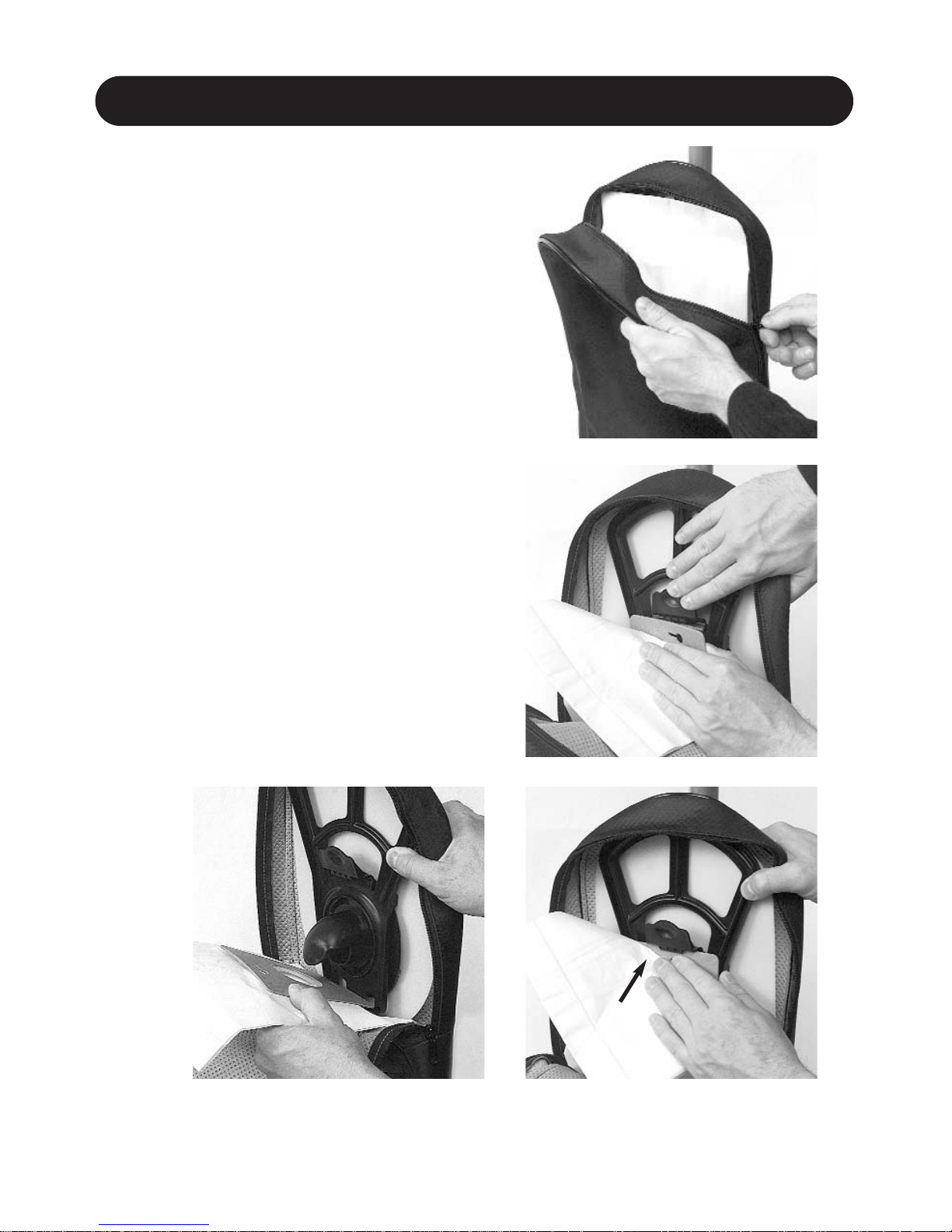

1. Unzip outer cloth bag (diagram 7).
2. Remove used bag by pressing
the bag holder tab and pulling
bag off vacuum (diagram 8).
Discard used bag.
3. To install new bag, position the
bottom of the bag collar into the
bag collar holder (diagram 9).
4. Push the top of the bag collar
inward until the collar “snaps”
into place (diagram 10).
4. Zip the outer cloth bag closed.
7
HOW TO CHANGE THE VACUUM BAG
7
8
10
9

8
CAUTION: First, disconnect the vacuum
cleaner from the electrical outlet.
To remove bottom plate:
1. After unplugging the power cord,
turn the vacuum cleaner over,
exposing the underside.
2. Press the two holding tabs inward
(diagram 11) releasing the bottom
plate. Remove the bottom plate.
To install bottom plate:
1. Install bottom plate, making sure
bottom plate hinges are in place
before setting the plate (diagram
12).
2. Press plate into position until the
plate “clicks” on both sides.
HOW TO REMOVE / INSTALL THE BOTTOM PLATE
11
12

CAUTION: First, disconnect the vacuum
cleaner from the electrical outlet.
1. Turn the unit over and remove
the bottom plate (see "How to
Remove Bottom Plate").
2. Remove the brush roll and the
worn or broken belt from the
brush roll pulley and the motor
drive shaft (diagram 13).
3. Loop the new belt around the
motor drive shaft and the brush
roll (diagram 14).
4. Reinstall the brush roll back into
the housing. Turn the brush roll by
hand, making sure the belt is not
twisted and all rotating parts
move smoothly (diagram 15).
5. Reinstall the bottom plate (see
"How to Install Bottom Plate").
NOTE: To ensure maximum cleaning
efficiency, the belt should be checked
regularly to be sure it is in good con-
dition. Check to see if the belt is
stretched, cracked, or if excessive
slipping has occurred. Replace if
needed.
9
HOW TO CHANGE THE BELT
New belt
13
14
15

WARNING: To reduce the risk of electric
shock and injury from moving parts, unplug
vacuum before cleaning or servicing.

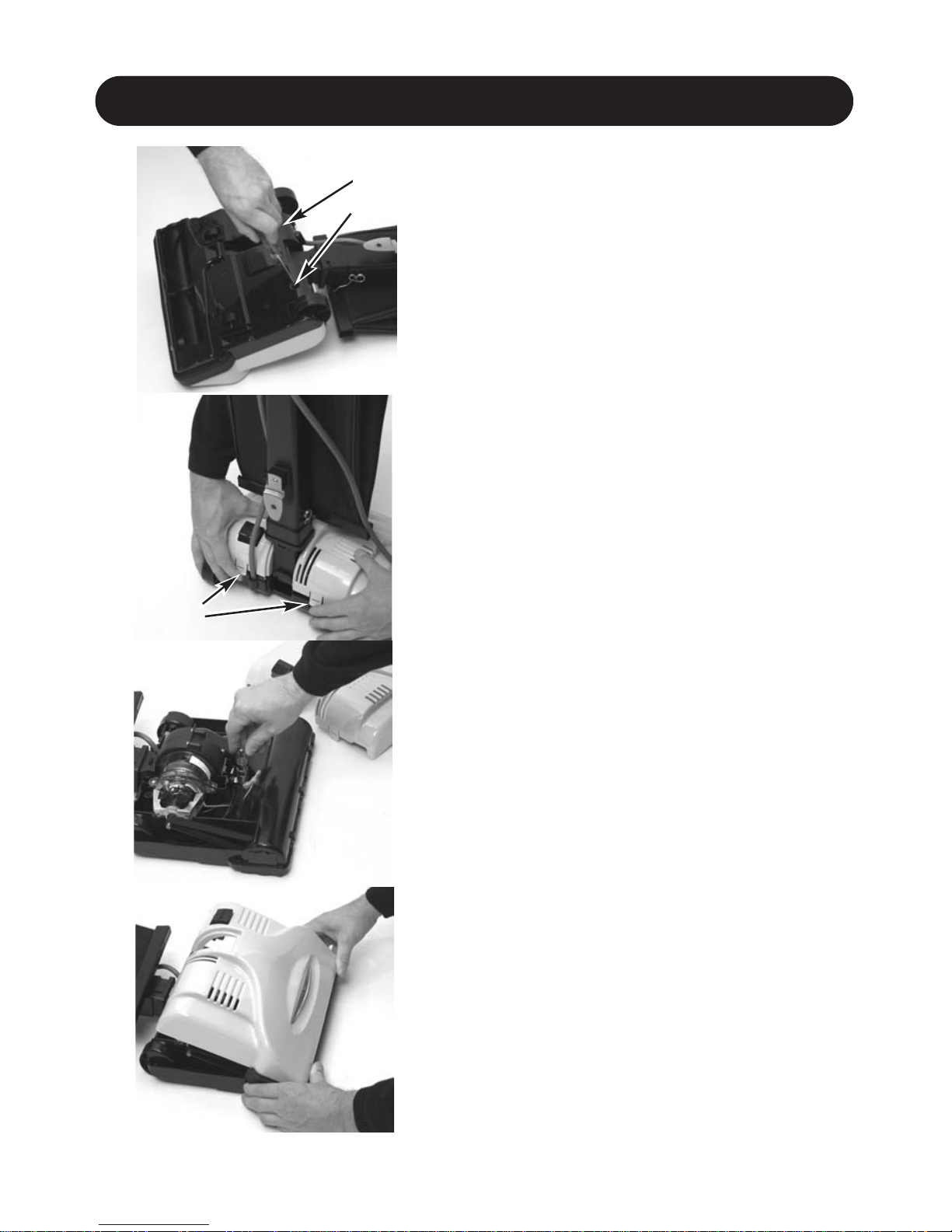

1. First remove the nozzle housing.
Turn the unit over to expose the
underside. Locate the two main
nozzle screws (diagram 16) and
remove both. Turn the unit right
side up. Locate the two nozzle
tabs on the back of the unit (dia-
gram 17) and unlatch the nozzle
housing. (Note: It is easier to
remove the nozzle when the vacu-
um is lying flat on its back - see
diagram 19). Lift the nozzle hous-
ing off the unit to expose the light
bulb.
2. Remove bulb by pulling it
straight out of the light socket
(diagram 18).
3. To install new bulb, simply re-
insert the bulb into the light
socket.
4. Place nozzle housing back onto
unit with the front side of the
nozzle set into place first (diagram
19) then set the nozzle downward
until nozzle “clicks” into place on
both sides. Turn unit over and rein-
sert main nozzle screws.
10
HOW TO REPLACE THE HEADLIGHT BULB
Nozzle
Tabs
16
17
18
19
Nozzle
screws

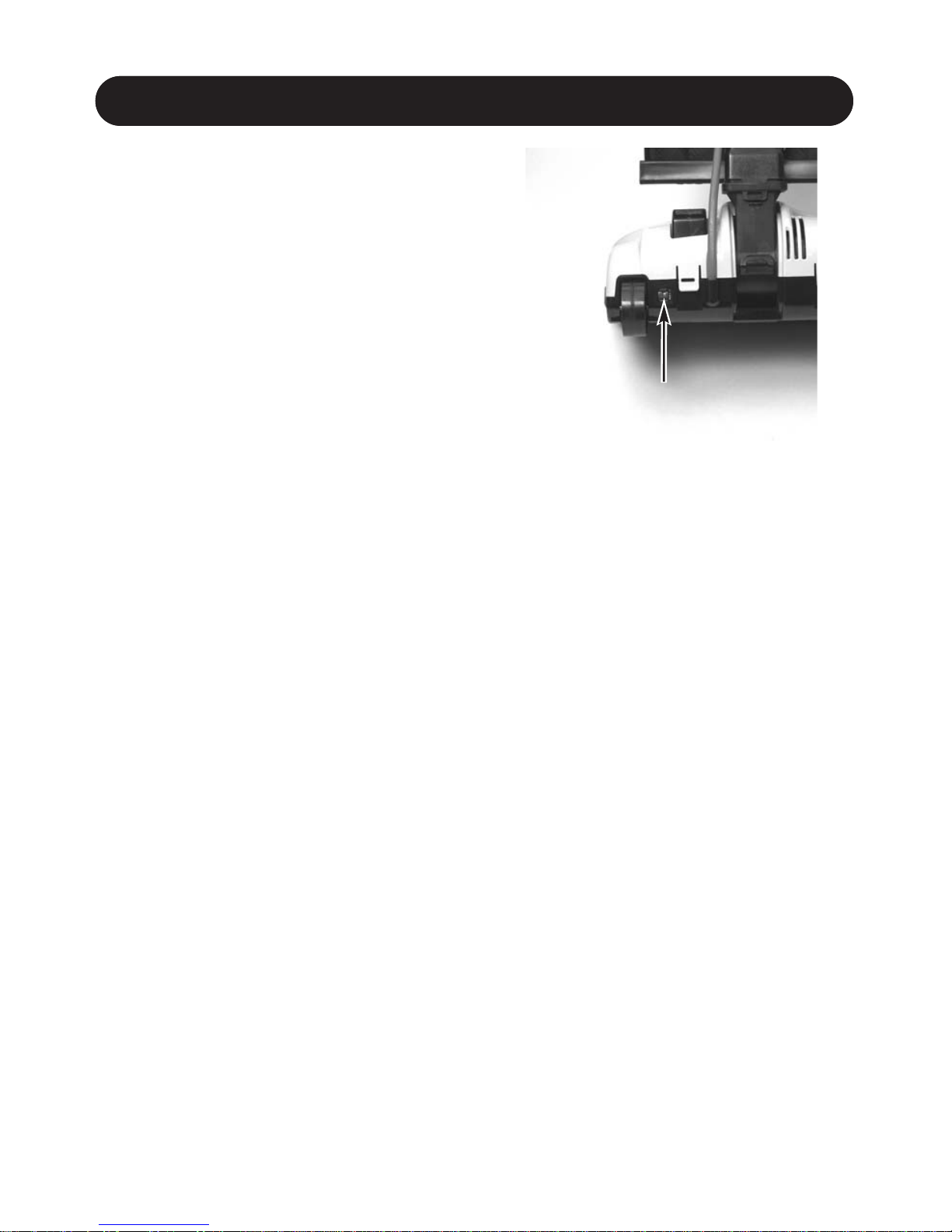

Your vacuum features a circuit breaker
to protect the machine against damage
due to a surge in the electrical current.
Electrical surging can be a result of,
though not limited to, a jammed
brush roll (i.e. vacuuming up a sock
or throw rug) or a jammed motor fan.
Should your vacuum cleaner experi-
ence a jammed brush roll with the cir-
cuit breaker tripping, first press the
on/off button to the off position and
unplug the unit. Inspect the brush roll
by removing the bottom plate (see
“How to Remove Bottom Plate”) and
remove any debris which may be
causing the jam. Reinstall the bottom
plate (see “How to Install Bottom
Plate”), reset the circuit breaker (dia-
gram 20), plug in power cord, and
turn unit on. If the unit fails to turn
on, return it to an authorized service
center for service.
11
HOW TO RESET THE CIRCUIT BREAKER
Circuit Breaker
Reset Button
20

• Keep machine clean and in good operating condition.
• Change filter bags as recommended to maximize optimal cleaning efficiency.
• Always use genuine filter bags and replacement parts. Use of other products may
result in poor cleaning performance and potential vacuum cleaner damage and
may void vacuum warranty. Genuine filtration products are designed for maximum
cleaning performance.
• Have machine checked periodically by your Authorized Dealer.
• Use only authorized service centers for parts or service.
• Store machine carefully in dry area.
• For optimum cleaning performance and safety, study and follow your owner's
manual.
12
FOR BEST PERFORMANCE

13
RICCAR VACUUM CLEANER LIMITED WARRANTY
Riccar’s Limited Warranty
Riccar America will repair or exchange parts for
your Riccar vacuum cleaner in the event of a
manufacturing defect as follows:
PARTS:
HOUSEHOLD USE: New or comparable rebuilt
parts are warranted for two years (fan for one
year) after original purchase.
COMMERCIAL USE: New or comparable rebuilt
parts are warranted for one year (fan for six
months) after original purchase.
The following items that require normal replace-
ment are excluded: disposable dust bags, belts,
light bulbs, and agitator brushes.
LABOR:
Carry-in service can be obtained during the warranty
period by taking your vacuum cleaner to an
Authorized Riccar Warranty Service Center.
IMPORTANT WARRANTY CONDITIONS:
The warranty registration should be completed on the
Riccar website (www.riccar.com) or the attached
card must be filled out and returned to Riccar within
30 days of purchase in order to register warranty
coverage. A purchase receipt or other proof of date
of original consumer purchase also will be
required before warranty service is rendered.
This warranty covers normal consumer use and
does not cover damage which occurs in shipment
or failure resulting from alteration, accident, mis-
use, abuse, neglect, or improper maintenance.
90-day warranty for commercial use.
STATEMENT: This warranty is not transferable and
extends only to the original purchaser when a new
Riccar Vacuum Cleaner is purchased from an
Authorized Riccar Dealer. This warranty gives you
specific legal rights, and you may have other rights
that vary from state to state.
If a problem develops during or after the warranty
period, first contact your Authorized Riccar Dealer
or Service Center. If the problem is not handled to
your satisfaction, write to: Riccar Consumer
Affairs Division, 1800 E. Walnut Ave., Fullerton,
CA 92831-4844 www.riccar.com
2-year limited HOUSEHOLD warranty – 1-year limited COMMERCIAL warranty
™
13

Item IBRSL1B
(B503-1200C)
