Rice Lake Tracer AV User manual

Tracer AV
Aviation Baggage Instrumentation
Installation Manual
PN 98316 Rev B
October 25, 2019

An ISO 9001 registered company
© Rice Lake Weighing Systems. All rights reserved.
Rice Lake Weighing Systems® is a registered trademark of
Rice Lake Weighing Systems.
All other brand or product names within this publication are trademarks or
registered trademarks of their respective companies.
All information contained within this publication is, to the best of our knowledge, complete and
accurate at the time of publication. Rice Lake Weighing Systems reserves the right to make
changes to the technology, features, specifications and design of the equipment without notice.
The most current version of this publication, software, firmware and all other product
updates can be found on our website:
www.ricelake.com

Contents
© Rice Lake Weighing Systems ● All Rights Reserved i
Contents
Technical training seminars are available through Rice Lake Weighing Systems.
Course descriptions and dates can be viewed at www.ricelake.com/training
or obtained by calling 715-234-9171 and asking for the training department.
1.0 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.1 Safety Signal Definitions: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.2 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
1.3 Operating Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.4 Display and Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.5 LCD/LED Annunciators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.6 Tracer AV Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.6.1 Toggle Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.6.2 Zero Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2.0 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Unpacking and Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Enclosure Security/Disassembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3.1 Illustrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3.2 Load Cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3.3 Serial Communications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3.4 Digital I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4 Board Removal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.5 Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.0 Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1 Configuration Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1.1 EDP Command Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1.2 Front Panel Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1.3 Setting Numeric Values For Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1.4 Editing Integers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1.5 Editing Floating Point (Decimal Point Position) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Menu Structures and Parameter Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.2.1 Default Calibration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.2.2 Configuration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.2.3 Format Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.2.4 Calibration Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
3.2.5 Serial Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.2.6 Program Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
3.2.7 Setpoint Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
3.2.8 Version Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4.0 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.1 Default Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.2 Standard Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
4.3 EDP Command Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.4 More About Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.4.1 Adjusting Final Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.4.2 A/D Counts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.0 EDP Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.1 The EDP Command Set . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.1.1 Key Press Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.1.2 Reporting Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Tracer AV
ii Visit our website www.RiceLake.com
Rice Lake continually offers web-based video training on a growing selection
of product-related topics at no cost. Visit www.ricelake.com/webinars
5.1.3 The RESETCONFIGURATION Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.1.4 Parameter Setting Commands. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.1.5 Soft Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.1.6 Normal Mode Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.2 Saving and Transferring Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.2.1 Saving Tracer AV Data to a Personal Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.2.2 Downloading Configuration Data from PC to Tracer AV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.0 Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.1 Error Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.1.1 Displayed Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.1.2 Using the XE EDP Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.2 Status Messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.2.1 Using the P EDP Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.2.2 Using the ZZ EDP Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
6.3 Continuous Output (Stream) Format. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.4 Front Panel Display Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
6.5 Conversion Factors for Secondary Units. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6.6 Digital Filtering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6.6.1 DIGFLx Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6.6.2 DFSENS and DFTHRH Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
6.6.3 Setting the Digital Filter Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6.7 Test Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
6.8 Regulatory Mode Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.9 LED Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.10 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Introduction
© Rice Lake Weighing Systems ● All Rights Reserved 1
1.0 Introduction
This manual is intended for use by service technicians responsible for installing and servicing Tracer AV aviation baggage
instrumentation. This manual applies to units using Version 1.14 of the Tracer AV software.
Configuration and calibration of the Tracer AV can be accomplished using the 2-button keypad or the EDP command set. See
Section 3.1 on page 12 for information about configuration methods.
Manuals and additional resources are available from the Rice Lake Weighing Systems website at www.ricelake.com
Warranty information can be found on the website at www.ricelake.com/warranties
1.1 Safety Signal Definitions:
Indicates an imminently hazardous situation that, if not avoided, will result in death or serious injury. Includes
hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, could result in serious injury or death. Includes
hazards that are exposed when guards are removed.
Indicates a potentially hazardous situation that, if not avoided, could result in minor or moderate injury.
Indicates information about procedures that, if not observed, could result in damage to equipment or corruption
to and loss of data.
General Safety
Do not operate or work on this equipment unless this manual has been read and all instructions are understood.
Failure to follow the instructions or heed the warnings could result in injury or death. Contact any Rice Lake
Weighing Systems dealer for replacement manuals.
Failure to heed could result in serious injury or death.
Ensure the power cord is disconnected from power source prior to opening the unit.
Do not operate without the enclosure completely assembled.
Do not make alterations or modifications to the unit.
1.2 Overview
The Tracer AV is a single-channel digital weight indicator comprised of three components:
• The Tracer AV houses the AC power supply and CPU board. There are external DB-9 connectors for a PC connection,
two remote display connections, two remote keypad connections, and a load cell connection (See Figure 2-3 on page 5).
• RD-1 remote display, an .8'', six-digit, seven-segment LED display or RD-2 remote display, an .8'', six-digit, seven-
segment LCD display.
• The RK-1 keypad (See Figure 1-1 on page 2) has two keys which are used to zero the scale and to toggle between a
primary and secondary unit of measure in the normal mode of operation. These keys have a secondary function for the
setup mode.
The Tracer AV features include:
• Four-wire load cell connections; remote sense connections are not provided
• The electronic data processing (EDP) port is full duplex; RS-232 communications at up to 38400 bps. The EDP port is
accessed through the COMM connection
• The serial port connects to the remote displays. The output is RS-232 and will drive two remote displays
• Digital inputs are defaulted for RK-1 functionality
• Setpoints values will cause the display to flash when a specified weight value is exceeded
• Available for 115 VAC and 230 VAC
DANGER
WARNING
CAUTION
IMPORTANT
WARNING

Tracer AV
2 Visit our website www.RiceLake.com
1.3 Operating Modes
The Tracer AV has three modes of operation.
Normal (Primary) mode
Normal mode is the default mode of the Tracer AV. The indicator displays gross or net weights as required, using the LCD/
LED annunciators described in Section 1.5 on page 3 to indicate scale status and the type of weight value displayed. Once
configuration is complete and a legal seal is affixed, this is the primary mode in which the Tracer AV can operate.
Setup mode
Most of the procedures described in this manual require the Tracer AV to be in setup mode, including configuration and
calibration.
To enter setup mode, remove the setup switch access screw on the Tracer AV (See Figure 2-3 on page 5). Once the screw
is removed, use a small screwdriver or pen tip to press the setup switch. The display changes to show the word DEFCAL.
Test mode
Test mode provides a number of diagnostic functions for the Tracer AV. Like setup mode, test mode is entered using the
setup switch. See Section 6.7 on page 38 for more information.
Test mode is intended for factory use only.
1.4 Display and Keypad
Figure 1-1 shows the Tracer AV LCD display with annunciators and keypad. In setup mode, the keys are used to navigate
through menus, select digits within numeric values and increment/decrement values. See Section 3.1.2 on page 12 for
information about using the front panel keys in setup mode.

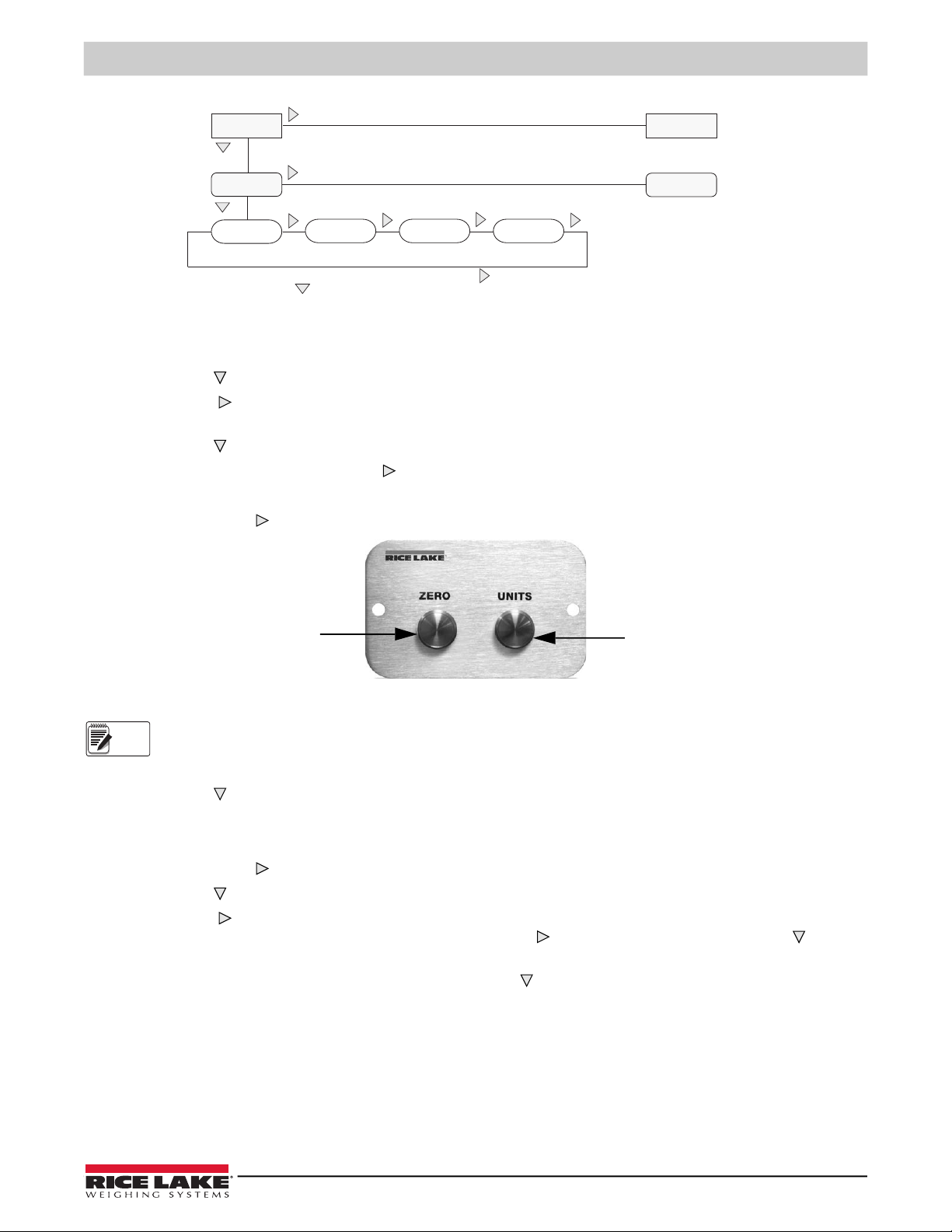

Figure 1-1. RD-1 Front Panel, Showing LCD Annunciators

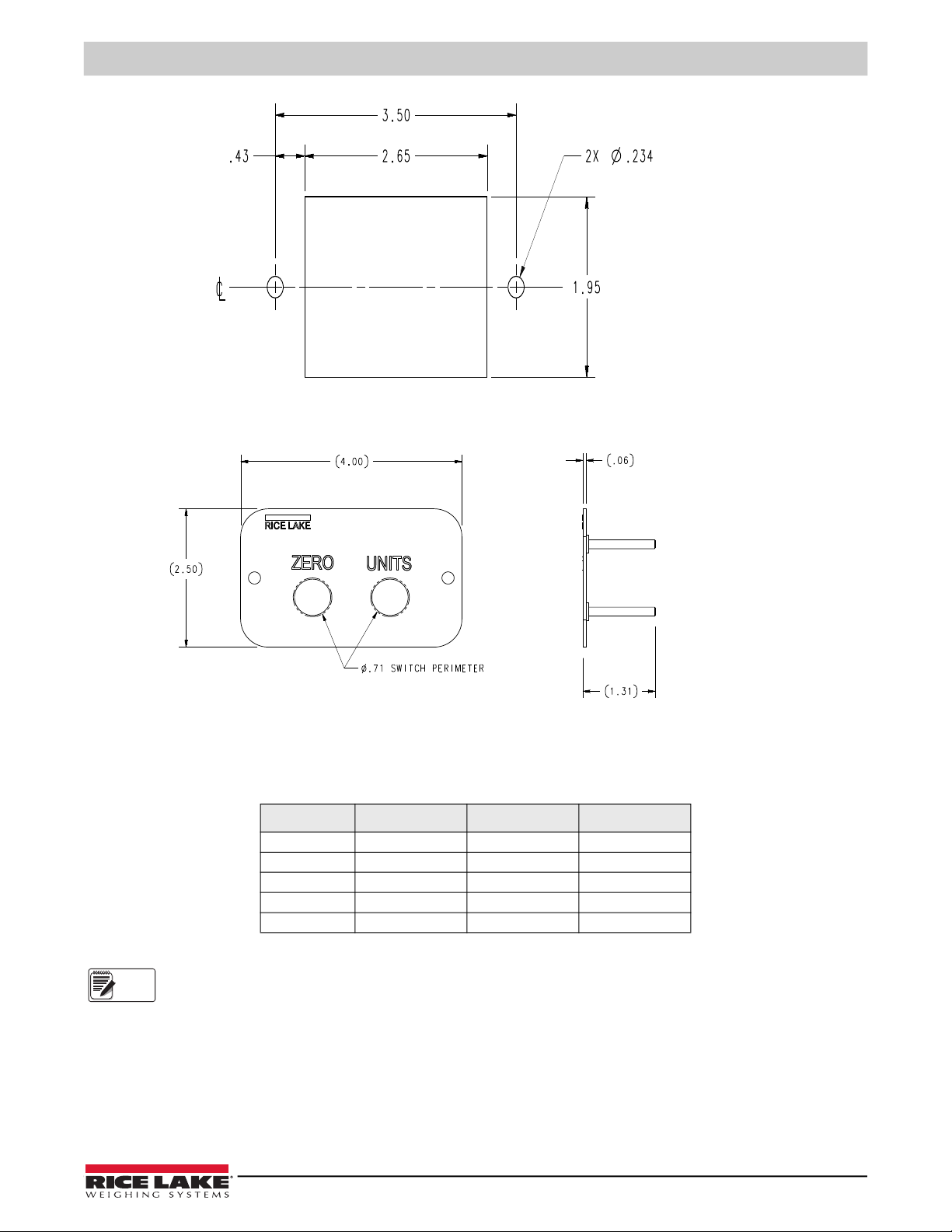

Figure 1-2. RK-1 2-Button Keypad
Note

Introduction
© Rice Lake Weighing Systems ● All Rights Reserved 3
1.5 LCD/LED Annunciators
The Tracer AV display uses a set of six LCD/LED annunciators to provide additional information about the value being
displayed:
•Gross and Net annunciators are lit to show whether the displayed weight is a gross or net weight.
•Center of Zero ( ): Gross weight is within 0.25 graduations of zero. This annunciator lights when the scale is
zeroed.
•Standstill ( ): Scale is at standstill or within the specified motion band. Some operations, including tare function,
can only be done when the standstill symbol is shown.
•lb and kg annunciators indicate the units associated with the displayed value: lb = pounds, kg = kilograms.
1.6 Tracer AV Operations
Basic Tracer AV operations are summarized below.
1.6.1 Toggle Units
Press the Units key to switch between primary and secondary units. The appropriate unit’s LCD/LED is lit.
1.6.2 Zero Scale
1. In gross mode, remove all weight from the scale and wait for the standstill annunciator ( ).
2. Press the Zero key. The center of zero ( ) annunciator lights to indicate the scale is zeroed.
0
0

Tracer AV
4 Visit our website www.RiceLake.com
2.0 Installation
This section describes the connections between the DB-9 plugs and the CPU board. This section also includes assembly
drawings, connection tables and parts lists for the service technician.
Use a wrist strap to ground yourself and protect components from electrostatic discharge (ESD) when working
inside the Tracer AV enclosure.
This unit uses line fusing which could create an electric shock hazard. Procedures requiring work inside the
Tracer AV enclosure must be performed by qualified service personnel only.
The supply cord serves as the main power disconnect for the Tracer AV. The power outlet must be installed near
the unit and be easily accessible.
2.1 Unpacking and Assembly
Immediately after unpacking, visually inspect the Tracer AV to ensure all components are included and undamaged. The
shipping carton should contain the Tracer AV enclosure, remote display, remote keypad, this manual, two cables and a power
cord. If any parts were damaged in shipment, notify Rice Lake Weighing Systems and the shipper immediately.
2.2 Enclosure Security/Disassembly
After an NTEP inspector has examined the unit, he/she will install security cables pictured in Figure 2-1 and Figure 2-2 on
page 5. These cables prevent the Tracer AV from being tampered with by an unauthorized individual. If these cables are
removed, NTEP certification will become void.
If the Tracer AV enclosure must be opened by an authorized technician, ensure power is disconnected, then place it on an anti-
static work mat. Cut tamper-proof cables, remove screws and remove the enclosure’s top cover. An NTEP inspector will have to
examine the unit and attach new security cables.
Figure 2-1. Tracer AV (front) Security Cables Installed After NTEP Certification
WARNING
Security Cables

Installation
© Rice Lake Weighing Systems ● All Rights Reserved 5
Figure 2-2. Tracer AV (back) Security Cables Installed After NTEP Certification
2.3 Cable Connections
The Tracer AV provides several cable connections: one for the power cord, one to accommodate the load cell, communications,
remote displays, and keypads. Figure 2-3 shows the assignments for the Tracer AV connections. Details on pin assignments
are shown in Table 2-1 on page 9 through Table 2-5 on page 10.
Figure 2-3. Tracer AV Power Cord Connection, DB-9 Connections and Setup Switch Access Screw
Power Cord Connection DB-9 Connections Remove Screw to
Access Setup Switch

Tracer AV
6 Visit our website www.RiceLake.com
2.3.1 Illustrations
The following illustrations show the Tracer AV CPU board, system configuration, remote display cutout and remote display
drawing.
Figure 2-4. Tracer AV CPU Board
Figure 2-5. System Configuration
C7
RESET
R2
C15
C20
C19
R5
MECCA
C3
+5AV
R1
C13
R16
LED2
GND
GD1
C1
F1
DI2
DI1
DFB2
TR1
TVS2 TVS3 TVS6
C33
C31
DO2
DO1
C10
C9
+5V
G2E
R25
C30
VR3
R6
C8
U7
C5
C6
U8
R15 U1
LED1
EDP/
RS-232
JP2
C65
U3
SW1
SETUP
C32
C2
XT1
DFB1
TR2
TVS1 TVS5TVS4
+3.3
R7
R4
C16
C4
DIGIN
1
J1
LOAD CELL
U2
D1
U19
U6 U9
SERIAL
1 9
11
8
1
1
Gnd
20mA+
Gnd
TxD
Gnd
Gnd DI2
EXC- EXC+
SEN-
SEN+ SIG-
5
1
1 1
20mA-
RxD
RxD
TxD
DI1
SIG+
Micro-
processor
DISPLAY
DRIVERS
KEYPAD
CONNECTOR
REMOTE
SETUP
SWITCH
DC INPUT
R9
R10
R11
R12
ANA
MEM
AD
HB
J10
U4
OFF TEST
A/D CONVERTER
U10
U11
J2J3J4
J7 J8
J11
J12
JP1
DIGOUT
1
+5V
DO2
Gnd
DO1
J6
R46
R47
U14
JMP3
(Factory Only)
ON OFF
KEYPAD
CONNECTOR
HE_J2
1
2
B1
+
85-265 VAC
50-60Hz 2A
Comm Remote
Display 1 Remote Display 2 Keypad
1 Keypad 2 Load Cell
Revolution
Connection
Remote Display RD2/#1
Remote Keypad
Load Cell Cable
Tracer AV
Scale Base
Remote Display RD2/#2
ZERO UNITS
Remote Keypad
ZERO UNITS

Installation
© Rice Lake Weighing Systems ● All Rights Reserved 7
Figure 2-6. Panel Mount Housing Enclosure
Dashed line represents RD-2 display location (LCD). Solid line represents RD-1 display location (LED).
Figure 2-7. Remote Display Cutout for Panel Mount
LCD Front
4.00"
7.50"
1.26"
Note
7.00"
3.13"
6.19"
.405"

Tracer AV
8 Visit our website www.RiceLake.com
Figure 2-8. External Mount Housing Enclosure
Dashed line represents RD-2 display location (LCD) for External Mounted Enclosure. Solid line represents RD-1
display location.
Figure 2-9. Remote Display Cutout for External Mount
7.50"
3.90"
LCD Front
Note
2.120"
.500"
0 "
2.5"
3.800"
2X .220"
0 "
3.800"
.575"
1.185 " 6.185 " 6.795" 7.370"
7.370"

Installation
© Rice Lake Weighing Systems ● All Rights Reserved 9
Figure 2-10. Switch Panel Cutout
Figure 2-11. Switch Panel Drawing
2.3.2 Load Cells
The load cell cable is connected to the socketed DB-9 marked load cell. This DB-9 is connected to the CPU board on J1; see
the table below for the pin assignments. The DB-9 is for four-wire installations, so leave sense jumper JP1 and JP2 on.
The DB-9 is factory pinned for four-wire connections. Leave sense jumpers JP1 and JP2 on.
DB-9 J1 Pins Function Pad Number
Pin 3 2 -Sig P 13
Pin 4 5 +Exc P 12
Pin 5 -- Shield --
Pin 6 6 -Exc P 11
Pin 7 1 +Sig P 14
Table 2-1. J1 Load Cell
Note

Tracer AV
10 Visit our website www.RiceLake.com
2.3.3 Serial Communications
The pinned DB-9 connector marked as COMM is connected to EDP port J3. It is bi-directional communication to be used for a
PC connection.
There are two socketed DB-9 connectors for remote displays which are connected to the serial port J4. The remote display’s
DC power and communications are run in the same three-conductor cable. The serial port data is transmitted on the 20 mA pins
to the remote displays.
2.3.4 Digital I/O
Digital inputs can be set to provide several indicator functions, including all keypad functions. In the Tracer AV, these inputs are
set to Zero and Units for the remote keypad. The inputs are active (on) with low voltage (0 VDC) and can be driven by TTL or 5V
logic without additional hardware. LEDs on the CPU board light when digital inputs are active.
Digital outputs are typically used to control relays that drive other equipment. In the Tracer AV, the setpoint value will cause the
display to flash. Outputs are designed to sink not source, switching current. Each output is a normally open connector circuit,
capable of sinking 250 mA when active. Digital outputs are wired to switch relays when the digital output is active (low, 0 VDC)
with reference to 5 VDC supply. LEDs on the CPU board light when the digital outputs are active.
DB-9 EDP Port
COMM J3 Function Pad
Pin 2 1 EDP TxD P 1
Pin 3 2 EDP RxD P 2
Pin 5 3 EDP Gnd P 3
Table 2-2. EDP Port/COM
DB-9 Serial Port Digital Output
Remote J4 J6 Function Pad
n/a -- 4 +5 VDC P 4
n/a 4 -- 20 mA+ P 5
n/a 5 -- 20 mA- P 6
Pin 1 -- -- +7.5 VDC n/a
Pin 2 -- -- Gnd n/a
Pin 9 -- -- TxD n/a
Table 2-3. Serial Port/Remote Display
DB-9
Digital Input
J2 J12 Function Pad Number
Pin 4 -- 1 Setup P 10
Pin 5 3 -- Gnd P 7
Pin 8 1 -- Dig In 1 P 9
Pin 9 2 -- Dig In 2 P 8
Table 2-4. Digital Input/Remote Keypad
Port Connector Pin Function
Digital Output J6 1 Gnd
2 DO 1
3 DO 2
4 +5V
Table 2-5. J6 Digital Outputs

Installation
© Rice Lake Weighing Systems ● All Rights Reserved 11
2.4 Board Removal
If the Tracer AV CPU board must be removed, use the following procedure:
Use a wrist strap to ground yourself and protect components from electrostatic discharge (ESD) when working
inside the Tracer AV enclosure.
This unit uses line fusing which could create an electric shock hazard. Procedures requiring work inside the
Tracer AV enclosure must be performed by qualified service personnel only.
The supply cord serves as the main power disconnect for the Tracer AV. The power outlet must be installed near
the unit and be easily accessible.
1. Disconnect power to the Tracer AV.
2. Cut security cable (if installed) and remove screws.
3. Remove the top cover.
4. Disconnect power supply cable from connector J7 on the Tracer AV CPU board.
5. Unplug connectors J1 (load cell cable), J2 (digital inputs), J3 (EDP), J4 (serial), J6 (digital outputs), and J2 (display).
See Figure 2-4 on page 6 for connector locations.
6. Remove the five screws from the CPU board, then lift the board out of the enclosure.
To replace the CPU board, reverse the above procedure.
2.5 Replacement Parts
Table 2-6 lists replacement parts for the Tracer AV.
Part No. Description Qty.
97994 Tracer AV Enclosure Assembly
70599 6 Pos Screw Terminal - Pluggable 5 mm Center Screws 2
71125 3 Pos Screw Terminal - Pluggable 5 mm Center Screws 2
71126 4 Pos Screw Terminal - Pluggable 5 mm Center Screws 1
76556 Power Supply 1
87958 CPU Board Assembly 1
97881 Coverplate - 10” x 6 ”x 2” 1
97978 DB-9 PCB Assembly 1
93558 Remote Display, Panel Mount RD-1
93213 Back Cover Enclosure 1
93215 Remote Display Lens 1
93559 Front Panel Assembly 1
93561 PCB Assembly 1
104872 Cable Assembly 1
166483 Remote Display, Panel Mount RD-2
164384 Back Cover Enclosure 1
166485 Remote Display Lens 1
167183 Front Panel Assembly 1
163879 PCB Assembly 1
104872 Cable Assembly 1
97995 2-Button Keypad
50749 DB-9 FEM to DB-9 Cable 1
71014 Piezo Switch SST SPSI 2
97877 Front Switch Panel 1
97878 Rear Switch Panel Cover 1
97977 PCB Assembly 1
Table 2-6. Replacement Parts
WARNING

Tracer AV
12 Visit our website www.RiceLake.com
3.0 Configuration
To configure the Tracer AV, it must be placed in setup mode. Setup mode is initiated by pressing the setup switch on the Tracer
AV (see Figure 2-3 on page 5).
When the Tracer AV is placed in setup mode, the word CONFIG is shown on the display. The CONFIG menu is the first of 7 main
menus used to configure the Tracer AV. Detailed descriptions of these menus are given in Section 3.2 on page 14. When
configuration is complete, continue pressing the (Units) key to exit setup mode.
3.1 Configuration Methods
The Tracer AV can be configured by using the Zero and Units keys to navigate through a series of configuration menus or by
sending commands or configuration data to the EDP port. Configuration using the menus is described in Section 3.1.2.
Configuration using the EDP port can be accomplished using either the EDP command set described in Section 5.0 on
page 27.
3.1.1 EDP Command Configuration
The EDP command set can be used to configure the Tracer AV using a personal computer, terminal, or remote keyboard. EDP
command configuration sends commands to the Tracer AV EDP port. EDP commands can be sent using any external device
capable of sending ASCII characters over a serial connection.
EDP commands duplicate the functions available using the Tracer AV front panel and provide some functions not otherwise
available. EDP commands can be used to simulate pressing front panel keys, to configure the Tracer AV, or to dump lists of
parameter settings. See Section 5.0 on page 27 for more information about using the EDP command set.
3.1.2 Front Panel Configuration
The Tracer AV can be configured using a series of menus viewed on the RD-1 display when the Tracer AV is in setup mode.
Table 3-1 summarizes the functions of each of the main menus.
The two-button numeric editor works as follows:
Press Units to navigate right. Press Zero to drop down or select from a list of values.
Menu Menu Function
DEFCAL Default
Configuration
Select a 500 lb or 300 lb default configuration. Display and edit zero calibration a/d count value, test weight
value and span calibration a/d count value can also be shown
CONFIG Configuration Configure grads, zero tracking, zero range, motion band, overload, tare function, sample rate, and digital filter-
ing parameters
FORMAT Format Set format of primary and secondary units, display rate
CALIBR Calibration Calibrate Tracer AV. See Section 4.0 on page 24 for calibration procedures
SERIAL Serial Configure EDP serial port
PROGRM Program Set power-up mode, regulatory mode, and consecutive number values
SETPNT Setpoint Configure Setpoints and digital outputs
VERS Version Display installed software version number
Table 3-1. Tracer AV Menu Summary
Button Function
Zero Move DOWN/ Increment Value
Units Move RIGHT/Next
Table 3-2. Button Functions in Setup Mode

Configuration
© Rice Lake Weighing Systems ● All Rights Reserved 13
Figure 3-1. Setup Mode Menu Navigation
3.1.3 Setting Numeric Values For Parameters
1. Press Zero to immediately accept the current value and navigate to the next menu item.
2. Press Units to enter edit mode.
The leftmost digit will flash to indicate it can be altered.
3. Press Zero to increment to the desired value.
4. When the value is correct, press Units to move to the next digit.
3.1.4 Editing Integers
1. By pressing Units , navigate all the way to the right (beyond all ‘-’ characters until there are no segments flashing).
Figure 3-2. Editing Procedure for Numeric Values
The ‘-’ characters are placeholders for appending or removing digits at the end of numbers that exceed the six-digit
display.
2. Press Zero to accept the modified value.
3.1.5 Editing Floating Point (Decimal Point Position)
1. By pressing Units , navigate all the way to the right (beyond all ‘-’ characters until there are no segments flashing).
2. Press Zero to initialize editing of decimal point position.
3. Press Units to move the decimal point to the desired position.
The decimal point will move forward one position with the Units button and wrap around until the Zero button is
pressed to select the position.
4. When the decimal point is in the desired position, press Zero .
1
st
Level
Parameter
Default value Value
1
st
Level
Parameter
2
nd
Level
Parameter
2
nd
Level
Parameter
Value Value
When moving through values below the first menu, press UNITS to view the
selections. Press ZERO to set the parameter and move to the next parameter on the
leval above.
Increment Value/
Save Value Entered and
return to level above
Change Digit Selection
Note

Tracer AV
14 Visit our website www.RiceLake.com
3.2 Menu Structures and Parameter Descriptions
The following sections provide graphic representations of the Tracer AV menu structures. In the actual menu structure, the
settings you choose under each parameter are arranged horizontally. To save page space, menu choices are shown in vertical
columns. The factory default setting appears at the top of each column in bold type.
Most menu diagrams are accompanied by a table that describes all parameters and parameter values associated with that
menu. Default parameter values are shown in bold type.
3.2.1 Default Calibration Menu
Figure 3-3. Default Calibration Menu
DEFCAL Menu
Parameter Choices Description
SELECT 500 lb
300 lb
500 lb sets the scale to a primary of 500 lb x 1 lb and a secondary of 250 kg x .5 kg ;
SP1 trip=50 lb; SP2=off; Dig Filter 1=8; Dig Filter 2=8; Dig Filter 3=8; Zero Tracking=3D
300lb sets the scale to a primary of 300 lb x 1 lb and a secondary of 150 kg x .5 kg
SP1 trip=50 lb; SP2=off; Dig Filter 1=8; Dig Filter 2=8; Dig Filter 3=8; Zero Tracking = 3D
WZERO — Display and edit the zero calibration A/D count value
Note: Do not adjust this value after WSPAN has been set!
WVAL — Display and edit the test weight value
WSPAN — Display and edit the span calibration A/D count value
Table 3-3. Default Calibration Parameters
XXXXXXXXXXXXXX SETPNTPROGRMSERIALCALIBRCONFIG FORMAT VERS XXXXXXX
DEFCAL
SELECT WVAL WSPANWZERO
500lb
300lb

Configuration
© Rice Lake Weighing Systems ● All Rights Reserved 15
3.2.2 Configuration Menu
Figure 3-4. Configuration Menu
CONFIG Menu
Parameter Choices Description
Level 2 submenus
GRADS 1000
number
Graduations. Specifies the number of full scale graduations. The value entered must be in the range 1–100 000 and
should be consistent with legal requirements and environmental limits on system resolution.
To calculate GRADS, use the formula, GRADS = Capacity / Display Divisions.
Display divisions for primary and secondary units are specified on the FORMAT menu.
ZTRKBN 0
number
Automatically zeros the scale when within the range specified, as long as the input is within the ZRANGE and scale
is at standstill. Specify the zero tracking band in ± display divisions. Maximum legal value varies depending on local
regulations.
Note: For scales using linear calibration, do not set the zero tracking band to a value greater than that spec-
ified for the first linearization point.
ZRANGE 1.900000
number
Selects the range within which the scale can be zeroed. The 1.900000 default value is ± 1.9% around the calibrated
zero point, for a total range of 3.8%. Indicator must be at standstill to zero the scale. Use the default value for legal-
for-trade applications.
Table 3-4. Configuration Menu Parameters
XXXXXXXXXXXXXX
GRADS
1000
ZTRKBN ZRANGE
1.900000
MOTBAN
FS+2%
FS+9D
FS+1D
FS
OVRLOA
1
4
2
8
DIGFL1
32
16
64
1
4
2
8
32
16
64
1
4
2
8
32
16
64
number
DIGFL2 DIGFL3
BOTH
PBTARE
NOTARE
KEYED
TAREFN
SETPNTPROGRMSERIALCALIBRCONFIG FORMAT
8OUT
32OUT
16OUT
64OUT
DFSENS DFTHRH
2OUT
128OUT
4OUT
2DD
NONE
5DD
20DD
10DD
50DD
200DD
100DD
250DD
15HZ
60HZ
30HZ
7.5HZ
SMPRAT
VERS DEFCAL
01
number number number

Tracer AV
16 Visit our website www.RiceLake.com
MOTBAN 1
number
Sets the level, in display divisions, at which scale motion is detected. If motion is not detected for 1 second or more,
the standstill symbol lights. Some operations, including print, tare, and zero, require the scale to be at standstill. Max-
imum legal value varies depending on local regulations.
If this parameter is set to 0, the standstill annunciator will be set continuously on, and operations including zero, print,
and tare will be performed regardless of scale motion. If 0 is selected, ZTRKBND must also be set to 0.
OVRLOA FS+2%
FS+1D
FS+9D
FS
Overload. Determines the point at which the display blanks and an out-of-range error message is displayed. Maxi-
mum legal value varies depending on local regulations.
SMPRAT 15HZ
30HZ
60HZ
7.5HZ
Sample rate. Selects measurement rate, in samples per second, of the analog-to-digital converter. Lower sample
rate values provide greater signal noise immunity.
DIGFL1
DIGFL2
DIGFL3
8
16
32
64
1
2
4
Digital filtering. Selects the digital filtering rate used to reduce the effects of mechanical vibration from the immediate
area of the scale.
Choices indicate the number of A/D conversions that are averaged to obtain the displayed reading. A higher number
gives a more accurate display by minimizing the effect of a few noisy readings, but slows down the settling rate of the
indicator. See Section 6.6 on page 37 for more information on digital filtering.
DFSENS 8OUT
16OUT
32OUT
64OUT
128OUT
2OUT
4OUT
Digital filter cutout sensitivity. Specifies the number of consecutive readings that must fall outside the filter threshold
(DFTHRH parameter) before digital filtering is suspended. If NONE is selected, the filter is always enabled.
DFTHRH NONE
2DD
5DD
10DD
20DD
50DD
100DD
200DD
250DD
Digital filter cutout threshold. Specifies the filter threshold, in display divisions. When a specified number of consecu-
tive scale readings (DFSENS parameter) fall outside of this threshold, digital filtering is suspended. If NONE is
selected, the filter is always enabled.
TAREFN BOTH
NOTARE
PBTARE
KEYED
Tare function. Enables or disables push-button and keyed tares. Possible values are:
BOTH: Both push-button and keyed tares are enabled
NOTARE: No tare allowed (gross mode only)
PBTARE: Push-button tares enabled
KEYED: Keyed tare enabled
CONFIG Menu
Parameter Choices Description
Table 3-4. Configuration Menu Parameters (Continued)
