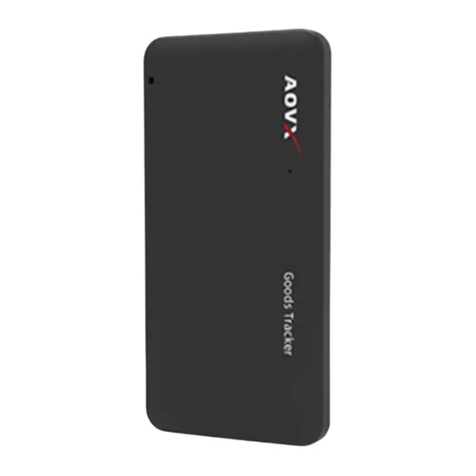

AOVX G Series User manual

WE TRACK AND
PROTECT YOUR ASSETS
Assets Tracker Quick Start Guide
G Series
V1.1
www.aovx.com

G Series Quick Start Guide
Contents
1 Product Application.......................................................................................................................................1
1.1Instructions........................................................................................................................................1
1.2ProductFunction...............................................................................................................................1
1.3LightDensityMonitoring...................................................................................................................2
1.4MotionDetection..............................................................................................................................3
1.5LocalStorageLossAlarm...................................................................................................................3
1.6LowPowerAlarm..............................................................................................................................3
1.7ElectronicFence................................................................................................................................3
1.8OTAUpgrade.....................................................................................................................................3
2 Parameter Configuration............................................................................................................................... 4
3 Platform Management................................................................................................................................... 7
3.1 AOVXCloudPlatform.......................................................................................................................7
3.2Third‐PartyorCustomer‐OwnedPlatform......................................................................................11
4 FAQ ...............................................................................................................................................................12
4.1VibrationAlarmTest........................................................................................................................12
4.2TemperatureandHumidityAlarm..................................................................................................13
4.3TamperAlert:...................................................................................................................................13
4.4PositionUnfixedorHugeDeviation................................................................................................14
4.5UnabletoRegister...........................................................................................................................14

G Series Quick Start Guide
1
1 Product Application
1.1 Instructions
1.1.1. Turn on the Device
Turn the toggle switch next to the card slot to the ON position, and observe the front blue
light, which flashes regularly and slowly, indicating that the device is started normally.
Slide the switch to off, and the blue indicator light goes out, indicating that the device is shut
down normally.
1.1.2. Charging
The device supports Micro USB charging, and the red light is always on when charging.
1.1.3. SIM Card
First slide the switch to the OFF position, and insert the Micro SIM card. If your SIM card
requires configuring the APN, please confirm the APN info with the card issuing operator. And
refer to Chapter 2 to configure.
1.1.4. Installation Location
Place it directly in the product packaging box after opening the device, or stick the adhesive
on the outside of the goods packaging box. Be sure the logo faces down; light-sensitive face and
barcode face up during the installation.
1.2 Product Function
G series device can be configured locally via USB port and remotely through command from
server. The parameters include sampling and report interval, alarm threshold. Below is the main
functions and data report logic of G series device.

G Series Quick Start Guide
2
3.2.1. Location Reporting Function
Periodic reporting: The default configuration is to obtain location information every 10
minutes and store it locally, then report to the platform every hour. When the GNSS positioning
fails, the base station or WiFi positioning will be activated as assistance. If the device does not
detect the network, it will stop reporting, and enters sleep mode. After reconnecting to the
network, it will relocate and report.
Triggered reporting: when the device is deviated from the preset route. It will trigger an
alarm to the platform.
3.2.2. Temperature and humidity monitoring
Periodic reporting: The default configuration is to obtain temperature and humidity
information every 10 minutes and store it locally, then report to the platform every hour. When the
GNSS positioning fails, the base station or WiFi positioning will be activated as assistance. If the
device does not detect the network, it will stop reporting, and enters sleep mode. After
reconnecting to the network, it will relocate and report.
Triggered reporting: when the device detects abnormal temperature and humidity It will
trigger an alarm to the platform.
Threshold Setting:
For the goods need to be in different environments, you can support flexible setting of
temperature and humidity ranges through local USB interface configuration or remote server
issuing instructions.
1.3 Light Density Monitoring
Periodic reporting: The default configuration is to obtain the light density of assets every 10
minutes and store it locally. Then report the data to the platform every hour.

G Series Quick Start Guide
3
Triggered reporting: when the light density exceeds the threshold, it will trigger an alarm to
the platform.
1.4 Motion Detection
Periodic reporting: the default configuration is to obtain assets movement every 10 minutes
and store it locally. Then report the motion status to the platform every hour. At the same time, it
will record and judge the movement status, and generate a report if it’s static for too long.
Triggered reporting: when the device detects the violent vibration of assets, it will trigger an
alarm to the platform.
1.5 Local Storage Loss Alarm
When the device is detected that the local SD / TF card is removed or damaged, an alarm
message will be triggered.
1.6 Low Power Alarm
If the device is of low power supply, the platform will trigger an alarm.
1.7 Electronic Fence
When the device enters or exits a preset fence, the platform will trigger an alarm.
1.8 OTA Upgrade
The device supports remote firmware upgrade.

G Series Quick Start Guide
4
2 Parameter Configuration
Open the configuration tool and connect the device.
If you need to configure the APN, please confirm the APN with the card issuing operator.
Follow the steps below to set it up:
(1) Please connect the device to the computer via a USB cable.
(2) Choose correct serial port and device type.

G Series Quick Start Guide
5
(3) Open COM Port.
(4) Query current parameter and version, data is shown is display area and filled in parameter
area.
(5) Find the parameter you want to change input value or choose status, then click on the box
on the right.
(6) Click on Config button to set the value.
(7) Local CFG Succeed means configuration is done. You can query parameter again to
double check.

G Series Quick Start Guide
6

G Series Quick Start Guide
7
3 Platform Management
Customers can use our platform, as well as third-party or your own platforms. The
configuration and user guide are as follows.
3.1 AOVX Cloud Platform
Website: http://login.yunxion.com/, user name and password are provided by AOVX
administrator.
3.1.1. Add Goods
Enter Goods Management—Goods List, Add Goods. Fill in requested information, so
it’ll be easy to search your assets or goods. Be noted, IMEI must be the same with the label
sticked to the back side of the device. Departure time means you want to view the status
information of the device from which point in time, the arrival time can be estimated according
to the shipping time.

G Series Quick Start Guide
8
3.1.2. Add Device
Enter Device Center—Device List, Add Device. The IMEI must be consistent with the
label on the back of the device. Only by adding goods and device at the same time, they can be
bound correctly, then the route will be correctly displayed.
3.1.3. Check Status
After device is correctly added in platform, you can click the corresponding Details in the
Good List to open the track, location, data list and line chart of the goods.

G Series Quick Start Guide
9
3.1.4. View History Route

G Series Quick Start Guide
10
3.1.5. View Current Position
3.1.6. Check Temperature and Humidity Information

G Series Quick Start Guide
11
3.2 Third-Party or Customer-Owned Platform
Please refer to the device interface protocol AOVX_Assets Tracker_G_Series_Cloud
Platform Protocol .

G Series Quick Start Guide
12
4 FAQ
4.1 Vibration Alarm Test
Hold the device and shake it back and forth quickly. When the motion count exceeds the
preset value, an alarm will be triggered. You can check the platform to view the alarm.

G Series Quick Start Guide
13
4.2 Temperature and Humidity Alarm
The humidity threshold can be set lower than the normal environment as required by the test.
As long as the ambient temperature and humidity exceeds the set threshold, the high temperature
and humidity alarm will be triggered.
4.3Tamper Alert:
Cover up the light sensor first, then remove coverings. Tamper alert will be triggered
immediately when light intensity exceeds the value we set.

G Series Quick Start Guide
14
4.4 Position Unfixed or Huge Deviation
Question1: It’s impossible to receive good signals where satellites are blocked, such as
underground or under high buildings
Solution1: Move to open area with good satellite signal
Question2: Device is faced down or blocked by metal
Solution2: Put the device correctly or change to another position. Make sure no insulation
film on the glass.
4.5 Unable to Register
Question1: The SIM card is not installed properly or loose / there is dirt on the metal surface
of the SIM card / the SIM card is damaged or invalid
Solution1: Check SIM card, and reinstall / please wipe it with a clean cloth / replace the valid
SIM card.
Question2: Beyond the operator's service area
Solution2: Please move the device to the service area of the network service provider.

WE TRACK AND
PROTECT YOUR ASSETS
AOVX Assets Tracker Solutions Corp.
Website:www.aovx.com
Mail:[email protected]
Tel:[phone]
