Richmond KS10013 User manual

Model KS10013
Photographs are notto scale.
Specifications subjectto change
without prior notice. 0359
WARNING
• For outdoor use only. Notforcommercial use.
• Use only Propaneregulator37mbar.
• Read instructionsbeforeusingtheappliance.Failuretofollowinstructionscould
resultindeath,serious bodily injury, and/orproperty loss.
• Warning: accessibleparts may be very hot. Keep young childrenaway.
• Do not movetheapplianceduring use.
• Turn off the gas supply atthegasbottle afteruse.
• Any modification oftheappliance,misuse, orfailure tofollowthe instructions may
be dangerousandwillinvalidate yourwarranty.This does notaffect your statutory
rights.
• Retain theseinstructionsforfuturereference.
• Leak testyour barbecue annually. Check thehoseconnections are tightandleak
testthem each time you reconnectthe gas bottle.
FOR YOUR SAFETY
Ifyou smell gas:
1. Shut offgastotheappliance.
2. Extinguishany openflame.
3. Openbarbecuelid orhood.
4. Ifodourcontinues, discontinue use and
contact yourlocaldealer.
FOR YOUR SAFETY
1. Do notstoreorusepetrol or otherflammable
vapoursorliquidsinthe vicinity ofthisorany
otherappliance.
2. A gas bottlenot connected foruseshall not be
stored in thevicinity ofthis or any other
appliance.
Assembly and Operating Instructions for
3 Burner with Side Burner Gas BBQ
PDF created with pdfFactory trial version www.pdffactory.com

2
A. Parts List
Quantities varyaccording to model purchased. Specifications subject to change without priornotice. For more details on
hardware, please see the corresponding Hardware Reference Diagramforyour barbecue model.
Code Part Qty
A1 Grill assembly 1
A2 Lid handle 1
A3 Warming rack 1
A4 Cooking grill 1
A5 Heat tent 3
A6 Grease cup hanger 1
A7 Grease cup 1
B1 Right front leg 1
B2 Right rearleg 1
B3 Leftfrontleg 1
B4 Left rear leg 1
B5 Wheel 1
B6 Upper support 2
B7 Control panelassembly 2

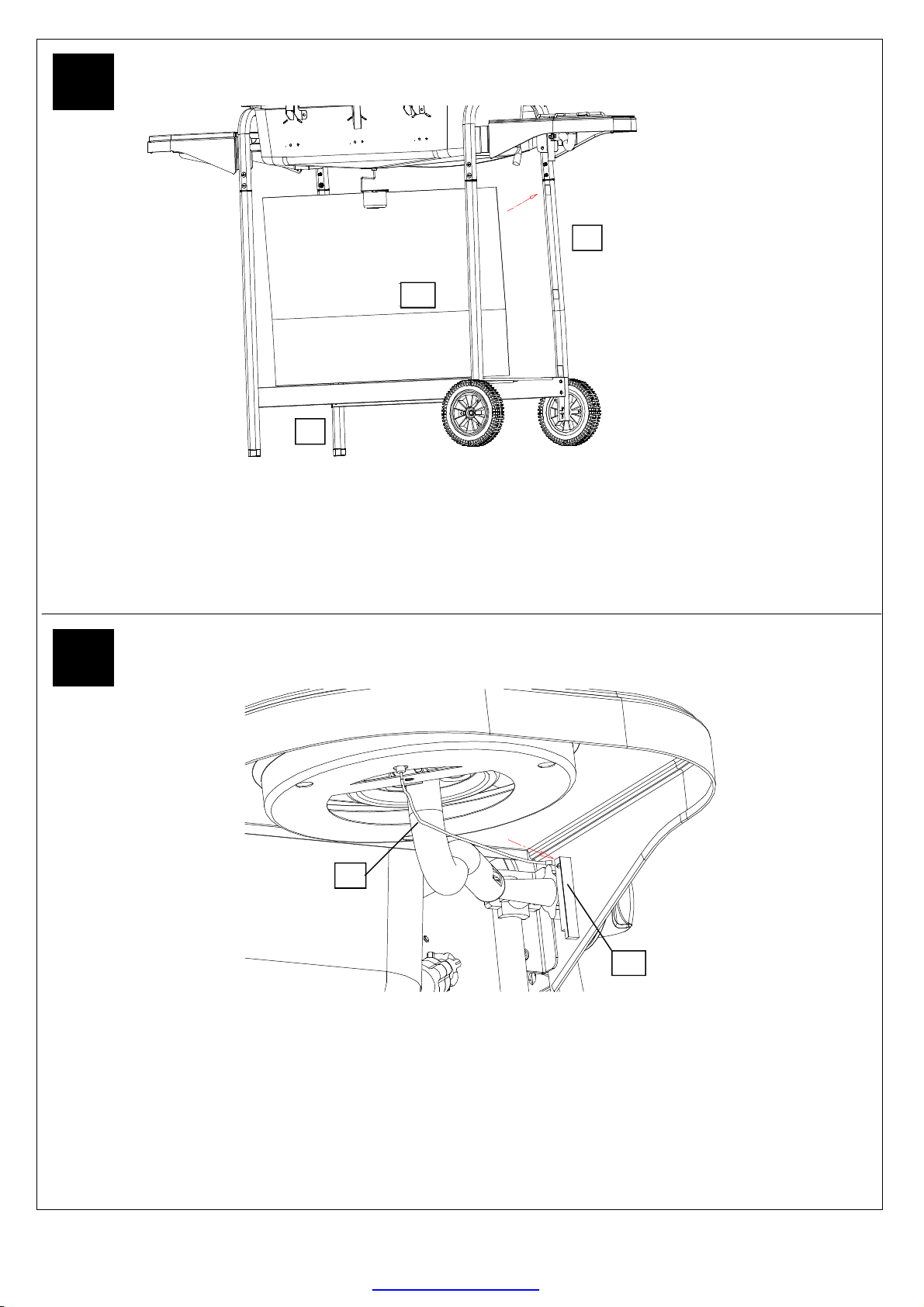

B8 Front canvas 2
B9 Bottom shelf 1
B10 Leg cap 1
C1 Side table 1
C2 Side table front support 1
C3 Side table rear support 1

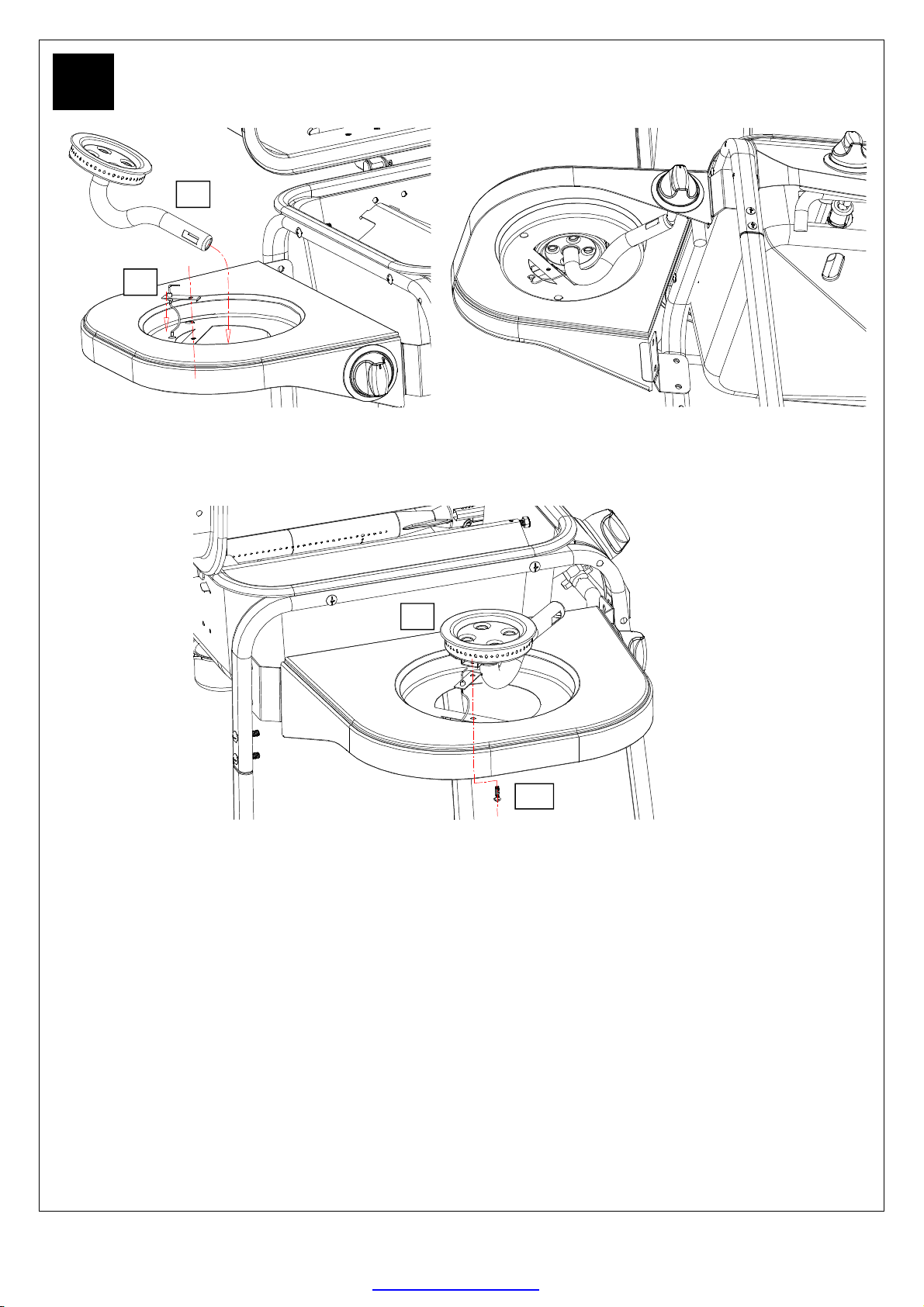

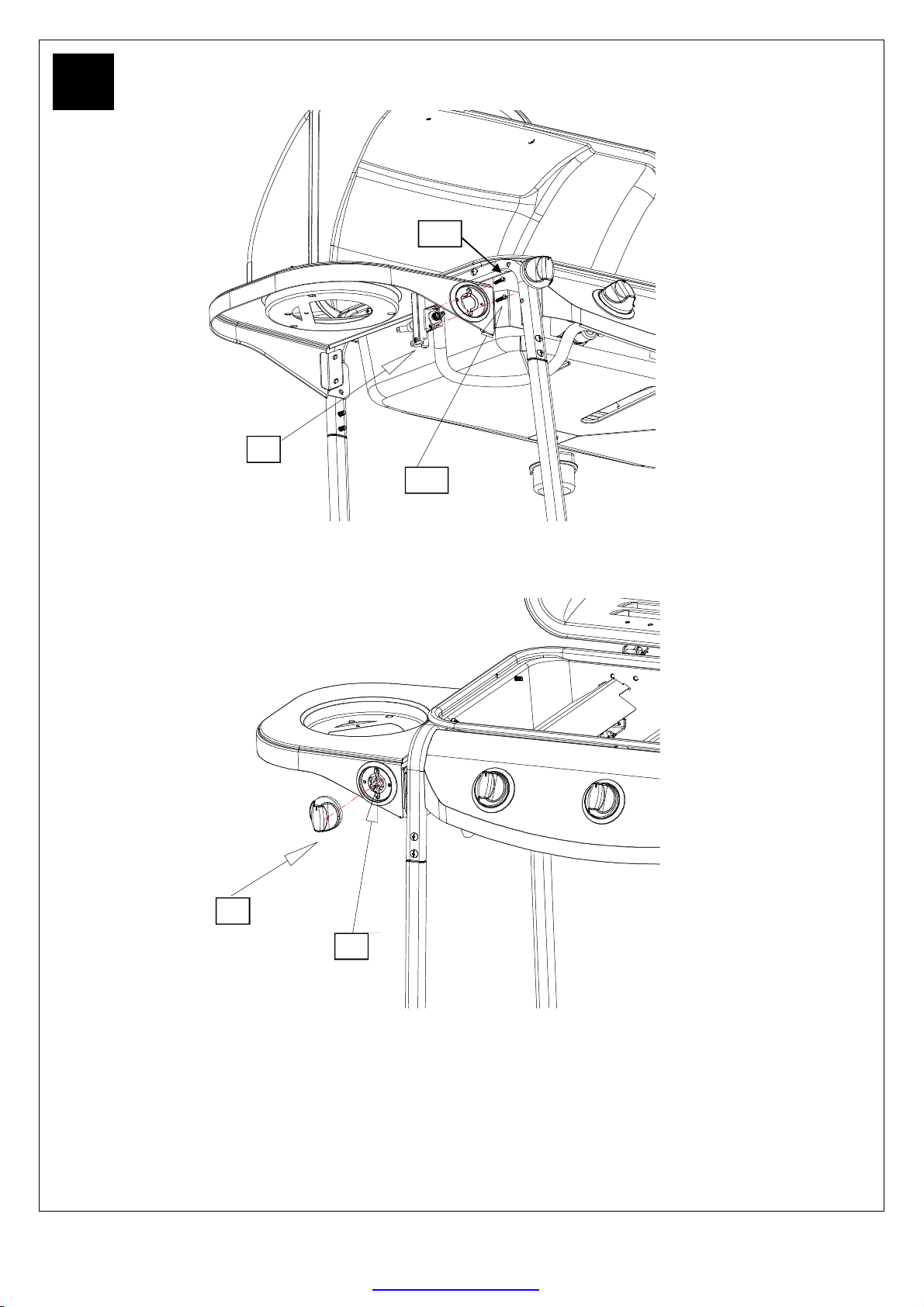

D1 Side burner assembly 1
D2 Side burner knob 1
D3 Side burner electrode 1
D4 Side burner 1
D5 Side burner grate 1
E1 M6*25 bolt 11
E2 M6*10 bolt 8
E3 M6 nut 15
E4 M6*40 bolt 8
E5 M5*10 bolt 2
E6 R Pin 2
E7 Axle 2
E8 M6*15 bolt 4
E9 M6*20 Shoulder bolt 4
E10 M4*8 round head bolt 2
E11 ST4*10 bolt 4
E12 Washer 2
E13 M4*8 pan head bolt 1
PDF created with pdfFactory trial version www.pdffactory.com

3
B1. Parts Diagram
Quantities varyaccording to modelpurchased. Specifications subject to change without prior notice. For moredetails on
hardware, please see the corresponding Hardware Reference Diagramforyour barbecue model.
PDF created with pdfFactory trial version www.pdffactory.com

4
B2. Hardware ReferenceDiagram
Specifications subject to change without priornotice.
M4*8 PanHead
Bolt1PC
E13
M4*8 Round HeadBolt 2 PCS
PDF created with pdfFactory trial version www.pdffactory.com

5
C. Assembly
TOOLS NEEDED FOR ASSEMBLY:
Medium size flat blade or Philips/cross-point screwdriver, adjustable spanner or metricspanner set.
This barbecue requires two people for assembly.Please removeallpackaging materials from allindividualparts before
assembling.Please lay outallnuts and bolts and check lengths before assembling.Whilst everycareis takenduringthe
manufacture of this product, care must be taken during the assembly in case sharp edges are present.
1
Fig 1
Fig 2
Putthe RightFront Leg (B1) and RightRear Leg(B2) ontheBottomShelf (B3)using M6*10Bolt(E2 )asFig
1. Fix the bolts tightly bythe screwdriver.
2
Putthe Left Front Leg (B3)and Left RearLeg(B4)on the Bottom Shelf (B9)usingM6*10 Bolt (E2) as Fig2.
Fix thebolts tightly bythe screwdriver.
B9
B1
B2
B1
B2
B9
B9 B9
B4
B4
B3
B3
B4
B1
B2
B1
B2
PDF created with pdfFactory trial version www.pdffactory.com

6
3
Fig 3
Fig 4
Fix theLegCap(B10) to theRight Front Leg (B1) and Right Rear Leg (B2) as Fig3. Hammer theLeg Cap
(B10) slightly to make itfix onthe legs.
4
Insert theWheels (B5) toLeftFront Leg (B3) andLeft Rear Leg (B4) usingtheAxle (E7). Thenfix theAxle (E7)
by R pin (E6) asFig 4.
B1
B2
B10
B4
B3
B5
E6
E7
PDF created with pdfFactory trial version www.pdffactory.com

7
5
Fig 5
Fig 6
ConnecttheUpper Support (B6) with theLeftFrontLeg(B3) and LeftRear Leg (B4)usingtheM6*25bolt (E1)
and M6 nuts (E3) asFig 5.
Repeatthesameconnectionof the Upper Support(B6) withtheRightFrontLeg (B1)andRightRearLeg(B2)
usingthe M6*25bolt (E1) and M6 nuts (E3) as Fig5.
Fix thebolts tightly bythe screwdriver.
6
Fix the Control Panel Assembly (B7) to Upper Supports (B6) using M6*40bolt (E4) as Fig 6.Fix the bolts
tightlyby the screwdriver.
B6 B6
B4
B3 B1
B2
B6 B6
B7
PDF created with pdfFactory trial version www.pdffactory.com

8
7
Fig 7b Fig 7c
Fix theburner of theGrill Assembly(A1) using M6*25 bolt (E1) and M6 nut(E3) as Fig7a.
Set theGrill Assembly (A1) on theUpper Supports (B6) and fix it by M6*40bolt (E4) andM6 nut(E3) asFig 7b
and 7c. (Do not tightentheboltsatthisstage.)
Align all thevalves ontheControl Panel Assembly (B7) againsteach venturi ofthe burner ontheGrill
Assembly (A1). Make sureall the valve tips gointothe venture tubecompletely with goodalignment. Fix all the
bolts andtighten them by the screwdriver.
B6 B6
Fig 7a
PDF created with pdfFactory trial version www.pdffactory.com

9
8
Fig 8a
HangtheGrease Cup Hanger (A6) and Grease Cup (A7) on the Grill Assembly (A1) as Fig 8a and 8b.
9
Placethe HeatTent (A5) on top of eachburner of theGrill Assembly (A1).
Align the Heat Tent (A5) with tabs on its endagainst slotson the firebowl back as Fig 9a.
Rest theHeat Tent(A5) onthepre-assembled bolts fixedon step7 asFig 9b.
Fig 9a
Fig 8b
A6
A6
A7
Fig 9b
A5 A5
PDF created with pdfFactory trial version www.pdffactory.com

10
10
Fig 10
Put theWasher (E12) betweentheLid Handle (A2) and the Lid of the Grill Assembly(A1).
Align the holes and fix theLid Handle (A2) on theLid ofthe Grill Assembly (A1) usingM5*10 bolts (E5)as
Fig 10.
Fix thebolts tightly bythe screwdriver.
11
Assemble theSide Table Front Support (C2) andSideTable Rear Support (C1) to theSide Table (C1).
Secure thesupports with ST4.0*10 screws (E11) as Fig 11.
Fig 11
C2 C3
A2
A1
E5
E12
