RIDLEY NOAH DISC AERO+ User manual

NOAH DISC AERO+
frame passport
Type: 7E2
last update: 12/10/2017

NOAH DISC Aero+
frame passport
NOAH SL DISC Aero+| frame passport | 2
INDEX
0. UPDATES............................................................................................... 3
1. GENERAL............................................................................................... 3
1.1. Description ......................................................................................................................... 3
1.2. Part codes........................................................................................................................... 3
2. MATERIAL ............................................................................................. 3
3. WEIGHT ................................................................................................. 3
3.1. Frame................................................................................................................................... 3
3.2. Fork....................................................................................................................................... 3
4. GEOMETRY............................................................................................ 4
5. CABLE ROUTING ................................................................................... 4
5.1. Compatibility...................................................................................................................... 4
5.2. Mechanical cable routing................................................................................................ 4
5.3. Electronic cable routing.................................................................................................. 4
5.3.1. Shimano DI2 & Campagnolo EPS................................................................................................................... 4
5.3.2. Sram etap............................................................................................................................................................ 5
5.4. Manual................................................................................................................................. 5
6. PARTS ................................................................................................... 5
6.1. Fork....................................................................................................................................... 5
6.1.1. Material................................................................................................................................................................ 5
6.1.2. Dimensions ......................................................................................................................................................... 5
6.1.3. Part codes ........................................................................................................................................................... 5
6.1.4. testing .................................................................................................................................................................. 5
6.2. Headset ............................................................................................................................... 5
6.3. Seat post............................................................................................................................. 6
6.3.1. Seat post clamp .................................................................................................................................................6
6.4. Bottom bracket ..................................................................................................................6
6.5. Brakes.................................................................................................................................. 7
6.6. Derailleur ............................................................................................................................ 7
6.6.1. Front ..................................................................................................................................................................... 7
6.6.2. Rear....................................................................................................................................................................... 7
6.7. Drop outs ............................................................................................................................ 7
7. WHEELS AND TIRES.............................................................................. 8
7.1. Frame................................................................................................................................... 8
7.2. Tires ..................................................................................................................................... 8
8. WARRANTY INFORMATION................................................................... 8
8.1. Maximum rider weight .................................................................................................... 8

NOAH DISC Aero+
frame passport
NOAH SL DISC Aero+| frame passport | 3
0. UPDATES
The development of frames, forks and components is a continuous running process. Therefore we
strongly advise before reading this information sheet check our website for new updates.
1. GENERAL
1.1. DESCRIPTION
The Noah SL Disc is the first Ridley bike to have fully integrated cables. The evolution has been made
possible by using the new Cable Management Section (CMS) Fork and the new Forza integrated aero
cockpit that creates a wind cheating leading edge of the bike.
“Our wind tunnel testing has shown the drag around the front end of the bike is significantly redu-
ced when using the Noah Disc Aero+ instead of using the regular Noah SL Disc”, says Jochim Aerts,
CEO of Ridley. “The external cable routing was accountable for a majority of drag around the cockpit
area. Eliminating that is a big improvement to the already race winning recipe.”
1.2. PART CODES
All the Noah Disc Aero+ frames have a particular part code composed by the letters “FRANSDRID...”,
added by 3 numbers. The three numbers change depending on the design and size of the frame. Due
to the big amount of frames we don’t list all the numbers but you can contact your local dealer for
more information if needed.
2. MATERIAL
Used frame materials:
– 60 ton High Modulus Carbon
−40 ton High Modulus Carbon
−30 ton High Modulus Carbon
−Stainless steel (drop out protection plates)
3. WEIGHT
3.1. FRAME
(*) Weight of unpainted frame, real weight may differ from the weight mentioned above by ± 10 %.
3.2. FORK
The weight of the Noah SL Aero + CMS (cable management system) Disc F-Splitfork Race is around
540 g (*)
(*) Weight of unpainted fork, real weight may differ from the weight mentioned above by ± 10 %.
size weight (*)
xs 1146 grams
S 1159 grams
M 1168 grams
L 1180 grams
Xl1192 grams

NOAH DISC Aero+
frame passport
NOAH SL DISC Aero+| frame passport | 4
4. GEOMETRY
(*) J: Stand over height, measured with 25 mm tires installed.
5. CABLE ROUTING
5.1. COMPATIBILITY
The Noah SL Disc is compatible for:
−Mechanical groupsets (Shimano systems with a front derailleur with cable stopper-
hydraulic or Mechanical brakes)
−Electronical groupsets: Shimano Di2, Campagnolo EPS & SRAM eTap (Hydraulic or Mechani
cal brakes)
5.2. MECHANICAL CABLE ROUTING
Below you can find the parts needed for a mechanical groupset (Shimano Dura ace 9100 and ultegra
R8000):
5.3. ELECTRONIC CABLE ROUTING
5.3.1. SHIMANO DI2 & CAMPAGNOLO EPS
Below you can find the parts needed for an electronical groupset
SIZE A B C D E F G H I J* S R
XxS
755 460 516 110 75,0 72,0 405 68 970 748 507 379
xS 770 475 525 130 74,0 72,0 405 68 970 764 527 374
s 785 490 545 145 73,5 73,0 405 66 977 780 542 384
m 815 520 565 175 73,0 73,5 405 66 987 809 573 390
l 845 550 585 205 72,5 73,5 408 63 1005 839 599 396
part part code Location
Ridley BB cable guide FRPGRORID006 bottom bracket
Rear dropout plug FRPGRORID007 Rear dropout
Foam tube 0.4m CABFOAJAG001 DOWN TUbe
Foam tube 0.4m CABFOAJAG001 DOWN TUbe
Foam tube 0.4m CABFOAJAG001 DOWN TUbe
part part code Location
Ridley BB cable guide FRPGRORID006 bottom bracket
Rear dropout plug FRPGRORID007 Rear dropout
Plug round top FRPGROJAG009 seat tube
battery adapter SPTDI24ZA001 Seatpost
Foam tube 0.4m CABFOAJAG001 DOWN TUbe

NOAH DISC Aero+
frame passport
NOAH SL DISC Aero+| frame passport | 5
5.3.2. SRAM ETAP
5.4. MANUAL
Check out the Manual on the Ridley website for more detailed instructions on how to assemble the
Noah SL Aero +.
6. PARTS
6.1. FORK
The standard fork, used for a Noah SL Disc Aero +, is the Noah SL Disc Aero + CMS fork.
6.1.1. MATERIAL
−Fork legs: Carbon
−Steerer tube: Carbon
6.1.2. DIMENSIONS
−Steerer tube length: 300 mm
−Headset: 1 1/8” upper ring – 1 1/2” lower ring
−Fork rake: 45 mm
−OLD (OverLock nut Distance): 100 mm
6.1.3. PART CODES
All the Noah SL Disc Aero + F-Splitforks have a particular part code composed by the letters “FOR-
RFL4ZA...”, added by 3 numbers. The three numbers, depending on the design. Due to the big
amount of forks we don’t list all the numbers but you can contact your local dealer for more infor-
mation if needed.
6.1.4. TESTING
Like all Ridley and 4ZA components the Noah Disc Aero+ fork passed all obliged testing protocols
(EN and ISO). To validate the structural rigidety of the Propriotary fork design 300 000 additional
testing cycles were performed on the Aero+ CMS fork.
6.2. HEADSET
45° Oversized angular contact bearing (S.H.I.S.: IS42/28,6|IS52/40):
−Lower bearing: 1 1/2”
−Upper bearing: 1 1/8”
Recommended headsets:
part part code Location
Ridley BB cable guide FRPGRORID006 bottom bracket
Plug flat top FRPGROJAG002 seat tube
Plug flat top FRPGROJAG002 rear dropout
Foam tube 0.4m CABFOAJAG001 DOWN TUbe
ridley part code type brand
HSERACFSA008 NO.42/ACB-a-h6091 FSA
HSERACFSA009 NO.42/CFST/ACB-a-h6091 FSA

NOAH DISC Aero+
frame passport
NOAH SL DISC Aero+| frame passport | 6

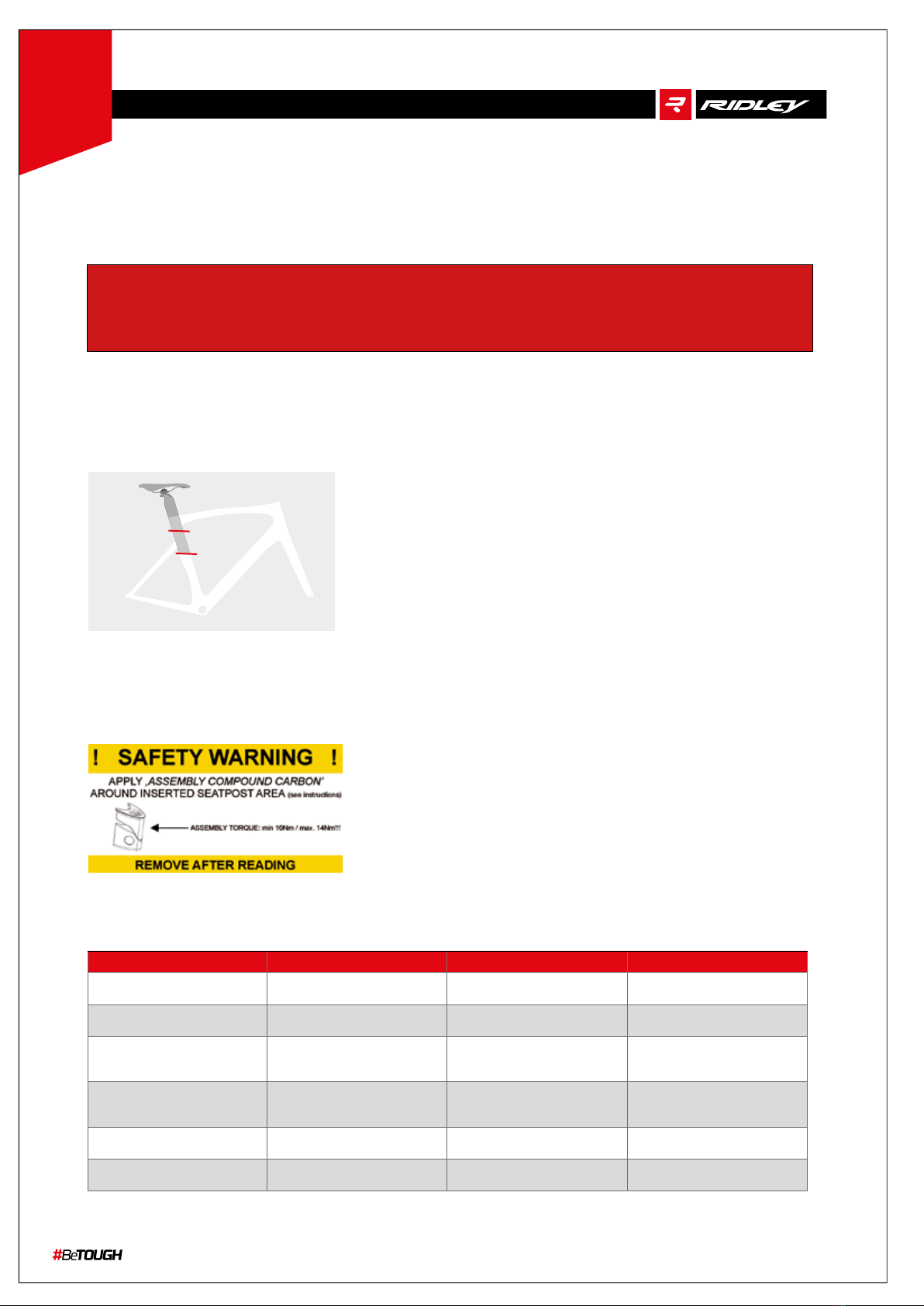

6.3. SEAT POST
The Noah SL Disc Aero +comes with a color matched Ridley Aero seat post that weighs around 230
grams.The part code of the seatpost is composed by the letters “SEPAER4ZA...”
! PAY ATTENTION THE MINIMUM INSERT DEPTH OF THE SEAT POST IS 100 MM.
! PAY ATTENTION THE MAXIMUM INSERT DEPTH OF THE SEAT POST IS 200 MM, INSERTING
THE SEATPOST TOO DEEP INTO
THE SEAT TUBE CAN DAMAGE THE SEAT TUBE AT THE WHEEL CUT OUT AREA.
The Noah SL Disc Aero + seatpost measures 350 mm measured from the center of the saddle rails
to the bottom of the seatpost. As a result the maximum exposed seatpost length measures 250 mm
(measured from the center of the saddle rails to the top end of the seat tube). The minimum ex-
posed seatpost length measures 150 mm but can be further reduced by cutting the seatpost to the
desired size.
6.3.1. SEAT POST CLAMP
Noah Disc Aero+ frames use the SPCNSLRID002 2-piece seatpost clamp with the FRPGRORID009
seatpost clamp plug.
6.4. BOTTOM BRACKET
The bottom bracket is designed for press fit 30 cups with a diameter of 46 mm and width of 68 mm.
Below bottom bracket cups are being used for the standard assembled bikes.
part code brand description compatible cranksets
BBRPF3SRA001 Sram Press Fit 30 cups Sram Press Fit 30
cranksets
BBRPF3SRA003 Sram Press Fit 30 to
BSA 68 adapter
SRAM BSA 68 cranksets
shimano bsa 68 cranksets
BBRPF3CAM002 Campagnolo Ultra Torque™ OS-Fit™
integrated cups BB30
68x46
Campagnolo Ultra Torque
cranksets
BBRPF3CAM003 Campagnolo Power Torque™ OS-Fit™
integrated cups BB30
68x46
Campagnolo Power Torque
cranksets
BBRPF3CBE003 C-Bear C-Bear cups for Campagnolo
Ultra torque
Campagnolo Ultra Torque
cranksets
BBRPF3CBE004 C-Bear C-Bear cups for Campagnolo
Power torque
Campagnolo Power Torque
cranksets
max 200
mm
min 100 mm

NOAH DISC Aero+
frame passport
NOAH SL DISC Aero+| frame passport | 7
6.5. BRAKES
The Noah Disc Aero+ is suited for most standard brakes available in the market.
Fork:
− Type: Flat mount
− Thru axle: D 12mm, L 120mm, P1.5mm
− Max. rotor size: 160mm*
Frame:
− Type: Flat mount
− Thru axle: D 12mm, L 167mm, P1.5mm
− Max. rotor size: 160mm*
* Fork and frame are designed to use a 140 mm rotor. A 160 mm rotor can be mounted by use of an
adapter.
6.6. DERAILLEUR
6.6.1. FRONT
The frame is provided with a braze on clamp.
6.6.2. REAR
The hanger, used for the Noah Disc Aero+ is the HAARCERID037.
6.7. DROP OUTS
The Fork features a stainless steel threaded insert for fixation of the front thru axle.

NOAH DISC Aero+
frame passport
NOAH SL DISC Aero+| frame passport | 8
7. WHEELS AND TIRES
7.1. FRAME
The frame is developed for 700C race wheels with a build in width of 100mm front and 142 mm rear.
7.2. TIRES
We recommend a maximum tire width of 25 mm with a maximum rim width of 28 mm.
Please note that not all tire manufacturers use the same sizing standard so we recommend to do
assembly check and confirm clearances.
8. WARRANTY INFORMATION
8.1. MAXIMUM RIDER WEIGHT
The maximum advised rider weight is 110 kg.
