Riello RIELLO 7200/3F-800 HV PLUS User manual

cod. Doc-0071233 rev. 3 09/2017
7200/3F HV PLUS
EN INSTALLATION, OPERATION AND MAINTENANCE MANUAL

2
GENERAL INFORMATION
This manual, Code Doc-0071233 - Rev. 3 (09/2017)
comprises 8 pages.
GENERAL INFORMATION
RANGE
MODEL CODE
RIELLO 7200/3F - 800 HV PLUS 20136273
RIELLO 7200/3F - 1000 HV PLUS 20136274
RIELLO 7200/3F - 1500 HV PLUS 20136275
RIELLO 7200/3F - 2000 HV PLUS 20136277
RIELLO 7200/3F - 3000 HV PLUS 20052788
ACCESSORIES
For a complete list of accessories and details of their compatibil-
ity, refer to the Catalogue.
Dear heating engineer,
We would like to congratulate you on having recommended a
Rstorage cylinder unit: a modern product that's capable of
ensuring a high degree of reliability, efciency, quality and safe-
ty.
While your technical skills and knowledge will certainly be more
than sufcient, this booklet contains all the information that
we have deemed necessary for the device's correct and easy in-
stallation.
Thank you again, and keep up the good work,
Riello S.p.A.
CONFORMITY
The Rsolar heaters comply with DIN 4753-3 and UNI EN 12897.
CONTENTS
The following symbols are used in this manual:
9 CAUTION! = Identies actions that require caution and
adequate preparation.
0 STOP! = Identies actions that you MUST NOT do.
1 GENERAL SAFETY INFORMATION
9 Check that the product is complete, undamaged and as or-
dered as soon as you receive it. Report any discrepancies or
damage to the Rdealer who sold it.
9 This product must be installed by a legally qualied heat-
ing engineer. On completion of the installation, the install-
er must issue the owner with a declaration of conformity
conrming that the installation has been completed to the
highest standards in compliance with the instructions pro-
vided by Rin this instruction manual, and that it con-
forms to all applicable laws and standards.
9 This product must only be used for the purpose for which it
is designed and made, as specied by R. Rdeclines
all responsibility, contractual or other, for damage to prop-
erty or injury to persons or animals caused by improper in-
stallation, adjustment, maintenance or use.
9 The product must be serviced at least once a year. Servicing
must be arranged in advance with the RTechnical Assis-
tance Service.
9 All servicing and repairs must be performed by a qualied
heating engineer.
9 If water leaks from the storage cylinder, turn off the water
supply and contact R’s Technical Assistance Service or a
qualied heating engineer immediately.
9 If the product is not going to be used for an extended peri-
od of time, contact the manufacturer’s Technical Assistance
Service to have at least the following operations performed:
−Close the shut-off cocks for the domestic hot water circuit
−Shut down the boiler connected to the storage cylinder
as instructed in its own manual
−Switch the storage cylinder OFF at the control panel (if
tted) and at the mains power switch
−Drain the central heating circuit and domestic hot water
circuit if there is any risk of freezing.
9 This instruction manual is an integral part of the product. It
must be kept safe and must ALWAYS accompany the product,
even if it is sold to another owner or transferred to another
user or to another installation. If you lose this manual, or-
der a replacement immediately. Keep the product purchase
documents to be presented to the Rauthorised Technical
Assistance Service to request a service call under warranty.
Thismanual,Code
-Rev.
comprises
pages.
ENGLISH
Generalinformation
GENERAL INFORMATION
1 General Safety Information ......................2
2 Precautions..................................3
3 Description of the appliance .....................3
4 Identication ................................3
5 System layout ................................4
6 Technical specications.........................4
INSTALLATION
7 Unpacking the product .........................5
8 Installing the magnesium anodes.................5
9 Fitting the insulation (models 2000 - 3000)..........5
10 Place of installation ...........................6
11 Installation in older systems and systems requiring
modernisation ...............................6
12 Water quality requirements......................6
13 Water connections ............................7
14 Recycling and disposal .........................8
END USER
15 Start-up ....................................8
16 Temporary shutdown ..........................8
17 Preparing for extended periods of disuse ...........8
18 External maintenance..........................8

3
GENERAL INFORMATION
GENERAL INFORMATION
9 Size the solar expansion tank so as to ensure complete ab-
sorption of the expansion of the uid contained within the
system, with reference to the prevailing regulations on the
matter. In particular, consider uid characteristics, consid-
erable uctuation of service temperature and vapour that
might be generated during solar collector stagnation stage.
Proper size of expansion tank ensures setting off of all vol-
ume changes of the heat transfer uid, avoiding excessive
pressure increase. Limited pressure changes avoid reach-
ing safety valve opening pressure and the consequent uid
drainage.
2 PRECAUTIONS
The operation of any appliance that uses electrical power de-
mands that a number of fundamental safety precautions be re-
spected. In particular:
0 Never attempt to install the system without using suitable
personal protection equipment and without following all
applicable occupational safety standards.
0 Do not touch the product when barefoot or wet if it has any
electrical accessories installed in it.
0 Never clean or service the storage cylinder without rst
turning the mains power switch OFF to disconnect all elec-
trical accessories (if tted) from the mains electricity supply.
0 Never pull, disconnect, or twist any electrical cables coming
from the appliance even if it is disconnected from the mains
electricity supply.
0 Do not expose the storage cylinder to the elements. It is not
designed for use outdoors.
0 If solar plant pressure decreases, it is forbidden to top up
with only water as there is a danger of freezing and over-
heating.
0 Do not use connections or safety devices or ttings (expan-
sion vessels, pipes, insulation) that are not specically de-
signed and tested for use in solar water heating systems.
0 Do not allow children or inrm persons to operate the sys-
tem unsupervised.
0 Do not dispose of packaging material into the environment,
or leave it within the reach of children, since it can become
a potential hazard. Dispose of packaging material in com-
pliance with applicable legislation.
3 DESCRIPTION OF THE APPLIANCE
R7200/3F HV PLUS solar tanks can be integrated into solar
systems to produce domestic hot water. They can also be paired
with heat pumps or boilers and heating units.
The most important technical features of these solar storage cyl-
inders are:
−special tank design and shape for optimum performance
in terms of stratication, heat exchange and replenish-
ment time
−Water ttings are available at different heights, permit-
ting different hot water generators to be used without
reducing the stratication effect
−insulation made of expanded polyurethane free from CFC
(chlorouorocarbons)
−the use of three anges, which means additional ex-
changers can be added

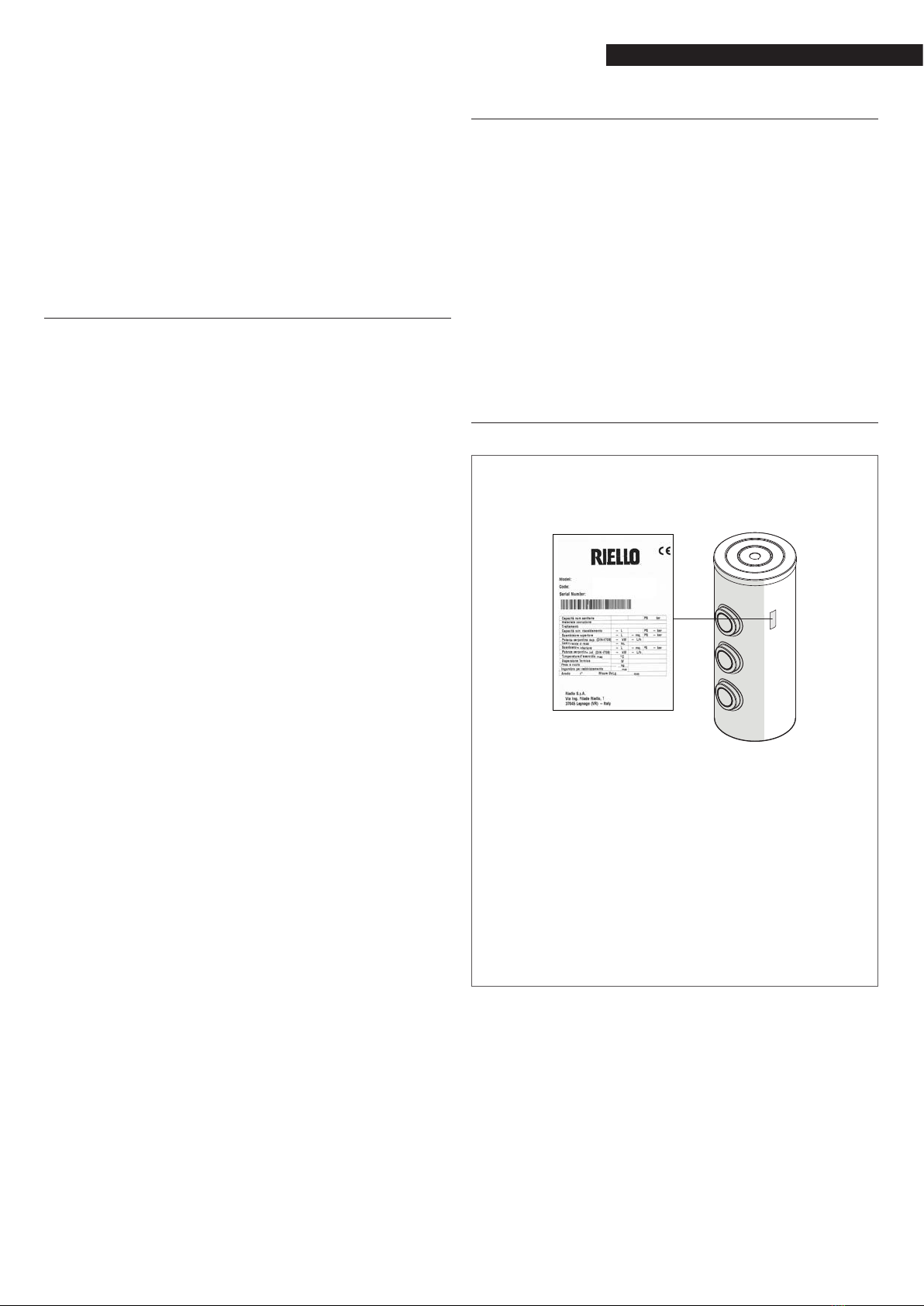

4 IDENTIFICATION
The R7200/3F HV PLUS solar heaters can be identied by:
Data plate
This lists the technical specications and performance of the
product.
Serial number plate
This species the serial number and model.
9 If these plates or any other means of clearly identifying
the product are defaced, removed or lost, proper instal-
lation and servicing may be rendered difcult.
9 On models 2000 and 3000 the technical data plate and
serial number plate must be applied (by the installer) af-
ter the insulation has been tted.

4
GENERAL INFORMATION
GENERAL INFORMATION

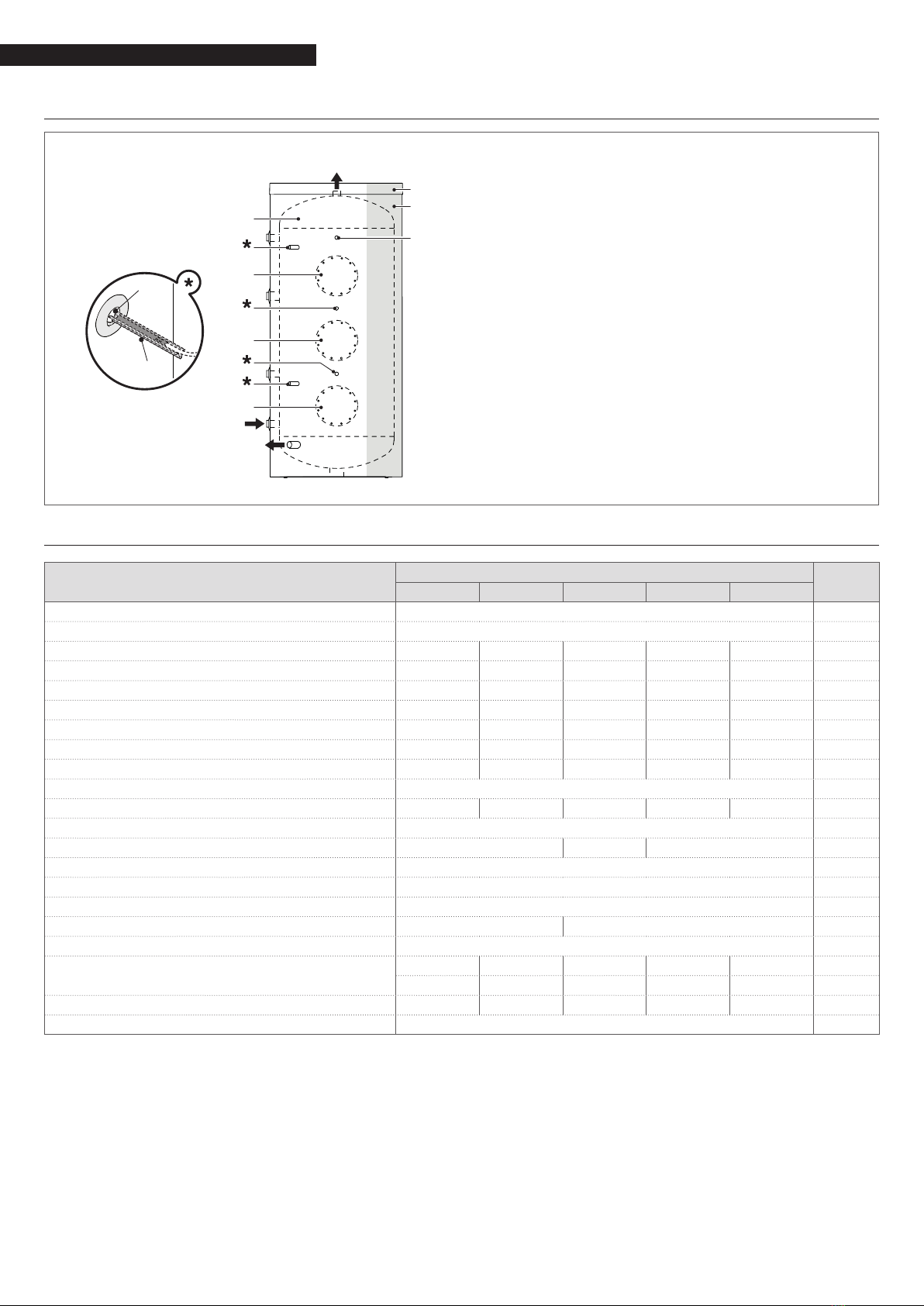

5 SYSTEM LAYOUT
UAC
EAF
SB
1
5
6
7
2
3
3
3
4
M
P
2
4
1 Storage cylinder
2 Probe/electronic anode pit (optional)
3 Flange for inspection/insertion of additional exchang-
ers
4 Probe pit
5 Thermometer connection
6 Insulation
7 Cover
MGuide
UAC Domestic hot water outlet
EAF Domestic cold water inlet
PSocket
SB Storage cylinder drain
6 TECHNICAL SPECIFICATIONS
DESCRIPTION 7200/3F HV PLUS
800 1000 1500 2000 3000
Type of storage cylinder Vertical, glazed
Heat exchanger layout Horizontal
Storage cylinder capacity 749 955 1430 1990 2959 l
Useful non-solar volume (Vbu) (*) 420 490 790 1210 1745 l
Solar usable volume (Vsol) (**) 329 465 640 780 1214 l
Diameter of storage cylinder with insulation 990 990 1200 1300 1450 mm
Diameter of storage cylinder without insulation 790 790 1000 1100 1250 mm
Height with insulation 1875 2205 2185 2470 2680 mm
Height without insulation 1810 2140 2120 2425 2650 mm
Insulation thickness 100 mm
Total net weight 150 190 305 325 543 kg
First magnesium anode (Ø x length) 32x700 mm
Second magnesium anode (Ø x length) -32x400 32x700 mm
Flange diameter (external/internal) 290/220 mm
Diameter/length of sensor sockets 8/200 mm
Sleeve for electric heating element (***) 1" 1/2 Ø
Maximum operating pressure of storage cylinder 10 8bar
Maximum operating temperature 99 °C
Discharges according to EN 12897:2006 ∆T=45 °C (am-
bient 20°C and storage at 65°C)
130 142 162 186 344 W
3,12 3,408 3,888 4,464 8,26 kWh/24h
Energy class CCCC-
Insulation type Soft PU shells
Vbu (*) The non-solar usable volume indicates the quantity of water (in litres) heated directly by the thermal integration coil. It
is calculated as the volume between the upper part of the heater and the lower part of the thermal integration element
(integration coil lower turn). The value shown in the tale refers to the coil located in the central part of the puffer. The
position of the coil can be changed and the volume changes as a result.
Vsol (**) The usable solar volume indicates the quantity of water (in litres) heated directly by the solar coil (placed in the lower
part of the heater) minus the non-solar volume (Vbu).
(***) Electrical heating element (not supplied).

5
INSTALLATION
INSTALLATION
7 UNPACKING THE PRODUCT
R7200/3F HV PLUS solar heaters are supplied in a single pack-
age on a wooden pallet.
The insulation and cladding components on models 2000 and
3000 are supplied separately from the structural parts and should
be assembled when you receive the product, as described in the
section "Fitting the insulation (models 2000 - 3000)".
The following items are delivered in a plastic bag inside the
packaging:
−Instruction manual
−Bar code labels
−Hydraulic test certicate
9 The instruction manual is an integral part of the solar stor-
age cylinder. Once located, read it thoroughly and keep it
safe.
9 For handling operations, thoroughly follow the instructions
on device package label.
8 INSTALLING THE MAGNESIUM ANODES
Use the anodes provided; when assembling, note the position
and lengths provided in the technical data table.
7200/3F HV PLUS 800 ÷ 1500 models
−Partially remove the cladding, remove the washer and
unscrew the anode-holder plug in the sleeve using a
spanner
−Insert the anode provided, tighten the anode using a
spanner and then put the washer back in position.
7200/3F HV PLUS 2000 - 3000 models
−Before tting the cladding, unscrew the anode-holder
plug in the sleeve using a spanner
−Insert the anode provided and tighten the anode using
a spanner.
NOTE: Tighten the anode plug to a torque of 25-30 Nm.
9 FITTING THE INSULATION (MODELS 2000 - 3000)
Once the tank is in the right position in the installation room,
the insulation and nishing parts for the tank can be installed.
Proceed as follows:
−Wrap the insulation (1) around the storage cylinder, care-
fully lining up the ttings with the holes on the inside
of the insulation. Secure the insulation in place with the
zips (2) at the edges of the two sections
1
1
2
2
2
−Drill the holes in the insulation for the connectors and
insert the washers (3)
−Fit the ange cover (4)
−Finally, t the insulation top panel (5) and cover it with
the thermoformed cover (6).
3
5
6
4
Installation

6
INSTALLATION
INSTALLATION
If disassembling is required, proceed in reverse order.
9 To nish the assembly, apply the serial number plate, rat-
ing plate and product plate, so that the tank can be easily
identied.
10 PLACE OF INSTALLATION
R7200/3F HV PLUS solar heaters can be installed in all rooms
not requiring a level of electrical protection of the device greater
than IP X0D.
≥ 0,3 m
≥ 0,3 m
≥ 0,3 m
≥ 0,6 m
≥ 0,7 m
NOTE: the above-indicated dimensions are recommended for a
correct maintenance and access to the device.
11 INSTALLATION IN OLDER SYSTEMS AND SYSTEMS
REQUIRING MODERNISATION
When installing R7200/3F HV PLUS storage cylinders in old
systems or systems requiring modernisation, always perform
the following checks.
−Make sure that the system is tted with safety and con-
trol devices in accordance with applicable legislation and
standards
−Make sure that the central heating circuit has been
ushed out to remove all sludge and lime scale, and has
been vented and seal tested
−Make sure that a suitable water treatment system is in-
stalled if the quality of the supply/recirculation water so
demands (refer to the reference values listed in the table
alongside).
12 WATER QUALITY REQUIREMENTS
REFERENCE VALUES
pH 6-8
Electrical conductivity less than 200 μS/cm (25°C)
Chlorine ions less than 50 ppm
Sulphuric acid ions less than 50 ppm
Total iron less than 0.3 ppm
Alkalinity M less than 50 ppm
Total hardness less than 35°F
Sulphur ions none
Ammonia ions none
Silicon ions less than 30 ppm
The values above ensure proper operation of the system. Refer
to the limit values specied in the current standards and regu-
lations on the installation site.

7
INSTALLATION
INSTALLATION
13 WATER CONNECTIONS
90°
45°
50 mm
H
I
L
M
N
O
P
Q
G
F
E
D
C
B
A
AE - S
AE - S
Tr
S
S
UAC
SB
AE
AE
EAF
RE
DESCRIPTION 7200/3F HV PLUS
800 1000 1500 2000 3000
UAC - Domestic hot water outlet 1 ½” F 2" F Ø
EAF - Domestic cold water inlet 1 ½” F 2" F Ø
SB - Storage cylinder drain -1” F 1”1/4 F 1”1/4 F 1”1/4 F Ø
AE - Magnesium anode 1”1/4 F Ø
AE - S - Diameter/Length of probe pit or electronic anode 8/200 mm
S - Diameter/length of sensor socket 8/200 mm
Tr - Temperature gauge 1/2" F Ø
RE - Sleeve for electric heating element (not supplied) 1 ½” F Ø
A1500 1830 1720 1990 2265 mm
B1430 1760 1650 1920 2195 mm
C1130 1295 1250 1345 1455 mm
D670 760 800 820 865 mm
E600 690 730 750 795 mm
F350 350 435 410 475 mm
G240 240 280 250 190 mm
H790 790 1000 1100 1250 mm
I470 470 545 555 580 mm
L - - 760 820 865 mm
M940 1075 1075 1085 1165 mm
N1130 1295 1290 1345 1455 mm
O1320 1610 1505 1670 1860 mm
P1510 1830 1720 1990 2265 mm
Q1810 2140 2120 2425 2700 mm
Net weight with insulation 168 188 303 321 543 kg
9 It is recommended to install shut-off valves at domestic water inlet and outlet.
9 Check the efciency of the seals when lling/relling the storage cylinder.
9 In case of a probe, any electric junction between probe cable and extensions for the connection to the electric panel must be
soldered and protected with a sheath or a suitable electric insulation.
9 Install the magnesium anode supplied (for the models 2000 - 3000).

8
END USER
END USER
14 RECYCLING AND DISPOSAL
The device is primarily composed of:
Material Component
carbon steel structural work
PU (polyurethane) insulation
PE (polyethylene) water connection washers
ABS (acrylonitrile-butadiene-styrene) covers
PVC (polyvinyl chloride) lining
At the end of the device's useful life, these components must be separated and disposed of according to current regulations in the
country of installation.
END USER INSTRUCTIONS
Refer to the GENERAL SAFETY INFORMATION and PRECAUTIONS section for safety-related information.
15 START-UP
The heater commissioning must be performed by Technical As-
sistance Service personnel.
Under certain circumstances, such as after long periods of dis-
use, the user may need to re-start it without involving the Tech-
nical Assistance Service. Before doing so, perform the following
checks and operations.
−Check that the supply cocks in the domestic water circuit
are all open
−Switch the electricity supply ON at the mains power
switch and at control panel switch (if tted).
16 TEMPORARY SHUTDOWN
To reduce to the environmental impact and save energy, in case
of brief absences, week-ends, short trips, etc., and with exter-
nal temperatures above 0°C, set the heater temperature control,
where available, to the minimum value.
9 If the temperature to which the heater is exposed can fall
below 0°C (frost hazard), perform the operations described
in paragraph "Preparing for extended periods of disuse".
17 PREPARING FOR EXTENDED PERIODS OF DISUSE
If the storage cylinder is not going to be used for an extended
period of time, ask the manufacturer’s Technical Assistance Ser-
vice to make the system safe.
18 EXTERNAL MAINTENANCE
Clean the outside of the storage cylinder with a soft cloth
damped in soapy water.
0 Do not use abrasive products, petrol or triethylene.
Enduser
RIELLO S.p.A.
Via Ing. Pilade Riello, 7
37045 - Legnago (VR)
www.riello.com
The manufacturer strives to continuously improve all products. Appearance, dimensions, technical specications, standard equipment
and accessories are therefore liable to modication without notice.
