Rikomagic MK802 II User manual

Rikomagic MK802 II User Manual
Android 4.0 Mini PC Manual
Table of Contents
Table of Contents ............................................................................................................................................. 1
Declaration:....................................................................................................................................................... 3
1.Connector ...................................................................................................................................................... 4
Shenzhen Rikomagic Tech Corp., Ltd
1.Declaration......................................................................................................................................................3
Page 1

Rikomagic MK802 II User Manual
2.Device connection Instruction ..................................................................................................................... 5
3.Boot state....................................................................................................................................................... 5
4.Main interface introduction .......................................................................................................................... 7
4.1 Function column ......................................................................................................................................................9
4.2 Status bar..................................................................................................................................................................9
4.3 Application.............................................................................................................................................................10
5.Settings.........................................................................................................................................................11
5.1 WIFI Setting...........................................................................................................................................................11
5.2 Wired network setup ..............................................................................................................................................12
5.3 PPPOE Settings......................................................................................................................................................12
5.4 Sound .....................................................................................................................................................................12
5.5 Display...................................................................................................................................................................12
5.6 Storage ...................................................................................................................................................................13
5.7 Apps .......................................................................................................................................................................13
5.8 Security ..................................................................................................................................................................13
5.9 Language & input...................................................................................................................................................13
5.10 Backup & reset.....................................................................................................................................................13
5.11 Date and time .....................................................................................................................................................13
5.12 Developer options ................................................................................................................................................13
5.13 About device ........................................................................................................................................................13
6.Download & Install Apps............................................................................................................................. 14
6.1 Delete Apps............................................................................................................................................................14
7.Web browsing.............................................................................................................................................. 14
8.local playback.............................................................................................................................................. 15
8.1 Music......................................................................................................................................................................16
9.Use virtual keyboard................................................................................................................................... 16
10.Switch input methods............................................................................................................................... 16
Question & Answer ........................................................................................................................................ 17
Specifications................................................................................................................................................. 17
Page 2

Rikomagic MK802 II User Manual
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:(1)this device may not cause harmful interference, and (2)this device must accept
any interference received, including interference that may cause undesired operation.
Declaration:
zThis user manual includes all the information for safe and correct operation of the MK802 II device. To
avoid accidents and device damage, please go through these contents carefully before using the
device.
zPlease keep the device away from high temperatures, humid and dusty environments.
zDo not drop, hit or knock the device.
Do not power off the device when it is formatting or upgrading, etc, otherwise an operation system (OS)
error may occur. Most OS errors can be solved with a simple reset of the device.
zDo not dis-assemble the device. Do not clean it with alcohol, thinner or benzene.
zWe retain the right to upgrade and modify the device without giving notice.
zDisclaimer: While we are responsible for the warranty and after-sale services, the user is responsible
for his own data written into the device. We are not responsible for the loss of any data or related.
zThe device is not water-proof.
zAll the pictures in this manual are purely for reference.
Page 3

Rikomagic MK802 II User Manual

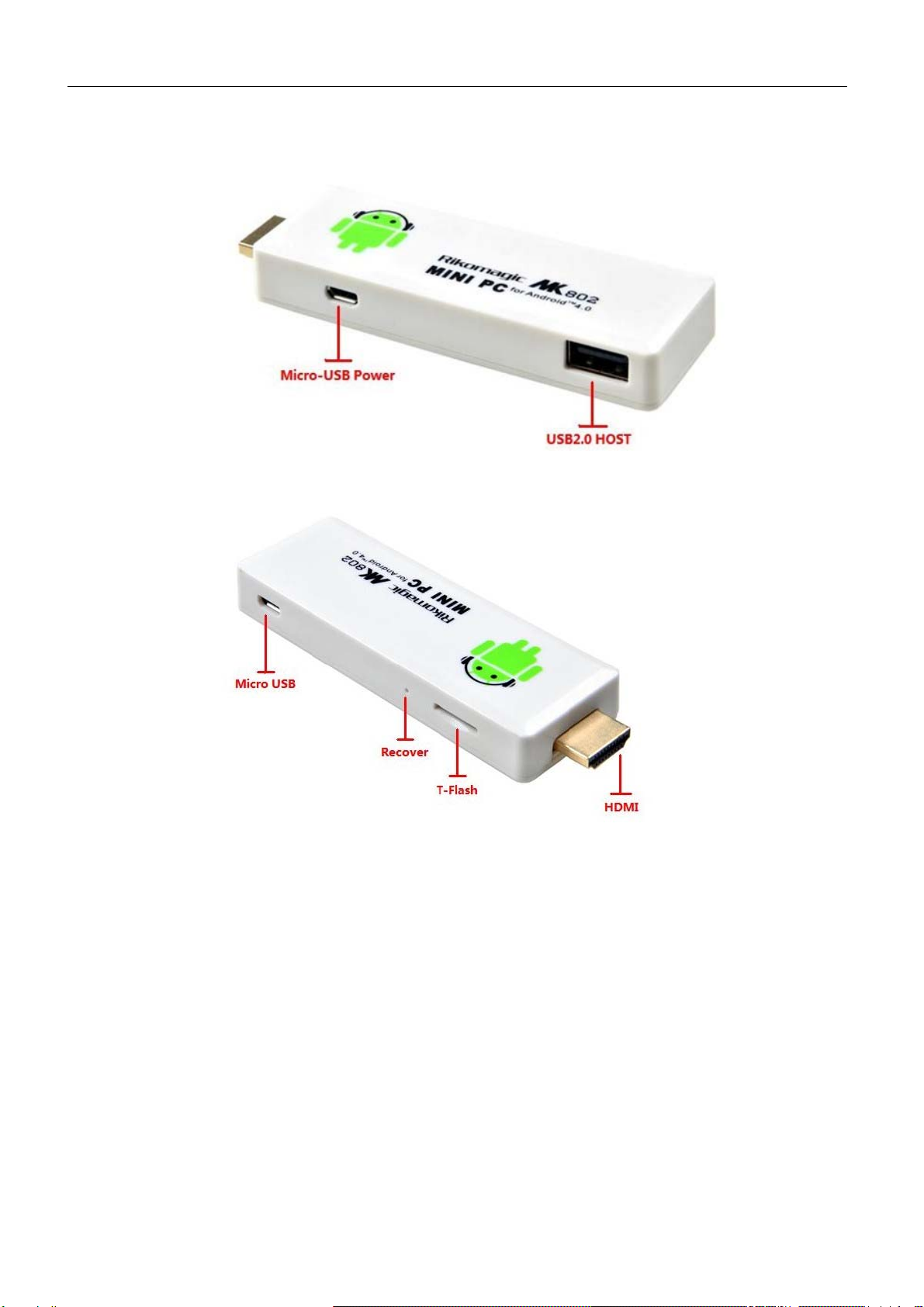

1. Connector
Micro-USB Power: 5V1APower
USB 2.0 HOST & Micro USB: Connecting with USB devices; or data transfer with computer
T-Flash: Supports expansion of storage memory from 2GB to 32GB using TF card (micro-SD)
Recover: Firmware recovery button
LED: Powerlight
HDMI: High Definition Multimedia Interface output (male) to TV or Monitor display
Page 4

Rikomagic MK802 II User Manual
2.Device connection Instruction
a) Insert the MK802 II into your TV or Monitor HDMI port (if there is not enough space around your HDMI
port, please use the HDMI extension cable included in the box). Set your TV to receive signals from
the MK802 II into this particular HDMI port (refer to your TV set user manual).
b) Power supply connection: take out the included Micro USB cable, plug it into the MK802 II's Micro
USB 2 port, then plug the other end of the cable's full-USB 2 into your TV′s USB port. (If there is no
USB 2.0 port on your TV or you need to connect an external HDD, please connect the power adapter
for a more stable power supply.
c) This device suggests using 2.4GHz wireless keyboard or mouse. Plug a 2.4GHz receiver into the USB
Host port. Or plug into the micro-USB OTG port using the included micro-USB converter. If only a
wireless mouse is plugged in, the device will provide a soft keyboard from the operation system. If the
device detects a physical keyboard, the soft keyboard will be hidden by the OS automatically.
d) Mouse left button for “OK”, right button for “Return”, scroll wheel for Page Up and Page Down. Hold
left button to drag icon or Copy & Paste file. Hold middle button for Properties.
3.Boot state

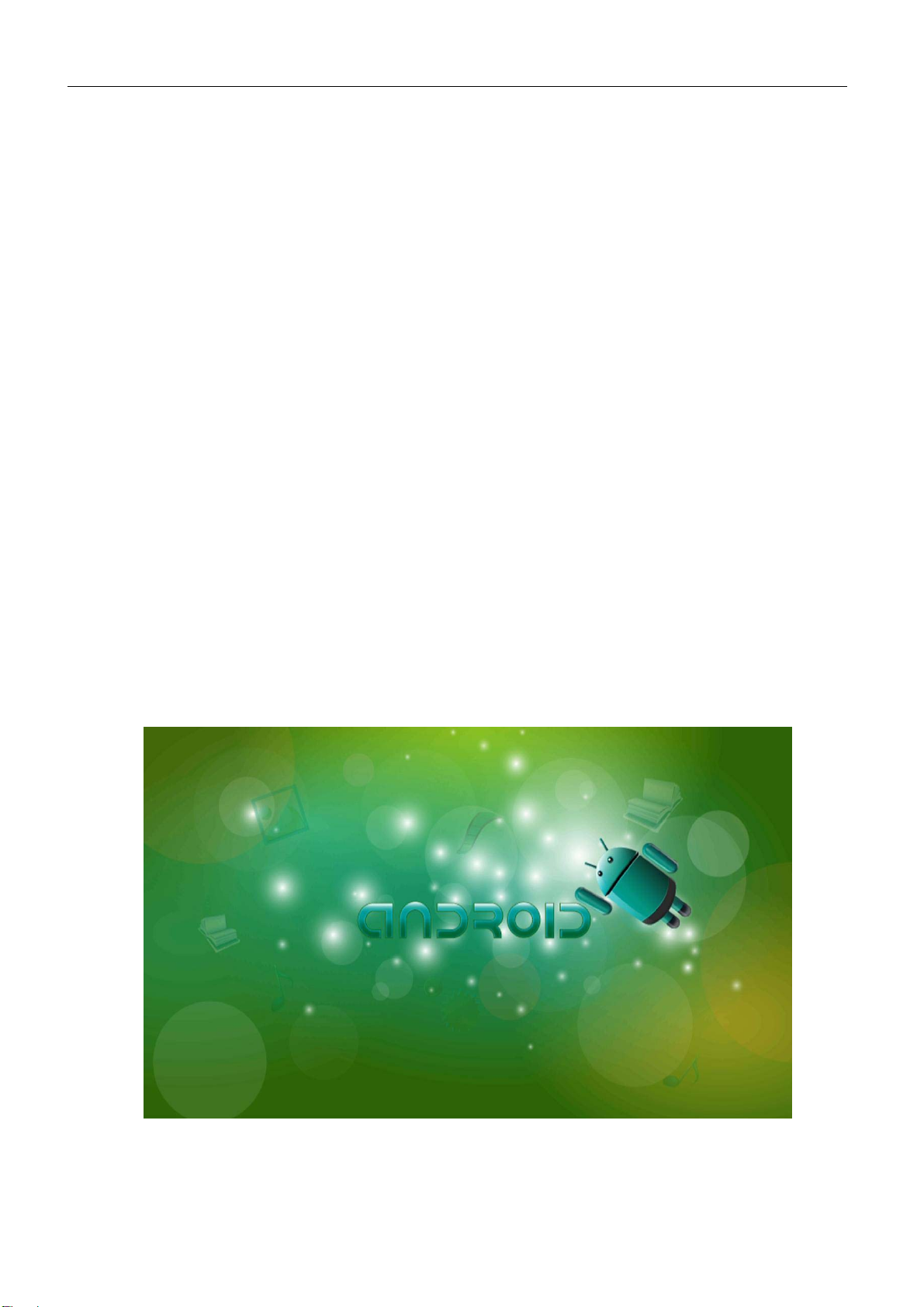

After power on for about 10 seconds, the boot screen will appear.

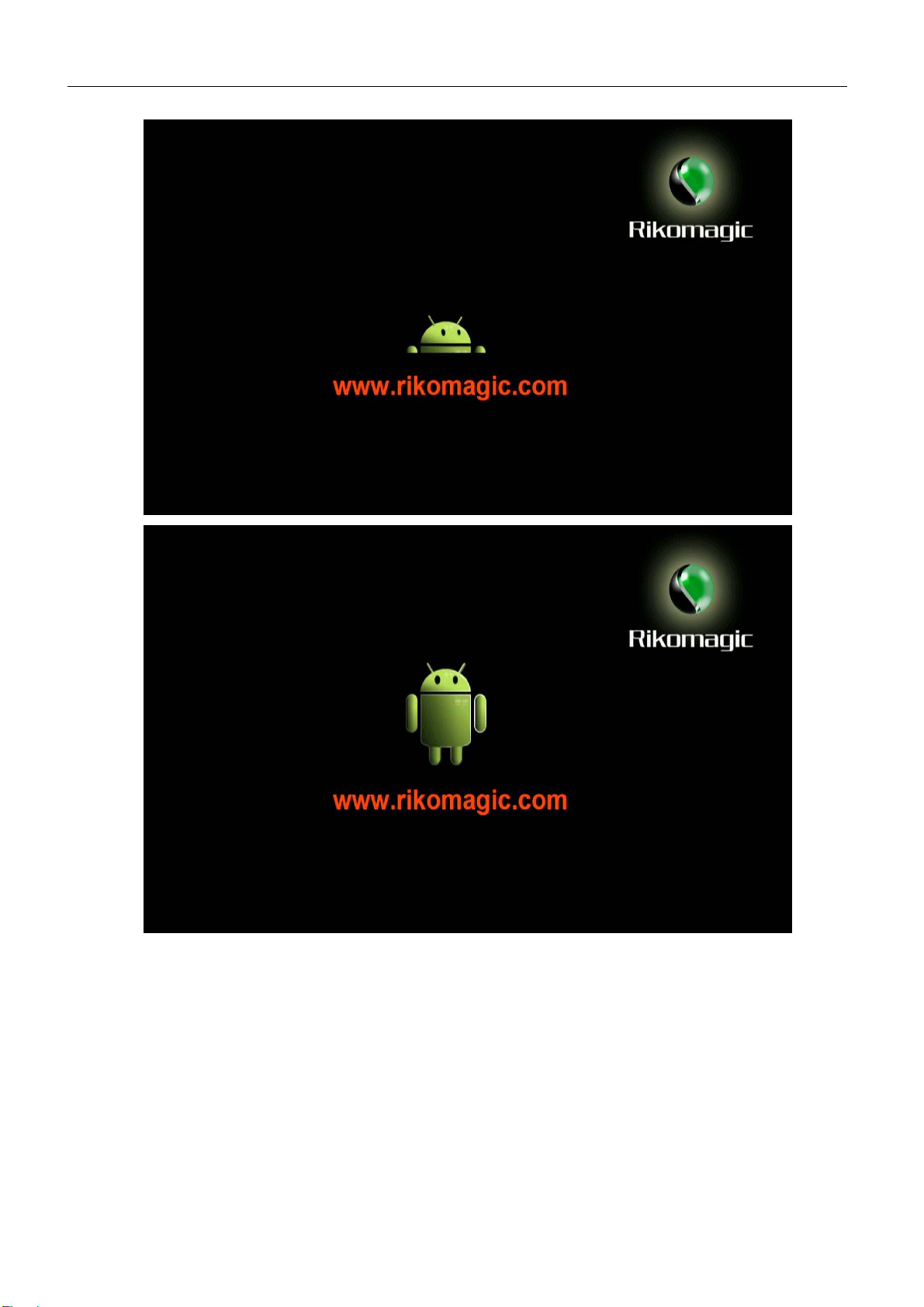

Followed by the Rikomagic boot logo:
Page 5

Rikomagic MK802 II User Manual
In about one minute, the main screen will display:
Page 6

Rikomagic MK802 II User Manual
4.Main interface introduction

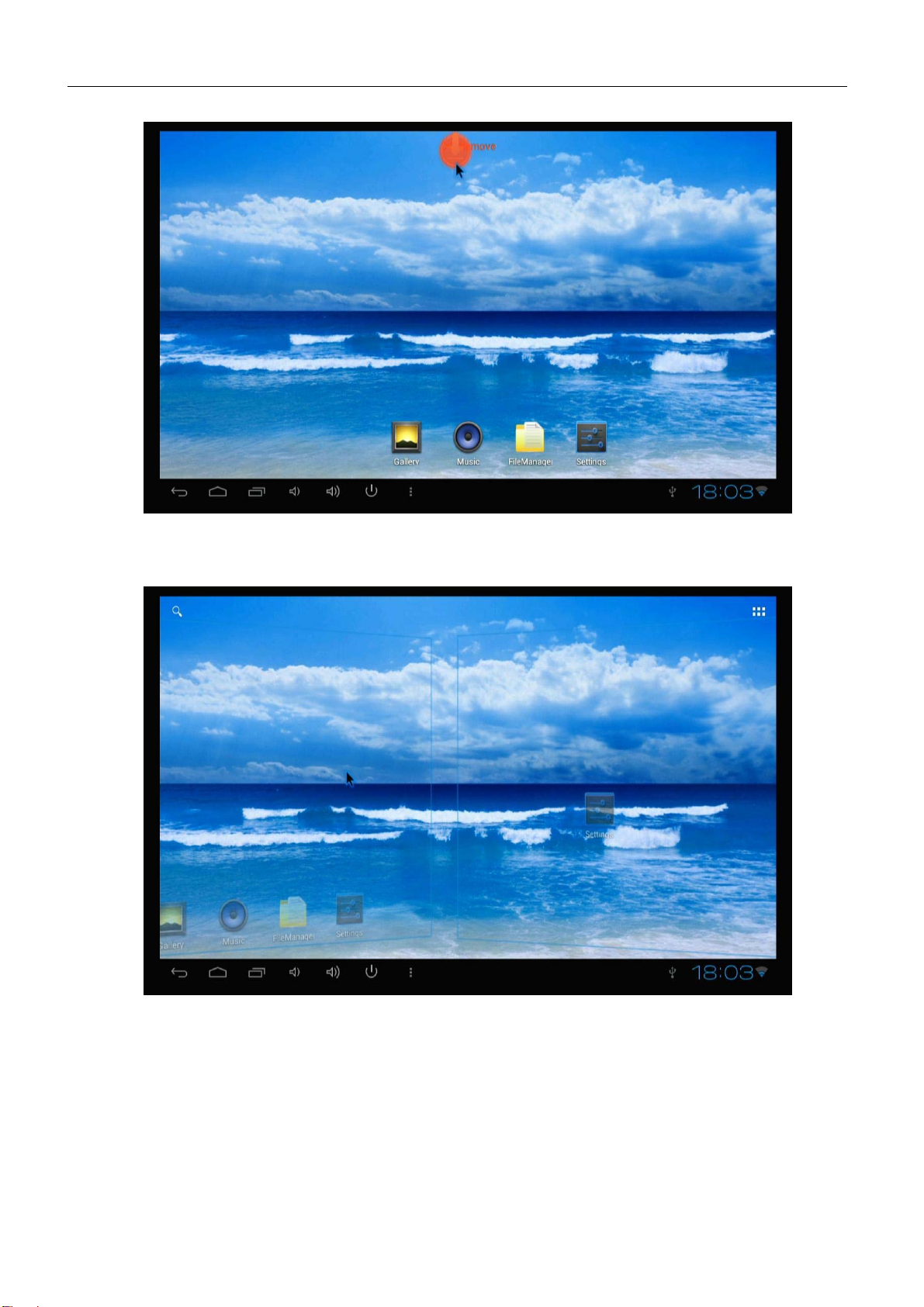

Hold down the left button of your mouse on any icon to drag it anywhere you like. You can similarly drag any
app shortcut onto the main screen.
Drag any icon into the top “X” (it turns red) to delete it:
Page 7

Rikomagic MK802 II User Manual
Move your cursor to any (empty) space and drag towards left or right to turn to the next page.
You can also use the mouse wheel for scrolling to the next page.
Page 8

Rikomagic MK802 II User Manual
4.1 Function column
Return button: return to Previous Page.
Main menu button: click it anytime to return to Main Menu.
Program button: click to check all the running programs.
Volume decrease button: click to decrease Volume.
Volume increase button: click to increase Volume.
Shutdown button: in any page, click this button to power off the device.
Properties button: when in different apps, it shows different contents. It is equivalent to Windows
properties button.
Search button: located in the top left corner of the desktop, click this icon to search the web or apps.
Program tools button: located in the top right corner of the desktop, click this icon to see installed
apps.
4.2 Status bar
The right bottom corner is the status bar. It shows the status of the T-Flash (micro-SD) Card, USB connection,
Time, Wifi and Downloads, etc.
Click a status bar icon to pop up the respective hidden menu.
Page 9

Rikomagic MK802 II User Manual

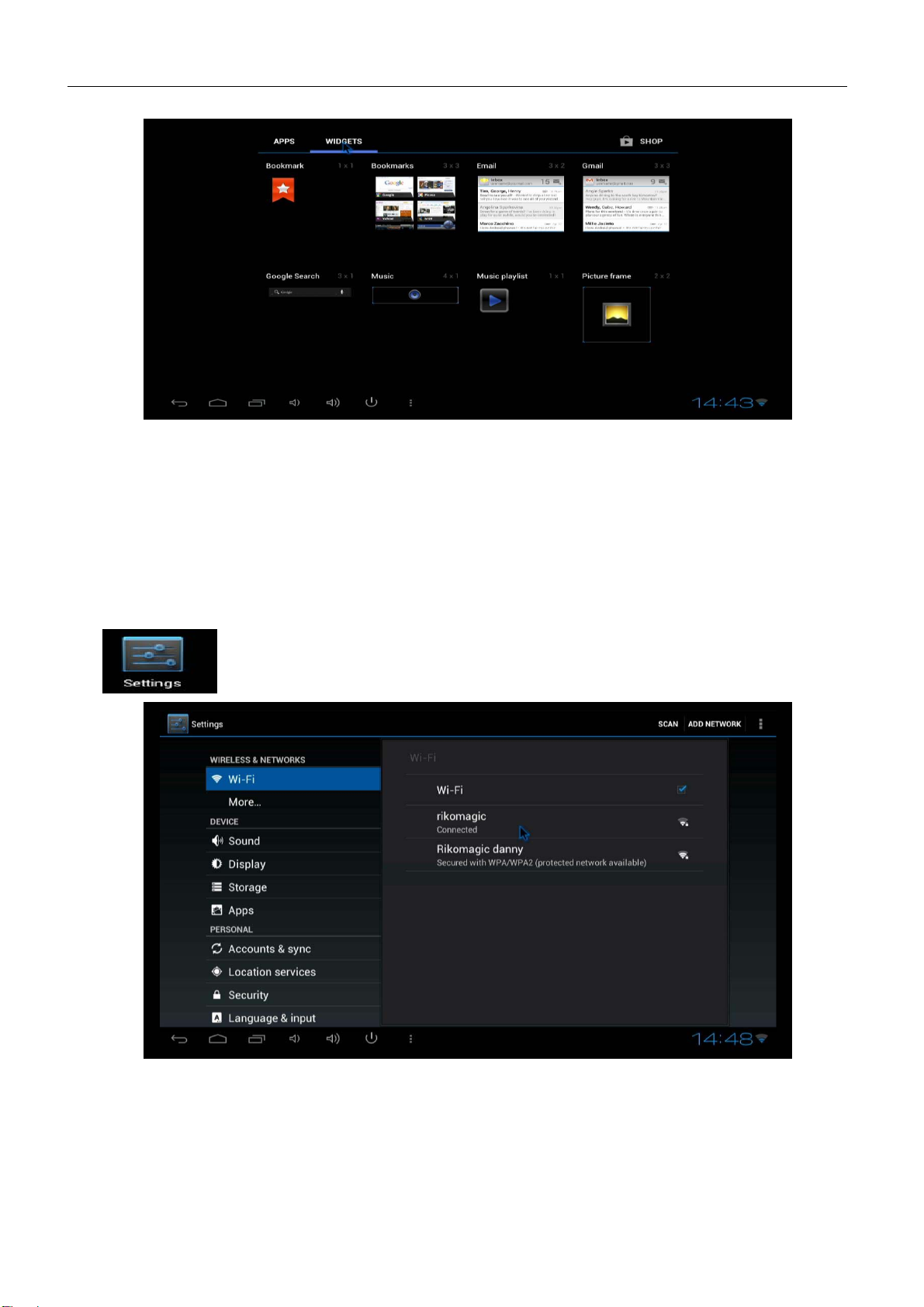

4.3 Application
Click to show all the installed apps and setup tools icon.
zIf there are more app icons than the page can display, you can drag the cursor to right or left for the next
page to see the rest of the app icons.
zYou can launch any app directly or drag it to anywhere onto the desktop if you want.
zClick “WIDGETS” to access; keep pressing on widgets to make them into
shortcuts on the desktop.
Page 10

Rikomagic MK802 II User Manual
5.Settings
In Settings, the user can setup the device according to his own requirements, such as network connection,
language, input methods, video output resolution, sound output and check storage space, etc.
Settings is on the tool bar. Click to pop up the screen below:
5.1 WIFI Setting
When opened, the Wifi player will search for available wireless router signals within 30 meters. User simply
Page 11

Rikomagic MK802 II User Manual
chooses a router access point named on the screen, input the correct password and can then access the
internet. If the access point is not locked with a password, the Wifi player will connect to the internet directly.
5.2 Wired network setup
If there is no wifi, you can use an ethernet (LAN / RJ45) cable to access the internet. But first, you have to buy a
USB 2.0 ethernet (LAN / RJ45) Adapter and plug one end into the MK802 II's USB Host or OTG ports. (Note:
The network supported is limited, so please ensure the correct type).
Connect RJ45 / LAN / ethernet cable, click “Settings” Æ“More” Æ“Ethernet” Ætick “Use Ethernet”
5.3 PPPOE Settings
If your family or office network is Dial-Up, then click PPPOE Settings and input the account and password.
Connect RJ45 / LAN / ethernet cable, click “Settings” Æ“More” Æ“PPPOE Settings” Æinput account and
password.
5.4 Sound
Volume: Click to setup volume level for music, video and games or other media
Click sounds: Click to turn on or turn off click sounds
Screen lock sound: Click to turn on or turn off screen lock sound
Audio output mode: User can choose HDMI or SPDIF audio output mode
5.5 Display
Brightness: Click to setup screen brightness level
Contrast: Click to setup screen color display contrast
Saturation: Click to setup screen color display saturation
Wallpaper: Choose this option to change the wallpaper according to your preference
Page 12

Rikomagic MK802 II User Manual
Font size: Click to set system font size according to your preference
Screen adaptation: Click to adjust display size for games
Screen trimming: Click to adjust the size of screen
Display output mode: Click to choose appropriate display output resolution
5.6 Storage
In this option, user can view device internal storage space and external T-Flash or micro-SD card storage
space, uninstall apps or format the card.
5.7 Apps
In this option, user can view installed and running apps; at same time also check DDR parameters.
5.8 Security
User can set a password.
5.9 Language & input
Language: user can set the Language for system menus according to country or preference (60 languages
supported)
Input: Chinese and English input are supported by default and user needs to install other input methods if
desired.
Users can also setup here the keyboard and mouse cursor speeds and simulation mouse step length.
5.10 Backup & reset
Backup: when you have very important files or apps, choose Backup in case files are lost.
Reset: when you choose this option and confirm, the device will erase all user settings and all downloaded
apps and re-apply the factory default configurations (not recommended unless necessary).
5.11 Date and time
The device does not support a built-in battery, so user-set date and time cannot be saved. However, user can
set automatic date & time so when the machine connects to the internet, the date and time will update
automatically to the correct time and date for your area.
Page 13

Rikomagic MK802 II User Manual
5.12 Developer options
USB debugging: USB debugging is for developers to copy data between a computer and the MK802 II, to
install apps on the device without notification and to read log data.
5.13 About device
This option shows current system information.
6.Download & Install Apps
To download apps from the internet, ensure that the extension of the app is .apk or it will not be recognized.
Users have two methods to install apps:
1. Download apps from the various android markets or Google Play store and after the download is complete,
follow the steps to finish the installation.
2. You can also use USB disk to install apps. First, connect USB disk with device, then open the USB disk,
choose the apps you prepared, select the apps, then follow the steps to finish installation.
Note: if the .apk apps are not from Google Play store, the system will regard it as not safe, so user needs to
go to “System Settings” Æ“Security” Æ“Unknown Source”, then tick inside the box to allow installation of
these Third Party apps.

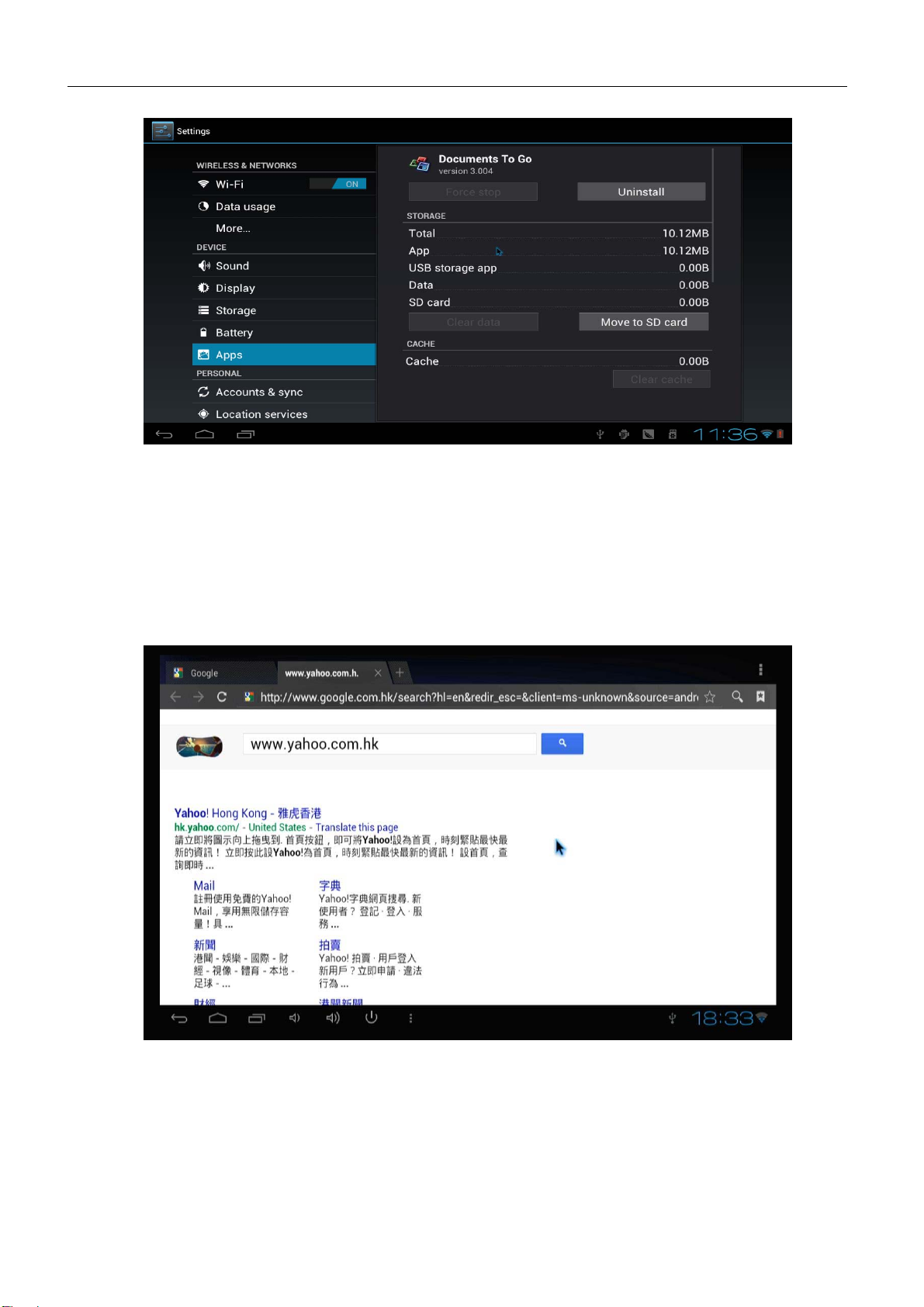

6.1 Delete Apps
a. Go to “Settings” Æ“Apps” Æ“Manage Applications”, to see the installed apps list
b. Click the app icon you want to delete, and the delete dialog box will pop up
c. Click “Uninstall”, then wait until the app-delete is completed
Page 14

Rikomagic MK802 II User Manual
7.Web browsing
To connect to the Internet, use the Android 4.0 built-in browser, or download and install other browsers.
When you open the Android 4.0 browser, you will see a new webpage with a 'tab' at the top which you can click
“+” to add another new webpage, or click “-“ to close the webpage. Most browsers use this method of 'tabs' to
organise web browsing.
Page 15

Rikomagic MK802 II User Manual
8.Local playback
You can use the File Manager to navigate and browse through your external TF (micro-SD) card, a connected
USB flash drive or external HDD and play back any of the music, videos, pictures and files in them.
8.1 Music
Click “Settings” Æ“Music” to play music.
The device can also play local videos but you need to download and install a Media Player first (there are many
media players among the more than 600,000 apps in the Google Play store).

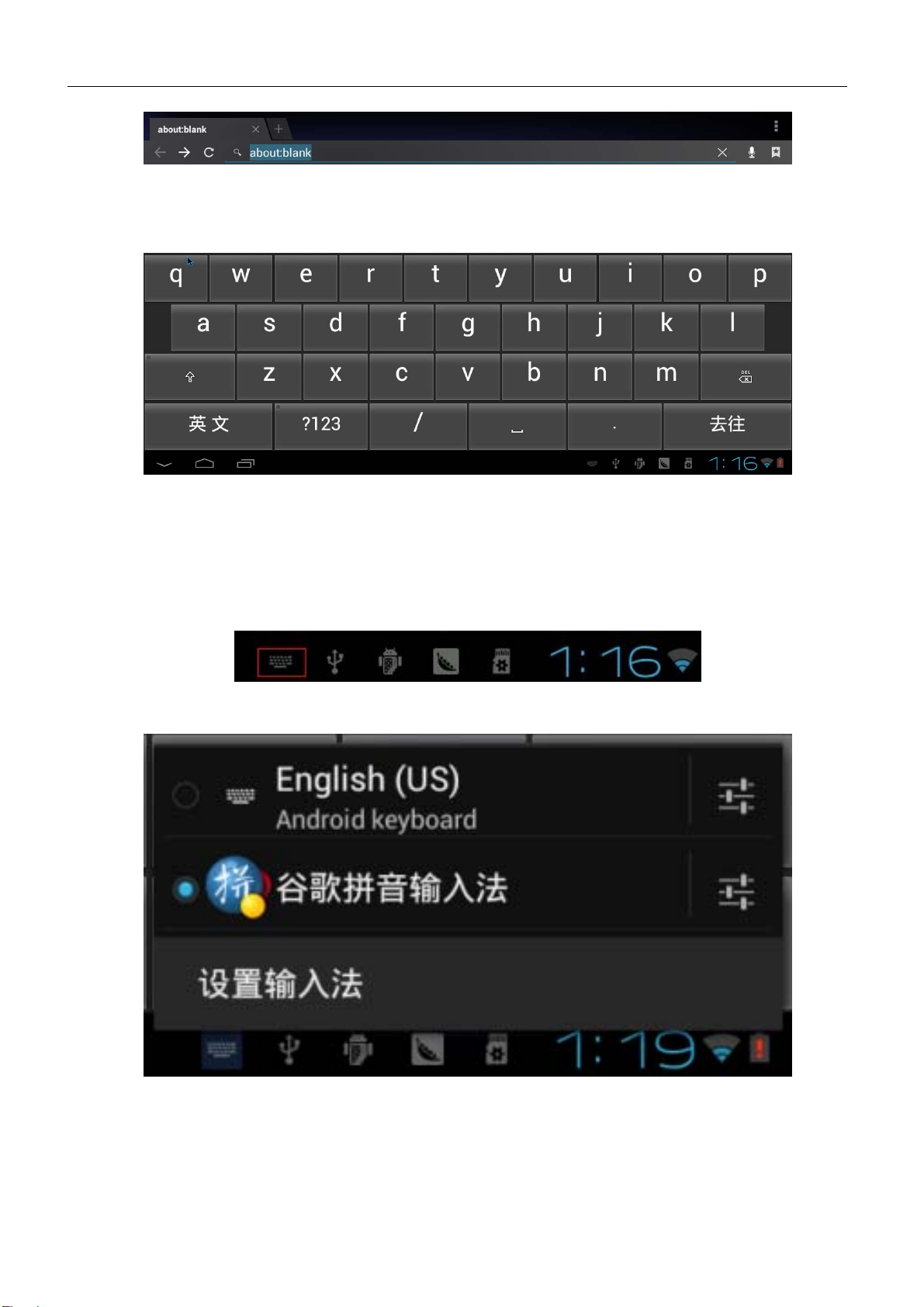

9.Use virtual keyboard
The MK802 II supports a connected mouse, with a soft keyboard. If the device detects a connected physical
keyboard, the soft keyboard will be hidden.
Page 16

Rikomagic MK802 II User Manual
10. Switch input methods
When you click any input box, you can choose your input methods.
To set up, please click the desktop keyboard icon at the bottom right of the status bar.
All the installed methods will display as in the picture below, and you can choose one you prefer:
Page 17

Rikomagic MK802 II User Manual
Question & Answer
zScreen flicker or unstable operation: please check if the HDMI cable has been connected tightly.
zCannot start device: please download recovery software from Rikomagic official website:
www.rikomagic.com to refresh the device OS. Make sure all your important data have been backed up
before doing this. If this still does not work, please contact the distributor you bought from.
zSystem keeps restarting: please check if the device is getting enough power supply. Sometimes, external
HDD can cause power drops. Please plug an additional power supply for external HDD or other external
devices.
zCannot find file in micro-SD card or another drive: please check all the connections of the device and
ensure you have ticked off micro-SD and USB Host in “Settings”
Specifications
Model MK802 II
OS Android 4.0
Main Chip Allwinner A10 / 1GHz Cortex-A8
Memory 1GB
Storage 4GB
Graphical processor 2D/ 3D/ OpenGL ES2.0 (AMD Z430) / OpenVG1.1 (AMD Z160) @ 27M Tri/sec
Network Wireless 802.11 b/g, WAPI (Ralink 8188)
Expand Memory Micro TF (micro-SD) 2 to 32GB
IO/Ports Micro USB x2; USB 2.0 x1; HDMI x1; Micro-SD x1
Keyboard virtual keyboard; supports 2.4GHz wireless keyboard, fly mouse
Audio AAC, AAC+, eAAC+, AMR-NB, AMR-WB, QCP, MP3, WMA, WAV, MIDI, M4A
Video
WMV/ASF/MP4/3GP/3G2M4V/AVI/MJPEG/RV10/DivX/VC-1/MPEG-2/
MPEG-4/H.263/H.264/1280*720P HD 30 fps, 1080P/720*480 D1 30fps
Android Apps Youtube, Twitter, Angry Birds, Office, Gmail, Browser, Skype.
HDMI 1080P & 2160P
Power Input Powered by USB cable
Accessory Micro USB to USB (male) cable; Micro USB to USB (female) adapter;
Page 18

Rikomagic MK802 II User Manual
HDMI female to male cable
Unit Size 9.7*2.8*1.2cm
Total weight 0.2kg
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
RF warning statement:
The device has been evaluated to meet general RF exposure requirement. The device can be used in
portable exposure condition without restriction.
Address: 2F, Liangshi Building, Qi'an Road 6#, Shajing Street, Bao'an, Shenzhen, China, 518125
Forum: http://www.rikomagic.co.uk/forum
E-mail: [email protected]
Official website: www.rikomagic.com
Page 19
