Owner’s Manual
For more information:
www.rikontools.com or [email protected]
For Parts or Questions:
[email protected] or 877-884-5167
Record the serial number and date of purchase
in your manual for future reference.
Serial number:
Date of purchase:
Part # 51-200M1
12”Disc Sander
Model: 51-200

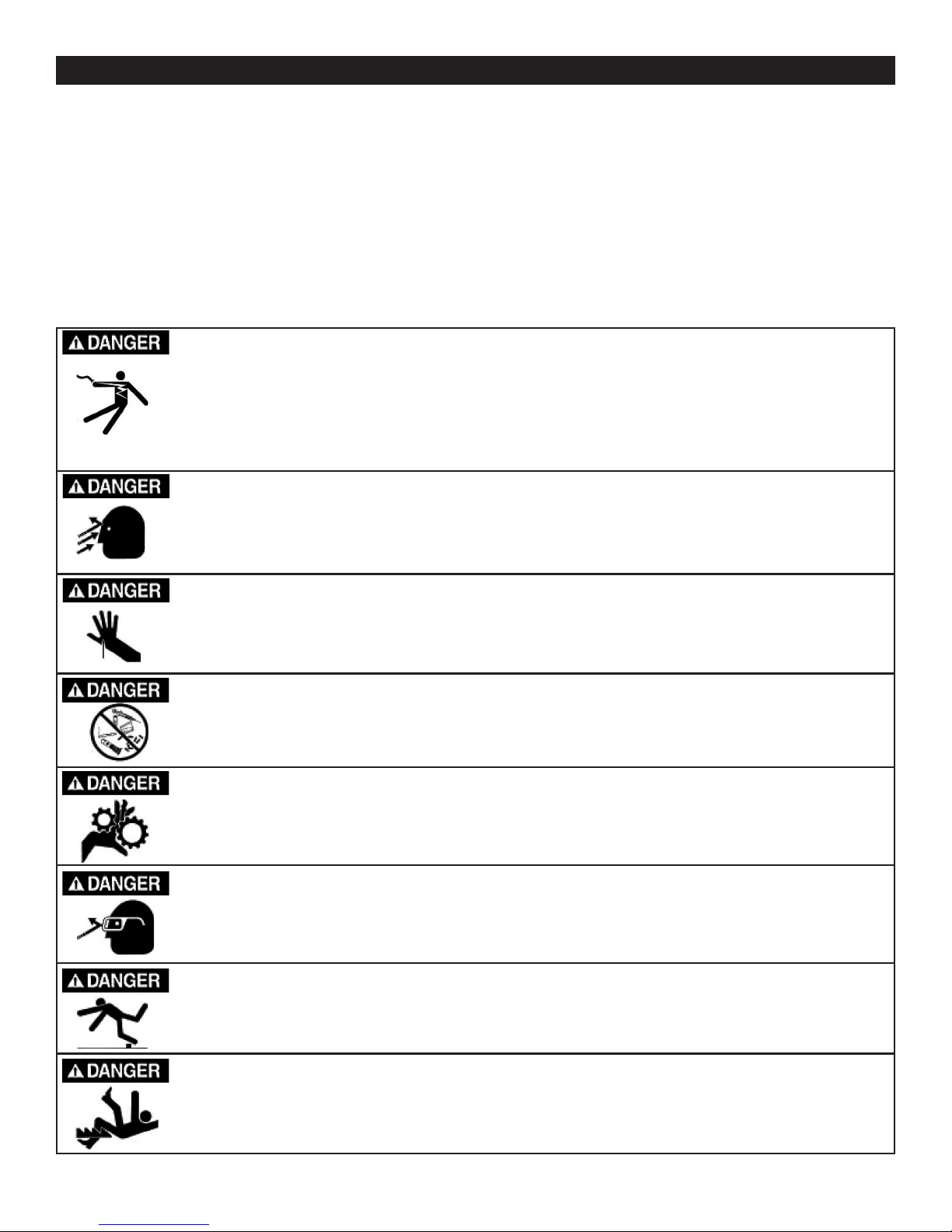

IMPORTANT! Safety is the single most important consideration in the operation of this equipment.
The following instructions must be followed at all times.
There are certain applications for which this tool was designed. We strongly recommend that this tool
not be modied and/or used for any other application other than that for which it was designed. If you
have any questions about its application, do not use the tool until you have contacted us and we have
advised you. General Safety Warnings
KNOW YOUR POWER TOOL. Read the owner’s manual carefully. Learn the tool’s
applications, work capabilities, and its specic potential hazards.
ALWAYS KEEP VISITORS AWAY FROM RUNNING MACHINES.
All visitors should be kept a safe distance from the work area.
ALWAYS MAKE THE WORKSHOP CHILDPROOF.
Childproof with padlocks, master switches, or by removing starter keys.
NEVER OPERATE A TOOL WHILE UNDER THE INFLUENCE OF DRUGS,
MEDICATION, OR ALCOHOL.
ALWAYS WEAR PROPER APPAREL.
Never wear loose clothing or jewelry that might get caught in moving parts. Rubber-soled footwear is
recommended for the best footing.
ALWAYS USE SAFETY GLASSES AND WEAR HEARING PROTECTION.
Also use a face or dust mask if the cutting operation is dusty.
NEVER OVERREACH.
Keep your proper footing and balance at all times.
ALWAYS GROUND ALL TOOLS.
If your tool is equipped with a three-pronged plug, you must plug it into a three-hole electric receptacle.
If you use an adapter to accommodate a two-pronged receptacle, you must attach the adapter plug to a
known ground. Never remove the third prong of the plug.
ALWAYS AVOID DANGEROUS ENVIRONMENTS.
Never use power tools in damp or wet locations. Keep your work area well lighted and clear of clutter.
ALWAYS REMOVE THE ADJUSTING KEYS AND WRENCHES FROM TOOLS AFTER USE.
Form the habit of checking to see that keys and adjusting wrenches are removed from the tool before
turning it on.
ALWAYS KEEP YOUR WORK AREA CLEAN. Cluttered areas and benches invite accidents.
NEVER STAND ON TOOLS.
Serious injury could occur if the tool is tipped or if the cutting tool is accidentally contacted.
2
Operator Safety: Required Reading

ALWAYS CHECK FOR DAMAGED PARTS.
Before initial or continual use of the tool, a guard or other part that is damaged should be checked to
assure that it will operate properly and perform its intended function. Check for alignment of moving
parts, binding of moving parts, breakage of parts, mounting, and any other conditions that may affect its
operation. A guard or other damaged parts should immediately be properly repaired or replaced.
ALWAYS DISCONNECT TOOLS.
Disconnect tools before servicing and when changing accessories such as blades, bits, and cutters.
ALWAYS AVOID ACCIDENTAL STARTING.
Make sure switch is in “OFF” position before plugging in cord.
NEVER LEAVE TOOLS RUNNING UNATTENDED.
Special Safety Rules For Disc Sanders
SAVE THESE INSTRUCTIONS.
Refer to them often.
3
1.Do not operate this machine until you have read all of the following instructions.
2.Do not attempt to operate this machine until it is completely assembled.
3. Do not turn ON this machine if any pieces are missing.
4. If you are not familiar with the operation of the machine, obtain assistance from a qualied
person.
5. It is highly recommended that this machine be rmly mounted to a at and secure work surface
or stand.
6.Always wear protective eyewear prior to operating this machine.
7. Do not operate this machine if you are under the inuence of drugs and/or alcohol.
8.Remove all jewelry prior to operating this machine.
9.Do not wear any gloves while operating this machine.
10.Always make sure the power switch is in the OFF position prior to plugging in the machine.
11. Always make sure the power switch is in the OFF position when doing any assembly or setup
operation.
12.Always wear a dust mask and use adequate dust collection and proper ventilation. Use of
sanders can produce harmful particles while sanding certain types of woods.
13.The use of any accessories or attachments not recommended may cause injury to you and
damage your machine.
14.This machine must be properly grounded.
15.Abrasive discs should be the recommended diameter of the manufacturer.
16.Always keep your face and hands clear of moving parts such as belts and pulleys.
17.Keep power supply cords free of moving parts of the sander. Damaged cords can result in
electric shock.
18. Maintain a 1/16” clearance between the sanding disc and table.
19.Always support the workpiece with the table.
20.Remove material or debris from the work area. Keep work area neat and clean.
21.Keep these instructions for future reference.

Safety Warnings.............................................................................................................................................2-3
Sander Safety Rules .................................................................................................................................3
Specications ........................................................................................................................................4
Contents of Package .........................................................................................................................................5
Assembly/Adjustments.............................................................................................................6-7
Operation............................................................................................................7-8
Electrical Requirements ...............................................................................................................................9

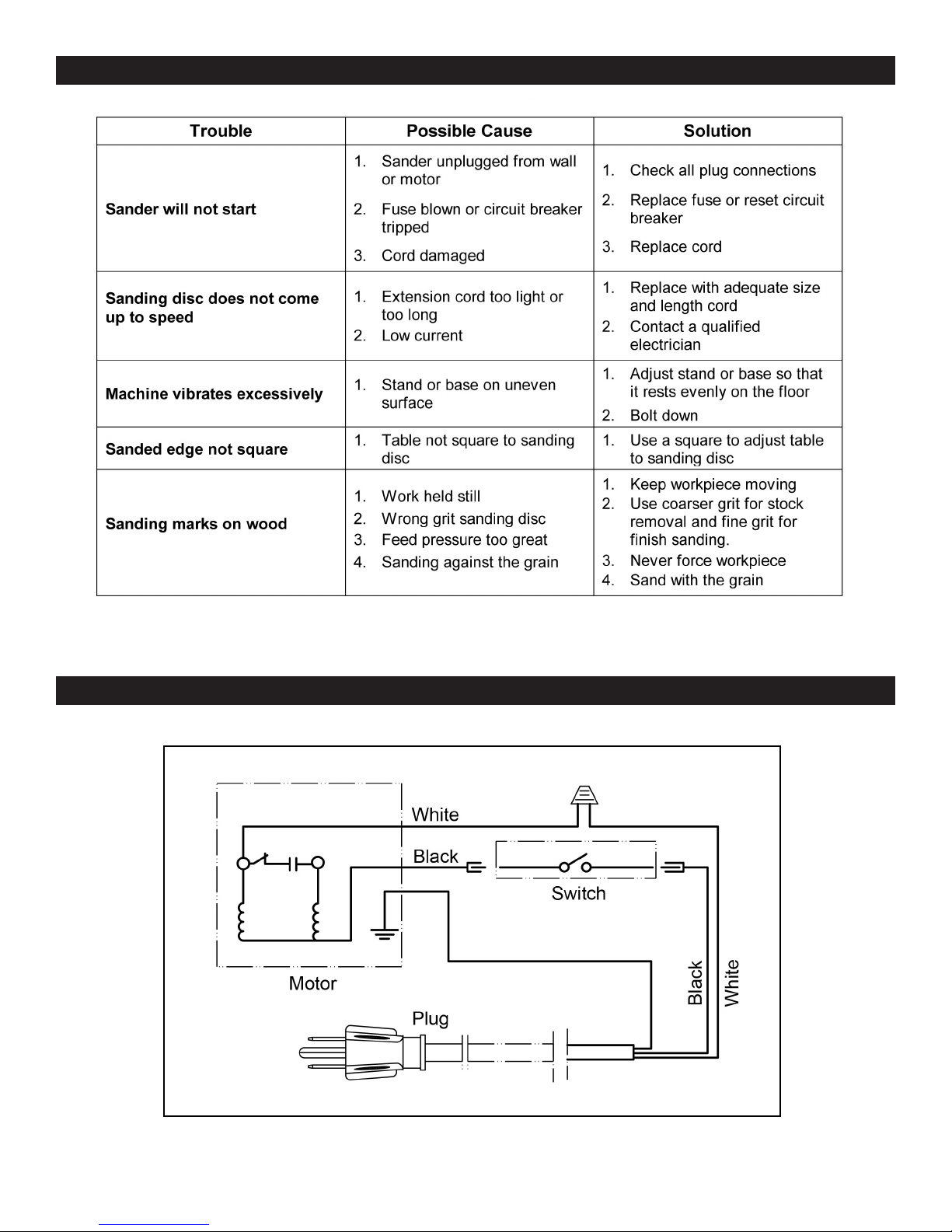

Trouble Shooting...............................................................................................................................................10
Wiring Diagram......................................................................................................................................10
Parts List .....................................................................................................................................11

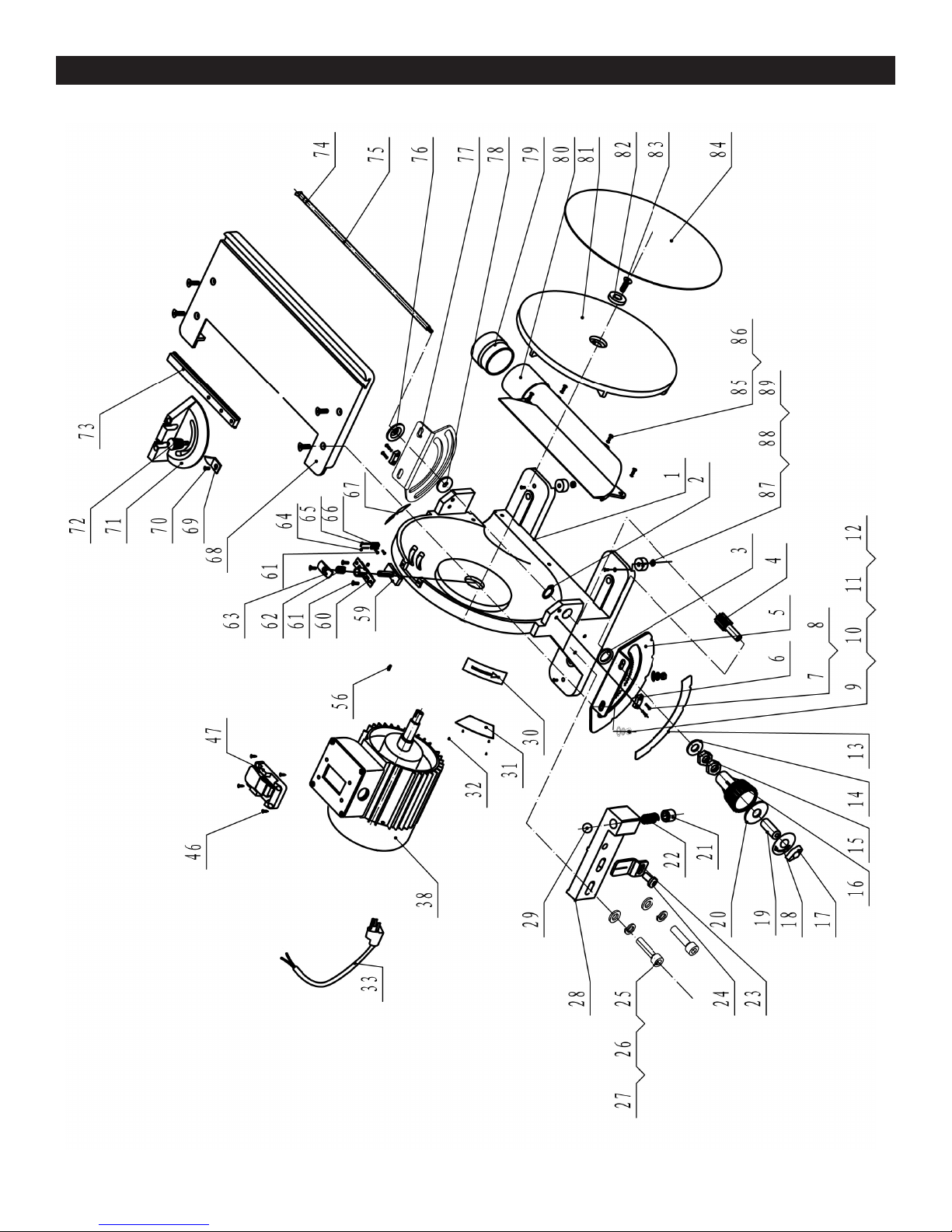

Parts Explosion...........................................................................................................................................12
Warranty .............................................................................................................................................13
4
Table of Contents
Specications
12”
45° Down 45° Up
-45°, -22.5°, 0°, 22.5°, 45°
17-1/8” x 6-1/2”
1720
Manual
1/2HP
120V
6A
73 lbs
Disc Diameter
Table Tilt
Positive Stops
Table Size
Disc Speed
Disc Brake
Motor
Volts
Amps
Net Weight
California Propsition 65 Warning
WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction
activities contains chemicals known to the State of California to cause cancer and birth defects or
other reproductive harm.Your risk from exposure to these chemicals varies, depending on how often
you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved
safety equipment, such as dust masks that are specially designed to lter out microscopic particles.
For more detailed information about California Propostion 65 log onto rikontools.com.

When unpacking, check to make sure the following parts are included. If any parts are missing
or broken, please call RIKON Power Tools at the number on the cover of this manual as soon as
possible.
Contents of Package
5
A Sander
B Miter Gauge
C Disc Brake
D Two Mounting Screws for Disc Brake
E Dust Port
AB E
C
D

6

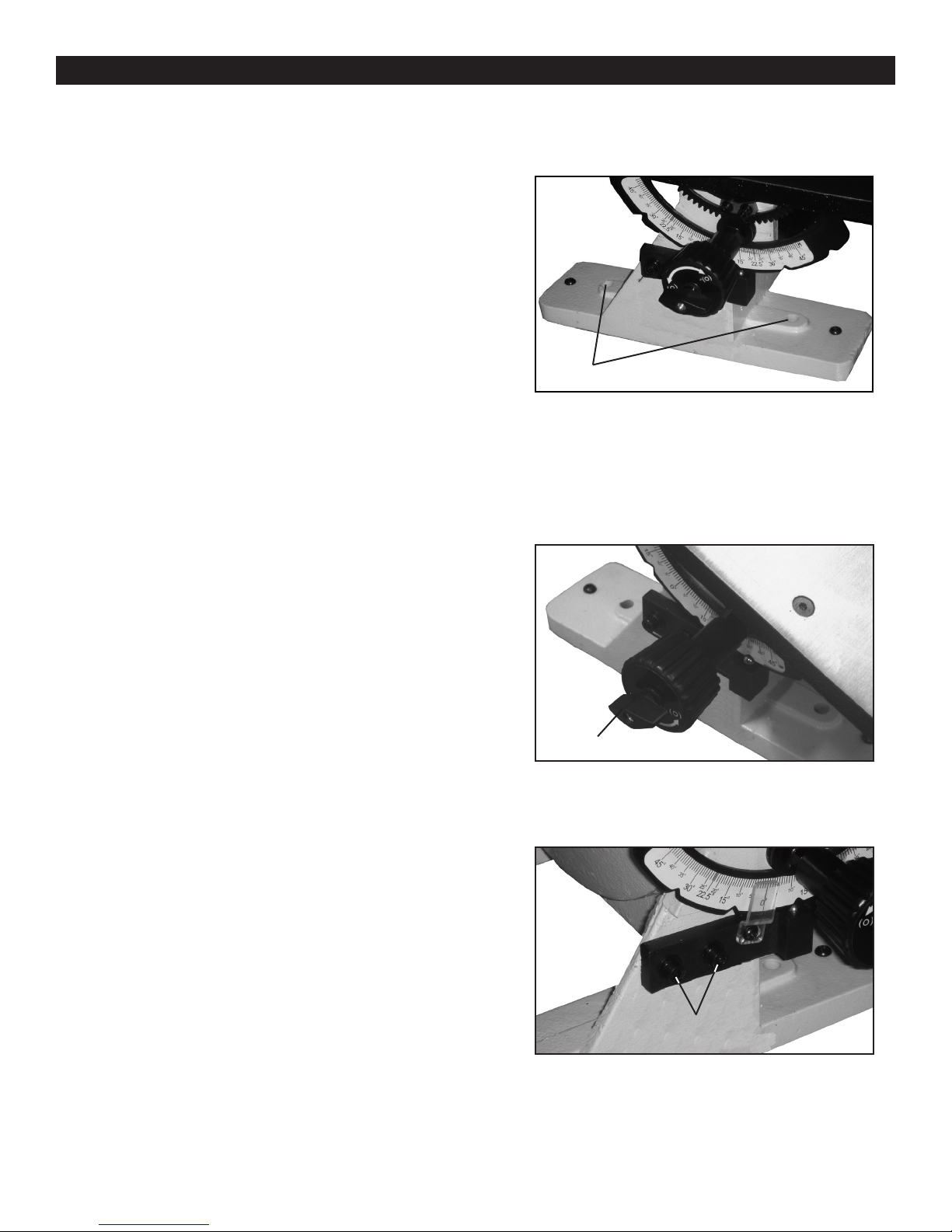

Assembly
Securing Sander Base Assembly to Workbench
The sander base must be secured before using.
Attach a large C-Clamp to each side of the sander
and the workbench. Or, permanently mount following
the instructions below:
1. Place the sander on the workbench in its nal
operating location.
2. Place a pencil through the mounting holes of
the sander base and mark the hole locations on
workbench.
3. Remove sander and drill four 3/8” holes through the
workbench.
4. Align sander base over holes and secure using four
5/16” screws (or larger) and hex nuts.
(See Fig. 01)
Table Adjustments
The table stops have been pre-set at the factory.
Follow the steps below if adjustments are needed.
1. Loosen lock knob (Fig. 02) and move table
into the 90-degree position. Tighten lock knob and
place a square against the table and sander disc. The
square should rest at against the table and the disc.
2. If adjustment is needed move the table so that it
rests 90 degrees from the table, and loosen the two
adjusting nuts (Fig. 03) on the stop bar and slide bar
left or right for the proper adjustment. Once the proper
adjustment is made tighten the two adjusting nuts on
the stop bar.
Fig. 03
Fig. 01
Fig. 02
Mounting Holes
Lock Knob
Adjusting Nuts

7
Fig. 06
Fig. 07
Fig. 05
Fig. 04
Warning: To avoid jamming the workpiece or ngers
between the table and sanding surface, the table
edge should be a maximum of 1/16 inch from sanding
surface.
3. Always maintain a gap of approximately 1/16”
between the table edge, and disc. If adjustment is
necessary loosen the four bolts (Fig. 04) and move
the table into position.
4. Use a 1/16 inch drill bit as a spacer. Place the
drill bit between the disc and the inside edge of the
table. Hold the table against the 1/16 inch drill bit and
tighten the four hex bolts. (See Fig. 05)
Show similar with correct sander
On/Off Switch
The On/Off Locking Switch needs to have the
switch key inserted before the switch can be used
(key located in parts bag). This feature prevents
unauthorized use of the sander. (See Fig. 06)
CAUTION: Never walk away from sander when
machine is running. Always lock the switch in the Off
position and unplug from the power supply when not
in use.
Operation
Disc Brake
Warning: Never apply the disc brake with the switch
in the “ON” position. Damage to the brake or disc may
occur.
This 12” Disc Sander is equipped with a manual disc
brake which can be applied by pressing down on
brake lever (Fig. 07), after the switch has been turned
off.
1
4
1
3
2
Brake Lever

8
Warning: Applying the workpiece to the right side of
the disc could cause workpiece to y up (kickback)
and result in an injury.
Please take note of the disc rotation (counter clock-
wise) and only work on the left side of the disc.
(See Fig. 08)
Applying the workpiece to the left side of the disc will
cause downward pressure against the table.
Operation
Bevel Sanding
The work table can be tilted from -45 to +45 degrees
for bevel sanding. Loosen the table lock knob and tilt
the worktable to desired angle as shown. Retighten
table lock knob. (See Fig. 09)
Warning: To avoid jamming the workpiece or ngers
between the table and sanding surface, the table
should repositioned on the table support to retain a
maximum of 1/16” distance between sanding surface
and table.
Sanding Small End Surfaces on the Sanding Disc
Note: Use of a miter gauge is recommended for this
operation.
Always move the work across left side of center on
the sanding disc face as shown. (See Fig. 10)
Warning: Applying the workpiece to the right side of
the disc could cause workpiece to y up (kickback)
and result in an injury.
Fig. 08
Fig. 09
Fig. 10

In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching
outlet that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not t the outlet, have the proper outlet installed by a
qualied electrician.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The
conductor, with insulation having an outer surface that is green with or without yellow stripes, is the
equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do
not connect the equipment-grounding conductor to a live terminal.
Check with a qualied electrician or service personnel if the grounding instructions are not completely
understood, or if in doubt as to whether the tool is properly grounded.
Use only three wire extension cords that have three-prong grounding plugs and three-pole
receptacles that accept the tool’s plug.*
Repair or replace a damaged or worn cord immediately.
This tool is intended for use on a circuit that has an outlet that looks the one illustrated in Figure
A below. The tool has a grounding plug that looks like the grounding plug as illustrated in Figure A
below. A temporary adapter, which locks like the adapter as illustrated in Figure B below, may be
used to connect this plug to a two-pole receptacle, as shown in Figure B if a properly grounded outlet
is not available.** The temporary adapter should only be used until a properly grounded outlet can
be installed by a qualied electrician. The green colored rigid ear or tab, extending from the adapter,
must be connected to a permanent ground such as a properly grounded outlet box.
* Canadian electrical codes require extension cords to be certied SJT type or better.
** Use of an adapter in Canada is not acceptable.
9
Electrical Requirements

10
Troubleshooting
Wiring Diagram

11
Parts List
Key
No.
1
2
3
4
5
6
7
8
9
10
11
12
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
38
46
47
56
Part No.
JL63011001
CLP17GB894D1B
JL63020003
JL63022001
JL63021002
JL63011003
M5X20GB70D1B
WSH5GB93B
M6X20GB70D3B
WSH6GB63D1B
WSH6GB93B
M6GB6170B
JL63070004
WSH10GB96D1B
M10GB6170B
JL63022002
JL63022005
JL63070005
JL63022004
JL63022003
M10X8GB77B
JL63010002
JL63010004
M5X10GB818B
M6X25GB70D1B
WSH6GB95B
WSH6GB93B
JL63010001
JL63010003
JL63070002
JL63070001
RVT2X6GB827
U2318200-411
JL63030004
ST3D5X16GB845Z
HY18-32
PLN5X5X25GB1096
Description
Base
Retaining ring
Washer
Gear shaft
Front trunnion
Guide block
Bolt
Spring washer
Screw
Washer
Spring washer
Hex nut
Scale
Washer
Hex nut
Adjusting handle
Lock knob
Lock label
Adjusting tube
Handle cap
Set screw
Spring
Pointer
Screw
Bolt
Washer
Spring washer
Mounting base
Ball 8mm
Rotate label
Warning label
Rivet
Cable
Motor
Screw
Switch
Key
Key
No.
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
Part No.
JL63012100
JL63012001
M4X8GB70D3B
JL63012002
JL63012003
WRN2D5GB5356B
WRN4GB5356B
JL63011004
JL63070003
JL63021001
JL60040004
M5X6GB818B
JL22062001
JL60040003
JL63040001
SLG5X1D8GB3452D1
JL63020001
JL63020002
JL63021003
WSH6GB96D1B
JL63010006
JL63010005
JL63010007
JL63010008
M6X16GB70D3B
JL63010009
M5X16GB818B
WSH5GB862D2B
M6X16GB818B
JL63011002
M6GB6172B
Description
Brake Asm.
Brake bracket
Screw
Brake spring
Brake lever
L wrench 2.5
L wrench 4
Tool holder
Nameplate
Table
Pointer
Screw
Miter gauge body
Lock knob
Guide block
"O" rubber ring
Lock shaft
Washer
Rear trunnion
Washer
Dust port
Plastic shield
Disc body
Washer
Screw
Sand paper
Pan head screw
Dentiform washer
Pan head screw
Rubber washer
Hex. Nut

12
Parts Explosion

13
5-Year Limited Warranty
.
To take advantage of this warranty, please fill out the enclosed warranty card and send it to:
RIKON Warranty
16 Progress Rd
Billerica, MA. 01821
The card must be entirely completed in order for it to be valid. If you have any questions
please contact us at 877-884-5167 or [email protected].
Warranty
RIKON Power Tools, Inc. (“Seller”) warrants to only the original retail consumer/purchaser of our
products that each product be free from defects in materials and workmanship for a period of five
(5) years from the date the product was purchased at retail. This warranty may not be transferred.
This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence,
accidents, repairs, alterations, lack of maintenance or normal wear and tear. Under no
circumstances will Seller be liable for incidental or consequential damages resulting from
defective products. All other warranties, expressed or implied, whether of merchantability,
. This warranty does not cover
products used for commercial, industrial or educational purposes.
This limited warranty does not apply to accessory items such as blades, drill bits, sanding discs or
belts and other related items.
Seller shall in no event be liable for death, injuries to persons or property, or for incidental,
contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty proof of purchase documentation, which includes date of
purchase and an explanation of the complaint, must be provided.
The Seller reserves the right to effect at any time, without prior notice, those alterations to parts,
.

For more information:
16 Progress Rd.
Billerica, MA. 01821
877-884-5167/978-528-5380
[email protected]
www.rikontools.com
Copyright RIKON Power Tools, Inc. 2007 Printed in China 9/07
