Rinnai Enduro SP200B User manual

This system shall be installed in accordance with:
• Manufacturer’s Installation Instructions
• Current AS/NZS 3500
• All applicable local rules and regulations including local OH&S requirements
This system must be installed, commissioned and serviced by an Authorised Person.
Not suitable as a pool or spa heater.
The solar hot and solar cold pipes between the solar storage tank and the
solar collectors must be suited to the high water temperatures and pressures
that may occur. As such, plastic pipe must not be used.
Components used to join pipes must use metallic materials to achieve sealing.
Issue
4
Installation Manual
Rinnai Split Solar Hot Water Systems -
Enduro SP200B, Enduro XL SP250B
and Excelsior SP200BEX
Flat Plate Collectors
IMPORTANT AS/NZS 2712
SMK.1849
SAI Global

Rinnai 2 Split Collector IM
TABLE OF CONTENTS
Specications 3
Solar Collectors ��������������������������������������������������������������������������������������������������������������������������������������������������3
InstallationInformation 4
Regulations and Occupation Health and Safety (OH&S) ����������������������������������������������������������������������������������4
Water Quality ������������������������������������������������������������������������������������������������������������������������������������������������������4
SYSTEM ORIENTATION AND INCLINATION ���������������������������������������������������������������������������������������������������4
Roof Mounting Options ���������������������������������������������������������������������������������������������������������������������������������������5
Water Pipes, Fittings and Insulation �������������������������������������������������������������������������������������������������������������������8
Connecting Fittings to Collector �������������������������������������������������������������������������������������������������������������������������9
CollectorInstallation 10
Fastening Collectors to a Tiled Roof ����������������������������������������������������������������������������������������������������������������10
Fastening Collectors to a Metal Roof ��������������������������������������������������������������������������������������������������������������� 11
1 SP200B, SP250B or SP200BEX Installation Kits - BIKSP1COLL and BIKSP1COLLFT �����������������������������12
2 SP200B or SP200BEX Installation Kits - BIKSP2COLL and BIKSP2COLLFT ��������������������������������������������14
2 SP250B Installation Kits - BIKSP2COLLXL and BIKSP2COLLXLFT �����������������������������������������������������������16
3 SP200B or SP200BEX Installation Kits - BIKSP3COLL and BIKSP3COLLFT ��������������������������������������������18
ContactInformation 20
This manual covers the installation of Enduro SP200B, Enduro XL SP250B and Excelsior SP200BEX solar
collectors as part of complete solar hot water systems�
Full instructions on the installation of the complete system can be found in the “Operation / Installation Manual -
Rinnai Split Solar Hot Water Systems”�
All information and warnings in the “Operation / Installation Manual - Rinnai Split Solar Hot Water Systems” are
applicable to this installation�

Rinnai 3 Split Collector IM
SOLAR COLLECTORS
ENDURO
SP200B ENDURO XL SP250B Excelsior
SP200BEX
Type Flat plate Flat plate Flat plate
Waterways Copper Copper Copper
Absorber Aluminium Aluminium Copper
Selective Surface High Performance High Performance Sputtered
Titanium Oxide
Maximum Operating
Pressure 1000 kPa 1000 kPa 1000 kPa
Casing Material Aluminium Aluminium Aluminium
Overall Dimensions
(L x W x H) (mm) 1960 x 1050x 80 1960 x 1290 x 80 1960 x 1050x 80
Weight empty (kg). 40 45 40
Water volume (litres) 1.95 2.4 2.0
Number of risers 9 10 10
Potential Solar Output at
PTR relief conditions (kW) 1.25 kW 1.4 kW 1.25 kW
Frost Protection
The Rinnai solar hot water warranty booklet species the locations and conditions that
apply for at plate collectors to be warranted against frost damage.
For locations where the warranty booklet species collector Option B, the frost valves
specied by Rinnai must be tted and are supplied with the appropriate installation kit.
If frost valves are missing you must obtain them and t them. Failure to t frost valves
will void any warranty against frost damage.
For full warranty terms, conditions and exclusions refer to the Rinnai Warranty Booklet
for solar hot water. The warranty booklet is available at www.rinnai.com.au.
SPECIFICATIONS

INSTALLATION INFORMATION
Rinnai 4 Split Collector IM
REGULATIONS AND OCCUPATION HEALTH AND SAFETY (OH&S)
Installation and commissioning must be performed by authorised persons. Rinnai solar systems must be installed
in accordance with these instructions and all regulatory requirements which exist in your area including those in
relation to manual lifting, working at heights and on roofs. Applicable publications and regulations may include:
• AS/NZS 3500 National Plumbing and Drainage
• Building Codes of Australia
• Local Occupational Health and Safety (OH&S) regulations
WARNING
Solar collectors are heavy and bulky items and are usually positioned on the roofs of buildings. Each
Australian State and Territory has a principal Occupational Health and Safety (OH&S)Act which contains
requirements relating to the handling of large, bulky or awkward items and the prevention of falls from
elevated surfaces. Persons installing solar collectors must be aware of their responsibilities and be
adequately trained and qualied, in accordance with local OH&S requirements.
WATER QUALITY
The water quality of most public supplies is suitable for the water heating system. The water quality from bore wells
is generally unsuitable for the water heating system. Refer to separate ‘Warranty Terms and Conditions’document
for water quality parameters and how they affect the warranty conditions. If in doubt about the water quality, have
it checked against the parameters listed in the warranty conditions. The system is not suitable as a pool or spa
heater.
SYSTEM ORIENTATION AND INCLINATION
The performance of any solar hot water system is determined by the way the system is installed.
For Australian installations, solar collectors should face the equator (True North) for optimum performance.
Installing solar collectors facing up to 45 degrees away from North (between North-East and North-West) will
reduce efciency by approximately 5%.
ForAustralianinstallationstheinclinationofsolarcollectorsshouldbethesameasthelatitudeofthesiteforoptimum
performance. Inclinations within 20 degrees of the latitude of the site will reduce efciency by approximately 5%.
Most roofs inAustralia have a slope of between 20° and 25° and provide an appropriately angled mounting surface.
Installersmustensuretheycomplywithrelevantlocalregulationsregardingsolarcollectorinclination
andorientation.
City Latitude City Latitude City Latitude
Adelaide 35°S Canberra 35°S Melbourne 38°S
Albany 35°S Darwin 12°S Perth 32°S
Alice Springs 24°S Dubbo 32°S Port Hedland 20°S
Brisbane 27°S Geraldton 28°S Rockhampton 24°S
Broken Hill 31°S Hobart 42°S Sydney 34°S
Cairns 17°S Mildura 34°S Townsville 19°S
Latitudes of Australian Cities

INSTALLATION INFORMATION
Rinnai 5 Split Collector IM
ROOF MOUNTING OPTIONS
For roofs with a slope of 10° or less a at roof frame must be used.
Roof construction must be checked to ensure that the roof timbers are capable of supporting the additional load.
(Refer to AS 3500.4 Appendix H).
The roof mounting option must be appropriate for the wind loading that is likely in the installed location. See the
section 'Mounting Location Suitability' on page 6.
For buildings higher than 10 metres the specications for securing solar collectors to the building structure need
to be determined on a case by case basis for each building by a person qualied to do so in accordance with the
Building Code of Australia (BCA). Such specications relate to the type of fastenings, the number of fastenings and
their embedment into the building structure. They are determined from factors including the geographical location
and topography, the prevailing wind conditions, building dimensions, rooftop form and structural materials, and
the intended location of the solar panels relative to building internal, edge and corner zones. The BCAreferences
AS1170.2 “Structural Design Actions Part 2: Wind Actions”, AS3600 “Concrete Structures” and AS4100 “Steel
Structures” in relation to these specications.
Asolution may be provided using either kit DDHRKIT2 (2 collector) or DDHRKIT3 (3 collector), in accordance with
the instructions in the Rinnai document “High Rise Roof Mounting Frame Installation Instructions (Part Number
15401103)

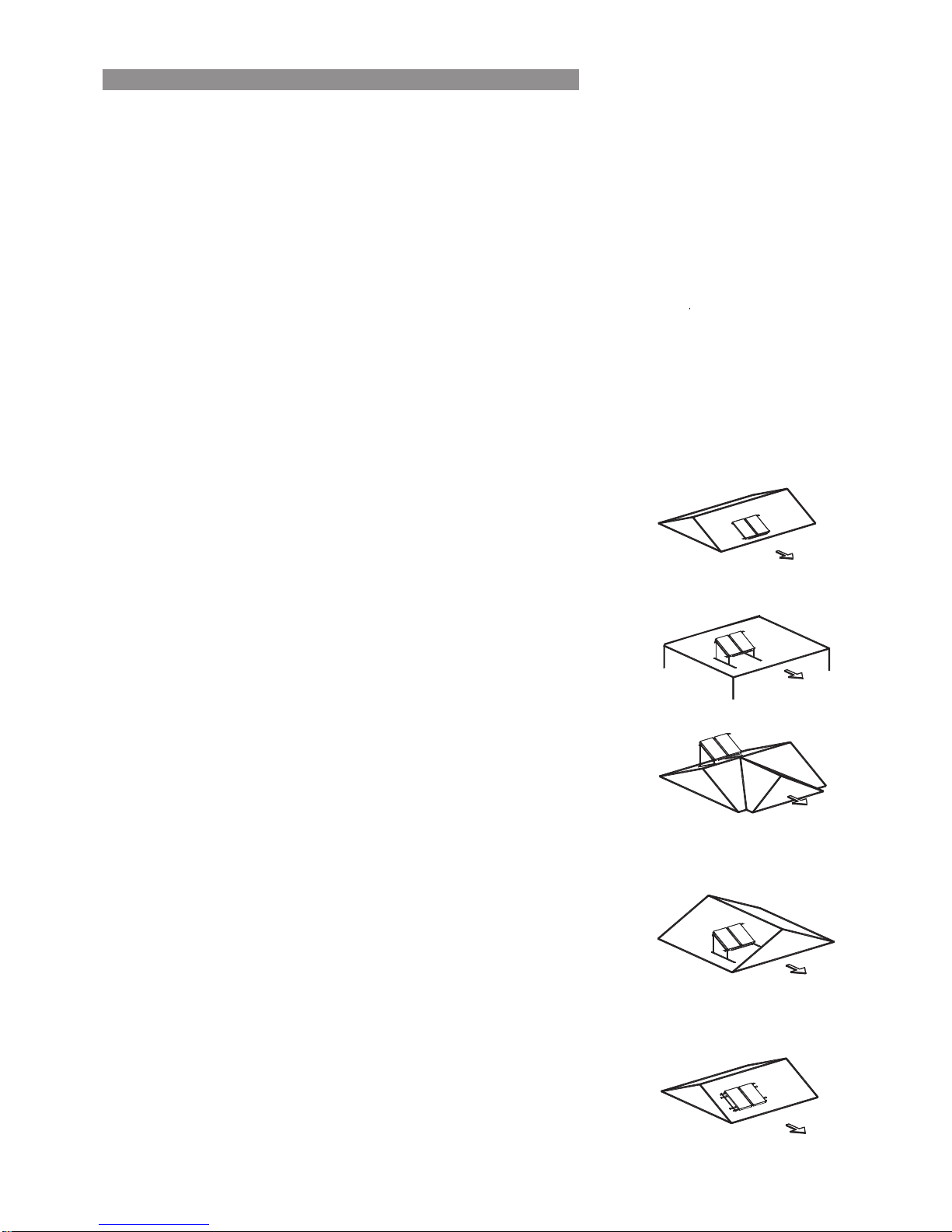

StandardInstallation
Installation details are in the section 'Collector Installation' on page 10. This type
of installation is not suitable for use on roofs over 10 m high.
N
FlatRoofFrame
For use on a at roof or where the roof pitch is too low. This type of installation is
not suitable for use on roofs over 10 m high.
Additionalinformationisprovided in the roof frame manual provided withtheframe.
N
ReversePitchFrame
These comprise of a Split System at roof frame and a side/reverse pitch kit. This
type of installation is not suitable for use on roofs over 10 m high.
They can be used when the collectors need to be installed in the reverse direction
to the direction the roof is facing. For example, installing on a South facing roof
enables the collectors to be oriented to the North.
Additionalinformationisprovided in the roof frame manual provided withtheframe.
N
SidePitchFrame
These comprise of a Split System at roof frame and a side/reverse pitch kit. This
type of installation is not suitable for use on roofs over 10 m high.
They can be used when the collectors needs to be installed side on to the direction
the roof is facing. For example, installation on an East or West facing roof to
enables the collectors to be oriented to the North.
Additionalinformationisprovided in the roof frame manual provided withtheframe.
N
CycloneFrame
Additional information is provided in the manual provided with the cyclone frame.
N

INSTALLATION INFORMATION
Rinnai 6 Split Collector IM
Mounting Location Suitability
The following table indicates which installation locations are suitable for different roof mounting options for Rinnai
split solar hot water systems.
Wind Region Region
ARegion BRegion CRegion D
Roof Area
(see page "Roof Area"
on page 7 for
explanation)
Area
1Area 2Area 3Area 1Area 2 Area 3Area 1 Areas 2 & 3 Area 1 Areas 2 & 3
1,2 or 3 collector(s) on
a pitched roof ü ü ü ü ü û û û û û
1 or 2 collector(s) on a
cyclone frame. üüüüüûü*û ü*û
1,2 or 3 collector(s) on
a at roof frame ü ü û ü û û û û û û
1 or 2 collector(s) on
a reverse or side pitch
frame üûûûûûûûûû
*SP200B or SP200BEX only.
See cyclone frame manual for full details of mounting location suitability in cyclone areas.
Wind Region
Australia has been categorised into 4 wind regions. Each region has varying wind load parameters such as wind
speed and wind direction multipliers. The diagram below illustrates the region locations. For more information
on how to classify site specic wind loading parameters see AS/NZS 1170.2 - Wind Actions, or consult a certied
structural engineer.
20˚
25˚
25˚
30˚
27˚
30˚
50km
100km
150km
Region A
Region B
Region C
Region D
Region A Region B Region C Region D
Callytharra Springs
Gascoyne Junction
Green Head
Kununurra
Lord Howe Island
Morawa
Toowoomba
Wittanoom
Bourke
Adelaide River
Atherton
Biloela
Brisbane
Christmas Island
Collinsville
Corindi
Geraldton
Ivanhoe
Kyogle
Marble Bar
Mullewa
Norfolk Island
Torres Strait Islands
Wyndham
Borroloola
Broome
Bundaberg
Burketown
Cairns
Cocos Islands
Darwin
Derby
Karumba
Mackay
Mareeba
Millstream
Moreton
Nhulunbuy
Normanton
Rockhampton
Townsville
Carnarvon
Exmouth
Karratha
Onslow
Port Hedland
Indicative selection of towns in Regions A,B,C &D

INSTALLATION INFORMATION
Rinnai 7 Split Collector IM
Roof Area
As per AS/NZS 1170.2, domestic pitched and at roof areas are classied into working areas. The diagram below
illustrate these areas.
Area 1
Area 2
Area 3
30° MAX
h= Average height
of building
D
A
B
A
A/2
A=minimumof0.2xB,0.2xDand1xh
Area 1 - Internal of roof.
Area 2 - Intermediate area, wind pressures increased
by 1.5 times.
Area 3 - Roof edge including corners, wind pressures
increased by 3 times. For installations in roof area
3, a minimum of 0.5m from the edge of the roof is
recommended.
Height limit for all installations is 10 metres.
For more information on how to classify specic roof
area installations, or for building heights exceeding
10 metres see AS/NZS1170.2 or consult a certied
structural engineer.
Some examples are shown below.
Example1
3.8 (h)
1.21 (A/2)
2.42 (A)
Area 3
12.1 (D)
20.3 (B)
1.21 (A/2)
2.42 (A)
Area 2
Area 1
Example2
12.1 (D)
20.3 (B)
3.8 (h)
2.42 (A)
1.21 (A/2)
Area 3
Area 2
Area 1
In both examples :
A = min of 0.2 x 20.3 = 4.06
0.2 x 12.1 = 2.42
1 x 3.8 = 3.8
èA = 2.42
A/2 = 1.21 m

INSTALLATION INFORMATION
Rinnai 8 Split Collector IM

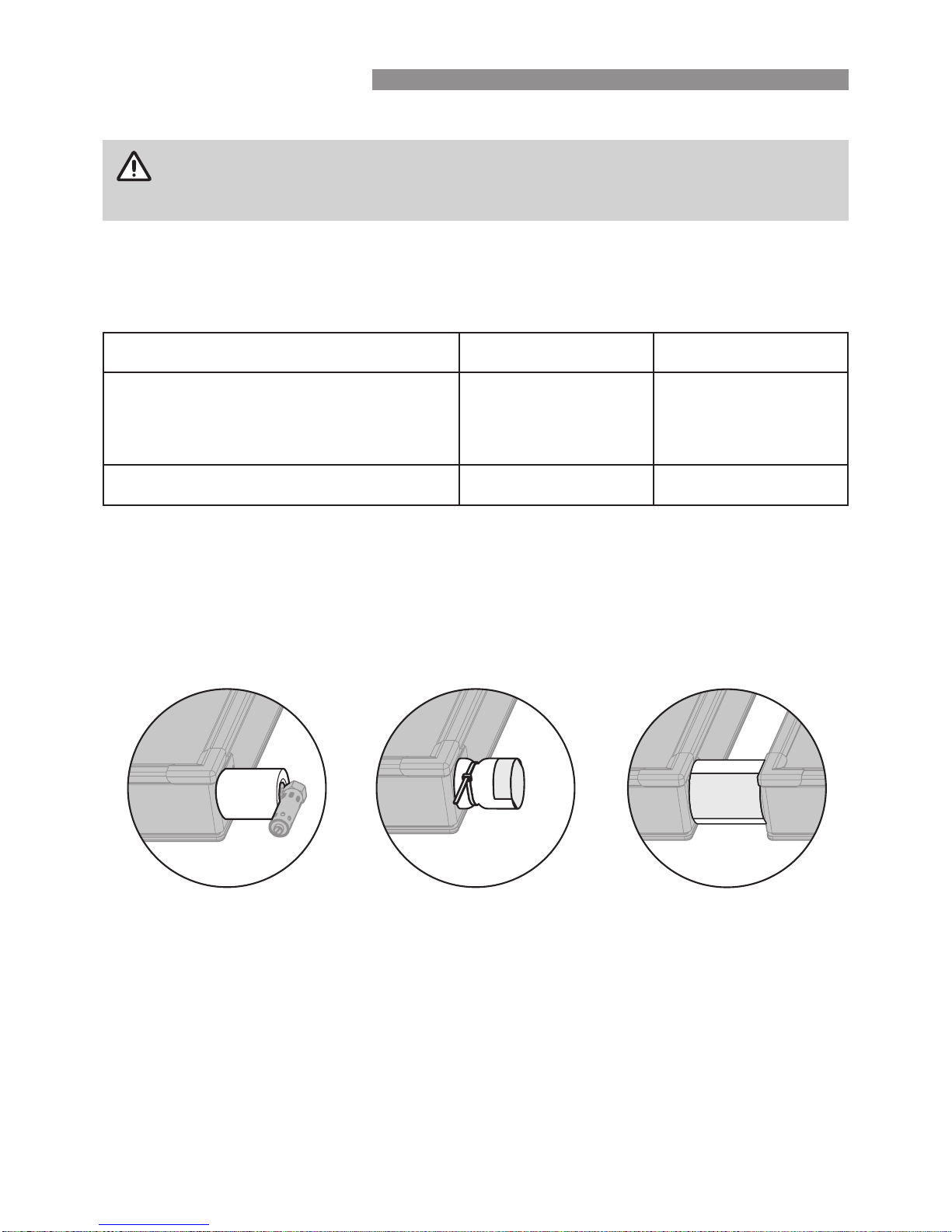

WATER PIPES, FITTINGS AND INSULATION
WARNING
The solar hot and solar cold pipes between the solar storage tank and the solar collectors must be
suited to the high water temperatures and pressures that may occur. As such, plastic pipe must not
be used. Components used to join pipes must use metallic materials to achieve sealing. The collector
ow and return pipes should be 15 mm copper tube.
All hot water pipework should be insulated with sealed polyethylene foamed or equivalent insulation to optimise
performance and energy efciency, and to protect against frost damage. Such insulation may also be mandatory
under local regulations.
Rinnai recommend insulation to achieve at least the R value shown in the following table.
Location of Installation Pipes on Roof Pipe between
tank and gas booster
• CER Zone 4
• Areas dened as “B or “C” in the latest version
of the Rinnai Solar Hot Water Warranty Booklet.
• Any other area prone to frost conditions.
R = 1.0K.m²/W R = 0.6 K.m²/W
• All other areas R = 0.6 K.m²/W R = 0.6 K.m²/W
With the exception of solar collector ow and return pipes, water pipe sizing should be performed in accordance
with AS/NZS 3500. All external pipework MUST be insulated to prevent frost damage.
The suggested maximum combined lengths of the solar ow and return pipes is 40 metres. Please refer to the
system installation manual supplied with the pump kit for the maximum pipe length for the specic pump kit.
All supplied insulation materials must be tted as shown to minimise heat losses. In frost prone areas this insulation
will also protect against frost damage. If frost valves are tted they must remain free of any insulation materials.
Frost valves must be exposed directly to ambient air conditions to ensure correct operation.
Insulation of ttings connecting
frost valve to collector. Frost valve
itself is uninsulated.
Insulation of cap, using insulation,
tape and cable tie. Insulation of barrel union with,
insulation and tape

INSTALLATION INFORMATION
Rinnai 9 Split Collector IM
CONNECTING FITTINGS TO COLLECTOR
WARNING
When connecting ttings to collectors ensure that the ats at the end of the collector header are held
in place with one spanner, while another spanner is used to tighten tting. Collector damage or leaks
may occur if this isn't done correctly.
 

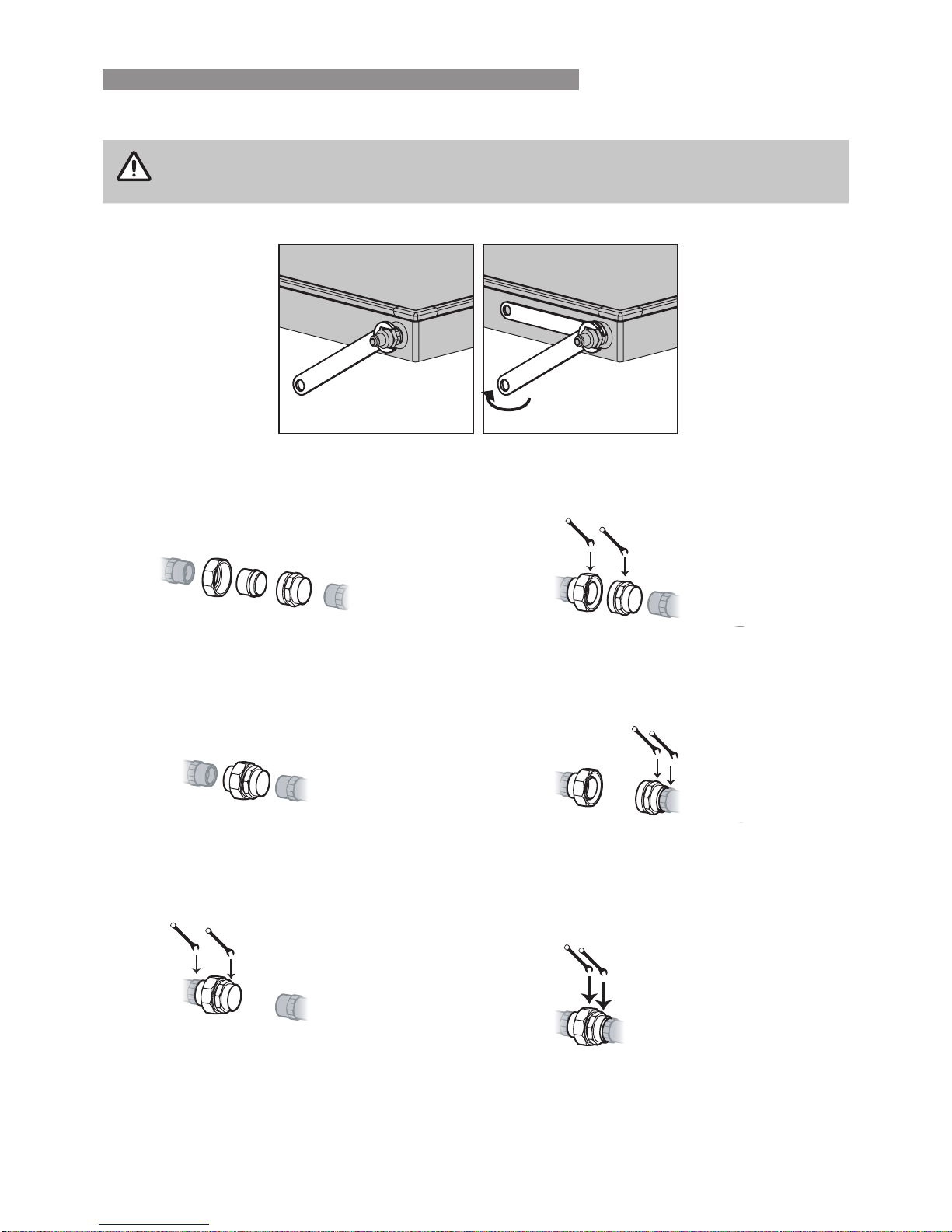

Connecting Barrel Unions
1.
A
BC
Identify the 3 components of the barrel union as
A,B or C
2.
Fasten the barrel union components together.
3.
Attach the collector header to the entire barrel
union with component B screwing onto the
threaded end of the header.
Tighten with two spanners in the places indicated
in the diagram above.
4.
Separate component C from components A and
B using two spanners in the places indicated in
the diagram above.
5.
Fasten component C to the header of the 2nd
collector.
Tighten with two spanners in the places indicated
in the diagram above.
6.
Join the barrel union components together.
Tighten with two spanners in the places indicated
in the diagram above.

COLLECTOR INSTALLATION
Rinnai 10 Split Collector IM
FASTENING COLLECTORS TO A TILED ROOF
WARNING
This type of installation is not suitable for use on roofs over 10 m high.
This type of installation is not suitable for use in cyclonic areas.
Attach the collector mounting straps to the rafter or
truss under the tiles.
Nail strap to rafter
Tiles removed
Place the collector(s) onto the roof above the lower
rail. If more than one collector is being installed then
join them together using the barrel unions supplied.
Using the supplied self drilling screws, fasten the rail
to the collector, through the square holes in the rail
as shown in the relevant diagram on page 12 to
19. Do not fasten in other locations as damage
to the collector header pipe may occur. Be careful
to adequately tighten the screws to ensure the
connection is secure without stripping the threads in
the collector case.
Position the upper collector rail above the collectors.
Fasten the rail to the collector, through the square
holes in the rail using the supplied self drilling screws.
Attach the collector mounting straps to the rafter or
truss under the tiles. Nail strap
to rafter
Tiles removed
Replace the tiles and ensure the collector is secure,
and the roof is weather tight.

COLLECTOR INSTALLATION
Rinnai 11 Split Collector IM
FASTENING COLLECTORS TO A METAL ROOF
WARNING
This type of installation is not suitable for use on roofs over 10 m high.
This type of installation is not suitable for use in cyclonic areas.
Position the lower collector mounting rail assembly so
that the rail is over the roof purlin.
Drill through the roof iron and purlin using the holes in
the rail as a guide. Apply some silicone sealant down
the holes to ensure no water leakage.
Bolt the rail to the roof purlin using a suitable fastener.
Position the collector(s) onto the roof above the lower
rail. If more than one collector is being installed, join
them together using the barrel unions supplied.
Using the supplied self drilling screws, fasten the rail
to the collector, through the square holes in the rail
as shown in the relevant diagram on page 19 to
19. Do not fasten in other locations as damage
to the collector header pipe may occur. Be careful
to adequately tighten the screws to ensure the
connection is secure without stripping the threads in
the collector case.
Position the upper collector rail above the collectors.
Fasten the rail to the collector, through the square
holes in the rail using the supplied self drilling screws.
Drill through the roof iron and purlin using the upper
mounting rail as a guide. Apply some silicone sealant
down the holes to ensure no water leakage and
secure with suitable fasteners.
Alternatively the rail can be attached to the roof using
the collector mounting straps.

COLLECTOR INSTALLATION
Rinnai 12 Split Collector IM

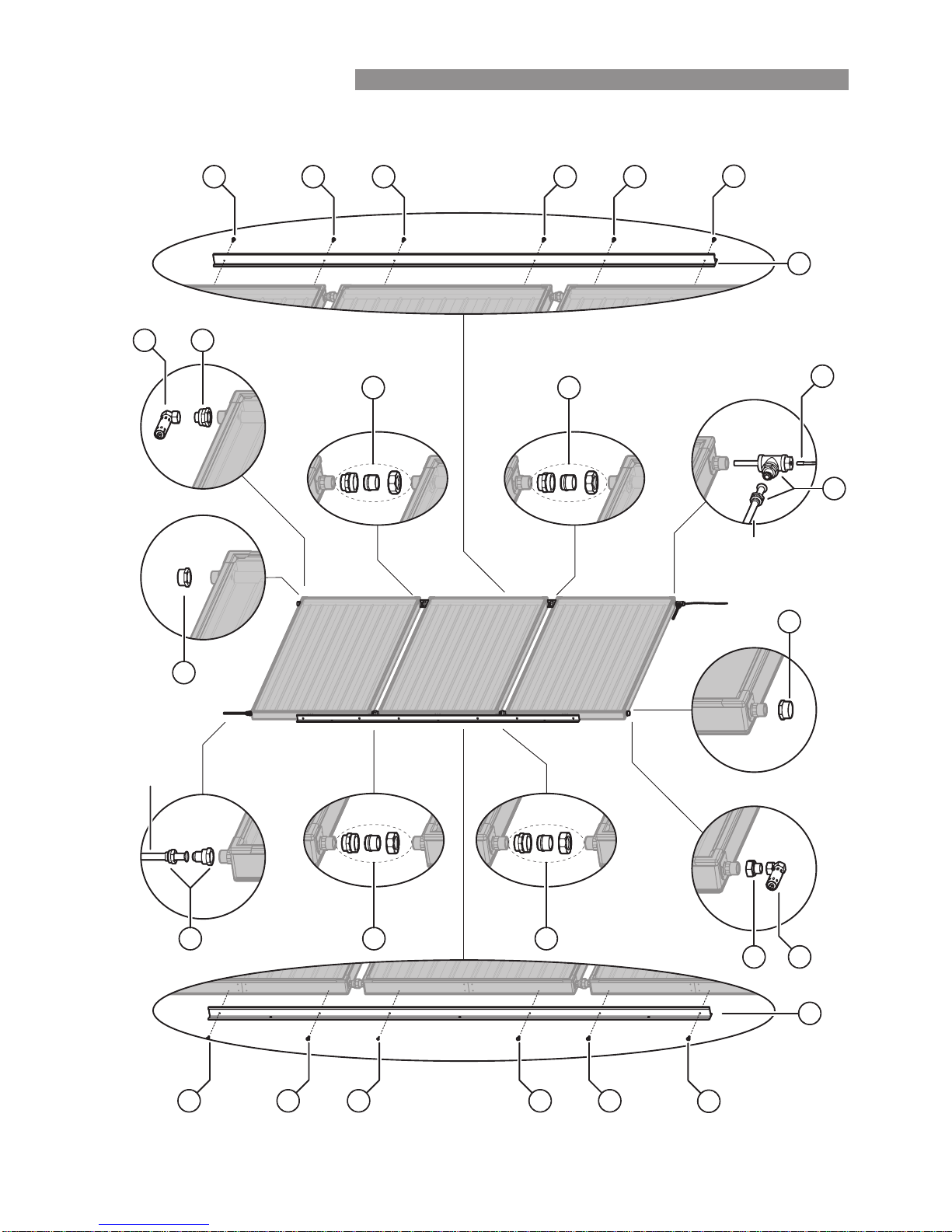

1 SP200B, SP250B OR SP200BEX INSTALLATION KITS - BIKSP1COLL AND BIKSP1COLLFT
7
Installer
Supplied Copper
Pipe & Insulation
6
5
7
Installer
Supplied
Copper
Pipe &
Insulation
4
2 2
1
2 2
1
8
9
OR

COLLECTOR INSTALLATION
Rinnai 13 Split Collector IM
1 SP200B, SP250B OR SP200BEX INSTALLATION KITS - BIKSP1COLL AND BIKSP1COLLFT

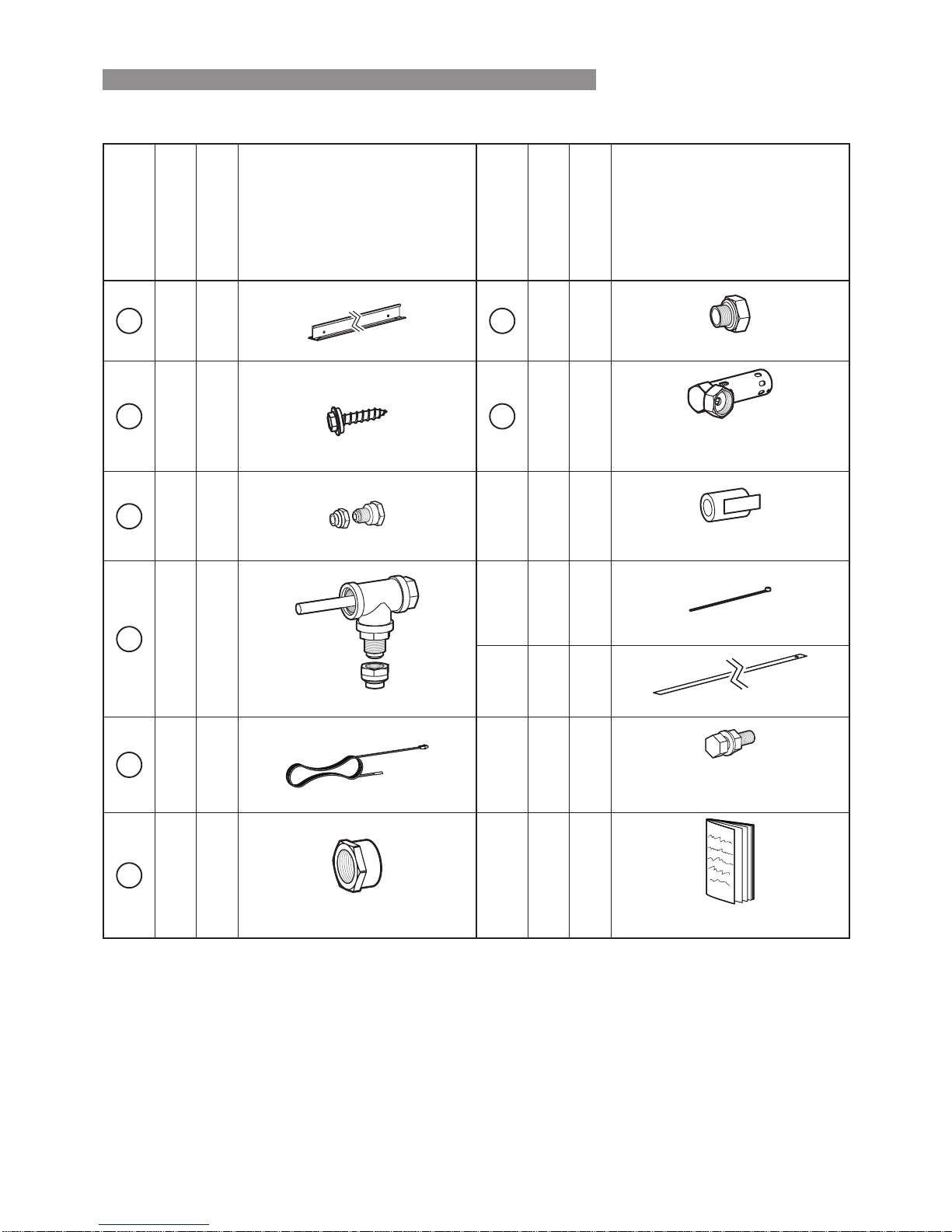

Qty
BIKSP1COLL
Qty
BIKSP1COLLFT
Item / Part Number
Qty
BIKSP1COLL
Qty
BIKSP1COLLFT
Item / Part Number
12 2
Mounting Rail Small (1.0 m) 14201196
8- 1
Adaptor R¾ - G1/2 at 16601092
24 4
Screw Self Drilling with Seal
12-11 x 25 mm 22601094
9- 1
Frost Protection Valve 11001051
(with washer)
41 1
Union ¾ - ½ 32201736
- 2 2
Insulation and Foil Tape * 14601216
For use with Frost Valves and/or Caps
51 1
Hot Sensor Assembly 10204715
- 2 1 Cable Tie
to fasten insulation to cap 39601035
-4 4
Collector Mounting Straps 12401012
61 1
Hot Sensor Lead (20m) 31002715
- 4 4 M8 Bolt, Washer and Nut Bolt 22601052
(Used to fasten collector Washer 17401072
mounting straps to rail) Nut 16801062
72 1
Cap 16001011
- 1 1
Solar Collector
Installation Manual 15401113

COLLECTOR INSTALLATION
Rinnai 14 Split Collector IM

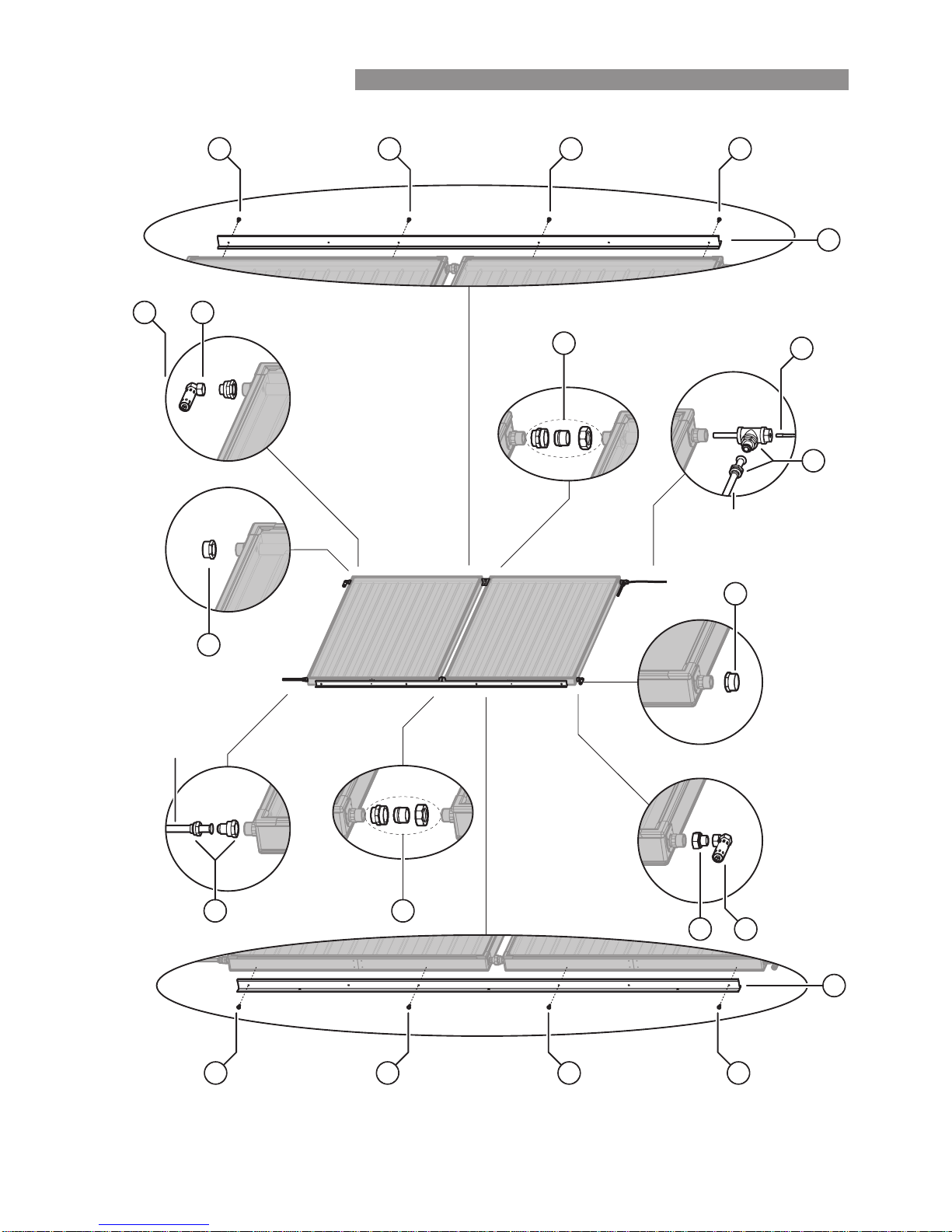

2 SP200B OR SP200BEX INSTALLATION KITS - BIKSP2COLL AND BIKSP2COLLFT
7
Installer Supplied
Copper Pipe
& Insulation
6
5
7
Installer
Supplied
Copper
Pipe &
Insulation
4
1
2 2 22
2 2 22
1
89
OR
3
3
9
OR
8

COLLECTOR INSTALLATION
Rinnai 15 Split Collector IM
2 SP200B OR SP200BEX INSTALLATION KITS - BIKSP2COLL AND BIKSP2COLLFT
Qty
BIKSP2COLL
Qty
BIKSP2COLLFT
Item / Part Number
Qty
BIKSP2COLL
Qty
BIKSP2COLLFT
Item / Part Number
12 2
Mounting Rail Medium (1.5 m) 14201197
72 -
Cap 16001011
28 8 Screw Self Drilling with Seal
12-11 x 25 mm 22601094
8- 2
Adaptor R¾ - G1/2 at 16601092
32 2
Barrel Union ¾ - ¾ 32201105
9- 2
Frost Protection Valve 11001051
(with washer)
- 2 2
Insulation and Foil Tape 14601217
For use with Barrel Unions
- 2 2
Insulation and Foil Tape * 14601216
For use with Frost Valves and Caps
41 1
Union ¾ - ½ 32201736
- 2 - Cable Tie
to fasten insulation to cap 39601035
51 1
Hot Sensor Assembly 10204715
-4 4 Collector Mounting Straps 12401012
- 4 4 M8 Bolt, Washer and Nut Bolt 22601052
(Used to fasten collector Washer 17401072
mounting straps to rail) Nut 16801062
61 1
Hot Sensor Lead (20m) 31002715
- 1 1
Solar Collector
Installation Manual 15401113

COLLECTOR INSTALLATION
Rinnai 16 Split Collector IM
2 SP250B INSTALLATION KITS - BIKSP2COLLXL AND BIKSP2COLLXLFT
7
Installer Supplied
Copper Pipe
& Insulation
6
5
7
Installer Supplied
Copper Pipe
& Insulation
4
2 2 22
2 2 22
1
89
OR
3
3
1
9
OR
8

COLLECTOR INSTALLATION
Rinnai 17 Split Collector IM
2 SP250B INSTALLATION KITS - BIKSP2COLLXL AND BIKSP2COLLXLFT
Qty
BIKSP2COLLXL
Qty
BIKSP2COLLXLFT
Item / Part Number
Qty
BIKSP2COLLXL
Qty
BIKSP2COLLXLFT
Item / Part Number
12 2
Mounting Rail Large (2.5 m) 14201198
72 -
Cap 16001011
28 8 Screw Self Drilling with Seal
12-11 x 25 mm 22601094
8- 2
Adaptor R¾ - G1/2 at 16601092
32 2
Barrel Union ¾ - ¾ 32201105
9- 2
Frost Protection Valve 11001051
(with washer)
- 2 2
Insulation and Foil Tape 14601217
For use with Barrel Unions
- 2 2
Insulation and Foil Tape * 14601216
For use with Frost Valves and/or Caps
41 1
Union ¾ - ½ 32201736
- 2 - Cable Tie
to fasten insulation to cap 39601035
51 1
Hot Sensor Assembly 10204715
-4 4 Collector Mounting Straps 12401012
- 4 4 M8 Bolt, Washer and Nut Bolt 22601052
(Used to fasten collector Washer 17401072
mounting straps to rail) Nut 16801062
61 1
Hot Sensor Lead (20m) 31002715
- 1 1
Solar Collector
Installation Manual 15401113

COLLECTOR INSTALLATION
Rinnai 18 Split Collector IM
3 SP200B OR SP200BEX INSTALLATION KITS - BIKSP3COLL AND BIKSP3COLLFT
7
Installer
Supplied Copper
Pipe & Insulation
6
5
7
Installer
Supplied
Copper
Pipe &
Insulation
4
2 2 2 222
1
2 2 2 2 22
1
89
OR
3 3
3
3
8
9
OR

COLLECTOR INSTALLATION
Rinnai 19 Split Collector IM
3 SP200B OR SP200BEX INSTALLATION KITS - BIKSP3COLL AND BIKSP3COLLFT
Qty
BIKSP3COLL
Qty
BIKSP3COLLFT
Item / Part Number
Qty
BIKSP3COLL
Qty
BIKSP3COLLFT
Item / Part Number
12 2
Mounting Rail Large (2.5 m) 14201198
72 -
Cap 16001011
212 12 Screw Self Drilling with Seal
12-11 x 25 mm 22601094
8- 2
Adaptor R¾ - G1/2 at 16601092
34 4
Barrel Union ¾ - ¾ 32201105
9- 2
Frost Protection Valve 11001051
(with washer)
- 4 4
Insulation and Foil Tape 14601217
For use with Barrel Unions
- 2 2
Insulation and Foil Tape * 14601216
For use with Frost Valves and/or Caps
41 1
Union ¾ - ½ 32201736
- 2 - Cable Tie
to fasten insulation to cap 39601035
51 1
Hot Sensor Assembly 10204715
-4 4 Collector Mounting Straps 12401012
- 4 4 M8 Bolt, Washer and Nut Bolt 22601052
(Used to fasten collector Washer 17401072
mounting straps to rail) Nut 16801062
61 1
Hot Sensor Lead (20m) 31002715
- 1 1
Solar Collector
Installation Manual 15401113

15401113 20 Split Collector IM - Issue 4 - September 2017
CONTACT INFORMATION
Head Office
100 Atlantic Drive,
Keysborough, Victoria 3173
Tel: [phone]
Fax: [phone]
P.O. Box 460
Braeside, Victoria 3195
National Help Line
Tel: [phone]* Fax: [phone]*
*Cost of a local call higher from mobile or public phones.
Hot Water Service Line
Tel: [phone]
Australia Pty. Ltd. ABN 74 005 138 769
Internet: www.rinnai.com.au E-mail: [email protected]
Rinnai has a Service and Spare Parts network with personnel who are fully trained
and equipped to give the best service on your Rinnai appliance. If your appliance
requires service, please call our National Help Line. Rinnai recommends that this
appliance be serviced every 3 years.
