Rinnai Control-R RWM101 User manual

ENGLISH

If you contact Rinnai, please have your module’s AYLA ID
available (located on the back of the module). Write the
number here for your convenience:
AYLA ID:
• Module (with 5 ft/1.5 m of wire for water heater connection)
• Wall mounting hardware (two screws and two anchors)
• Rinnai Control-R™ Wi-Fi Module Installation Manual
(this manual)
Thank you for purchasing Rinnai’s Control-R™ Wi-Fi
Module.
The Control-R™ Wi-Fi Module can be wirelessly paired with
motion sensors, push buttons, and Smart Home Devices
such as Amazon Alexa™, Google Home™, and Samsung
SmartThings™.
Before installing and operating the module, be sure to read
these instructions to familiarize yourself with the module’s
features and functionality.

Color State Condition
Yellow Solid Wi-Fi module booting up or
updating firmware
Red Blinking Searching for IP address
Red Solid Ready to pair and register
Green Solid In accessory pairing mode –
searching for wireless on-demand
recirculation accessory (push
button, motion sensor, etc.)
Green Blinking Pairing successful to wireless on-
demand recirculation accessory
(push button, motion sensor, etc.)
Blue Blinking Ready for/attempting cloud
registration
Blue Solid Cloud registration successful
Purple Solid Module connected to local Wi-Fi,
but cannot access Internet
Purple Blinking Module is not able to connect to
local Wi-Fi
White Solid/
Blinking
Initiating factory reset
The table below describes possible states for each of the
LED color indicators.

• Choose a central location where the Wi-Fi signal is
strong.
• Place the magnetic back side of
the module to the side of the
water heater.
• For indoor water heaters only.
• Additional wiring can run up to 300 feet (91 meters) away
from the water heater to ensure a strong wireless signal
(18-22 gauge wire is required).
• For outdoor water heaters, the module must be installed
indoors.
Basements, crawl spaces, attics, garages, and
mechanical rooms may have poor wireless signals.
IMPORTANT

You Will Need
• Module (supplied)
• Two wall anchors and two screws (supplied)
IMPORTANT: The anchors and screws are for mounting
to the wall; do not insert them into the tankless water
heater.
• Tools (field-supplied): Phillips head screwdriver, drill with
bit set, level and pencil
The module’s back panel contains two keyhole slots
that support the module. Mark the location of each
slot on the wall with a pencil. The distance between
the two slots is 1.9 in. (48 mm).
Use a level to ensure the slots are even.
Use a power drill to drill pilot holes for the module
screws and anchors.
1.9 in.
(48 mm)
❶
❷
AYLA
ID

Insert the two wall anchors (supplied) into each
hole until they sit flush against the wall.
Mount the module by placing the keyhole slots (on
back of module) onto the screws.
Insert the screws (supplied) into the anchors and
fasten to the wall leaving 1/4 in. exposed.
❸
❹
❺
DO NOT insert the
anchors into the
water heater.
DO NOT insert the
screws into the
water heater.

To protect yourself from harm, follow the steps below
before wiring the module:
• Turn off the electrical power supply by unplugging the
power cord or by turning off the electricity at the circuit
breaker. The temperature controller does not control the
electrical power.
• The steps in this section must conform with local codes
and the guidelines established by the National Electrical
Code (NEC).
WARNING
Unplug the water heater power cord (pressing the
ON/OFF button on the controller does not power off
the water heater).
Remove the water heater front panel by removing
the four screws that secure the panel.
❶
❷
Connect the module wires to the PC Board located
inside the water heater:
❸

Route the module controller cable through the grommet
(located on the bottom, right side of the unit) and connect to
the mating terminal on the bottom, right side of the PC
Board.
❸
Important: If your module wires include spade end
connectors, follow the steps below:
• Cut the spade end
connectors off the two
module wires. Then,
strip the insulation off
both ends.
• Connect the module
cable to the SENSEI™
controller cable
(included in water heater
packaging or sold
separately) using wire
nuts or other approved
wire connectors.
Strip
insulation
MODULE
Controller
Cable
MODULE Wire
Nuts
PC
Board
MODULE
Controller
Cable
Mating
Terminal
Grommet
Under Unit

Replace and tighten the four screws on the water
heater cover.
Plug in the water heater power cord.
Turn on the water heater by pressing the On/Off
button on the water heater controller.
❹
❺
❻
Remote control
cable
• Place the two module wires
through the bottom opening of
the water heater.
• Attach each module wire to the
two screws labeled Terminal for
Controls.
− Partially unscrew each of the
two screws.
− Insert the spade terminal
(connected to the end of each
wire) between the screw and
the contact.
− Tighten the screws.
❸

If using the Push Button or Motion Sensor for on-demand
recirculation, install and pair them at this time.
Push Button
Visit rinnai.us/wifi for additional resources including:
• Control-R Push Button Installation Instructions1
• Control-R Motion Sensor Installation Instructions1
• Recirculation with On-Demand Accessories User Guide
• On-Demand Recirculation Quick Start Guide (Module
with Push Button)
1 These instructions are also located inside the push button or motion
sensor package.
Mounts in a
convenient
location (such
as a kitchen faucet or
bathroom sink) and
operates the recirculation
system by pushing the
button.
Motion Sensor
Mounts flush to
the wall or in
the corner and
operates the recirculation
system with the detection
of motion. Designed to
detect full-body movement
up to 30 feet.

• Push Button - Requires two CR2450 watch
batteries (included with push button)
• Motion Sensor - Requires one 2600mAh AA size
Lithium-Thionyl Chloride battery (3.6V or 3.7V)
(included with motion sensor)
Pair the Push Button or Motion Sensor to the module.
You Will Need:
• Control-R™ Module
• Push Button and/or Motion Sensor
• Phillips Head Screwdriver (Motion Sensor only)
❶
❷
Ensure the module LED has been solid red for at least
one minute prior to beginning the pairing process.

You have five minutes to pair the push
button or motion sensor with the module
before pairing mode times out.
Press and hold down the Connect button on the
module until the LED turns solid GREEN.
Then, release the button (you will need to repeat this
process to pair each accessory).
• Press and hold down the button
until it flashes three times.
• Release the button.
• If paired successfully, the module
LED will return to the previous
color.

• Use a Phillips Head
screwdriver to remove the
front cover.
• Press and hold down the
Connect button on the PCB
until the LED double flashes
every second.
• Release the button.
• If paired successfully, the
module LED will return to the
previous color.
When a push button or motion sensor is activated, the
pump turns on and runs for five minutes or until the
selected water temperature is reached (whichever occurs
first). The pump turns off and enters into a dormant
(inactive) state according to the parameter settings/dip
switches selected in the water heater. During this time, the
pump will not turn on for any reason, even if the push
button or motion sensor is activated.
Refer to the tankless water heater installation and
operation manual for more information on Circ-Logic
(Rinnai’s recirculation technology) and recirculation
parameter/dip switch settings.
IMPORTANT

Install the push button or motion sensor near the
water fixture that will be used frequently, such as a
kitchen faucet or bathroom sink.
Refer to the instructions in the push button or motion
sensor package for detailed installation steps.
Mount flush to the wall or
in the corner between
6 to 9 feet (1.8 to 2.7 m)
above floor level.
Adhere to any wall or
counter service using the
adhesive backing.
❸

You Will Need:
• Mobile device connected to home/business network
• Router with Wi-Fi
• 2.4 GHz Wi-Fi network
❶
The module LED will blink yellow until boot-up is
complete and will then turn solid RED.

Download the Control-R™ app to your smartphone or
tablet from the Apple® Store or Google® Play Store.
❷
❸
Rinnai Control-R™
Rinnai America Corp

Symptom Solution
LED on module
does not turn on
• Ensure the module is properly
connected to the PC Board.
• Ensure power is supplied to the
water heater.
Control-R™ App
cannot detect Wi-Fi
signal
• Ensure the Wi-Fi network is using
2.4 GHz.
• Ensure the Wi-Fi router is powered
and properly functioning.
• Ensure the module is installed in a
location with strong signal strength.
Wi-Fi signal is
detected but the
Control-R™ App
cannot connect
• Ensure the correct Wi-Fi password
is entered.
• Press Cancel in the Control-R™
App and repeat the setup process
starting from pairing the module
with the Control-R™ App.
• For questions about your Wi-Fi router, contact the router
manufacturer
• For questions about your Internet service, contact your
Internet Service Provider (ISP)
• Contact Rinnai Customer Care at 1-800-621-9419 and
have your module’s AYLA ID available (located on back of
module)
Scan the QR code to find troubleshooting
information and tutorials

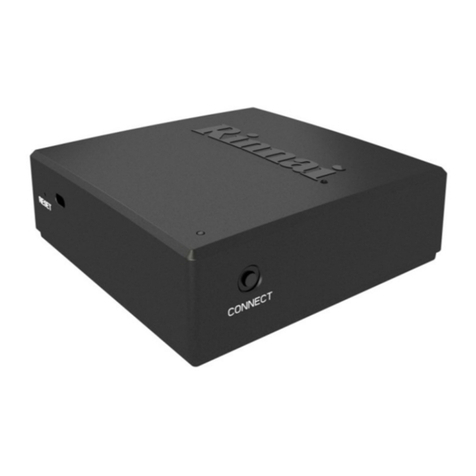

Product Rinnai Control-R™ Wi-Fi Module
Part Number RWM101
Weight
Module 4.8 oz (0.14 kg)
Shipping
Carton 6 oz (0.17 kg)
Dimensions
(w, h, d):
Module 3.69 in. x 3.69 in. x 1.18 in.
(94 mm x 94 mm x 29.97 mm)
Shipping
Carton
6.125 in. x 2.88 in. x 6 in.
(155.6 mm x 73 mm x 152.4 mm)
Installation
• Must be mounted indoors
• Attaches to the side of the water heater via the magnetic
enclosure (indoor models only) or mounts to an indoor
wall with supplied mounting hardware
Width
3.69 in. (94 mm)
Height
3.69 in. (94 mm)
Depth
1.18 in.
(29.97 mm)
