Riotoro SPITFIRE M2 User manual

MESH GAMING CHAIR
SPITFIRE M2

1
Thank you for purchasing the SPITFIRE M2!
The SPITFIRE M2 is a pro level gaming chair with futuristic style, exoskeleton
back, great comfort and environment-friendly materials.
Its high back mesh and integrated contoured back frame (with built-in
contoured shape for neck and lumbar support) allows for cooler, comfortable
and breathable sitting.
It also sports high-traffic casters, so you can move around freely and without
scratching any surface.
Welcome to RIOTORO

SPITFIRE M2 MESH GAMING CHAIR
4
5
7
8
Before You Begin
- Exploded view
- What is in the box
- Precautions
- Requirements
1
2Ready, Setup, Go
- Specifications
- Install the castors
- Install the piston
- Install the base
- Install the armrest and backrest support
- Install the bottom and back assembly
- Personalization
3Top / Front Panel Assembly
- General Maintenance
- Limited product warranty ("Limited Warranty")
- Recommended parts
18
19
20
10
11
12
13
14
15
16
2
CONTENTS

Before You Begin
1
www.riotoro.com/chairs

SPITFIRE M2 MESH GAMING CHAIR

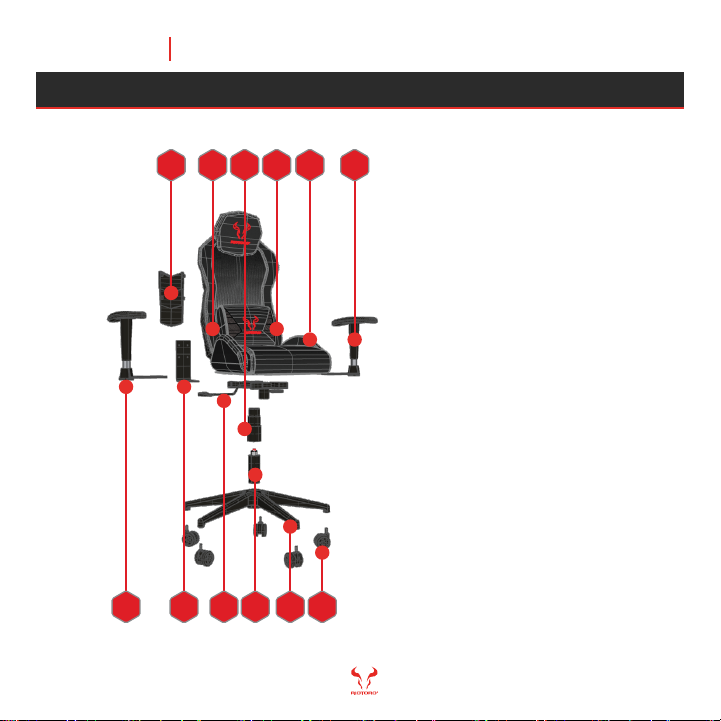

Exploded view
1. 1D Armrest
2. Castors
3. Seat
4. Wheel Base
5. Pillow
6. Piston
7. Piston Cover
8. Adjustable Base
9. Back Rest
10. Back Rest Structure
11. 1D Armrest
Before You Begin 4
8
3
51
2
64
79
10
11
12

Backrest structure Join backrest and seat
1D armrest Support your arms during
chair use
2
7
Adjustable base Backrest and height
adjustment
Backrest trim Cover backrest and seat
joints
Seat Build your gaming chair
Backrest
1
1
1
1
1
1
Build your gaming chair
4
WHAT’S IN THE BOX
QTY
ITEM IMAGE USEDESCRIPTION
1
2
3
5
6
Pillow Back support
SPITFIRE M2 MESH GAMING CHAIR
Before You Begin 5

M8 x 25.0mm Screws Securing components
Allen wrench / Phillips
screw driver
Secure all screws
6
1
Performance castors Securing components
Piston cover Protect piston from dirt
and provide aesthetics
Piston
5
1
1
1
Support your weight and
adjust chair height
Wheel base Castor installation
11
WHAT’S IN THE BOX
QTY
ITEM IMAGE USEDESCRIPTION
8
9
10
12
13
SPITFIRE M2 MESH GAMING CHAIR
Before You Begin 6

Please take the following precautions:
- Handle all components with care.
- Remove all components for protective packaging and sort them out
- To avoid damaging components do not use of sharp objects.
- Before moving to the next step, make sure the components are
securely fastened.
SPITFIRE M2 MESH GAMING CHAIR
PRECAUTIONS
Before You Begin 7

SPITFIRE M2 MESH GAMING CHAIR
Before You Begin 8
Note: Handle all components with care, should you need any assistance go to www.riotoro.com/support
REQUIREMENTS
In order to configure the SPITFIRE M2 you will need:
1. A flat working area (e.g. desk or table)
with sufficient space
2. A magnetic Phillips screw driver
This means you need to have the Phillips screw driver
available in order to complete this assembly.

Ready, Setup, Go
2
www.riotoro.com/chairs

- Bluetooth:
- RGB:
- Powerbank:
- Back Structure:
- Back Trim:
- Back Waist:
- Fabric:
- Armrest:
- Seat Materials:
- Seat Frame:
- Gas Lift:
- Base:
- Wheels:
- Recline:
- Hight Adjustment:
- Swivel:
- Max Weight:
GENERAL
SPITFIRE M2 MESH GAMING CHAIR
SPECIFICATIONS
No
No
No
ABS plastic and Mesh Fabric
Synthetic Leather
No
Synthetic Leather / Mesh Polyester
1D adjustable
Molded Foam / PU Leather
Metal
Lant Three Class
Nylon
Ultra Quiet, High Traffic, Colored Nylon
Up to 135 Degrees
Yes
Yes, 360 Degrees
250.0 lbs
Chapter 1 10

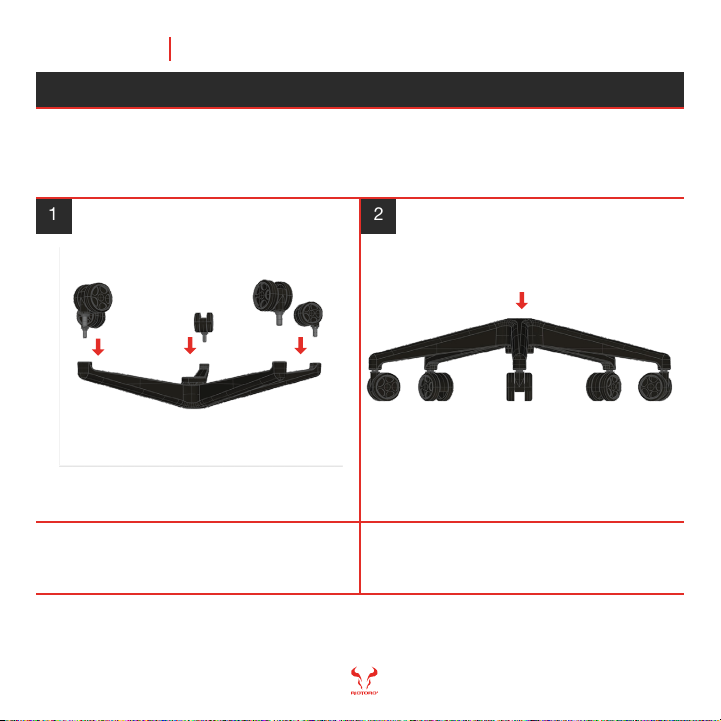

Place each castor on the respective hole located in the wheel base.
SPITFIRE M2 MESH GAMING CHAIR
Once all castors are placed securely in position
turn over, place on the floor and from the center
firmly press downwards to ensure a tight fit.
1 2
Position the wheel base with the holes looking
upwards and insert each castor. You will hear
a clicking sound once it is in position.
Chapter 1 11
INSTALL THE CASTORS

Gather the piston and piston cover and install to the wheel base.
SPITFIRE M2 MESH GAMING CHAIR
Once the piston is in place, simply put the piston
cover on top of it.
1 2
Thread the piston through the wheel base.
Note: both piston and piston cover might be lose at this point, do not worry as both will be secured into place once
the base of the chair is installed on top.
Chapter 1 12
INSTALL THE PISTON

Gather four M8x25.0mm screws, the Allen wrench and adjustable base to
proceed with the installation.
Chapter 2
SPITFIRE M2 MESH GAMING CHAIR
Secure the adjustable base to the seat by using
the provided hex screws and tool.
1 2
Align the adjustable base mounting holes and
the seat mounting holes.
INSTALL THE BASE
13
Screw orderScrew order

Gather seven M8x25.0mm screws, the armrest, backrest structure and the Allen
wrench to proceed with the installation.
Chapter 2
SPITFIRE M2 MESH GAMING CHAIR
Slide and secure the backrest bracket to the
back side of the adjustable base by using the
provided hex screws and tool.
Secure the adjustable armrests on both sides
of the seat by using the provided hex screws
and tool.
1 2
INSTALL THE ARMREST AND BACKREST SUPPORT
14

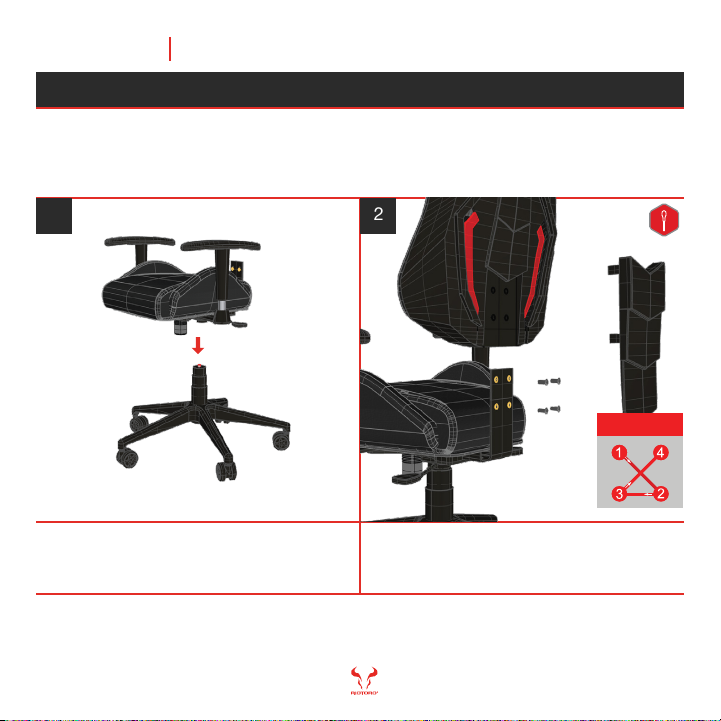

Secure the previous assembled parts to each other in order to finalize the
process.
1 2
INSTALL BOTTOM AND BACK ASSEMBLY
Place the seat assembly on top of the base assembly. Align the backrest holes with the backrest bracket holes
and secure tightly with provided screws and tool. Once
secured, snap on the backrest cover.
Chapter 2 15
SPITFIRE M2 MESH GAMING CHAIR
Screw orderScrew order

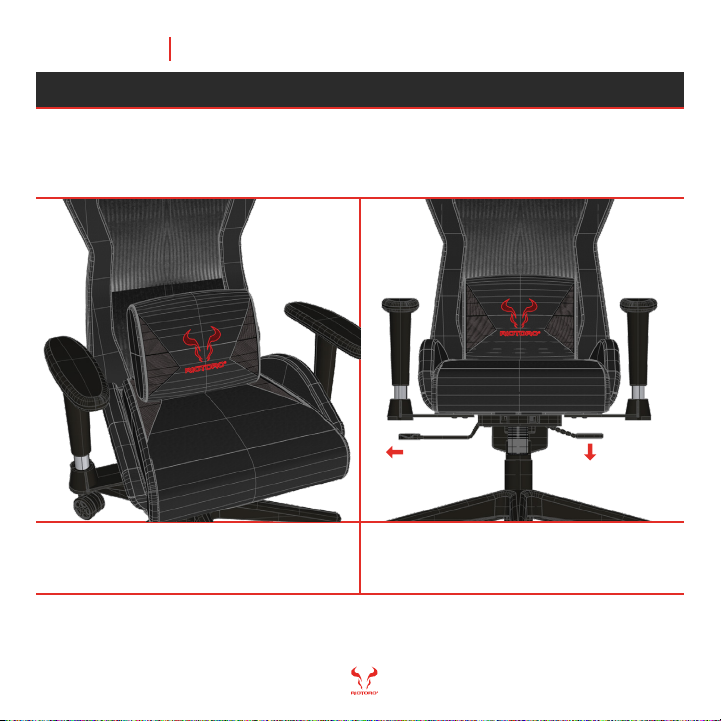

Note: be careful with your fingers when adjusting the height as the spring mechanism is quite strong and it may
potentially hit your fingers against the base.
Using the pillow is optional, its purpose is to provide
back support if needed.
Adjust the seat and backrest to the desired position.
As a final step place the support pillow and seat on the chair.
PERSONALIZATION
Chapter 2 16
SPITFIRE M2 MESH GAMING CHAIR
pull

Everything Else
3

If you need to clean your gaming chair, follow these instructions:
- Wipe it down with a clean cloth.
- Remove any excess dust or debris by vacuuming or dusting it. For fabric or
mesh areas you may use the regular or brush attachment on vacuum cleaner and
gently rub it. For PU or PVC artificial leather, you shouldn’t need a vacuum. Just
dust it down with a thick microfiber cloth.
- In a bowl mix warm water and mild detergent, using a sponge or a cloth wash
the armrests, base, and frame. You can then wash the surface of the armrests,
base, and frame and dry them with a paper towel or dry cloth.
- Tighten any loose screws and clean the casters
Chapter 3
SPITFIRE M2 MESH GAMING CHAIR
Note: Do not spray liquid directly onto the case, liquid could drip inside it and cause electrical shock.
18
GENERAL MAINTENANCE

Chapter 3
