RIPSpeed CMR-i4000 User manual

CMR-i4000
OW NER S MA N U AL
'

1
Safety Information
Thank you for purchasing the player. Please read this manual carefully before operating and reserve it for future reference.
PRECAUTIONS
Use only in a 12-volt DC negative-ground electrical system.
Disconnect the vehicle's negative battery terminal while mounting and connecting the unit.
When replacing the fuse, be sure to use one with an identical amperage rating. Using a fuse with a higher amperage rating may cause serious
damage to the unit.
DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dangerous to the eyes.
Make sure that pins or other foreign objects do not get inside the unit; they may cause malfunctions, or create safety hazards such as electrical
shock or laser beam exposure.
If you have parked the car for a long time in hot or cold weather, wait until the temperature in the car becomes normal before operating the unit.
Keep the volume at a level at which you can hear outside warning sounds (horns sirens, etc.).

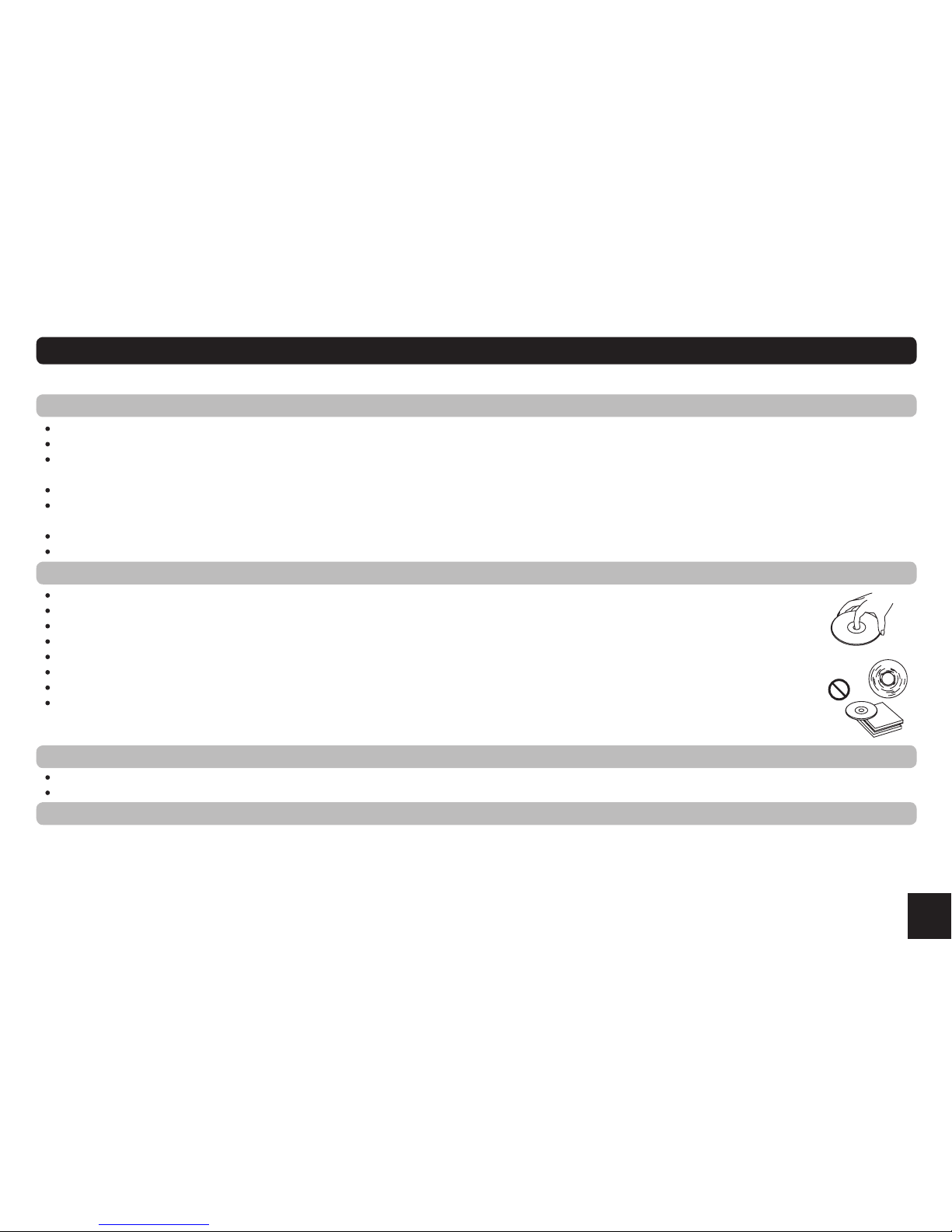

CD Notes
Playing a defective or dusty CD can cause dropouts in sound.
Hold CDs as illustrated.
Do not touch the unlabeled side.
Do not attach any seal, label or data protection sheet to either side of a disc.
Do not expose a CD to direct sunlight or excessive heat.
Wipe a dirty CD from the center outward with a cleaning cloth.
Never use solvents such as benzine or alcohol.
This unit cannot play 3-inch ( 8cm ) CDs.
NEVER insert a 3-inch CD contained in the adapter or an irregularly shaped CD. The unit may not be able to eject it, resulting in a
malfunction.
Before operation
Do not raise the volume level too much, as this will block outside sounds, making driving dangerous.
Stop the car before performing any complicated operation.
CAUTION
DO NOT open covers and do not repair yourself. Consult the dealer or an experienced technician for help.
* In addition to ordinary CDs, this unit can playback a CD-R or CD-RW.

2
Contents
Safety Information ..................................................................................................................................................................................................................1
Contents .................................................................................................................................................................................................................................2
Panel Controls........................................................................................................................................................................................................................3
Remote Control .................................................................................................................................................................................................................. 4-5
Button Tips .............................................................................................................................................................................................................................6
iPod Operation........................................................................................................................................................................................................................7
MP3 Playback..................................................................................................................................................................................................................... 8-9
MP3 Overview ......................................................................................................................................................................................................................10
RDS................................................................................................................................................................................................................................ 11-12
Menu Function................................................................................................................................................................................................................ 13-14
Electrical Connections..........................................................................................................................................................................................................15
Installation Guide..................................................................................................................................................................................................................16
Anti-Theft System.................................................................................................................................................................................................................17
Trouble Shooting ..................................................................................................................................................................................................................18
Specications .......................................................................................................................................................................................................................19

3

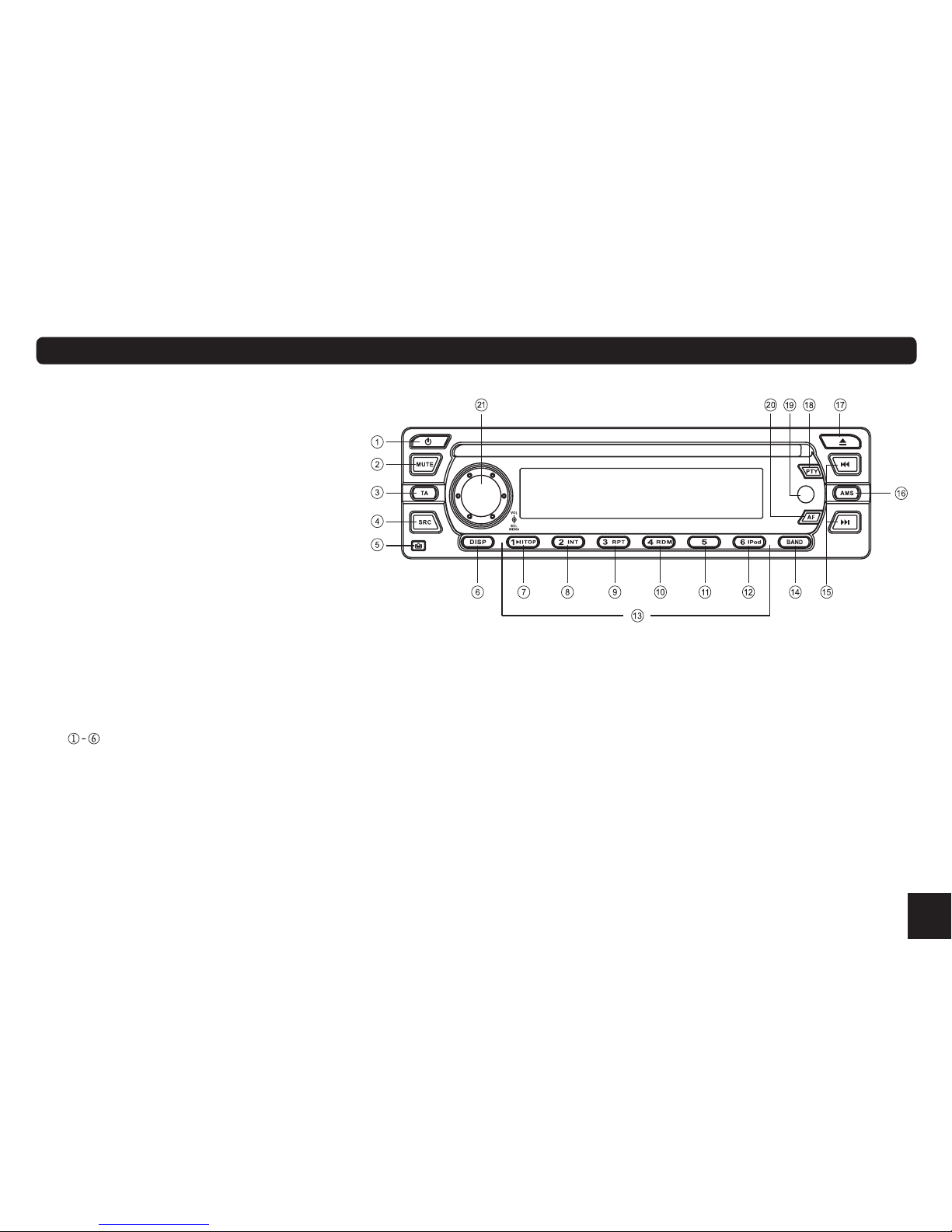

1. Power on/off
2. Mute
3. TrafcAnnouncements
4. Source switch
-Radio
-Disc play (when disc is in)
-iPod (when iPod connected)
5. Panel release
6. -Time display/adjust (see page 6)
-Display switch
7. -Play/Pause
-Top play (hold more than 2sec)
8. Intro play (10sec)
9. Track repeat play
10. Track random play
11. MP3 play mode
 -10tracksdown(pressbriey)
-Folder down (hold more than 2 sec)
12. MP3 play mode
 -10tracksup(pressbriey)
-Folder up (hold more than 2 sec)
iPod play mode
-iPod menu
13. Radio and Satellite Preset:
-Press to tune in a preset station .
-Hold for more than 2 seconds to store station.
14. -Band Switch: FM1-FM2-FM3-MW1-MW2
-MP3 ID3 Display switch:
FOLDER-FILE-MUSIC-ARTIST- ALBUM
15. -Radio tune
-Track seek
16. -Radio auto preset/Radio preset scan
 -MP3track/le/charactersearch.
17. Disc Eject
18. Program Type
19. Remote sensor
20. Alternative Frequency
21. -Rotate to adjust volume level.
-Push to select BAS(Bass)/TRE(Treble)/BAL(Balance)/
FAD(Fader)/VOL(Volume).
-Push more than 2 seconds to Menu mode.
Panel Controls

4
Remote Control
1. -Power on/off
2. -Mute
3. -Push to select BAS(Bass)/TRE(Treble)/BAL
(Balance)/FAD(Fader)/VOL(Volume),
use Volume button to adjust level.
-Push more than 2 seconds to menu mode.
4. TrafcAnnouncements
5. -Disc playback
Button 1: Play/Pause
Top play (hold more than 2sec)
Button 2: Intro play (10sec)
Button 3: Track Repeat Play
Button 4: Track Random Play
Button 5: MP3 play mode
   -10tracksdown(pressbriey)
-Folder down (hold more than 2 sec)
Button 6: MP3 play mode
   -10tracksup(pressbriey)
-Folder up (hold more than 2 sec)
iPod play mode
-iPod menu
-Radio and satellite preset
Press to tune in a preset station, hold for more
than 2 seconds to store station.
TA
AF/REG
/TOP
AMS
EQ
SEARCH
6. -Alternative Frequency
-REG on/off
7. EQ: POP/ROCK/CLAS/FLAT/OFF
8. Display switch
9. -Band Switch:
FM1-FM2-FM3-MW1-MW2
-MP3 ID3 Display switch:
FOLDER-FILE-MUSIC-ARTIST-ALBUM
10. AMS: Radio auto preset/Radio preset scan
11. Source switch
-Radio
-Disc play (when disc is in)
-iPod (when iPod connected)
12. -Radio Tune
-Track Seek
13. -Volume

5
Remote Control
Replacing the lithium battery of remote control unit.
When the range of the operation of the card remote control becomes short or no functions while operating, replace the battery with a new lithium battery.
Make sure the battery Polarity replacement is correct.
1.Pull out the battery holder while pressing the stopper.
2.Insert the button-type battery with the stamped(+) mark facing upward. Insert the battery holder into the remote control.
Remote control operating range
The remote control can operate within a distance of 3~5m.
1
(CR 2025)
2

6
BUTTON TIPS
AMS : Auto memory store/Auto preset scan
Press AMS button to scan the preset station 1-6 for 5 seconds each.
Press and hold 2 seconds, the 6 strongest available station will be automatically saved in the memory of preset button 1-6 .
BUTTON SKIP
Radio : Press either side of the button to tune in the station. Tuning will automatically activate and stop when signals of the next station are received.
Hold more than 2 seconds to tune by step manually. Hold any of 1-6 preset button more than 2 seconds, the current station will be saved in the
memory.
Discplayback:Pressbrieyeithersideofthebuttontogotothenextorprevioustrack.Holdittofastforwardorreversebackthetrack.
SET CLOCK
Hold DISP button more than 2 seconds, time display blinks. Rotate the knob clockwise to set the hours or counterclockwise to set the minutes, press
DISP button again to exit the clock setting.

7
iPod Operation
Accessing iPod Mode
Press the SRC button to change to iPod playback mode.
Selecting a Track
Press the TUNE/TRACK button to select a track.
Press and hold the TUNE/TRACK button to fast forward or fast reverse through the track.
Display Modes
Press the DISP button to change the ID3 display to the following options in the order listed.
• Track number and elapsed playing time
• Song name
• Artist name
• Album name
If the selected album name, artist, or title exceeds
eleven characters, the display information will scroll
upon selection.
iPod Category Search
Press the 6 button to enter the iPod menu. Turn
the rotary encoder to choose from the following
categories:
• PLAYLIST
• ARTIST
• ALBUM
• GENRE
• SONG
• COMPOSER
Press the MENU button to select an option. At any
point, you can press the 6 button to return to the
previous option.
Some search categories require multiple selections
before accessing a track, depending on the file
structure on your iPod and availability of items in
a particular search category. For example, after
selecting GENRE you may be required to select
GENRE>ARTIST>ALBUM>SONG before accessing
the desired track. Continue using the rotary encoder/
MENU button until you locate the track you would
like to play.

8
MP3 Playback
WhileplayingMP3MUSIC,thefolder/lenameandID3tag(Songtitle,AlbumandArtist)canentirelyshowintheLCD.
Press the DISP to choose ID3 informations for display as follows:
Elapsed playing time & Track number Folder name File name Music title Artist name Album title
MP3 Track search
Press AMS button to select "TRK SCH" mode.
Press the knob and LCD display will show "TRK 001".
Rotatetheknobtoselecttherstdigitandpresstheknobtoconrm,rotatetheknobtoselectthetensdigitandpress
theknobtoconrm,rotatetheknobtoselectthehundredsdigitandpresstheknobtoconrm,presstheknobagainto
play the track.
MP3 File search
Press AMS button twice to select "FILE-SCH" mode, press the knob to enter, rotate the knob to select folder.
Toplaysongsofthecurrentfolder:Presstheknobtodisplaythersttrack.
To play a desired track: Rotate the knob to choose the track, press the knob again to play the track.

9
Press AMS button three times to select "FOLD-SCH" mode and four times to select “CHAR-SCH“ mode.
Press the knob and "A" displayed.
If you press the knob more than 2 seconds will search a track with the letter " A" . If the track found, the track name will displayed,
then press the knob to play. If the track no found, the “NO MATCH“ displays in LCD.
Ifyouwanttoselectatracknamebeginningwithadifferentletter.rotatetheknobtoselectaletter,andpresstheknobtoconrm,
then"A"ashesatthenextplace,select2ndandothercharacterofthedesiredtracknameasstepsabove.
Press the knob more than 2 seconds to search your desired track.

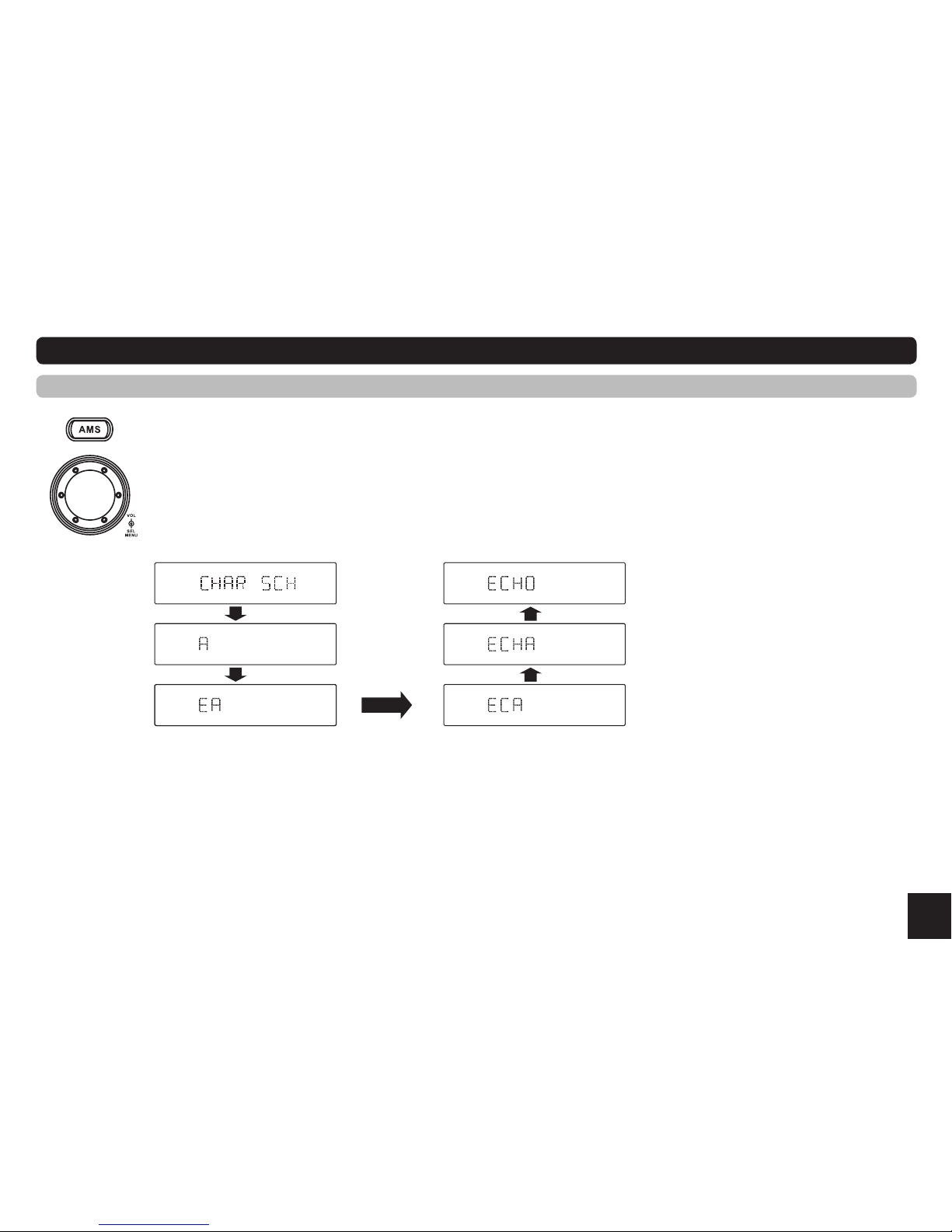

For example: To search character "ECHO".
MP3 Playback(continued)
MP3 Folder Search and Character Search

10
Note on MP3
• MP3 is short for MPEG Audio Layer 3 and refers to an audio compression technology standard.
• ThisproductallowsplaybackofMP3lesonCD-ROM,CD-RorCD-RWdiscs.
• TheunitcanreadMP3leswrittenintheformatcompliantwithISO9660.HoweveritdoesnotsupporttheMP3datawrittenbythemethodof
packet write.
• TheunitcannotreadanMP3lethathasaleextensionotherthan".mp3".
• Ifyouplayanon-MP3lethathasthe".mp3"extension,youmayhearsomenoise.
• Inthismanual,werefertowhatarecalled"MP3le"and"folder"inPCterminologyas"track"and"Album,"respectively.
• Maximumnumberofdirectorylevelis8,includingtherootdirectory.Maximumnumberoflesis999andfoldersperdiscis1000.
• The unit may not play tracks in the order of Track numbers.
• TheunitplaysonlytheaudiotracksifadisccontainsbothaudiotracksandMP3les.
• When playing a disc of 8k bps or VBR*, the elapsed playing time in the display window will not be correct and also the intro play may not function
properly. *VBR: Variable Bit Rate
Note on creating your own CD-Rs or CD-RWs containing MP3 les
• Toenjoyhighqualitysound,werecommendconvertingtoMP3leswithasamplingfrequencyof44.1kHzandaxedbitrateof128kbps.
• DONOTstoremorethan1000MP3lesperdisc.
• For ISO 9660 -compliant format, the maximum allowable depth of nested folders is 8, including the root directory(folder).
• WhenCD-Rdiscisused,playbackispossibleonlyfordiscswhichhavebeennalized.
• Make sure that when MP3 CD-R or CD-RW is burned that it is formatted as a data disc and NOT as an audio disc.
• Youshouldnotwritenon-MP3lesorunneededfoldersalongwithMP3lesonthediscotherwiseittakesalongtimeuntiltheunitstartstoplay
MP3les.
• With some CD-R or CD-RW media, data may not be properly written depending on their manufacturing quality. In this case, data may not be
eproduced correctly. High quality CD-R or CD-RW disc is recommended.
• Up to 16 characters are displayed for the name of an Album or a track. ID3 TAG version 1.x is required.
• Note that the unit may not play Tracks in the order that you wrote them to the disc.
MP3 Overview

11
RDS ( Radio Data System )
RDS service availability varies with areas. Please understand if RDS service is not available in you area, the following service is not available.
RDS Basics
AF(Alternative Frequency): When the radio signal strength is poor, enabling the AF function will allow the unit to automatically search another station
withthesamePI(programidentication)asthecurrentstationbutwithstrongersignalstrength.
PS (Program Service name): The name of station will be display instead of frequency.
AF Mode:PressAFbuttonbrieytoswitchAFmodeonandoff.
AFindicationonLCDwillashuntilRDSinformationisreceived.
During FM mode when AF is on, radio seek, scan and AMS function can only receive and save RDS program.
CT Service(Clock Time)
When receiving a RDS station, the CT(Clock Time) service automatically adjusts the time.
NO CT is display in areas where CT service is not available.
Trafc Announcements
SomeRDSFMstationsperiodicallyprovidetrafcinformation.
 TP(TrafcProgramIdentication)Broadcastingoftrafcinformation
 TA(TrafcAnnouncementsIdentication)Radioannouncementsontrafcconditions
TA Mode: When TA mode is turned on, the TA indicator will blink.
 Whentrafcannouncementisreceived,theTAindicatorwilldisplay.Theunitwilltemporarilyswitchtothetunermode(regardlessofthecurrent
 mode)andbeginbroadcastingtheannouncementatTAvolumelevel.Afterthetrafcannouncementisover,itwillreturntothepreviousmode
 andvolumelevel.WhenTAisturnedon,SEEK,SCAN,AMSfunctioncanonlybereceivedorsavedwhentrafcprogramidentication(TP)
code is received.
EON ( Enhanced Other Networks )
When EON data is received, the EON indicator lights and the TA and AF functions are enhanced.
 TA:Trafcinformationcanbereceivedfromthecurrentstationorstationsinothernetwork.
AF: The frequency list of preset RDS stations is updated by EON data. EON enables the radio to make fuller use of RDS information. It
constantly updates the AF list of preset stations, including the one that currently tuned into. If you preset a station around the area at your home,
you will later be able to receive the same station at an alternative frequency, or any other station serving the same program, EON also keeps
track of locally available TP stations for quick reception.

12

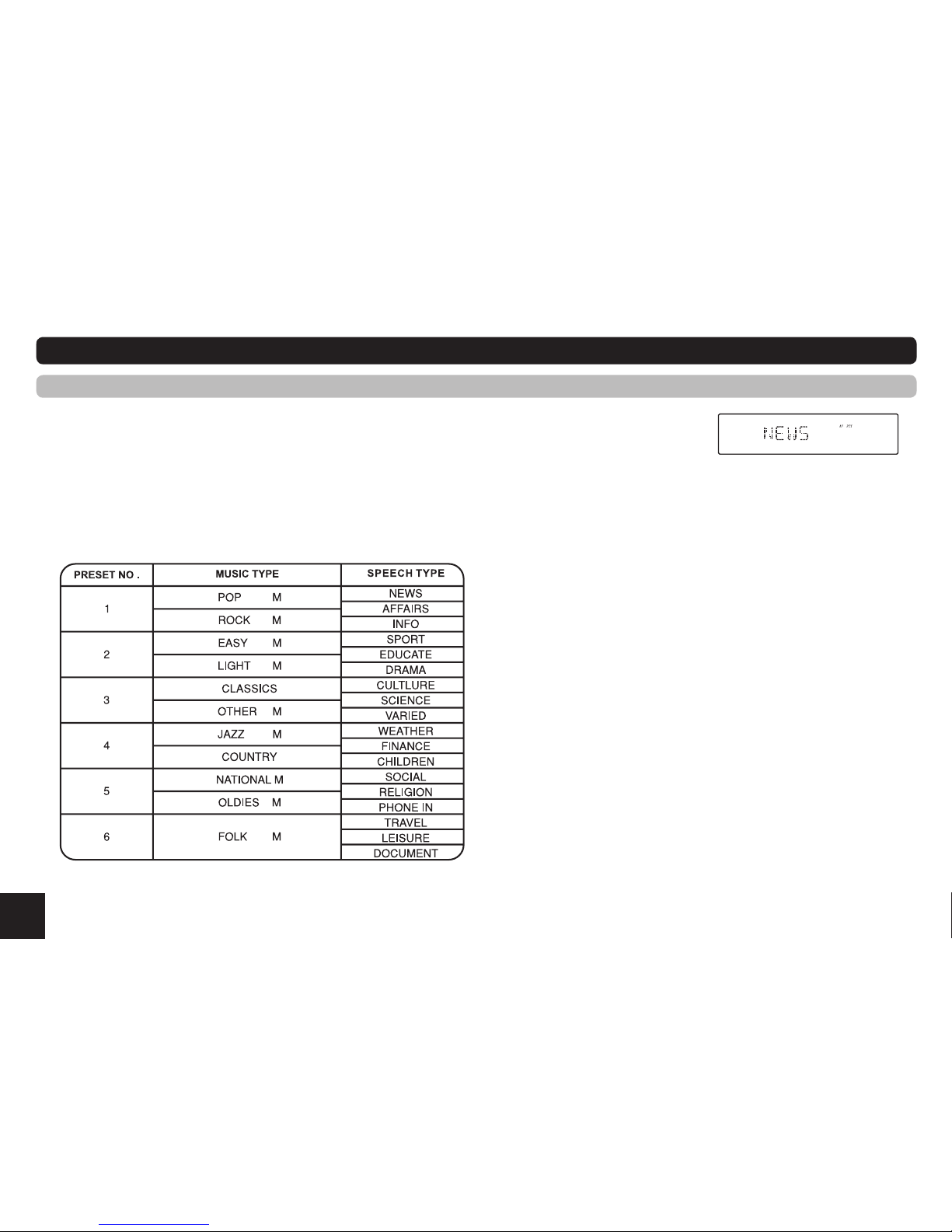

PTY Reception ( Program Type )
RDSFMstationsprovideaprogramtypeidenticationsignal.
Example: news, rock, info, sport, etc.
PTY Mode: Press PTY to turn on the Program Type reception, the previous PTY type is shown. Press PTY once again to enter the MUSIC type or
press twice to enter the SPEECH type, then use buttons 1 - 6 to select the desired program type. The selected PTY type is shown and searching starts
if no other function is selected for 2 seconds. If there is no corresponding program type, NO PTY is shown and the unit will return to normal mode.
PTY Type Preset: Press PTY once to enter the MUSIC type or press PTY twice to enter the SPEECH type. Then use function 1-6 to select the desired
program type.
RDS ( Radio Data System )

13
Menu Function
Press the knob more than 2 seconds to enter menu mode, then each press changes the mode as follows:
TA mode MASK mode RETUNE mode DSP mode LOUD ON / OFF mode WOOF ON / OFF mode
VOL mode BEEP ON/OFF mdoe STEREO/MONO mode(only in tuner mode) LOCAL / DX mode(only in tuner mode)
TA mode
 RotatetheknobtochooseTAALARMorTASEEKmode,WhenTAisturnedonandnotrafcprogramidenticationcodehasbeenreceivedduring
thespeciedtime,noTA/TPisdisplayedandaccordingtotheMENUSELECT,alarmissetoff,orTASEEKisactivated.
TA ALARM mode: NO TA/TP is displayed and alarm is set off.
TA SEEK mode: TA SEEK is activated.
MASK mode
Rotate the knob to choose MASK DPI or MASK ALL mode.
 MASKDPImode:OnlytheAFwhichhasdifferentprogramidenticationismasked.
MASK ALL mode:
 TheAFwhichhasdifferentprogramidenticationandNORDSsignalwithhigheldstrengthismasked.
RETUNE mode
RETUNE mode: Rotate the control to choose RETUNE-S or RETUNE-L
RETUNE-S or RETUNE-L is time length selection of TA SEEK retune interval.
RETUNE-S: short, TA SEEK retune interval is 45 seconds.
RETUNE-L: long, TA SEEK retune interval is 180 seconds.
Remark: RETUNE mode functions for TA during TA SEEK mode

14
DSP mode

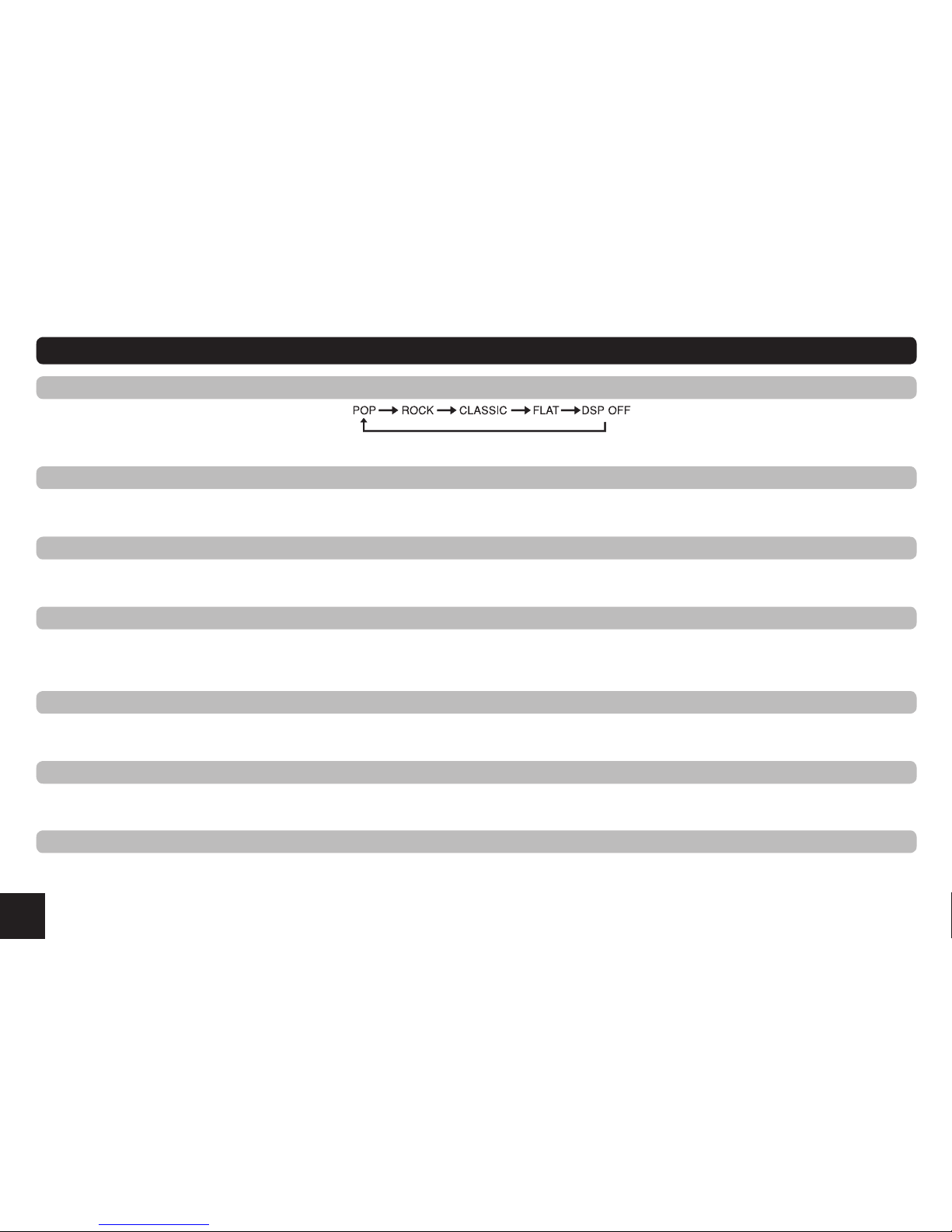

Rotate the knob to choose DSP sound effect:
LOUD ON/OFF mode
Rotate the knob to choose loudness on or off.
WOOF ON/OFF mode
Rotate the knob to choose Sub-woofer on or off.
VOL LAST / ADJUST mode
Rotate the knob to choose VOL LAST, the turn-on volume level is the volume level of latest power off.
Rotate the knob to choose VOL A DJ, then press the "+" button or the "-" buttonto set the turn-on volume level.
BEEP ON/OFF mode
Rotate the knob to choose beep sound on or off.
STEREO/MONO mode
Rotate the knob to select FM stereo or mono.
LOCAL/DX mode
Rotate the knob to select radio receive range to local or distance.
RDS Menu Function

15
Sub-woofer out

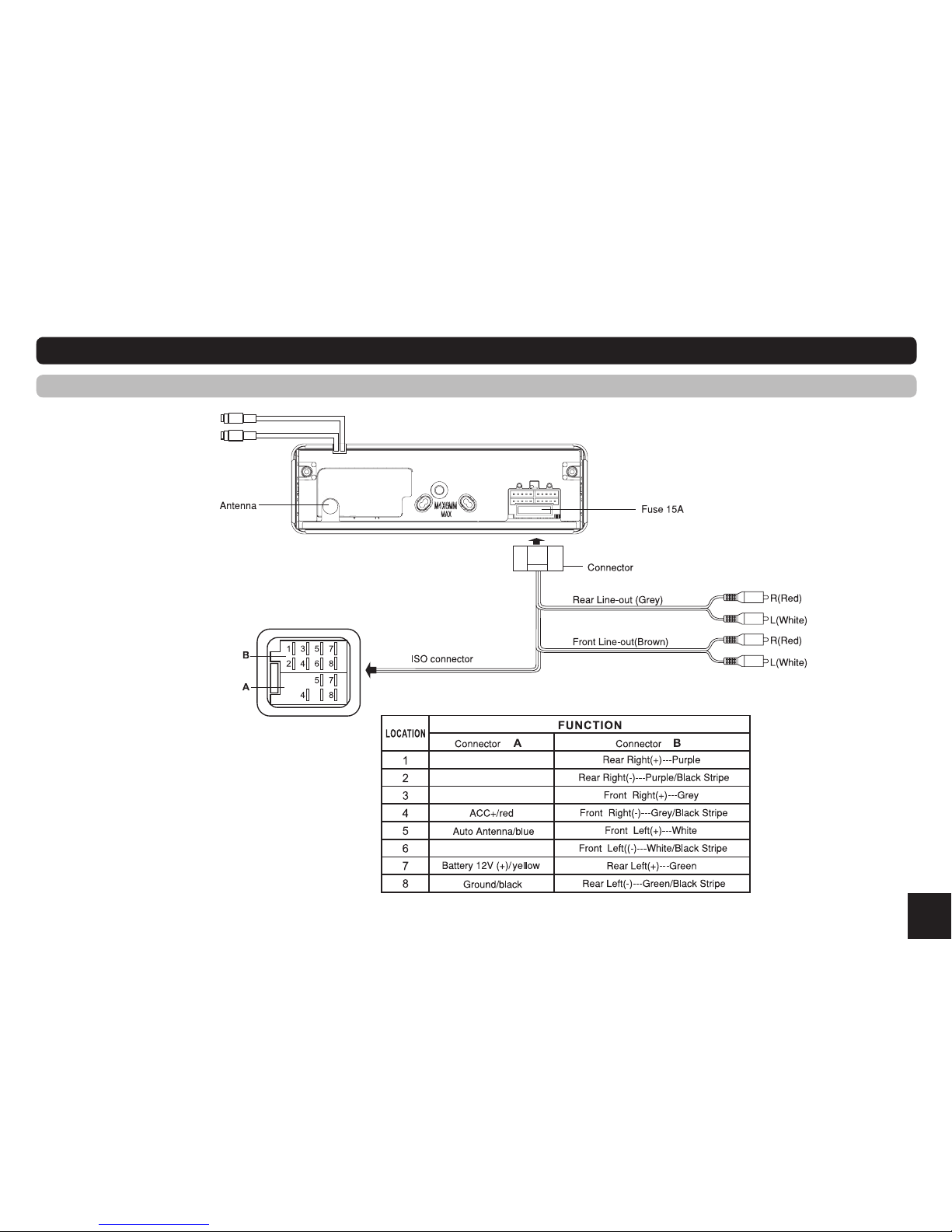

Electrical Connections
Wiring Diagram
iPod connector

16

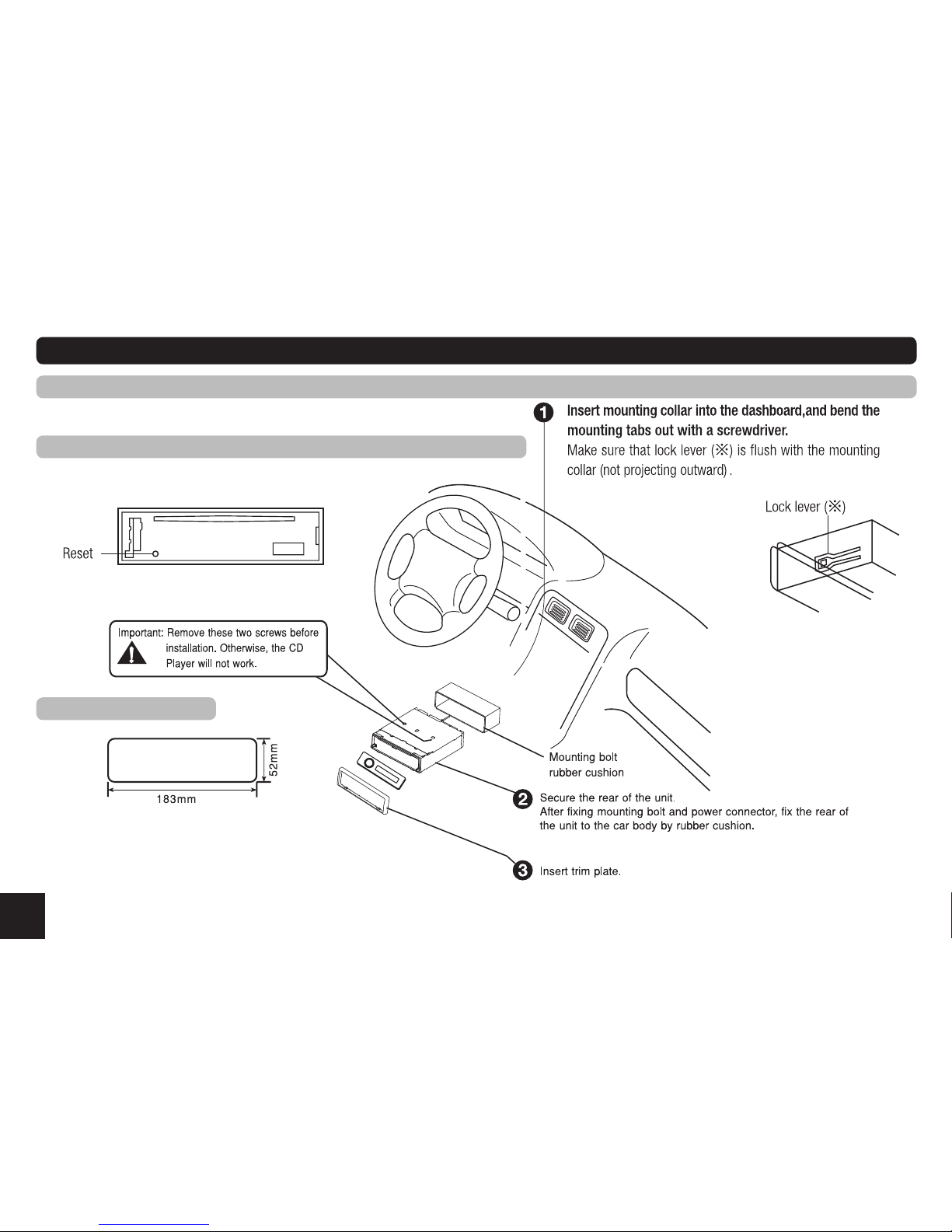

Installation Guide
Installation Procedures
First complete the electrical connections, and then check them for correctness.
Reset
Press the Reset button with a pointed object to reset
the unit to the original status.
Note: Press the RESET button with earse
the clock setiing and stored stations
Installation Opening
This unit can be installed in any dashboard
having an opening as shown above. The dashboard
should be 4.75mm - 5.56mm thick in order to be able
to support the unit.

17
Anti-Theft System
This unit is equipped with a detachable panel. Removing this panel makes the radio totally
inoperable.

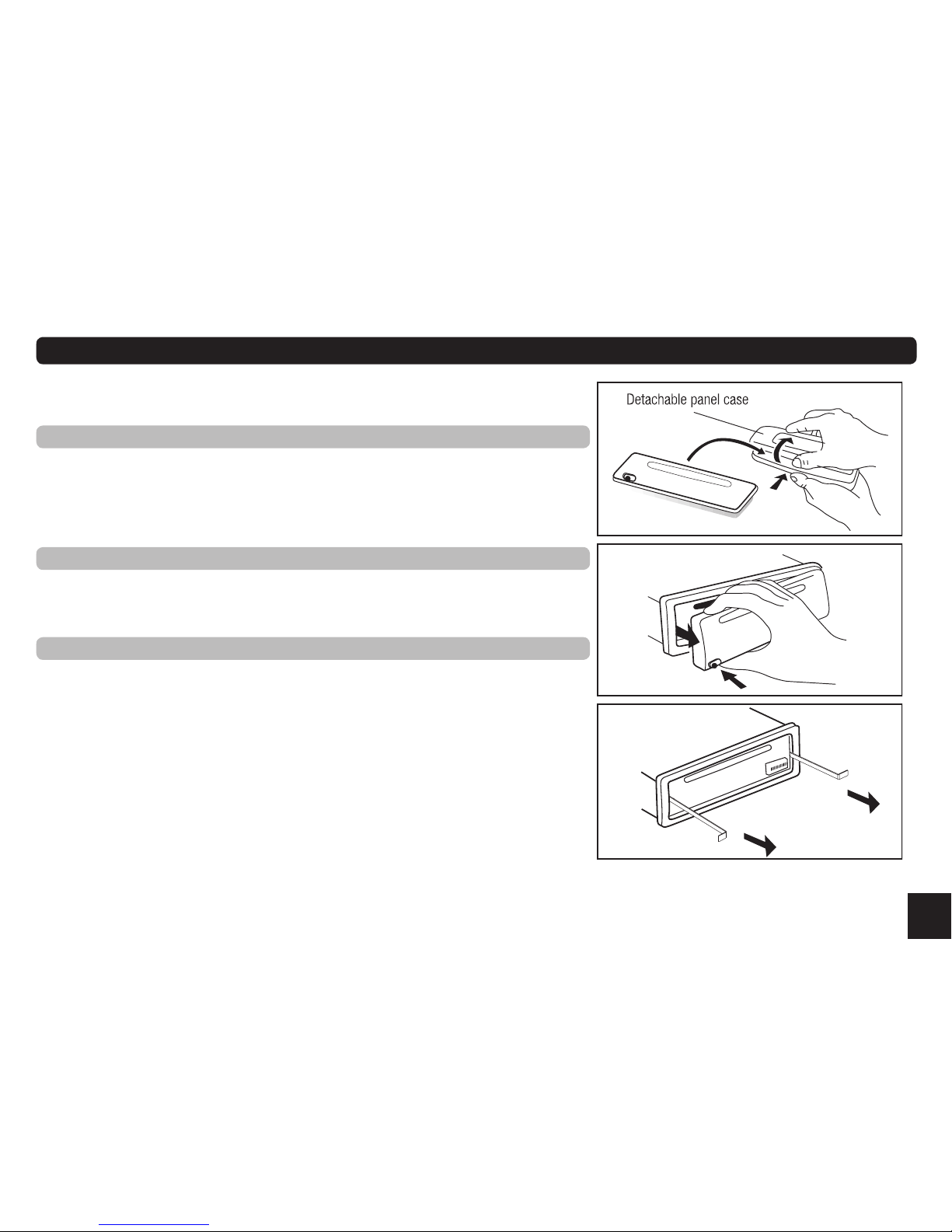

Place the Detachable Panel into Case
1.Switch off the power of the unit.
2.Remove the detachable panel.
3.Gently press the button of the case and open the cover. Place the panel into the case
and take it with you when you leave the car.
Install Detachable panel
1.Fix right part of face plate in the right part of panel slot of the unit.
2.Press down the left side of the face plate until if clicks into the panel slot of the unit.
Remove the unit switch off the power of the unit.
1. Remove the panel and the trimplate.
2. Insert both L-Keys into the hole on the front of the set until they lock.
3. Pull out the unit.

18
Troubleshooting
If you suspect something is wrong, immediately switch power off. Do not use the unit in abnormal condition, for example without sound, or with smoke
orfoulsmell,cancausereorelectricshock.Immediatelystopusingitandcallthestorewhereyoupurchasedit.Nevertrytorepairtheunityourself
because it is dangerous to do so.
General
No power or no sound.
Car's engine switch is not on. Turn your car's key to ACC or ON.
Cable is not correctly connected. Check connection.
Fuse is burnt. Replace fuse.
Check volume or mute on / off.
If the above solutions cannot help, Press the RESET button.
Disc
Disc is inside but no sound.
Disc is upside down.
Place disc in the correct direction, and the label side up.
Disc is dirty or damaged. Clean disc or change another disc.
Disc sound skips, tone quality is low.
Disc is dirty or damaged. Clean CD or change another CD.
Sound skips due to vibration.
Mounting angle is over 30°.
Adjust mounting angle to less than 30o.
Unstable mounting.
Mount the unit securely with the mounting parts.
Radio
Noise in broadcasts.
Station is too far, or signals are too weak.
Select other stations of higher signal level.
Preset station lost.
Battery cable is not correctly connected.
Connect the battery cable to the terminal that is always live.

19
Specications
General
Power supply: 12V DC(11V-16V)
Test voltage 14.4V, negative ground
Maximum power output: 45Wx4 channels
Continuous power output: 24Wx4 channels (4 ,10% T.H.D.)
Suitable speaker impedance: 4-8 ohm
Pre-Amp output voltage: 2.0V (CD play mode: 1KHz, 0 dB, 10 K load )
Fuse: 15A
Dimensions(WxHxD): 178x50x162mm
Weight: 1.7kg
Sub-woofer out: 2.0V
FM Stereo Radio
Frequency range: 87.5-108.0MHz (EUROPE MODE)
87.5-107.9MHz (USA MODE)
Usable sensitivity: 8dBμ
Quieting sensitivity(S/N=50dB): 12dBμ
Frequency response: 30Hz-15kHz
Stereo separation: 30dB(1kHz)
Image response ratio: 50dB
IF response ratio: 70dB
Signal/noise ratio: 55dB
MW(AM) Radio
Frequency range: 522-1620KHz (EUROPE MODE)
530-1710KHz (USA MODE)
Usable sensitivity(S/N=20dB): 30 dBμ
Disc Player
System: Disc digital audio system
Frequency response: 20Hz-20kHz
Signal/noise ratio: >80 dB
Total harmonic distortion: Less than 0.10%(1 kHz)
Wowandutter: Belowmeasurablelimits
Channel separation: >55 dB
Components
Mounting collar .......................................................................................1
Machine screws M5x6mm......................................................................4
Mounting bolt (50mm).............................................................................1
Wire connector .......................................................................................1
Removable face plate case ....................................................................1
Trim plate................................................................................................1
L-key.......................................................................................................2
Operating instructions.............................................................................1
Rubber cushion ......................................................................................1
Remote control unit(with battery)............................................................1
 Note:Specicationsandthedesignaresubjecttochangewithout
notice due to improvements in technology.
