RITAR OPZV Series User manual

OPzV-Technical Manual
CHINA RITAR POWER CORP.
VRLA Tubular Gel Battery
Add:Rm.405,Tower C,Huahan Building,No.16Langshan Rd.,North High-tech Park,
Nanshan District,Shenzhen,518057,China
Tel:[phone]
Fax:[phone]
E-mail:[e-mail]
Http:www.ritarpower.com

RITAR Tubular Gel Battery Instruction (2V Series)
OPzV2-200 Model Definition
The OPzV battery's chemical reaction is as below:
3. Principle of Operation
China Ritar Power Corp.(Ritar) is a Chinese Sealed Lead Acid(SLA) battery company listed on
U.S. stock market NASDAQ. Founded in 2002, Ritar designs, develops, manufactures and
sells environmentally friendly Sealed Lead Acid battery. Ritar introduces overseas advanced
technology and adopts the world's most advanced production equipments and testing measures to
ensure product's long service life and high energy density. Environmental protection features
like cadmium-free is leading in the domestic counterparts.
Ritar is a high-tech enterprise headquartered in Nanshan District, Shenzhen, China, and has two
manufacturing bases in Shenzhen and Hengyang, with over 2000 employees.
Ritar has obtained ISO9001(Quality Control), OHSAS18001(Occupational Health and Safety),
ISO14001(Environmental Control), UL and CE certificates, and got state approval from Chinese
government departments of electricity, telecommunications and army etc.
Pb﹢PbO2 2 2
H SO4 2 Pb SO4 2H2O
Discharge
Charge
﹢ ﹢
Negative Pole Positive Pole Electrolyte
OPz V 2 - 2 0 0
C a p a c i t y (A h )
Ritar OPzV Tubular GEL battery complies with Germany DIN40742 and IEC60896-21/22 standards, the product
capacity ranges from 200AH to 3000AH.
OPzV battery is the single cell construction, the nominal voltage is 2V, take OPzV2-200 for example, “OPzV”
means stationary valve-regulated Sealed Gel battery, “200” means the battery capacity 200AH.
Oxygen recombination process is as below:
Step 1: In the later period of charging or over-charging the positive generates :oxygen
H2O → 2H＋ 1/2O2＋
2e
＋-
﹢H2SO4= Pb SO ﹢
4H O
2
O﹢
22Pb = 2Pb O
Pb O
→
＋ －
＋ 2H＋ 2e→Pb﹢H2SO
4
Pb SO4
● Solar Energy & Wind Energy
● IT/Telecommunications
● Electric Vehicle,Floor Machines,Marine,Touring Coach
● Power Srorage Plant
● Uninterruptible Power Supplier/UPS
● Security/Emergency lighting
1
OPzV Series(Tubular Gel Battery)
2
1.Company Profile:
2. Product Standard and Model Definition
4. Applications:
Vo l t a g e ( 2 V )
OPzV Series(Tubular Gel Battery)
In the later period of charging or over-charging the positive generates oxygen, and the negative
generates hydrogen. The negative plates adopts high purity Pb-Ca alloy to increase the
hydrogen overpotential and to inhibit the generation of hydrogen. OPzV battery adopts unique
GEL electrolyte technology, the Gel-forming material forms three-dimensional porous
construction which provides many small gaps (channels for oxygen recombination). During the
later period of charging, the oxygen generated by the positive reaches the negative through
these gaps and reacts with spongy Pb to generate H O which goes back to the battery. During
2
this process the battery doesn't lose any H O, Thus the battery can be well sealed and
2
maintenance free.
Step 2: The oxygen generated by the positive reaches the negative through the GEL
gaps and reacts with spongy Pb and acid to generate H O which goes back to the battery
2
system.
Step 3: Lead sulfate generated by the negative generates lead and sulfuric acid in battery
charging to join in the charging reaction.

3
2. Structure Features
4
7. Technical Specification
6.Product Advantages

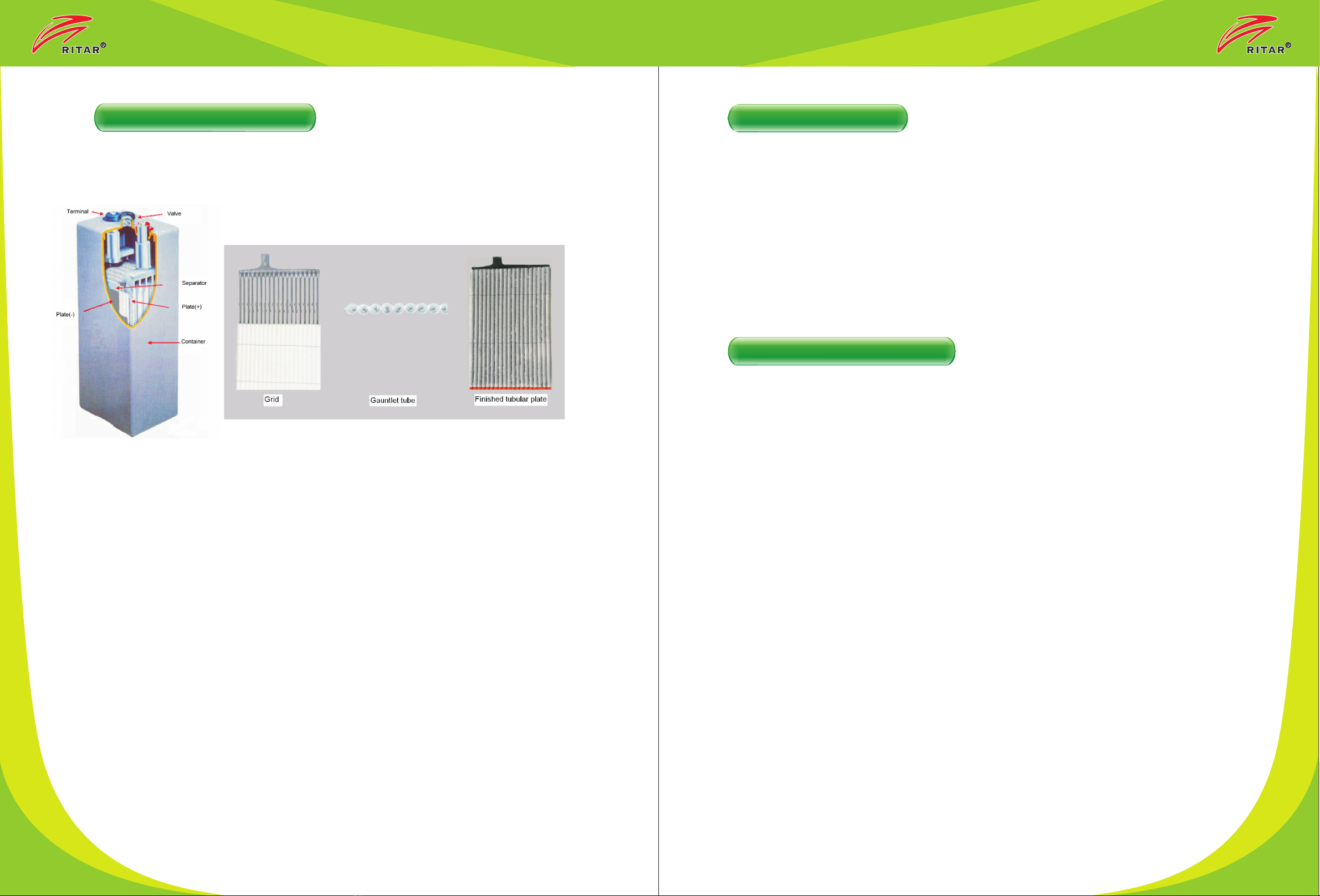

5. Battery Structure Features
1.Battery Structure & Plate Design
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)
● Positive Plate: The battery adopts tubular positive plates. The positive grids are made by die-casting technics with the
pressure of 18MPa and are cylindrical structure; more compact and offer good corrosion-resistance, an extreme high
cyclic expectancy and a long design life more than 20 years.
● Pole Sealing: Triple Seal(mechanical sealing+special sealant+epoxy glue). The first step is an O ring plus the
helical structure ensuring the battery is air-tight and does not leak; the second step adopts special sealant ensuring the
battery has no acid leakage; the third step adopts epoxy glue.
● Formation Method: Use the most advanced technology of internal formation to inject GEL once only. The production
process is more environment-friendly; the product quality is more reliable; batteries have better consistency.
● Electrolyte: GEL comprises classic quality fumed SiO2 , which is liquid sol when being injected and
the fully packed. The electrolyte finally becomes i no
flow, no leakage and stratification, and higher security.
Flooded electrolyte design, contains more electrolyte than AGM batteries ; space between plates and
separators is full of electrolyte thus means good heat capacity, good heat dissipation, overcharge resistant, stable
high and low temperature ,and avoid “thermal runaway”.
● Container:The battery container is made of high strength ABS. Container and lid are sealed together by quality
adhesives ensuring reliable sealing performance in service.
●Safety Valve: The High sensitivity safety valve has stable performance in flip-top vent plugs press; cooperated with
the flame arrester it makes the battery safer and have high recombination efficiency.
-electrolyte
battery interior space can be mmobilized in a GEL structure, thus
over 25%
performance in
● Separators:Special microporous PVC-SIO2 separators for GEL batteries, imported from European AMR-SIL
company, higher porosity and lower internal resistance.
●
●
● Very good performance in small current discharge and deep discharge recovery, suitable for PSOC environments
Environment friendly, little precipitation of acid mist
Wide operating temperature range and stable performance in low/high temperature
● Excellent performance in constant discharge power
● Good charge acceptance and over-discharge resistance
● Super long service life, 2.5 times longer than the AGM types
● Safe and reliable
☆ Designed Floating Life ≧ 20 years at 25℃
☆ Longer Cyclic Life, 80%DOD ≧1500 cycles
☆ Lowest self discharge ＜ 2% per month
☆ Super recovery capability from deep discharge
☆ Recombination efficiency of gas: more than 99%(2 months of float use)
☆ Charge Voltage(25℃)
● Equalizing Charge: 2.35V/cell
● Float Use: 2.25～2.27V/cell
☆ Max. Charge Current ≦ 2I10
☆ Operating Temperature Range
● Max. Range: -40℃～+70℃
● Optimal Range: 25±5℃
☆ Relative humidity ≦ 95%
☆ Altitude ≦ 4000m
☆ Keep the battery away from any source of ignition, organic solvent, or direct sunlight
☆ Keep the consistent ambient temperature; the temperature difference between each battery
of the same battery bank ≦3℃

5

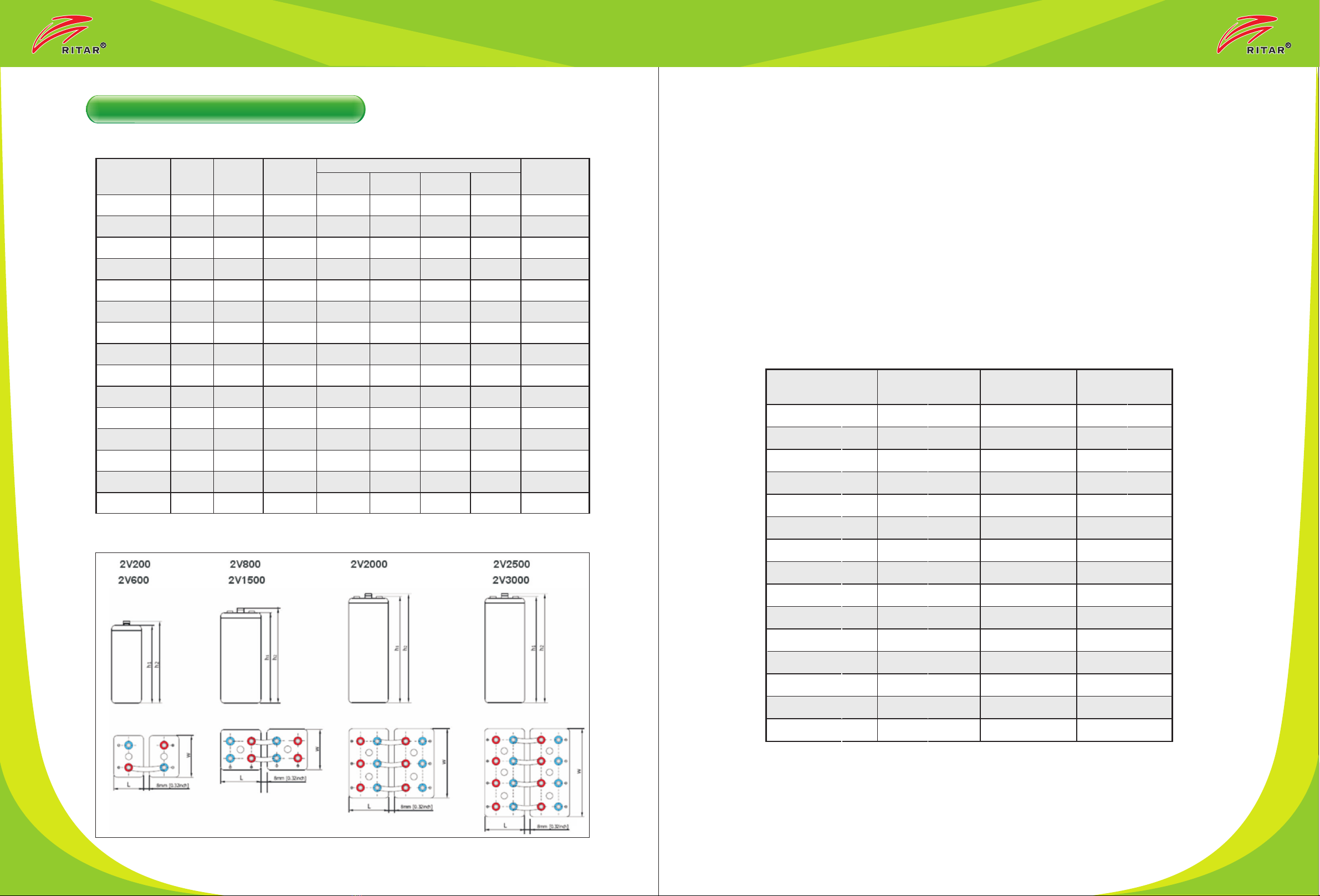

8. Product Parameters and Drawings
2.OPzV Battery Drawing with Terminal Position
1.OPzV Battery Parameters
3.Conductance, Internal Resistance and Short Circuit Current
Conductance, Internal Resistance and Short Circuit Current
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)
The OPzV battery’s conductance and internal resistance decrease with the capacity
increasing. They are dynamic parameters instead of linear ones and change with
temperature, SOC(state of charge) and discharge state. The internal resistance is the
smallest when the battery is fully charged, while the conductance is the biggest at this
time. The values listed below are based on the same condition.(The temperature is
about 25℃.)
Notice: When measuring the conductance or resistance, deviation may happen due to the
different contact state of the pole and the testing point, or if the measuring tools sensitivity
is different or the tools are from different manufacturers. The following values are
based on the battery being fully charged and in accordance with
IEC60896-21/22, for reference only.
state of the
OPZV2-200 2 200 1 103 206 355 397 16.8
OPZV2-250 2 250 1 124 206 355 397 20.5
OPZV2-300 2 300 1 145 206 355 397 24.5
OPZV2-350 2 350 1 124 206 471 513 28.5
OPZV2-420 2 420 1 145 206 471 513 33.0
OPZV2-500 2 500 1 166 206 471 513 38.5
OPZV2-600 2 600 1 145 206 646 687 46.5
OPZV2-800
OPZV2-1000
OPZV2-1200
OPZV2-1500
OPZV2-2000
OPZV2-2500
OPZV2-3000
2
2
2
2
2
2
2
800
1000
1200
1500
2000
2500
3000
2
2
2
2
3
4
4
687 63.0
687 77.0
687 92.0
110.0
150.0
813
225.0
813
813
836
646
646
646
772
772
772
795
210
210
210
212
212
212
210
191
233
275
399
487
576
340
OPZV2-770 2 770 1 253 210 471 513 56.0
190.0
Model No. Voltage
（V）
Capacity
（Ah）
Dimension
Length
(mm)
Width
(mm)
Height
(mm)
Total Height
(mm)
Weight
(Kg)
6
OPZV2-200 1520 1.00 3410
OPZV2-250 1825 0.90 4000
OPZV2-300 2120 0.85 4550
OPZV2-350 2230 0.80 4850
OPZV2-420 2400 0.65 5400
OPZV2-500 2720 0.65 6000
OPZV2-600 2900 0.60 6200
OPZV2-800 3210 0.50 6800
OPZV2-1000 3650 0.45 7900
OPZV2-1200 3980 0.45 8200
OPZV2-1500
4155
OPZV2-2000
4545 0.40 9300
OPZV2-2500 5030 0.35 10300
OPZV2-3000
5260 0.35 10700
8500
0.40
OPZV2-770
3050 0.55 6440
Conductance (S)
Model No. Internal Resistance
(mΩ)
Short Circuit Current
(A)
Homopolar
Pole

78
9.Technical Parameters
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)
1, Constant Current Discharge Characteristics: Amps
Final Voltage at 1.90V per cell @ 25℃
Final Voltage at 1.87V per cell @ 25℃
Final Voltage at 1.83V per cell @ 25℃
1.80V per cell @ 25℃Final Voltage at
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 98.40 78.00 55.00 41.71 34.20 29.55 26.60 20.76 17.80
OPZV2-250 123.0 97.50 68.75 52.14 42.75 36.94 33.25 25.95 22.25
OPZV2-300 147.6 117.0 82.50 62.57 51.30 44.33 39.90 31.14 26.70
OPZV2-350 172.2 136.5 96.25 72.99 59.85 51.72 46.55 36.33 31.15
OPZV2-420 206.6 163.8 115.5 87.59 71.82 62.06 55.86 43.59 37.38
OPZV2-500 246.0 195.0 137.5 104.3 85.50 73.88 66.50 51.90 44.50
OPZV2-600 295.2 234.0 165.0 125.1 102.6 88.66 79.80 62.27 53.40
OPZV2-770 378.8 300.3 211.8 160.6 131.7 113.8 102.4 79.92 68.53
OPZV2-800 393.6 312.0 220.0 166.8 136.8 118.2 106.4 83.03 71.20
OPZV2-1000 492.0 390.0 275.0 208.6 171.0 147.8 133.0 103.8 89.00
OPZV2-1200 590.4 468.0 330.0 250.3 205.2 177.3 159.6 124.5 106.8
OPZV2-1500 738.0 585.0 412.5 312.8 256.5 221.6 199.5 155.7 133.5
OPZV2-2000 984.0 780.0 550.0 417.1 342.0 295.5 266.0 207.6 178.0
OPZV2-2500 1230 975.0 687.5 521.4 427.5 369.4 332.5 259.5 222.5
OPZV2-3000 1476 1170 825.0 625.7 513.0 443.3 399.0 311.4 267.0
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 110.0 86.00 59.00 44.23 36.10 31.09 28.20 21.73 18.60
OPZV2-250 137.5 107.5 73.75 55.29 45.13 38.86 35.25 27.16 23.25
OPZV2-300 165.0 129.0 88.50 66.35 54.15 46.63 42.30 32.59 27.90
OPZV2-350 192.5 150.5 103.3 77.41 63.18 54.40 49.35 38.02 32.55
OPZV2-420 231.0 180.6 123.9 92.89 75.81 65.28 59.22 45.63 39.06
OPZV2-500 275.0 215.0 147.5 110.6 90.25 77.72 70.50 54.32 46.50
OPZV2-600 330.0 258.0 177.0 132.7 108.3 93.26 84.60 65.18 55.80
OPZV2-770 423.5 331.1 227.2 170.3 139.0 119.7 108.6 83.65 71.61
OPZV2-800 440.0 344.0 236.0 176.9 144.4 124.4 112.8 86.91 74.40
OPZV2-1000 550.0 430.0 295.0 221.2 180.5 155.4 141.0 108.6 93.00
OPZV2-1200 660.0 516.0 354.0 265.4 216.6 186.5 169.2 130.4 111.6
OPZV2-1500 825.0 645.0 442.5 331.7 270.8 233.2 211.5 163.0 139.5
OPZV2-2000 1100 860.0 590.0 442.3 361.0 310.9 282.0 217.3 186.0
OPZV2-2500 1375 1075 737.5 552.9 451.3 388.6 352.5 271.6 232.5
OPZV2-3000 1650 1290 885.0 663.5 541.5 466.3 423.0 325.9 279.0
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 126.0 96.00 64.00 47.14 38.00 32.43 29.20 22.70 19.40
OPZV2-250 157.5 120.0 80.00 58.93 47.50 40.54 36.50 28.37 24.25
OPZV2-300 189.0 144.0 96.00 70.71 57.00 48.65 43.80 34.05 29.10
OPZV2-350 220.5 168.0 112.0 82.50 66.50 56.75 51.10 39.72 33.95
OPZV2-420 264.6 201.6 134.4 99.00 79.80 68.11 61.32 47.67 40.74
OPZV2-500 315.0 240.0 160.0 117.9 95.00 81.08 73.00 56.75 48.50
OPZV2-600 378.0 288.0 192.0 141.4 114.0 97.29 87.60 68.09 58.20
OPZV2-770 485.1 369.6 246.4 181.5 146.3 124.9 112.4 87.39 74.69
OPZV2-800 504.0 384.0 256.0 188.6 152.0 129.7 116.8 90.79 77.60
OPZV2-1000 630.0 480.0 320.0 235.7 190.0 162.2 146.0 113.5 97.00
OPZV2-1200 756.0 576.0 384.0 282.9 228.0 194.6 175.2 136.2 116.4
OPZV2-1500 945.0 720.0 480.0 353.6 285.0 243.2 219.0 170.2 145.5
OPZV2-2000 1260 960.0 640.0 471.4 380.0 324.3 292.0 227.0 194.0
OPZV2-2500 1575 1200 800.0 589.3 475.0 405.4 365.0 283.7 242.5
OPZV2-3000 1890 1440 960.0 707.1 570.0 486.5 438.0 340.5 291.0
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 140.0 104.0 66.40 48.50 38.76 33.20 30.00 23.28 20.00
OPZV2-250 175.0 130.0 83.00 60.63 48.45 41.50 37.50 29.10 25.00
OPZV2-300 210.0 156.0 99.60 72.75 58.14 49.80 45.00 34.92 30.00
OPZV2-350 245.0 182.0 116.2 84.88 67.83 58.10 52.50 40.74 35.00
OPZV2-420 294.0 218.4 139.4 101.9 81.40 69.72 63.00 48.89 42.00
OPZV2-500 350.0 260.0 166.0 121.3 96.90 83.00 75.00 58.20 50.00
OPZV2-600 420.0 312.0 199.2 145.5 116.3 99.60 90.00 69.84 60.00
OPZV2-770 539.0 400.4 255.6 186.7 149.2 127.8 115.5 89.63 77.00
OPZV2-800 560.0 416.0 265.6 194.0 155.0 132.8 120.0 93.12 80.00
OPZV2-1000 700.0 520.0 332.0 242.5 193.8 166.0 150.0 116.4 100.0
OPZV2-1200 840.0 624.0 398.4 291.0 232.6 199.2 180.0 139.7 120.0
OPZV2-1500 1050 780.0 498.0 363.8 290.7 249.0 225.0 174.6 150.0
OPZV2-2000 1400 1040 664.0 485.0 387.6 332.0 300.0 232.8 200.0
OPZV2-2500 1750 1300 830.0 606.3 484.5 415.0 375.0 291.0 250.0
OPZV2-3000 2100 1560 996.0 727.5 581.4 498.0 450.0 349.2 300.0

910
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)
Final Voltage at 1.75V per cell @ 25℃
Final Voltage at 1.70V per cell @ 25℃ 1.60V per cell @ 25℃Final Voltage at
Final Voltage at 1.65V per cell @ 25℃
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 156.0 111.4 69.40 50.44 39.40 34.00 30.60 23.67 20.40
OPZV2-250 195.0 139.3 86.75 63.05 49.25 42.50 38.25 29.59 25.50
OPZV2-300 234.0 167.1 104.1 75.66 59.10 51.00 45.90 35.50 30.60
OPZV2-350 273.0 195.0 121.5 88.27 68.95 59.50 53.55 41.42 35.70
OPZV2-420 327.6 233.9 145.7 105.9 82.74 71.40 64.26 49.70 42.84
OPZV2-500 390.0 278.5 173.5 126.1 98.50 85.00 76.50 59.17 51.00
OPZV2-600 468.0 334.2 208.2 151.3 118.2 102.00 91.80 71.00 61.20
OPZV2-770 600.6 428.9 267.2 194.2 151.7 130.9 117.8 91.12 78.54
OPZV2-800 624.0 445.6 277.6 201.8 157.6 136.0 122.4 94.67 81.60
OPZV2-1000 780.0 557.0 347.0 252.2 197.0 170.0 153.0 118.3 102.0
OPZV2-1200 936.0 668.4 416.4 302.6 236.4 204.0 183.6 142.0 122.4
OPZV2-1500 1170 835.5 520.5 378.3 295.5 255.0 229.5 177.5 153.0
OPZV2-2000 1560 1114 694.0 504.4 394.0 340.0 306.0 236.7 204.0
OPZV2-2500 1950 1393 867.5 630.5 492.5 425.0 382.5 295.9 255.0
OPZV2-3000 2340 1671 1041 756.6 591.0 510.0 459.0 355.0 306.0
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 172.0 115.0 71.40 51.41 40.09 34.40 31.00 23.86 20.60
OPZV2-250 215.0 143.8 89.25 64.26 50.11 43.00 38.75 29.83 25.75
OPZV2-300 258.0 172.5 107.1 77.12 60.14 51.60 46.50 35.79 30.90
OPZV2-350 301.0 201.3 125.0 89.97 70.16 60.20 54.25 41.76 36.05
OPZV2-420 361.2 241.5 149.9 108.0 84.19 72.24 65.10 50.11 43.26
OPZV2-500 430.0 287.5 178.5 128.5 100.2 86.00 77.50 59.66 51.50
OPZV2-600 516.0 345.0 214.2 154.2 120.3 103.20 93.00 71.59 61.80
OPZV2-770 662.2 442.8 274.9 197.9 154.3 132.4 119.4 91.87 79.31
OPZV2-800 688.0 460.0 285.6 205.6 160.4 137.6 124.0 95.45 82.40
OPZV2-1000 860.0 575.0 357.0 257.1 200.5 172.0 155.0 119.3 103.0
OPZV2-1200 1032 690.0 428.4 308.5 240.5 206.4 186.0 143.2 123.6
OPZV2-1500 1290 862.5 535.5 385.6 300.7 258.0 232.5 179.0 154.5
OPZV2-2000 1720 1150 714.0 514.1 400.9 344.0 310.0 238.6 206.0
OPZV2-2500 2150 1438 892.5 642.6 501.1 430.0 387.5 298.3 257.5
OPZV2-3000 2580 1725 1071.0 771.2 601.4 516.0 465.0 357.9 309.0
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 177.4 122.2 73.80 52.80 40.66 34.80 31.40 24.06 20.80
OPZV2-250 221.8 152.8 92.25 66.00 50.83 43.50 39.25 30.07 26.00
OPZV2-300 266.1 183.3 110.7 79.20 60.99 52.20 47.10 36.08 31.20
OPZV2-350 310.5 213.9 129.2 92.40 71.16 60.90 54.95 42.10 36.40
OPZV2-420 372.5 256.6 155.0 110.9 85.39 73.08 65.94 50.52 43.68
OPZV2-500 443.5 305.5 184.5 132.0 101.7 87.00 78.50 60.14 52.00
OPZV2-600 532.2 366.6 221.4 158.4 122.0 104.4 94.20 72.17 62.40
OPZV2-770 683.0 470.5 284.1 203.3 156.5 134.0 120.9 92.62 80.08
OPZV2-800 709.6 488.8 295.2 211.2 162.6 139.2 125.6 96.22 83.20
OPZV2-1000 887.0 611.0 369.0 264.0 203.3 174.0 157.0 120.3 104.0
OPZV2-1200 1064 733.2 442.8 316.8 244.0 208.8 188.4 144.3 124.8
OPZV2-1500 1331 916.5 553.5 396.0 305.0 261.0 235.5 180.4 156.0
OPZV2-2000 1774 1222 738.0 528.0 406.6 348.0 314.0 240.6 208.0
OPZV2-2500 2218 1528 922.5 660.0 508.3 435.0 392.5 300.7 260.0
OPZV2-3000 2661 1833 1107 792.0 609.9 522.0 471.0 360.8 312.0
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 185.0 126.4 76.60 55.00 41.80 35.40 31.80 24.25 21.00
OPZV2-250 231.3 158.0 95.75 68.75 52.25 44.25 39.75 30.31 26.25
OPZV2-300 277.5 189.6 114.9 82.50 62.70 53.10 47.70 36.38 31.50
OPZV2-350 323.8 221.2 134.1 96.25 73.15 61.95 55.65 42.44 36.75
OPZV2-420 388.5 265.4 160.9 115.5 87.78 74.34 66.78 50.93 44.10
OPZV2-500 462.5 316.0 191.5 137.5 104.5 88.50 79.50 60.63 52.50
OPZV2-600 555.0 379.2 229.8 165.0 125.4 106.2 95.40 72.75 63.00
OPZV2-770 712.3 486.6 294.9 211.8 160.9 136.3 122.4 93.36 80.85
OPZV2-800 740.0 505.6 306.4 220.0 167.2 141.6 127.2 97.00 84.00
OPZV2-1000 925.0 632.0 383.0 275.0 209.0 177.0 159.0 121.3 105.0
OPZV2-1200 1110 758.4 459.6 330.0 250.8 212.4 190.8 145.5 126.0
OPZV2-1500 1388 948.0 574.5 412.5 313.5 265.5 238.5 181.9 157.5
OPZV2-2000 1850 1264 766.0 550.0 418.0 354.0 318.0 242.5 210.0
OPZV2-2500 2313 1580 957.5 687.5 522.5 442.5 397.5 303.1 262.5
OPZV2-3000 2775 1896 1149 825.0 627.0 531.0 477.0 363.8 315.0

11 12
2.Constant Power Discharge Characteristics: Watts
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)
Final Voltage at 1.90V per cell @ 25℃
Final Voltage at 1.87V per cell @ 25℃
Final Voltage at 1.83V per cell @ 25℃
Final Voltage at 1.80V per cell @ 25℃
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 188.3 149.7 106.3 80.80 66.93 58.20 52.60 41.52 36.28
OPZV2-250 235.4 187.2 132.9 101.0 83.67 72.75 65.75 51.90 45.35
OPZV2-300 282.5 224.6 159.5 121.2 100.4 87.30 78.90 62.27 54.42
OPZV2-350 329.6 262.1 186.1 141.4 117.1 101.9 92.05 72.65 63.49
OPZV2-420 395.5 314.5 223.3 169.7 140.6 122.2 110.5 87.18 76.18
OPZV2-500 470.8 374.4 265.8 202.0 167.3 145.5 131.5 103.8 90.70
OPZV2-600 565.0 449.2 319.0 242.4 200.8 174.6 157.8 124.5 108.8
OPZV2-770 725.1 576.5 409.4 311.1 257.7 224.1 202.5 159.8 139.7
OPZV2-800 753.3 599.0 425.3 323.2 267.7 232.8 210.4 166.1 145.1
OPZV2-1000 941.7 748.7 531.6 404.0 334.7 291.0 263.0 207.6 181.4
OPZV2-1200 1130 898.5 638.0 484.8 401.6 349.2 315.6 249.1 217.7
OPZV2-1500 1413 1123 797.5 606.0 502.0 436.5 394.5 311.4 272.1
OPZV2-2000 1883 1497 1063 808.0 669.3 582.0 526.0 415.2 362.8
OPZV2-2500 2354 1872 1329 1010 836.7 727.5 657.5 519.0 453.5
OPZV2-3000 2825 2246 1595 1212 1004 873.0 789.0 622.7 544.2
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 207.2 162.6 112.8 84.62 70.55 61.00 55.60 43.26 37.83
OPZV2-250 259.0 203.3 141.0 105.8 88.19 76.25 69.50 54.08 47.29
OPZV2-300 310.8 243.9 169.1 126.9 105.8 91.50 83.40 64.89 56.75
OPZV2-350 362.7 284.6 197.3 148.1 123.5 106.8 97.30 75.71 66.20
OPZV2-420 435.2 341.5 236.8 177.7 148.2 128.1 116.8 90.85 79.44
OPZV2-500 518.1 406.5 281.9 211.6 176.4 152.5 139.0 108.2 94.58
OPZV2-600 621.7 487.8 338.3 253.9 211.7 183.0 166.8 129.8 113.5
OPZV2-770 797.8 626.0 434.1 325.8 271.6 234.9 214.1 166.6 145.6
OPZV2-800 828.9 650.4 451.0 338.5 282.2 244.0 222.4 173.0 151.3
OPZV2-1000 1036 813.0 563.8 423.1 352.8 305.0 278.0 216.3 189.2
OPZV2-1200 1243 975.7 676.6 507.7 423.3 366.0 333.6 259.6 227.0
OPZV2-1500 1554 1220 845.7 634.7 529.1 457.5 417.0 324.5 283.7
OPZV2-2000 2072 1626 1128 846.2 705.5 610.0 556.0 432.6 378.3
OPZV2-2500 2590 2033 1410 1058 881.9 762.5 695.0 540.8 472.9
OPZV2-3000 3108 2439 1691 1269 1058 915.0 834.0 648.9 567.5
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 232.2 177.3 120.0 89.04 73.97 63.40 57.40 44.81 39.19
OPZV2-250 290.2 221.6 150.0 111.3 92.46 79.25 71.75 56.02 48.99
OPZV2-300 348.2 265.9 180.0 133.6 111.0 95.10 86.10 67.22 58.78
OPZV2-350 406.3 310.2 210.0 155.8 129.4 111.0 100.5 78.42 68.58
OPZV2-420 487.5 372.3 252.0 187.0 155.3 133.1 120.5 94.11 82.29
OPZV2-500 580.4 443.2 300.0 222.6 184.9 158.5 143.5 112.0 97.97
OPZV2-600 696.5 531.8 360.0 267.1 221.9 190.2 172.2 134.4 117.6
OPZV2-770 893.8 682.5 462.0 342.8 284.8 244.1 221.0 172.5 150.9
OPZV2-800 928.6 709.1 480.0 356.2 295.9 253.6 229.6 179.3 156.8
OPZV2-1000 1161 886.4 600.0 445.2 369.8 317.0 287.0 224.1 195.9
OPZV2-1200 1393 1064 720.0 534.3 443.8 380.4 344.4 268.9 235.1
OPZV2-1500 1741 1330 900.0 667.8 554.8 475.5 430.5 336.1 293.9
OPZV2-2000 2322 1773 1200 890.4 739.7 634.0 574.0 448.1 391.9
OPZV2-2500 2902 2216 1500 1113 924.6 792.5 717.5 560.2 489.9
OPZV2-3000 3482 2659 1800 1336 1110 951.0 861.0 672.2 587.8
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 253.7 189.1 124.0 91.05 75.38 64.80 58.80 45.78 40.16
OPZV2-250 317.1 236.4 155.0 113.8 94.22 81.00 73.50 57.23 50.20
OPZV2-300 380.5 283.7 186.0 136.6 113.1 97.20 88.20 68.68 60.24
OPZV2-350 443.9 331.0 217.0 159.3 131.9 113.4 102.9 80.12 70.28
OPZV2-420 532.7 397.2 260.4 191.2 158.3 136.1 123.5 96.15 84.33
OPZV2-500 634.2 472.9 310.0 227.6 188.4 162.0 147.0 114.5 100.4
OPZV2-600 761.0 567.4 372.1 273.2 226.1 194.4 176.4 137.4 120.5
OPZV2-770 976.6 728.2 477.5 350.6 290.2 249.5 226.4 176.3 154.6
OPZV2-800 1015 756.6 496.1 364.2 301.5 259.2 235.2 183.1 160.6
OPZV2-1000 1268 945.7 620.1 455.3 376.9 324.0 294.0 228.9 200.8
OPZV2-1200 1522 1135 744.1 546.3 452.3 388.8 352.8 274.7 240.9
OPZV2-1500 1902 1419 930.1 682.9 565.3 486.0 441.0 343.4 301.2
OPZV2-2000 2537 1891 1240 910.5 753.8 648.0 588.0 457.8 401.6
OPZV2-2500 3171 2364 1550 1138 942.2 810.0 735.0 572.3 502.0
OPZV2-3000 3805 2837 1860 1366 1131 972.0 882.0 686.8 602.4

13 14
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)
Final Voltage at 1.75V per cell @ 25℃
Final Voltage at 1.70V per cell @ 25℃Final Voltage at 1.60V per cell @ 25℃
Final Voltage at 1.65V per cell @ 25℃
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 275.2 197.6 128.0 93.87 76.38 66.40 59.80 46.37 40.74
OPZV2-250 344.0 247.0 160.0 117.3 95.48 83.00 74.75 57.96 50.93
OPZV2-300 412.8 296.4 192.1 140.8 114.6 99.60 89.70 69.55 61.11
OPZV2-350 481.5 345.8 224.1 164.3 133.7 116.2 104.7 81.14 71.30
OPZV2-420 577.9 414.9 268.9 197.1 160.4 139.4 125.6 97.37 85.55
OPZV2-500 687.9 494.0 320.1 234.7 191.0 166.0 149.5 115.9 101.9
OPZV2-600 825.5 592.7 384.1 281.6 229.1 199.2 179.4 139.1 122.2
OPZV2-770 1059 760.7 492.9 361.4 294.1 255.6 230.2 178.5 156.8
OPZV2-800 1101 790.3 512.1 375.5 305.5 265.6 239.2 185.5 163.0
OPZV2-1000 1376 987.9 640.2 469.3 381.9 332.0 299.0 231.8 203.7
OPZV2-1200 1651 1185 768.2 563.2 458.3 398.4 358.8 278.2 244.4
OPZV2-1500 2064 1482 960.3 704.0 572.9 498.0 448.5 347.7 305.6
OPZV2-2000 2752 1976 1280 938.7 763.8 664.0 598.0 463.7 407.4
OPZV2-2500 3440 2470 1600 1173 954.8 830.0 747.5 579.6 509.3
OPZV2-3000 4128 2964 1921 1408 1146 996.0 897.0 695.5 611.1
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 295.1 199.6 131.3 95.48 77.59 67.00 60.40 46.75 41.13
OPZV2-250 368.8 249.5 164.1 119.3 96.98 83.75 75.50 58.44 51.41
OPZV2-300 442.6 299.4 196.9 143.2 116.4 100.5 90.60 70.13 61.69
OPZV2-350 516.4 349.3 229.7 167.1 135.8 117.3 105.7 81.82 71.97
OPZV2-420 619.6 419.1 275.6 200.5 162.9 140.7 126.8 98.18 86.37
OPZV2-500 737.7 499.0 328.1 238.7 194.0 167.5 151.0 116.9 102.8
OPZV2-600 885.2 598.8 393.8 286.4 232.8 201.0 181.2 140.3 123.4
OPZV2-770 1136 768.4 505.3 367.6 298.7 258.0 232.5 180.0 158.3
OPZV2-800 1180 798.4 525.0 381.9 310.3 268.0 241.6 187.0 164.5
OPZV2-1000 1475 998.0 656.3 477.4 387.9 335.0 302.0 233.8 205.6
OPZV2-1200 1770 1198 787.5 572.9 465.5 402.0 362.4 280.5 246.8
OPZV2-1500 2213 1497 984.4 716.1 581.9 502.5 453.0 350.7 308.5
OPZV2-2000 2951 1996 1313 954.8 775.9 670.0 604.0 467.5 411.3
OPZV2-2500 3688 2495 1641 1193 969.8 837.5 755.0 584.4 514.1
OPZV2-3000 4426 2994 1969 1432 1164 1005 906.0 701.3 616.9
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 300.1 208.4 134.9 97.49 78.59 67.60 61.00 47.14 41.32
OPZV2-250 375.1 260.5 168.6 121.9 98.24 84.50 76.25 58.93 51.65
OPZV2-300 450.1 312.7 202.3 146.2 117.9 101.4 91.50 70.71 61.98
OPZV2-350 525.2 364.8 236.0 170.6 137.5 118.3 106.8 82.50 72.31
OPZV2-420 630.2 437.7 283.2 204.7 165.0 142.0 128.1 99.00 86.78
OPZV2-500 750.2 521.1 337.2 243.7 196.5 169.0 152.5 117.9 103.3
OPZV2-600 900.3 625.3 404.6 292.5 235.8 202.8 183.0 141.4 124.0
OPZV2-770 1155 802.5 519.3 375.3 302.6 260.3 234.9 181.5 159.1
OPZV2-800 1200 833.7 539.5 389.9 314.4 270.4 244.0 188.6 165.3
OPZV2-1000 1500 1042 674.4 487.4 393.0 338.0 305.0 235.7 206.6
OPZV2-1200 1801 1251 809.2 584.9 471.5 405.6 366.0 282.9 247.9
OPZV2-1500 2251 1563 1012 731.1 589.4 507.0 457.5 353.6 309.9
OPZV2-2000 3001 2084 1349 974.9 785.9 676.0 610.0 471.4 413.2
OPZV2-2500 3751 2605 1686 1219 982.4 845.0 762.5 589.3 516.5
OPZV2-3000 4501 3127 2023 1462 1179 1014 915.0 707.1 619.8
Model No. 30＇1h 2h 3h 4h 5h 6h 8h 10h
OPZV2-200 303.7 214.9 138.1 100.7 80.60 68.20 61.40 47.34 41.52
OPZV2-250 379.6 268.6 172.6 125.9 100.8 85.25 76.75 59.17 51.90
OPZV2-300 455.6 322.3 207.1 151.1 120.9 102.3 92.10 71.00 62.27
OPZV2-350 531.5 376.0 241.7 176.2 141.1 119.4 107.5 82.84 72.65
OPZV2-420 637.8 451.2 290.0 211.5 169.3 143.2 128.9 99.41 87.18
OPZV2-500 759.3 537.2 345.2 251.8 201.5 170.5 153.5 118.3 103.8
OPZV2-600 911.1 644.6 414.3 302.1 241.8 204.6 184.2 142.0 124.5
OPZV2-770 1169 827.2 531.6 387.7 310.3 262.6 236.4 182.2 159.8
OPZV2-800 1215 859.5 552.3 402.8 322.4 272.8 245.6 189.3 166.1
OPZV2-1000 1519 1074 690.4 503.5 403.0 341.0 307.0 236.7 207.6
OPZV2-1200 1822 1289 828.5 604.2 483.6 409.2 368.4 284.0 249.1
OPZV2-1500 2278 1612 1036 755.3 604.5 511.5 460.5 355.0 311.4
OPZV2-2000 3037 2149 1381 1007 806.0 682.0 614.0 473.4 415.2
OPZV2-2500 3796 2686 1726 1259 1008 852.5 767.5 591.7 519.0
OPZV2-3000 4556 3223 2071 1511 1209 1023 921.0 710.0 622.7

15 16
10
0
40
80
2.05
0 0 0 2 4 6
1 2
8
2.150.4
4
3
2
2.35
2.25
0.8
1
3
(C10Ah%)
100
120
(V)
(I A)
2
12
3 4
14 16 2018 22
20% DOD
2
3
4
4
t(h)
1
Charge Characteristics( 25 °C )
-20
Discharge Capacity(%C )
10
100
40
60
80
120
-10 10 20 40 (℃)50
Discharge Capacity vs. Ambient Temperature(I A)
10
60
20
1.0
0.6
0.2
2.45
1.2
-10℃-20℃
2.20V
2.10V
2.30V
2.40V
2.50V
10℃0℃
Floating Volt
20℃
2.60V
40℃30℃ 50℃
Equalization Volt
Charge Voltage vs. Temperature
300

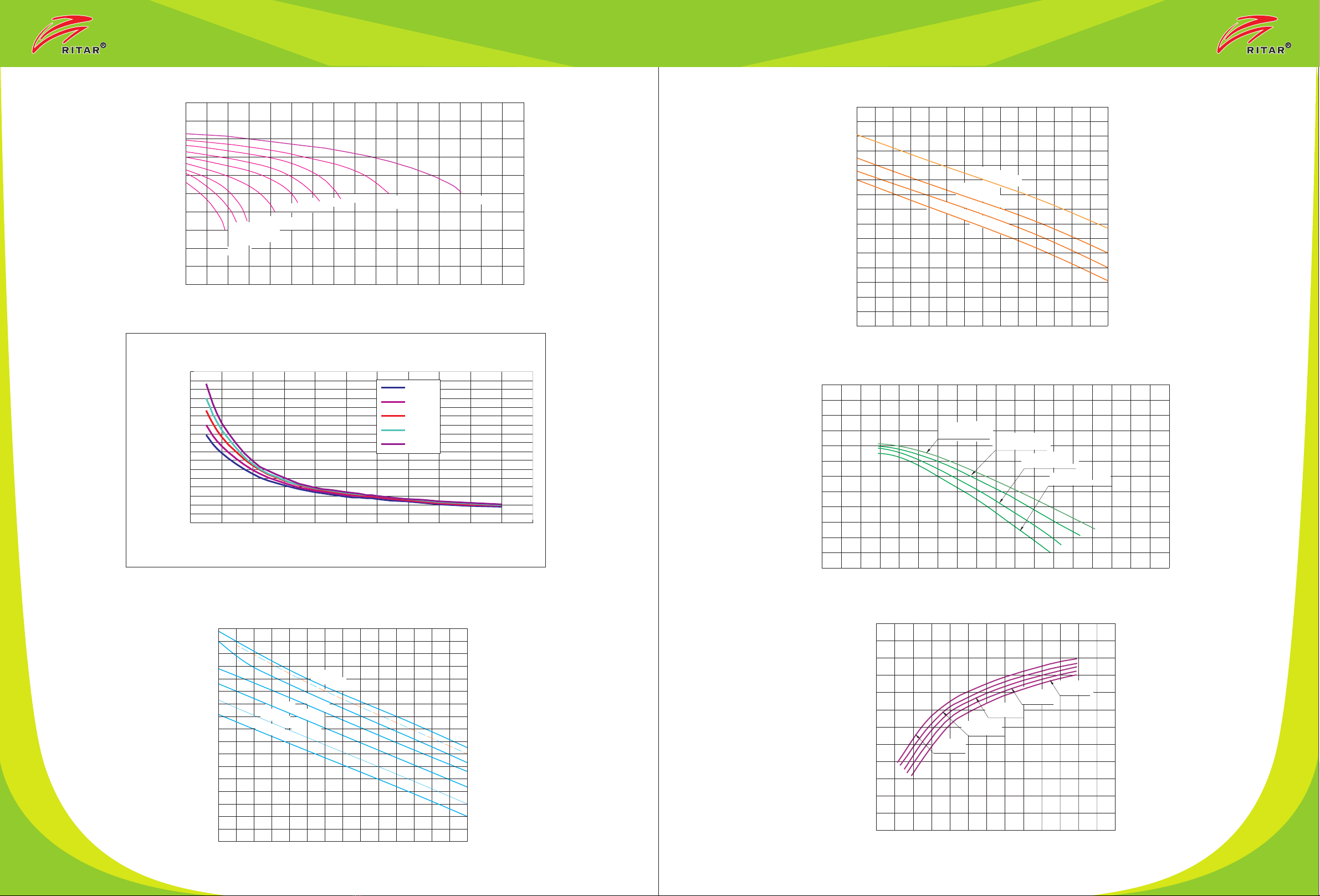

10.Battery Characteristic Curves & Diagrams
1
3. Technical Data fot Solar Power/Wind Applications
3.1 Technical Data
3.3 Discharge Voltage Curve at PSOC ( IEC61427 Standard)
C24（Ah） C48（Ah） C72 （Ah） C100
（Ah）
Uf=1.85V
225 250 262 266
OPzV2-250 281 312 328 334
OPzV2-300 337 375 392 399
OPzV2-350 393 437 457 465
OPzV2-420 472 525 550 559
OPzV2-500 552 613 642 653
OPzV2-600 674 750 785 799
OPzV2-800
OPzV2-1000
OPzV2-1500
C120 （Ah） C240 （Ah）
255 257
315 324
378 385
440 448
530
615
755
540
625
768
OPzV2-2000
1000
1250
1500
1830
2440
3050
3279
1037
1296
1556
1908
2545
3181
3816
1055
1318
1582
1941
2588
3235
3881
1006
1258
1510
1845
2460
3080
3690
1020
1275
1530
1870
2490
3130
3750
OPzV2-3000
890
1113
1333
1639
2185
2732
3180
OPzV2-770 850 951 956 970987 1006
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)
Max. Charge Current: ≦ 0.2 C10 A
Max. Charge Voltage: ≦ 2.45V per Cell
Equalizing and Cycle use Voltage: 2.35V ~ 2.40V per Cell
Float Charging Voltage: 2.25V ~ 2.27V per Cell
Temperature Compensation Coefficient:
-3mV per ℃ for float charge
-4mV per ℃ for equalize charge
3.2 Capacity at Different Rate @ 25℃ (Ah)
Model No.
1.Charge Characteristic Curve
2.Discharge Capacity vs. Ambient Temperature
3.Charge Voltage vs. Temperature
Capacity
Charge
Current
Charge
Volt
50% DOD
75% DOD
100% DOD
OPzV2-350 IEC61427 Testing Characteristics(V)
Final Volt(V)
Shallow cycling at the over charge state (100cycles)
Shallow cycling at the low state (50cycles)charge
Testing Process,
A. Shallow cycling at the low charge state (50 cycles)
a). Discharge with I10 (A) for 9hrs or till the final discharge volt is 1.75V per cell
b). Discharge with 1.03 * I10 (A) for 3hrs
c). Discharge with I10 (A) for 3hrs
B. Shallow cycling at the over charge state (100 cycles)
a). Discharge with1.25 * I10 (A) for 2hrs
b). Recharge with I10 (A) for 6hrs at the charge volt 2.4V per cell
(or submit to the manufacturer’s requirements)
OPzV2-200
OPzV2-1200
OPzV2-2500

17 18
Shock Discharge Characteristics after 0.5 hour Continuous Discharge (25℃）
1.7
0
1.5
1.6
0.5 1 . 0 1.4 Kc h
2.1
1.9
1.8
2 . 0
I-2.0I10
I-3.0I10
I-4.0I10
I-1.0I10
2 . 2
U c h (V )
K c h20
1 . 6 64 8 1 0 1 2 1 61 4
1 . 7
1 . 8
1 . 9
2 . 0
600-1200
200-500
2.1
Upn(V)
200
1500
1.90V
0.10
0
1.80V
0.50
0.30
0.20
0.40
0.60
0.70
0.80
1.83V
1.87V
1.00
0.90
1.10
Kcc
1.93V
0 10.5 2 53 4 6 7 (h)98 10 11
Capacity Factor Vs. Discharge Time(20℃)
2.1
Discharge Time (25℃)
2
1.3 0.50 1 53 4 6 7 108 9 1211
0.4C10
1.4
1.5
1.6
1.7
0.7C10
1C10 0.8C1 0
0.55C10
1.9
1.8
2.0
0.25C1 0 0.15C10
0.2C1 0 0.1C10
U（V）
2.2
t(h)
Shock Discharge Characteristics after 1 hour Continuous Discharge(25℃）
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)
4. Discharge Characteristic Curve
5 Capacity Conversion Factor .
6.Shock Discharge Characteristics after 1 hour Continuous Discharge
7.Shock Discharge Characteristics after 0.5 hour Continuous Discharge
8.1min Discharge Characteristics
9.Capacity Factor Vs. Discharge Time
I
-
10I10
0
I
-4
.
0
I10
I
-
3
.
0
I10
I
-
2
.0I10
U c h ( V )
1 . 6
1 . 5
1.8
1 . 7
1 . 9
2 . 0
2 . 1
2 . 2
0 0 . 5 1 . 0 K c h1 . 4
.
Float charg e
1min Discharge Characteristics(25℃）
Float Charge Shock Discharge Curve in the Float Charge state
Broken line(---) - -- Shock Discharge Curve after switching off the float charger
0 — Shock Discharge Curve after 15 hrs standing by with full charge
---
immediately
(in the open circuit state)
OPzV Capicity-time curve
0.000
0.050
0.100
0.150
0.200
0.250
0.300
0.350
0.400
0.450
0.500
0.550
0.600
0.650
0.700
0.750
0.800
0.850
0 1 2 3 4 5 6 7 8 9 10 11
Discharge time(h)
Capicity Factor Kch
1.90V
1.87V
1.83V
1.80V
1.75V
OPzV Capacity-Time Curve
Capacity Factor Kch

19 20
Discharge Current(A) Final Discharge Volt
Discharge Current(A)≤0.1I10 1.90
1.85
1.80
1.75
1.70
Not Recommended
0.1I10＜Discharge Current(A)≤I10
I10＜Discharge Current(A)≤4I10
4I10＜Discharge Current(A)≤6I10
6I10＜Discharge Current(A)≤10I10
Discharge Current(A)＞15I10
90%
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
70%
80%
100%
110%
120%
Cycle Times at High Ambient Temperature
60%
Discharge capacity
80%
1 60 120 180 240 300 360 420
70%
75%
85%
90%
Float Charge Cycles
105%
95%
100%
110%
115%
480 540 600 660 720 780 840 900
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)

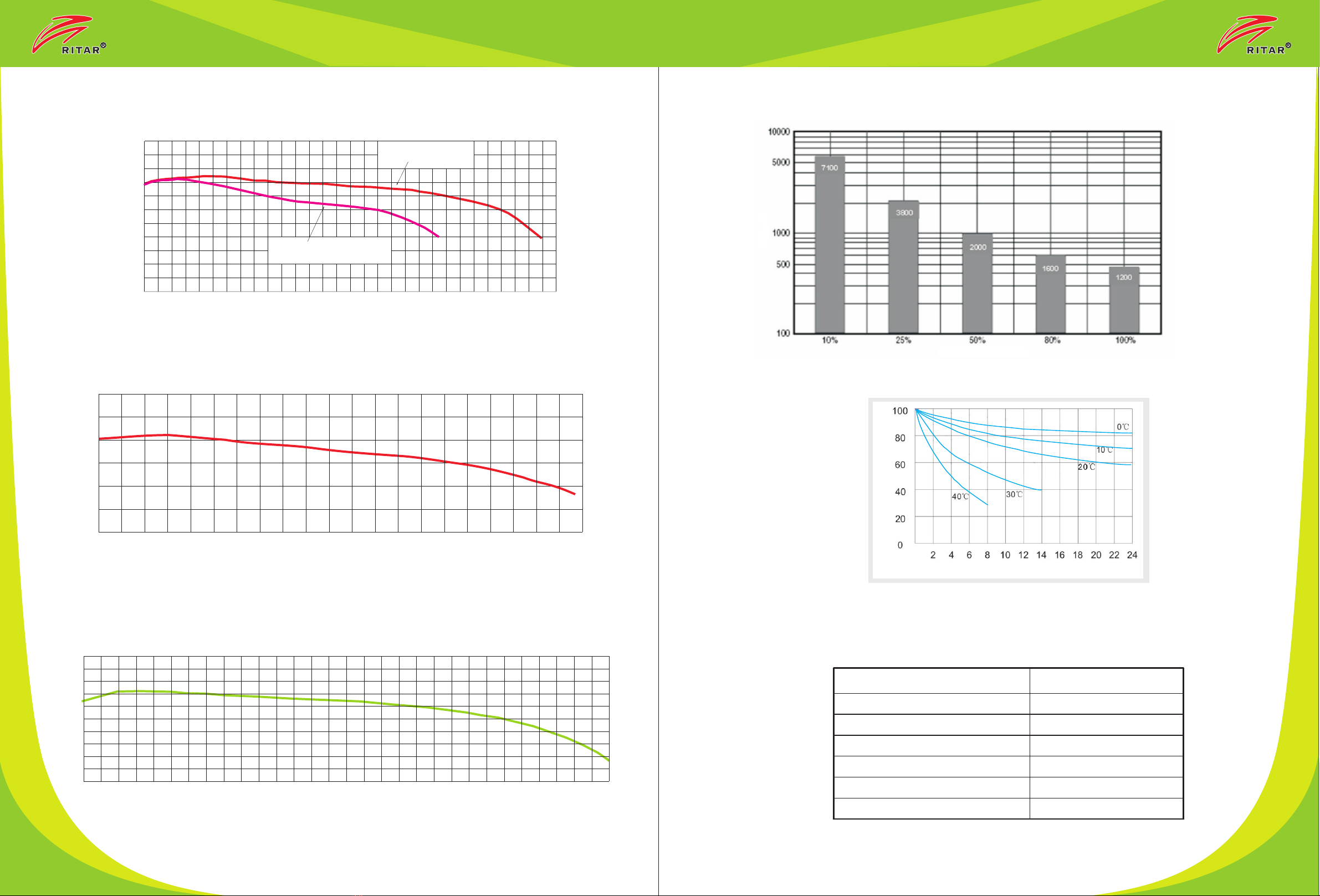

10.Cycle Life Characteristics 13.Cyclic Life Vs. Depth of Discharge (%DOD)
11.High Temperature Accelerated Life Test at 60℃
12. Float Life Test
( IEC60896-21/22 Standard)
14.Self-discharge Characteristics
15.Final Discharge Voltage vs Discharge Current
Residual Capacity(%)
Storage Time(months)
Ratio to Nominal Capacity
Test Procedure: Under the ambient temperature 60±2℃, float charge the 6pcs * OPzV2-500(in series) battery bank
with 13.5V(2.25V per cell)for 30 days and then test C5 capacity in room temperature, and repeat the cyclic testing
until the capacity is less than 80% of the rated capacity. One cycle (30 days) testing under ambient
temperature 60±2℃ is as one year service life at the ambient temperature 25℃.
C5 C5
To ensure the OPzV battery stable service life and avoid over-discharge,
at different discharge current is as following:
the
recommended final voltage
Equalizing Charge Cycles
Discharge Capacity ( % )
Cycles
Depth of Discharge (%DOD)
60%
110%
105%
100%
95%
90%
85%
80%
75%
70%
65%
1120 240 360 480 600 720 840 960 1080 1200 1320 1440 1560 1680
100%DOD
80%DOD
115%

☆ Transportation：
☆ Inspection: No damages on the appearance of packages and batteries.
☆Checking: B ies and accessories are complete without missing. atter
☆ Reading the Reference: Technical Manual, installation drawings, notice.
☆
☆
Do not use steel or any other metal wires and prevent battery short circuit.
Do not invert, roll, throw, or strike batteries.
Do not press or pull the battery top and terminals to prevent damages to terminals and cracking in sealed part.
No. Application Tightening Torque Value
1 M5 6.5N*m
1 M6 9.0N*m
2 M8 12.0N*m
☆
☆
☆
☆
☆
Discharge Current Discharge Time I=6C10, T≤5s
Discharge Current Discharge Time I=3C10, T≤1min
Discharge Current (A) Final Discharge Voltage (V/Cell)
<0.1C10
≈0.1C10
≈0.17C10
≥0.6C10
1.90
≈0.25C10 1.70
1.60
1.80
1.75
21 22
OPzV Series(Tubular Gel Battery)
Match batteries into battery banks, and group the batteries of the same or similar open-circuit voltage as a
bank. The voltage difference of a single cell is recommended to be a grade.
☆
☆
Check and make sure batteries are normal, then install batteries at the predetermined location (eg a battery
rack).
☆
Do not install batteries near any heat sources (eg a transformer).
☆
Because batteries may produce flammable gas during storage, keep away from any devices with possibility
of sparks (eg a fuss) during installing.
Before connection, clean battery terminals and make them shine with metallic luster.
☆
Be careful not to short-circuit battery positive and negative terminals with conductive materials.
In multiple use, make sure batteries are connected correctly and then connect batteries to the charge
or load. The positive terminals should be connected with the positive of the charger or load,
while negative with negative. If batteries are not connected to the charger correctly, the charge will be
damaged. Make sure there is no connection error.
battery
☆
Connect wires tightly and make sure every connection nut and bolt is screwed down. But do not overexert
to prevent damages to terminals. The recommended tightening torque is as follows.
☆
Tightening Torque
3. Installation and Wire Connection
Use insulating tools. The metal tools (such as a wrench) should be wrapped with insulating
tape and given insulation treatment.
Connect batteries firstly and then connect battery banks to the charger or load.
When multiple battery banks are to be in parallel connection, they should be connected in series
first and then connected in parallel.
The gap between batteries should be more than 20mm to ensure good ventilation.
Apply antirust agent (such as vaseline) on battery terminals before and after connection.
When batteries are installed, measure the total voltage of battery banks and confirm it is correct,
then load power.
4.Battery Operation
4.1 Discharge
1) The Maximum Discharge Current should be within the following range:
2) The Final Discharge Voltage is as follows:
Notice:
The voltage of battery terminals must not be below the required values.
1.Unpackaging and Inspection
2. Installation Cautions
OPzV Series(Tubular Gel Battery)
11.Battery Installation & Maintenance

☆ ：2.25V-2.30V/Cell（25℃）Charging Voltage
☆
☆
☆ ：2.37V-2.40V/Cell（25℃）Charging Voltage
☆
☆
☆
23 24
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)
4.2 Charge
4.2.1 Float Charge
Charging Parameters
Max. Charging Current ≤0.20C10
Temperature Compensation Factor : -3mV/℃/Cell
Notice:There are some voltage deviations between batteries of the same battery bank in initial
operation. After normal float charge, the voltage values will become consistent.6 months of
4.2.2 Equalizing Charge
Charging Parameters
Max. Charging Current ≤0.20C10
Temperature Compensation Factor : -3mV/℃/Cell
Notice: There is no need to perform Equalizing Charge when in normal float charging operation.
Equalizing Charge can be considered in the following situations:
☆Discharge capacity is lower than 20% of the rated capacity.
☆Storage time is more than 3 months.
☆A single cell's float charge voltage is lower than 2.18V/cell.
After 3~6 months of continuous float charge or when there are some voltage lag batteries
in a battery bank.
5. Battery Maintenance
5.1 Cleaning
☆Keep the battery appearances and operating environment clean and dry.
☆Do not cause static when cleaning batteries.
☆Clean batteries with a wet cloth. It's prohibited to use gasoline, alcohol or any other organic
solvents to clean batteries.
5.2 Inspection and Maintenance
1) Monthly Inspection
Item Content Benchmark Maintenance
The total float
charge voltage
of the battery
bank
Inspect the voltage of
the battery bank's
positive and negative
terminals with a
voltmeter
The float charge
voltage of a single
cell x battery
quantity
Adjust the deviation value
to the benchmark value
Battery
appearance
Inspect the battery case,
lid to check wether there
is leakage, blow-up, or
damage
The appearance is
normal
Please check the reason of
the unusual appearance;
and if it affects the normal
use, replace the battery
Inspect whether there is
dust or dirt
The appearance is
clean
Clean the dust and dirt with a
wet cloth
Inspect whether the
connection cables
and terminals get rusty
No rust
If there is rust, please clean
the rust, replace the rusty
connection cables, and apply
rust inhibitor
Connection
parts
Inspect whether bolts
and nuts get loose
Firm connection (see
the torque table)
Tighten the loose bolts and
nuts according to the
requested torque
Clean the battery
bank’s connection bars
and terminals
No corrosion
For slight corrosion,
disassemble the connection
bar and immerse it in water for
cleaning; for serious corrosion,
change the connection bar and
after cleaning the connecting
points with a steel brush
reconnect and tighten the new
one
Safety Valve
Shake the safety valve
gently to check whether
it is fastened securely
Firmly, no loose If the safety valve is loose,
fasten it
Check whether the
safety valve is
working: apply the
foaming liquid around
the safety valve to
observe its gas
Bubbles appear
periodically
It is abnormal if the safety
valve is in longtime closing or
opening and need to change
the safety valve (and check
the battery water loss
condition at the same time )
Switch
Cut off the AC power, and
switch to the UPS, power
cabinet or DC power
The AC power supply
switches to the
power cabinet or DC
power smoothly
UPS, Correct the possible deviation
2) Quarterly Inspection
Item Content Benchmark Maintenance
The float
charge
voltage of
each battery
Inspect the terminal
voltage of each battery
in the battery bank
The float charge
voltage with
temperature
compensation
(±50mV)
If it exceeds the benchmark
value, please discharge firstly
and then equalizing charge
and switch to float charge for
1~2 months. If it still deviates
from the benchmark value,
please contact us

Model
B
H
(B)
(H)
OPzV-250V/48V OPzV-350V/48V OPzV-500V/48V
1790
330 430 430
1790 2300
(W)
W520520520
25
3) Yearly Inspection
Item Content Benchmark Maintenance
Verification
discharge
testing
Cut off the AC power and
discharge with load;
discharge 30%~40% of
the rated capacity of the
battery
The battery voltage
should be over
1.90V/cell when
discharge stops
If it is lower than the
benchmark value, please
discharge the battery bank
firstly and then equalizing
charge and then switch to float
charge for 1~2 months. If it
still deviates from the
benchmark value, please
contact us
11.48V System Drawings
1) OPzV2-250/48V ~ OPzV-500/48V Single-floor Vertical Installation Rack
2) OPzV2-800/48V Single-floor Vertical Installation Rack
3) OPzV2-1000/48V Single-floor Vertical Installation Rack
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)

Model
B
H
OPzV-2000V/48V OPzV-3000V/48V
2894
733 680
2850
W664529
Model
B
H
OPzV-200V/48V OPzV-300V/48V
805
880
1060
W520
880
520
27 28
26

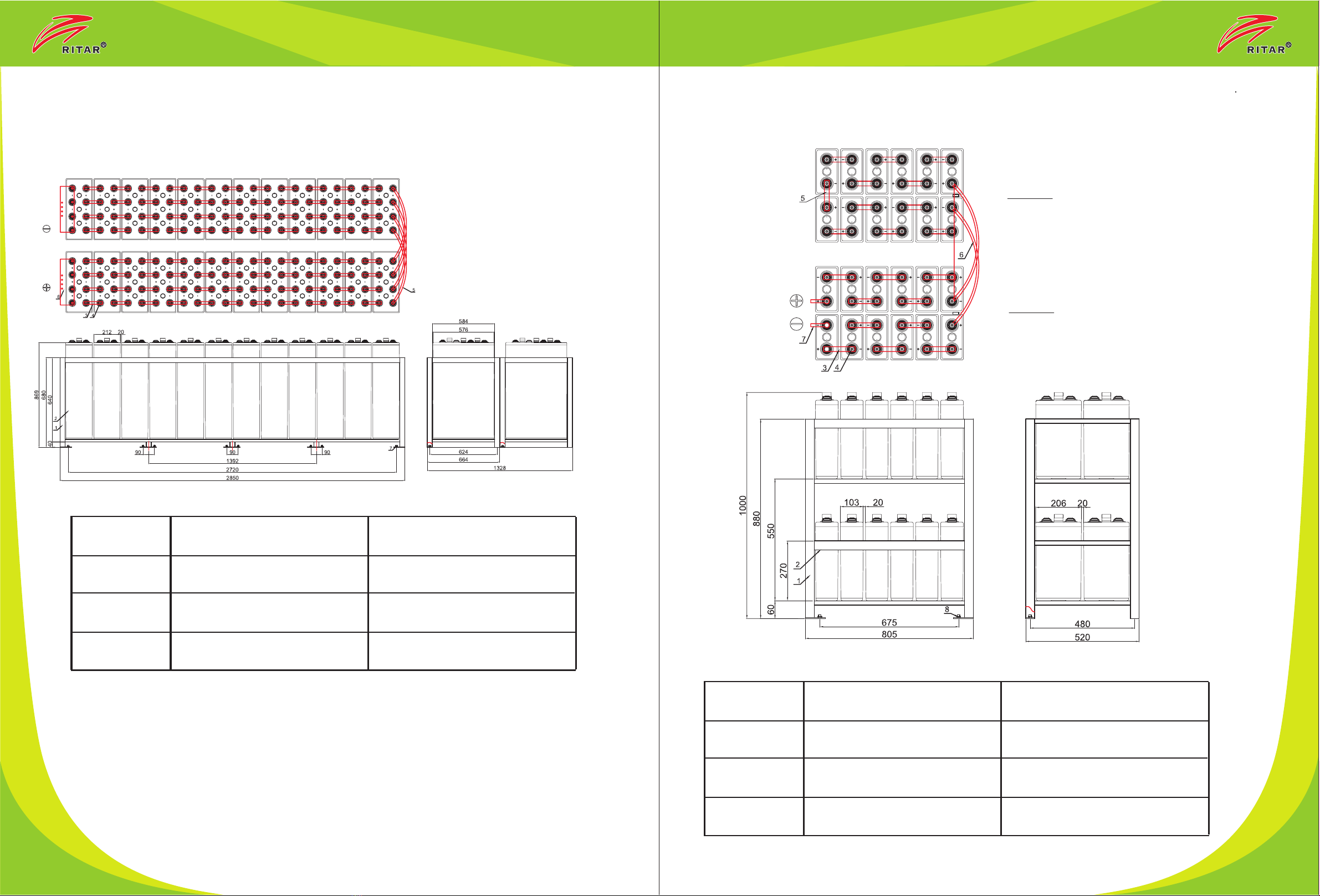

4) OPzV2-2000/48V ~ OPzV-3000/48V Single-floor Vertical Installation Rack
5) OPzV2-200/48V ~ OPzV-300/48V Double-floor Vertical Installation Rack
1st Floor
2nd Floor
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)

Model
B
H
OPzV-2000V/48V OPzV-3000V/48V
2755
1680
2755
W530
1680
704
30
Model
B
H
OPzV-1000V/48V OPzV-1500V/48V
950
2240
950
W580
2640
660

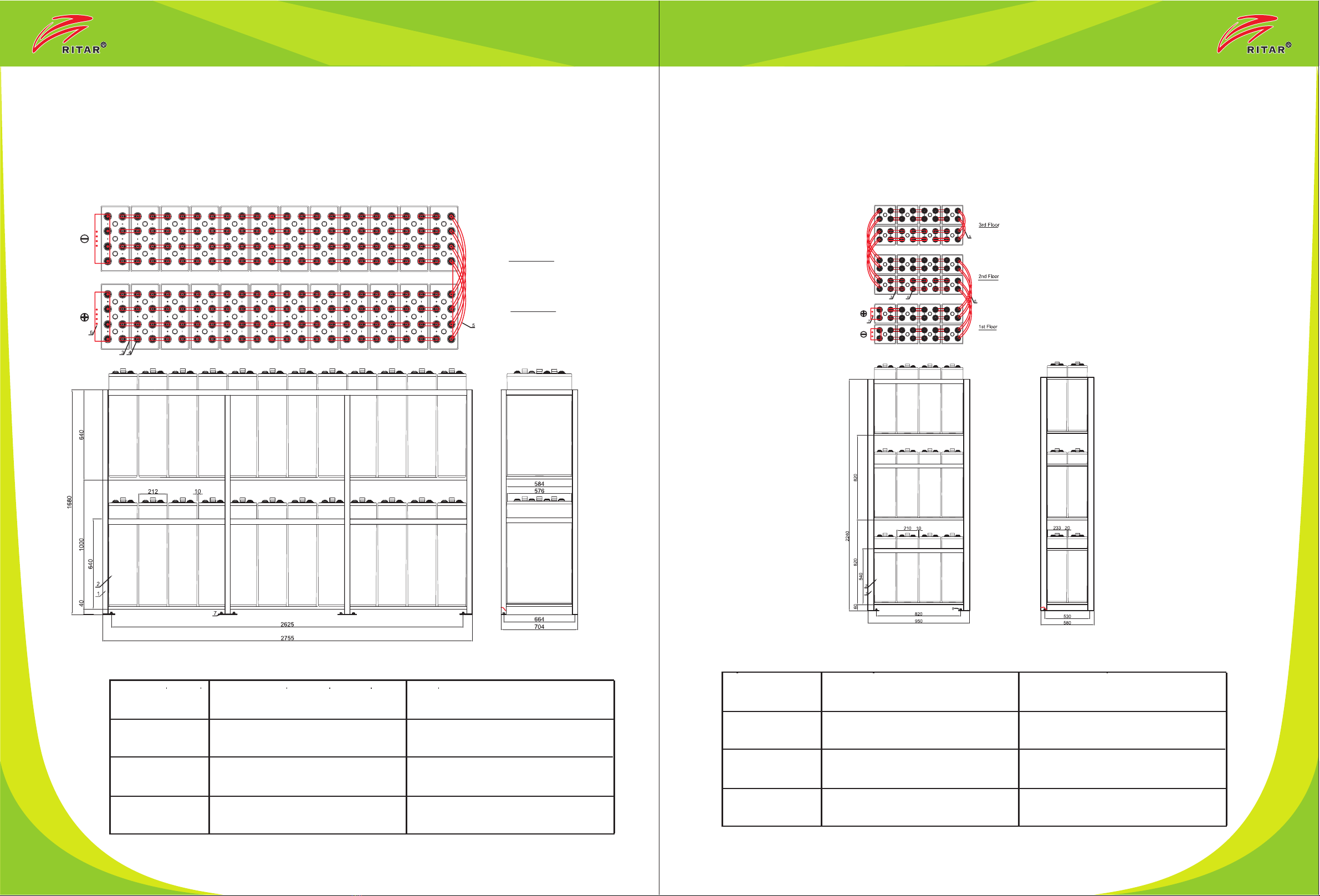

6) OPzV2-2000/48V ~ OPzV-3000/48V -floor Vertical Installation RackDouble
1st Floor1st Floor
2nd Floor2nd Floor
7) OPzV2-1000/48V ~ OPzV-1500/48V -floor Vertical Installation RackThree
OPzV Series(Tubular Gel Battery) OPzV Series(Tubular Gel Battery)
