RiverGrille CG2093901-RG User manual

CG2093901-RG ENG Page 1 of 24 20131018 V.1
Argentine Barbecue Grill
Owner’s Manual
Assembly and Operating Instructions
Model # CG2093901-RG
Tools required for assembly: (Not Included) Pliers, Philips & Flathead Screwdrivers, Adjustable Wrench.
Keep this manual for future reference
Should you encounter any problem,
CALL US FIRST.
Do not return product to the store.
WE CAN HELP.
Please contact Customer Service at [e-mail]
or at 1-888-837-1380, Mon to Fri, 8:00 a.m. –5:00 p.m. Pacific Standard Time.

CG2093901-RG ENG Page 2 of 24 20131018 V.1
WARNING
lOnly use this grill on a hard, level, non-combustible, stable surface (concrete, ground, etc.) capable of
supporting the weight of the grill. Never use on wooden or other surfaces that could burn.
lDO NOT use grill without charcoal ash tray in place. DO NOT attempt to remove charcoal ash tray while
coals are hot.
lWhen grill is in use, keep clearance of 60”(152.4cm) between the hot grill and any combustible materials,
such as bushes, trees, wooden decks, wooden fences, buildings, etc. Do not place hot grill under roof
overhang or in any other enclosed area.
lThe maximum weight of charcoal briquettes to be used is 15.8 pounds (7.2kg). Too much charcoal may
cause the surface coating to peel off and will void the warranty.
lFOR OUTDOOR USE ONLY. DO NOT operate grill indoors or in an enclosed area because of carbon
monoxide poisoning that can lead to personal injury or death.
lFor household use only. Do not use this grill for other than its intended purpose.
lWe recommend the use of a charcoal chimney starter to avoid the dangers associated with charcoal lighting
fluid. If you choose to use charcoal lighting fluid, only use lighting fluid approved for lighting charcoal.
Carefully read manufacturer’s warnings and instructions on the charcoal lighting fluid and charcoal prior to
the use of their product. Store charcoal lighting fluid safely away from grill.
lDo not use gasoline, kerosene or alcohol for lighting charcoal. Use of any of these or similar products could
cause an explosion possibly leading to severe bodily injury.
lNever add charcoal lighting fluid to hot or even warm coals as flashback may occur causing severe burns.
lPlace grill in an area where children and pets cannot come into contact with it. Close supervision is
necessary when grill is in use.
lDo not leave grill unattended when in use.
lWhen adding charcoal and / or wood, use extreme caution and follow instructions in “Adding Charcoal /
Wood During Cooking”section of this manual.
lDo not store or use grill near gasoline or other flammable liquids, gases or where flammable vapors may be
present.
lDo not store lighter fluid or other flammable liquids or materials under the grill.
lUse caution when adjusting charcoal grate height. Use oven mitts. Handles will be hot when in use.
lGrill is hot when in use. To avoid burns:
lDO NOT attempt to move the grill.
lWear protective gloves or oven mitts.
lDO NOT touch any hot grill surfaces.
lDO NOT wear loose clothing or allow hair to come in contact with grill.
!
!

CG2093901-RG ENG Page 3 of 24 20131018 V.1
WARNING
lWhen grilling, grease from meat may drip into the charcoal and cause a grease fire. If this should happen, do
not use water to extinguish grease fires.
lWe advise that a fire extinguisher be on hand. Refer to your local authority to determine proper size and type
of fire extinguisher.
lKeep hands, face and body a safe distance away. Flash flare ups may occur when air comes into contact with
fire or hot coals.
lNever place more than 15.8 pounds (7.2 kg) on side shelf. Do not lean on the side tables. Always ensure side
tables are securely fastened.
lDo not allow charcoal and/or wood to rest on the walls of grill. Doing so will greatly reduce the life if the metal
and finish of your grill.
lUse caution during assembly and while operating your grill to avoid scrapes or cuts from sharp edges of metal
parts. Use caution when reaching into or under grill.
lNever leave coals and ashes in grill unattended, before grill can be left unattended, remaining coals and
ashes must be removed from grill. Use caution to protect yourself and property, carefully place remaining
coals and ashes in a non-combustible metal container and saturate completely with water, allow coals and
water to remain in metal container 24 hours prior to disposing.
lExtinguished coals and ashes should be placed a safe distance from all structure and combustible materials.
lWith a garden hose completely wet the surface beneath and around grill to extinguish any ashes, coals or
embers which may have fallen during the cooking or cleaning process.
lAfter each use, clean the grill thoroughly and apply a light coat of vegetable oil on the cooking grates to
prevent rusting. Cover the grill to protect it from excessive rusting.
lUse caution when lifting or moving grill to prevent strains and back injuries.
lStore the grill out of reach of children and in a dry location when not in use.
lDo not attempt to services grill other than normal maintenance as explained in “After-Use Safety”and “Proper
Care & Maintenance”sections of this manual.
lProperly dispose of all packaging material.
Use caution and common sense when operating your grill.
Failure to adhere to safety warning and guidelines in this manual could result in bodily injury or property damage.
Save this manual for future reference.
!
!

CG2093901-RG ENG Page 4 of 24 20131018 V.1
ASSEMBLY INSTRUCTIONS
THANK YOU FOR PURCHASING THIS ARGENTINE BARBECUE GRILL
Read all safety warnings & assembly instructions carefully before assembling or operating your grill.
For missing parts, please call customer service at [email protected] or at 888-837-1380 (U.S.
only), Mon to Fri, 8:00 a.m. –5:00 p.m. Pacific Standard Time.
(Proof of purchase will be required.)
Inspect contents of the box to ensure all parts are included and undamaged.
We recommend two people for assembly of this grill.
The following tools are required for assembly and are not included:
lPliers
lPhilips & Flathead Screwdrivers
lAdjustable Wrench

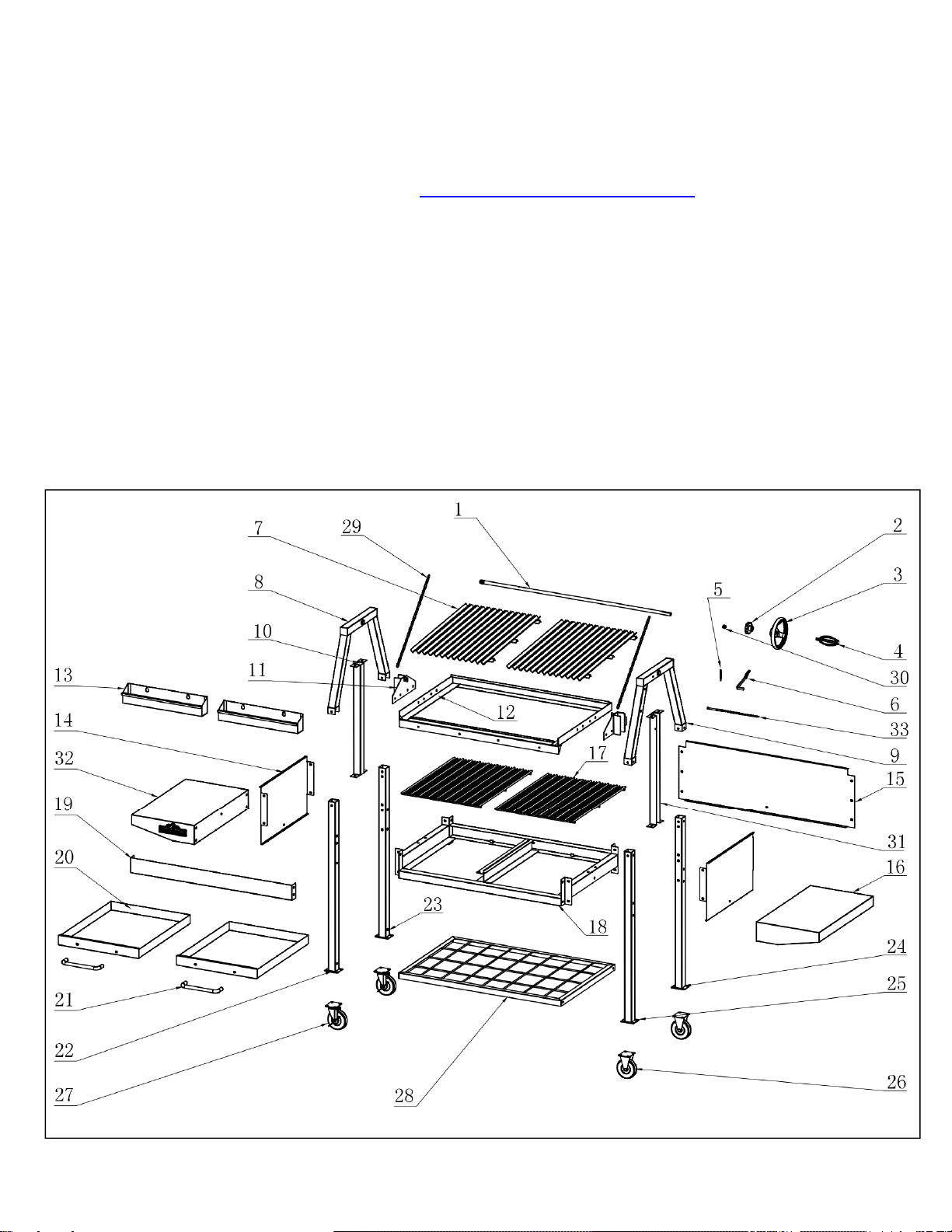

Product Diagram

CG2093901-RG ENG Page 5 of 24 20131018 V.1

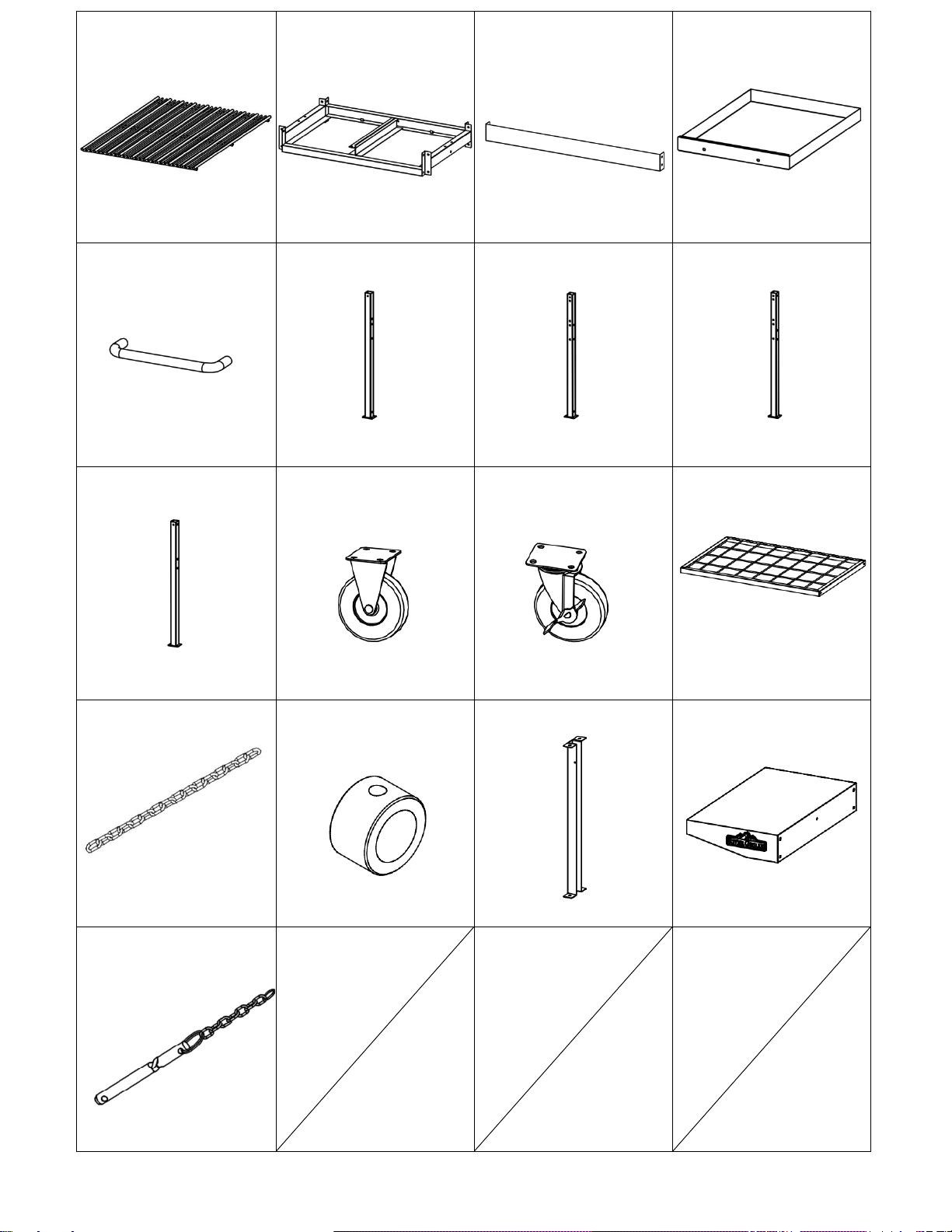

Component List
1. Rotation Shaft 2. Ratchet Wheel 3. Flywheel 4. Flywheel Handle
1 pc 1 pc 1 pc 1 pc
5. Check Lever Spring 6. Check Lever 7. V-groove Grate 8. (L) Lifter Rack
1 pc 1 pc 2 pcs 1 pc
9. (R ) Lifter Rack 10. (L) Sliding Pillar 11. Lifter Bracket 12. Cooking Grate
Support
1 pc 1 pc 2 pcs 1 pc
13. Grease Collector 14. Side Guard 15. Back Guard 16. (R ) Side Table
2 pcs 2 pcs 1 pc 1 pc

CG2093901-RG ENG Page 6 of 24 20131018 V.1
17. Charcoal Grate 18. Grill Body Chassis 19. Front Panel Guard 20. Ash Pan
2 pcs 1 pc 1 pc 2 pcs
21. Ash Pan Handle
2 pcs
22. Left Front Leg
1 pc
23. Left Rear Leg
1 pc
24. Rear Right Leg
1 pc
25. Right Front Leg
1 pc
26. Swivel Caster
2 pcs
27. Swivel Caster with
Brake
2 pcs
28. Bottom Rack
1 pc
29. Chain
2 pcs
30. Stop Collar
1 pc
31. (R ) Sliding Pillar
1 pc
32. (L) Side Table
1 pc
33. Security Pin
1 pc

CG2093901-RG ENG Page 7 of 24 20131018 V.1
STOP! DO NOT RETURN TO RETAILER
For assembly assistance, missing or damaged parts, please contact customer service at,
customerse[email protected] or 1-888-837-1380 Mon to Fri, 8:00 a.m. –5:00 p.m. Pacific
Standard Time.
Hardware List
A
Bolt (M6X12) 60 pcs
B
Bolt (M6X25 SS) 3 pcs
C
Bolt (M6X50) 4 pcs
D
Bolt (M6X12 SS) 32 pcs
E
Flange Nut (M6) 26 pcs
F
Flange Nut (M6 SS) 12 pcs
G
Lock Nut (M16) 1 pc
H
Insulation Washer 1 pc
I
Step Screw A 4 pcs

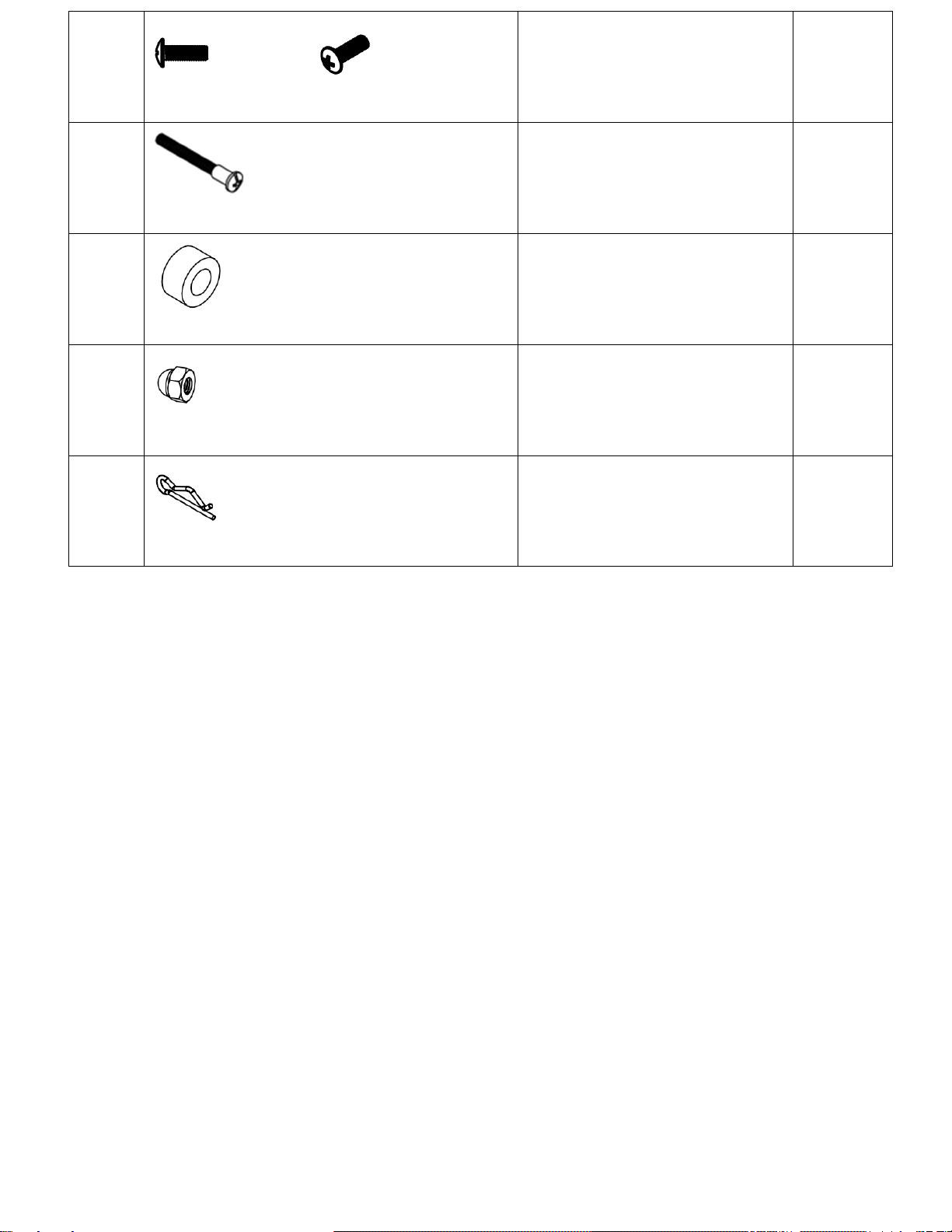

CG2093901-RG ENG Page 8 of 24 20131018 V.1
J
Bolt (M6X15 SS) 2 pcs
K
Step Screw B 1 pc
L
Check Lever Collar 1 pc
M
Cap Nut 1 pc
N
R Pin 1 pc

CG2093901-RG ENG Page 9 of 24 20131018 V.1
Assembly Procedures

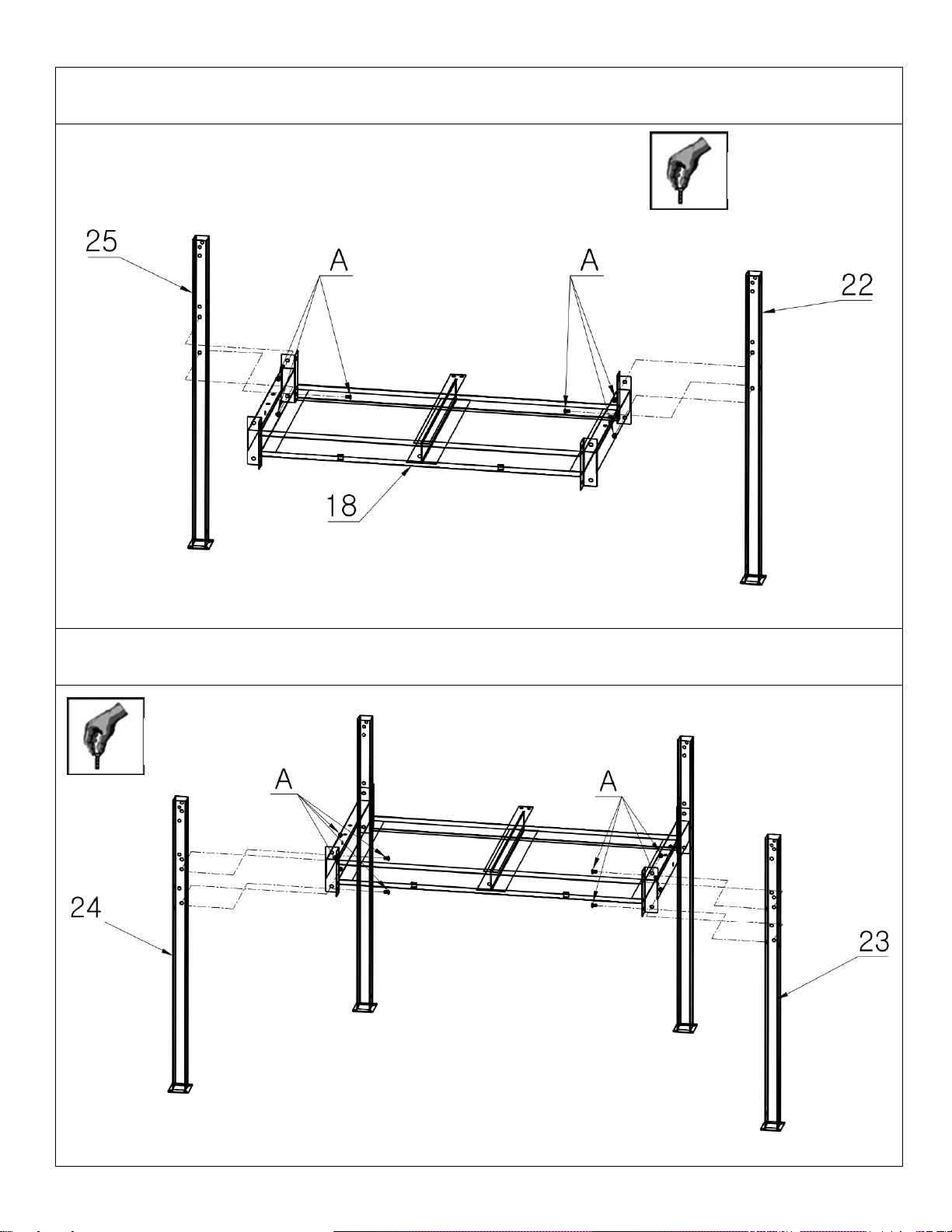

Step 1. Assemble the Left Front Leg (22) and Right Front Leg (25) to the Grill Body Chassis (18) using
M6X12 Bolt (A) as indicated below.
Assembly of legs on the front side of the grill
Step 2. Assemble the Left Rear Leg (23) and Right Rear Leg (24) to the Grill Body Chassis (18) using
M6X12 Bolt (A) as illustrated below.
Assembly of legs on the rear side of the grill
Hand Tighten only
Hand Tighten only

CG2093901-RG ENG Page 10 of 24 20131018 V.1
Step 3. Turn upside down the chassis (18); assemble the Bottom Rack (28) with the 4 legs using M6X12
Bolt (A).
Step 4. Assemble the Swivel Caster with Brake (27) to Left Front Leg (22) and Left Rear Leg (23), also Swivel
Caster (26) to Right Front Leg (25) and Right Rear Leg (24) using M6X12 Bolt (A) and M6 Flange Nut (E).
18
Tighten with tools
Hand Tighten only

CG2093901-RG ENG Page 11 of 24 20131018 V.1

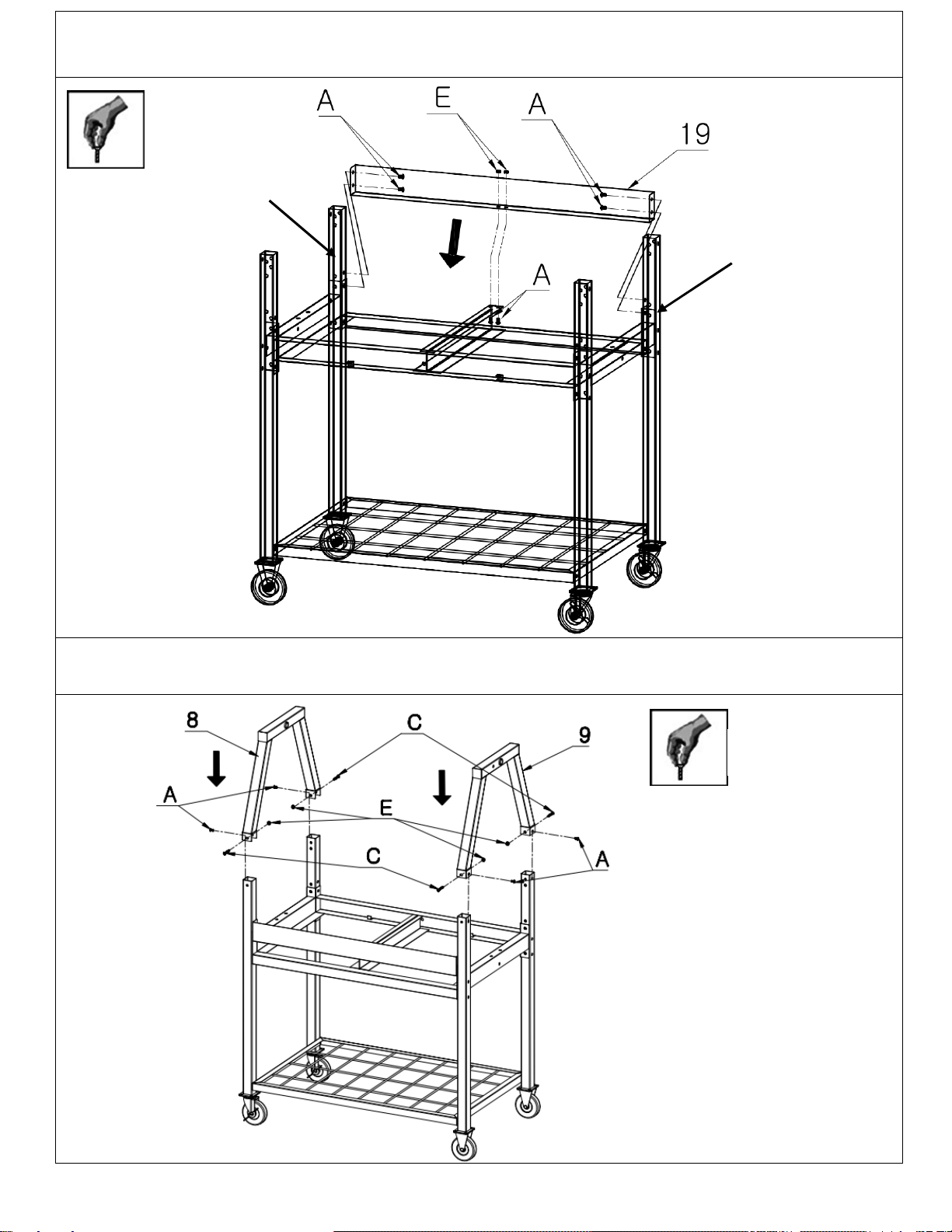

Step 5. Install the Front Panel Guard (19) to the Left Front Leg (22) and Right Front Leg (25) using M6X12
Bolt (A) and M6 Flange Nut (E).
Step 6. Assemble (L) Lifter Rack (8) and (R ) Lifter Rack (9) on the upper end of the legs and fix with M6x50
Bolt (C ) and M6 Flange Nut (E ). Also affix the joints with M6X12 Bolt (A).
25
22
Hand Tighten only
Hand Tighten only

CG2093901-RG ENG Page 12 of 24 20131018 V.1
Step7. Install (L) Sliding Pillar (10) and (R ) Sliding Pillar (31) using M6X12 SS Bolt (D) as shown.
NOTE: Now tighten all screws in Steps 1 through Step 7.
Step 8. Install the two Side Guards (14) to the upper part of the legs using M6X12 SS Bolt (D) as shown.
Tighten with tools
Hand Tighten only

CG2093901-RG ENG Page 13 of 24 20131018 V.1
Step 9. Install the Back Guard (15) to the upper part of the legs using M6X12 SS Bolt (D) as shown.
Step 10. Install the (L) Side Table (32) and (R ) Side Table (16) using M6X12 Bolt (A).
Tighten with tools
Hand Tighten only

CG2093901-RG ENG Page 14 of 24 20131018 V.1
Step 11. Insert Rotation Shaft (1) through the hole on (R ) Lifter Rack (9), put in the Stop Collar (30) with a
M6X12 Bolt (D) and screw in loosely, then pass through the hole on (L) Lifter Rack (8). Put on Insulation
Washer (H) and M16 Lock Nut (G) at the rear end of the shaft (1) loosely. Assemble Ratchet Wheel (2) with a
M16X12 Bolt (A) and the Flywheel using M6X25 SS Bolt (B) accordingly. Screw in the Flywheel Handle (4) to
the Flywheel (3) tightly with screw driver and insert the R Pin (N) to the rear end of the Flywheel Handle (4).
Assemble the Check Lever (6) and Check Lever Collar (L) with the Step Screw (K) and lock up with the Cap
Nut (M). Hook up the Check Lever Spring (5) with Check Lever (6) and (R ) Sliding Pillar (31). Fix the chain of
the Security Pin (33) on the (R ) Lifter Rack(9) with a M6X12 Bolt (A).
Hand Tighten only

CG2093901-RG ENG Page 15 of 24 20131018 V.1
Step 12. Assemble Lifter Bracket (11) on both sides of Cooking Grate Support (12) using M6X12 SS Bolt
(D) and M6 SS Flange Nut (F). Install the Step Screw A (I) on Cooking Grate Support (12) using M6 Flange Nut
(E) and tighten all as shown.
Step 13. Assemble Chains (29) to Rotation Shaft (1) using M6X25 SS Bolt (B) with M6 SS Flange Nut (F)
and connect the lower end of the chain to the Lifter Brackets (11) using M6 SS Flange Nut (F) and M6X15 SS
Bolt (D). NOTE: Adjust and make sure both Chains (29) are taut and hanging the Cooking Grate Support
(12) firmly.
Tighten with tools
Tighten with tools

CG2093901-RG ENG Page 16 of 24 20131018 V.1

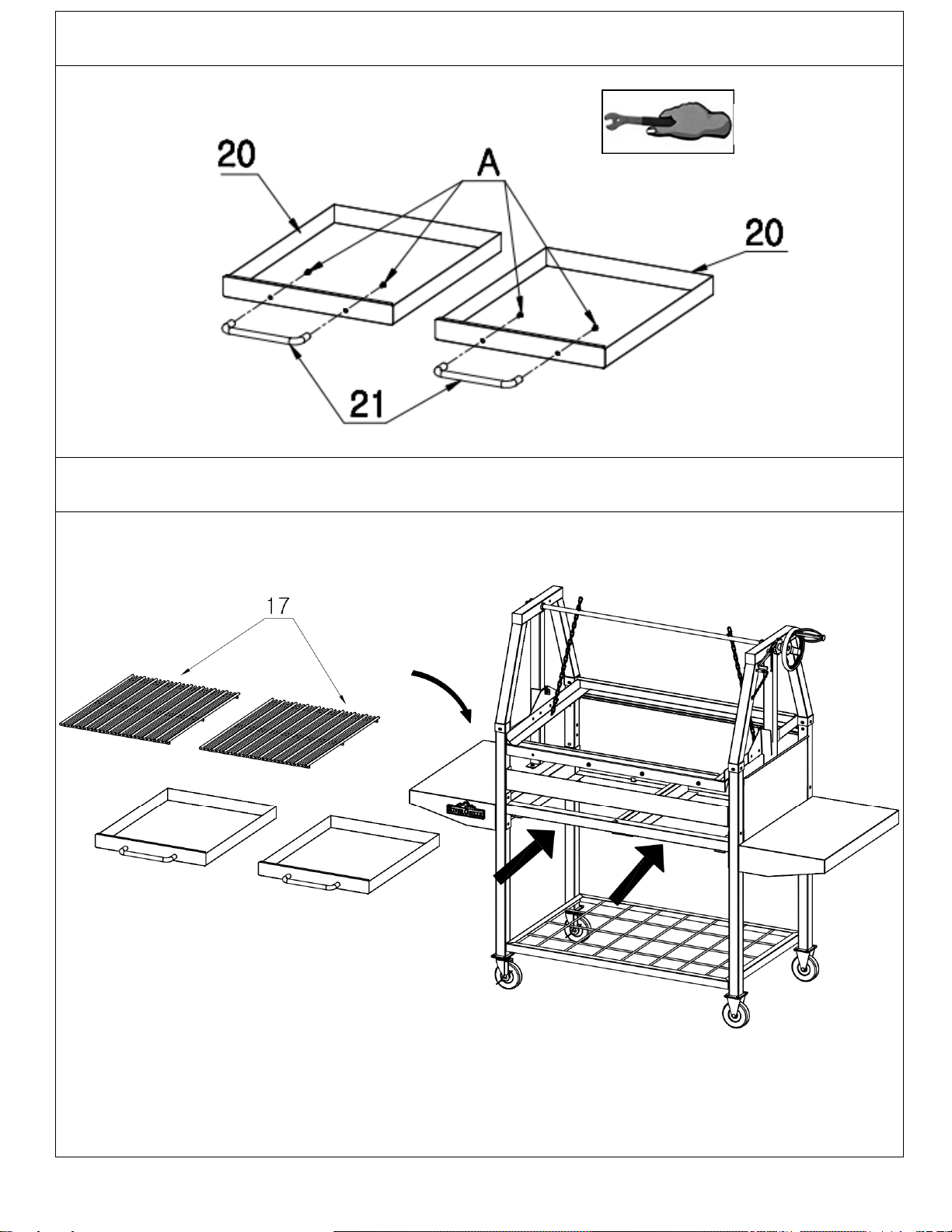

Step 14. Assemble the Ash Pans (20) with Ash Pan Handles (21) using M6X12 Bolt (A).
Step 15. Put theAsh Pans (20) and Charcoal Grates (17) into the Grill Body Chassis (18) carefully.
Tighten with tools

CG2093901-RG ENG Page 17 of 24 20131018 V.1

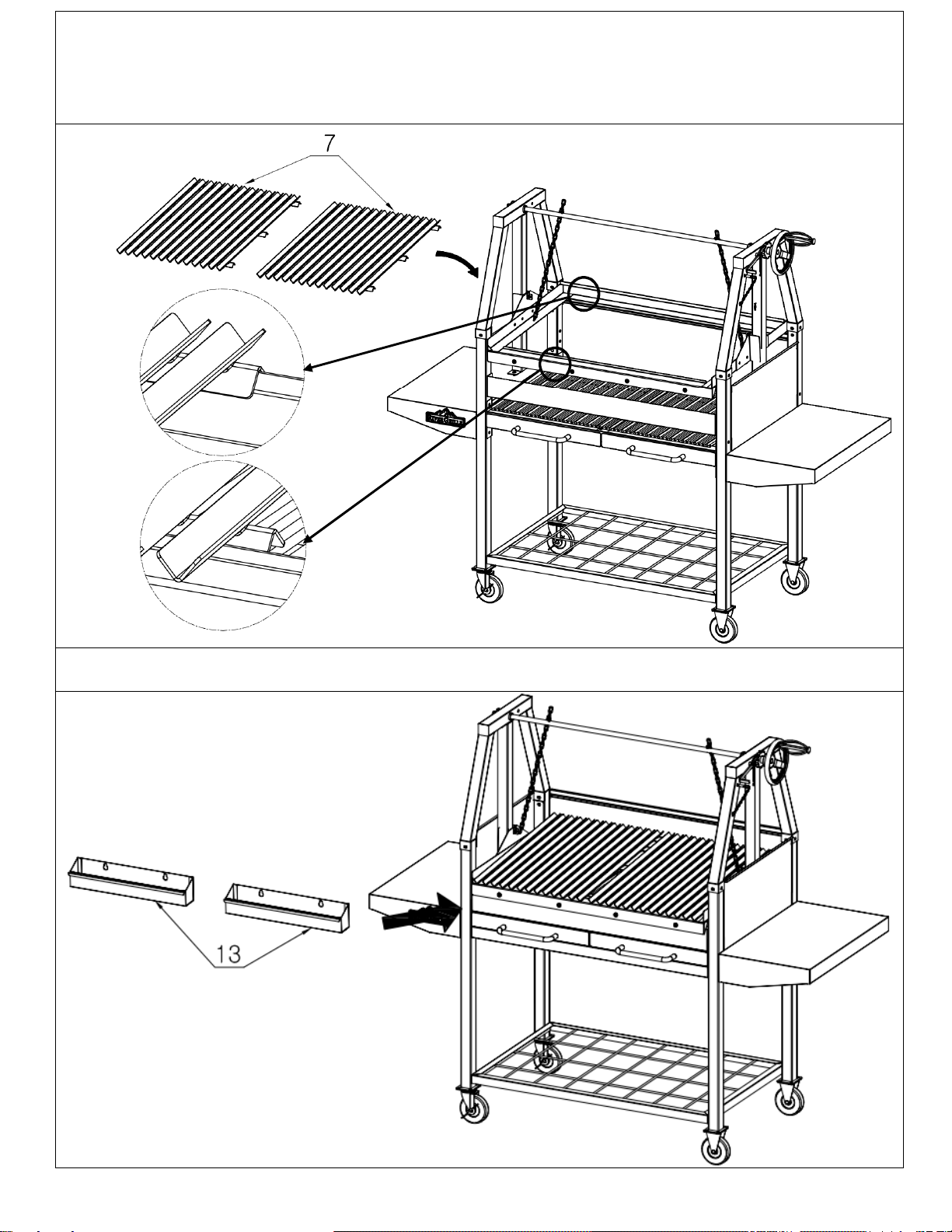

Step 16. Put in the V-groove Grate (7). Make sure the upper inverted V-bar of the V-groove Grate
(7) is correctly mounted on the Cooking Grate Support (12) as show by illustration A, while the lower
inverted V-bar of the V-groove Grate (7) is tightly bounded by the lower frame of the Cooking Grate
Support (12) as shown by illustration B below.
Step 17. Hook on the Grease Collectors (13).
A
A
B
B

CG2093901-RG ENG Page 18 of 24 20131018 V.1

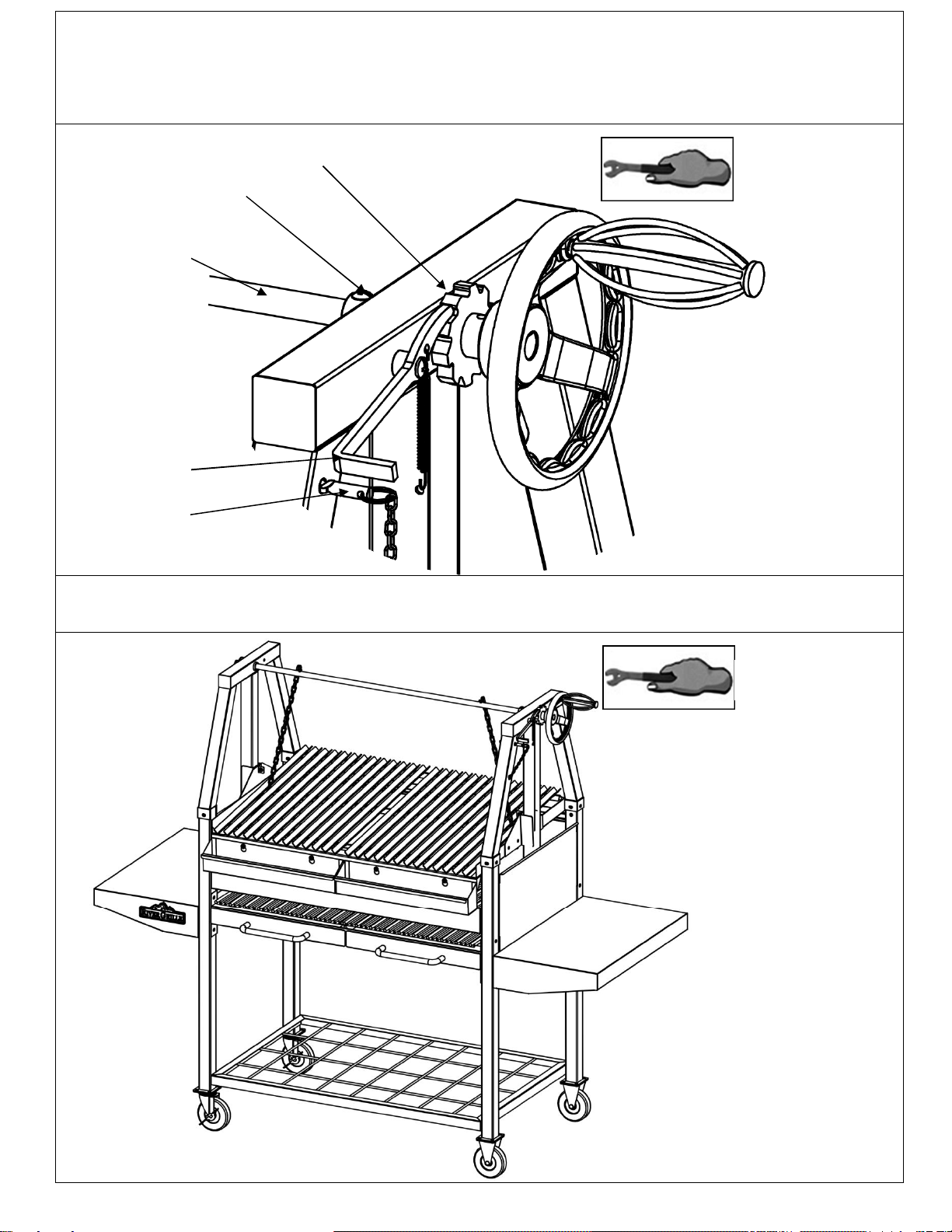

Step 18. Adjust the Stop Collar (30) and Ratchet Wheel (2) to ensure NO HORIZONTAL movement
on the Rotation Shaft (1) arises and tighten both the screws accordingly. Make sure the Security Pin
(33) always fully pass through the (R ) Lifter Rack when insert which helps preventing any
accidentally falling of the cooking grates in case of bumping on the Check Lever (6) unexpectedly.
Step 19. Assembly completed!
NOTE: Make sure all screws are tightened before use!
30
1
2
33
6
Tighten with tools
Tighten with tools

CG2093901-RG ENG Page 19 of 24 20131018 V.1
WARNING
DO NOT use grill without charcoal ash tray in place. DO NOT attempt to remove charcoal ash tray while tray contains
hot coals.
Place the grill outdoors on a hard, level, non-combustible surface away from roof overhang or any combustible
material. Never use on wooden or other surfaces that could burn. Place the grill away from open windows or doors to
prevent smoke from entering your house. In windy weather, place the grill in an outdoor area that is protected from
the wind.
PREPARATION FOR USE & LIGHTING INSTRUCTIONS
IMPORTANT: To protect your grill from excessive rust, the unit must be properly cured and covered at all
times when not in use.
NOTE: It is important that the exterior of the grill is not scraped or rubbed during the curing process.
CLEAN GRATES BEFORE FIRST USE
Make sure the cooking frame suspension system and its ratchet locking device are functioning properly. Adjust
the cooking grate to highest position by turning the flywheel in front to back direction
Lighting Instruction
Step 1
Pull out the Security Pin (33) in order to set free the Check Lever (6).
Note: Always fully lock the Security Pin (33) through the holes on the (R ) Lifter Rack which helps preventing
accidentally falling of the cooking grates in case of bumping on the Check Lever (6) unexpectedly.
Step 2
Make sure the cooking frame suspension system and its ratchet locking device are functioning properly. The Check
Lever (6) MUST BE engaged with the Ratchet Wheel (2) tightly and sturdy. Adjust the cooking grate to highest
position by turning the flywheel in front to back direction.
!
!
2
33
6

CG2093901-RG ENG Page 20 of 24 20131018 V.1
WARNING
Read all safety warnings and instructions carefully before operating your grill.
Step 3
Crumple up 8-10 single newspaper pages and make 1st layer of them on the charcoal tray. Put charcoal briquettes /
fire wood on top of 1st layer to create another layers, repeat this step to form a pyramid shape.
Light the paper, allow for the charcoal briquettes / fire wood to completely ignite. Spread out charcoal / fire wood
over the charcoal tray by using long cooking tongs or long metal tube.
If using a Charcoal Chimney Starter, follow all manufacturer’s warnings and instructions regarding the use of their
product. Start with 8.8 pounds (4 kg) of charcoal.
Instruction for using charcoal chimney (FOR REFERENCE ONLY) :
1. Begin with three full sheets of newspaper.
2. Take 2 sheets of newspaper and roll each into a tube shape and then give them a little twist to form each of
them into a straight “rope”like shape. Be careful to not twist too tight.
3. Turn the charcoal chimney starter over and place both pieces of rolled and twisted newspaper along the inside
bottom of the charcoal chimney starter to form a complete circle. Leave a hole in the middle of the charcoal
chimney starter with no paper in it.
4. Crumple up the 3rd sheet of newspaper into a ball. Be careful to not crumple too tight. Sprinkle about 1 table
spoon of cooking oil on the ball of newspaper. You can also use a few sprits of cooking oil from a spray can.
Don’t use too much oil. Place the ball of cooking-oiled newspaper in the center of the charcoal chimney starter.
5. Flip the chimney over and add charcoal. Take care so that the newspaper does not fall out.
6. Use a match or long lighter to light the paper.
7. Stand back and watch the charcoal chimney starter do its stuff.
8. After charcoal has turned an ash gray color, carefully pour the charcoal onto your charcoal grate. Spread out
charcoal / fire wood over the charcoal tray by using long cooking tongs or long metal tube.
If you choose to use charcoal lighting fluid, ONLY use charcoal lighting fluid approved for lighting charcoal. Do not
use gasoline, kerosene, alcohol or other flammable material for lighting charcoal. Follow all manufacturer’s warnings
and instructions regarding the use of their product. Start with 8.8 pounds (4 kg) of charcoal. Place the charcoal in the
center of each charcoal grate. Saturate charcoal with lighting fluid. Wait 2 to 3 minutes to allow lighting fluid to soak
into charcoal. Store lighting fluid at a safe distance from the grill. Make sure charcoal grate completely placed inside
the grill. Stand back and carefully light charcoal. Allow to burn until covered with a light ash (approximately 20
minutes). Spread out charcoal / fire wood over the charcoal tray by using long cooking tongs or long metal tube.
Step 4
Adjust the cooking grate at desired level by turning the flywheel and ensuring lock in place, and then insert the
Security Pin (33) at once to lock the ratchet locking device again for safety purpose.
!
!
