ASSEMBLY INSTRUCTIONS
SM2020
BASE SIZE: 2.020m x 2.020m

CHECK OUT OUR ASSEMBLY VIDEO

BEFORE YOU START:
• Read all instructions carefully
• Identify all parts and check quantities against parts list
• Select a level site
• Do not mark cladding with pencil as lead can cause corrosion to cladding
• During assembly, ensure all drill filings are removed between layers of steel, before riveting together
SAFETY:
• Do not attempt to build your shed in high winds
• Beware of sharp edges, we recommend that you use gloves
• Protect your eyes and ears
• For ease of assembly, use a friend to help
TOOLS REQUIRED:
WARRANTY REQUIREMENTS:
The following maintenance process needs to be adhered to, to qualify for the steel warranty of your Duratuf Smart store
shed.
• Wash all surfaces annually using a hose and soft nylon brush.
• Within 2 km of coast – wash every 3 months as above. After a storm, wash the cladding and the gutters as soon
as possible to remove any highly corrosive salt deposits.
• Volcanic Ash Fallout – wash as soon as possible, removing fall out from roof and gutters.
• Do not allow manures, chemicals or other corrosive materials to have direct contact with cladding.
CONGRATULATIONS ON PURCHASING A DURATUF SMART STORE SHED.
BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS :
2
DRILL RIVETER 3.5mm DRILL BIT
HAMMER
LADDER
TAPE MEASURE HEX DRIVENAIL PUNCH
SQUARE DRILL BIT
SKILL SAW
(timber floor only)

SM2020 PARTS LIST
Front & Back Wall - 1.890m 6
Side Wall Angle- 1.920m 4
Side Wall Angle- 1.980m 4
Roof - 2.200m 4
Door Sheet Narrow- 1.850m 2
Door Sides - 1.850m 2
Door Jamb - 1.890m 2
Door Brace - 1.160m 2
Barge - 1.102m 4
Ridge Cap - 2.055m 1
Spouting - 2.055m 2
Door Top/Bottom - 0.945m 2
Hardware Pack 1
Touchup Paint & Brush 1
CLADDING + FLASHINGS + HARDWARE
DESCRIPTION QTY DIAGRAM CHECKED
PACK 1
Checked: Date:
3

4
SM2020 PARTS LIST
PACK 2
TIMBER
DESCRIPTION QTY DIAGRAM
Front/Back Bottom Plates - H4 (Green)
2.020 m 2
Front & Back Top Plate - H1 (Red)
2.020 m 2
Side Wall Bottom Plates - H4 (Green)
2.020 m 2
Side Wall Top Plates - H1 (Red)
2.020 m 2
Ridge Beam - 90 x 45
2.020m 1
Jack Studs - 45 x 30
0.200m 2

PARTS LOCATION
5
Top Plate Back
Side Wall Sheets
Barge Flashing
Spouting
Roof Sheets
Top Plate Side
Top Plate Front
Bottom Plate Front
Bottom Plate Side
Back Wall Sheets
Front Wall Sheet
Door Jambs
Front Wall Sheet Door Side Flashing
Hinge
Door Brace
Door Top/Bottom Flashing
Ridge Beam
Jack Stud
Ridge Flashing
5
ASSEMBLE FRONT
PANEL
6
ASSEMBLE WALLS
7

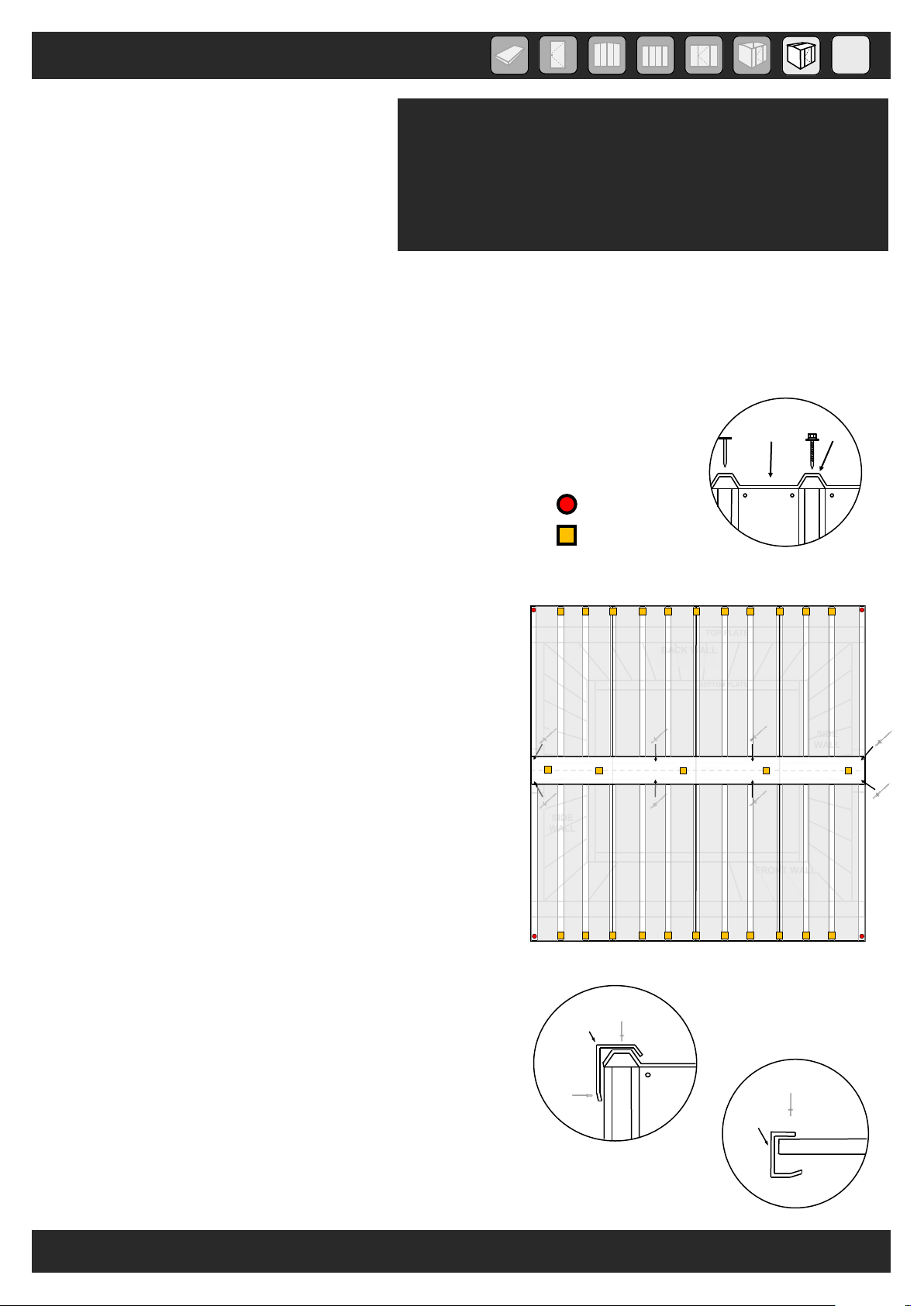

ASSEMBLE ROOF
8
SECURE SHED
4
ASSEMBLE BACK
PANEL
3
ASSEMBLE SIDE
PANELS
1
LAY FOUNDATION
2
ASSEMBLE DOOR
Door Sheets
Padbolt Support
QUICK OVERVIEW

FOUNDATION

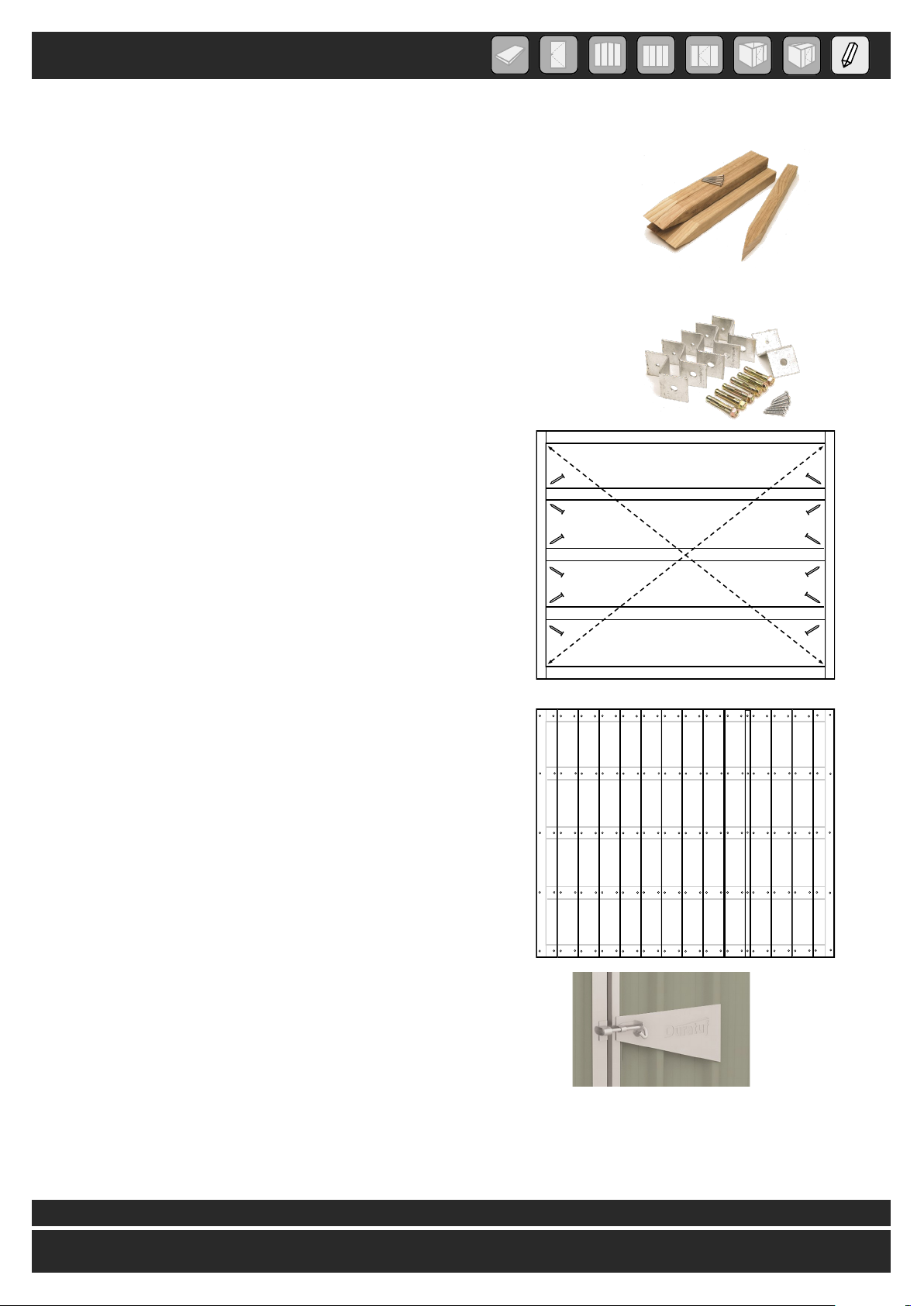

SMART STORE WOODEN FLOOR
• The optional Smart store kitset wooden floor is precut and de-
signed to be fitted into the shed after the shed is assembled.
• Assemble shed as per instructions and fit floor last.
(see page 14 for details).
CONCRETE SLAB FOR RAISED BASE PLATE SHED
To build a raised concrete slab for your shed to sit on, we recom-
mend the following:
• The raised slab size should be 15mm smaller than the base
size of the shed and at least 30mm above ground line.
• The slab should be 80mm thick in the middle and 100mm
thick around the edges.
• The slab should be laid on a solid or compacted base.
• Plastic sheeting under slab will prevent moisture coming
through from underneath.
• During construction, you may raise the bottom timber
plate to allow the wall cladding to protrude 20mm below
the bottom plate. This will stop water flowing between
the bottom plate and the concrete floor.
See note on page 8.
80mm
100mm
7.5mm
20mm
Concrete Floor
Base Plate
Wall Cladding
6
RAISED BASE PLATE OPTION
(For sheds placed on a raised concrete floor)
No doubt by now you will have decided what sort of base you are putting down.
Please read the section that applies to your situation.
If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed.
This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
See concrete pad specifications below
By choosing this option you will need to make the concrete pad to the specification below.

fig.3
ASSEMBLE DOOR
7
SELECT:
2 x 1.850 m Door Sheets (Narrow)
2 x 0.945 m Door Top/Bottom Flashings
2 x 1.850 m Door Side Flashings
3 x Hinges
1 x Padbolt Support Flashing
2 x 1.160 m Door Brace Flashings
59 x Rivets
STEP 1:
• Lay out door sheets on a flat surface
making sure narrow pans are on the
outside.
• Rivet sheets together in the centre en-
suring ends are flush with each other.
STEP 2:
• Position door side flashings and top
and bottom flashings and assemble
door as shown, ensuring narrow
face of flashing is on the front as
per fig.1
STEP 4:
• On the back of the door, place door braces in posi-
tion as shown in fig.4.
• Ensure that the top and bottom ends of the braces
are under the door flashings as shown in fig.5 and
opposite ends of the braces overlap in the middle.
• Rivet door brace flashings onto back of door as
shown. Where possible, rivet from front of door.
STEP 3:
• Attach hinges to door side flashing using rivets provided.
Ensure hinge is flush with back of door, and 60mm in from
each end as per fig.2.
• Using six rivets, attach padbolt support as shown in fig.3.
NARROW PANS
fig.2
Hinges
fig.1
fig.5 fig.4

ASSEMBLE SIDE PANELS
8
SELECT:
4 x 1.920 m Gable Wall Sheets (Angled)
4 x 1.980 m Gable Wall Sheets (Angled)
2 x 2.020 m Top Plates (Red)
2 x 2.020 m Bottom Plates (Green)
96 x 30mm Galv Clouts
12 x Rivets
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 6), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
Ie. reduce 1850mm to 1820mm between Plates.
STEP 1:
• Lay out 1 x Top plate and 1 x Bottom plate on a flat surface as shown
(corner cut-outs to face outwards). Measurements between Top and
Bottom plates are critical to ensure wall panels fit together.
STEP 2:
• Place 2 x 1.920 m wall sheets and 2 x 1.980 m wall sheets on top
of timber plates with bottom of sheets flush with each other.
• Rivet sheets together on overlaps as shown.
STEP 3:
• Nail wall sheets to the Top Plate at each end making
sure that the top corners of the sheets are flush with
the top of the Top Plate and that the sides of the wall
sheet overhang the Top Plate by approx 15mm as
shown.
• Check that the Top Plate is straight then nail the
Wall sheet to the Top Plate, 2 clouts per pan.
(see fig. 1).
Standard Shed — Bottom Plate will protrude be-
low wall sheet by approximately 10mm.
Raised base plate shed — Wall sheet will protrude
below the Bottom Plate by 20mm.
STEP 4:
• Nail the wall sheets to the Bottom Plate at each end ensuring each side
of wall sheets overhangs the end of Bottom Plate by 15mm. Check that
the distance between the Top and Bottom Plates is correct. (As per
diagram in step 1)
• Check that the Bottom Plate is straight then nail the wall sheets to the
Bottom Plate, two clouts per pan (see fig. 1).
fig.1
RIB
PAN
CLOUT
TIMBER PLATE
TOP PLATE
BOTTOM PLATE
RIVETRIVET RIVET
RIVET
RIVET RIVET
TOP PLATE
15mm 15mm
BOTTOM PLATE
1853mm 1853mm
TOP PLATE
BOTTOM PLATE
15mm 15mm
1853mm
TOP PLATE
1853mm
REPEAT THESE STEPS TO MAKE SECOND SIDE WALL PANEL
15mm

ASSEMBLE BACK PANEL
SELECT:
4 x 1.890 m Wall Sheets
1 x 2.020 m Top Plate (Red)
1 x 2.020 m Bottom Plate (Green)
48 x 30mm Galv Clouts
6 x Rivets
STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a
flat surface as shown (corner cutouts to face in-
wards).
STEP 2:
• Place 4 x 1.890 m wall sheets on top of timber
Plates with bottom of sheets flush with each other.
• Rivet the sheets together on overlaps as shown.
STEP 3:
• Nail the wall sheets to the Top Plate at each end making sure
that the top of the sheets are flush with the top of the Top
Plate and that the sides of the wall sheets overhang the Top
Plate by 15mm as shown.
• Check that the Top Plate is straight then nail wall sheets to
the Top Plate, using two clouts per pan.
STEP 4:
• Nail the wall sheets to the Bottom Plate at each end,
ensuring that each side of the wall sheets overhangs the
Bottom Plate by 15mm and that the distance between
the Top and Bottom Plates is correct. (As shown)
• Check that the Bottom Plate is straight then nail
wall sheets to the Bottom Plate, using two clouts per pan.
9
BOTTOM PLATE
1854mm 1854mm
TOP PLATE
1854mm
TOP PLATE
15mm 15mm
BOTTOM PLATE
TOP PLATE
1854mm
BOTTOM PLATE
15mm 15mm
TOP PLATE
Standard Shed — Bottom Plate will protrude below wall
sheet by approximately 10mm.
Raised base plate shed — Wall sheet will protrude below
the Bottom Plate by 20mm.
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 6), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.

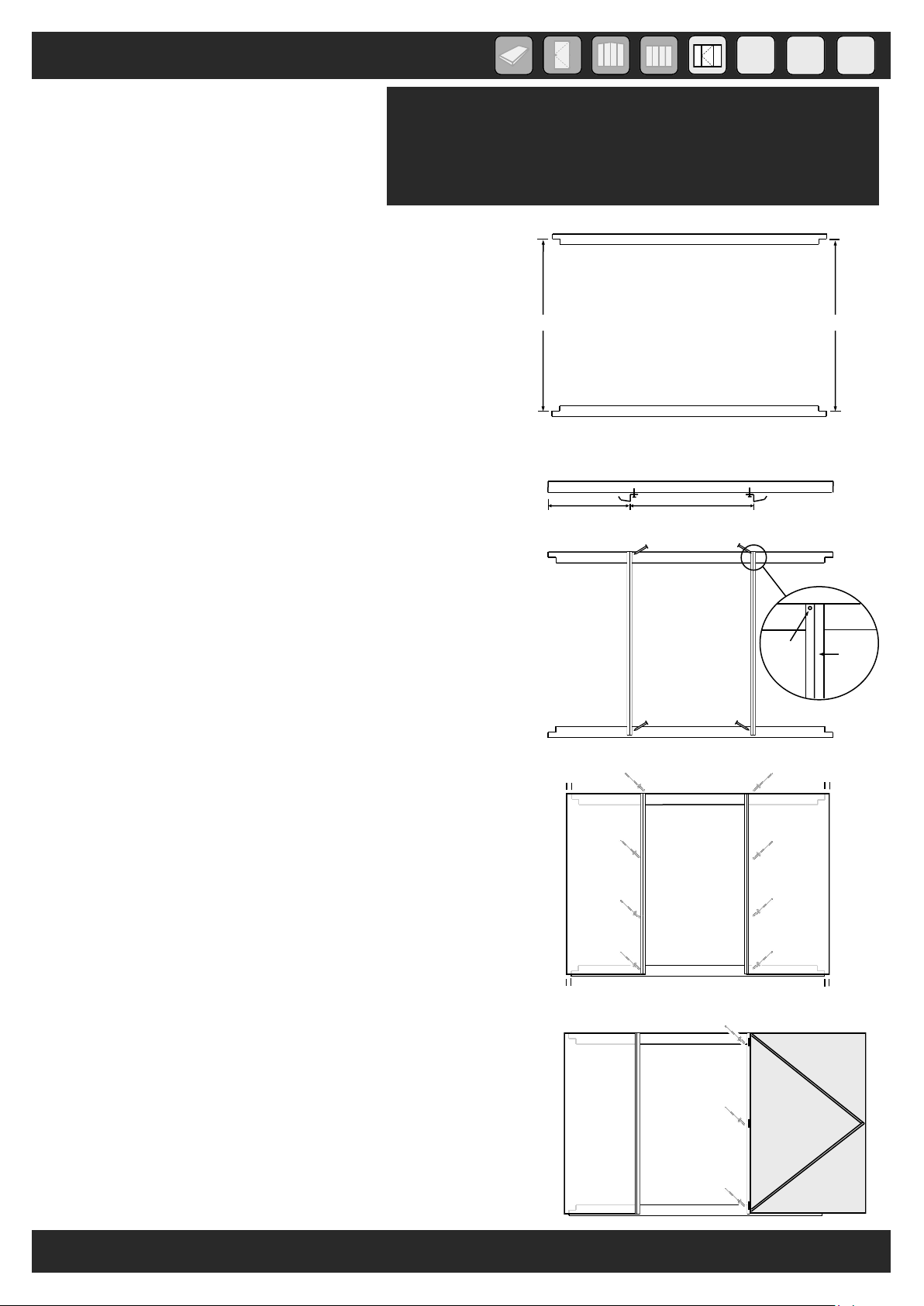

ASSEMBLE FRONT PANEL
10
15mm 15mm
15mm 15mm
BOTTOM PLATE
1854mm 1854mm
TOP PLATE
530mm 960mm
TOP PLATE
DOOR OPENING
Plan View
TOP
PLATE
DOOR
JAMB
NAIL
x3
x3
x3
SELECT:
2 x 1.890 Wall Sheets
1 x 2.020 Top Plate (Red)
1 x 2.020 Bottom Plate (Green)
2 x 1.890 Door Jamb Flashings
28 x 30mm Galv Clouts
17 x Rivets
STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a flat
surface as shown
STEP 2:
• Using 2 x 30mm clouts, nail the Door Jamb Flashing flush with
the top of the Top Plate at the correct measurement as shown
in plan view. Pre drill holes using a 3.5mm drill bit
• Check the distance between the top and bottom plates then use
a further 2 x 30mm clouts to nail the Door Jamb Flashings to
the bottom Plate. Pre drill holes.
STEP 4:
• Place the door on the panel (In open position, approx
20mm below top of top plate). Using two rivets, rivet the top
and bottom hinges to the Door Jamb Flashing, ensuring
door closes properly.
• Fit remaining rivets.
STEP 3:
• Place 2 x Wall Sheets on timber, ensuring wall sheets fit un-
derneath door jamb flashings.
• Ensure that the top of the sheets are flush with the top of the
Top Plate and that the sides of the wall sheets overhang the
Top Plate by 15mm as shown. Nail wall sheets to Top Plate
(two clouts per pan)
• Nail the wall sheets to the Bottom Plate making sure that the
Plates are the correct distance apart and that the sides of the
wall sheets overhang the Bottom Plate by 15mm.
• Drill & rivet Door Jamb Flashings to wall sheets using four
rivets equally spaced on each side.
NOTE: Door can be hinged on either side.
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 6), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.

WALL PANEL ASSEMBLY
X 2
X 2
BACK WALL
SIDE
WALL
SIDE
OVERLAPS
BACK
X 2
BACK WALL
SIDE
WALL
SIDE
OVERLAPS
BACK
X 2
SELECT:
4 x Pre-made Wall Panels
16 x 40mm Screws
16 x Rivets
STEP 1:
• Stand the Back Panel and the Side Panel
up using someone to support the panels
while they are screwed together.
• Before fixing, ensure that the Side Panel
overlaps the Back Panel.
• Using 4 x 40mm screws (2 per join) screw
the Top and Bottom Plates together in the
corners.
STEP 2:
• Repeat Step 1 with the second Side Panel,
ensuring that the Side Panel overlaps the
Back Wall Panel.
STEP 3:
• Stand up the Front Wall Panel.
• Ensure that the Front Wall Sheets overlap
the Side Wall Sheets.
• Using 8 x 40mm screws, screw the Top and
Bottom Plates together.
STEP 4:
• Rivet the wall sheets together at the corners
using 4 equally spaced rivets as shown.
11
TOP PLATE
TOP PLATE
BOTTOM PLATE
BOTTOM PLATE
FRONT
OVERLAPS
SIDES
X 4
SIDE
WALL
BACK WALL
SIDE
WALL
FRONT WALL
X 4
X 4
X 4
TOP PLATE
BOTTOM PLATE

ROOF ASSEMBLY
SELECT:
4 x 2.200 m Roof Sheets
2 x 2.055 m Spouting
4 x 1.102 m Barges
1 x 2.055 m Ridge Flashing
1 x 2.020 m Ridge Beam
2 x 0.200 m Jack Studs
8 x 75mm Screws
27 x 50mm Roofing Screws
58 x Rivets
4 x 50mm Clouts
IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR
ROOF PANEL
Assemble as below, making sure that the Clear Roof Sheets
overlap the standard roof sheets on both sides.
The Clear Roof Panel must be secured to the Top Plate and the
Ridge Beam. Pre drill and fasten with the 50mm roofing screws
provided..
STEP 1:
• Place the Ridge Beam on a level surface and use 2 x 75mm
screws to secure the Jack Studs to the underside of the Ridge
Beam, one at each end (fig. 1).
• Turn the Ridge Beam /Jack Stud assembly over and place it on
the timber Top Plate in a central position.
• Secure with 2 x 75mm screws through the top of the Jack Studs
into the Timber Top Plate (fig. 2).
STEP 2:
• Position the first roof sheet with the centre slots over the
middle of the Ridge Beam. Gently fold the roof sheet over
the Ridge Beam so that the ends touch the front & back Top
Plates.
• Repeat with second roof sheet.
• Rivet sheets together at overlaps ,one rivet either side of the
ridge beam (fig. 3).
• Repeat with remaining roof sheets
12
JACK STUD
TOP PLATE
RIDGE BEAM
fig. 1
fig. 2
SIDE
WALL
FRONT
WALL
BACK
WALL
SIDE
WALL
TOP
BOTTOM
RIDGE
fig. 3

STEP 5:
• Place barge flashings on roof at end of shed ensuring the
diagonal trimmed end is facing out. (See diagram on pg 5)
• Rivet the Barge Flashings to the roof and the side wall, using
four rivets on top of barge and four into the side (fig.3).
ROOF ASSEMBLY CONT...
13
STEP 4:
• Centralise the Roof at the other end (R/H end) with the
Ridge Beam.
• Using 1 x 50mm Roofing Screw, fix roof sheet though the
pan, to the other end of Ridge Beam. (d–fig.2).
• Using 2 x 50mm Clouts fix sheet though rib to front & back
Top Plates. (e–fig.2).
• Ensure that the Ridge Beam is straight, screw roof sheets
to ridge beam beside each overlap, through the pan using
3 x 50mm Roofing screws.
• Ensure the Front and Back Top Plates are straight. Screw
the roof sheets to the front & back Top Plates, through the
ribs, using 1 x Roofing Screw per rib. (fig.1).
STEP 6:
• Rivet the Ridge Cap to the centre of the roof using 8 x
rivets as shown (fig.2).
STEP 7:
• Place spouting in position and rivet to Barge Flashings at
each end and rivet to roof sheets (1 rivet per 1 sheet) (fig.4).
= Clout
= Screw
fig.1
Pan Rib
STEP 3:
• Ensure shed is sitting level and square.
• Beginning from the left hand end (looking from front) centralise the Roof sheets on the Ridge Beam.
• Ensure that the Roof is tight against the Gable Wall Sheets. Screw 1 x 50mm Roofing screw through the 1st pan into
the Ridge Beam. (a - fig.2).
• At the back left hand corner, (from front) line up the ribs on the Roof Sheet with the ribs on the Wall Sheet then using
1 x 50mm Clout, predrill and nail Roof Sheet through the rib into the Top Plate. (b– fig.2.)Repeat at the front left hand
corner. (c - fig.2).
fig.2
SIDE
WALL
FRONT WALL
BACK WALL
SIDE
WALL
TOP PLATE
BOTTOM PLATE
RIDGE BEAM
a
b
c
d
e
e
fig.3
X 4
X 4
Barge
Spouting
fig.4
IMPORTANT
Use 50mm Clouts only on ribs covered by flashings, shown in fig.2.
Predrill holes using a 3.5mm drill bit. Use Roofing Screws on all other
ribs and pans. Ensure screws are not overtightened as this can
damage the seals and cause the shed to leak. Ensure screws are not
overtightened as this can damage the seals and cause the shed to
leak.

SECURING SHED
Secure your shed using Treated Timber Pegs or a Bolt Down Kit
TIMBER PEGS—WOODEN FLOOR
• The optional Duratuf Timber Peg Down Kit includes six H5 treated timber
pegs that can be hammered into the ground and then attached to the
Base Plate with stainless steel screws. A Smart store timber floor kit can
then be fitted on top of the Base Plate if required.
BOLT DOWN KIT—CONCRETE
• The optional Duratuf Bolt Down Kit includes 6 x galvanised
brackets, screws and dynabolts.
• Space the brackets evenly around the shed and fix to the Bottom
Plate and the concrete slab. A 10mm masonry drill bit is required.
FITTING A SMART STORE FLOOR KIT
(OPTIONAL)
• Position the Floor Joists centrally between the side
Base Plates and skew nail each end with two 75mm
nails.
• Check that the shed is sitting level and square . Check
that the diagonal Bottom Plate measurements are the
same. This ensures that the shed base is square.
• Place the Floor Boards in position. (You may need to
cut the last Floor Board to the correct width using a
Skill Saw.) Nail each Floor Board in, using two 50mm
nails each end and two nails into each floor joist.
IMPORTANT— CLEAN UP
REMOVE ALL DRILL FILINGS FROM ROOF, WALLS AND CHANNELS THOROUGHLY. FAILURE TO DO THIS
WILL RESULT IN CORROSION AND COULD THEREFORE VOID THE WARRANTY.
FIT PADBOLT
• Rivet Padbolt to door and keeper onto Door Jamb as
shown.
14
FRONT BASE PLATE
BACK BASE PLATE
JOIST
JOIST
YOUR DURATUF SMART STORE SHED IS NOW COMPLETE. RELAX…...
JOIST

Please visit www.duratuf.co.nz/warranty to validate the Warranty on your shed.
Click on the Warranty Registration Link and complete all details.
If you are unable to access the computer, please phone us on 0800 438 274 and one of the customer services team
will help you to activate the warranty on your garden shed.
Many thanks, from the Team at Riverlea Group.
Riverlea Group Ltd warrant that the cladding used in the manufacture of the Smartstore shed will not rust within 20 years from the
date of purchase.
Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for
the benefit of the original purchaser. Riverlea Group Limited will not be liable for any consequential loss or damage, labour, or
transport charges.
This warranty is conditional on:
• Construction, installation and maintenance being carried out as specified in the Assembly Instruction Manual.
• The shed being installed in modest inland corrosion zones or areas where the steel corrosion rate is less than 200g/m2
(as published by Branz).
• Warranty certificate being returned to manufacturer within 21 days of purchase together with proof of purchase.
This warranty does not cover the following:
• Fastenings and fixings.
• Normal wear and tear, damage by impact or acts of God.
• Situations where the shed has been used for storage of chemicals, manure or corrosion causing products.
• Unauthorized modification of the structure, including painting of the cladding.
20 YEAR WARRANTY
WARRANTY REGISTRATION
For a chance to WIN a
$100 Prezzy Card!
To complete the survey please visit
www.duratuf.co.nz/customer-survey
COMPLETE OUR CUSTOMER SURVEY
