Riverlea Duratuf SS1510 User manual

ASSEMBLY INSTRUCTIONS
SS1510
BASE SIZE: 1.520m x 1.020m

CONGRATULATIONS ON PURCHASING A DURATUF SENTRY SHED.
BEFORE YOU BEGIN THE ASSEMBLY PLEASE NOTE SOME IMPORTANT POINTS:
3
BEFORE YOU START:
• Read all instructions carefully
• Identify all parts and check quantities against parts list
• Select a level site
• Do not mark cladding with pencil as lead can cause corrosion to cladding
SAFETY:
• Do not attempt to build your shed in high winds
• Beware of sharp edges, recommend use of gloves
• Protect your eyes and ears
• For ease of assembly, use a friend to help
TOOLS REQUIRED:
WARRANTY REQUIREMENTS:
Following are the minimum requirements for cladding used in Sentry Sheds.
• Wash all surfaces annually using a hose and soft nylon brush.
• Within 2 km of coast – wash every 3 months as above. After a storm, wash the cladding and the gutters as soon
as possible to remove any highly corrosive salt deposits.
• Volcanic Ash Fallout – wash as soon as possible, removing fall out from roof and gutters.
• Do not allow manures, chemicals or other corrosive materials to have direct contact with cladding.
DRILL RIVETER 3.5mm DRILL BIT
HAMMER
LADDER
TAPE MEASURE 8mm HEX DRIVENAIL PUNCH
SQUARE DRILL BIT
SKILL SAW
(timber floor only)

SS1510 PARTS LIST
CLADDING + FLASHING + HARDWARE
DESCRIPTION QTY DIAGRAM CHECKED
PACK 1
4
Front Wall - 1.850m 1
Back Wall - 1.890m 3
Side Wall - 1.850m 4
Roof - 1.110m 3
Door Sheet Narrow - 1.810m 2
Door Sides - 1.810m 2
Corner Door Jamb - 1.850m 1
Door Jamb - 1.850m 2
Door Brace - 1.160m 2
Barge - 1.110m 2
Spouting - 1.555m 1
Door Top/Bottom - 0.945m 2
Hardware Pack 1
Touchup Paint & Brush 1
Checked: Date:

5
SS1510 PARTS LIST
PACK 2
TIMBER PACK
DESCRIPTION QTY DIAGRAM
Front/Back Bottom Plates - H4 (Green)
1.520 m 2
Front Top Plate - H1 (Red)
1.520 m 1
Back Top Plate - H1 (Red)
1.520 m 1
Side Wall Bottom Plates - H4 (Green)
1.020m 2
Side Wall Top Plates - H1 (Red)
1.020m 2
Ridge - 1.555m 1

PARTS LOCATION
Top Plate Back
Side Wall Sheets
Barge Flashing
Spouting
Roof Sheets
3 Sheets
Top Plate Side
Top Plate Front
Bottom Plate Front
Bottom Plate Side
Back Wall Sheets
3 Sheets
Front Wall Sheet
Door Jambs
Door Sheets
Door Side Flashing
Padbolt Support
Hinge
Door Brace
Door Top/Bottom

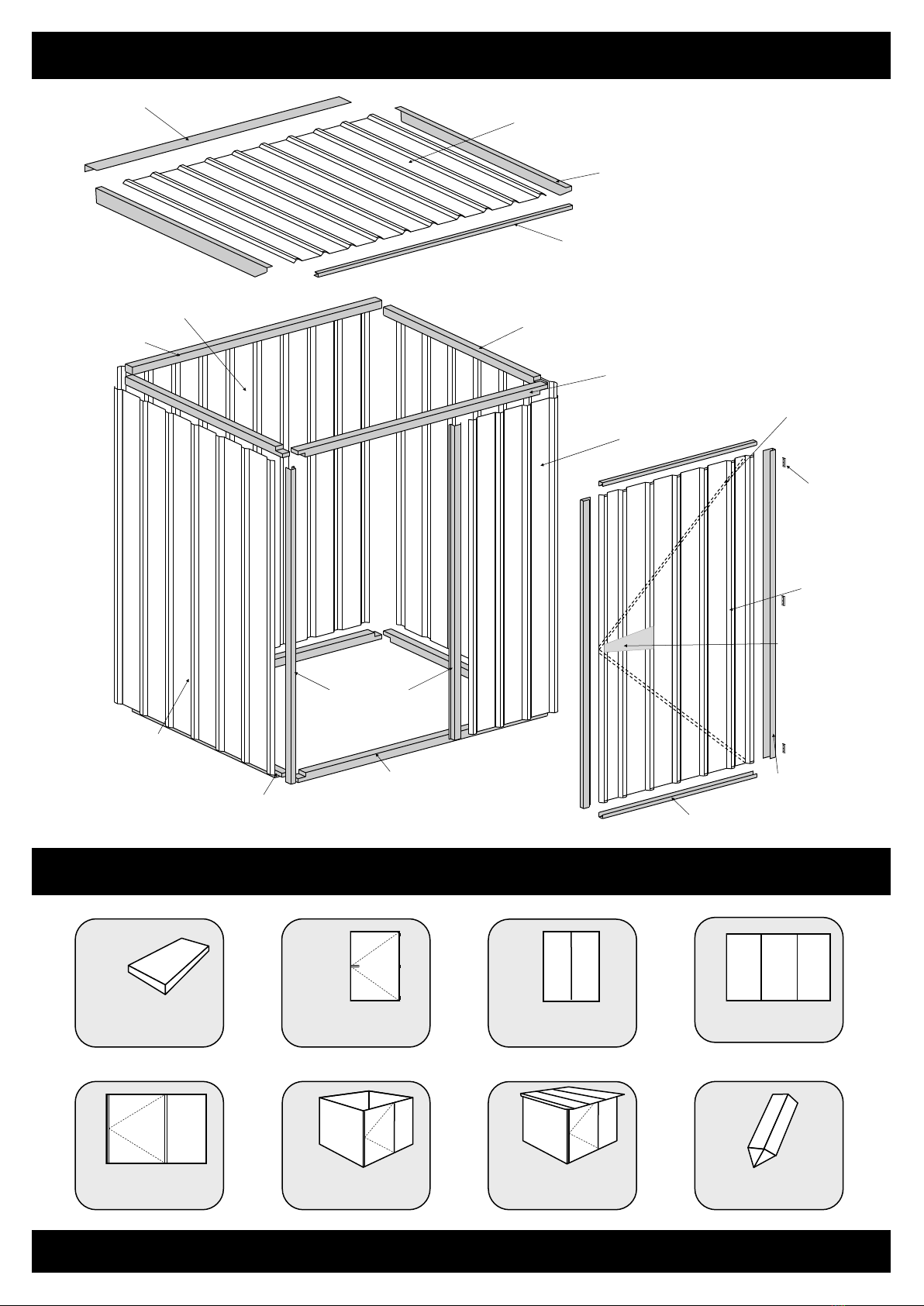

QUICK OVERVIEW
1
LAY FOUNDATION
2
ASSEMBLE DOOR
3
ASSEMBLE SIDE
PANELS
5
ASSEMBLE FRONT
PANEL
6
ASSEMBLE WALLS
7
ASSEMBLE ROOF
8
SECURE SHED
6
4
ASSEMBLE BACK
PANEL
Ridge

FOUNDATION
SENTRY WOODEN FLOOR
• The optional Sentry kitset wooden floor is precut and designed to
be fitted into the shed after the shed is assembled.
• Assemble shed as per instructions and fit floor last.
(see page 14 for details).
CONCRETE SLAB FOR RAISED BASE PLATE SHED
To build a raised concrete slab for your shed to sit on, we recom-
mend the following:
• The raised slab size should be 15mm smaller than the base
size of the shed and at least 30mm above ground line.
• The slab should be 80mm thick in the middle and 100mm
thick around the edges.
• The slab should be laid on a solid or compacted base.
• Plastic sheeting under slab will prevent moisture coming
through from underneath.
• During construction, you may raise the bottom timber
plate to allow the wall cladding to protrude 20mm below
the bottom plate. This will stop water flowing between
the bottom plate and the concrete floor.
See note on page 9.
80mm
100mm
7.5mm
20mm
Concrete Floor
Base Plate
Wall Cladding
7
RAISED BASE PLATE OPTION
(For sheds placed on a raised concrete floor)
No doubt by now you will have decided what sort of base you are putting down.
Please read the section that applies to your situation.
If you choose to pour a concrete base you will need to decide whether you wish to raise the base plate of your shed.
This allows the cladding to protrude below the surface of the concrete and ensures a water tight pad.
See concrete pad specifications below
By choosing this option you will need to make the pad to the specification below.

ASSEMBLE DOOR
8
SELECT:
2 x 1.810 m Door Sheets (Narrow)
2 x 0.945 m Door Top/Bottom Flashing
2 x 1.810 m Door Side Flashings
3 x Hinges
1 x Padbolt Support Flashing
2 x 1.160 m Door Brace Flashings
54 x Rivets
fig.3
STEP 1:
• Lay out door sheets on a flat surface
making sure narrow pans are on the
outside.
• Rivet sheets together in the centre en-
suring ends are flush with each other.
STEP 2:
• Position door side flashings and top
and bottom flashings and assemble
door as shown, ensuring narrow
face of flashing is on the front as
per fig.1
STEP 4:
• On the back of the door, place door braces in posi-
tion as shown in fig.4
• Ensure that the top and bottom ends of the braces
are under the door flashings as shown in fig.5 and
opposite ends of the braces overlap in the middle.
• Rivet door brace flashings onto back of door as
shown. Where possible, rivet from front of door.
STEP 3:
• Attach hinges to door side flashing using rivets provided.
Ensure hinge is flush with back of door, and 60mm in from
each end as per fig.2.
• Using six rivets, attach padbolt support as shown in fig. 3
NARROW PANS
fig.4
fig.5
fig.2
fig..1

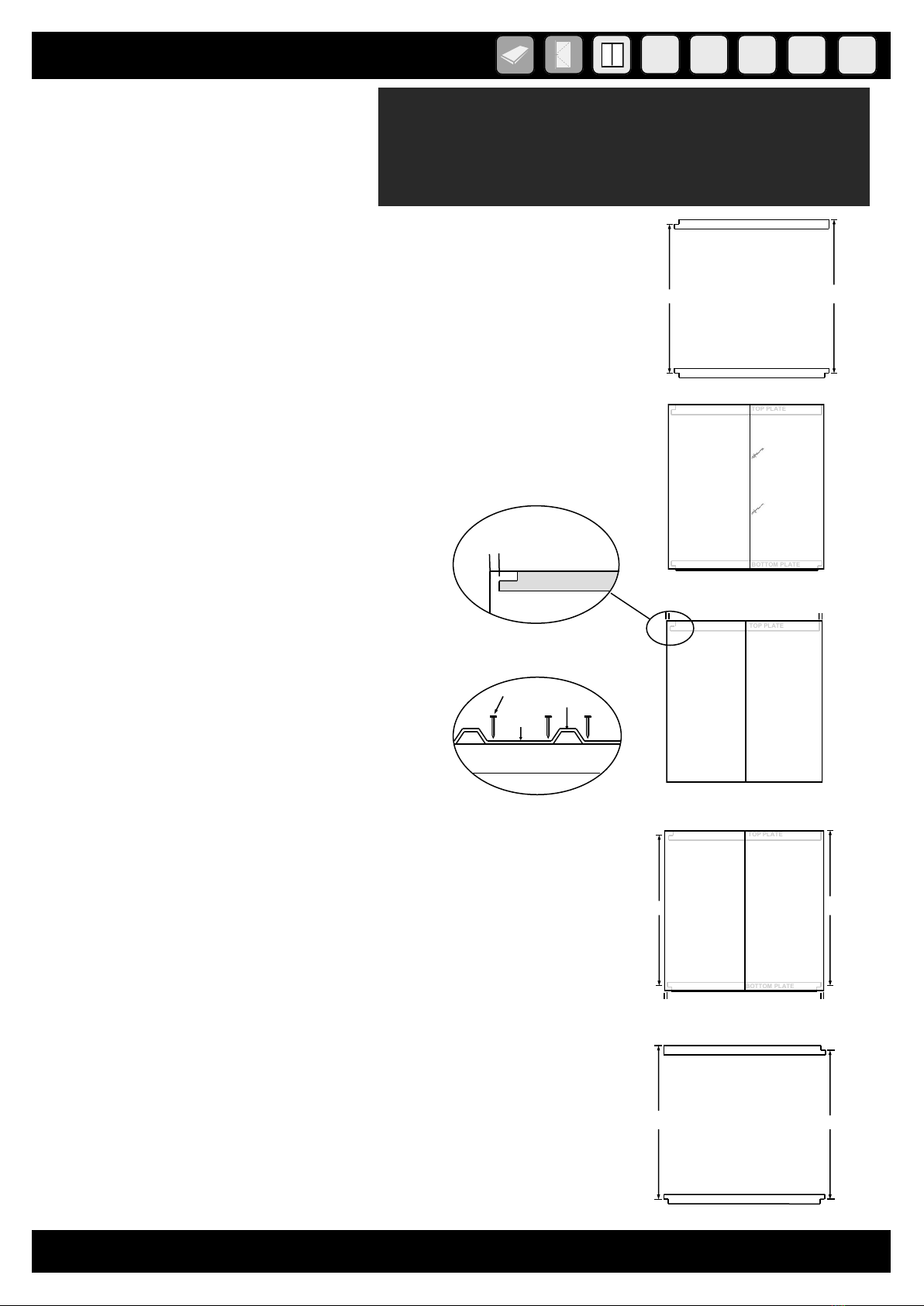

ASSEMBLE SIDE PANELS
9
TOP PLATE
BOTTOM PLATE
1810mm 1833mm
TOP PLATE
15mm 15mm
TOP PLATE
BOTTOM PLATE
1810mm
1833mm
Second Side
Panel
BOTTOM PLATE
TOP PLATE
SELECT:
4 x 1850 Wall Sheets
2 x 1.020 Top Plates (Red)
2 x 1.020 Bottom Plates (Green)
48 x 30mm Galv Clouts
4 x Rivets
STEP 2:
• Place 2 x 1.850 wall sheets on top of timber plates, with sheets
flush with each other.
• Rivet sheets together on overlaps as shown.
STEP 3:
• Nail wall sheets to the Top Plate at each end making
sure that the top of the sheets are flush with the top of
the Top Plate and the sides of the wall sheet overhang
the Top Plate by approx 15mm as shown.
• Check that the Top Plate is straight then nail along the
wall sheet to the Top Plate, two clouts per pan (see
fig. 1).
STEP 4:
• Nail the wall sheets to the Bottom Plate at each end ensuring each
side of wall sheets overhangs the end of Bottom Plate by 15mm.
Check that the distance between the Top and Bottom Plates is
correct. (As per diagram in step 1)
• Check that the Bottom Plate is straight then nail the wall sheets to
the Bottom Plate, two clouts per pan (see fig. 1).
Repeat with second side panel ensuring Top Plate is positioned in
the OPPOSITE direction to the first side panel, as shown.
fig.1
RIB
PAN
CLOUT
TIMBER PLATE
Std Shed — Bottom Plate will protrude below wall
sheet by approximately 10mm.
Raised base plate shed — Wall sheet will protrude
below the Bottom Plate by 20mm.
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 7), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
TOP PLATE
BOTTOM PLATE
15mm 15mm
1810mm 1833mm
15mm
RIVET
RIVET
STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a flat surface as shown
(corner cutouts to face outwards). Measurements between Top and
Bottom plates are critical to ensure wall panels fit together.

BOTTOM PLATE
TOP PLATE
TOP PLATE
1834mm
BOTTOM PLATE
1834mm
TOP PLATE
15mm 15mm
BOTTOM PLATE
15mm 15mm
1834mm 1834mm
TOP PLATE
10
SELECT:
3 x 1.890m Wall Sheets
1 x 1.520 m Top Plate (Red)
1 x 1.520 m Bottom Plate (Green)
36 x 30mm Galv Clouts
4 x Rivets
STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a
flat surface as shown (corner cutouts to face in-
wards).
STEP 2:
• Place 3 x 1.890 m wall sheets on top of timber
Plates with bottom of sheets flush with each oth-
er.
• Rivet the sheets together on overlaps as shown.
STEP 3:
• Nail the wall sheets to the Top Plate at each end making sure
that the top of the sheets are flush with the top of the Top
Plate and that the sides of the wall sheets overhang the Top
Plate by 15mm as shown.
• Check that the Top Plate is straight then nail wall sheets to
the Top Plate, using two clouts per pan.
STEP 4:
• Nail the wall sheets to the Bottom Plate at each end,
ensuring that each side of the wall sheets overhangs the
Bottom Plate by 15mm and that the distance between
the Top and Bottom Plates is correct. (As shown)
• Check that the Bottom Plate is straight then nail
wall sheets to the Bottom Plate, using two clouts per pan.
Std Shed — Bottom Plate will protrude below wall sheet by
approximately 10mm.
Raised base plate shed — Wall sheet will protrude below
the Bottom Plate by 20mm.
ASSEMBLE BACK PANEL
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 7), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.

ASSEMBLE FRONT PANEL
11
BOTTOM PLATE
1811mm 1811mm
TOP PLATE
960mm
TOP PLATE
DOOR OPENING
15mm
15mm
Plan View
TOP
PLATE
DOOR
JAMB
NAIL
x3
x3
x3
SELECT:
1 x 1.850 Wall Sheets
1 x 1.520 Top Plate (Red)
1 x 1.520 Bottom Plate (Green)
1 x 1.850 Door Jamb Flashing
1 x 1.850 Corner Door Jamb Flashing
16 x 30mm Galv Clouts
13 x Rivets
STEP 1:
• Lay out 1 x Top Plate and 1 x Bottom Plate on a flat
surface as shown
STEP 2:
• Using 2 x 30mm clouts, nail the Door Jamb Flashing flush with
the top of the Top Plate at the correct measurement as shown
in plan view. Note the difference between left and right hand
flashing. Pre drill holes using a 3.5mm drill bit
• Check the distance between the top and bottom plates then use
a further 2 x 30mm clouts to nail the Door Jamb Flashings to
the bottom Plate. Pre drill holes.
STEP 4:
• Place the door on the panel (In open position, approx
25mm below top of top plate). Using two rivets, rivet the top
and bottom hinges to the Door Jamb Flashing, ensuring
door closes properly.
• Fit remaining rivets.
STEP 3:
• Place 1 x Wall Sheet on timber plates, ensuring wall sheets fit
underneath door jamb flashings.
• Ensure that the top of the sheet is flush with the top of the
Top Plate and that the sides of the wall sheet overhang the
Top Plate by 15mm as shown. Nail wall sheets to Top Plate
(two clouts per pan)
• Nail the wall sheet to the Bottom Plate making sure that the
Plates are the correct distance apart and that the sides of the
wall sheets overhang the Bottom Plate by 15mm.
• Drill & rivet Door Jamb Flashings to wall sheets using four
rivets equally spaced on each side.
NOTE: The Doorway is standard at the left-hand end but can
be put on the right-hand end..
NOTE: Door can be hinged on either side.
IMPORTANT—IF YOU CHOOSE TO RAISE YOUR TIMBER
BASE PLATE –READ THE FOLLOWING;
For sheds with Raised Base Plate option only (see page 7), deduct
30mm from measurement shown between Top and Bottom Plates on
all wall panels, so cladding protrudes 20mm below bottom plate.
15mm
530mm

WALL PANEL ASSEMBLY
75mm X 2
40mm X 2
BACK WALL
SIDE
WALL
SIDE
OVERLAPS
BACK
75mm X 2
BACK WALL
SIDE
WALL
SIDE
OVERLAPS
BACK
40mm X 2
12
TOP PLATE
TOP PLATE
BOTTOM PLATE
BOTTOM PLATE
DOOR JAMB
OVERLAPS
SIDE
X 4
SIDE
WALL
BACK WALL
SIDE
WALL
FRONT WALL
X 4
X 4
X 4
TOP PLATE
BOTTOM PLATE
SELECT:
4 x Pre-made Wall Panels
12 x 40mm Screws
4 x 75mm Screws
16 x Rivets
STEP 1:
• Stand the Back Panel and the Side Panel
up using someone to support the panels
while they are screwed together.
• Before fixing, ensure that the Side Panel
overlaps the Back Panel.
• Using 4 x 75mm screws, screw the Top
Plates together.
• Using 4 x 40mm screws, screw the Bot-
tom Plates together.
STEP 2:
• Repeat Step 1 with the second Side Panel,
ensuring that the Side Panel overlaps the
Back Wall Panel.
STEP 3:
• Stand up the Front Wall Panel.
• Ensure that the Front Wall Sheets overlap
the Side Wall Sheets.
• Using 8 x 40mm screws (2 per join) screw
the Top and Bottom Plates together in the
corners.
STEP 4:
• Rivet the wall sheets together at the corners
using 4 equally spaced rivets as shown. At
the front left, rivet side wall sheet to door
jamb.
FRONT
OVERLAPS
SIDES

ROOF ASSEMBLY
13
SELECT:
3 x 1.110m Roof Sheets
1 x 1.555 m Spouting
1 x 1.555 m Ridge
2 x 1.110m Barges
8 x 50mm Roofing Screws
30 x Rivets
12 x 50mm Clouts
SIDE
WALL
FRONT
WALL
BACK WALL
SIDE
WALL
BOTTOM PLATE
TOP PLATE
fig.1
STEP 1:
• Ensure Shed is sitting level and square.
• Lay Roof Sheets on the Top Plates.
• Rivet sheets together at overlaps with 2 x rivets per join (fig.1).
STEP 2:
• Position the Roof Sheets with the back lining up with the outside
edge of the back wall cladding as in (fig.4).
• Using 4 x 50mm Clouts, predrill and nail the Roof Sheets to the Top
Plates through the ribs, at each corner, ensuring ribs on the Roof
Sheets line up with ribs on the Wall Sheets (fig.2).
STEP 3:
• Ensure the Front and Back Top Plates are straight.
• Using 8 x 50mm clouts, nail the roof sheets to the back Top Plate,
through each rib.
• Using 8 x 50mm roofing screws, screw the roof sheets to the front
Top Plate, through each rib.
STEP 6:
• Place spouting in position and rivet to Barge Flashings at each end
and rivet to roof sheets (1 rivet per 1 sheet) (fig.5).
Pan Rib
fig.2
fig.3
X 4
X 4
Barge
Spouting
fig.5
fig. 4
X 4
X 4
RIDGE
ROOF
SHEET
BACK WALL
SHEET
STEP 4:
• Place Barge Flashings on roof at end of shed ensuring the diagonal
trimmed end is at the front. (See diagram on pg 5)
• Rivet the Barge Flashings to the roof and the side wall, using four
rivets on top of barge and four into the side (fig.3).
STEP 5:
• Place the Ridge in position ensuring flashing does not extend past
side wall cladding.
• Rivet Ridge to roof and back wall, riveting at the ends and at each
join of the roof sheets (fig. 4).
IMPORTANT
Use 50mm Clouts only on outside ribs covered by Barge flashings. Predrill
holes using a 3.5mm drill bit. Use Roofing Screws on all other ribs.
IMPORTANT
Use 50mm Clouts only on outside ribs covered by Barge flashings and back
wall top plate. Predrill holes using a 3.5mm drill bit. Use Roofing Screws on all
other ribs, ensuring screws are not overtightened as this can damage the seals
and may cause the shed to leak.
IMPORTANT—FOR SHEDS WITH OPTIONAL CLEAR ROOF PANEL
Assemble as below, making sure that the Clear Roof Sheets overlap the stand-
ard roof sheets on both sides. Pre drill and fasten with the 50mm roofing
screws provided.

SECURING SHED
14
Secure your shed using Treated Timber Pegs or a Bolt Down Kit
TIMBER PEGS—WOODEN FLOOR
• The optional Duratuf Timber Peg Down Kit includes six H5 treated timber
pegs that can be hammered into the ground and then attached to the
Base Plate with stainless steel screws. A Sentry timber floor can then be
fitted on top of the Base Plate.
BOLT DOWN KIT—CONCRETE
• The optional Duratuf Bolt Down Kit includes 6 x galvanised
brackets, screws and dynabolts.
• Space the brackets evenly around the shed and fix to the Bottom
Plate and the concrete slab. A 10mm masonry drill bit is required.
OPTIONAL SENTRY FLOOR
• Position the Floor Joists centrally between the side
Base Plates and skew nail each end with two 75mm
nails.
• Check that the shed is sitting level and square and
that the diagonal Bottom Plate measurements are the
same.
• Place the Floor Boards in position. (You may need to
cut the last Floor Board to the correct width using a
Skill Saw.) Nail each Floor Board in, using two 50mm
nails each end and two nails into each floor joist.
IMPORTANT— CLEAN UP
REMOVE ALL DRILL FILINGS FROM ROOF, WALLS AND CHANNELS THOROUGHLY. FAILURE TO DO THIS
WILL RESULT IN CORROSION AND COULD THEREFORE VOID THE WARRANTY.
FIT PADBOLT
• Rivet Padbolt to door and keeper onto Door Jamb as
shown.
YOUR DURATUF SENTRY SHED IS NOW COMPLETE. RELAX…...
FRONT BASE PLATE
BACK BASE PLATE
JOIST

Riverlea Group Ltd warrant that the cladding used in the manufacture of the Sentry shed will not rust within 20 years from the date
of purchase.
Any liability for product failure that may arise will be limited to repair or replacement of the defective product and will only apply for
the benefit of the original purchaser. Riverlea Group Limited will not be liable for any consequential loss or damage, labour, or
transport charges.
This warranty is conditional on:
• Construction, installation and maintenance being carried out as specified in the Assembly Instruction Manual.
• The shed being installed in modest inland corrosion zones or areas where the steel corrosion rate is less than 200g/m2
(as published by Branz).
• Warranty certificate being returned to manufacturer within 21 days of purchase together with proof of purchase.
This warranty does not cover the following:
• Fastenings and fixings.
• Normal wear and tear, damage by impact or acts of God.
• Situations where the shed has been used for storage of chemicals, manure or corrosion causing products.
• Unauthorized modification of the structure, including painting of the cladding.
Please visit http://www.riverleagroup.co.nz/warranty-garden-sheds to validate the Warranty on your shed.
Click on the Warranty Registration Link and complete all details.
If you are unable to access the computer, please phone us on 0800 438 274 and one of the customer services team
will help you to activate the warranty on your garden shed.
Many thanks, from the Team at Riverlea Group.
20 YEAR WARRANTY
WARRANTY REGISTRATION
