Roadmaster ELITE VRVD400IV User manual

iPOD SD USB A/V Input RDS
180
WATTS*
VRVD400IV
AM/FM Stereo
IPOD VIDEO/MP3/WMA/OGG PLAYER
MP3 WMA JPEG M-JPEG ID3OGG

2
Dear Customer,
CONGRATULATIONS. The VRVD400IV when used as described, will give you years of
dependable service in your car, truck, RV, or mini-van. We have taken exacting measures
in quality control to ensure that your product arrives in top condition and will perform to
your satisfaction.
In the rare event that your VRVD400IV is missing an item, contains a damaged part,
does not perform as specied, requires warranty service, or you have an installation
problem, DO NOT RETURN THIS PRODUCT TO THE STORE. PLEASE CALL OUR
TOLL FREE NUMBER FROM THE U.S.A. AND CANADA 1-800-445-1797 and ask to
speak with a member of our technical service team; or submit your questions to
[e-mail] and a member of our technical service team will respond by
email to your questions.
Our in-house technical service team will expedite delivery of your part, advise you on
installation, or help troubleshoot a problem with you. If your product needs warranty
service, our technical service team representative will help you obtain the fastest remedy
possible under the warranty.
Table Of Contents
Precautions.......................................................................................................3
File, Memory & iPod Compatibility...................................................................4
Before You Install ......................................................................................... 5-6
Tools Needed to Install.....................................................................................6
Parts Included ..................................................................................................6
Wiring Diagram.................................................................................................7
Remove Old Head Unit ....................................................................................8
Mark Polarity of Speaker Wires .......................................................................8
Installation (DIN Front Mount) ..........................................................................9
Position of Controls ........................................................................................10
Remote Control ......................................................................................... 11-13
Menu Navigation.............................................................................................14
Operation........................................................................................................15
Digital Tuner Operation .............................................................................14-15
SD/USB Operation .................................................................................... 17-18
iPod Operations........................................................................................ 19-21
Back-up Camera Input....................................................................................22
Subwoofer Output...........................................................................................23
Specications .................................................................................................24
Warranty .........................................................................................................25
Welcome

PRECAUTIONS
• Disconnect the vehicle’s negative bat-
tery terminal before starting installation.
Consult the vehicle’s owner’s manual for
proper instruction.
• The unit is designed for a 12 Volt DC
negative ground operation system only.
Before installing the unit, make sure your
vehicle is a 12 Volt DC negative ground
system.
• Mark the polarity of the existing speaker
wires before disconnecting the old head
unit.
• Be sure to connect the color coded
leads according to the wiring diagram.
Incorrect connections may damage the
unit, cause the unit to malfunction, or
cause damage the vehicle's electrical
system.
• Make sure all the connections are com-
pletely correct before final in-dash of
your unit.
• When extending the ignition, memory
backup or the ground cable, use 1.02mm
diameter (AWG18) or heavier automotive
grade cable to avoid wire deterioration
or damage to the wire coating.
• To prevent short circuit, never put or
leave any metallic object inside the unit.
If you smell or see smoke, turn off the
power immediately and consult your
dealer.
• Insert the unit until it is firmly locked into
mounting sleeve, otherwise it may fall
out.
• Be careful not to drop or shock the unit,
it may break or crack because it con-
tains glass parts.
• The unit is only designed for use with
4 speakers and a sub-woofer. Do not
combine speaker output wires for use
with 2 speakers. Do not ground negative
speaker leads to the chassis ground.
• Do not open the top or bottom cover.
Modifying the unit will void the warranty
and may damage the unit, cause the unit
to malfunction, or cause damage the
vehicle's electrical system.
• Parking in direct sunlight for several
hours will cause higher temperatures
inside the vehicle. Do not operate in
extremely high or low temperatures. The
temperature inside the vehicle should
be between 32º F (0º C) and 100º F
(37º C) before turning on your unit. Cool
down the vehicle before operating the
unit
• The faceplate is a precision piece of
equipment that contains sensitive elec-
tronic components. Do not subject it to
excessive shock.
• When replacing the fuse(s), the replace-
ment must be of the same amperage as
shown on the fuse holder.
• Do not block this unit’s vents or heater
panels. Blocking them will cause exces-
sive heat to build up inside the unit and
may result in fire.
• After completing the installation and
before operating the unit, reconnect the
battery according to the manufacturer’s
instructions. Turn the unit ON, then
press the reset (RES) button with a
pointed object, such as a ball-point pen
to set the unit to its initial status.
• Do not touch the terminals of the face-
plate or of the unit.
• If you have difficulty installing this unit
in your vehicle, or you are missing parts
contact [e-mail] or
Call 1-800-445-1797
Please read these important precautions BEFORE attempt-
ing to install this unit. Driving a vehicle while operating
this head unit may violate motor vehicle laws, and may
result in serious injury, property damage, or death!
3

4
File Type Icon Content Size Playtime
MP3, WMA,
OGG
Varies Audio Varies Varies with size of les
MPEG4
DIVX
Varies Audio/Video Varies Varies with size of les
File Type, Memory & iPod Compatibility
The following table contains information on the different functions performed, and the dif-
ferent types of media used by this unit.
Memory Type Icon Content Size Playtime
USB Flash Memory Audio/Video
Up To 2GB
Varies with size of les
SD Card Audio/Video
Up To 2GB
Varies with size of les
MMC MMC Audio/Video
Up To 2GB
Varies with size of les
Compatible iPods
Model Software Version
iPod 4G ........................................................................................................................ 3.1.1
iPod 4G Photo/Color .................................................................................................... 1.2.1
iPod 5G ........................................................................................................................... 1.3
Classic.......................................................................................................................... 1.1.2
Classic 2G .................................................................................................................... 2.0.1
Mini 1G ......................................................................................................................... 1.4.1
Mini 2G ......................................................................................................................... 1.4.1
Nano 1G ....................................................................................................................... 1.3.1
Nano 2G ....................................................................................................................... 1.1.3
Nano 3G ....................................................................................................................... 1.1.3
Nano 4G ....................................................................................................................... 1.0.3
iPod touch 1G............................................................................................................... 2.2.1
iPod touch 2G............................................................................................................... 2.2.1

5
Before You Install
Automotive audio equipment installations can be challenging at times, even to the most
experienced of installation technicians. If you are not condent working with electrical
wiring, removing and reinstalling interior panels, carpeting, dashboards or other compo-
nents of your vehicle, please call our toll-free help line 1-800-445-1797 and our in-house
technical service team will answer your installation questions. Contact the vehicle's
manufacturer for vehicle specic instructions, or consider having the VRVD400IV profes-
sionally installed.
• Before starting the installation, disconnect the negative battery cable from the
battery’s negative terminal.
• Before nal installation of the unit, connect the wiring temporarily, making sure
the unit and the system work properly.
• Use only the parts included with unit to ensure proper installation. The use of un-
authorized parts can cause malfunctions.
• Consult with your vehicle’s nearest dealership if installation requires the drilling
of holes or other modications of the vehicle.
• Install the unit where it does not get in the driver’s way and cannot injure the pas-
senger if there is a sudden stop, like an emergency stop.

6
Before You Install
Tools Needed to Install
Below are the basic tools needed for most installations. Depending on the vehicle you may
need other tools to complete the installation. Tools Not Included.
Package will include the following parts & accessories for installation and operation of the unit.
Parts Included
1 - Faceplate
1 - Faceplate Case
1 - Remote Control
2 - Removal Keys
1 - Metal Mounting Strap
1 - Rubber
1- Sheet Metal Screw (B5x20)
4 - Screws (M5x6)
1 - Washer
1 - Lock Washer
1 - Hex Nut
1 - Power Wiring Harness
1 - Speaker Wiring Harness
1 - Head Unit (not shown)
3 - Foam Rubber Inserts for dif-
ferent iPod models (not shown)

7

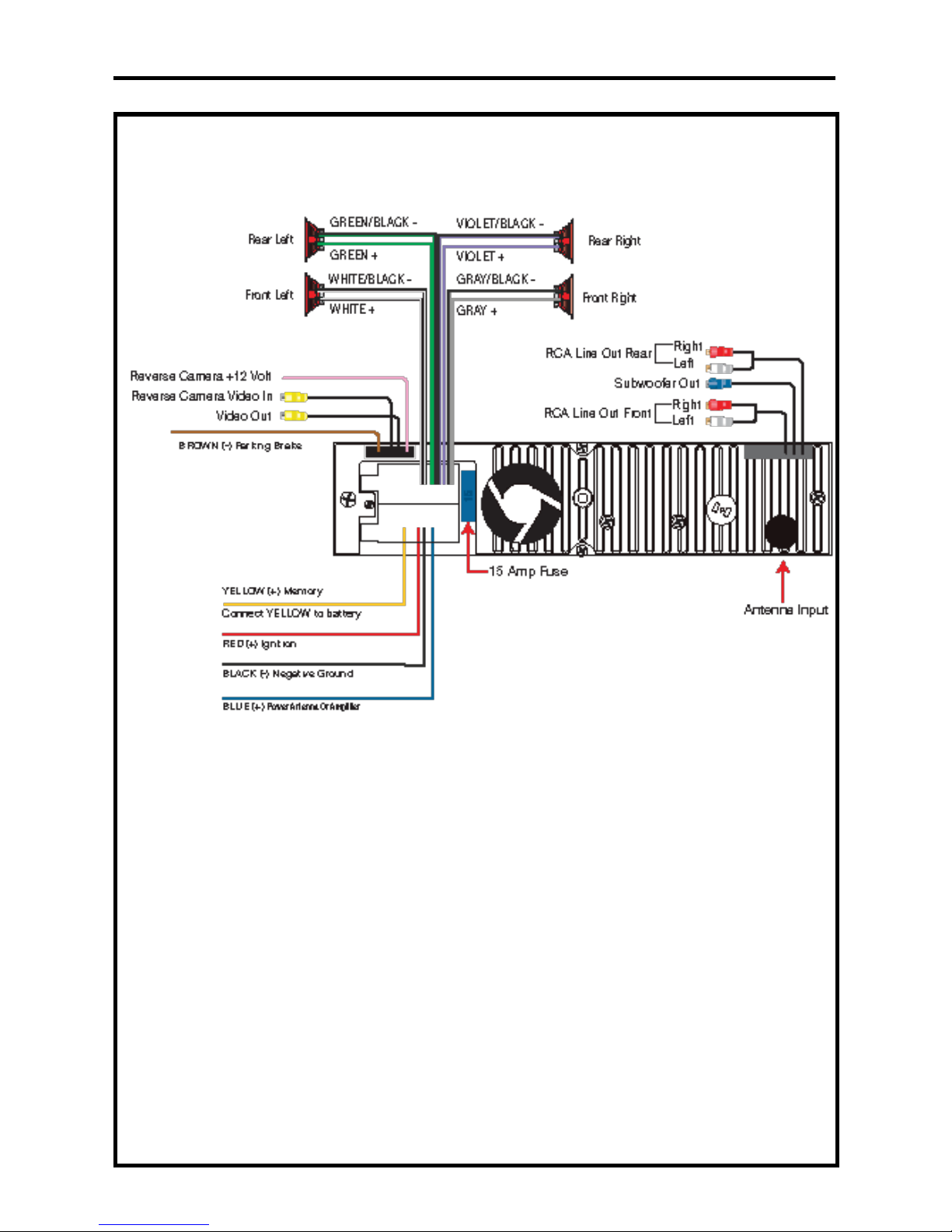

Wiring Diagram
Disconnect the vehicle’s battery
before installing this head unit.
IMPORTANT SAFETY WARNING
The Orange Parking Brake Wire MUST be connected to the negative wire of
the vehicle’s parking break. Virtual Reality Video Labs and/or its afliates
waives any and all liability when this wire is NOT connected as directed.
Driver can only watch a movie when the parking brake is ON.
• Before starting the installation, disconnect the negative battery cable
from the battery’s negative terminal.
• Before nal installation of the unit, connect the wiring temporarily, mak-
ing sure the unit and the system operates properly.

8

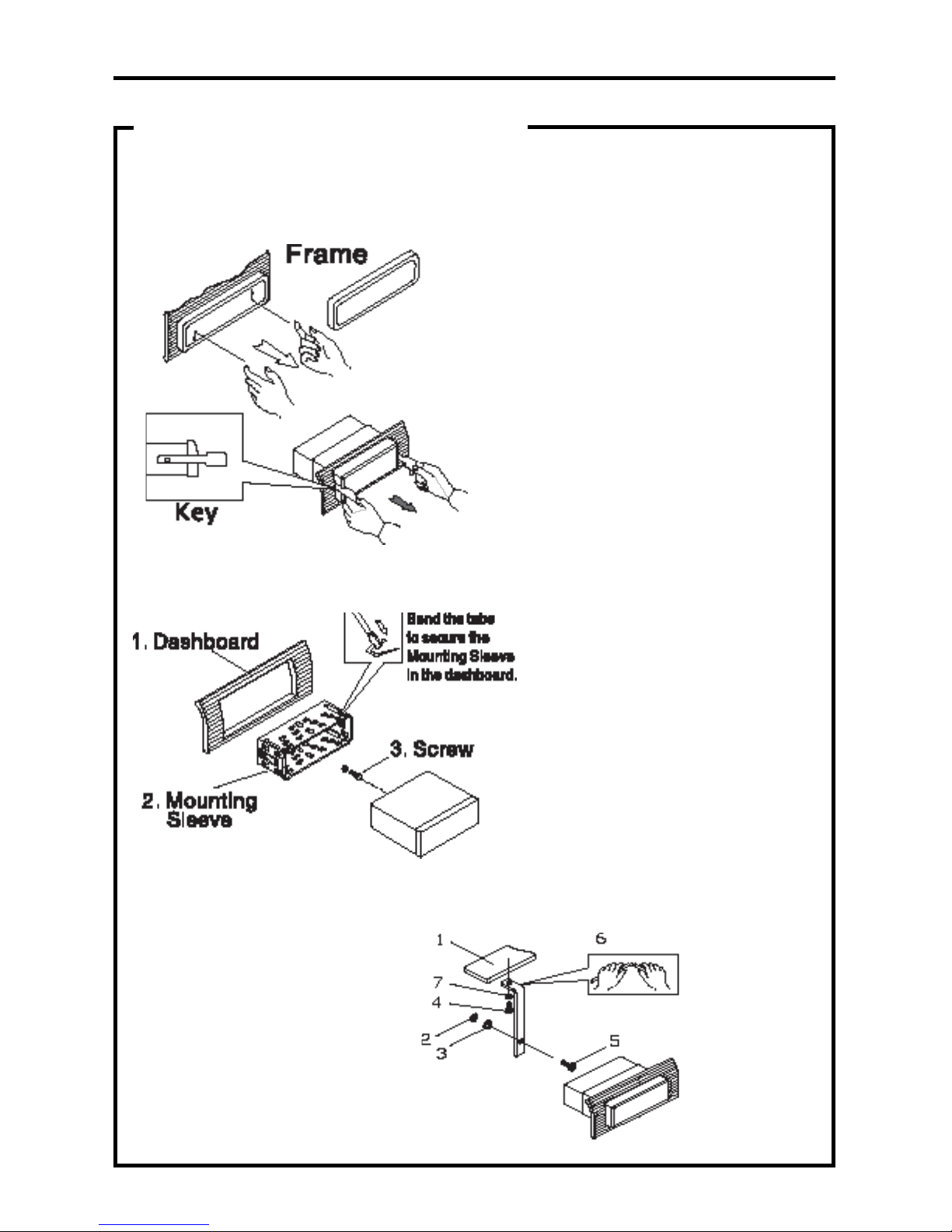

Installation
B. Insert the keys supplied with the old unit
into both sides of the unit as shown in fig-
ure below until they click. Pull to remove
the old unit from the dashboard.
1. Remove the Old Unit from the Dashboard
DIN Front Mount
DO NOT DISCONNECT WIRES AT THIS TIME!
A. Remove the outer trim frame.
Marking the polarity of the speaker
wires will make it easier to connect the
existing speakers to the VRVD400IV.
Consult the wiring diagram of the exist-
ing head unit before disconnecting any
wires. If a wiring diagram is not available
contact the head unit’s manufacturer.
1. While the old unit is playing, discon-
nect the wires from one speaker.
2. Take a length of masking tape and
fold it around the wire so it forms a
flag.
3. On the masking tape mark the polar-
ity of the speaker wires (+ & - ), as
well as left or right, and front or rear.
4. Double check that you marked the
first speaker correctly by checking
that the speaker wires are the same
at the head unit.
5. Repeat this procedure for all of the
speakers.
6. Mark the power, ground, and any oth-
er wires also .
2. Mark Polarity of the Speaker Wires

IMPORTANT!
BEFORE THE FINAL INSTALLATION OF THE HEAD UNIT, CONNECT THE WIRING
TEMPORARILY, MAKING SURE THE UNIT AND THE SYSTEM WORK PROPERLY.
DIN FRONT-MOUNT (Method A)
After inserting the Mounting Sleeve
into the dashboard, select tabs on
top, bottom, and sides, then bend
them to secure the mounting sleeve
in the dash board.(Fig. 2)
Fig. 2
Follow the diagram in Fig. 3
for installing the rear mount-
ing strap to the head unit.
The rear mounting strap
will help keep the head unit
from moving around inside
the dashboard.
Insert ngers into the groove in
the front of frame to remove it.
Insert the keys supplied with the
old unit into the grooves on both
sides of the old unit. The unit
can be installed or removed from
the dashboard using these keys.
(Fig. 1)
1. Dashboard
2. Nut (5mm)
3. Spring washer
4. Screw (5 x 25mm)
5. Screw
6. Strap
7. Plain washer
Fig. 3
Fig. 1
9
Installation

10

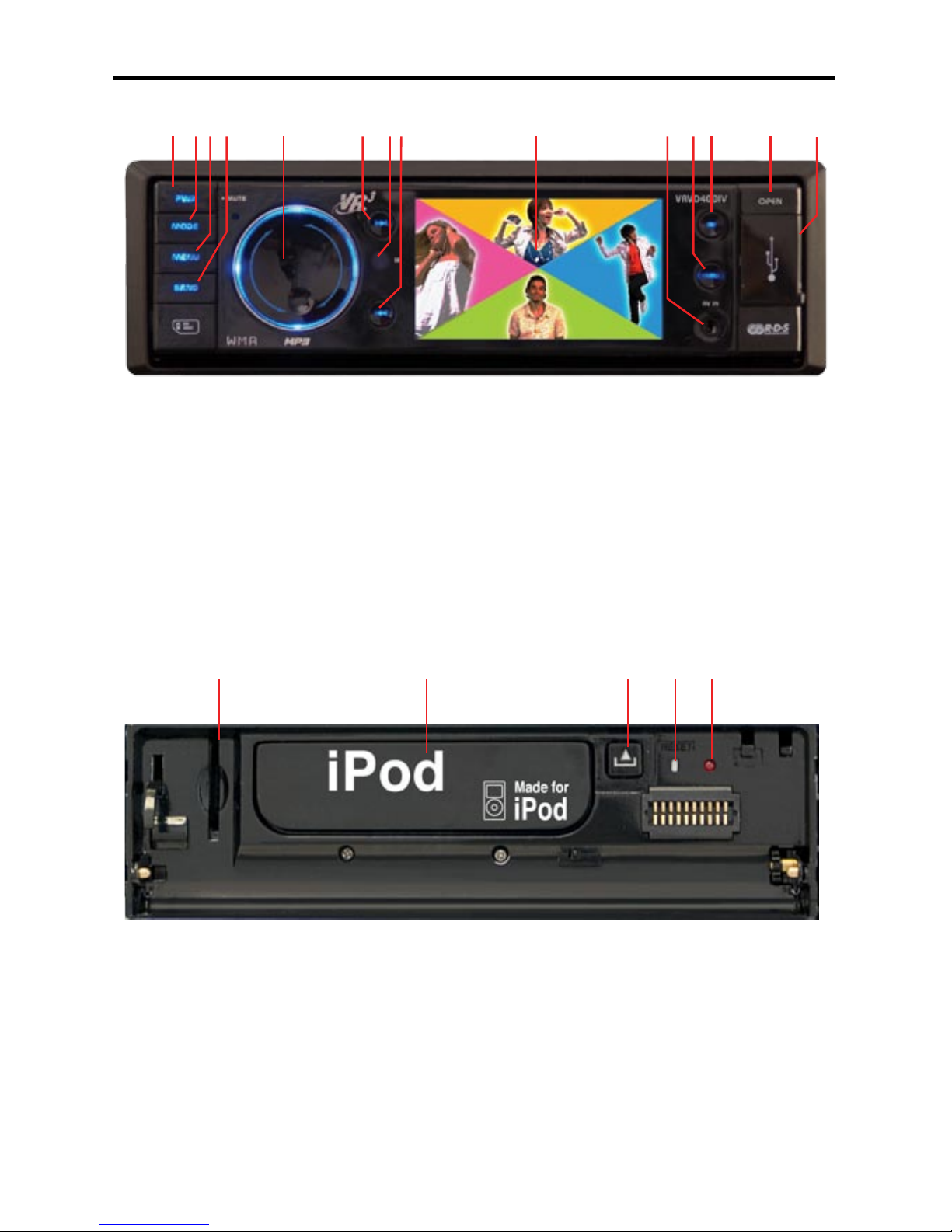

Position of Controls
1. POWER/ MUTE
2. MODE
3. MENU
4. BAND
5. VOL Knob
6. NEXT
7. IR Sensor
8. PREVIOUS
9. LCD
10. AV Input Jack
11. MEM
12. OK
13. OPEN
14. USB Port
1 2 3 45 6 78 9 10 1112 13 14
15 16 17 18 19
FRONT PANEL
INNER PANEL BEHIND FACEPLATE
15. SD/MMC Slot
16. IPOD BOX
17. IPOD EJECT
18. RESET
19. RED LED

Use and Care of the Remote
Aim the Infra Red LED of the remote control at the front panel of the unit to operate.
Precautions:
• Dispose of used batteries properly. Follow your local recyling laws.
• Using batteries improperly can cause them to explode.
• Keep all batteries out of the reach of children.
• Should a battery be swallowed, immediately consult a doctor.
• Use one CR2025(3V) lithium battery only.
• Remove the battery if the remote control is not to be used for a month or longer.
• Do not short-circuit or disassemble
• Do not drop the remote control, it may become jammed under the brake or accelerator pedals.
11

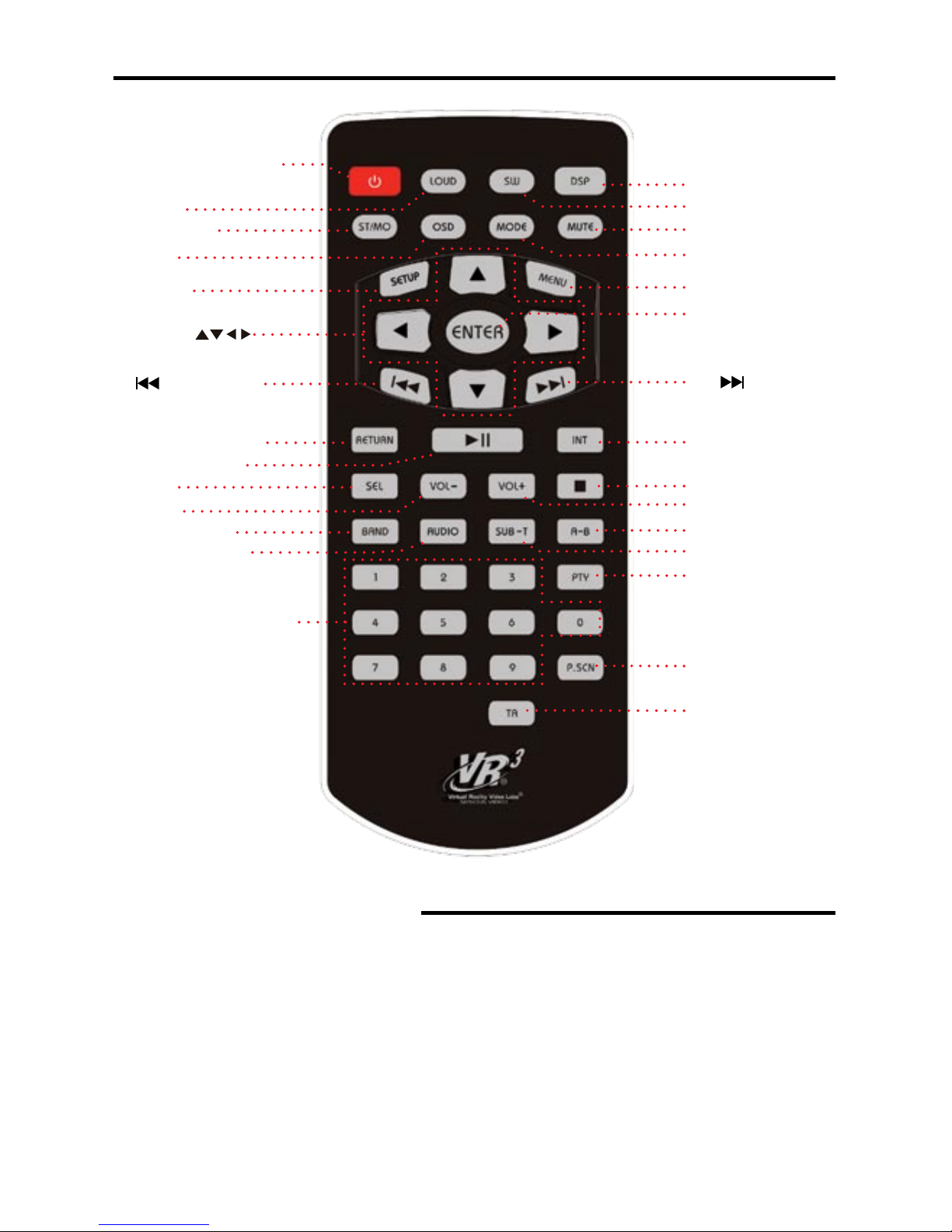

Remote Control
1. STANDBY/POWER
2. LOUD
4. OSD
7. / PREVIOUS
FAST REVERSE
3. ST/MONO
6. Cursor
8. LOCAL/RETURN
9. PLAY/PAUSE
10. SEL
11. VOL-
12. BAND /RDM
13. GOTO/ AUDIO
14. NUMBER BUTTONS
(0-9)
5. SETUP
15. DSP
16. SUBWOOFER
17. MUTE
18. MODE
19. MENU
20. ENTER
22. INT
23. STOP
24. VOL+
25. A-B ZOOM
26. SUB-T
27. PROG/PTY
28. RPT/ P.SCAN
29. TA
21. / NEXT /
FAST FORWARD

12
1. STANDBY/POWER
Turn the power ON/OFF.
2. LOUD
Press it to set LOUD on/off.
3. ST-MONO
In FM mode ONLY, press to select STE-
REO or MONO.
4. OSD (On Screen Display)
In Radio mode, press to show RBDS infor-
mation on the display.
In SD/USB mode, press and hold to show
the current track / elapsed time, press and
hold again to clear track/ time information.
5. SETUP
Press once to open the system setup
menu. Press again to close system setup
menu.
Note: This Menu is for the SD card and
USB modes only.
6. Cursor Buttons / / /
Use the / / / buttons to select the
menu item.
Use the / buttons to select the title,
track.
Use the / buttons to show Next/Previ-
ous frame.
7. PREVIOUS/FAST REVERSE
Press to select the Previous Track, press and
hold to Fast Reverse x2, x4, x8, x20, play.
8. LOCAL/RETURN
In Radio mode:
Press to turn on “Local” to search for
strong frequecy bands.
In other modes:
Press this button to return to the sub-
menu.
9. PLAY/PAUSE
Press to pause, press again to play.
10. SEL (volume knob)
Press to show audio menu BASS =>
TREBLE => BALANCE => FADER=> EQ,
use / buttons to select an item, then
press the ENTER button to enter setting
menu, use / to set audio data.
11. VOL -
Press this button to decrease the volume.
12. BAND/RDM
In Radio mode, press to select the a radio
band FM1, FM2 , FM3 , AM1, AM2.
In other modes, press the BAND/RDM but-
ton to use the Random function.
13. GOTO/ AUDIO
In USB/ SD mode, press and hold to show
GOTO menu, use the buttons 0-9 to input
a track/time to go to directly.
In USB/ SD/ IPOD mode, press to select
audio language. (This function needs audio
les that support multi-languages.) .
14. Number Buttons 0-9
In radio mode, select the desired band
(1~6). In USB / SD / IPOD mode, when
programming, select the desired items.
15. DSP
Press this button for audio setting, FLAT>
CLASSICS> POP> ROCK> DSP OFF.
16. SUBWOOFER
Press to set Subwoofer ON or OFF.
17. MUTE
Press to mute the sound level. Press the
MUTE Button again to cancel.
18. MODE
On the faceplate or remote control press
the mode button to change mode: Tuner>
USB> SD/MMC> AV IN> IPOD (if there is
a USB/ SD Card/ IPOD device connected.).
19. MENU
In iPod mode only, press to enter sub
menu directly, press this button and hold to
enter to select menu for music and video.
20. ENTER
Press it to conrm setting.
21. NEXT/FAST FORWARD
Press to select the Next Track, press and
hold to Fast Forward x2, x4, x8, x20, play.
Remote Control Operation

Turn the remote over, then
slide the battery holder out
of the remote.
Insert battery into battery holder
with positive side of the battery
facing up.
Insert battery holder into
the remote control until
Dispose of All Batteries Properly
13
22. INT
Press to activate the Intro function (plays
the 1st ten seconds of every track)
23. STOP
Press to stop playback.
24. VOLUME+
Press this button to Increase the volume.
25. A-B ZOOM
1. Press A-B button on the remote at the
starting point of the section you want to
repeat (point A).
2. Press A-B button again at the ending
point of the section you want to repeat
(point B). Section A-B repeating starts.
3. Press A-B button again to cancel the
A-B repeat function
Press and hold for 2 seconds to zoom the
image in or out when play video le.
26. SUB-T
Press to select sub-title language when
play video le (it need video les support
sub-title in multi languages).
27. PROG/ PTY
In Radio mode, press to activate the PTY
search.
In other mode, press to program your de-
sired songs, display 1.--- 2.--- 3.--- ….16.--
--, input your desired song number, use the
/ / / buttons to move cursor and
input your desired song numbers.
Press the PLAY button to start play the
programmed items.
28. RPT / P.SCN
In Radio mode, press to scan all preset
stations in the memory of the current band
and play each memorized station for about
5 seconds. Press and hold this button to
search and store radio stations with the
best reception to the preset buttons auto-
matically, then scan each preset stations
for about 5 seconds. In USB/ SD/ IPOD
mode, press to activate repeat function:
REP 1 , REP DIR (director) , REP ALL ,
REP OFF
29. TA (Trafc Announcement)
In any mode, press this button to set TA
ON or OFF.
Remote Control Operation
Changing the Battery

14

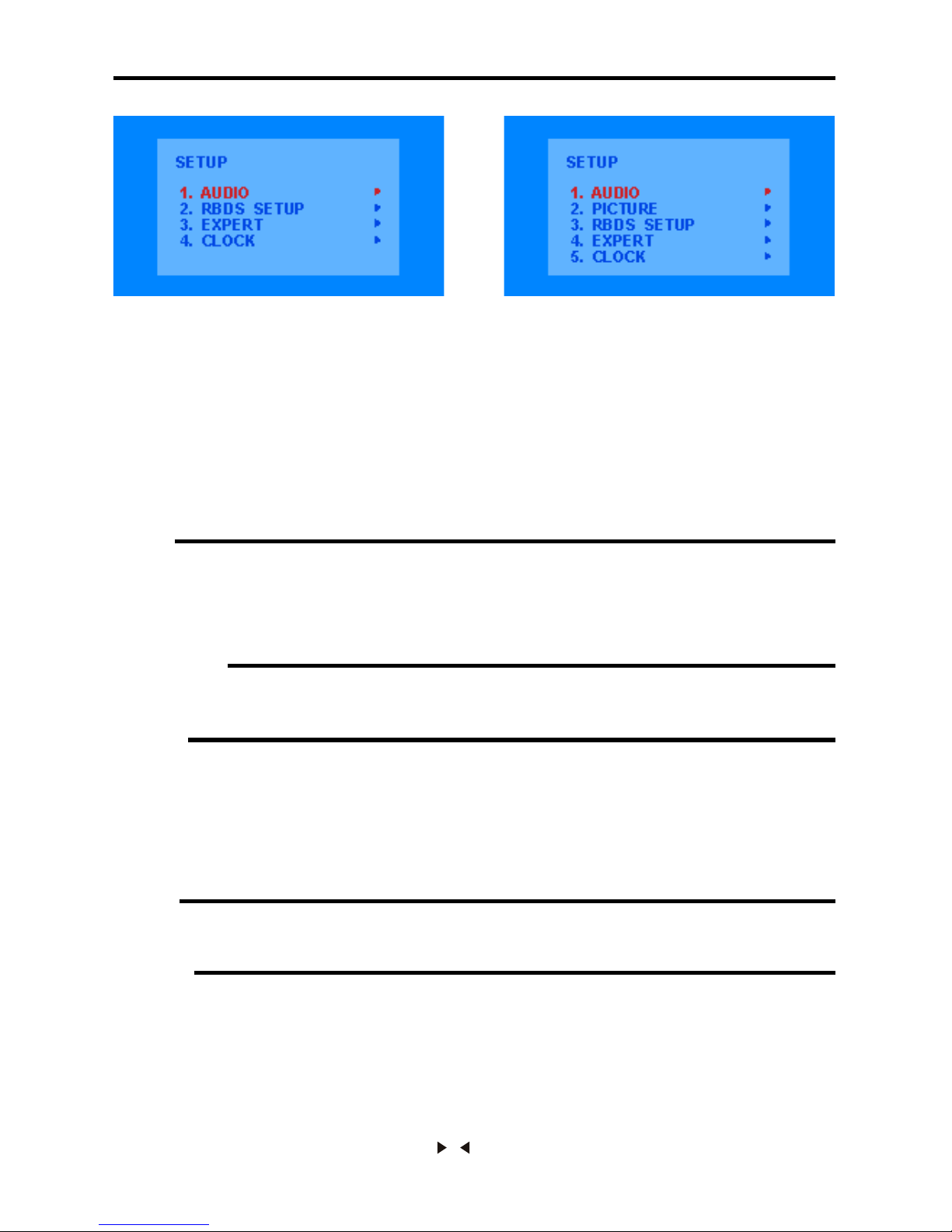

To Access Setup In iPOD or Radio Mode.
Faceplate:
Press the SETUP Button, then use the Volume Knob to navigate the choices on the menu and the
OK button to conrm your choice. This function is not availabe in iPod mode.
Remote Control:
Use the MENU button on the faceplate, or press and hold SETUP button on the remote control,
then use the arrow buttons on the remote control to navigate the menus and the ENTER button to
conrm you choice. This function is not availabe in iPod mode.
Use the MENU button on the faceplate or remote control to return to the previous menu.
MENU DESCRIPTION
AUDIO
BASS Supports +/-10 levels. Default level is 0.
TREBLE Supports +/-10 levels. Default level is 0.
BALANCE Supports 10 levels for each left and right channel. Default is left equal to right.
FADER Supports 10 levels for each front and rear channel. Default is front equal to rear.
EQ DSP OFF FLAT>CLASSICS>POP>ROCK>DSP>OFF
RBDS SETUP
TA ALARM/SEEK
TA VOL Supports 50 levels. Default level is 0.
EXPERT
DX/LOCAL Set search radio station by DX or LOCAL mode.
STEREO Set radio audio for STEREO or MONO mode, STEREO/MONO
BEEP Sets sound of button press. 2ND>ALL>OFF
LOUD Set loudness on or off. OFF/ON
SUB-WOOFER Set Sub Woofer output on or off. OFF/ON
BACKLIGHT Set OSD BACKLIGHT:MID>HIGHT>LOW
OSD COLOR Set OSD COLOR:DARK BLUE>VIOLET>LIGHT BLUE
CLOCK
CLOCK Set CLOCK display time or not. Off / on.
CLOCK ADJUST Set CLOCK ADJUST time
RED Adjust level of red color. Default level is 25. Supports 50 levels.
GREEN Adjust level of green color. Default level is 25 Supports 50 levels.
BLUE Adjust level of blue color. Default level is 25. Supports 50 levels.
BRIGHTNESS Adjust screen brightness. Default level is 25. Supports 50 levels.
CONTRAST Adjust screen contrast. Default level is 25. Supports 50 levels.
SHARPNESS Adjust screen sharpness. Default level is 10 Supports 15 levels.
SCREEN Adjust screen size: 16:9 > 4:3 > FULL
COLOR RESET Resume color default status.
Select YES or NO with the / buttons, and press the ENTER button to conrm “YES”.
Menu Navigation
Audio Setup Video Setup

15
RESET THE UNIT
In case the unit has malfunctioned or
needs to be reset to factory default set-
tings, press the RESET button under the
panel then the unit will be reset.
POWER BUTTON
Press any button except OPEN button to
turn on the unit.
Press and hold the POWER button to
power off the unit.
MODE BUTTON
Change the mode in the following se-
quence: Tuner>USB>SD/MMC>IPOD>AV
IN>Tuner
(When USB/ SD CARD/ IPOD available.)
MENU BUTTON
Press to enter MENU setting.
BAND BUTTON
In Radio Mode: Press to select FM1, FM2 ,
FM3 , AM1, AM2.
In USB/SD Card mode: Press to move cur-
sor left/ right to select item.Same function
as the / buttons on remote control);
Press and hold to move cursor up / down
to select items. Same function as the /
buttons on the remote control.
VOLUME CONTROL
Turn the knob clockwise to increase the
volume level, turn counter-clockwise to
decrease the volume level. In menu mode,
turn VOL knob to select the previous item
or the next item.
OK BUTTON
In Radio mode, press to enter and conrm;
press and hold to set TA ON/ OFF.
MEM BUTTON
In Radio mode, press to select preset sta-
tions PRESET 1-6; press and hold to set
AF ON/ OFF. In USB/ SD CARD mode,
press to pause/ play. Press and hold to
stop. In IPOD mode, press to pause/ play.
MUTE FUNCTION
Press the POWER/MUTE button on the
faceplate or press MUTE button on the
Remote Control to mute. Press it again to
cancel mute.
AUDIO SETTING
Press the MENU button on the faceplate
or press the SEL button on the Remote
Control to select the audio setting:
BASS =>TREBLE => BALANCE =>
FADER => EQ.
Press the / buttons on remote to select
the audio setting, or rotate the VOL knob
on front panel to select the setting.
Press the OK button on the faceplate or
the ENTER button on the Remote Control
to choose the selected item.
Press the / buttons on remote or rotate
the VOL knob on the front panel to adjust
the audio setting.
Press the MENU button on the faceplate or
the SEL button on the Remote Control to
save the setting data and return to current
mode.
Notes: If you turn the unit off with the PWR
button, all the settings of each mode will be
saved.
- If you disconnect the battery or the power
wires of the unit, all the settings will be
cleared and become factory default setting.
- If you don’t adjust setting within 3 sec-
onds after selecting the desired setting
item, the unit will automatically return to the
current mode.
Operation

16
Digital Tuner Operation
ON-SCREEN DISPLAY (OSD)
Press the OSD button to show the current
information of the Radio.
BAND SELECTION
Press MODE button to select the RADIO
mode.
Press the BAND button to select the de-
sired band: FM1, FM2, FM3, AM1, AM2
MANUAL/ AUTOMATIC TUNING
Manual Tuning
Press and hold the / buttons on
remote control for 2 seconds to enter the
manual tuning mode. The word MANUAL
will be shown on the screen.
Press the / buttons on the Remote
to select a station.
Automatic Tuning
Press and hold the / buttons on the
front panel, the automatic search will start.
It will play the rst station with a strong
signal.
PRESET STATIONS 1-6
To save a Pre-set: during manual turning or
automatic tuning, press and hold the number
1-6 buttons on remote to store the preset
station 1-6 or press MEM button on front
panel and rotate VOL knob to select the pre-
set station 1-6 and press OK button to store.
To choose a Pre-set: Press number button
1-6 on remote or / buttons on front
panel to play the preset station 1-6.
Note: You can store up to a total of 30 radio
stations in the memory (18FM, 12AM).
AS (AUTO STORE) / PS (PRESET SCAN)
AS (Auto Store)
In Tuner mode, Press the RPT/P.SCN but-
ton on the remote and hold for 2 seconds
to store radio station’s with the best recep-
tion to the preset buttons automatically.
PS (Preset Scan)
In Tuner mode, press this button to scan
the preset memorized stations, each preset
will scan for 5 seconds. Press again to stop
operation.
DIGITAL TUNER
Note: RBDS service availability varies with
areas. Please understand if RBDS service
is not available in your area, the radio will
not receive RBDS data.
TA (TRAVEL ANNOUCEMENT)
TP (TRAVEL PROGRAM IDENTIFICATION)
Enable or disable TA mode:
(Default is OFF)
1) In any mode, press TA button on the
remote or press and hold OK button on
faceplate to activate the Trafc Announce-
ment function. Press TA button again to
turn off the TA function.
2) When the TA function is activated it
will automatically search a station with TA
information. If there is no TA information, it
will automatically search for a station with
TP information, if there is no TP informa-
tion either, it will return to the previous
station after searching.
3) When receiving a station with TP infor-
mation, TP icon is on.
When the unit is in another mode, such as
SD, USB or AUX IN, and TA information
is received, it will automatically change
to radio mode. After the TA is nished it
will return to the previous mode. Press TA
button on the remote or press and hold the
OK button on the faceplate once to ignore
the received TA information, press twice to
turn off the function.
PTY (Program Type)
Enable or disable PTY search.
(Default is OFF)
1. Press PTY button to display PTY list.
2. Press buttons 1 - 6 to select the program
type PTY will search for and start auto
search.
3. Repeat pressing PTY button to display
all PTY lists.

17
USB FLASH MEMORY
To play MP3/ WMA/ OGG les from a
USB ash memory, insert a USB ash
memory into the USB port on the right side
of the unit. The unit will start playing MP3/
WMA/ OGG les on the USB ash memory
automatically. Or press the MODE button
to select USB.
SD CARD
To play MP3/ WMA/ OGG les on an SD
card, insert an SD card into the SD card
slot (you should press the OPEN button on
the panel to ip down front panel and insert
the SD card into SD slot.) The unit will start
playing MP3/ WMA/ OGG les on the SD
card memory automatically. Or press the
MODE button to select SD card.
PAUSE/ PLAY
Press the PLAY/ PAUSE button to pause
the playback. Press the button again to
resume.
STOP
Press the STOP button on remote to
stop playback. Press the PLAY/ PAUSE
button to resume. If the SD card or USB
is removed, the resume function will be
cancelled.
Press the STOP button twice to stop the
playback totally. Press the PLAY/ PAUSE
button to start playback from the begin-
ning.

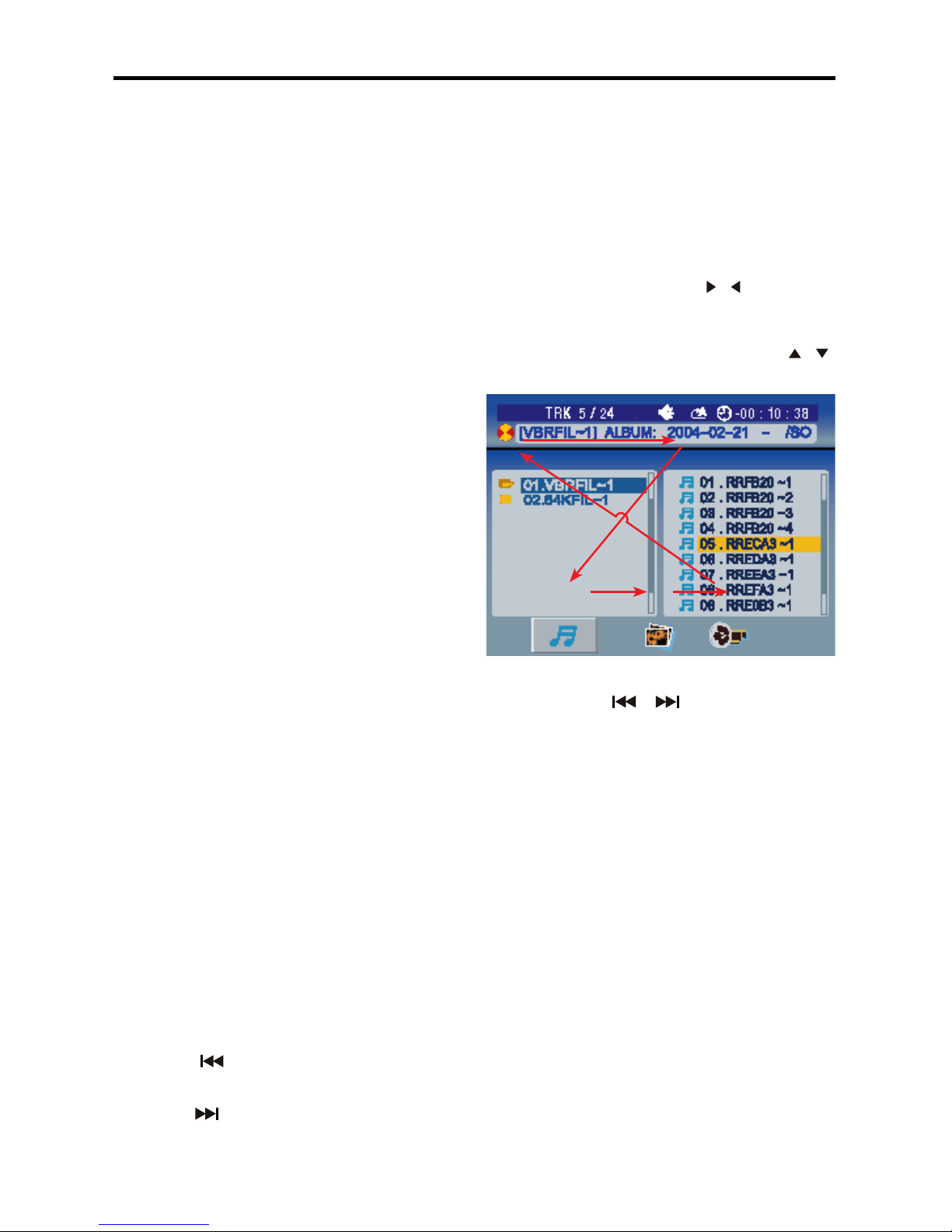

SELECTING TRACKS
If the MP3/ WMA/ OGG les are stored
in folders on the USB drive or SD Card,
the unit will start by playing the rst song
in the rst folder. After playing all the les
sequentially in the rst folder , the unit
will play all the les sequentially in the
next folder. The unit will continue playing
through all of the folders on the USB drive
or SD card in this manner.
Press the button to play the previous
track/chapter.
Press the to play the next track/chapter.
Press the Number buttons (0-9) to select
the desired track/chapter.
On faceplate, press the Band button to
move cursor from the folder list to the le
list, then to the le type icons on the bot-
tom of the screen.
Press to move cursor left/ right to select
item. Same function as the / buttons on
remote control.
Press and hold to move cursor up / down
to select items. Same function as the /
buttons on the remote control.
Fast Forward / Reverse
Press and hold ofor two seconds
to start Fast Forward or Reverse 2x, press
and hold for two seconds again for 4x,
repeat this operation for 8x, 20x, normal
speed. Press the PLAY/PAUSE button to
return to normal playback.
Note: When using Fast Reverse or For-
ward in SD or USB mode, the unit will
resume normal operation at the end of the
current track.
REPEAT
Press the RPT button on remote for REP
1 (repeat the current playing le), REP DIR
(repeat current folder), REP ALL (repeat all
folders), REP OFF.
SD Card & USB Operation

18
Operation
REPEAT A-B FUNCTION
1. Press A-B button on the remote at the
starting point of the section you want to
repeat (point A).
2. Press A-B button again at the ending
point of the section you want to repeat
(point B). Section A-B repeating starts.
3. Press A-B button again to cancel the
A-B repeat function.
RANDOM
Press the RDM button on remote to play all
song tracks in random order.
Press again to cancel.
Note: Only for audio les.
Intro playback
Press the INT button on remote to play the
beginning of every track for 10 seconds in
sequence. Press again to cancel INT play.
Note: This function is only for audio les.
PROGRAMMING THE PLAYBACK
1. Press PROG button on the remote to
start programming.
2. Use / / / buttons to select the
program position and use digit 0-9 buttons
to select the desired track.
3. Press PLAY/ PAUSE button to program
play, or move the cursor to select PLAY
and press ENTER to play.
4. Move the cursor to CLEAR on program
menu, press ENTER to delete the pro-
grammed list.
5. Press PROG again to cancel program
play.
SELECTING AUDIO MODES (ONLY FOR
MP4 FILES)
Press AUDIO button on the remote repeat-
edly to select the audio language.
Press AUDIO button on the remote repeat-
edly to select the following modes:
L R STEREO (Channel left > Channel right
> Stereo).
Note: Multi-languages should be available
in the audio of MP4 les.
CHANGING THE SUBTITLE LANGUAGE
(ONLY FOR VIDEO FILES)
Press SUBTITLE button on the remote to
select the preferred language for sub-title.
Note: Multi-languages should be available
in the sub-title of Video les.
ZOOM (only for VIDEO les)
Press ZOOM button and hold for 2 sec-
onds on remote to activate zoom func-
tion in the following sequences: ZOOM
2 => ZOOM 3 =>ZOOM 4 => ZOOM
1/2=>ZOOM 1/3=>ZOOM 1/4=>ZOOM
OFF.
ROTATE PICTURE (only for picture les)
In picture mode, press the or buttons
to rotate picture 90 degrees.
CHANGING PICTURE DISPLAY (only for
picture les)
In picture mode, press PTY button to
change the way pictures are displayed.
SYETEM MENU
In USB/ SD card mode, press SETUP but-
ton on remote to show system menu. Press
/ / / buttons to set system data,
press this button again to save input data
and exit the system menu.

Fig.1
Fig. 2
Fig. 3
Fig. 4
19
For a list of the iPods compatible with
this unit see page 4.
CONNECTING AN IPOD
1. Press the OPEN button on the face plate
and lower the face plate.
2. Press the REL button to release the
iPod compartment. Fig.1
3. Remove the iPod compartment. Fig.2
4. Connect the iPod to the iPod plug in the
iPod compartment. Fig.3
5. Return the iPod compartment to its origi-
nal position behind the faceplate.
6. The head unit will turn the iPod ON and
switch to the iPod mode automatically and
the iPOD Connect screen will be displayed
as the iPod and head unit connect. Fig. 4
Notes:
• Remove the iPod from the box when the
unit is not in use.
• When the iPod is connected to this head
unit, the controls on the iPod are not func-
tional.
• To start IPOD MODE while in another
mode, press the MODE button repeatedly
to switch to iPod mode.
• If a song is playing on the iPod when it is
connected to this unit, it will continue play-
ing after the connection.
• Some characters may not be correctly
displayed.
IPOD Operation

20

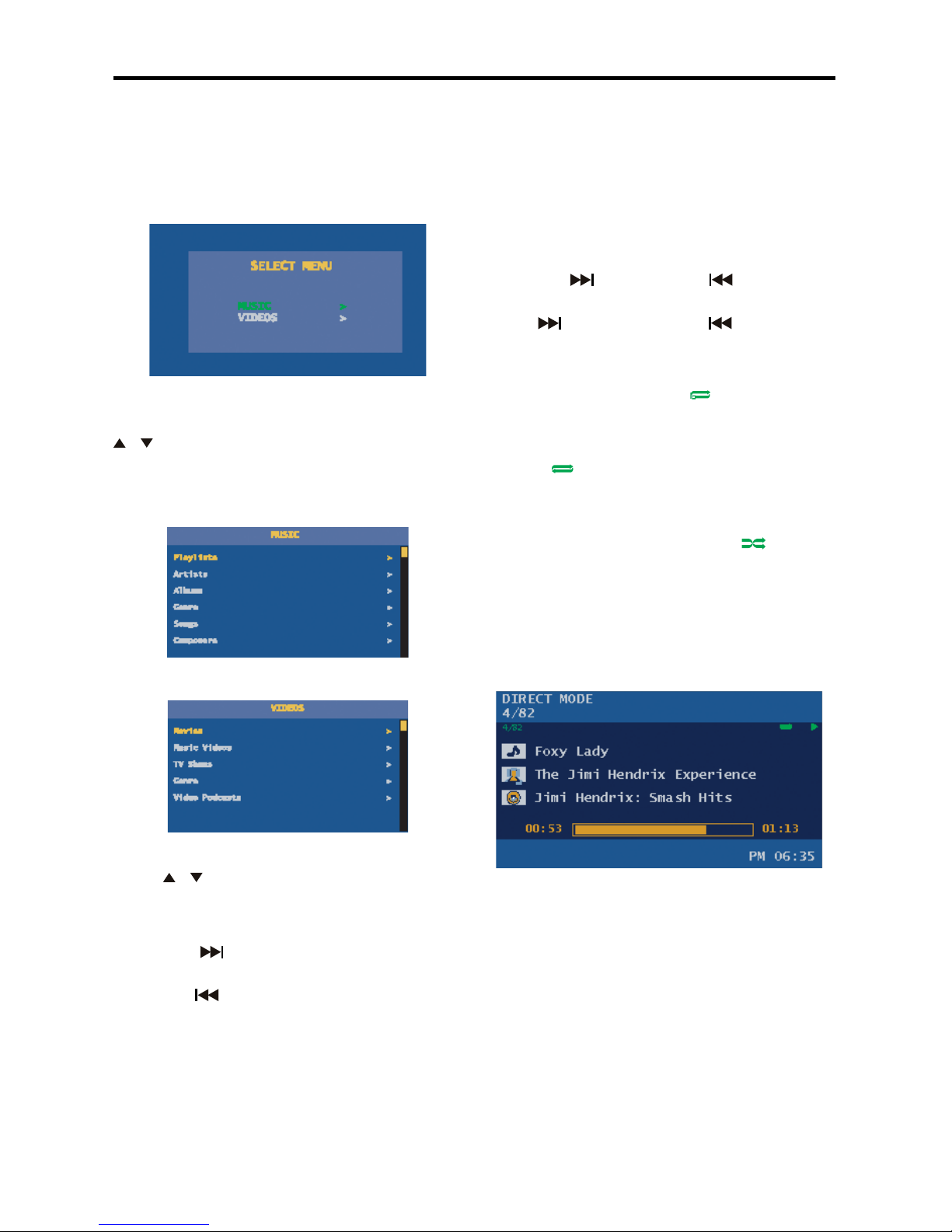

SELECTING TRACKS
On the remote or face plate, press and
hold the MENU button for two seconds to
display SELECT MENU, press this button
again to cancel SELECT MENU.
Rotate VOL key on face plate or press the
/ buttons on remote to select MUSIC
or VIDEO, press the OK or ENTER button
to conrm and go to the sub-menu of MU-
SIC or VIDEO.
Rotate the VOL knob on face plate or
press / button on remote to select item
in the submenu, press the OK or ENTER
button to playback.
Press the button to move to the next
track.
Press the button to move to the previ-
ous track.
PLAY/ PAUSE
Press the Play/Pause button on remote to
pause. Press the button again to resume
normal operation.
ELAPSE BAR(time)
In Music Mode, the Elapse Bar is always
displayed on the bottom of the screen.
In Video mode, press and hold the OSD
button on remote to show elapse bar
(elapse/ remain timing bar).
FAST FORWARD/ FAST REVERSE
P ress the button or the button
more than 2 seconds to activate fast for-
ward ( ) or fast reverse ( ).
REPEAT
On the remote, press RPT button to repeat
one current playing le, “ ” will appear
on the display.
Press this button again to repeat all les in
IPOD, “ ” will appear on the display.
RANDOM
On the remote, press RDM button to play
all the tracks in random order. “ ” will
appear on the display.
Note: This function is only for audio les.
DIRECT MODE
Direct Mode enables you to enter the track
number of a song you want to listen to.
Use the Number buttons 0-9 on the remote
control to directly input the track number of
the song you wish to listen to.
For example: If you have 82 tracks, press
the number 4 button on the remote control,
4/82 is displayed at the top of the screen
and track 4 will automatically begin to play.
IPOD Operation
