USER'S MANUAL
B ~ V760B
BLUETOOTH• I DVD/MP3/CD
AM/FM
RECEIVER
FEA1lJRING 6.2n (157mm) WIDESCREEN TOUCHSCREEN
DIGITAL TFT MONITOR
~ ~ ~ ~ ~ (tj ~~ ~ ~ ~
~ ( - ~ ' ~ ) Sill~.. 0 Bluetooth·
51\)~~
AUDIO SYSTEMS
E~---r£

To
ensure
safety
while
driving
and
to
comply
with
laws,
drivers
should
not
watch
video
or
operate
the
video
device
while
driving.

INSTRUCTIONS

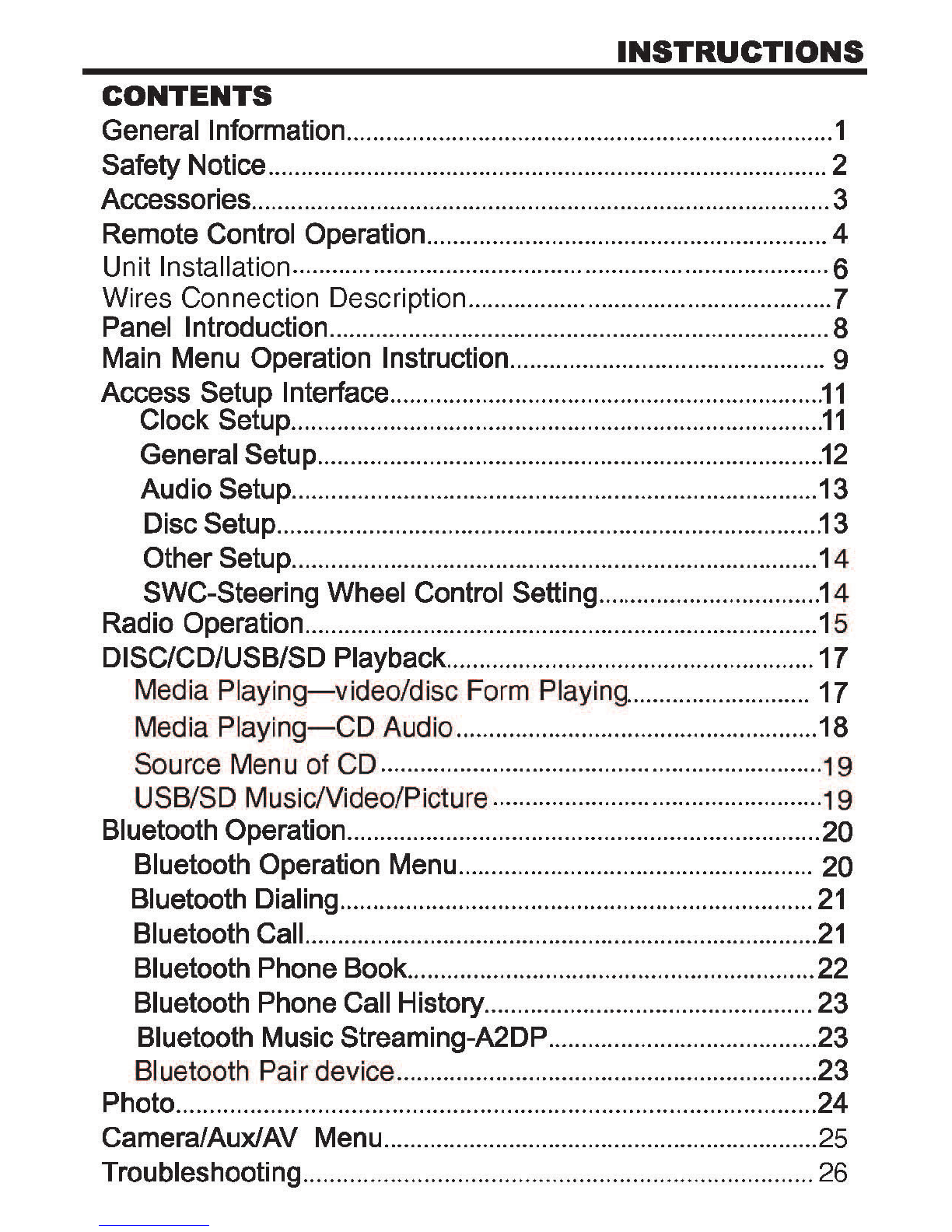

CONTENTS
General Information ............................................................................... 1
Safety Notice.....................................................................................2
Accessories........................................................................................3
Remote Control Operation.............................................................4
Unit Installation.................................................................................6
Wires Connection Description.......................................................7
Panel Introduction............................................................................8
Main Menu Operation Instruction................................................ 9
Access Setup lnterface.................................................................. 11
Clock Setup................................................................................. 11
General Setup.............................................................................12
Audio Setup................................................................................13
Disc Setup.........................................................................
.......... 13
OtherSetup................................................................................ 14
SWC-Steering Wheel Control Setting.................................. 14
Radio Operation..............................................................................15
DISC/CD/USB/SO Playback........................................................17
Media
Playing-video/disc Form Playing............................ 17
Media
Playing-CO Audio.......................................................18
Source Menu of CD...................................................................19
USB/SO Music/Video/Picture..................................................19
Bluetooth Operation........................................................................
20
Bluetooth Operation Menu...................................................... 20
Bluetooth Dialing........................................................................ 21
Bluetooth Call.............................................................................. 21
Bluetooth Phone Book.............................................................. 22
Bluetooth Phone Call History.................................................. 23
Bluetooth Music Streaming-A2DP......................................... 23
Bl uetooth Pair device................................................................ 23
Photo............................................................................................... 24
Camera/Aux/AV Menu..................................................................25
Troubleshooting............................................................................26

SPECIFICATIONS
Model No. BV760B
Fixed front panel
6.2 inch TFT screen
FM/AM Radio
RBDS
DVD fully compatible with
DVDNCD/CD/MP3/MPEG4/JPEG
Front USB &SD reader support
General Built-in Bluetooth
features
AUX Input
AV Input
AVoutput
Rearview camera
Front, Rearand Subwoofer Pre-Amp Output
4*80W AMP poweroutput maximum
I Steeringwheel control
TFTscreen 800*480pixel
SD 32G
Working power 12V
Max Output 4*80W
Working Temperature I -20°C-70°C /-4°F-158°F
Size 96.5*170.5*144mm
Weight 1.92kg/4.231bs
Compatible
Media
Picture JPG/JPEG/BMP
Disc
CD/CD-RICD-RW/DVD/DVD±R/DVD±RW
Audio file MP3/MCIWAV
.A VI
MP3
MPEG-4
Video file
MP4 AAC MPEG-4 Visual
MPG
AC-3 MPEG-1/2
1

SAFTY NOTICE
Please read and understand the following safety information before
operating this unit.
(S) The device is suitable for 12V powersupply (requires grounding).
Do notconnect it to 24V powersupply in trucks
or buses, or else it will
be damaged.
0 Please use genuine discs, instead of incompatible and poordiscs,
or else it will damagethe device or shorten the service life.
0 Withoutthe guide of qualified personnel, do not replace the fuse,
or else it may damagethe device or cause fire.
.&. Please follow the traffic laws and regulations and do notwatch
program
or operate the device when you are driving, to avoid
accidents (excluding passengers watching through rear monitor).
0 To ensure safety and operate the device normally, please ask
qualified personnel
to install the device. do notdisassemble or repair
the device withoutauthorization, to avoid damage and accidents.
Please contact local car audio distributorfor details.
(S) Do notput the device in moist environment or water, to avoid
electricshock, damage and fire due
to short circuit.
(S) The mechanical drive part of the monitoruses automatic precision
transmission component. Do not pull, push
or rotate the device by
force
or impact the TFT screen to avoid damaging the device.
0 Do not insert the audio plug of the vehicle into the masterunit
directly. please convertwith the dedicated end cable provided by
our
company.
0 When install the unit, prevent metal objects falling into the master
unitfrom the vents
to avoid short circuitand damaging the device.
Safety Statement
(S) Forthe safety of you and others, do notwatch programs or operate
the device when you are driving. Itis prohibited by the laws and
regulations.
0 The backing monitorfunction should be used as auxiliary means.
we are not responsible for anyaccidents occurred during backing.
2

ACCESSORIES
Beloware the photos with the accessories included in the box.
Remote Control
Mounting Brackets
Trim Ring/Touch Pen
3
Harness
Mounting Hardware
Screw
CM5*6mm
Spes
Screw
PA5*18mm 1pc
Spring Washer
1pc
Rear Chassis
Support Bolt
M5x23mm 1pc
Rubber Support
Boot 1pc

REMOTE CONTROL OPERATION
4 3
1.TURN ON/OFF
Press
to tum on or turn off
the unit.
2.EQ mode
Press to set EQ mode.
3.EJECT Key
Press to ejectthe Disc in
the unit. And press again
to
load the Disc if you do not
take out it.
2
4
1
10
11
12
13
14
15
16
17
18
19
4.CLK key
Press to show CLK, and
press again
back the last
source.
5.MODE key
Press to change mode of the
unit.

REMOTE
CONTROL
OPERATION
&.MENU
key
Press Menu to return to
the
home
menu.
7.Audio KEY
Press
to
change switch
language in DVD
mode,
and
switch left" right
or
stereo in
VCD
mode.
&.SUBTITLE Changing Key
Switch
the
subtitle during
playing
if
the
Disc have
multiple subtitle.
9.Direction and
OK
key
If
there is a Discwith root list
menu,press direction
key
to
move
up/down/lefVright, and
press
OK
to confirm.
10.MUTE key
Press
to
mute
the
unit
and
press again
to
restore the
volume.
11.REPEAT key
Under
DISC/MusicNideo
mode, press
to
set
the repeat
mode.
12.Piay/Pause
Press
to
switch play pause.
13.ROOTkey
DVD playing mode, press to
go
into root listmenu;
VCD
playing mode, press to turn
on/offPBC function.
5
14.TITLE
key
Under DVD playing mode,
press
to
enter into title list
menu.
15.UnderDisc/music/video
mode, press
to
choose
previous/nextsong.
Undermusiclist menu, press
to choose PRE/NEXT music.
Under RADIO mode, press
to
search frequency
forward/backward.
16.VOLUME UP/DOWN
key
Press to adjustvolume up
and volume down.
17.Receiving calls/call
out;
hang up.
18.STOP/C/BAND
In discplaying mode, press
to
STOP, press "ok" to start;
In radio mode press to
change
band
between
FM1/FM2/FM3/AM1/AM2;
Press to enter RADIO mode,
exceptDVD mode.
Delete wrong number
when
in
phone mode.
19.Numberkey
Enterphone numberin phone
mode.

UNIT INSTALLATION
Bracket
Screw
1.Putthe 2 brackets to the left and right side of the unit;
2.Use screws to fix the brackets to the unit.
3. Once the screws are attached, the brackets can be adjusted
forward
or aft depending on the installation requirements.
6

WIRES CONNECTION DESCRIPTION
The Description of the lnput'Output Interface
A
B
0 0
FRONT PRE-AMP
OUTPUT
VIDEO
OUT
ANTENNA
REAR
REAR PRE-AMP SUBWOOFER CAMERA
OUTPUT OUTPUT INPUT
AIV INPUT
Description of the Wiring Diagram for Socket A and B
Connector A Connector B
WHITE ............ LEFT FRONT(+) YELLOW .................. (B+)12V
WHI TE/ BLACK ...... L EFT FR ON T (-) RED ........... . ....... ACC( + 12V)
GREEN ............. LEFT REAR(+) BLUE .................. ANT. CONT
GREEN/BLACK. ...... LEFT REAR(-) BLACK .................. GROUND
GREY ............ RIGHT FRO NT (+)
GREY /BLACK ...... RIGHT FRONT(-)
VIOLET ............ RIGHT REAR(+)
VIOLET / BLACK ...... RIGHT REAR ( -)
7

PANEL INTRODUCTION
1 :EJ\1
v .~ o
I I I I
'fiVUO
2
3
4 •
,- AUX IN
<
'"' I
J_::
5
:JO~~
1.Eject key
When there is a Disc in the unit, press EJECT to remove the Disc. And
press again
to load the Disc if you do nottake out it.
2.MODE key
Press to select system mode (RADIO/DISC/AUX IN/PHONE
/STREATNG/USB/SD/AV INPUT)
3.MENU key
Press to reture to the home menu,press again to last source.
4.TURN ON/OFF &VOLUNE UP/DOWN
Long touch to tum ON/OFF the unit. Shorttouch to activate the MUTE
function and silence the audio output. Touch again
to restore sound.
Rotate
to adjust the outputvolume UP or DOWN.
5.0pen to see, AUXIN jack, SD slot, USB port and reset key.
8

MAIN MENU OPERATION INSTRUCTION
MAIN MENU 1
1.Shows the present time ofthe unit.
2.Press to go into
main menu 2.
3. Auxin Interface 4. Disc Interface
*DI
SC
1 1: 30 0 @
Jd
n Gr
NtC'SI Htts
0 OthPr
.1.
Aqua
00 02'05 00:(13 24
I ' 1 I
-0 ••
...
... .
~
·-
5. Radio Interface 6. Phone setup Interface
7. BT Music Interface 8. USB Interface
* STR E AM I NG
11 30 :1: 0 ~
*
USB
11 :30 0
:£
nI n n Gtcatcsl
Hits
0
OlhN
.1.
Aqua
00 0205 00:03 24
I• ,. ..I I ' 1 I
-0 ••
...
.. .
~
·-
9

MAIN MENU OPERATION INSTRUCTION
MAIN MENU2
10 11 12
9. SO Interface 1 0. Camera Interface
A SD
11:30 0
~
n n Grc.nC'It
Htts
0
Oth~.>r
J. Aqua
000205 00032·1
I ' ' I
-0
,.
...
... ,
~
·-
11. AV Interface
12. Settings Interface
A STREAMING 11 :30 <:>ttl
0 CloC'
Re~terse Triggot
ON -.
@E58
Wallpaper >
14
AudiO
Radto Regt011
Gl
USA
D
0
DiS<:
Bac~l,ght
Cl Nonnal D
i Olhe1
swc
>
10

ACCESS SETUP INTERFACE
There arefive menu in setup:
CLOCKSETUP-Menu 1
2
a
b
c
d
1.Setupfunction area:Ciocksetup, General setup, Audio setup,
Discsetup, Othersetup.
2.Subsidiaryfunction area: Move
up and down to seethe
general setup items.
a. Press
to set AM/PM at 12hr mode.
b. Press
to set clockmode: 24/12 hr.
c. Press
to set hour.
d. Press
to set minute.
GENERALSETUP-Menu 2
11
1
2
3
4
5
7

ACCESS SETUP INTERFACE
6
7
1. Reverse trigger: Tum on if you have a rearviewcamera.
Tum off if you havn't.
2. Touch to
set wallpaper
3. Touch to choose radio field between: USA/Europe/Latin 1
/Latin2/0RIT.
4. Backlightdimmerselection: Night/Dark/Normal/Bright.
5.Touch
to enterSWC menu.
6.Beep ON: When turned on, an audible beep tone confirms
each function selection.
7.Siiding up or down to enterintosome othersetup subsidiary
functions.
AUDIO SETUP-Menu 3
12
1
2
3
4
5
10

ACCESS SETUP INTERFACE
1. Press to enter into EQ sat up menu.
2-9. Press to set preset VOL.
10. Sliding up or down to enter previousfunctions.
DISC SETUP-Menu 4
1
1. Touch toset up the level of the DVD. Default password is 0000
13

ACCESS SETUP INTERFACE
OTHER SETUP-Menu 5
1. Touch to entercalibrate menu.
2. Load factory setting.
3. Show the software version imformation.
SWC.STEERING WHEEL CONTROL SETTING
Touch SWC enterSWC setting menu:
Press"OK"to start SWC leaning.
Start learning:
Set the
POWER button as an example.
1
2
3
1. Press POWER button in the unit(Picture 1),then you will see
reminder like picture 2, Press OK.
2.Press POWER key in yoursteering wheel. Then you can see the
reminder in the unit like Picture .Setting successfully. Will show like
Picture 3.
3.
Ci ick OK, and finished learning.
4.Repeat 1-3to learning other keys.
Picture 1
~ swc 0
":::>
-
VO L UME· SEE K+
VOLU M E- SEE.W: -
swc~ MlJTE POWER
1.
1
0DE tJENU
~
PAt.;SEoPLAY SETTINGS
14

RADIO OPERATION
Picture 3
RADIO OPERATION
1
2
3
5
SWC1: Select differentSWC
resistance
to meet different cars. If
you cannot finish all
key
pairing,you can press to select
SWC2 SWC3,until all keys can
learn.
NOTE: Click SWC1 you will lost all
KEY learning before.
4
G 7 8 9
10 11
1.Show the present mode. Touch [.] to goback home.
2.Show RBDS PS and PTY.
3.Short press to seek backward. Long press to enter manual mode
and backward in step.
4.Short press to seekforward. Long press to enter manual mode and
forward in step.
S.Presetstations area, long press to
save currentstation.
6.Band changing:Ciick
to change band between
FM 1/FM2/FM3/AM1/AM2.
7.Search the stations, playthe searched one for SS and go on to
search next one and repeatthis.
8.Short
press for PS, long forAS.
9.LO/DX:
Touch to select Local orDistant broadcasting stations.
1
O.Stereo on/off:Ciickto tum on/offstereo when receiving a stereo
signal.
15

RADIO OPERATION
11. RBDS: Touch toenter RBDS setup menu. you can choose the
program type you like to listen: news, sports ,inform, etc.
-A RBDS 11:30 a
a CT
ON.
NEWS
b TA
o""N "' .
INFORM
c
AF
..
SPORTS
d
@ TALK
POCK
a.CT (ClockTime}
To provide currenttime correction information, the RBDS station can
automatically correct the system clock ofthe receiver when the clock
RBDS is opened.
b. TA(TrafflcAnnouncement)
ON: When the taffic station is turned on, the radio will automatically
search fortraffic stations.
OFF: Repress [rA] button to close TAfunction. In other modes, traffic
announcementwill automaticallyswitch to radio mode, afterthe traffic
announcement is completed, it will automaticallyswitch to the previous
mode.
c. AF(Auto Frequency)
Touch the button to turn the AF function on/off. AF function is turned
on, When the received station signals become weak, the radio will
automatically fine-tune to otherfrequencies. When receiving an
emergency announcing, the screen will display warning message .
d. PTY(Programming Type)
Touch the button the screen displays program types, users can search
station according to program type.
Note: If RBDS is turned OFF, AFfTA/PTY will notfunction.
16

DISC/CD/USB/SD PLAYBACK
MEDIAPLAYING VIDEO FORM PLAYING
1 2
7
. 3
8 9
I
5
10 6 11
I I I I I
213 OJ =: ([) Title ~
I
3/3 (TI] MSG A.. I
' ·" :~
12 13 14 15
1.Touchto select one of the three Menu Control Bars:1/3,2/3,3/3.
2. KEYPAD: Touch to select chapter of DVD.
3.Short press to move to previous chapter, Long press to fast reverse.
4.PLAYIPAUSE: Touch to begin playback/pause.
5.Short
press to move to next chapter, Long press to fast forward.
6.Touch to enter
DVD Menu.
7.Touch to alterrepeat mode in the following sequence:
•
DVD: Repeat All, Repeat OFF, Repeat Chapter, Repeat Ti11e .
• VCD
(PBC OFF): Repeat All, Repeat OFF, Repeat Single.
8.Random play.
9. Touch to setting menu ofbrightness and contrac.
10.Touch to enter
DVD Title.
11. Touch to selectthe subtitle language ifthe discis recorded in
multiple languages.
12. Touch to switch video 4:3 and 16:9.
13. Touch to show information ofthe video.
14. Touch to seloet DVD video angle.
15. Touch to select the audio language.
17
