Roadmaster RM-DVD767HR User manual

USER'S MANUAL
AUTOMOBILE HEADREST DVD PLAYER
DVD VCD CD MP3 JPG support 8 bit&32 bit game （）
4
MENU
A/B
+
-
FMTX
All manuals and user guides at all-guides.com
all-guides.com

Contents
A Precautions、
5
03
04
04
05
06
07
08
09
09
10
11
11
11
11
11
12
12
12
12
12
13
13
13
13
15
12
12
14
15
02
01
14
15
15
15
B Notice before operation、
C Accessories、
D Features、
G Key parts in front of the player 、
H Key parts at back of the player 、
I Battery installation for remote controller 、
J Precautions for remote controller 、
K Application of remote controller、

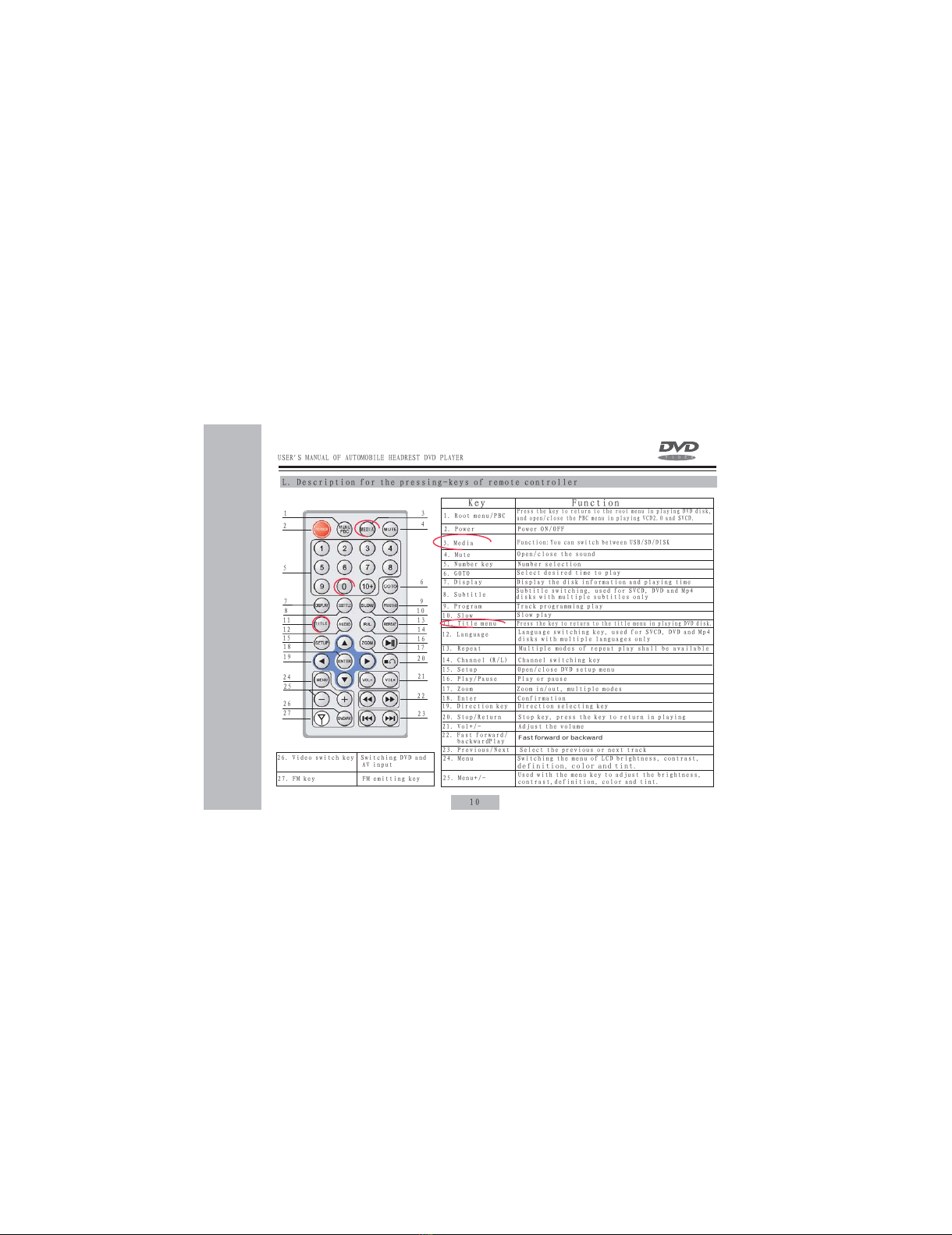

L Description for pressing-keys of remote controller、

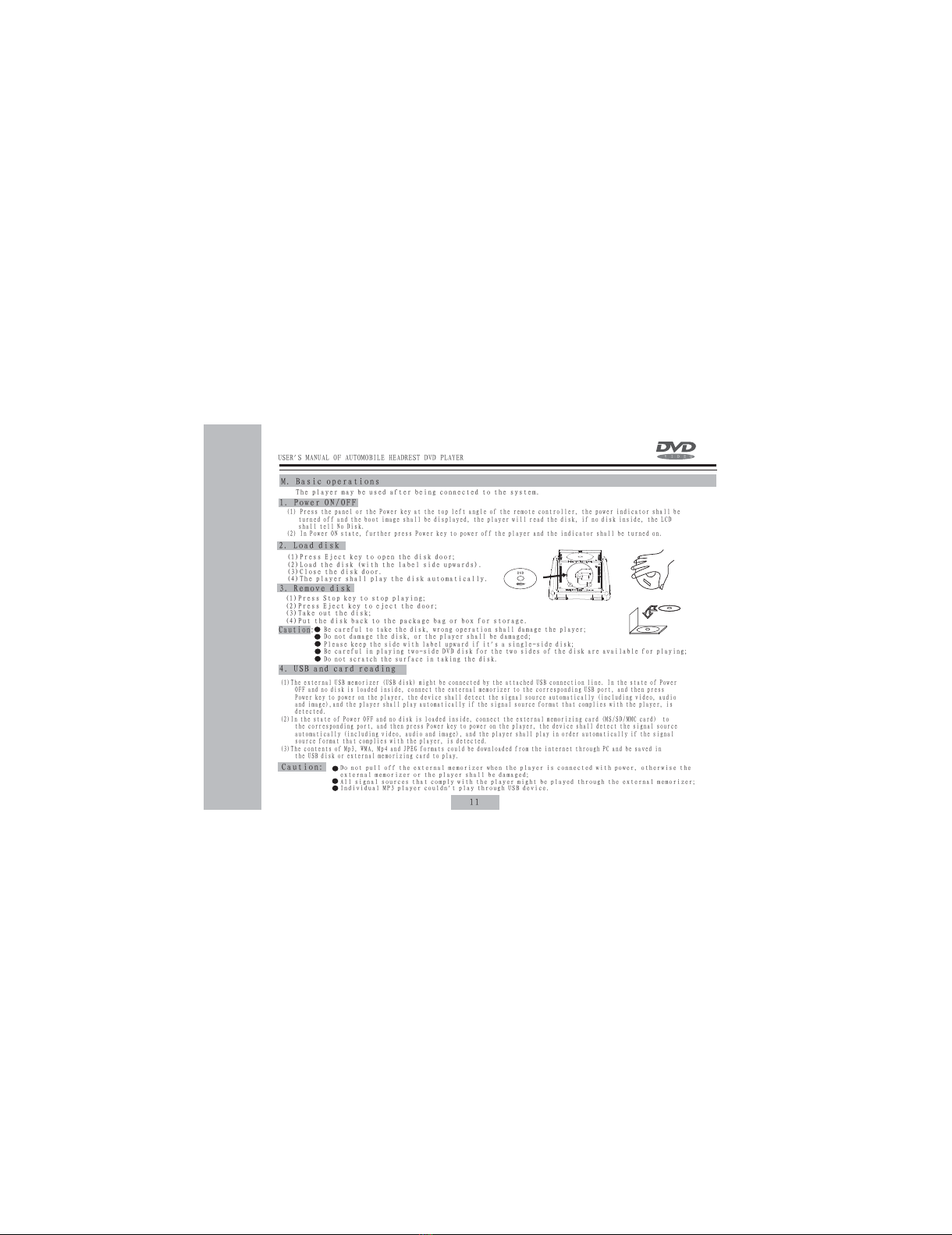

M Basic operations、
F System connection and installation 、
E Video disk type、
Power ON/OFF
Disk loading
Disk removing
USB and card reading

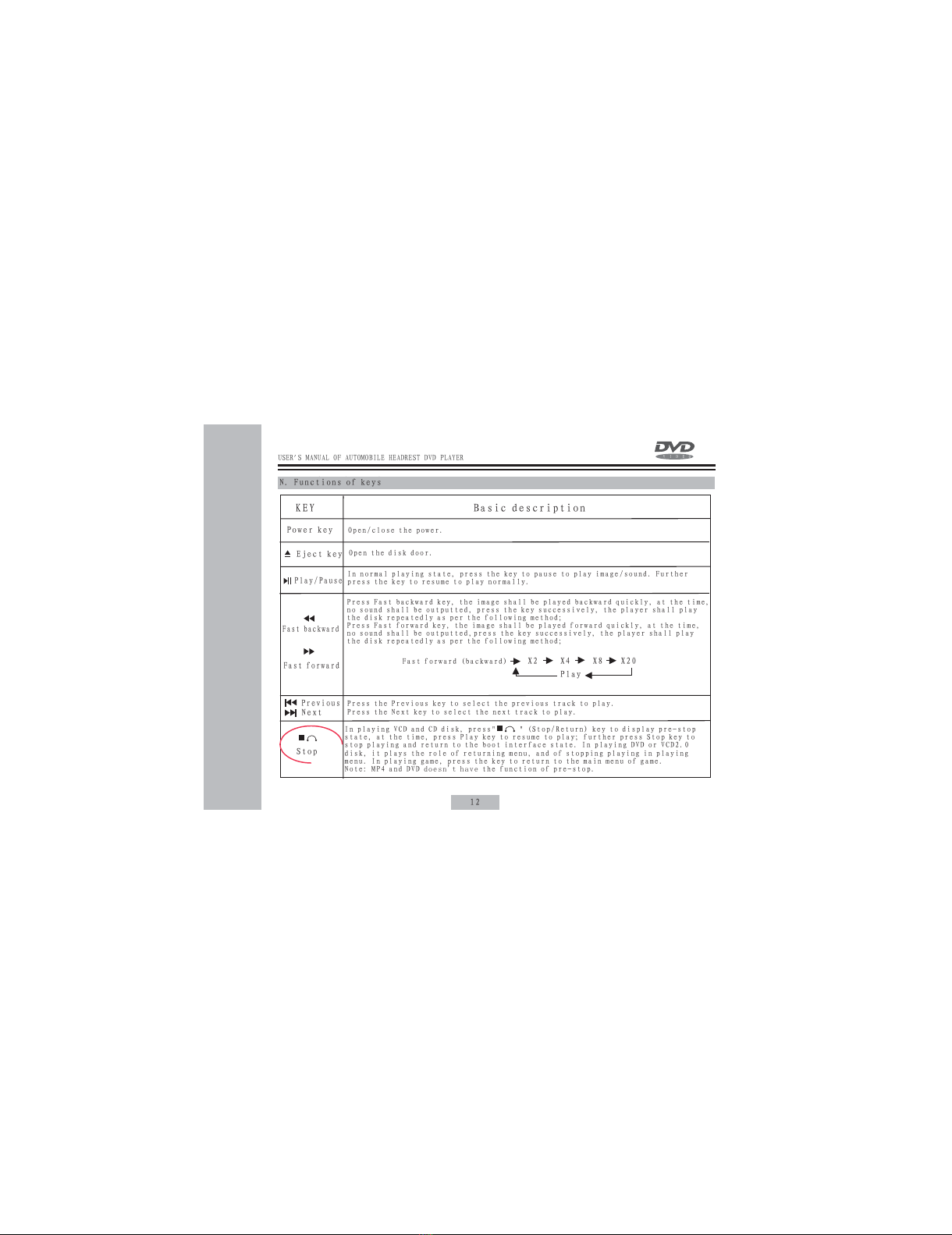

N Function of keys
、
POWER
Cover opening
PLAY/PAUSE
GOTO
Fast forward/fast backward
AUDIO
SUBTITLE
TITLE MENU
STOP/RETURN
SLOW
PROGRAM
REPEAT
ROOT MENU/PBC
DISPLAY
MUTE
ZOOM
PREV/NEXT ..................
All manuals and user guides at all-guides.com

16
16
16
16
17
17
17
17
18
18
18
19
21
23
23
24
24
24
25
19
20
35
16

27


31
29
23
28
Contents

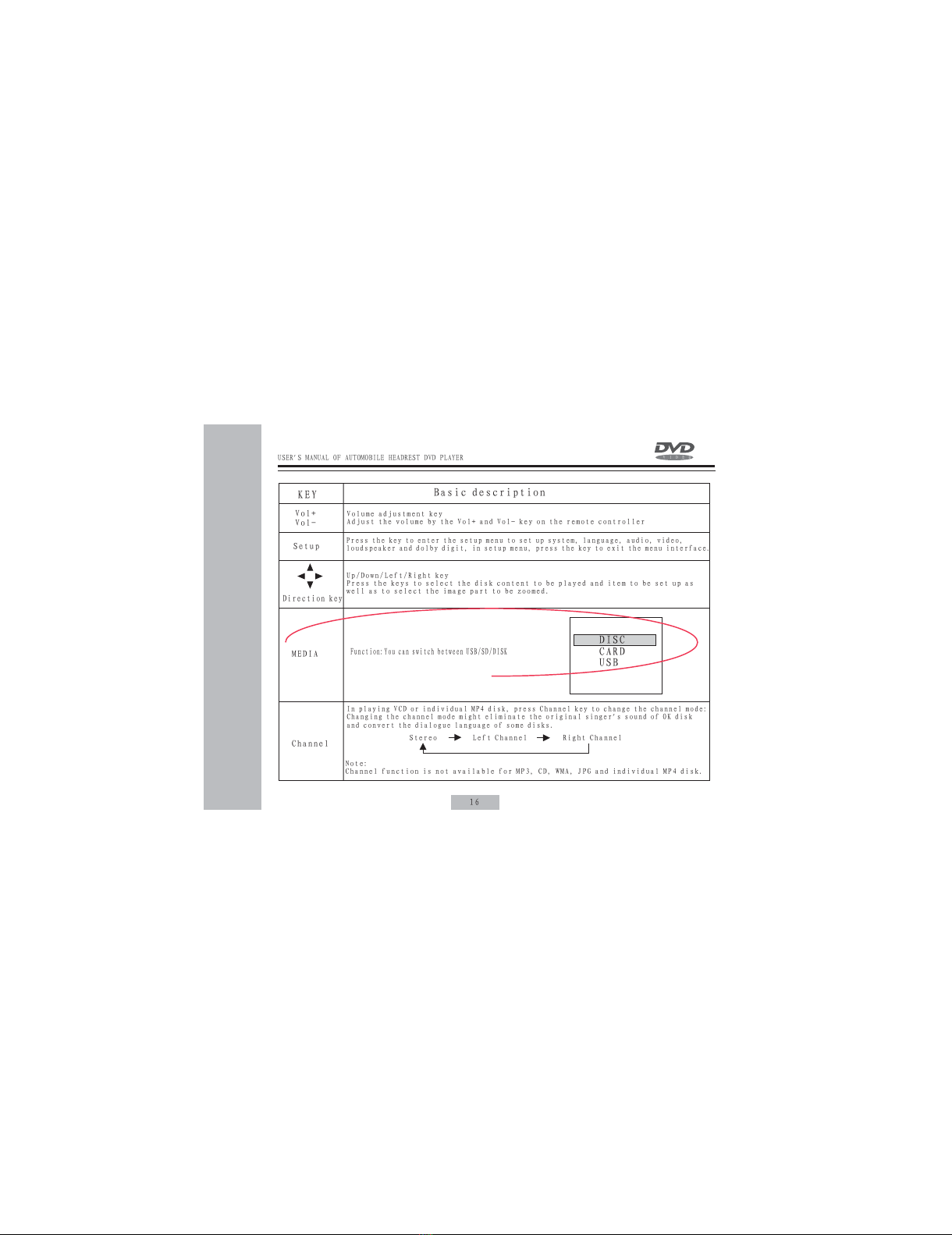

VOLUME UP/DOWN
MENU SETUP
DIRECTION KEY
MEDIA ....................
CHANNEL

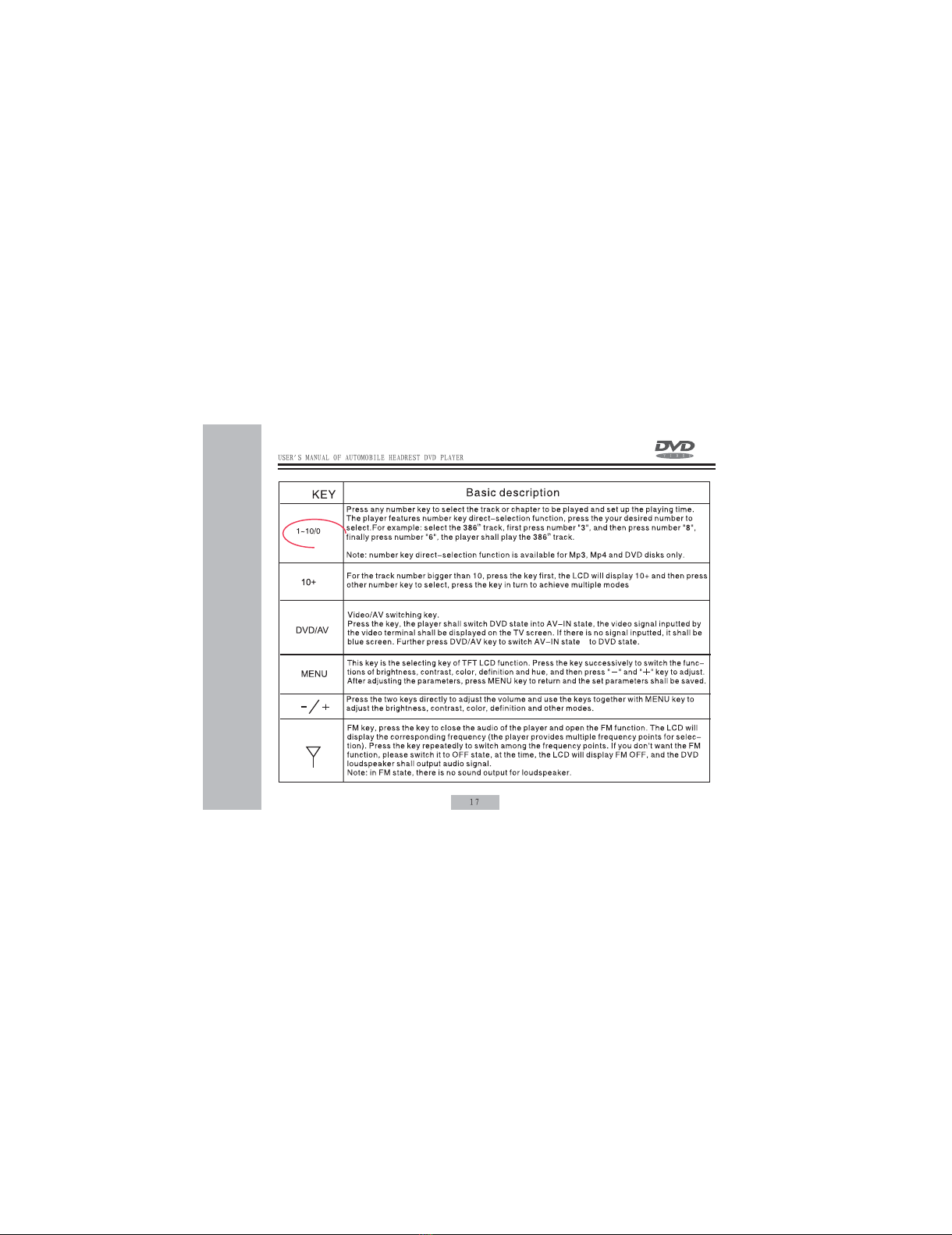

Number key and 10+ key
Video switch key
Image function key
FM emitting
O Menu operation
、
SYSTEM SETUP
1.TV SYSTEM
2.AUTO PLAY
3.TV TYPE ................
4.PASSWORD and RATING ......
5.DEFAULT
LANGUAGE SETUP ............
1.DISPLAY LANGUAGE ........
2.Audio/Subtitle/menu language
AUDIO SETUP
VIDEO SETUP
Brightness/contrast/Hue/Saturation
SPEAKER SETUP ..............
DUAL MONO
P.Description for playing of disks
Playing Mp3 & JPEG disks
Disks available for this player
MPEG4 decoding technology
Q.Operation for game function
R.Troubleshooting
S.Technical specifications
6.TVfunction operation
Instruction .............. 22
26
30
27
25
TONE ..................... 24
All manuals and user guides at all-guides.com

Thank you to buy our product, please read the operation instruction carefully prior to operation
so as to use the player correctly, and please keep it appropriately for future reference.
01
VIDEO
USER'S MANUAL OF AUTOMOBILE HEADREST DVD PLAYER

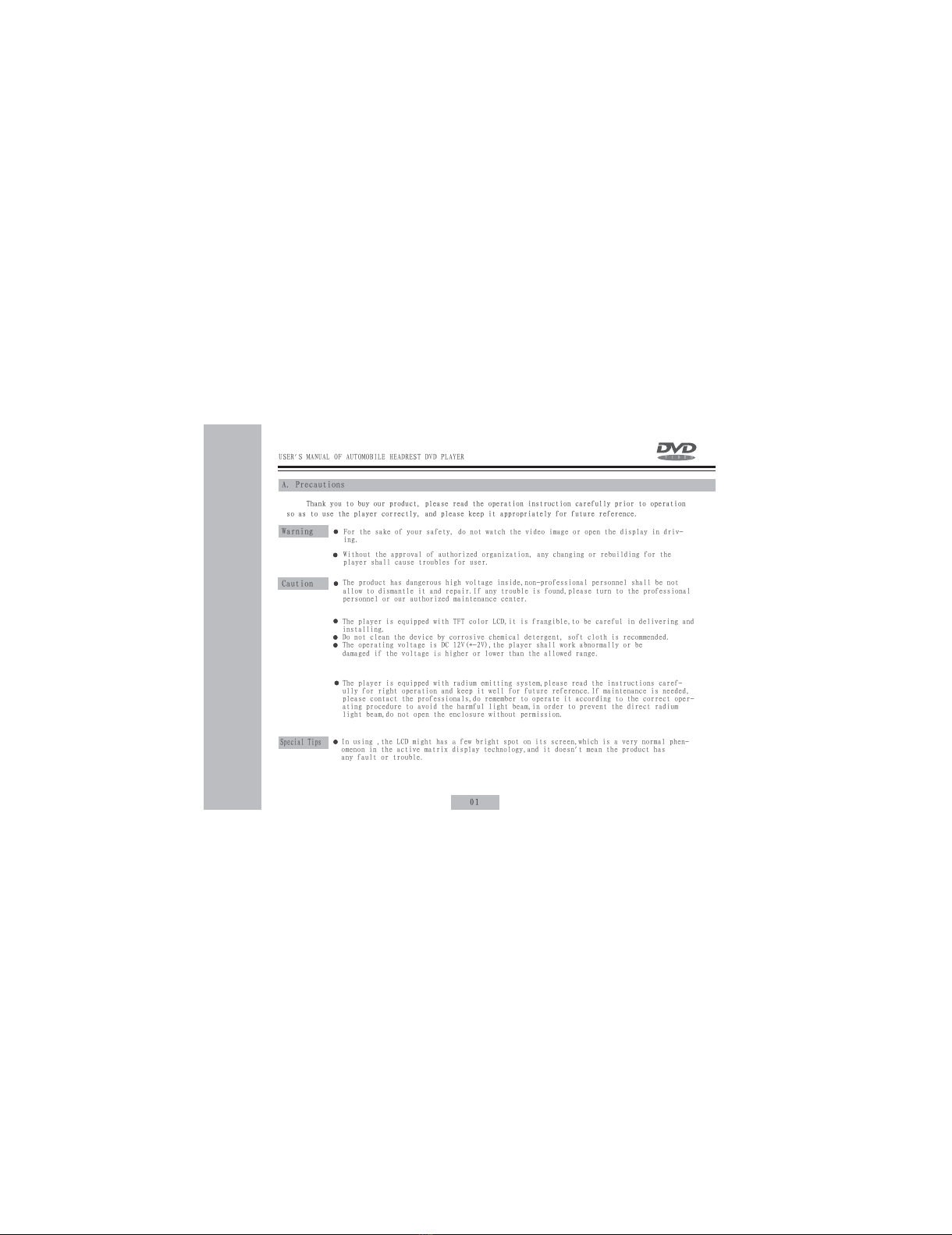

A. Precautions
Warning For the sake of your safety, do not watch the video image or open the display in driv-
ing.
Without the approval of authorized organization, any changing or rebuilding for the
player shall cause troubles for user.
Caution The product has dangerous high voltage inside,non-professional personnel shall be not
allow to dismantle it and repair.If any trouble is found,please turn to the professional
personnel or our authorized maintenance center.
The player is equipped with TFT color LCD,it is frangible,to be careful in delivering and
installing.
Do not clean the device by corrosive chemical detergent, soft cloth is recommended.
The operating voltage is DC 12V(+-2V),the player shall work abnormally or be
damaged if the voltage higher or lower than the allowed range.is
The player is equipped with radium emitting system,please read the instructions caref-
ully for right operation and keep it well for future reference.If maintenance is needed,
please contact the professionals,do remember to operate it according the correct oper-
ating procedure to avoid the harmful light beam,in order to prevent the direct radium
light beam,do not open the enclosure without permission.
to
In using ,the LCD might has few bright spot on its screen,which is a very normal phen-
omenon in the active matrix display technology,and it doesn't mean the product has
any fault or trouble.
a
Special Tips
All manuals and user guides at all-guides.com

02

VIDEO
USER'S MANUAL OF PLAYERAUTOMOBILE HEADREST
B. Notice before operation
Safety
Before operating the product,please check the voltage of your car and it should be consistent with the working
voltage of the player.
Do grasp the power plug firmly in connecting or disconnecting to the power,do not pull the power line by force.
The radium emitting light beam used by the product is harmful to eyes,do not dismantle the enclosure without
permission and only the professional technicians are allowed to conduct the repair or maintenance.
Please operate the product in proper temperature,the storage temperature should be -30 C to 75 C, and the
working temperature should be -10 C to 55 C.
To prevent dust falling on the laser head,it shall affect the playing effect,if the head is dusted,please used
the laser head cleaning disk to clean.Refer to the instructions of purchased cleaning dish for detailed operation.
It should be damp-proof,crash-proof and pressure-proof.
Placement
Dew
In the ,moisture shall form on the lens(dew formation):
Carry the player from the cold place to warm place;
In the condition of big temperature difference such as at the moment of
opening the heating device;
If the dew is formed,it shall affect the normal work of the player,and
please remove out the disk,lay the player on table for one hour under
the condition of connecting to power so as to vapor the mois ure.
following circumstance
t
Precautions for disk
In order to keep the disk clean,please take the edge of disk and do not touch its surface;
Do not adhibit any paster or tape on the disk;
Keep the disk away from direct sunshine or heat source;
Please place the disk in the disk box after being used;
Before playing the disk,if the disk is dirt ed,please clean it with soft cloth from the center to edge;
Do not use vo atile oil and thinner to clean the disk.
i
l
All manuals and user guides at all-guides.com

03
VIDEO

USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
C. Accessories
Please check the following accessories after opening the package.
Remote controller USER'S MANUAL
User's
Manual
Av input&output line wireless game handles
USB connection line
Game disk
Note: it is equipped on these
Players having game function
Game handles
Note: it is equipped on these
Players having game function
Note: it is equipped on these
Players having USB function
Antenna ties
Hardware accessories
According to your requirement
All manuals and user guides at all-guides.com
all-guides.com

04
 

VIDEO

USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
D. Feature
Easy to install and it will not damage the car and the user might install it by himself;
No additional player is needed for the integration of display and player;
Built-in FM stereo emitting function,it could be connected wirelessly with the original car
FM radio part and enjoy the sound box effect through the loudspeaker of radio;
The input ports of audio and video are provided for the connection with GPS navigation system;
Audio and video output function and they are installed at the two side of car by pair to support
the synchronous eyjoyment of video image;
With USB and card reading function,the user might use USB disk or SD/MS/MMC card to download
MP3/MP4/WMA to play through PC.
DVD
VCD 12cm/8cm
CD
Mp3
Mp4
12cm/8cm
12cm/8cm
12cm/8cm
12cm/8cm
WMA
JPEG
12cm/8cm
12cm/8cm
WMA
VIDEO CD
4
JPG
500 LINES
240 LINES
MPEG2
MPEG1
MPEG4
TYPE
DISK SYMBOL
RECORD
FORMAT
HORIZONTAL
DEFINITION
RECORD CONTENT DISK SIZE
240 LINES
500 LINES
Digital
Digital
Digital
Audio
Audio+Video
Audio
Audio
Audio+Video
Audio+Video
E. Video disk type
All manuals and user guides at all-guides.com

05

VIDEO
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
F. System connection and installation
Check whether the shape and installation size is suitable,please select and employ suitable accessories and tool in
disassembling and assembling.
Note: the shape and installation size are not suitable for all cars, please select the suitable shape
and installation size.
The install method:
Takes down the original installation head rest, to select and match the steel pipe according to the original
installation pole diameter for the head rest that having the DVD monitor,then the adjustment head rest steel
pipe spacing, passed the power source and the audio frequency lines through the chair steel pipe, and connected
on the power source, the sound and video frequency system with the vehicle. simultaneously the head rest will
be fixed,and will freely to adjust the height, around size based on the front seat personnel request.
The Antenna (connection the main engine radio antenna with the automobile,
enhancement the effects of the frequency modulation launches)
GAME1 GAME2 SD/MS/MMC USB AV-OUT
MENU
FMTX DVD/AV
POWER
OPEN
130-190mm
4
Red +12V
Black grounding
Yellow video
Red right channel
White left channel
INPUT PORT
Fuse box
The spare steel pipe
OUTPUT PORT
Yellow video
Red right channel
White left channel
A/B
All manuals and user guides at all-guides.com

GAME1 GAME2 SD/MS/MMC USB AV-OUT
MENU
FMTX DVD/AV
POWER
OPEN
06
VIDEO
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
TFT LCD
Switch key of IR A/B
Stop key
Power key

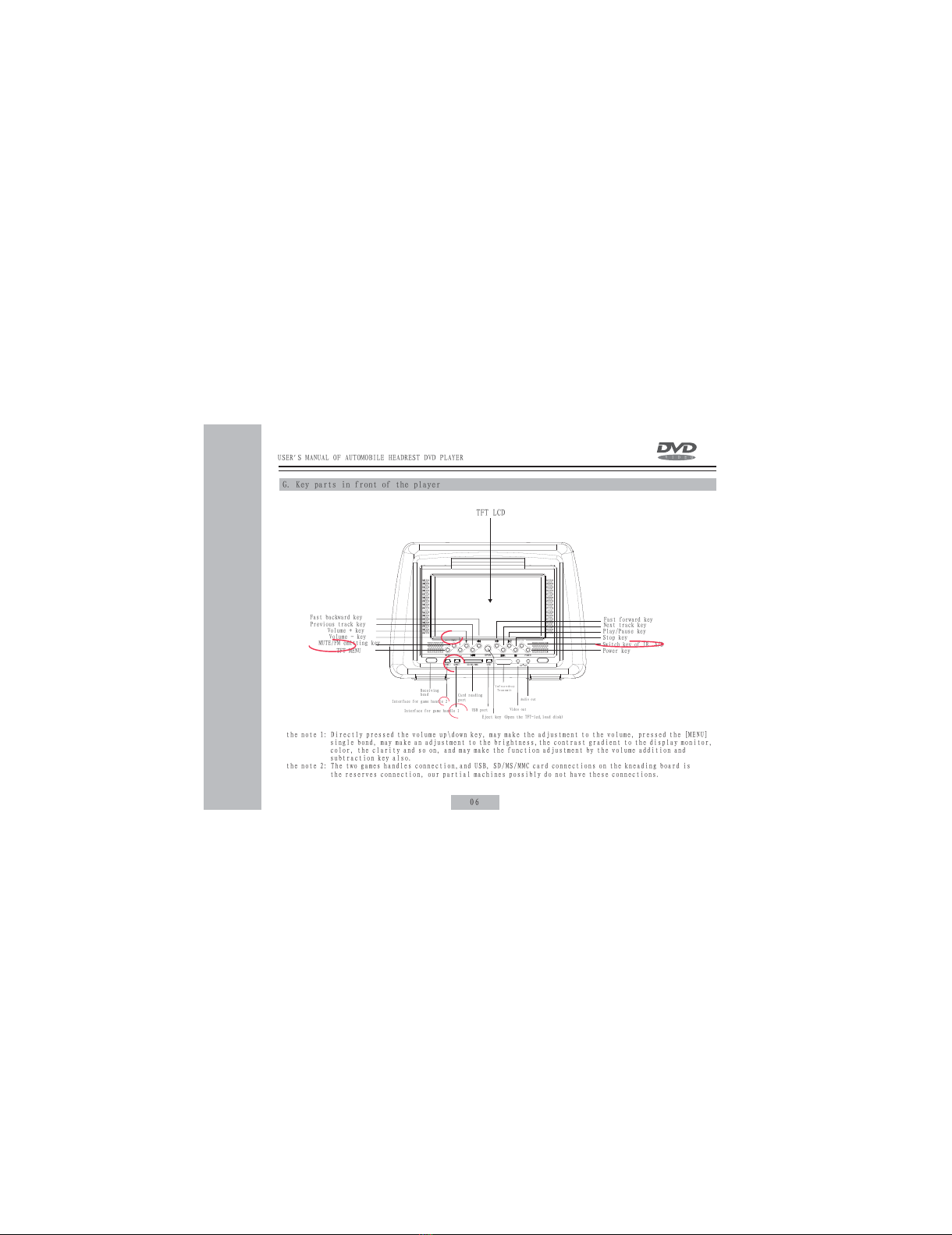

G. Key parts in front of the player
Play/Pause key
Next track key
Fast forward key
Audio out
Video out
Receiving
head
Eject key (Open the TFT-lcd,load disk)
Card reading
port
USB port
Interface for game handle 2
Interface for game handle 1
TFT MENU
MUTE/FM emitting key
Volume - key
Volume + key
Previous track key
Fast backward key
the note 1: Directly pressed the volume up\down key, may make the adjustment to the volume, pressed the [MENU]
single bond, may make an adjustment to the brightness,the contrast gradient to the display monitor,
color, the clarity and so on, and may make the function adjustment by the volume addition and
subtraction key also.
the note 2: The two games handles connection,and USB, SD/MS/MMC card connections on the kneading board is
the reserves connection, our partial machines possibly do not have these connections.
IR A/B
Infraredray
Transmit
MUTE/
21
All manuals and user guides at all-guides.com

07

VIDEO
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
H. Key parts at the player
Laser head lens
The laying position
of the small disk
The enable turned TFT screen
notice: Please carefully turns on the display monitor when vehicles start , please close
the display monitor after well the small dish as soon as possible, in order to
avoid damage to the display monitor.
putting
All manuals and user guides at all-guides.com

08
1
2
3
CR2025
VIDEO
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
I. Battery installation of remote controller
Take the positions A and B by fingers
(see the figure), press A per the arrowhead
direction and then take out the battery holder.
Take out the used battery and load the
new battery with anode upwards.
Battery (Cr2025)
Place the battery holder back to
its original position
Cautions:
In order to prevent the battery
leakage,if the remote controller
shall be not used for long time
(longer than one month),please take
out the battery, if there is liquid
flowing out, wipe away carefully and
then reload the new battery.
a
All manuals and user guides at all-guides.com
all-guides.com

09
。
。
VIDEO

< 5 meters
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST

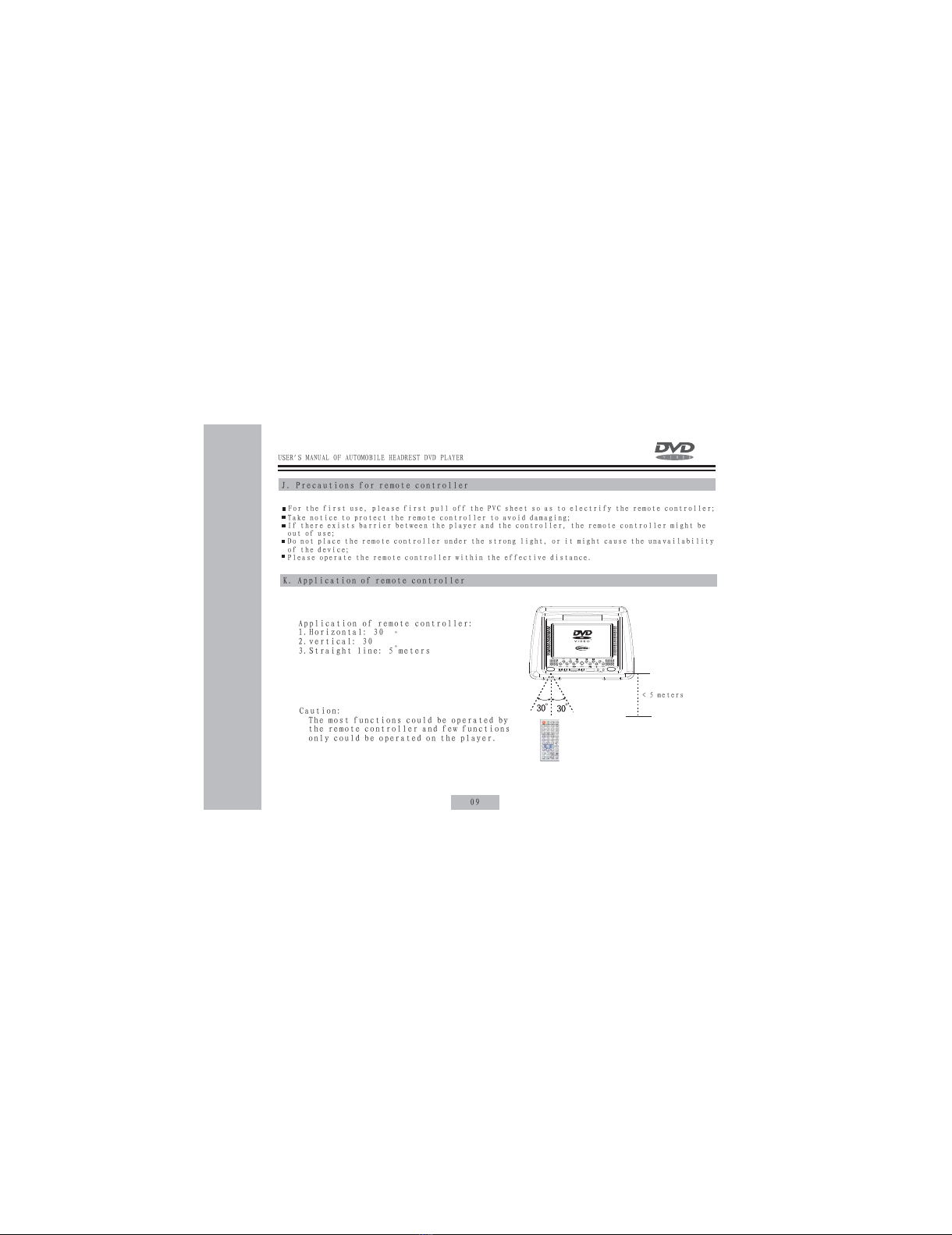

J. Precautions for remote controller
For the first use, please first pull off the PVC sheet so as to electrify the remote controller;
Take notice to protect the remote controller to avoid damaging;
If there exists barrier between the player and the controller, the remote controller might be
out of use;
Do not place the remote controller under the strong light, or it might cause the unavailability
of the device;
Please operate the remote controller within the effective distance.
K. Application of remote controller
Application of remote controller:
1.Horizontal: 30
2.vertical: 30
3.Straight line: 5 meters
Caution:
The most functions could be operated by
the remote controller and few functions
only could be operated on the player.
4
GAME1 GAME2 SD/MS/MMC USB AV-OUT
MENU
FMTX DVD/AV
POWER
OPEN
IR A/B
All manuals and user guides at all-guides.com

10
VIDEO
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
L. Description for the pressing-keys of remote controller
Key Function
1. Root menu/PBC
Press the key to return to the root menu in playing DVD disk,
and open/close the PBC menu in playing VCD2.0 and SVCD.
2. Power
11. Title menu
Power ON/OFF
Press the key to return to the title menu in playing DVD disk.
4. Mute Open/close the sound
5. Number key Number selection
6. GOTO Select desired time to play
7. Display Display the disk information and playing time
8. Subtitle Subtitle switching, used for SVCD, DVD and Mp4
disks with multiple subtitles only
9. Program Track programming play
10. Slow Slow play
12. Language
13. Repeat Multiple modes of repeat play shall be available
14. Channel (R/L) Channel switching key
15. Setup Open/close DVD setup menu
16. Play/Pause Play or pause
17. Zoom Zoom in/out, multiple modes
18. Enter Confirmation
19. Direction key Direction selecting key
20. Stop/Return Stop key, press the key to return in playing
21. Vol+/- Adjust the volume
22. Fast forward/
backwardPlay
23. Previous/Next Select the previous or next track
24. Menu Switching the menu of LCD brightness, contrast,
,.
definition color and tint
Used with the menu key to adjust the brightness,
contrast,definition, color and tint.
25. Menu+/-
26. Video switch key Switching DVD and
AV input
27. FM key FM emitting key
1
2
5
7
11
8
18
15
19
25
24
27
4
3
6
9
10
13
14
17
20
22
23
21
26
16
12
LOGO
MEDIA
O
TITLE
3. Media
Function:You can switch between USB/SD/DISK
Language switching key, used for SVCD, DVD and Mp4
disks with multiple languages only
Fast forward or backward
All manuals and user guides at all-guides.com

11

VIDEO
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
M. Basic operations
The player may be used after being connected to the system.
1. Power ON/OFF
(1) Press the panel or the Power key at the top left angle of the remote controller, the power indicator shall be
turned off and the boot image shall be displayed, the player will read the disk, if no disk inside, the LCD
shall tell No Disk.
(2) In Power ON state, further press Power key to power off the player and the indicator shall be turned on.
2. Load disk
(1)Press Eject key to open the disk door;
(2)Load the disk (with the label side upwards).
(3)Close the disk door.
(4)The player shall play the disk automatically.
3. Remove disk
(1)Press Stop key to stop playing;
(2)Press Eject key to eject the door;
(3)Take out the disk;
(4)Put the disk back to the package bag or box for storage.
Caution:
Be careful to take the disk, wrong operation shall damage the player;
Do not damage the disk, or the player shall be damaged;
Please keep the side with label upward if it's a single-side disk;
Be careful in playing two-side DVD disk for the two sides of the disk are available for playing;
Do not scratch the surface in taking the disk.
4. USB and card reading
(1)The external USB memorizer (USB disk) might be connected by the attached USB connection line. In the state of Power
OFF and no disk is loaded inside, connect the external memorizer to the corresponding USB port, and then press
Power key to power on the player, the device shall detect the signal source automatically (including video, audio
and image),and the player shall play automatically if the signal source format that complies with the player, is
detected.
(2)In the state of Power OFF and no disk is loaded inside, connect the external memorizing card (MS/SD/MMC card) to
the corresponding port, and then press Power key to power on the player, the device shall detect the signal source
automatically (including video, audio and image), and the player shall play in order automatically if the signal
source format that complies with the player, is detected.
(3)The contents of Mp3, WMA, Mp4 and JPEG formats could be downloaded from the internet through PC and be saved in
the USB disk or external memorizing card to play.
Caution:
Do not pull off the external memorizer when the player is connected with power, otherwise the
external memorizer or the player shall be damaged;
All signal sources that comply with the player might be played through the external memorizer;
Individual MP3 player couldn't play through USB device.
DVD
4
All manuals and user guides at all-guides.com


VIDEO
12
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
N. Functions of keys
KEY Basic description
Power key Open/close the power.
Eject key Open the disk door.
In normal playing state, press the key to pause to play image/sound. Further
press the key to resume to play normally.
Play/Pause
Press Fast backward key, the image shall be played backward quickly, at the time,
no sound shall be outputted, press the key successively, the player shall play
the disk repeatedly as per the following method;
Press Fast forward key, the image shall be played forward quickly, at the time,
no sound shall be outputted,press the key successively, the player shall play
the disk repeatedly as per the following method;
Fast forward (backward) X2 X4 X8 X20
Play
Press the Previous key to select the previous track to play.
Press the Next key to select the next track to play.
In playing VCD and CD disk, press" " (Stop/Return) key to display pre-stop
state, at the time, press Play key to resume to play; further press Stop key to
stop playing and return to the boot interface state. In playing DVD or VCD2.0
disk, it plays the role of returning menu, and of stopping playing in playing
menu. In playing game, press the key to return to the main menu of game.
Note: MP4 and DVD the function of pre-stop.doesn't have
Stop
Previous
Next
Fast backward
Fast forward
All manuals and user guides at all-guides.com

VIDEO
Slow 1/2 Slow 1/3 Slow 1/4 Slow 1/ 5 Slow 1/6 Slow 1 7/
Play
PBC
MENU
13
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
KEY Basic description
Slow
Play by the lower speed, press the key successively to make the player play
repeatedly, press " " (Play/Pause) key to resume to play normally.
In playing DVD disk:
Program
Setup of programming play: arrange the playing order of disk and then the player
shall play the disks as per the arranged order.
Note: the program key shall not be available unless PBC is closed, program is not
allowed for MP3 disks; DVD disk should be programmed for its track time and VCD
disks should be programmed for its track number. Finally, select Play key and the
player shall play the disks automatically as per the arranged order, at the time,
the number keys are not available, only the previous/next key could be used. If
you want to cancel the programming function, press Program key to enter the menu
interface and select Clear key and then press Enter key to confirm.
Repeat
Repeat play
Repeatedly play the selected title/chapter (DVD) or track/album (VCD/CD disk).
In playing DVD disk, press the key successively to select the title or chapter of
DVD to play.
For other types of disks, press Repeat key successively to select one track or
the album to play repeatedly.
In playing VCD2.0 or SVCD disk, the PBC menu function could be achieved by press
PBC key,the disks could only be played in order if PBC is closed. In playing DVD
disk, press the key to stop playing and return to the root menu of disk, press
direction key or number key to select your desired contents and press Enter key
to confirm, the player shall start to play as per the title or contents you set up.
Note: PBC is not available in playing Mp3, CD or VCD 1.1 disks.
All manuals and user guides at all-guides.com
all-guides.com

14
VIDEO
Title Chapter1/1 1/29 00 00 12
：：
2CH
2
3English /
TRACK 2/15
00 00 12
：：
VCD
PBC X
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
KEY Basic description
Display
Press Display key for the first time, the LCD shall display: (DVD state)
1) Disk format, current title number and total title number;
2) The Current chapter and total title number;
3) The playing of current title.
Further press the key to display:
Display the current language and the language number supported, channel type,
subtitle display language and angle type.
OFF NO
Press the key for the third time to display nothing.
The display (OSD) in playing VCD disk is as follows:
Display the disk format, current track and total track number, mute mode,
PBC mode, and the track number of repeat mode, and the track playing time.
The OSD of MP3 and CD disk is same with VCD except that VCD disk has PBC option.
Mute
Firstly press the Mute key, the player shall play the image without sound output,
further press the key to cancel the mute function and resume to play normally.
All manuals and user guides at all-guides.com

ZOOM 2 ZOOM 3 ZOOM4 ZOOM 1/2 ZOOM 1/3 ZOOM 1/4 ZOOM：OFF
15
VIDEO
TITLE 1/1 1/29CHAPTER 00 00 12
：：
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
Zoom
KEY Basic description
Press Zoom key to zoom in the image.
In playing, press Zoom key, the zoom mode shall be cycled as per the following order:
In Image Zoom state, press direction key" " to move the image.
GOTO
GOTO: start to play from the selected time.
Press GOTO key on the remote controller a time selection dialog box shall be skipped out,
move the cursor to the time number and input the time you want to select and then the player
shall start to play from the selected time.
then
Note: the setup of VCD disk is same with DVD disk, the input time couldn't exceed the longest
time of the disk.
AUDIO
DVD disk supports eight languages at most, repeatedly press Language key to select the diffe-
rent language to play.If the disk hasn't the language menu, the user may also change the lang-
uage by menu.
Note: language function is only used for these DVD and super VCD disks that have multiple
languages for selection.
Open/close the subtitle, select the subtitle on DVD disk and it's displayed on the TV screen,
which is related to the format of disk.
Subtitle is available only in the condition of the disk having subtitle function, the subtitle
function is achieved by the Subtitle key on the remote controller, press the key successively
to select different subtitles.
Subtitle
Title
Press Title key to stop playing and return to the title menu of disk, press direction key to
select your desired title and press Enter key to confirm to enter the chapter menu.
All manuals and user guides at all-guides.com

Stereo Left Channel Right Channel
16
VIDEO
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
KEY Basic description
Vol+
Vol-
Volume adjustment key
Adjust the volume by the Vol+ and Vol- key on the remote controller
Press the key to enter the setup menu to set up system, language, audio, video,
loudspeaker and dolby digit, in setup menu, press the key to exit the menu interface.
Setup
Up/Down/Left/Right key
Press the keys to select the disk content to be played and item to be set up as
well as to select the image part to be zoomed.
Direction key
Channel
In playing VCD or individual MP4 disk, press Channel key to change the channel mode:
Changing the channel mode might eliminate the original singer's sound of OK disk
and convert the dialogue language of some disks.
Note:
Channel function is not available for MP3, CD, WMA, JPG and individual MP4 disk.
MEDIA
DISC
CARD
USB
Function:You can switch between USB/SD/DISK
All manuals and user guides at all-guides.com

17
VIDEO
USER'S MANUAL OF DVD PLAYERAUTOMOBILE HEADREST
All manuals and user guides at all-guides.com
