Roadstar CDR-485US/BK User manual

Instructionmanual
Bedienungsanleitung
Manueld’instructions
Manualed’istruzioni
Manualdeinstrucciones
Manualdeinstruções
is a registered Trademark of Roadstar S.A. - Switzerland All rights reserved
PORTABLE STEREO FM/FM-STEREO
RADIO-PLAYER WITH CD/CD-R/CD-RW/
MP3 PLAYBACK, USB / SD / AUX-IN.
CDR-485US/BK

INDEX
• Your new unit was manufactured and assembled
under strict ROADSTAR quality control.
Thank-you for purchasing our product for your music
enjoyment.
Before operating the unit, please read this instruc-
tion manual carefully. Keep it also handy for further
future references.
• Votre nouvel appareil a été fabriqué et monté en
étantsoumisauxnombreauxtestsROADSTAR. Nous
espérons que cet appareil vous donnera entière sat-
isfaction.
Avant de vous adonner à ces activités, veuillez lire
attentivement ce manuel d’instructions. Conservezle
à portée de main à fin de référence ultérieure.
• Vuestro nuevo sistema ha sido construido según las
normas estrictas de control de calidad ROADSTAR.
Le felicitamos y le damos las gracias por su elección
de este aparado. Por favor leer el manual antes de
poner en funcionamiento el equipo y guardar esta
documentación en case de que se necesite
nuevamente.
• Ihr neues Gerät wurde unter Beachtung der strengen
ROADSTAR-Qualitätsvorschriften gefertigt.
Wir danken Ihnen für den Kauf unseres Produktes
und wünschen Ihnen optimalen Hörgenuss. Bitte
lesen Sie diese Bedienungsanleitung durch, und
heben Sie sie auf, um jederzeit darin nachschlagen
zu können.
• Il vostro nuovo apparecchio é stato prodotto ed
assemblato sotto lo stretto controllo di qualità
ROADSTAR.
Vi ringraziamo di aver acquistato un nostro prodotto
per il vostro piacere d’ascolto.
Prima di procedere all'utilizzo dell'apparecchio,
leggete attentamente il manuale d’istruzioni e
tenetelo sempre a portata di mano per futuri
riferimenti.
• Seu novo aparelho foi construido e montado sob o
estrito controle de qualidade da ROADSTAR.
Agradecemos por ter comprado nosso produto para
a sua diversão.
Antes de usar esta unidade é necessário ler com
atençâo este manual de instruções pare que possa
ser usada apropriadamente; mantenha o manual
ao seu alcance para outras informações.
CDR-485US/BK
English Page 1
Deutsch Seite 9
Français Page 17
Italiano Pagina 25
Español Página 33
Portuguès Pagina 41

English English
1 2
INSTRUCTION MANUAL
Please read this instruction manual carefully and familiarize yourself with your new Radio
Cassette/CD/USB/MMC Player before using it for the first time. Please retain this manual
for future reference.
LOCATION OF CONTROLS
The exclamation point within the triangle is a warning sign alerting the
user of important instructions accompanying the
product.
The lightening flash with arrowhead symbol within the triangle is a warn-
ing sign alerting the user of “dangerous voltage” inside the unit.
To reduce the risk of electric shock, do not remove the cover. No user
serviceable parts inside the unit. Refer all servicing to
qualified personnel.
This unit employs a laser. Only a qualified service person should re-
move the cover or attempt to service this device, due to
possible eye injury.
Invisible laser radiation when the unit is opened or interlocks defeated.
Avoid exposure to laser beam. Use of controls,
adjustments or procedures other than those specified herein may result
in hazardous radiation exposure.
This unit operates on 230V ~ 50Hz. If the unit is not used for a long period
of time, remove the plug from the AC mains.
This unit must not be exposed to moisture or rain.
Ensure all connections are properly made before operating the unit.
This unit should be positioned so that it is properly ventilated. Avoid
placing it, for example, close to curtains, on the carpet or in a built-in
installation such as a bookcase.
Do not expose this unit to direct sunlight or heat radiating sources.
Make sure all batteries are inserted according to the proper
polarity. Do not mix old batteries with new ones.
If the unit is not used for a long period of time (more than 1 month),
remove all batteries from their compartment to avoid possible leaking.
WARNINGS CDR-485US/BK
Portable Stereo Radio-player with CD/CD-R/CD-RW/MP3 playback, USB / SD
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
This marking shown on the product or its literature, indicates that it
should not be disposed with other household wastes at the end of its
working life. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details of
where and how they can take this item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed
with other commercial wastes for disposal.
1 FM Antenna
2Stand-By Button (ON-OFF Switch)
3 USB Port
4Speakers
5 Tuning Control
6 CD Open / Close corner
7Handle
8 Volume Control
9 Function Switch (RADIO/USB/SD/CDAUX)
10 AUX-IN Jack
11 CD PROGRAM/ P-MODE Button
12 Speakers
13 CD/USB/SD Forward Skip/Search Button ()
14 CD/USB/SD Back Skip/Search Button ()
15 LCD Display
16 AC Socket
17 CD/USB/SD Play/Pause Button
18 Equalizer Button
19 CD/USB/SD Stop Button
20 Battery Compartment
21 CD Compartment
22 Headphone output
23 Stand-By Indicatorn
24 SD Slot-IN

English English
3 4
RADIO OPERATION
COMPACT DISC OPERATION

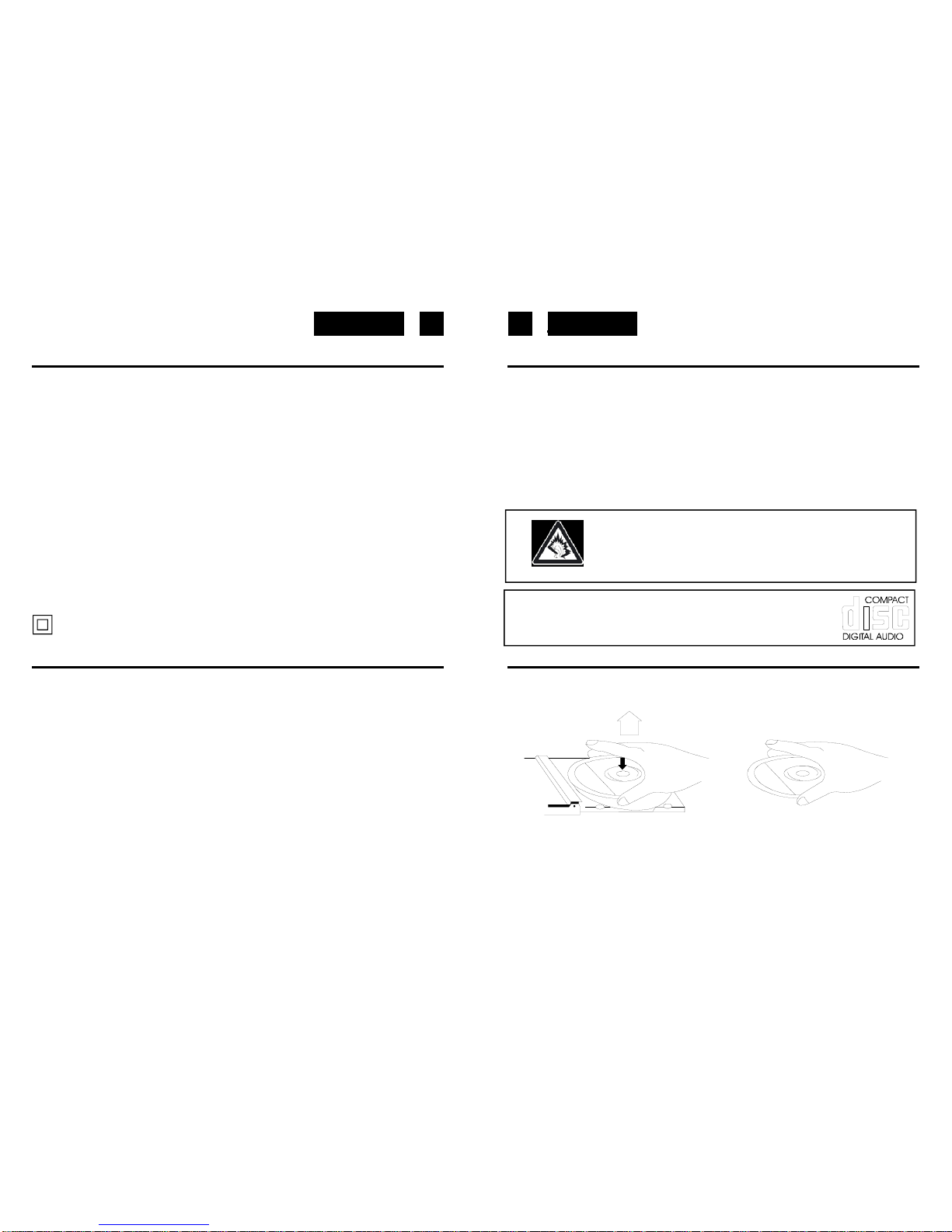

• To remove a disc from its storage case, press down on the centre of the case and lift the
disc out, holding it carefully by the edges.
• Fingerprints and dust should be carefully wiped off the disc's recorded surface with a
soft cloth. Unlike conventional records, compact discs have no grooves to collect dust
and microscopic debris so gently wiping with a soft cloth should remove most particles.
Wipe in a straight line from the inside to the outside of the disc. Small dust particles and
light stains will have absolutely no effect on reproduction quality.
CONNECTING TO POWER
Before switching on make sure that the voltage of your electricity supply is the same as
that indicated on the rating plate.
For your own safety read the following instructions carefully before attempting to connect
this unit to the mains.
MAINS (AC) OPERATION
This unit is designed to operate on AC 230V 50Hz current only. Connecting it to other
power sources may damage the unit.
Caution
To prevent electric shock disconnect from the mains before removing cover. No user
serviceable parts inside. Refer servicing to qualified service personnel.
Safety Precaution
Do not allow this unit to be exposed to rain or moisture.
Mains Supply: AC230Volts / 50Hz - AC only
This symbol means that this unit is double insulated. An earth connection is not
required.
POWER SUPPLY
• Remove the stereo carefully from the box, retaining the packaging for future use.
• Please read this instruction book carefully before operating this unit.
AC Power Operation
• Plug the supplied AC power cord into the AC power socket on the back of this portable
stereo. Connect the AC Power Cord to your AC household mains outlet and switch on
the mains supply. Make sure the voltage is compatible.
following the polarity diagram shown inside the battery compartment.
• Batteries should be removed form the compartment if the unit is not to be used for
some time.
• Flat batteries should be removed from the unit to avoid leakage.
Battery Operation
• Remove mains lead from the unit for battery operation.
• Open the Battery Compartment (20) at the back of the stereo and insert 8UM-1 batteries
• Never use chemicals such as cleaning sprays, antistatic sprays, benzine, or thinners
toclean compact discs. These chemicals can irreparably damage the disc’s surface.
Antenna
For FM reception there is a built-in telescopic FM antenna (1) at the rear of the unit. Extend
the antenna and move it around to obtain the best reception.
Playability of self-made CDs on Roadstar CD drive mechanisms.
CD-R/CD-RW in CD-DA and in MP3 format canbeplayedback.Howeveritcan
occur,duetodifferences in the quality of the media as wellas the characteristics
of the recording, that individual self-made CDs cannot be read. This does not
indicate an incorrect function of the playback unit in these cases.
1. Press Source (9) and set the Function Selec the TUNER function.
2. Tune to the desired radio station by turning the Tuning control (5).3. Adjust the
Volume (8) control to the desired level.
4. To turn off the radio, press the Stand-By button (2).

English English
5 6
• Discs should be returned to their cases after use. This avoids serious scratches that
could cause the Laser pickup to skip.
• Do not expose discs to direct sunlight, high humidity, or high temperatures for extended
periods. Long exposure to high temperatures can warp the disc.
• Do not stick paper or write anything with a ballpoint pen on the label side of the disc.
compartment with the label side facing up. Locate 3” discs, on the central spindle in the
compartment.
4. Close the door by pressing on the corner of the CD door.
The total number of tracks appears on the display:Press PLAY/PAUSE Button (II ) (17)
During playback, the actual track appears.
5. Adjust the VOLUME control to your desired listening level.
6. To stop playback temporarily, press the PLAY/PAUSE (II ) button (17) once. The Play
indicator will flash on the display. Press the PLAY/PAUSE (II ) button again to resume
playback.
tracks.
LOCATING A PARTICULAR TRACK OR POINT OF THE TRACK
1. Press the SKIP Back ()(14) button once to go back to the beginning of the current
track.
2. Press the SKIP Back button repeatedly to go back to previous tracks.
3. Press the SKIP Forward ()(13) button repeatedly to go to next tracks.
4. Press and hold either SKIP Forward or SKIP Back button to search backwards or
forwards, at high speed, a particular point of track.
Note: Low level audio will be heard during the search process to assist in locating the
correct point in the track.
4. To repeat the the entere disc, press the PROGRAM/ P-MODE button(11) 3times.
will l appear on the display.
Press the P-MODE button repeatedly until the indicator disappears fromthe
display to cancel all repeat.
CD/MP3/USB PLAYBACK
‘ compare on the display.
The CD will start single repeat playback until STOP button (19) is pressed. Press the
PROGRAM/ P-MODE button (11) button 4 times more to cancel single repeat. The
indicator disappears from the display.
3. To repeat the entire FOLDER, press the PROGRAM/ P-MODE button (11) twice. will
appear FOLDER on the display (MP3 mode only).
Press the PROGRAM/ P-MODE button (11) button 3 times more to cancel all disc
repeat. The indicator FOLDER disappears from the display.
Concerning Compact Discs
Only compact discs identified with this mark can be used with
this player.
Playability of self-made CDs on Roadstar CD drive mechanisms.
CD-R/CD-RW in CD-DA and in MP3 format can be played back. However it can occur,
due to differences in the quality of the media as well as the characteristics of the
recording, that individual self-made CDs cannot be read. This does not indicate an
incorrect function of the playback unit in these cases.
7. To stop playback, press the STOP () (19) button once.
8. To switch OFF the unit press the Stand-By button (2).1. Press the PLAY/PAUSE button (17)
2. To repeat the same track, press the PROGRAM/ P-MODE button (11) once. The indicator.
Notes:
• When the CD door is accidentally opened during playback, "OPEN"will appear on
the display.
• Wait until the disc is fully stopped before opening the CD (2) compartment.
• This unit can play 3" (8cm) single CDs without an adaptor.
REPEAT PLAYBACK WITH CD / USB / SD - MP3
Loading and Unloading Compact Discs
1. Press the Source Selector (9) to select CD function.
2. Open the disc compartment by lifting the CD OPEN corner (6).
3. When the door has opened, remove a disc from its case and place it carefully in the
Loading MP3 files from a USB memory Stick or SD
1. Press the Source Selector (9) to select USB or SD.
2. Press the PLAY/PAUSE/USB button (17)few seconds until ‘USB’ is shown on the display.
3. Connect the MP3 player to the USB port to switch it on.
4. Once playing, the USB MP3 track can be selected in the same way as the CD
