RCR - 4900BL

PART NUMBER DESCRIPTION UNIT SUBSITUTE QUANTITY

10211001702 AM IFT COIL CEC-A17YELLOW PC 0 1

10221000302 FM IFT 10MM,ORANGE (COILS) FM PC 0 1

10221000602 FM IFT/DES. 10MM (COILS) BLUE PC 0 1

1022722400B FM OSC COIL 7MM BRACKET 0.6MM PC 0 1

10281002902 AM OSC COIL CEC-A29 RED PC 0 1

1028160000E REC OSC COIL BLACK LH-0019 PC 0 1

10321201012 AM ANT.COIL 120:10T 4X120MM PC 0 1

10403514508 WOUND COIL T=3.5 ID=4.5 PC 0 1

10731070026 CERAMIC FILTER SFE10.7MA5 10.7 PC 4 0

10731070096 CERAMIC FILTER SEF10.7MA5-A PC 4 1

107488108AA BAND PASS FILTER (GFMB3S) PC 0 1

1115131912J ROTARY POTEN TIOMETER WHX162-2 PC 0 1

11310080517 CARBON FILM RESISTOR 10 OHM PC 0 4

11310180517 CARBON FILM RESISTOR 100 OHM PC 0 1

11310280517 CARBON FILM RESISTOR 1K OHM PC 0 3

11310380517 CARBON FILM RESISTOR 10K OHM PC 0 2

11310480517 CARBON FILM RESISTOR 100K OHM PC 0 8

11318280517 CARBON FILM RESISTOR 1.8K OHM PC 0 1

11322010512 CARBON FILM RESISTOR 22 OHM PC 0 1

11322080517 CARBON FILM RESISTOR 22 OHM PC 0 1

11322180517 CARBON FILM RESISTOR 220 OHM PC 0 1

11322280517 CARBON FILM RESISTOR 2.2K OHM PC 0 3

11322380517 CARBON FILM RESISTOR 22K OHM PC 0 1

11322580517 CARBON FILM RESISTOR 2.2M OHM PC 0 2

11327180517 CARBON FILM RESISTOR 270 OHM PC 0 1

11333280517 CARBON FILM RESISTOR 3.3K OHM PC 0 5

11347080517 CARBON FILM RESISTOR 47 OHM PC 0 3

11347180517 CARBON FILM RESISTOR 470 OHM PC 0 1

11347280517 CARBON FILM RESISTOR 4.7K OHM PC 0 1

11347380517 CARBON FILM RESISTOR 47K OHM PC 0 6

11347910512 CARBON FILM RESISTOR 4.7 OHM PC 0 1

11347940575 METAL OXIDE FILM RESISTOR 4.7 PC 0 1

11356280517 CARBON FILM RESISTOR 5.6K OHM PC 0 2

11368180517 CARBON FILM RESISTOR 680 OHM PC 0 1

11368280517 CARBON FILM RESISTOR 6.8K OHM PC 0 2

11382280517 CARBON FILM RESISTOR 8.2K OHM PC 0 1

12308035013 CERAMIC CAP. 8PF 50V +-10% PC 0 1

12310435010 CERAMIC CAP. 0.1 MFD 50V +-10% PC 0 1

12312035013 CERAMIC CAP. 12PF 50V +-10% PC 0 1

12315035010 CERAMIC CAP. 15 PF 50V +-10% PC 0 1

12315035013 CERAMIC CAP. 15 PF 50V +-10% PC 0 1

12320335010 CERAMIC CAP. 0.02 MFD 50V +-10 PC 0 9

12330035010 CERAMIC CAP. 30 PF 50V +-10% PC 0 2

12333135010 CERAMIC CAP. 330 PF 50V +-10% PC 0 2

12347335010 CERAMIC CAP. 0.047 MFD 50V PC 0 2

12610207101 MYLAR CAP. 0.001 MFD 50V +-10% PC 0 1

12610307101 MYLAR CAP. 0.01 MFD 50V +-10% PC 0 2

12618207101 MYLAR CAP. 0.0018 MFD 50V PC 0 1

12622207101 MYLAR CAP. 0.0022 MFD 50V PC 0 5

BILL OF MATERIALS

RCR - 4900BL

PART NUMBER DESCRIPTION UNIT SUBSITUTE QUANTITY

12622307101 MYLAR CAP. 0.022 MFD 50V +-10% PC 0 2

12633207101 MYLAR CAP. 0.0033 MFD 50V +-10 PC 0 2

12668207101 MYLAR CAP. 0.0068 MFD 50V PC 0 2

12710407801 ELECT.CAP. 0.1 MFD 50V +80% PC 0 1

12710507801 ELECT.CAP.1 MFD 50V +80% -20% PC 0 10

12710603801 ELECT. CAP. 10 MFD 10V PC 0 4

12710703801 ELECT. CAP. 100 MFD 10V PC 0 4

12722607801 ELECT.CAP. 22 MFD 50V +80% PC 0 2

12722703801 ELECT. CAP. 220 MFD 10V PC 0 4

12722705801 ELECT.CAP. 220 MFD 25V +80% PC 0 1

12733503801 ELECT. CAP. 3.3 MFD 10V PC 0 1

12733805801 ELECT CAP. 3300 UF 25V 80% -20 PC 0 1

12747407801 ELECT. CAP. 0.47 MFD 50V PC 0 1

12747504801 ELECT. CAP. 4.7 MFD 16V PC 0 1

13013414800 SILICON DIODE 1N4148 PC 0 8

13021263800 AFC DIODE IS2638 (HITACHI) PC 0 1

13031400200 RECTIFIER DIODE 1N4002 PC 0 9

13031540100 RECTIFIER DIODE 1N5401 PC 0 4

130410051C8 ZENER DIODE 5.1V 1/2W PC 0 1

130410091C8 ZENER DIODE 9.1V 1/2W +-5% PC 0 1

13051012400 LED LAMP RED 3MM TLR124 PC 0 2

1312DG8050C TRANSISTOR 8050C PC 0 1

1313DG88200 SI-NPN 2SD882 HFE:200-400 PC 0 1

1313DG9014C SI-NPN TR 3DG9014C (JE9014C) PC 0 3

13320182416 I.C. LA1824 (SANYO) PC 0 1

13320330818 I.C. BA 3308 (ROHM) PC 20 0

13320960884 CD9608 CS DUAL O/P W/ALC SIP-9 PC 20 1

13322224161 SAMSUNG KA22241 PRE-AMP PC 20 0

14102241209 BAND SW. 2P2T SK-22F02G9 PC 0 1

14409201205 PUSH SW. PS92D04 NS 9P2T PC 0 1

14504311109 SLIDE SWITCH SS43D01 (4C-3P) PC 0 2

16010225522 WAFER PITCH=2.5MM 2PINS PC 0 3

16010325522 WAFER PITCH=2.5MM 3 PINS PC 0 1

16010420525 WAFER 4P JST 2MM STRAIGHT PC 0 1

16010425522 WAFER PITCH=2.5MM 4 PINS PC 0 1

16010520525 5 PIN JST WAFER 2MM PITCH PC 0 1

16010820525 WAFER JST STRAIGHT TYPE 8P PC 0 3

16112350120 HEADPHONE SOCKET D=3.5MM PC 5 0

16112350121 HEADPHONE SOCKET D=3.5MM PC 5 1

17212601004 STRD. J.WIRE UL1007 AWG26 PC 0 1

17212601200 STRD. J.WIRE UL1007 AWG26 PC 0 2

17212603000 STRD. J.WIRE UL1007 AWG26 PC 0 1

17212603002 STRD. J.WIRE UL1007 AWG26 PC 0 1

17212603009 STRD. J.WIRE UL1007 AWG26 PC 0 1

190238A0100 MAIN PCB 94HB PC 0 1

190238A0200 TUNER PCB PC 0 1

190238A0800 VOLUME PCB PC 0 1

190238A1600 BATT.PCB PC 0 1

1910800225C 8PINS D.SHIELD WIRE UL2854 #30 PC 0 1

RCR - 4900BL

PART NUMBER DESCRIPTION UNIT SUBSITUTE QUANTITY

1910800355C 8PINS D.SHIELD WIRE UL2854 #30 PC 0 1

1910800505C 8PINS D.SHIELD WIRE UL2854 #30 PC 0 1

19120004002 2 PIN FLAT CABLE UL AWM2468 AW PC 0 2

19120006002 2PIN FLAT CABLE UL AWM2468 AWG PC 0 1

19130001802 DOUBLE SHIELD WIRE UL2547 L= PC 0 1

19140002902 4PIN 2.5MM HOUSING W/UL WIRES PC 0 1

19140003065 4 PIN FLAT CABLE UL AWM2468 PC 0 1

19150001265 5 PIN FLAT CABLE UL AWM 2468 PC 0 1

54002004001 BRASS EYELET 2X4MM PC 0 10

58010126101 CABLE TIE L=100MM PC 0 7

75006310100 SOLDERING LUG LEG:8X4MM PC 0 2

75006310200 SOLDERING LUG. SP-7 TIMEMAKER PC 0 1

781932A1100 HEAT SINK ALUMINIUM 30 X 38MM PC 0 1

11310280517 CARBON FILM RESISTOR 1K OHM PC 0 1

11310380517 CARBON FILM RESISTOR 10K OHM PC 0 1

11310480517 CARBON FILM RESISTOR 100K OHM PC 0 2

11312180517 CARBON FILM RESISTOR 120 OHM PC 0 2

11318280517 CARBON FILM RESISTOR 1.8K OHM PC 0 2

11347180517 CARBON FILM RESISTOR 470 OHM PC 0 2

11368380517 CARBON FILM RESISTOR 68K OHM PC 0 2

12310435010 CERAMIC CAP. 0.1 MFD 50V +-10% PC 0 2

12610407101 MYLAR CAP. 0.1 MFD 50V +-10% PC 0 2

12710503801 ELECT. CAP. 1 MFD 10V +80%-20% PC 0 2

12710705801 ELECT. CAP. 100 MFD 25V +80% PC 0 3

12722704801 ELECT. CAP. 220 MFD 16V PC 0 2

12747407201 ELECT. CAP 0.47 UF 50V +-20% PC 0 1

12747604801 ELECT. CAP. 47 MFD 16V PC 0 2

13320541518 I.C. BA5415 POWER AMP (ROHM) PC 0 1

1662850306H “SPK 3”” 8 OHM 5-7W W/SIL CAP” PC 0 2

50430500810 MACHINE SCREW 3 X 8 B/M PC 0 1

51530341010 SELF-TAPPING SCREW 3 X 10 PC 0 2

78188130500 ALUMINIUM HEAT SINK PC 0 1

10312852512 LW ANT. COIL 285:25T 4X120MM PC 0 1

10522210002 FIXED INDUCTANCE 2.2MH +-10% PC 0 1

10730046506 AM CERAMIC FILTER 465KHz PC 0 1

11310380517 CARBON FILM RESISTOR 10K OHM PC 0 2

11312380517 CARBON FILM RESISTOR 12K OHM PC 0 1

11315480517 CARBON FILM RESISTOR 150K OHM PC 0 1

11347280517 CARBON FILM RESISTOR 4.7K OHM PC 0 2

1201104031B P.V.C ST206 AM:126PX2 FM:20PX2 PC 0 1

12230010001 TRIMMER CAPACITOR 30 PF PC 0 2

12310035010 CERAMIC CAP. 10 PF 50V +-10% PC 0 1

12312135010 CERAMIC CAP. 120 PF 50V +-10% PC 0 1

12318135010 CERAMIC CAP. 180 PF 50V +-10% PC 0 2

12320337030 CERAMIC CAP. 0.02 MFD 50V +80% PC 0 5

13013414800 SILICON DIODE 1N4148 PC 0 2

1313DG9014C SI-NPN TR 3DG9014C (JE9014C) PC 0 2

17910351000 UL PVC TUBE ID=3.5MM L=100MM PC 0 1

18322010002 FERRITE BAR Q2M 10X100MM PC 1 1

RCR - 4900BL

PART NUMBER DESCRIPTION UNIT SUBSITUTE QUANTITY

18322010009 FERRITE BAR Q2M 10X100MM GMAA PC 1 0

84004152011 PAD CORD SPACER 4T X 15W X 20L PC 0 1

11310180517 CARBON FILM RESISTOR 100 OHM PC 0 1

11310280517 CARBON FILM RESISTOR 1K OHM PC 0 2

11310380517 CARBON FILM RESISTOR 10K OHM PC 0 3

11310480517 CARBON FILM RESISTOR 100K OHM PC 0 4

11322180517 CARBON FILM RESISTOR 220 OHM PC 0 1

11322280517 CARBON FILM RESISTOR 2.2K OHM PC 0 1

11322380517 CARBON FILM RESISTOR 22K OHM PC 0 2

11327380517 CARBON FILM RESISTOR 27K OHM PC 0 2

11333380517 CARBON FILM RESISTOR 33K OHM PC 0 1

11339180517 CARBON FILM RESISTOR 390 OHM PC 0 1

11347280517 CARBON FILM RESISTOR 4.7K OHM PC 0 1

11347380517 CARBON FILM RESISTOR 47K OHM PC 0 2

11356280517 CARBON FILM RESISTOR 5.6K OHM PC 0 2

11382380517 CARBON FILM RESISTOR 82K OHM pc 0 1

12310435010 CERAMIC CAP. 0.1 MFD 50V +-10% PC 0 1

12320135010 CERAMIC CAP. 200 PF 50V +-10% PC 0 2

12615407101 MYLAR CAP. 0.15 MFD 50V +-10% PC 0 3

12620307101 MYLAR CAP. 0.02 MFD 50V +-10% PC 0 1

12647307101 MYLAR CAP. 0.047 MFD 50V +-10% PC 0 1

12682307101 MYLAR CAP. 0.082 MFD 50V +-10% PC 0 2

12710603801 ELECT.CAP.10 MFD 10V PC 0 1

12710705801 ELECT.CAP.100 MFD 25V +80% PC 0 2

12710705801 ELECT.CAP.100 MFD 25V +80% PC 0 1

12722503801 ELECT.CAP.2.2 MFD 10V +80% PC 0 1

12747403801 ELECT.CAP.0.47 MFD 10V PC 0 1

12747504801 ELECT.CAP.4.7 MFD 16V PC 0 2

12747603801 ELECT.CAP.47 MFD 10V PC 0 2

12747704801 ELECT.CAP.470 MFD 16V PC 0 2

13051012400 LED LAMP RED 3MM TLR124 PC 0 1

13123901403 TRANSISTOR 2SC9014C (HITACHI) PC 0 4

13320541518 I.C. BA5415 POWER AMP (ROHM) PC 0 1

13390455864 IC KIA4558P 8 PIN DIP KEC PC 0 1

14711010000 MICRO SW.:MASUSHITA:EVQ-PBD04M PC 0 2

1668821547H WOOFER SPEAKER (YD135-8B-PC) PC 0 1

51530340810 SELF-TAPPING SCREW 3 X 8 PC 0 2

78188130500 ALUMINIUM HEAT SINK PC 0 1

50020400810 MACHINE SCREW 2 X 8 P/M PC 0 2

50020450410 MACHINE SCREW 2.0 X 4 P/M PC 0 1

50026500510 MACHINE SCREW 2.6 X 5 P/M PC 0 1

51430011000 SELF-TAPPING SCREW 3 X 10 B/T PC 0 1

51626011210 SELF-TAPPING SCREW 2.6 X 12 PC 0 1

51630010810 SELF-TAPPING SCREW 3 X 8 P/T PC 0 6

51630011010 SELF-TAPPING SCREW 3 X 10 P/T PC 0 16

51630011200 SELF-TAPPING SCREW 3 X 12 P/T PC 0 7

51630011210 SELF-TAPPING SCREW 3 X 12 P/T PC 0 8

51630014210 SELF-TAPPING SCREW 3 X 42 P/T PC 0 4

51630020810 SELF-TAPPING SCREW 3 X 8 P/A PC 0 1

RCR - 4900BL

PART NUMBER DESCRIPTION UNIT SUBSITUTE QUANTITY

51630020810 SELF-TAPPING SCREW 3 X 8 P/A PC 0 1

51630021010 SELF-TAPPING SCREW 3 X 10 P/A PC 0 2

51640021600 SELF-TAPPING SCREW 4 X 16 P/A PC 0 8

51720620510 SELF-TAPPING SCREW 2.0 X 5 W/A PC 0 3

51726120810 SELF-TAPPING SCREW 2.6 X 8 W/A PC 0 1

51730311210 SELF-TAPPING SCREW 3 X 12 W/T PC 0 1

51730321010 SELF-TAPPING SCREW 3 X 10 W/A PC 0 2

51740043000 SELF-TAPPING SCREW 4 X 30 PC 0 8

62106630200 FELT PAPER 8X20X0.3MM PC 0 4

728238A0400 CD DOOR LOCKER (BLACK) {NEW} PC 0 1

730238A0100 SHAFT PC 0 2

73720331001 METAL WASHER OD=20 ID=3.3 T=1 PC 0 1

749183A0200 LIFT SWITCH HOLDER PC 0 1

76206220100 SPEAKER CLIP (HONESTY #260037) PC 0 8

771238A0100 CASS DOOR SPRING PC 0 1

773238A0100 BATTERY PLATE PC 0 1

774238A0100 BATT.SPRING PC 0 1

774238A0200 LOCK SPRING PC 0 1

774683A0100 BATT. SPRING (-) PC 0 1

777238A0100 CD DOOR SPRING PC 0 1

778238A0100 RECORD PLATE (0.6THK) PC 0 1

821238A0101 BATT SPONGE PC 0 1

821238A0301 BATT SPONGE PC 0 1

88103310100 BAND SWITCH FELT PC 0 1

918238A0200 SPK. COVER-BLACK MOULDED PC 0 2

923238A0100 CD DOOR ADAPTER PC 0 1

924238A0100 FALSE SPEAKER-BLACKED MOULDED PC 0 1

926238A0100 DIAL BRACKET PC 0 1

929238A0100 LED HOLDER-BLACK MOUDLED PC 0 3

95103230200 ANT. HOLDER (MOON WAH 1280) PC 0 2

98803380100 GEAR (BLACK MOULDED) PC 0 2

988238A0100 GEAR (A) PC 0 1

988238A0200 GEAR (B) PC 0 1

98933680100 GEAR HOLDER - BLACK MOULDED PC 0 2

101661888A2 P.X’FORMER EI-66 230V VDE APP. PC 0 1

14202202006 ROCKER SWITCH PS8-11-D-048 PC 0 1

16122065100 “AC SOCKET “”VDE & SEMKO APP.””” PC 0 1

171662072F0 AC CORD SET <3KG W/PLUG&SOCKET PC 0 1

17212204504 JUMPER WIRE UL1007 AWG 22 450 PC 0 2

18223315016 FUSE T3.15A 250V 5 X 20MM PC 0 1

44126A2384A “S.DK MOTOR EG530AD-2B””12"”O’CLK” PC 0 0

44126A2384H “S.DK MOTOR EG530AD-2B””12"”0’CLK” PC 0 1

51630010800 SELF-TAPPING SCREW 3 X 8 P/T PC 0 8

51630010810 SELF-TAPPING SCREW 3 X 8 P/T PC 0 3

703238A0102 SPK.GRILLE (L/R)-MATT.BLACK PC 0 2

703238A0202 WOOFER SPK.GRILLE-MATT.BLACK PC 0 2

RCR - 4900BL

PART NUMBER DESCRIPTION UNIT SUBSITUTE QUANTITY

76668680100 FUSE HOLDER PC 0 2

782238A0100 ANTENNA PC 0 1

83001120331 RUBBER FOOT Ì11.5 X 3.2 MM PC 0 4

851238A0101 BELT-BLACK BELT W/BLACK PARTS PC 1 0

851238A0201 BELT BLACK BELT W/BLACK PARTS PC 1 1

851238A0301 BELT-BLACK BELT W/BLACK PARTS PC 1 0

884238A0111 RATING PLATE-ROADSTAR DESIGN PC 0 1

887238A0201 “RATING PLATE (C)-””BEAT CUT””” PC 0 1

887238A0300 PVC COVER-BLACK PC 0 1

887238A0404 PVC PLATE-0.3MM FOR POWER SW. PC 0 1

900238A0105 F.CAB-CW11027 PURPLE W/3618MTL PC 0 1

902238A0102 REAR CAB-CW11027 PURPLE SPRAY PC 0 1

908238A0102 LEADER AIR TUBE-MATT BLACK PC 0 2

909238A0102 LEADER AIR COVER-MATT.BLACK PC 0 2

910238A0102 BATTERY DOOR-CW-11027 PURPLE PC 0 1

910238A0202 BATTERY COVER-CW-11027 PURPLE PC 0 1

911238A0106 CASS DOOR-ROADSTAR DESIGN PC 0 1

911238A0200 CASS BRACKET - BLACK MOULDED PC 0 1

918238A0102 WOOFER SPEAKER COVER-MATT PC 0 2

940238A0100 GEAR POINTER - WHITE MOULDED PC 0 1

949238A0102 HANDLE -3618 MTL GREY SPRAY PC 0 2

954238A0102 INSERT-CW11027 PURPLE PC 0 2

960238A0117 DIAL LENS-CL W/BLACK,PURPLE 27 PC 0 1

960238A1203 DISPLAY LENS-CL W/BLK,WHITE MT PC 0 1

961238A1102 CASS LENS-CLEAR W/BLACK WHITE PC 0 1

968238A0100 FUNCTION KNOB(A)-BLACK MOULDED PC 0 1

968238A0200 FUNCTION KNOB(B)-BLACK MOULDED PC 0 1

972238A0100 CASS KNOB-BLACK MOULDED PC 0 6

991238A0100 BAND KNOB-BLACK MOULDED PC 0 2

992238A0100 VOLUME KNOB-BLACK MOULDED PC 0 2

919238A0102 CD DOOR-3618 MTL GREY W/WHITE AP 0 1

937238A0102 CD BASE-CW-11027 PURPLE SPRAY PC 0 1

948238A0100 CD DOOR LOCK-BLACK MOULDED PC 0 1

11310080517 CARBON FILM RESISTOR 10 OHM PC 0 2

11310180517 CARBON FILM RESISTOR 100 OHM PC 0 2

11310280517 CARBON FILM RESISTOR 1K OHM PC 0 3

11310380517 CARBON FILM RESISTOR 10K OHM PC 0 8

11310480517 CARBON FILM RESISTOR 100K OHM PC 0 1

11312280517 CARBON FILM RESISTOR 1.2K OHM PC 0 2

11315380517 CARBON FILM RESISTOR 15K OHM PC 0 2

11318380517 CARBON FILM RESISTOR 18K OHM PC 0 1

11320280517 CARBON FILM RESISTOR 2K OHM PC 0 1

11322280517 CARBON FILM RESISTOR 2.2K OHM PC 0 1

11322380517 CARBON FILM RESISTOR 22K OHM PC 0 1

11327380517 CARBON FILM RESISTOR 27K OHM PC 0 1

11333180517 CARBON FILM RESISTOR 330 OHM PC 0 2

11333280517 CARBON FILM RESISTOR 3.3K OHM PC 0 8

11333380517 CARBON FILM RESISTOR 33K OHM PC 0 2

RCR - 4900BL

PART NUMBER DESCRIPTION UNIT SUBSITUTE QUANTITY

11333380517 CARBON FILM RESISTOR 33K OHM PC 0 2

11347380517 CARBON FILM RESISTOR 47K OHM PC 0 1

11356180517 CARBON FILM RESISTOR 560 OHM PC 0 5

11368280517 CARBON FILM RESISTOR 6.8K OHM PC 0 1

11368380517 CARBON FILM RESISTOR 68K OHM PC 0 1

12302034013 CERAMIC CAP. 2 PF 50V +-5% PC 0 1

12310335010 CERAMIC CAP. 0.01 MFD 50V PC 0 9

12310435010 CERAMIC CAP. 0.1 MFD 50V +-10% PC 0 8

12310435010 CERAMIC CAP. 0.1 MFD 50V +-10% PC 0 1

12315035013 CERAMIC CAP. 15 PF 50V +-10% PC 0 2

12315335010 CERAMIC CAP. 0.015 MFD 25V PC 0 1

12322235010 CERAMIC CAP. 0.0022 MFD 50V PC 0 2

12330235010 CERAMIC CAP. 0.003 MFD 50V +- PC 0 1

12347035010 CERAMIC CAP. 47 PF 50V +-10% PC 0 2

12347135010 CERAMIC CAP. 470 PF 50V +-10% PC 0 2

12347235010 CERAMIC CAP. 0.0047 MFD 50V PC 0 2

12347335010 CERAMIC CAP. 0.047 MFD 50V PC 0 5

12633307001 MYLAR CAP. 0.033MFD 50V +-5% PC 0 1

12710503801 ELECT. CAP.1 MFD 10V +80%-20% PC 0 3

12710703801 ELECT. CAP.100 MFD 10V PC 0 4

12722603801 ELECT. CAP.22 MFD 10V PC 0 2

12722703801 ELECT. CAP.220 MFD 10V PC 0 1

12747603801 ELECT. CAP.47 MFD 10V PC 0 9

12747604801 ELECT. CAP.47 MFD 16V PC 0 1

12747703801 ELECT. CAP.470 MFD 10V PC 0 1

13041005600 ZENER DIODE 5.6V 1/2W ROHM MTZ PC 0 1

1313CG1015G TRANSISTOR 3CG1015G(2SA1015GR) PC 0 1

131682655Y0 TRANSISTOR C2655Y (120-240) PC 0 1

1332092N014 .C.TA2092N 24PIN DRIVER PC 0 1

13330210914 IC TA2109F RF—AMP DRIVER 24 PC 0 1

13330945714 IC TC9457F-010 DSP+D/A MICOM PC 0 1

13553023803 LCD FOR 238A TOSHIBAIC MN15083 PC 0 1

13716934431 CERAMIC RESONATOR 16.934 MHZ PC 0 1

14302182118 LEAF SW #QAS-1229-4 PC 0 1

14711010000 MICRO SW.:MASUSHITA:EVQ-PBD04M PC 0 6

16010220525 WAFER 2P JST 2MM STRAIGHT PC 0 1

16010420525 WAFER 4P JST 2MM STRAIGHT PC 0 1

16010620525 WAFER 6P JST 2MM STRAIGHT PC 0 1

16010720525 WAFER JST STRAIGHT TYPE 7P PC 0 1

16010820525 WAFER JST STRAIGHT TYPE 8P PC 0 2

16010920525 WAFER 9P JST 2MM STRAIGHT PC 0 1

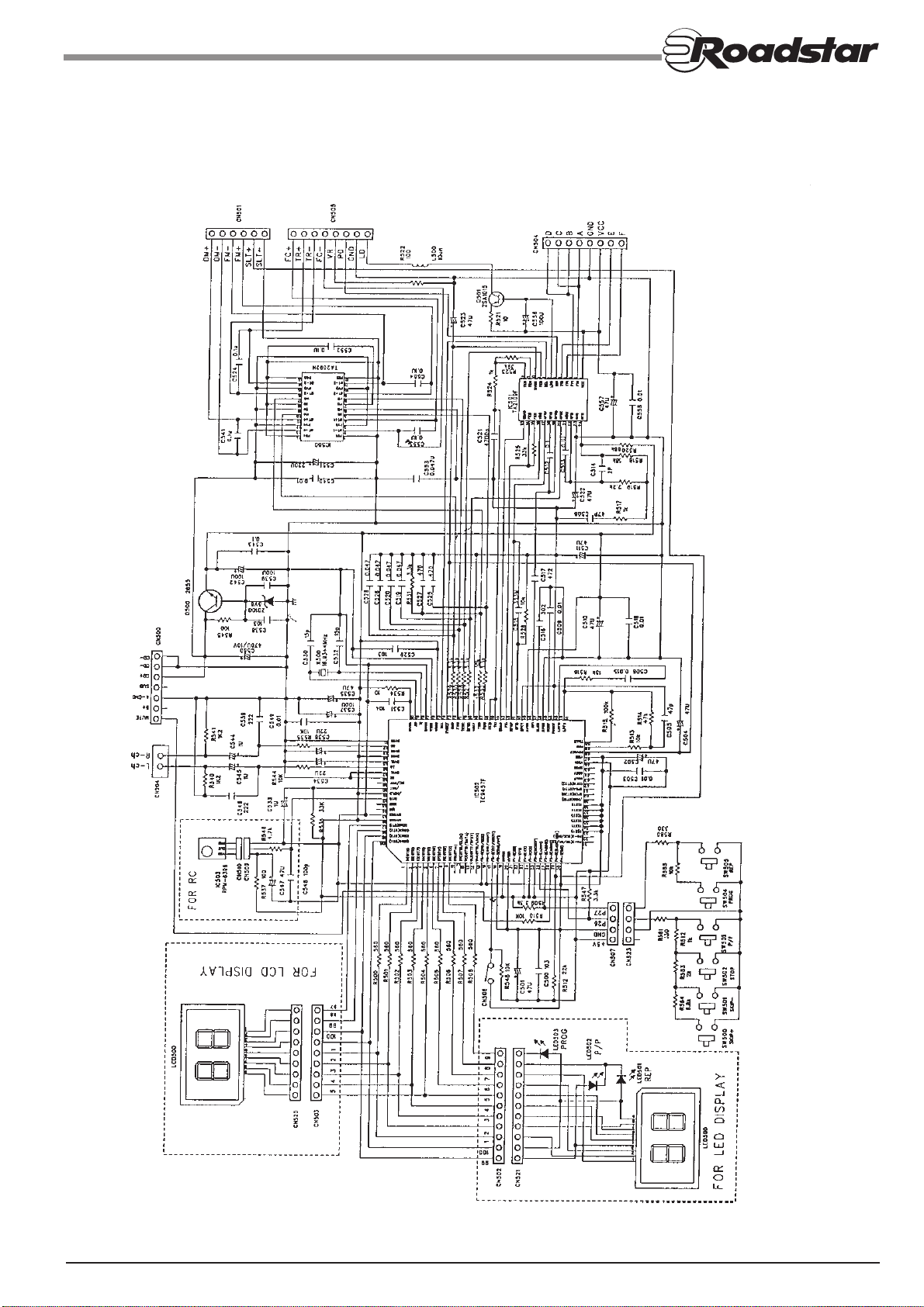

190238A1300 CD/RECORD PCB (FOR TOSHIBA CD- PC 0 1

190238A1500 CD KEY PCB (FOR TOSHIBA CD-MX PC 0 1

19100601505 1X6PIN JST P=2.0 L=150MM #28 PC 0 1

1910800170C 1-D.SHIELD WIRE UL2854 AWG#30 PC 0 1

19120001815 2PIN J.WIRE RED/BLK W/1 2MM PC 0 1

19140003065 4 PIN FLAT CABLE UL AWM2468 PC 0 1

RCR - 4900BL

PART NUMBER DESCRIPTION UNIT SUBSITUTE QUANTITY

19170001865 7PIN FLAT CABLE UL AWG26 L=180 PC 0 1

19180001705 1-RED, 7PCS WHITE #30 UL1007 PC 0 1

19190002265 9PIN FLAT CABLE UL AWM2468 AWG PC 0 1

44197TC32CD CD DECK THOMSON #TCP11VK W/CLU PC 0 1

52720400500 TAPE TILE SCREW M2 X 5 {BLACK} PC 0 4

5273CT11101 WASHER SCREW (ZINE COATING) PC 0 4

621238A0100 FELT PAPER ONE SIDE W/TAPE PC 0 1

728238A0200 CD DISPLAY BKT.(TOSHBIA) PC 0 1

737238A0100 METAL WASHER (0D=28 1D=17 PC 0 1

747THCD0101 FOCAL LENS COVER (FOR THOMSON) PC 0 1

75006310200 SOLDERING LUG. SP-7 TIMEMAKER PC 0 1

789238A0100 MAGNATIC RING PC 0 1

82203310400 SPONGE 10X10X10MM W/O TAPE PC 0 1

8343CD10300 CD CUSHION 30¯ <BLACK> PC 0 2

8343CD10400 CD CUSHION 50¯ (RED) PC 0 2

840238A0100 PAD CORD SPACER PC 0 1

990238A0100 CHUCKING PLATE FOR THOMSON PC 0 1

610238A0115 GIFT BOX-ROADSTAR DESIGN(W/CE, PC 1 0

610238A0201 GIFT BOX - ROADSTAR (A) DESIGN PC 1 1

611238A0118 CARTON-ROADSTAR DES.W/MDL NO PC 0 0,5

612238A0100 CARD BOARD-575(L)X290(W)X1.5(T PC 0 1

661238A0101 FUSE LABEL-FUSE 115¯C PC 0 1

661CD880103 THER.FUSE LABEL - PALLADIUM PC 0 1

662238A0101 BATTERY COMPARTMENT LABELS- PC 0 1

66321035699 SERIAL NO.LABEL-OC: GW-0356/99 PC 0 3

66838180104 CD CAUTION LABEL W/COATING PC 0 1

66838960101 CAUTION LABEL - ALBA DESIGN PC 0 1

670238A1502 I/M-ROADSTAR DESIGN PC 0 1

67818280114 CLASS 1 LASER LABEL -SOUNDWAVE PC 0 1

678238A0116 AC PLUG INSERTION WARNING PC 0 1

678238A0120 AC INPUT LABELS(AC 230V-50HZ) PC 0 1

67838180151 LASER LABEL (W/YELLOW,BLACK PC 0 1

68226035699 DATE CODE LABEL-OC: GW-0356/99 PC 0 1

6900689A003 WARRANTY CARD - ROADSTAR (A) PC 0 1

800238A0100 POLYFOAM BOTTOM (R) PC 0 1

800238A0200 POLYFOAM BOTTOM (L) PC 0 1

800238A0300 POLYFOAM TOP (R) PC 0 1

800238A0400 POLYFOAM TOP (L) PC 0 1

800238A0500 POLYBAR-260(L)X45(W)X42(H) PC 0 1

800238A0600 POLYBAR-200(L)X60(W)X30(H) PC 0 1

81004080408 “POLYBAG 4”” X 8"” X 0.04MM” PC 0 1

81009080459 “POLYBAG9””X8"”X0.04MM W/PE MARK” PC 0 1

81018320459 “POLYBAG18””X32"”X0.04MM PE MARK” PC 0 1

81302890101 CD CUSHION - DIM:OD=Ì113MM PC 0 1

RCR - 4900BL

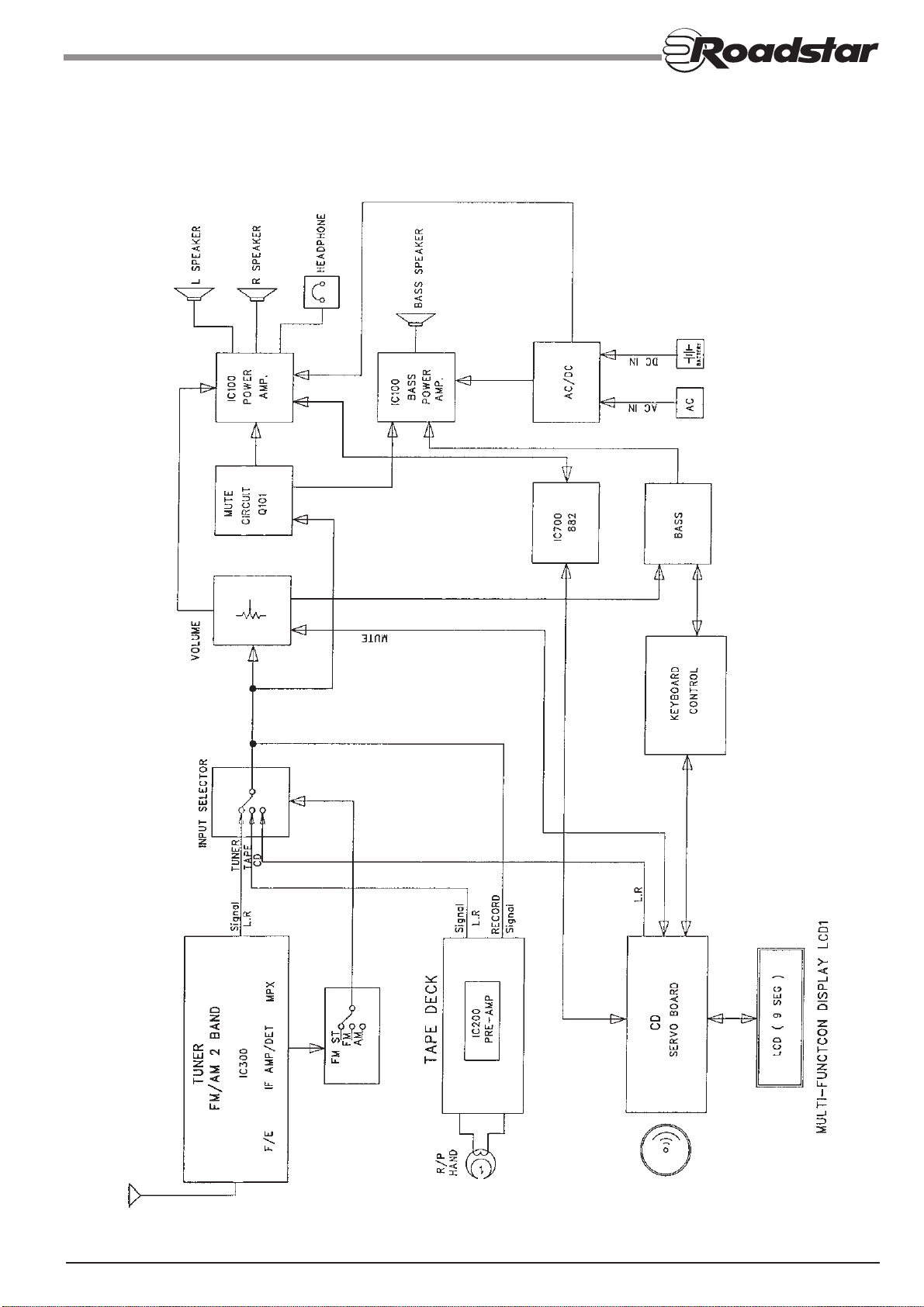

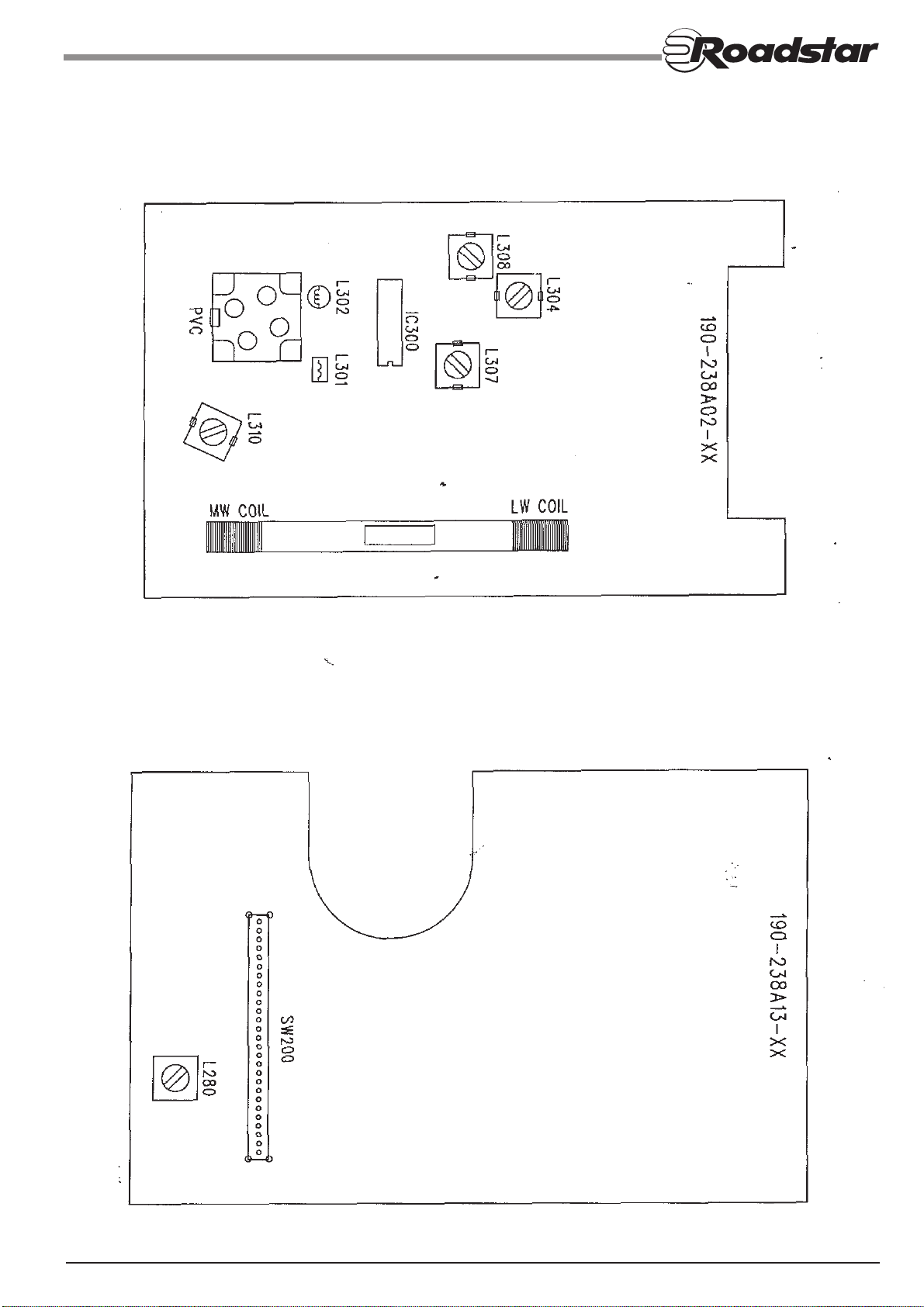

TEST AND ADJUSTMENT POINTS

Table of contents

Other Roadstar Cassette Player manuals

Roadstar

Roadstar RCR-4508 User manual

Roadstar

Roadstar RCR-3526RC User manual

Roadstar

Roadstar PST-100ENC User manual

Roadstar

Roadstar RCR-3516L User manual

Roadstar

Roadstar vdr-6205k User manual

Roadstar

Roadstar RCR-3526RC User manual

Popular Cassette Player manuals by other brands

Ahuja

Ahuja CPA-360 Operation manual

Sony

Sony Pressman TCS-60DV Specifications

Philips

Philips AQ6485/14 Product information

Sony

Sony TCM-200DV - Cassette Recorder operating instructions

Nakamichi

Nakamichi BX-300 Service manual

Panasonic

Panasonic RQ-E25V operating instructions

Aiwa

Aiwa TP-VS535 operating instructions

Yamaha

Yamaha MT8X Operation manual

Sherwood

Sherwood Newcastle D-480 operating instructions

Manta

Manta MA408 user manual

GPO

GPO W0162B user guide

Marantz

Marantz CP230 Service manual

Sony

Sony HST-471 Service manual

Sharp

Sharp JC-AV1 Operation manual

Pioneer

Pioneer CT-W103 Service manual

Sony

Sony CFS-B15 - Am/fm Stereo Cassette Recorder operating instructions

Sony

Sony WMFS220 - Portable Sports AM/FM Cassette... operating instructions

Aiwa

Aiwa HS-TA21 operating instructions

Roadstar RCR-4900BL User manual

Popular Cassette Player manuals by other brands
