Robertshaw 9520 User manual

IMPORTANT SAFETY INFORMATION
WARNING:
• Always turn off power at the main power source by unscrewing
fuse or switching circuit breaker to the off position before installing,
removing, cleaning or servicing thermostat.
• Read all of the information in this manual before installing or pro-
gramming this thermostat
• This is a 24V AC low-voltage thermostat. Do not install on voltages
higher than 30V AC.
• All wiring must conform to local and national building and electrical
codes and ordinances.
• Do not short (jumper) across terminals on the gas valve or at the
system control to test installation. This will damage the thermostat
and void the warranty
1
2 Heat / 2 Cool
W
A
R
R
A
N
T
Y
INTEGRATED COMFORT SOLUTIONS
™
DIGITAL
NON-PROGRAMMABLE
THERMOSTAT
9520
User’s Manual
Quick Start
Installation
110-733
®
HEAT PUMP
H
110-733C

Features
• Multi Stage heat and cooling control
• Zone system compatible as a master thermostat
• Multi-Colored LED indicators for system status
• Low battery indicator.
• Fahrenheit/Celsius display option.
• Adjustable from 45°F (4°C) to 90°F (32°C).
• Accuracy within ± 1 degree.
• Adjustable temperature differential: 1-3 degrees F.
• Automatic heating shutdown if temperature exceeds 90°F (32(C).
Replacing Existing Thermostat
1. Turn off power to heating and cooling system.
2. Remove cover of old thermostat to expose wires.
Do not disconnect wires. (Fig. 1)
3. Label wires per Table 1.
Table 1
Old Label New Label Description
R, V-VR or VR-R R 24 VAC, Return
Y, Y1 or M Y Stage 1 Cooling/Heating
Circuit
O or R O Reversing Valve,
(Cooling Mode)
B B Reversing Valve
(Heating Mode)
F or G G Fan control relay
Y2 Y2 2nd Stage Cooling
Circuit
W1 or W2 or W-U W2 2nd Stage Heating
Control
L or X L System Monitor LED
E E Emergency Heating
Circuit
C, X or B C 24 VAC, Transformer
Common Side
*NOTE: THIS THERMOSTAT REQUIRES A 24V COMMON WIRE FOR PROPER OPERATION.
2

4. After labeling wires, remove wires from terminals.
5. Remove existing thermostat base from wall.
6. Refer to the following section for instructions on how to
install thermostat.
Installing Model 9520 Thermostat
NOTE: FOR NEW INSTALLATIONS, MOUNT THERMOSTAT ON INSIDE WALL, 4-5 FEET ABOVE THE FLOOR. DO
NOT INSTALL BEHIND A DOOR, IN A CORNER, NEAR AIR VENTS, IN DIRECT SUNLIGHT, OR NEAR ANY HEAT OR
STEAM GENERATING FIXTURES. INSTALLATION AT THESE PLACES WILL AFFECT THERMOSTAT OPERATION.
1. Turn power off to the heating
and cooling systems.
2. Place COOL-OFF-HEAT-EM
In OFF position.
3. Place AUTO-ON switch
Into AUTO position.
4. Remove the cover using a coin
or screwdriver.
3
COOL-OFF-HEAT-EM AUTO - ON AUX
>
>
CHECK EMER
COOL-OFF-HEAT-EM
AUTO - ON
Figure 1
Figure 2

5. Place thermostat against the wall at desired location. Make sure
wires will feed through opening on base of thermostat.
6. Mark placement of mounting holes. See Fig. 3.
Set base aside.
figure 3
7. Drill the marked holes using a 3/16" drill bit. NOTE: Enclosed
plastic anchors do not require a drilled hole for drywall.
8. Tap plastic anchors into the wall.
9. Align base with plastic anchors and feed wires
through opening.
10. Secure base to wall with supplied screws.
4
Batteries NOT Required.
Mounting Holes

11. Connect wires to terminal strip. Refer to wiring diagrams on other
side of this sheet. Make sure wire connections are secure.
12. Put the °F/°C switch to either °F for Fahrenheit display
or °C for Celsius display readout.
figure 4
13. Replace cover onto thermostat by snapping into place.
14. Turn on power to system . Test thermostat as described
in the following section.
5
Batteries NOT Required.
°F/°C Switch

To Test Thermostat
WARNING: DO NOT SHORT (JUMPER) ACROSS TERMINALS OF GAS VALVE OR
SYSTEM CONTROL TO TEST OPERATION. THIS WILL DAMAGE THE THERMOSTAT AND
VOID YOUR WARRANTY.
CAUTION: DO NOT SWITCH SYSTEM TO COOL IF THE TEMPERATURE IS BELOW 50(F (10(C).
THIS CAN DAMAGE THE AIR CONDITIONING SYSTEM AND CAUSE PERSONAL INJURY.
1. Place the COOL-OFF-HEAT-EM
switch into the COOL position
2. Press the button until the
temperature setting is at east
3 degrees below the room
temperature. The air conditioning
system should turn on within
a few seconds.
NOTE: When in the COOL mode (or HEAT for single stage heat pumps),
once the thermostat turns off, a built in 5-minute delay prevents the sys-
tem from turning on again. This protects the compressor. No additional
time delay relay is required. To override the 5-minute delay for installation,
press the reset button.
3. Put the COOL-OFF-HEAT-EM switch
into the OFF position. The air
conditioning system should turn off.
4. Put the COOL-OFF-HEAT-EM switch
into the HEAT position.
5. Press the button until the
temperature setting is at least
3 degrees above room temperature.
The heating system should turn on.
The fan may not turn on immediately,
depending upon the fan delay built
into the furnace.
6. Put the COOL-OFF-HEAT-EM switch
into the OFF position. The heating
system should turn off. The fan may
continue to run for a short period
of time .
7. Put the AUTO-ON switch to the
ON position. The blower fan should
turn on.
8. Put the AUTO-ON switch to
the AUTO position. The blower fan
should turn off.
6
COOL-OFF-HEAT-EM
COOL-OFF-HEAT-EM
COOL-OFF-HEAT-EM
>
AUTO - ON
>
COOL-OFF-HEAT-EM
AUTO - ON

Operation
Setting or Changing the Setpoint Temperature
1. Press either the or button.
The display will show the current
temperature setpoint.
2. Press either the or button
to adjust the temperature setting
either up or down.
The display will return to the room temperature display five seconds after
the last input and the new setpoint will be saved.
Changing Temperature Differential
IMPORTANT: The temperature differential is factory set at 1 (1°). This
means that whenever the room temperature changes by one half of a
degree from the temperature setting, the system will turn on. If the sys-
tem turns on too often, increase the temperature differential.
1. Press both and buttons
at the same time and hold for one
second. The display will show:
2. Press either the or button
to adjust the temperature
differential up or down.
The display will return to the room temperature five
seconds after the last input.
Differential
Setting Degrees
1 1°F/.5°C
2 2°F/1.0°C
3 3°F/1.5°C
7
>
>
>
>
>
>
COOL-OFF-HEAT-EM AUTO - ON AUX
>
>
CHECK EMER
C
>
>
COOL-OFF-HEAT-EM AUTO - ON AUX
>
>
CHECK EMER
>
>
>
>

Changing Fahrenheit (F) to Celsius (C)
The thermostat is preset to display the temperature in degrees Fahrenheit.
You may change the display readout to Celsius if desired.
1. Move the manual switch marked “F” (Fahrenheit) and “C” (Celsius)
located at the top center of the circuit board to the desired setting.
(see page 5)
2. Press RESET button located lust below the LCD display to register
the change.
The display will change to show the temperature in your desired tempera-
ture scale. To return the thermostat to its original setting, repeat steps 1
and 2 above.
LED Indicators
The LED indicators are used to indicate system activity. The AUX indicator
illuminates during a call for second stage heating. The auxiliary stages are
used to maintain comfort during extremes in weather conditions. If the
AUX LED is illuminated too frequently during periods of moderate temper-
ature, check the differential settings (page 6).
The CHECK indicator is used to monitor system status. If the CHECK indi-
cator is illuminated, call your local HVAC service provider.
The EMER indicator is illuminated only when the system switch is moved
to the EM, emergency heat position. The EM position is used only when
the primary stage of heat is not functioning or requires service.
Troubleshooting
Symptom Remedy
8
Thermostat does not turn
on system Check Wiring (See “INSTALLATION”)
Check fuse. Replace with 2 amp
fuse if fuse has opened.
Thermostat turns on and
off too frequently. Increase Temperature Differential (See “DIFFERENTIAL).
Display is blank, flashing
or constant “LO BAT”. Replace batteries.
System fan does not
operate properly. Move fan option switch to either gas or electric, to match system.
(See Installation).
Thermostat does not display
proper room temperature. Check “F” Fahrenheit/”C” Celsius switch located at top center of cir-
cuit board for proper position. If a
new selection is made, press
“RESET” button located directly
below LCD display.

If problems with thermostat cannot be solved, call:
Technical Support: [phone]
Monday-Friday 7:30-5:30 CST
For warranty returns, send thermostat, shipping prepaid to:
Uni-Line North America
Warranty Claims Department
515 S. Promenade
Corona, CA 91719
9

10
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
R
Y
O
G
E
W2
L
C
W3
CARRIER LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO CARRIER
SPLIT SYSTEM CONDENSORS AND HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [COOLING MODE]
FAN CONTACTOR CIRCUIT
EMERGENCY HEATING CIRCUIT
2ND. STAGE HEATING CIRCUIT
SYSTEM MONITOR LED
24 VAC, COMMON
RY1 OBG E
W2 LC
Y2
ROBERT SHAW 09620 HEAT PUMP THERMOSTAT
R
Y
B
G
E
W2
L
X
O
COLEMAN LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW 09620 HEAT PUMP CONVERSION TO COLEMAN HEAT PUMPS
3000 SERIES HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [HEATING MODE]
FAN CONTACTOR CIRCUIT
EMERGENCY HEATING CIRCUIT
2ND. STAGE HEATING CIRCUIT
SYSTEM MONITOR LED
24 VAC, COMMON

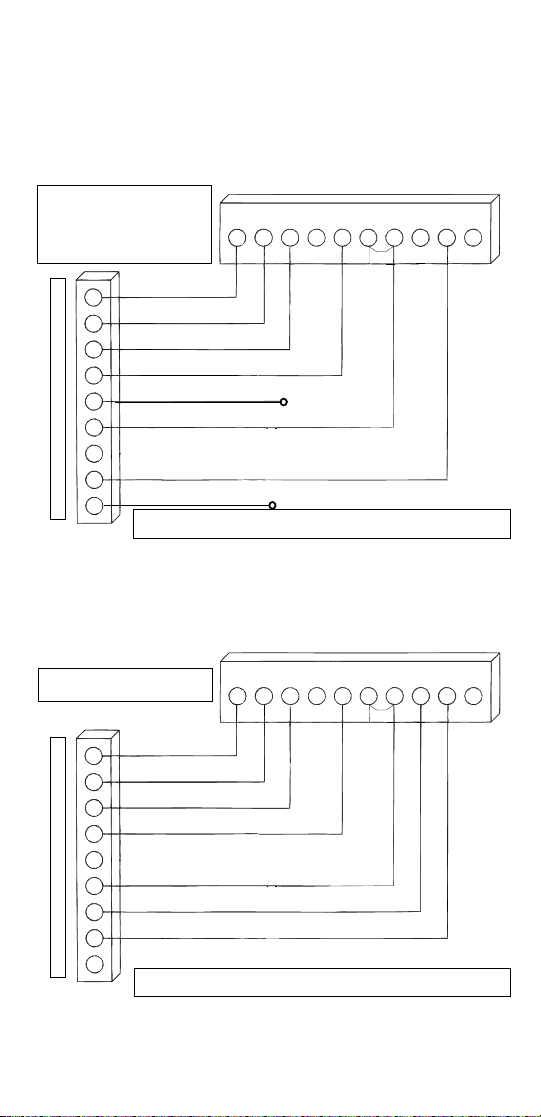

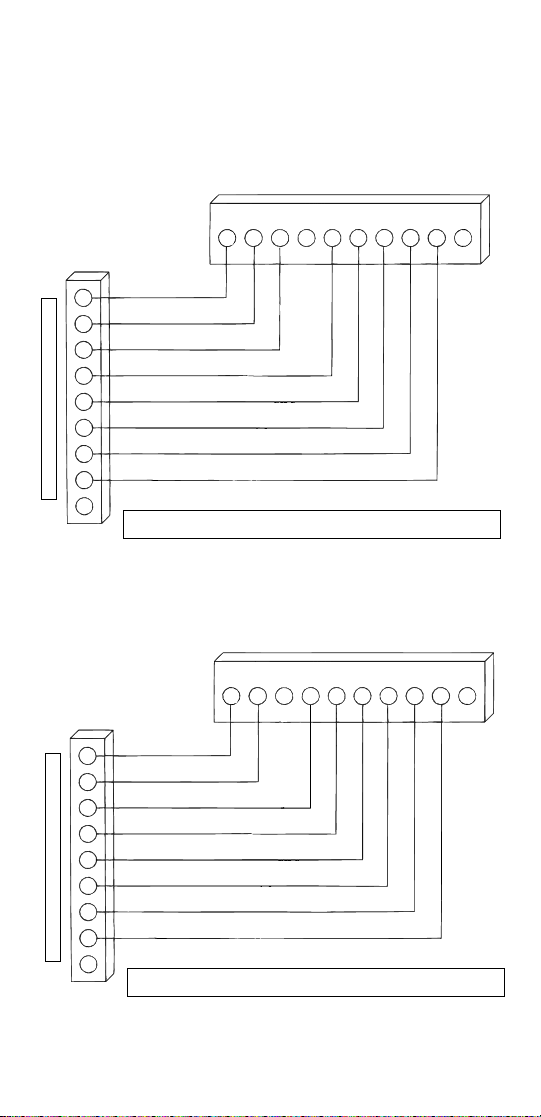

Wiring Diagrams
The following is just a sample of the most common types of HVAC
systems. Refer to your systems installation manual for wiring information.

11
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
R
Y
O
G
W1
W2
X
C
COMFORTMAKER LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO COMFORTMAKER
CYC SERIES HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [COOLING MODE]
FAN CONTACTOR CIRCUIT
2ND. STAGE HEATING CIRCUIT
OUTDOOR THERMOSTAT [CAPPED]
DEFROST SENSOR [CAPPED]
24 VAC, COMMON
NOTE 1: E AND W2 TERMINALS
JUMPERED AT THERMOSTAT
NOTE 2: W2 TERMINAL ON
COMFORTMAKER PCB CAPPED
NOTE 3: X TERMINAL ON
COMFORTMAKER PCB CAPPED
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
R
Y
O
G
W1
W2
C
HEIL-QUAKER LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO HEIL-QUAKER
867.814 SERIES AND PH50 SERIES HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [COOLING MODE]
FAN CONTACTOR CIRCUIT
2ND. STAGE HEATING CIRCUIT [SEQUENCER 1]
3RD. STAGE HEATING CIRCUIT [SEQUENCER 2]
24 VAC, COMMON
NOTE 1: E AND W2 TERMINALS
JUMPERED AT THERMOSTAT
NOTE 2: W2 TERMINAL ON
HEIL-QUAKER PCB CAPPED

12
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
R
Y
B
G
E
W2
L
X
B
RHEEM/RUUDLOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO RHEEM/RUUD
HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [HEATING MODE]
FAN CONTACTOR CIRCUIT
EMERGENCY HEATING CIRCUIT
2ND. STAGE HEATING CIRCUIT
SYSTEM MONITOR LED
24 VAC, COMMON
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
R
Y
O
G
W2
L
C
PAYNE LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO PAYNE
RELIANT AND ENDURA MODEL HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [COOLING MODE]
FAN CONTACTOR CIRCUIT
EMERGENCY HEATING CIRCUIT
2ND. STAGE HEATING CIRCUIT
SYSTEM MONITOR LED
24 VAC, COMMON
3RD. STAGE HEATING CIRCUIT [CAPPED]
NOTE 1: W3 TERMINAL ON
PAYNE PCB CAPPED
E
W3

13
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
R
Y
O
G
X2
W-U
B
WEATHERTRON LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO WEATHERTRON HEAT PUMPS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [COOLING MODE]
FAN CONTACTOR CIRCUIT
2ND. STAGE HEATING CIRCUIT
24 VAC, COMMON
NOTE 1: E AND W2 TERMINALS
JUMPERED AT THERMOSTAT
NOTE 2: X2 TERMINAL CAPPED AT
WEATHERTRON PCB
NOTE 3: T TERMINAL CAPPED AT
WEATHERTRON PCB
T
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
R
Y
O
G
B
YORK LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO YORK
-E1CS, -E1FB, -E1FH HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [COOLING MODE]
FAN CONTACTOR CIRCUIT
2ND. STAGE HEATING CIRCUIT
SYSTEM MONITOR LED
24 VAC, COMMON
NOTE 1: E AND W2 TERMINALS
JUMPERED AT THERMOSTAT
W
X

14
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
R
Y
O
G
E
W1
L
C
T
LENNOX LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO LENNOX
CB19 HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [COOLING MODE]
FAN CONTACTOR CIRCUIT
EMERGENCY HEATING CIRCUIT
2ND. STAGE HEATING CIRCUIT
SYSTEM MONITOR LED
24 VAC, COMMON
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
V-VR
M
R
F
E
Y
X
LENNOX LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO LENNOX
HP19 AND HP20 HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [COOLING MODE]
FAN CONTACTOR CIRCUIT
EMERGENCY HEATING CIRCUIT
2ND. STAGE HEATING CIRCUIT
24 VAC, COMMON

15
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
R-VR
Y1
O
F
E
W1
X
LENNOX LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO LENNOX
HP21 WITH CB21 PCB HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [COOLING MODE]
FAN CONTACTOR CIRCUIT
EMERGENCY HEATING CIRCUIT
2ND. STAGE HEATING CIRCUIT
24 VAC, COMMON
L
Y2
RY1 OBG E
W2 LC
Y2
ROBERT SHAW HEAT PUMP THERMOSTAT
R-VR
M
R
F
E
Y
X
LENNOX LOW VOLTAGE TERMINAL BOARD
ROBERT SHAW HEAT PUMP THERMOSTAT CONVERSION TO LENNOX
HP22 WITH CB19 PCB HEAT PUMP SYSTEMS
THE LOW VOLTAGE TERMINAL DESIGNATIONS AND THEIR DESCRIPTION AND/OR
FUNCTION ARE USED ON ALL SPLIT SYSTEM CONDENSORS AND HEAT PUMPS
24 VAC, RETURN
COMPRESSOR CONTACTOR
REVERSING VALVE [HEATING MODE]
FAN CONTACTOR CIRCUIT
EMERGENCY HEATING CIRCUIT
2ND. STAGE HEATING CIRCUIT
SYSTEM MONITOR LED
24 VAC, COMMON
2ND. STAGE COOLING CIRCUIT
L
Y2

Five Year Limited Warranty
Maple Chase Company warrants to the original contractor installer or
to the original consumer user, each new Maple Chase thermostat to be
free from defects in materials and workmanship under normal use and
service for a period of five (5) years from date of purchase. This warranty
and our liability does not apply to batteries or the merchandise that has
been damaged, caused by misuse, neglect, mishandling, alterations,
improper installation, or use in a way other than in accordance with
Maple Chase Company recommendations and instructions.
Maple Chase Company agrees to repair or replace at its option any
thermostat under warranty provided it is returned within the warranty
period, postage prepaid, with proof of the date of purchase. Cost of ther-
mostat removal or reinstallation is not the responsibility of Maple Chase
Company.
Repair or replacement as provided under this warranty is the exclusive
remedy of the consumer. Maple Chase Company shall not be liable for
any incidental or consequential damages for breach of any express or
implied warranty on this product, or under any other theory of liability.
Except to the extent prohibited by applicable law, any implied warranty of
merchantability or fitness for a particular purpose on this product is limit-
ed to the duration of this warranty.
Some states do not allow the exclusion or limitation of incidental or con-
sequential damages, or allow limitations on how long an implied warranty
lasts, so the above limitations or exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other
rights which vary from state to state.
16
©1999 Maple Chase Company 7/99
Maple Chase Company
2820 Thatcher Road
Downers Grove, Illinois 60515
United States of America
