Robin FL-H7500 User manual

Ⅰ.SPECIFICATIONS ・・・・・・・・・・・・・・・・・・
２
1.SPECIFICATIONS ・・・・・・・・・・・・・・・・・・・・２
2.PART NAMES ・・・・・・・・・・・・・・・・・・・・・・３
Ⅱ.PREPARATIONS ・・・・・・・・・・・・・・・・・・・・
４
Ⅲ.DISASSEMBLY AND REASSEMBLY PROCEDURE・・・ ５〜５２
1.EQUIPMENT DISASSEMBLY ・・・・・・・・・・・・ ５〜１５
2.EQUIPMENT REASSEMBLY ・・・・・・・・・・・・１６ 〜２７
3.ENGINE DISASSEMBLY・・・・・・・・・・・・・ ２８〜３６
4.ENGINE REASSEMBLY ・・・・・・・・・・・・・ ３７〜４７
5.CARBURETOR DISASSEMBLY AND REASSEMBLY・・・・ ４８〜４９
6.STARTER DISASSEMBLY AND REASSEMBLY ・・・・・ ５０〜５２
Ⅳ.MALFUNCTION AND REPAIRE ・・・・・・・・・・・・・ ５３〜５４
Ⅴ.CHECK AND RECONDITIONING ・・・・・・・・・・・・ ５５
Ⅵ.CRITERIA FOR RECONDITIONING ・・・・・・・・・・・ ５６〜５７
Ⅶ.NOTICE ・・・・・・・・・・・・・・・・・・・・・・・
５８
Ⅷ.CARE AND STORAGE・・・・・・・・・・・・・・・・・・
５９
Ⅸ.CHECK,DRAINAGE AND FEEDING OF ENGINE OIL・・・・ ６０
Ⅹ.VALVE CLEARANCE ADJUSTMENT・・・・・・・・・・・・ ６１〜６２
ⅩⅠ.AIR CLEANER CLEANING・・・・・・・・・・・・・・・・・・・・・
６３
1.PREPARATIONS・・・・・・・・・・・・・・・・・・・・・４
CONTENTS
2.NOTICE・・・・・・・・・・・・・・・・・・・・・・・・４

Ⅰ．SPECIFICATIONS
1.SPECIFICATIONS
Engine Blower
FL-H7500
mm 350×430×495（13.7×16.9×19.5in only for body）
kg 10.2（22.4lbs only for body）
EH075F
Air-Cooled,4-Stroke,Upright Single-Cylinder OHV Gasoline Engine
75.6
Automotive Unleaded Gasoline
1.9（64.2 fl.oz）
Automotive Oil SAE 10W-30;Class SF or higher
(Automotive 4-Stroke Engine Oil)
0.22（7.4 fl.oz）
Diaphragm Type
Breakerless Magneto
NGK CMR6A
Recoil Starter (with decompression)
Forced Lubrication
20.4（720 cfm）
14.1（498 cfm）
Joystick Lever（with rubber grip）
Trigger Lever,Cruise Control Lever
One Flexible Pipe,One Swivel Pipe,One Blower Pipe,One Blower Nozzle,
Two Shoulder Strap,Hose Bandφ100,Hose Bandφ76,
Tool（Box Wrench）,Instruction Manual
Type
Dimensions(LXWXH)
Dry Weight
Standard Accessories
Model
Type
Fuel
Engine Oil
Carburetor
Ignition System
Engine Speed Control Lever
SPECIFICATIONS
Spark Plug
Starting System
Lubrication
Handle
EngineOperating Part
Product Name
Performance
Air Volume with Nozzle m3/min
Capacity of Engine Oil L
Fuel Tank Capacity L
Piston Displacement mL
Max Air Volume m3/min
2

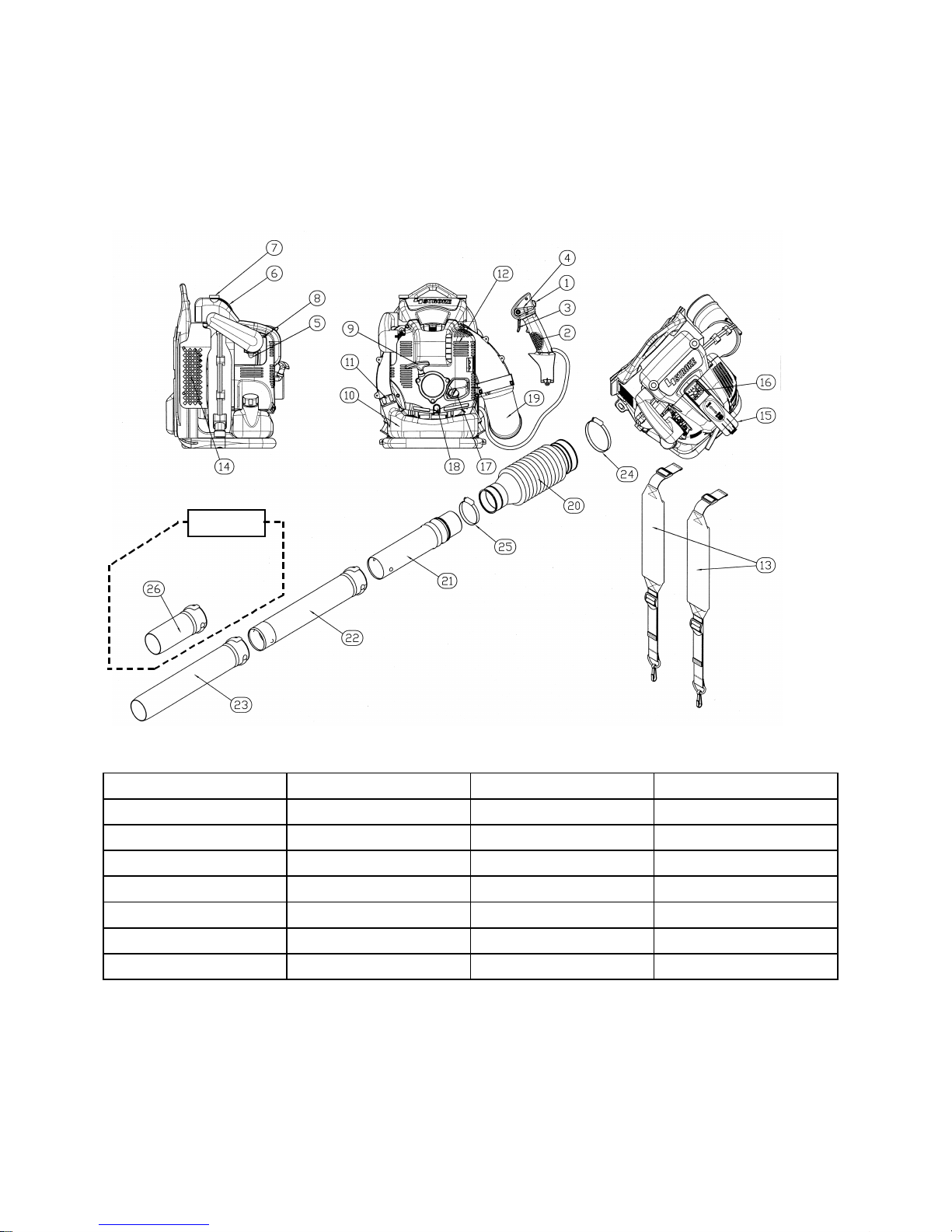

2.Part Name
DESIGNATION OF PARTS
1. Stop switch
2. Control Handle
3. Trigger Lever
4. Cruise Control Lever
5. Primer Pump
6. Cover Aircleaner
7. Knob Bolt
DESIGNATION OF PARTS DESIGNATION OF PARTS DESIGNATION OF PARTS
8. Choke Lever
9. Starter Handle
10. Fuel Tank
11. Fuel Tank Cap
12. Muffler
13. Shoulder Strap
14. Air Inlet Net
15. Plug Cover 22. Blower Pipe
16. Spark Plug 23. Blower Nozzle L=450
17. Oil Cap 24. Hose Band φ100
18. Oil Drain Bolt 25. Hose Band φ76
21. Swivel Pipe
19. Elbow 26. Blower Nozzle L=200
20. Flexible Pipe
OPTION
3

Ⅱ．PREPARATIONS
1.PREPARATIONS
(1)Workbench
(2)Tool for disassembly and reassembly
(3)Wash-pan
(4)Wash oil (light oil,gasoline,etc)
(5)Automotive 4-stroke engine oil,grease
(6)Liquid packing
(7)File,sand paper
(8)Waste
2.NOTICE
(1) Use the standard tools properly.
(2) While disassembling the engine blower,memorize the locations of individual parts
so that they can be reassembled correctly.
Attach a tag to a part you are uncertain about its mounting position.
(3) Use boxes for keping disassembled parts in a group.
(4) To prevent any loss and wrong reassembly of screw bolts and nuts,try to assemble
each group of disassemble parts temporarily.
(5) Handle disassembled parts carefully,and clean them with wash oil.
(6) After removing gaskets,remove extraneous material clearly from the gasket placed palaces.
(7) Use an impact driver for a screw bolt and screw,etc.that are difficult to be unfastened.
(8) Use new gaskets when reassembling.
(9) After reassembling each of the rotatable main parts, rotate by hand to test it for
bad movements and abnormal noises.
(10)After the completion of reassembly, rotate the rotatable main parts by hand to test
them for defects and looseness.
3.SPECIAL TOOL FOR DISASSEMBLY
Part number：５９７９００１０００
Tool name ：ＴＯＯＬ
Work：Flywheel Puller
4

Ⅲ．DISASSEMBLY AND REASSEMBLY PROCEDURE
1.EQUIPMENT DISASSEMBLY
For further disassembling instructions on each part, see the corresponding pages.
step
Part of remove
Procedure
Fastener
PCS
Notice
Special tool
1)Unscrew the DRAIN,BOLT
(5−1) and CAP,OIL(5−2) M8×12 1
2)Drain the ENGINE OIL.
3)Screw the DRAIN BOLT and
CAP,OIL.
2Fuel 1)Drain the fuel.
1)Remove the COVER,AIR
CLEANER.
KNOB BOLT M5
1
2)Remove the AIR CLEANER
ELEMENT. Keep contaminant or dust off the AIR CLEANER ELEMENT.
3)Remove the DUCT,AIR
CLEANER.
HOSE CLAMP
1)Remove the GUARD,OIL.
2)Remove the STARTER. M5×20mm 3
3)Remove the COVER,ENGINE 5X16mm 4
1)Remove the fuel tube. The fuel will spout if the fuel tube is
removed with the fuel tank filled with
fuel.
2)Remove the TANK,FUEL. M6X12mm 2
1)Remove the WIRE.
2)Remove the CONTOROL CABLE. 4X16mm 5
M5×25mm 1
2)Remove the THROTTLE LEVER
2 from the LEVER 2 ASSY. M6×14mm 1
7CASE,AIR CLEANER
P11
1)Remove the CASE,AIR CLEANER.
M5×16mm 4
1)Remove the
PLATE,SEPARETOR.
Be sure to pull the PLATE,SWPARATOR
by its body.
2)Remove the PLATE,CHECK
VALVE(with CHECK VALVE).
3)Remove the CHECK VALVE(1). Do not let the CHECK VALVE(1) missing.
1)Remove the SCREW
the DAMPER 1 side. M5×40mm 1
2)Remove the FRANGE NUT the
DAMPER 2 side. M5 2
5X16mm 9
M5×65mm 2
M5 2
2)Remove the ELBOW.
3)Remove the DAMPER 2.
10 IMPELLER P13 1)Remove the IMPELLER. M6X45mm 4
11 ENGINE P13 2)Remove the ENGINE. M6X30mm 6
6LEVER(WIRE&CABLE)
P11
4COVER,ENGINE
P10
5TANK,FUEL
P10
Keep contamination or dust off the
DRAIN BOLT and CAP,OIL.
3COVER,AIR CLEANER
P9
1ENGINE OIL
For further instructions
on the engine oil draining,
see page 60.
1)Remove the LEVER 1 and
LEVER 2 ASSY.
6-1 LEVER
P14
1)Remove the CASE 1,VOLUTE.
8FRAME
P12
9CASE 1,VOLUTE
P12
BLEAHER(AIR
CLEANER)
P11
7-1
5-1 5-2
5

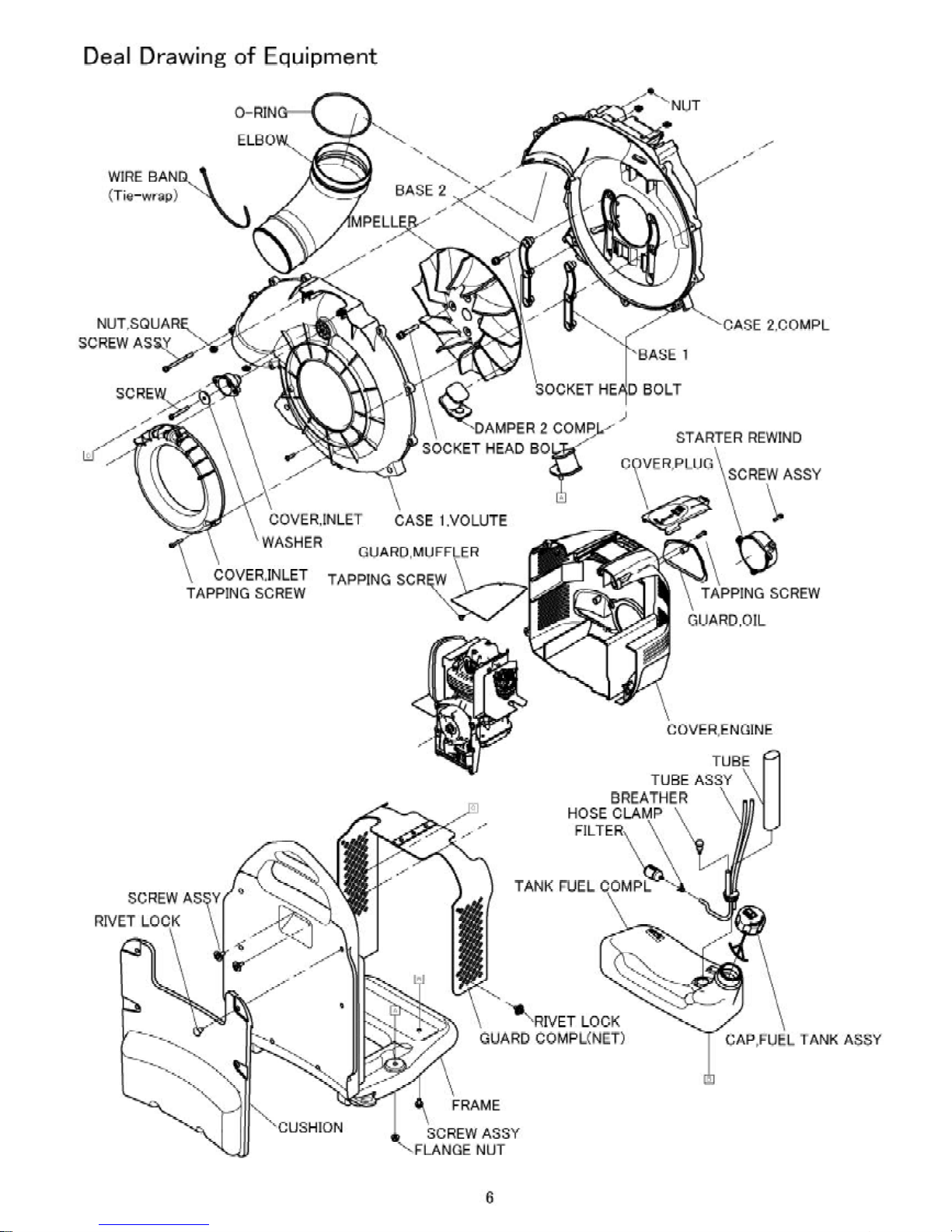

9
NO. Part name Disassembling Instructions
3COVER,AIR CLEANER
KNOB BOLT
ELEMENT
DUCT
HOSE CLAMP
(1) Remove the COVER,AIR CLEANER by looseninig KNOB BOLTS.
(2) Remove the DUCT by looseninig HODE CLAMPS.
KNOB BOLT
COVER,AIR
CLEANER
ELEMENT
DUCT
HOSE CLAMP
HOSE CLAMP

10

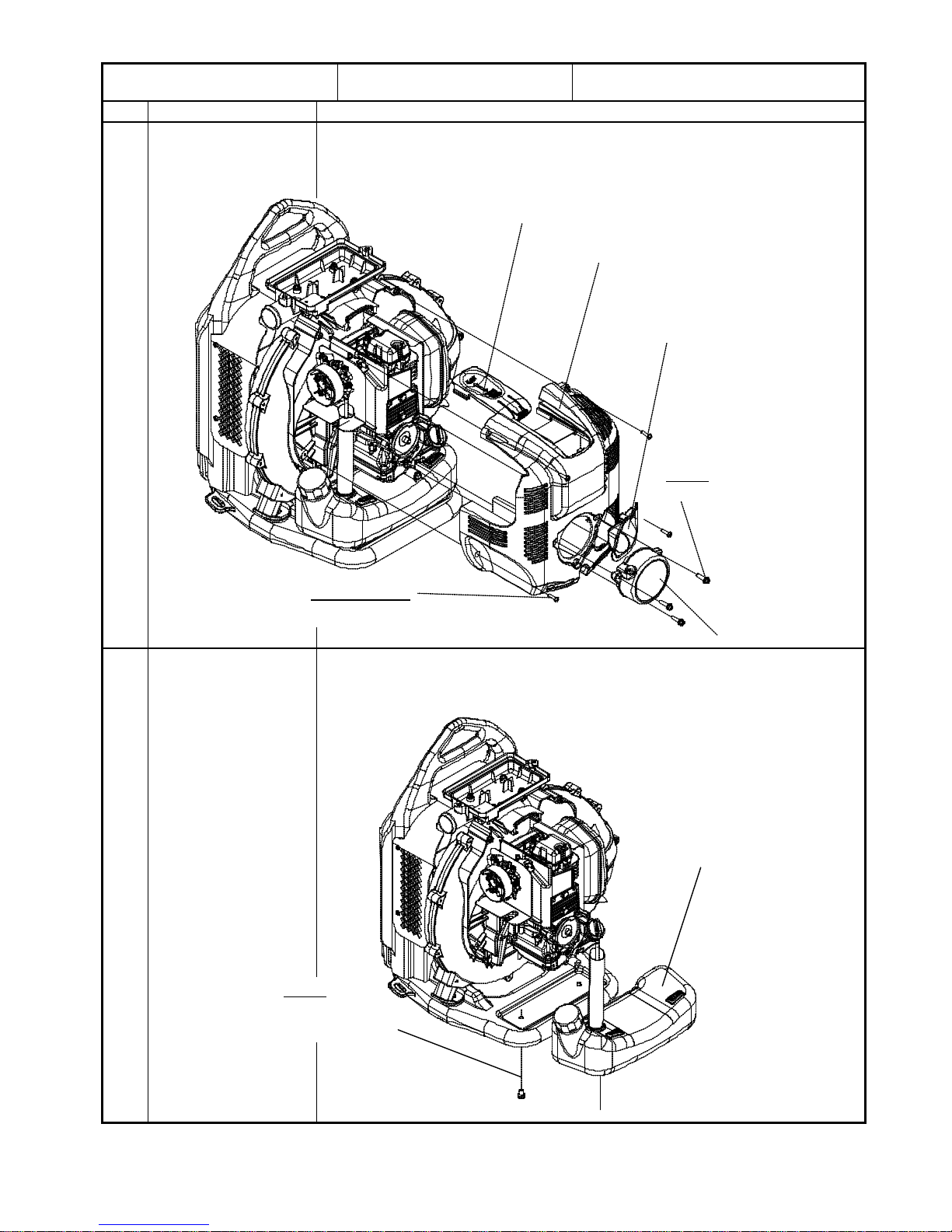

NO. Part name Disassembling Instructions
4COVER,ENGINE
COVER,PLUG
GUARD,OIL
STARTER
(1) Remove the GUARD,OIL.
(2) Remove the STARTER.
(3) Remove the COVER,ENGINE.
NOTICE: Be careful not to loose the GUARD, OIL or COVER, PLUG.
5TANK,FUEL (1) Remove the fuel tube.
NOTICE:The fuel will spout if the fuel tube is removed with the fuel tank filled with fuel.
(2) Remove the TANK,FUEL.
SCREW
M6*12 W,SW (2PCS)
TANK
, FUEL
TAPPING SCREW
5*16 (4PCS)
COVER
, ENGINE
COVER,PLUG
STARTER
GUARD
, OIL
SCREW
M5*20 (3PCS)

11
NO. Part name Disassembling Instructions
6LEVER
(CONTROL CABLE
,WIRING)
For instructions on the lever
disassembling, see pages 14
and 15.
(1) Disconnect the wiring.
(2) Disconnect the CONTROL CABLE from the CARBURETOR.
7CASE, AIR CLEANER
〜CASE,VOLUTE (1) Remove the CASE,AIR CLEANER.
(2) Disconnect the two tubes connected to the air cleaner.
(1)
(2)
SCREW
M5*16 W,SW (4PCS)
ROCKER COVER〜AIR CLEANER
AIR CLEANER〜CYLINDER
PLATE, SEPARETOR
PLATE, CHECK VALVE
CHECK VALVE
CHECK VALVE (1)
7-1 Instructions on the CASE, AIR CLEANER disassembling.
(1) Remove the PLATE,SEPARATOR.
(2) Remove the PLATE,CHECK VALVE(with the CHECK VALVE).
(3) Remove the CHECK VALVE (1).
NOTICE: Be careful not to loose the parts. Handle theCHECK VALVE
with care not to damage it.

12
NO. Part name Disassembling Instructions
8FRAME
(1) Remove the FRAME.
9CASE 1,VOLUTE
DAMPER 2
ELBOW
O-RING
(1) Remove the CASE 1,VOLUTE. NOTICE : Be careful not to loose the nuts.
ELBOW
NUT M5 BLACK
DAMPER 2
TAPPING SCREW
5*16 (9PCS)
SCREW
M5*65 W,SW (2PCS)
SCREW
M5*16 W,SW
MEC (2PCS)
FRANGE NUT
M6（2PCS）

13

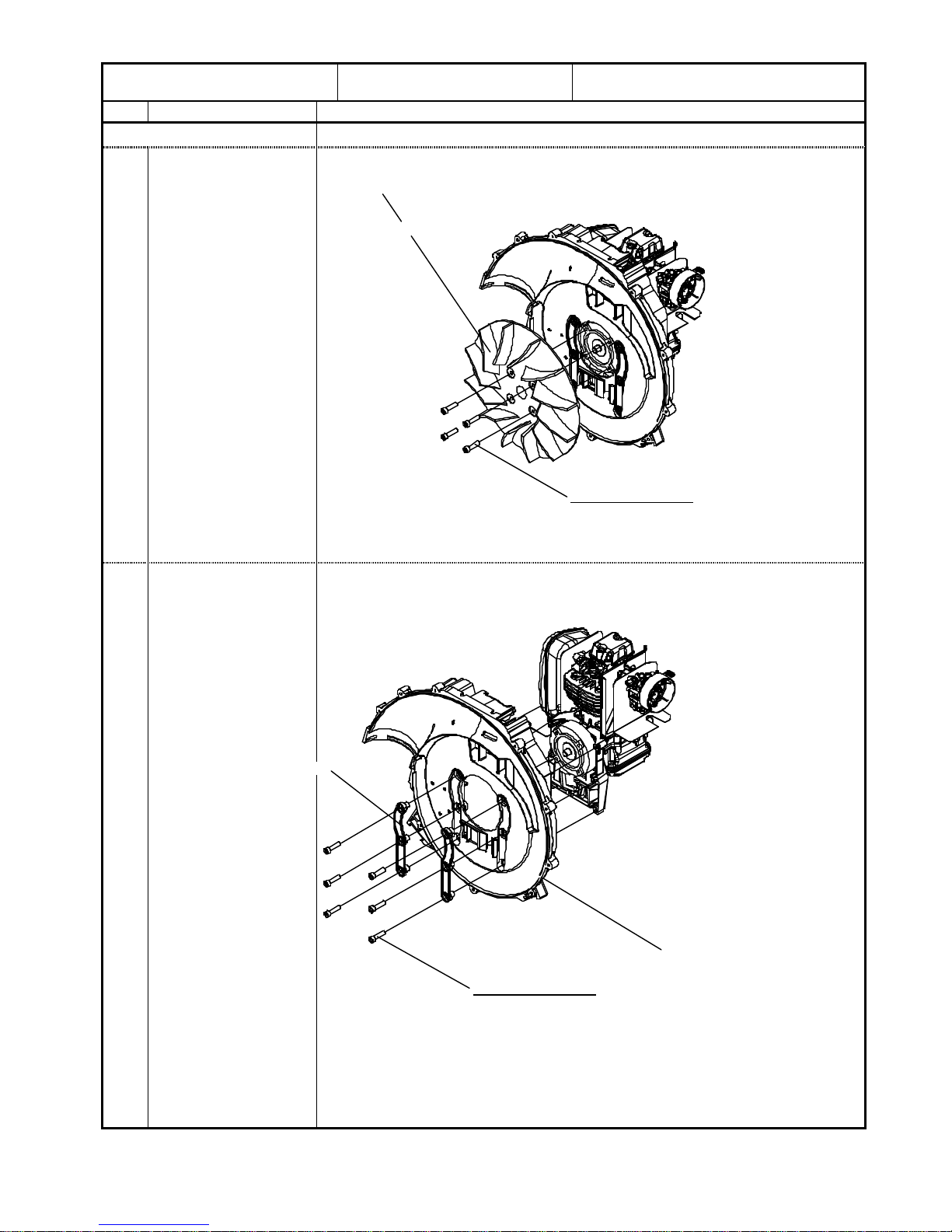

NO. Part name Disassembling Instructions
10 IMPELLER
(1) Remove the IMPELLER.
11 ENGINE
〜CASE 2 ,VOLUTE
(1) Remove the ENGINE.
SOCKET HEAD BOLT
M6*30 W, SW (6PCS)
BASE
CASE 2,VOLUTE
IMPELLER
SOCKET HEAD BOLT
M6*40 W, SW (4PCS)

14

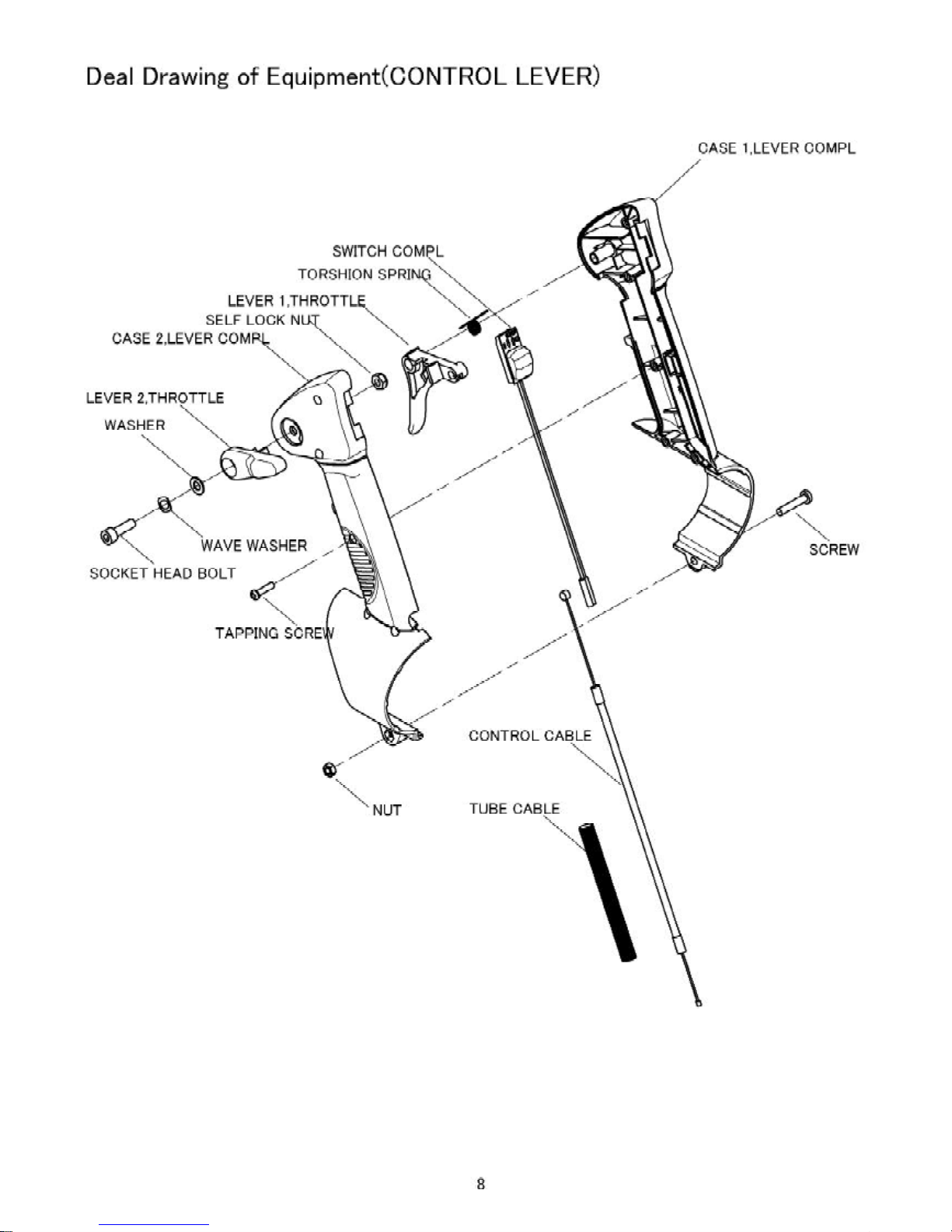

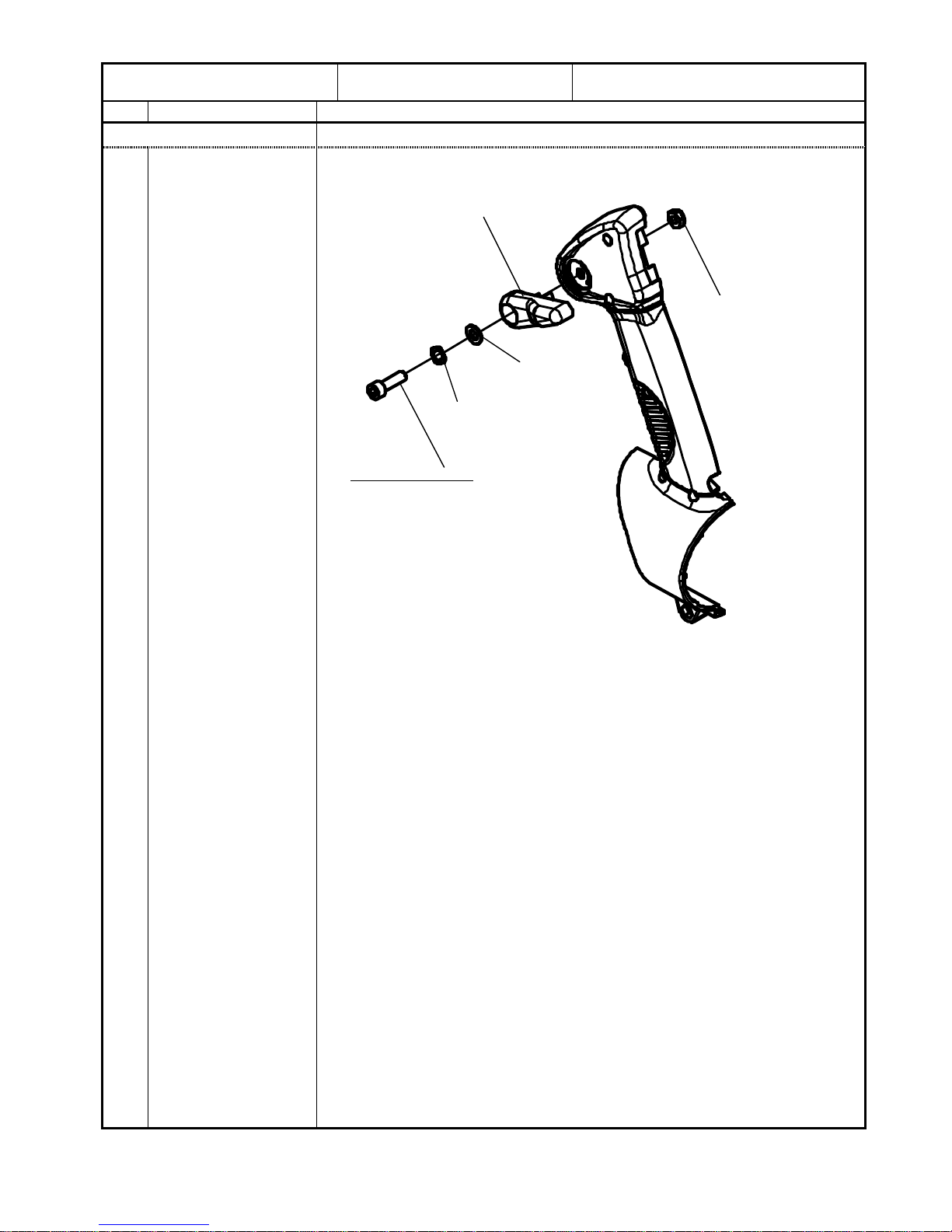

NO. Part name Disassembling Instructions
6-1
LEVER
CASE 1,LEVER
CASE 2,LEVER ASSY
(1) Remove the CASE 1,LEVER and CASE 2,LEVER ASSY.
TAPPING SCREW
4*16 (5PCS)
CASE 2,LEVER
ASSY
NUT
M5 (1PCS)
SCREW
M5*25 (1PCS)
CASE 1,
LEVER

15
NO. Part name Disassembling Instructions
6-1
LEVER
CASE 2,LEVER ASSY
LEVER 2,THROTTLE
(2) Remove the LEVER 2,THROTTLE from the CASE 2, LEVER ASSY.
LEVER 2,THROTTLE
SELF ROCK NUT
M6 (1PCS)
SOCKET HEAD BOLT
M6*14 (1PCS)
WASHER
WAVE WASHER

16
Equipment reassembly procedure
1.Notice
・Clean parts completely.
・Replace screws with new ones if necessary.
・Tighten up the tightening torque specified parts according to the specified tightening torque.
2. Tightening torque of each part
For further assembling instructions on each part, see the corresponding pages.
2.EQUIPMENT REASSEMBLY
ENGINE +20 +2.0
〜CASE 2 VOLUTE 0 0
IMPELLER +20 +2.0
〜FLYWHEEL 0 0
CASE 1 VOLUTE +10 +1.0
〜CASE 2 VOLUTE 0 0
CASE 1 、2 VOLUTE M5×65 W,SW S=15 +10 +1.0
(ELBOW) SCREW -5 -0.5
CASE 1 VOLUTE +10 +1.0
〜COVER,INRET 0 0
DAMPER1 +10 +1.0
〜CASE1,VOLUTE -5 -0.5
FRAME M5×16 W,SW MEC +15 +1.5
〜DAMPER1 SCREW 0 0
FRAME +15 +1.5
〜DAMPER2 0 0
CASE, AIR CLEANER +15 +1.5
〜CASE 1,2 VOLUTE 0 0
FRAME +10 +1.0
〜TANK,FUEL -5 -0.5
GUARD,MUFFLER +5 +0.5
〜COVER, ENGINE 0 0
COVER, ENGINE +10 +1.0
〜CASE 2 VOLUTE 0 0
STARTER +15 1.5
〜ENGINE 0 0
CASE 2,LEVER +5 +0.5
〜LEVER 2,THROTTLE 0 0
CASE 1,LEVER +3 +0.3
〜CASE 2,LEVER 0 0
1
Check if the LEVER 2,
THROTTLE can be smoothly
moved with the hand, after
fitting it in the CASE 2,LEVER
by screwing the bolt.
4×16
TAPPING SCREW 50.5 5
13
M6×14
SOCKET HEAD BOLT 20 2.0
Check if the ELBOW can be
smoothly rotated with the hand,
after screwing the screws.
The kind of screw Notice
MUFFLER GASKET
position.
pcs
5×16
TAPPING SCREW 9
2.0
180
M6×30 W,SW
SOCKET HEAD BOLT 6
7.8
No. Tightening part (kgf･cm)
Tightening torque
(N・m)
280
M6×40 W,SW
SOCKET HEAD BOLT 4
7.8
4
20 2
20
3
5×25
TAPPING SCREW 3
2.0
2.0
20
20
M5×40
SCREW 1
2.0
2
2.5
2.5
2
25
25
5M6
FRANGE NUT
825
M5×16 W,SW
SCREW 4
2.5
10 25
M6×12 W,SW
SCREW 2
2.5
25
M,5×20 W,SW
SCREW 3
2.5
20
5×16
TAPPING SCREW 4
2.0
Be sure to install the fuel tubes.
4Be sure to install the
GUARD,MUFFLER.
12
11 4×6
TAPPING SCREW 10 1.0

17

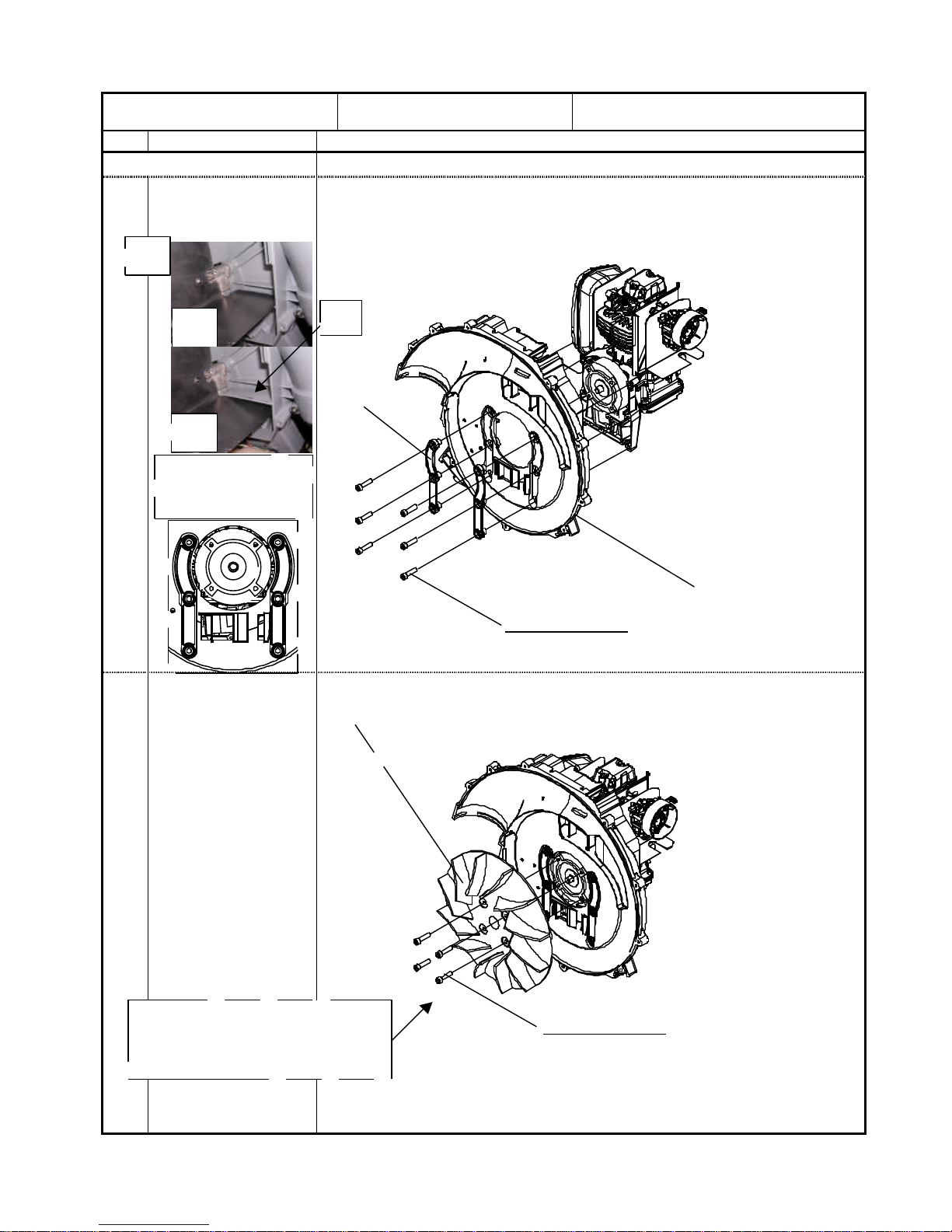

NO. Part name Assembling Instructions
1ENGINE
〜CASE 2,VOLUTE
〜BASE 1,2
(1) Fix the ENGINE to the CASE 2,VOLUTE with the knock positions united.
(2) Be careful not to leave the high tension code and wire between the CASE 2,VOLUTE and
ENGINE.
(3) Install the GASKET,MUFFLER on the CASE 2,VOLUTE rib with the number (a) as shown in
the photograph.
2IMPELLER
SOCKET HEAD BOLT
M6*30 W, SW (6PCS)
Tightening torque 80 ㎏ｆ･㎝
+20
0
BASE 1,2
CASE 2,VOLUTE
IMPELLER
SOCKET HEAD BOLT
M6*40 W, SW (4PCS)
Tightening torque 80 ㎏ｆ･㎝
+20
0
After screwing the SOCKET HEAD BOLTS
in numerical serial sequence (①−④
),
check if they are tightened with the
specified tightening torque.
①
②
⑥
③
④
⑤
Screwing sequence
Screw the SOCKET HEAD
BOLTS in numerical serial
sequence (①−⑥).
①
②
③
④
⑤
OK
NG
(3)
(a)

18
NO. Part name Assembling Instructions
3CASE 1,VOLUTE
DAMPER 2
ELBPW
O-RING
(1) Fit the DAMPER 2s in the groove of the CASE 2,VOLUTE.
(2) Install the ELBOW with its outlet directed toward the CASE 1,VOLUTE.
(3) Screw the TAPPING SCREWS clockwise beginning with the one at the ELBOW side.
4COVER, INLET
DAMPER 1
CASE 1,VOLUTE
TAPPING SCREW
5*16(9PCS)
Tightening torque 20 ㎏ｆ･㎝
+5
0
ELBOW
O
-
RING
Fit the O-
RING in the inner top
groove of the ELBOW.
(Apply silicon or grease over the
ring before fitting it.)
NUT M5 BLACK
SCREW
M5*65 W,SW (2PCS)
（Tightening torque 20 ㎏ｆ･㎝）
+10
‐5
DAMPER 2
SCREW
M5*40 (1PCS)
Tightening torque 20 ㎏ｆ･㎝
（Tighten the SCREW temporarily
here, and then tighten it with the
tightening torque above after the
frame assembling.）
+10
‐5
WASHER
（φ
25
）
DAMPER 1
TAPPINNG SCREW
5*25 (3PCS)
Tightening torque 20 ㎏ｆ･㎝
+5
0
COVER
, IN
L
ET
Be careful about
the DAMPER 1 direction.
Place the DAMPER 1 at the
protruding portion on the
vertical rib of the CASE
1,VOLUTE.
After screwing the screws, check
if the ELBOW can be smoothly
rotated with the hand.

19
NO. Part name Assembling Instructions
5FRAME
CUSHION
6FRAME
〜NET (1) Install the NET on the FRAME by screwing the SCREW RIVETS.
CUSHION
RIVET ROCK
（
6PCS
）
SCREW
M5*16 W,SW MEC(2PCS)
Tightening torque 25 ㎏ｆ･㎝
+15
0
FRANGE NUT
M6（2 ヶ）
Tightening torque 25 ㎏ｆ･㎝
+15
0
SCREW RIVETS
NET
Upside NET
Tighten the SCREW with the tightening torque as
shown in the preceding page after the FRAME
assembling.
FRAME
