ROBINHOOD Ironing Centre Manual

Installation & Operating Instructions
PLEASE READ THE ENTIRE INSTRUCTION BEFORE INSTALLING THE IRONING CENTRE
Maintenance & Warranty
107469 “E”
SPECIFICATION DIAGRAM
(Dimensions in mm)
Robinson Industries Ltd, P O Box 51201, Pakuranga, Auckland, New Zealand
Ph [phone], Fax [phone]
FREEPHONE 0800 760 667 • FREEFAX 0800 276 246
www.robinhood.co.nz
168
190
1174
1191
434
FOR SERVICE OR ADVICE IN AUSTRALIA CONTACT
Robinhood Pty Ltd A.C.N. 079 616 550
Unit 3, 5 Faigh Street, Mulgrave, Victoria 3170. Tel [phone] Fax [phone]
For details of your nearest Service Agent please contact:
Victoria, J.A. Appliances Tel [phone] Fax [phone]
New South Wales, All General Whitegoods Service Tel [phone] Fax [phone]
Queensland, Graham Belby Electrical Service Pty Ltd Tel [phone] Fax [phone]
South Australia, Ivesons Electrical Tel [phone] Fax [phone]
Western Australia, J.H. Wilberforce Tel [phone] Fax [phone]
Tasmania, BSH Electrical Tel [phone] Fax [phone]

Preliminary Instructions
Ascertain from the user the DESIRED HEIGHT of the Ironing Board when in
the opened position. We recommend an ironing surface height of 830mm
above the floor for an average adult. To obtain this surface height, the bottom
external edge of the cabinet must be 640mm above the floor.

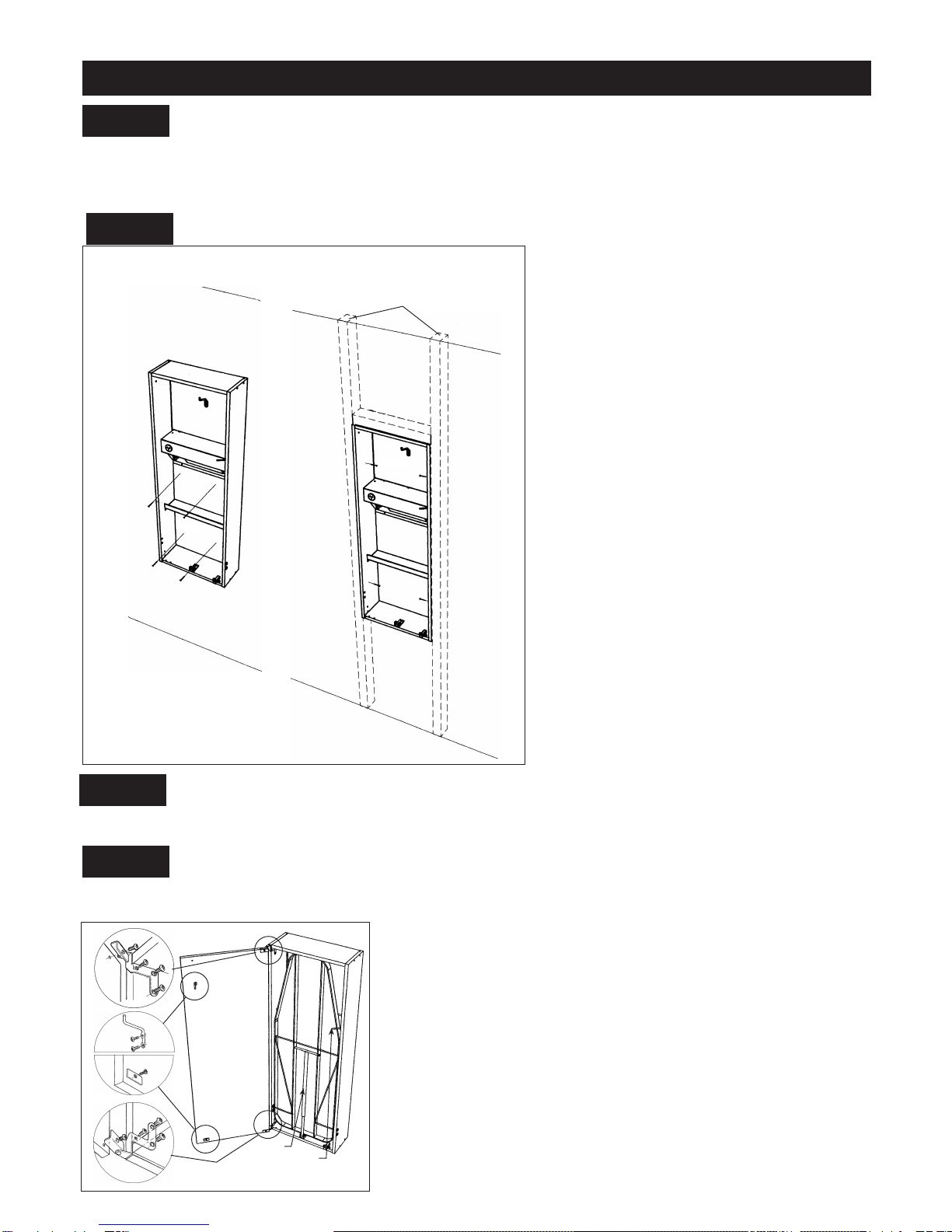

Installation Instructions
Step 1
Step 2 The ROBINHOOD Ironing Centre can
be mounted in two ways (Fig1)
a) Surface Mount - make sure solid
timber studs or mounting points are
in a suitable position for the mounting
of the Ironing Centre. Drill and fasten
through the back of the wooden panel
only to the Mounting Points (A) with
the 4 screws supplied (it may be
necessary to purchase different
length screws for correct fitting, or
use wall anchors if unit is to be
mounted to a solid wall).
b) Recessed Mount - cut the opening
in wall by reference to the
Specification Diagram, allowing for
the cut out when being inserted into
the wall. Make sure solid timber studs
or mounting points are positioned
flush with each side of the wall cut
out opening, drill and fasten through
the sides of the cabinet into the solid
studs (B) with the 4 screws supplied.
To seal gaps between opening of
wall and cabinet, use skirting
available from your local hardware
store.
NOTE: It is important that the Ironing
Centre be installed vertically in the
wall, check with a spirit level on the
front and side faces of the unit.)
Mounting Options
Step 3 Connecting the Centre to Electric Power
The Ironing Centre’s 3 pin plug and lead can be easily plugged into the nearest
wall socket, or can be hard wired by an electrician.
Step 4 Ironing Centre Assembly Instructions
NOTE: DOOR MAY BE HINGED TO LEFT OR RIGHT SIDE OF CABINET (Depending
on user’s preference)
ALL ILLUSTRATIONS SHOWN ARE FOR LEFT SIDE HINGING
Locate and fix hinge brackets to cabinet with 2 large
screws provided.
Fix magnetic door catch to the bottom of the cabinet
on the opposite side to the door hinges (Fig.3) with
the screws provided into the pre drilled holes.
Fix door to top and bottom brackets as shown, (Fig.2)
with screws provided into pre-drilled holes. To ensure
door alignment, adjust top or bottom hinges. Lock hinges
in place with 3rd screw provided.
Fix door hook in desired position using 10mm long self
tapping screws provided. Check that hook is clear of
ironing board in closed position.
Fix magnetic catch plate to bottom of door with
countersunk screw provided into pre-drilled hole.
Check for correct function and adjust door catch
if necessary.
STORED POSITION
BOARD RETAINER
T-BAR
Fig.2
A. SURFACE MOUNT B. RECESSED
Timber
(A) (B)
(A)
SCREWS
SCREWS
Step 2
Fig.1

BOARD RETAINER
T-BAR
Opening Ironing
Operating Instructions
Step 1
Lamp
Replacement
1)Disconnect Ironing
Centre from
power supply.
(Ensure the power
is switched off)
2)Insert small screwdriver or slim knife as
shown, ease catch to side and slip out
diffuser.
3)Replace lamp (40 watt max.)
4)Slide diffuser back into aperture and “click”
into place.(Turn power back on)
To open Ironing Board,
lift retainer and pull
down as shown in
diagrams.
To store Ironing Board,
follow the steps in
reverse order.
Tilting angle of board
can be adjusted by
turning the T-Bar
clockwise or
anticlockwise.
To switch power on to
the socket, rotate the
knob in a clockwise
direction to the time
required for the
operation.
To switch off power to
the socket rotate the
timer in a anticlockwise
direction until the bell
sounds.
Stored
Fixing Of Magnetic Door Catch
Fig.3
Robinhood Ironing Centre
- Electrical
• One piece full size board
• Auto timer and built in light
• Built in power outlet
• Magnetic door catch
• Heat resistant shelf for iron storage
• Utility shelf for spray bottle storage
• Right or left hand opening door
• Foam underlay and heat resistant cover
• 230/240 volt outlet and 40 watt light
• Surface or recess mountable
• Board level adjustable
Ironing Centre Features
The Ironing Centre’s 3 pin plug and lead can be easily plugged into the nearest
wall socket, or can be hard wired by an electrician.
Robinhood Ironing Centre
- Manual
•One piece full size board
• Foam underlay and heat resistant cover
• Magnetic door catch
• Utility shelf for spray bottle storage
• Right or left opening door
• Heat resistant shelf for ironing storage
• Surface or recess mountable
• Board level adjustable
Step 2

YOUR IRONING CENTRE BOARD IS NOW FITTED WITH A HEAT RESISTANT
COVER. TO AVOID DAMAGE TO THE MATERIAL
PLEASE DO NOT WASH THE COVER
The laminated surface of the unit may be
wiped clean with non abrasive with household cleaner.
WARNING
1) Do not place EXCESSIVE WEIGHT (weight should not exceed 15kg) on the
Ironing Board when opened as it is designed to accept normal ironing use only.
2) Iron not to exceed 1340 Watt.
3) Allow iron to cool down before storing in the cabinet.
4) Empty water reservoir and turn off steam action prior to storing iron on the hook.
5) Turn power off when not in use.
6) Do not remove the board retainer
7) The appliance is supplied with an approved power cable which must not
be changed. If the supplied cord of this equipment is damaged, it must only
be replaced by the manufacturer, its service agent or similarly qualified person
in order to avoid hazard.
8)Upon installation, ensure that the socket outlet to which the
Ironing Centre is connected remains easily accessible.
Warranty
Name of Purchaser
Address
Date of Purchase Model No. Serial No.
Date Stamp:
Name of Supplier
Address
Invoice No.
The Ironing Centre and its components are
guaranteed against manufacturing defects
and faulty materials for a period of 12 months
from date of original purchase. Should any
fault in manufacture or materials be found,
the purchaser should immediately
communicate with the nearest Robinhood
supplier or agency. In the event of any defect
being disclosed in any part manufactured or
supplied by the Manufacturer, the
Manufacturer will repair free of charge such
defective part subject only to the conditions
of guarantee set out below.
This product guarantee is made between the
Manufacturer and all owners of the goods,
provided only that when making a claim within
the guarantee period, the present owner does
produce this guarantee card and the purchase
invoice.
Conditions of all guarantees
1. This product guarantee only applies to the
parts and components as installed in the
Ironing Centre. The guarantee becomes invalid
if such parts or components are removed and
used in any other products or for any other
purposes.
2. Upon examination, the Manufacturer or his
agent must see that the defect has not been
caused by misuse, wear and tear, dirt, fire or
accident damage.
3. The Manufacturer is not liable for labour or
for any loss or expense arising from a
breakdown of any parts or for any
consequential damages, direct or indirect or
for any repairs made or attempted to be made,
without the written sanction of the
Manufacturer. Distributors or employees are
not authorised to give any warranty or make
any representation whatsoever, verbal or
otherwise, other than those contained in the
above guarantee, purchasers should note that
registration numbers should not be removed
or defaced.
NOTE: A charge can be made for a
serviceman’s visit if it is found that the Ironing
Centre is functioning correctly. This charge
even applies during the warranty period.
4. When making claim within the guarantee
period, the owner must contact a Robinhood
Supplier or Agent and have the attached
guarantee record duly completed together with
the original purchase invoice for inspection by
our serviceman when he calls.
5. To abide by the guarantee please complete
this section below and keep it with your
purchase invoice.
Maintenance
GUARANTEE RECORD OF ROBINHOOD IRONING CENTRE
