Rockford Fosgate Punch DVC RFP-1208 User manual

® ®
car audio
fanatics
for
punch
®
RFP-1208
RFP-1210
RFP-1212
RFP-1215
DVC

Dear Customer,
Congratulationsonyourpurchaseoftheworld'sfinestbrandofcaraudiospeakers. At
Rockford Fosgate we are fanatics about musical reproduction at its best, and we are
pleasedyouchoseourproduct.Throughyearsofengineeringexpertise,handcraftsman-
ship and critical testing procedures, we have created a wide range of products that
reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new Rockford Fosgate
product installed by an Authorized Rockford Fosgate Dealer, as we provide specialized
training through Rockford Technical Training Institute (RTTI). Please read your
warranty and retain your receipt and original carton for possible future use.
Greatproductandcompetentinstallations are onlyapieceofthe puzzle whenitcomes
to your system. Make sure that your installer is using 100% authentic installation
accessories from Connecting Punch in your installation. Connecting Punch has
everything from RCA cables and speaker wire to Power line and battery connectors.
Insist on it! After all, your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order your Rockford
wearables,which include everything from T-shirtsand jackets to hats andsunglasses.
TogetafreebrochureonRockfordFosgateproductsandRockfordwearables,intheU.S.
call 602-967-3565 or FAX [phone]. For all other countries, call +001-602-
967-3565 or FAX [phone].
The serial number can be found on the outside of the box. Please record it in
the space provided below as your permanent record. This will serve as
verificationofyourfactorywarrantyandmaybecomeusefulinrecoveringyour
speaker if it is ever stolen.
Serial Number: ________________________________
Model Number:________________________________
If, after reading your manual, you still have questions regarding this product,
we recommend that you see your Rockford Fosgate dealer. If you need further
assistance, you can call us direct at 1-800-795-2385. Be sure to have your serial
number, model number and date of purchase available when you call.
PRACTICE SAFE SOUND™
CONTINUOUS EXPOSURE TO SOUND PRESSURE LEVELS OVER
100dBMAY CAUSE PERMANENT HEARING LOSS. HIGH
POWERED AUTOSOUND SYSTEMS MAY PRODUCE SOUND
PRESSURE LEVELS WELL OVER 130dB. USE COMMON SENSE
AND PRACTICE SAFE SOUND.

TABLE OF CONTENTS
Introduction ............................................................................................. 1
DVC Woofer Contents ............................................................................. 1
Technical Design Features ....................................................................... 1
Installation ...............................................................................................4
Recommended Enclosures.................................................................. 4
Building an Enclosure......................................................................... 6
Calculating Volume............................................................................6
Subwoofer Crossovers ........................................................................ 6
Wiring Configurations ........................................................................ 7
Specifications........................................................................................... 8
Warranty Information............................................................................... 9
International Information........................................................................ 10
Welcome to Rockford Fosgate! This manual is designed to provide
information for the owner, salesperson and installer. For those of you
who want quick information on how to install this product, please turn
tothe InstallationSection ofthismanualorrefertotheiconlistedbelow.
Other information can be located by using the Table of Contents. We,
at Rockford Fosgate, have worked very hard to make sure all the
information in this manual is current. But, as we are constantly finding
newways toimprove our product,this informationis subjectto change
without notice.
G ETTING S TARTED
I
N
S
T
A
L
L
A
T
I
O
N
® ®
Sections marked
INSTALLATION
include “slam dunk”
assembly and wiring
directions

– 1 –
INTRODUCTION
Punch DVC Woofer
Installation & Owner's Manual
TECHNICAL DESIGN FEATURES
The Punch Dual Voice Coil woofers are low frequency drivers
designed primarily for usein small, sealed or vented enclosures. The
dual voice coil design allows low impedance loads to be configured
for optimizing the performance of Punch Power 50.1 and 50.2
amplifiers. By utilizing the latest materials and construction tech-
niques, we are able to offer a speaker with optimized low frequency
response while requiring a minimum of operating space.
DVC WOOFER CONTENTS
◆Stamped Basket
The Dual Voice Coil Woofers use a stamped Cold Rolled Steel basket
which is rigid and lightweight. The basket is finished in a corrosive
resistant power coated applied process used in many automotive
applications.
THE RESULT: A lightweight and rigid woofer.
◆PVA Cone
The cone material used is spruce pulp paper. This provides the
necessarycombination ofweight andstrength andallows high levels
of output without cone break-up. The cone is treated with a water
resistantPolyVinylAcetate(PVA) Emulsion whichincreasesthecone
rigidity and lowers distortion.
THE RESULT: Increases cone rigidity and lowers distortion.

– 2 –
◆Santoprene Rubber Surround
The santoprene material is resilient to temperature variations and
provides a consistent support necessary for the linear motion of the
speakercone.Inaddition,theinherentdampingcapabilitieseliminates
thetransmissionofsonicdisturbancesbetweenthe cone and the frame
of the speaker. This greatly improves the clarity of the speaker's
frequency response.
THE RESULT: Improves speaker's frequency response.
◆Flat Spider
The speaker's linear compliance is balanced through the use of a
“proprietary” flat spider design. A flat spider provides symmetrical
control of the voice coil through its cone excursion. Linear cone
excursion reduces harmonic distortion for improved sound quality.
THERESULT:Reducesmechanicaldistortionforbettersoundquality.
◆Powder Coat Finish
Powder coating has long been the industry standard for durability in
protective metal finishes. A dry powder (non-aerosol) is electrostati-
callyappliedtothemetaland“bakedontoprovideahard“shell-like”
finish. As an additional benefit, powder coating is the only finishing
process that releases no toxic chemicals into our ozone.
THE RESULT: A durable and “earth friendly” metal finish.
◆Inverted Dust Cap
Theuseoftheinverteddustcapservestoincreasetheconerigidityand
improve the power handling by forcing more air through the voice
coil.
THE RESULT: Increases cone rigidity, smooths frequency response
andpreventsyourfriendsfromfeelingobligatedtoinvertthemforyou.

– 3 –
◆Aluminum Voice Coil Former
Thevoicecoilformerisblack,anodizedaluminumforhighlyefficient
thermal transfer. This allows winding high temperature copper wire
in multiple layers for improved efficiency.
THE RESULT: Improves power handling by efficiently dissipating
heat.
◆Hyper-Extended Pole Piece
The pole piece has been extended to provide a more linear magnetic
field for the operation of the woofer. This lowers distortion and
provides the woofer with better low frequency response.
THE RESULT: Lowers distortion and provides better low frequency
response.
◆Vented Bumped Back Plate
The back plate has been stepped deeper to allow the woofer more
excursionwithoutbottomingout.Thisenablesthespeakertobeused
in a smaller enclosure. Additionally, the back plate is vented with a
radiused aerodynamic back vent which efficiently and quietly circu-
lates cool air around the voice coil.
THE RESULT: More excursion and increased power handling.
◆Dual Voice Coils
The dual voice coil design of the speaker allows a variety of imped-
ance loads to be configured. A single woofer can be wired for a 2Ω
load and a pair of woofers can be wired for either a 4Ωor 1Ωload.
These configurations allow a multitude of amplifiers to be used with
the Punch DVC.
THE RESULT: Allows multiple wiring configurations.

– 4 –
INSTALLATION

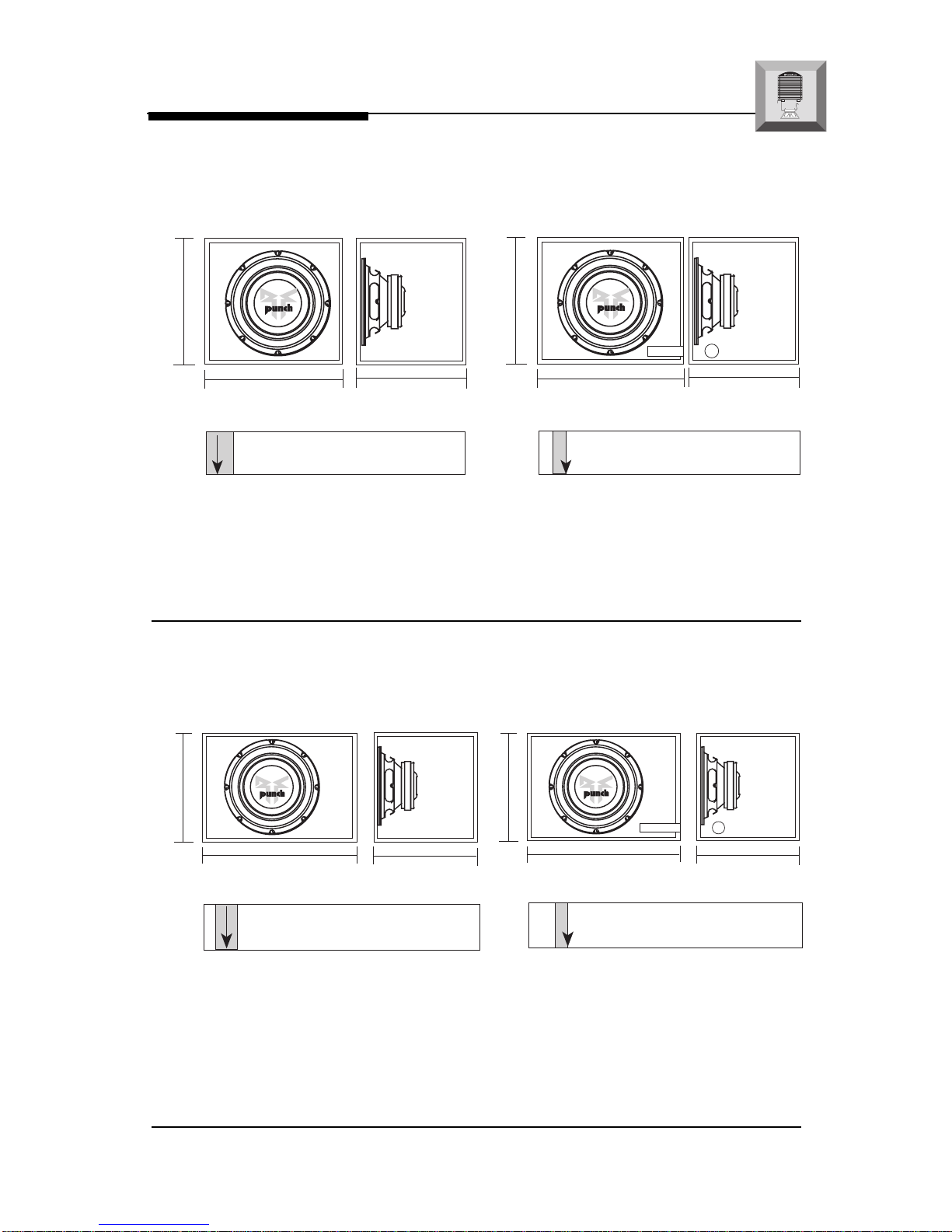

Recommended Enclosures
Fb = Tuning Frequency Pd = Inside Port Diameter PI = Total Port Length
Fb=35Hz
Pd=2.5" (6.35cm)
PI=15.25" (38.73cm)
Fb=35Hz
Pd=3" (7.62cm)
PI=13.25" (33.65cm)
Recommended Ported 1.0ft3(28.32L)
Recommended Sealed .30ft3(8.50L)
Punch DVC 8"
I
N
S
T
A
L
L
A
T
I
O
N
® ®
Recommended Ported .625ft3(17.70L)
H = 11"
(27.94cm)
W = 11"
(27.94cm)
DVC
D = 8"
(20.32cm)
Range in Cubic Feet
1 2 3 4 5 6
0.3
1.50
.375
.25
D = 8"
(20.32cm)
H = 11"
(27.94cm)
W = 19.75"
(50.16cm)
DVC
Range in Cubic Feet
1 2 3 4 5 6
.50
.625
.03
Punch DVC 10"
Recommended Sealed .625ft3(17.70L)
D = 10"
(25.40cm)
H = 14"
(35.56cm)
W = 13"
(33.02cm)
DVC
Range in Cubic Feet
1 2 3 4 5 6
0.3
.625
.50 .75
D = 13.5"
(34.29cm)
H = 13"
(33.02cm)
W = 15"
(38.1cm)
DVC
Range in Cubic Feet
1 2 3 4 5 6
0.3
.75

– 5 –

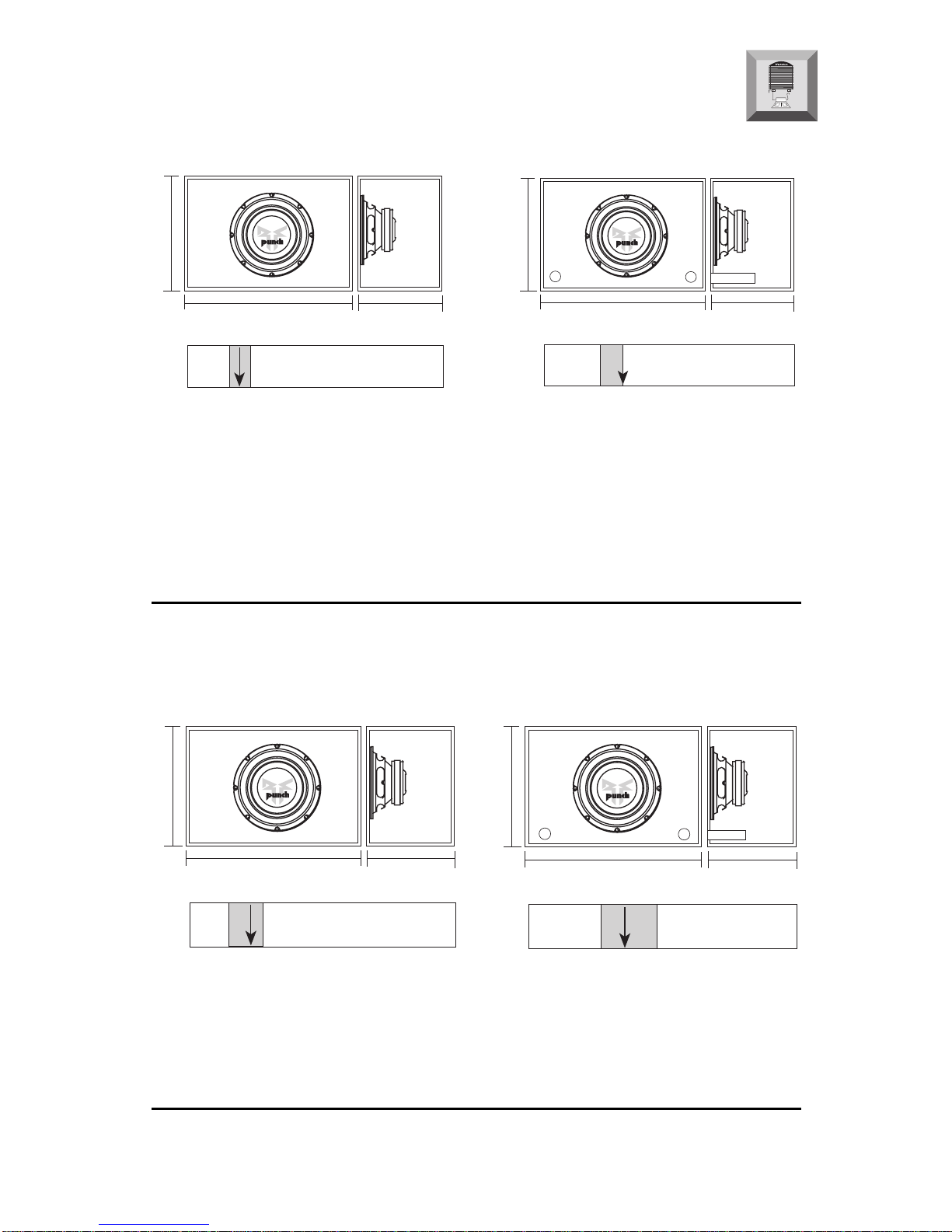

Fb = Tuning Frequency Pd = Inside Port Diameter PI = Total Port Length
Fb=30Hz
Pd=2 x 2.5" (2 x 6.35cm)
PI=12" (30.48cm)
Fb=30Hz
Pd=2 x 3" (2 x 7.62cm)
PI=15.5" (39.37cm)
Recommended Ported 2.25ft3(63.71L)
Recommended Sealed 1.25ft3(35.40L)
Punch DVC 12"
Recommended Ported 2.0ft3(56.63L)
Punch DVC 15"
Recommended Sealed 1.5ft3(42.47L)
D = 12"
(30.48cm)
H = 17"
(43.18cm)
W = 19"
(48.26cm)
DVC
Range in Cubic Feet
1 2 3 4 5 6
0.3
1.50 1.75
D = 17.5"
(44.45cm)
H = 17"
(43.18cm)
W = 19"
(48.26cm)
DVC
Range in Cubic Feet
1 2 3 4 5 6
0.3
1.75
2.25
I
N
S
T
A
L
L
A
T
I
O
N
® ®
D = 12"
(30.48cm)
H = 14"
(35.56cm)
W = 19-3/4"
(50.17cm)
DVC
Range in Cubic Feet
1 2 3 4 5 6
0.3
1.50
1.25
D = 14"
(35.56cm)
H = 18"
(45.72cm)
W = 20.5"
(52.07cm)
DVC
Range in Cubic Feet
1 2 3 4 5 6
0.3
1.50

– 6 –
Building an Enclosure
Toworkproperly,thewallsoftheenclosuremustberigidandnotflex
when subjected to the high pressures generated by the speaker's
operation. For optimum performance, we recommend using 3/4"
MDF (Medium Density Fiberboard) and internal bracing. The enclo-
sure should be glued together with nails or screws. Because MDF is
porous, it is suggested to seal the outside walls with polyurethane.
Calculating Volume
Calculating volume is merely a matter of measuring the dimensions
in inches and using the formula:
1728"
Height x Width x Depth
Box Volume =
(cubic feet)
Iftwofacingsidesareofunevenlength,addthemtogetheranddivide
by two to take the average. Using this number will give you the
volume without the necessity of calculating the box in sections and
adding the sections together. The thickness of the baffle material
reduces the internal volume so this must be subtracted from the
outside dimensions to determine the internal volume. The speaker
itself also reduces the internal volume. The amount of air displaced
by each model is listed on the specification sheet and should also be
subtracted from the gross volume calculation.
Subwoofer Crossovers
There are two operational types of crossovers, passive and active.
Passivecrossovers(coilsorinductors)areplacedonthespeakerleads
between the amplifier and speaker. An active crossover is an elec-
tronic filter which separates the audio signal fed to different amplifi-
ers. For optimum subwoofer performance, we recommend using an
active 80-100Hz low-pass crossover at 12dB/octave.
I
N
S
T
A
L
L
A
T
I
O
N
® ®

– 7 –
Wiring Configurations
Three configurations for connecting speakers to an amplifier are
Series, Parallel, and Series-Parallel wiring. A Series configuration
consists of two or more speakers (voice coil) wired in an string (end
to end). A Parallel configuration consists of two or more speakers
(voice coils) wired with the common terminals connected across
each other. A Series-Parallel configuration is a combination of both
methods. Determine which method will be compatible with your
amplifier.
RT= R1+ R2+ R3+ etc. 1 1 1 1 1
=++++etc.
RTR1R2R3R4
Series Wiring Parallel Wiring
•RTindicates the total speaker load
•R1, R2,etc. indicates each speaker in the system
•Purple dot indicates “+” terminal of 4 ohm speaker
4Ωx 2
+ –
1Ω
+
–+ –
4Ωx 2
+
–+ –
4Ωx 2
+ –
4Ω
+
–+ –
4Ωx 2
+
–+ –
I
N
S
T
A
L
L
A
T
I
O
N
® ®
4Ωx 2
+ –
8Ω
4Ωx 2
+ –
2Ω
+
–+
–
+
–
+
–
Series/Parallel Wiring

– 8 –
SPECIFICATIONS
Model RFP-1208 RFP-1210 RFP-1212 RFP-1215
Nom. Imped. 2 x 4Ω2 x 4Ω2 x 4Ω2 x 4Ω
FS (Hz) 40 30 25 21
RE (Ohm) 2 x 3.6 2 x 3.3 2 x 3.3 2 x 4.0
LE (mH) 1.2 1.12 1.12 3.53
QMS 5.13 5.06 5.40 6.81
QES 0.38 0.37 0.45 0.35
QTS 0.36 0.34 0.42 0.33
VAS (cu.ft) 0.55 1.44 3.67 8.79
VAS (liter) 15.5 40.7 103.9 249
Power (Watts RMS) 250 400 400 500
Power (Watts Peak) 500 800 800 1000
SPL (dB @ 1w/1m) 85 86 88 90
X-MAX (inches) 0.41 0.44 0.44 0.44
X-MAX (mm) 10.3 11.2 11.2 11.2
Speaker Disp. (cu. ft.) .035 .06 .085 .135
Mntg. Dia. (in.) 71⁄16"9
5⁄16"11 1⁄16"13 15⁄16"
Mntg. Depth (in.) 41⁄2"5
15⁄32"6 7⁄32"7 13⁄32"
Specifications are subject to change without notice.
Thiele-Small data measured with both voice coils wired in parallel.

– 9 –
LIMITED WARRANTY INFORMATION
Ship to: Speakers
Rockford Acoustic Design
(Receiving-speakers)
609 Myrtle N.W.
Grand Rapids, MI 49504
RA#:_________________
Ship to: Electronics
Rockford Corporation
Warranty Repair Department
2055 E. 5th Street
Tempe, AZ 85281
RA#:_________________
Rockford Corporation offers a limited warranty on Rockford Fosgate products on the
following terms:
•Length of Warranty
1 year on speakers 30 days on speaker B-stock (receipt required)
3 years on electronics 90daysonelectronicB-stock(receiptrequired)
2 years on source units
•What is Covered
This warranty applies only to Rockford Fosgate products sold to consumers by
Authorized Rockford Fosgate Dealers in the United States of America or its
possessions. Product purchased by consumers from an Authorized Rockford
Fosgate Dealer in another country are covered only by that country’s Distributor
and not by Rockford Corporation.
•Who is Covered
This warranty covers only the original purchaser of Rockford product purchased
from an Authorized Rockford Fosgate Dealer in the United States. In order to
receive service, the purchaser must provide Rockford with a copy of the receipt
statingthecustomername,dealername,productpurchasedanddateofpurchase.
•Products found to be defective during the warranty period will be repaired or
replaced (with a product deemed to be equivalent) at Rockford's discretion.
•What is Not Covered
1. Damage caused by accident, abuse, improper operations, water, theft
2. Any cost or expense related to the removal or reinstallation of product
3. Service performed by anyone other than Rockford or an Authorized Rockford
Fosgate Service Center
4. Any product which has had the serial number defaced, altered, or removed
5. Subsequent damage to other components
6. Any product purchased outside the U.S.
7. Any product not purchased from an Authorized Rockford Fosgate Dealer
•Limit on Implied Warranties
Anyimpliedwarrantiesincludingwarrantiesoffitnessforuseandmerchantability
are limited in duration to the period of the express warranty set forth above. Some
states do not allow limitations on the length of an implied warranty, so this
limitationmay not apply. No personis authorized to assume forRockford Fosgate
any other liability in connection with the sale of the product.
•How to Obtain Service
Please call 1-800-669-9899 for Rockford Customer Service. You must obtain an
RA#(ReturnAuthorizationnumber)toreturnanyproducttoRockfordFosgate.You
are responsible for shipment of product to Rockford.

INTERNATIONAL
INFORMATION
– 10 –

LEA DETENIDAMENTE LAS SIGUIENTES INSTRUCCIONES DE
INSTALACÍON DEL PRODUCTO.
INTRODUCCÍON
Los terminales positivo y negativo de entrada están ubicados uno en
cada extremo de la carcasa. Este montaje separado previene de
posibles cortocircuitos de la señal a altos niveles de volumen. El
terminalpositivoestámarcadoconunpunto en la carcasa. Unpunto
rojoindicaquelaimpedancia del altavozesde8ohmios,y un punto
violeta que es de 4 ohmios.
TERMINALES DEENTRADA
Los woofers Punch de doble bobina son drivers diseñados
primordialmente para utilizar en cajas cerradas pequeñas. El diseño
de doble bobina permite que las cargas de baja impedáncia sean
configuradas para optimizar las prestaciones de los amplificadores
Punch Power 50.1y 50.2Utilizando los últimos materiales y técnicas
de construcción, somos capaces de ofrecer un altavoz con una
respuesta óptima a baja frecuencia, requiriendo un espacio mínimo
para su funcionamiento.
CALCULO DEL VOLUMEN
Para calcular el volumen sólo se han de medir las dimensiones en
centimetros y aplicar la fórmula:
Volumen du
la caja =
Sidoscarasopuestassondediferentetamaño,súmelasydividaeltotal
por dos para obtener el promedio. Usando esta técnica se ahorrara el
cálculoporsecciones.Elespesordelmaterialconqueestáconstruida
la caja reduce el volumen interno, de manera quer ha de restarse de
las dimensiones exteriores para determinar el volumen interior. La
cantidaddeairequeocupacadamodelovieneespecificadoenlahoja
de caracteristicas y también debe sustraerse para obtener el volumen
neto interior.
1000
Alto x Ancho x Profundidad
(en litros)
ESPAÑOL
– 11 –

VEUILLEZ LIRE LES INSTRUCTIONS SUIVANTES POUR L'INSTALLATION
DE CE PRODUIT.
INTRODUCTION
Les woofers Punch Double bobine sont des haut-parleurs de basses
fréquences conçus à l’origine pour jouer dans des petits caissons. La
conceptionàdoublebobinepermetdeschargesdebassesimpédances
destinéesàoptimiserles performancesdesamplisPunch Power50.1
et 50.2. Grace à l’utilisation de matériaux dernier cri et des plus
récentestechniquesdefabrication,nouspouvonsvousoffrirunhaut-
parleuravecuneréponseenbassesfréquencesoptimiséenerequérant
qu’un minimum d’espace opérationnel.
FRANÇAIS
Les bornes positives et négatives sont fixées de part et d'autre du
saladier.Cetteséparationpermetd'empêcherlescourts-circuitsentre
les fils lors des reproductions sonores élevées. La borne positive est
repérée par un petit point de couleur sur le saladier. Un point rouge
est utilisé pour les haut-parleurs de 8Ω, un point violet pour les haut-
parleurs de 4Ω.
BORNIERS
CALCUL DUVOLUME
Oncalculelevolumeenmesurantladimensiondechaquecôtéeten
utilisant la formule suivante:
Volume du
caisson =
(Litres)
Si les due côtés qui se font face n'ont pas la même longueur,
additionnez les et divisez le résultat par deux pour obtenir la
moyenne des deux longueurs. Utilisez le nombre ainsi obtenu dans
laformulepourdéterminerlelitrage.Cetteméthodepermetd'obtenir
le volume du caisson sans devoir faire de calculs compliqués de
section de volume. L'épaisseur du matériau dont est fait le caisson
réduit le volume interne de celui-ci. Lorsqu'on mesure les côtés du
caisson il ne faut donc pas oublier d'oter des mesures l'epaisseur du
matériau. Le haut-parleur lui-même diminue le volume interne du
caisson.Levolumed'airdéplacéparchaquemodèledehaut-parleur
est repris dans les spécifications techniques et doit également être
soustrait du volume total.
1000
Hauteur (cm) x Longueur (cm) x Largeur (cm)
– 12 –

BITTE LESEN SIE DIESE GEBRAUCHSANLEITUNG ZUERST SORGFÄLTIG
DURCH. DAS KANN SIE VOR FALSCHEM EINSATZ, AUSFALLEN ODER
SOGAR BESCHÄDIGUNG DES PRODUKTES ODER IHRES FAHRZEUGES
SCHÜTZEN.
EINLEITUNG
DiePunchDoppel-SchwingspuleWoofersindTieffrequenz-Woofer,
diefür kleine geschlosseneGehäuse konstruirt wurden. Die Doppel-
Schwingspule erlaubt eine sehr niedrige Impedanz, genau richtig für
dieOptimierung derLeistung derneuen PunchPower 50.1und 50.2
Endstufen. Unter der Verwendung neuester Materialien und
konstruktionstechnikjen, können wir Ihnen einen Woofer für sehr
tiefe Frequenzen, in sehr kleinen Gehäusen vorstellen.
ANSCHLUβTERMINALS
DieAnschluβterminalswurdenaufjederSeitedesLautsprecherkorbes
positioniert um eventuelle Kurzschlüsse auch bei hoher Leistung
auszuschlieβen (Das Positiv-Terminal ist durch eine Farbmarkierung
gekenzeichnet). Eine rote Farbamrkierung befindet sich immer bei
einem Lautsprecher mit einer Impedanz von 8 Ohm, eine violette
FarbmarkierungzeichnetdieLautsprechermitderImpedanz4Ohm.
VOLUMEN-BERECHNUNG
DEUTSCH
SolltenzweigegenüberliegendeSeitenungleichlangsein,sokönnen
sie die Maβe zusammen rechnen und durch zwei dividieren um den
Durchschnittzu erhalten. Diesmacht Ihnendie Berechnung leichter
und Sie müssen das Gehäuse nicht in Sektionen berechnen, die Sie
danachwiedermühseligzusammenzählenmüssen.DieMaterialstärke
beeinfluβt natürlich auch das Innen-Volumen, so muss für eine
präzise Berechnung die Materialstärke von Auβen-Volumen
abgezogenwerden.DerLautsprecherverringertebenfallsdas Innen-
Volumen, auch er sollte natürlich heraus gerechnet werden. Jedes
Lautsprecher-Volumen ist unter “Specifications” genau aufgelistet.
Zur Volumen-Berechung benötigen sie die genauen Maβe und
Dimensionen in Zentimetern.
Gehäuse-
Volumen = 1000
Höhe (cm) x Breite (cm) x Tiefe (cm)
(Kubik Liter)
– 13 –

LEGGERE CON ATTENZIONE LE SEGUENTI ISTRUZIONI PRIMA
DELL'INSTALLAZIONE DEL PRODOTTO.
INTRODUZIONE
I woofer Punch a doppia bobina sono altoparlanti a bassa frequenza
progettati soprattutto per l'9mpiego in cassa chiusa di limitato vol-
ume. Il progetto a doppia bobina consente la configurazione di
carichi a bassa impedenza per ottimizzare le prestazioni degli
amplificatori Punch Power 50.1 e 50.2 Impiegando i materiali e le
tecniche di costruzione piú avanzati, siamo in grado di offrirvi un
altoparlante che ottimizza la risposta a bassa frequenza richiedendo
un minimo spazio operativo.
Iconnettori di ingressopositivi enegativi sono montatisul cestelloin
posizioni speculari. Il montaggio separato impedisce al segnale
musicaledicortocircuitarsiadaltissimilivellidivolume.(Ilterminale
di ingresso é indicato da una marcatura colorata sul cestello.) Un
contrassengno rosso indica che l'impedenza dell'altoparlante é 8
ohm, il contrassegno viola é impiegato per i 4 ohm.
CONNESSIONI DI INGRESSO
CALCOLO DEL VOLUME
Calcolare il volume é essenzialmente solo un poroblema di
misurazione delle dimensioni in centimetri della cassa e di
applicazione della formula:
Volume della
cassa =
(litri) 1000
Alteza x Larghezza x Profonditá
ITALIANO
Se due pareti parallele sono di dimensioni diverse (prisma),
semplicemente sommatele e dividete il risulto per due. Impiegando
ilrisultatoottenutopotetecalcolareilvolumesenzadividerelacassa
i sezioni. Lo spessore del legno riduce il volume interno, per cui é
necessario sottrario dalle dimensioni esterne. Anche il volume
dell'altoparlante stesso riduce il volume della cassa e deve essere
sottratto. Il volume che ciascun altoparlante contribuisce a togliere
dalla cassa é indicato nelle tabelle con le specifiche.
– 14 –

4/97
LIT9550-B
Rockford Fosgate
Rockford Corporation
546 South Rockford Drive
Tempe, Arizona 85281 U.S.A.
In U.S.A., [phone]
In Europe, Fax [phone]
In Japan, Fax [phone]
MADE IN THE USA
This product is designed, developed and assembled in the USA by a dedicated
group of American workers. The majority of the components used in the
construction of this product are produced by American companies. However, due
to the global nature of their manufacturing facilities and the loudspeaker parts
industry in general, some parts may be manufactured in other countries.
