Rockville RDD6 User manual

RDD6
6.1˝ IN-DASH DOUBLE DIN TOUCHSCREEN
MULTIMEDIA ENTERTAINMENT SYSTEM
OWNER’S MANUAL

2
Thank you for purchasing this Rockville 6.1˝ Double DIN Touchscreen Multimedia En-
tertainment System.
Please read this installation guide carefully for proper use of your Rockville RDD6.
Should you need technical assistance please call our technical help line at 1-646-
758-0144, Monday through Friday, 9am to 5pm EST.

2 3
1. When the interior of the car is extremely cold and the unit is used soon after
switching on the heater, moisture may form on the disc or the optical parts of
the player and proper playback may not be possible. If moisture forms on the
disc, wipe it off with a soft cloth. If moisture forms on the optical parts of the
player, do not use the player for about one hour. The condensation will disap-
pear naturally allowing normal operation.
2. Driving on extremely bumpy or rough roads can cause the disc to skip during
playback.
3. This unit uses precision parts and components for its operation. In the event
that trouble arises, never open the case, disassemble the unit, or lubricate the
rotating parts. Contact your Rockville service center.
4. This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio reception, which can be de-
termined by turning the equipment off and on, the user is encouraged to consult
an experienced radio technician for help.
5. Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards. Please note that the use of this accessory with
iPod or iPhone may affect wireless performance iPhone and iPod are trade-
marks of Apple Inc., registered in the U.S. and other countries.
6. This product incorporates copyright protection technology that is protected
by U.S. patents and other intellectual property rights. Use of this copyright pro-
tection technology must be authorized by Rockville, and is intended for home
and other limited viewing uses only unless otherwise authorized by Rockville.
Reverse engineering or disassembly is prohibited. Use of this product by the
customer is restricted to play program materials to which the Rockville co-
py-right protection process has been applied.
7. The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Rockville is under license.
For your safety, the driver should not operate the controls while driving.
Also, while driving, keep the volume to a level at which external sounds
can be heard.
WARNING
PRECAUTIONS

4
• 6.1˝ High Resolution TFT-LCD Digital Touch Screen
• 800 x 480 Screen Resolution
• Selectable Backgrounds
• 16:9 (Wide Screen) or 4:3 (Letterbox) Switchable Aspect Ratio
• 300:1 Contrast Ratio
• Picture Control: Brightness/Contrast/Saturation/Hue/Denition
• PAL/NTSC Compatible
• Supports DVD/DVD+R/DVD-R/DVD+RW/DVD-RW/VCD/SVCD/CD/
CD+R/CD-R/CD-RW/CD+RW/MP3/MP4/ Divx5.0/ID3
• Micro SD Card Reader, Supports Double High Speed SDHC (32G) Card
• USB 2.0 Input (MP3, MP4, MPEG4, WMA, WAV, OGG, FLAC, APE)
• Repeat/Program/Random/Intro Play on MP3 Play
• FM/AM Receiver w/ 18 FM/12 AM Preset Station Capability
• Auto Memory Store/Preset Scan
• 2 Band Equalizer: Bass and Treble
• Preset and Custom EQ (Flat/Classic/Rock/Jazz/Pop/custom)
• DSP Audio Control (Treble/Bass/Sub woofer/Fader/Balance)
• Virtual Surround or Down Mix Stereo output selection
• Electronic Encoder Volume Control
• Mute/Loudness/Clock Function
• Electronic Anti-Shock
• Power Output: 4 x 18W RMS / 4 x 50W Peak
• 3 Sets 5V Preamp Outputs (Front, Rear, and Sub woofer)
• 2 Channel Rear Audio/Video Output
• AUX Input (1 Channel Video Input/2 Channel Audio Input)
• Rear View Camera Input
• Steering Wheel Control Compatible (requires no additional equipment)
• Bluetooth Capability for Hands Free (with Phone book and A2DP)
and Streaming Music
FEATURES

4 5
• iPod Touch and iPhone integration via USB
• Pandora/Spotify integration with iPhone via USB
• Supports iPhone Charging
• 3.5mm Front AUX/MP3 Input
• Built-in High Sensitivity BT Microphone
• Full Function Remote Control Included

6

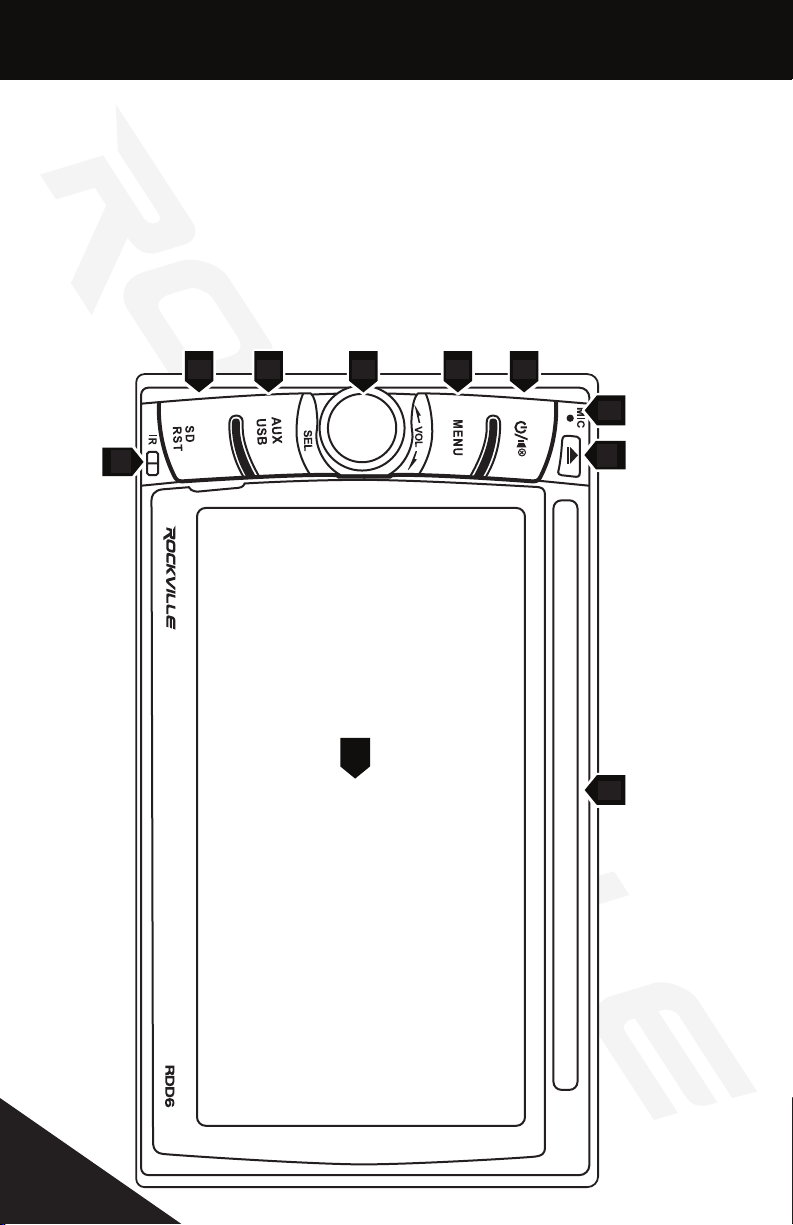

RECEIVER CONTROLS
1. IR Receiver 2. Micro SD card slot / Reset button 3. USB Port / AUX in 4. Volume / Select Knob 5. Menu button 6. Power / mute button 7. Mic 8. Eject 9. CD/DVD Slot 10. Touchscreen
7
77777
7
5
5
78
6 5 4 3 2
1
9
10

6 7
1. Power
2. Time
3. Menu
4. Eject
5. OSD (during video playback)
6. Channel Button
7. Return/PBC menu display
8. Set Up (System settings)
9. Enter
10. Menu navigation
11. OSD button
12. Rewind / Fast Forward
13. AM / FM Select
14. Volume - / +
15. Previous / Next
16. Number pad
17. Mode select
18. Repeat
19. Display angle adjustment
20. Mute
21. Reserve
22. Pause / Play
REMOTE CONTROL FUNCTIONS
1
5
6
7
8
9
10
11
12
13
14
15
22
21
20
19
18
17
16
2 3 4

8

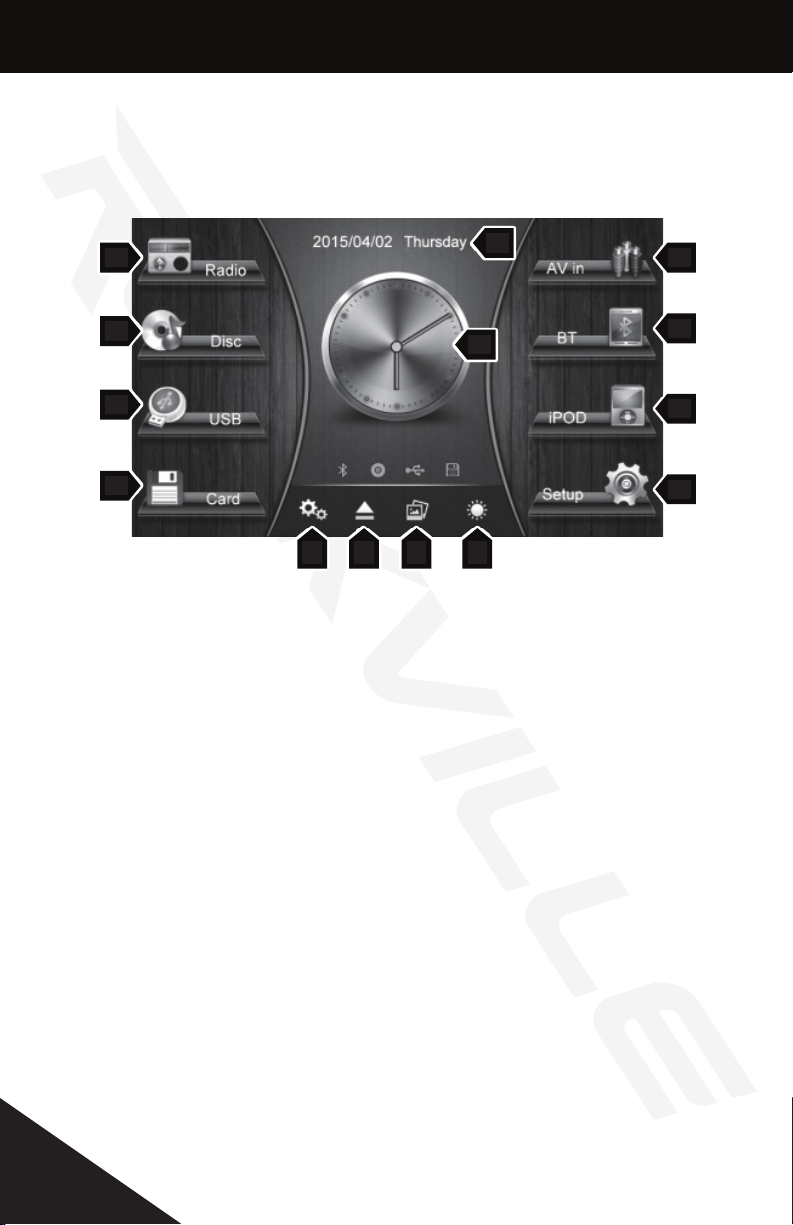

MAIN INTERFACE
The RDD6 is a multimedia head unit with a 6 inch touch screen interface. You can
access all primary functions from the home screen.
5
5 5 5 5
5
5
5
5
5
5
5
5
5
9
5 6 7 8
10
11
12
1
2
3
4
14
13
1. Radio tuner
2. CD/DVD mode
3. USB mode
4. SD mode
5. Quick Settings menu
6. Eject
7. Change background image
8. Screen brightness settings
9. System set-up
10. iPod/iPhone mode
11. Bluetooth mode
12. AV i mode
13. Day/Date
14. Time

8 9
RADIO
Touch the Radio icon on the home screen or press MODE key on the remote control
to access radio functions.
1. Displays current frequency.
2. Touch once to begin semi auto search back through frequencies. When a station
with a strong signal is found, the search will automatically stop. Or you can touch the
key again to manually stop the search. Touch and hold to ne tune frequencies.
3. Touch to choose the desired station. Touch and hold to assign station.
4. Touch to switch radio bands.
5. Touch once to browse stations. Touch again to stop browsing.
6. Touch to switch between MONO and STEREO.
7. Touch to switch between LOC and DX modes.
8. Touch to activate PS/AS function. The system will automatically scan radio stations
and store those with a strong signal in the presets. After search is nished the system
will browse through programmed stations, pausing at each one for 3 seconds.
9. Touch once to begin semi auto search back through frequencies. When a station
with a strong signal is found, the search will automatically stop. Or you can touch the
key again to manually stop the search. Touch and hold to ne tune frequencies.
3
1
8
9
2
5 5 5
4 5 6
5
7

10
Insert disc or touch the CD or DVD icons on the home screen to access CD/DVD
functions.
5
5
5
5
5
5
5
5
5
5
16 27 38 49 510
CD/DVD
5 5 5 5
11 12 13 14
1. File list
2. Previous
3. Play/Pause
4. Next
5. Stop
6. Repeat
7. Random
8. Viewing angle (not available on all DVDs)
9. Zoom
10. Switch soundtrack
11. Select subtitle language
12. Slow motion
13. Menu/PCB
14. Manual track selection

10 11
USB/SD
iPOD TOUCH /iPHONE
When connecting a USB ash drive or inserting an SD card, the unit will automatically
switch to the corresponding mode. This will bring up the USB/SD functions.
5
5
5
5
5
5
5 5
16 27 38 4 5
1. File list
2. Previous
3. Play/Pause
4. Next
5. Repeat
6. Random
7. Switch soundtrack
8. Manual track selection
Direct Compatibility With iPhone/iPod Touch and USB Devices
Connect your compatible iPhone or iPod Touch (iOS9.3 to 10.3) with your device’s
USB cable and enjoy full music control and functionality directly on the receiver. The
receiver will display album title, song title, and artist names. The receiver will also
charge your iPhone/iPod when connected to the USB port.
Pandora and Spotify Integration via USB Connection
Control Pandora or Spotify on your iPhone or iPod Touch from the head unit via USB
connection. Displays album title, song title, and artist as well as album art when avail-
able.

12

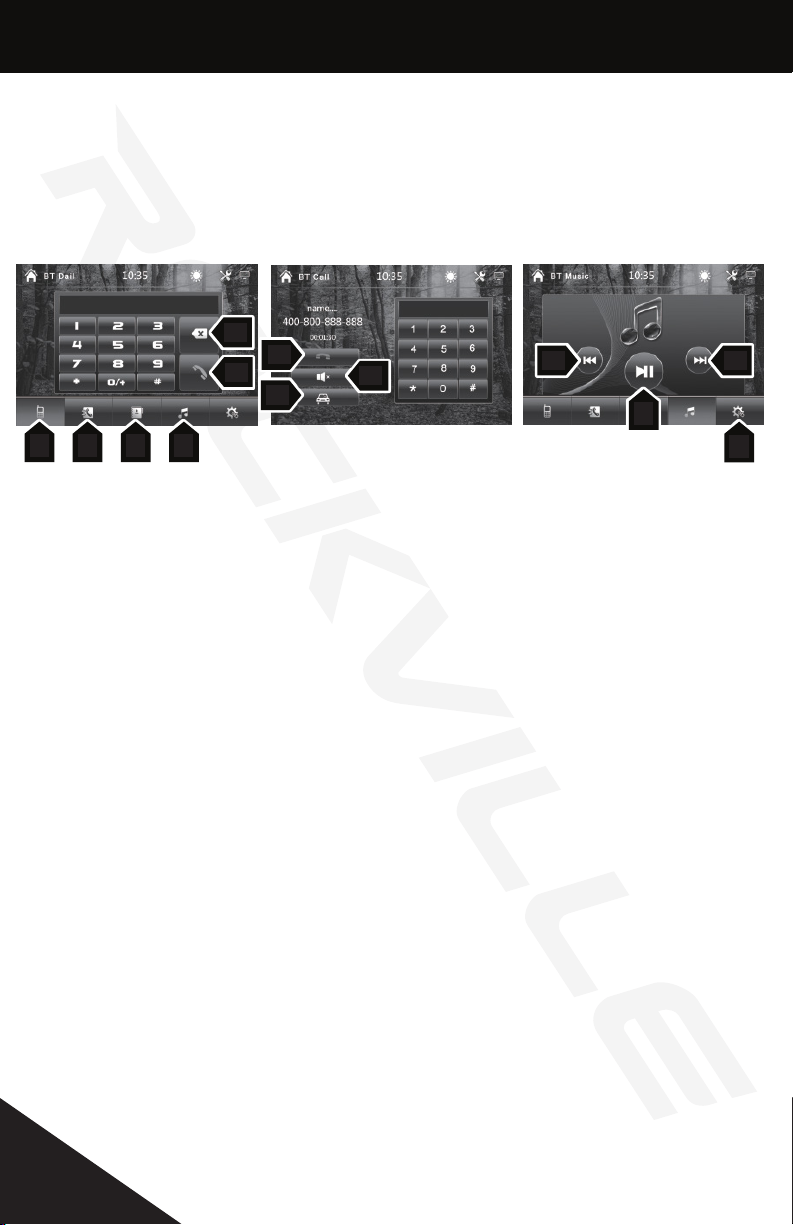

BLUETOOTH
When driving it is important to keep your hands on the wheel and your eyes on the
road. Bluetooth integration allows you to make and receive hands free phone calls
directly on the receiver. Our Bluetooth technology is the latest on the market. It sup-
ports recent calls, phone book, and more. With A2DP you can wirelessly stream mu-
sic from your Bluetooth phone or MP3 player right to your audio system.
5
5
5
5
5
5
5
5
5
5
1
6
2
7
3
9
4
8
510
5
5
5
11
12
13
1. Dial
2. Call log
3. Phone book
4. Music
5. Call
6. Delete
7. End call
8. Switch between vehicle speakers and phone speaker
9. Microphone
10. Previous
11. Play/Pause
12. Next
13. Menu/PCB
14. Device settings

12 13
BLUETOOTH
Pairing
When the unit is in paring mode, the words “Waiting for Pairing” will be displayed in
the number display box above the keypad.
1. Make user your device is in Bluetooth mode and discoverable.
2. Search for and select ROCKVILLE in your device’s available Bluetooth device list.
3. Upon pairing you maybe prompted for a pass code. Please enter 0000.
Making/Answering calls
To make a call:
1. Enter the phone number via the on screen key pad, the remote control, or the
phone itself.
2. After inputting the phone number press the Call key to initiate the call.
3. During the call press the key with the CAR icon (page 13, item 9) to switch between
the vehicle speakers and the phone speaker.
4. To end the call press the End call key.
5. When a call comes in the unit will automatically switch to the Bluetooth and Hands-
Free mode interface.
To answer a call:
1. Calls can be answered manually by pressing the Call key. Alternately the unit can
be set to Auto Answer mode in the Bluetooth settings menu. In this mode, an incom-
ing call will automatically be answered with out the need to touch the screen or your
phone.
2. To end the call press the End call key.
Music Playback via Bluetooth
Music from your A2DP capable phone can be played via the head-unit. You can
use the Bluetooth music interface to control your music or you can use your phone.
Please refer to page 13, items 10 -12.

14
AUX INPUT
Touch the AUX icon on the home screen or use the MODE button on the remote to
access AUX IN mode. This mode will enable the end user to connect external media
sources such as a rear-view camera, video game console, MP3 player, etc.
Touch the set-up icon to enter the system menu. Here you can customize the inter-
face according to your preferences.
Basic System Settings
Audio Settings
SYSTEM SETTINGS
1. Set system region
2. Set OSD language
3. Activate front camera function (if available)
4. Activate rear camera function (if available)
5. Activate headlamp detection mode
1. EQ settings. Select from 6 presets: Standard,
Classic, Rock, Pop, Jazz, Electric, and Custom
2. Surround sound settings: Concert, Church,
Passive, Wide, and Live
3. Manually adjust Balance and Fader
4. Set loudness On/Off
5
5
5
5
5
1
2
3
4
5
5
5
5
5
1
2
3
4

14 15
SYSTEM SETTINGS
Display Settings
1. Type settings: Standard, Light, Soft, Bright,
Custom
2. Image adjustment settings: Brightness,
Contrast, Saturation, Hue, and Sharpness
5
5
1
2
Media
1. Set DVD language
2. Set subtitle language
3. Set menu language
4. Set password
5. Parental control settings
5
5
5
5
5
1
2
3
4
5
Bluetooth
5
5
5
5
5
1
2
3
4
5
1. Set Bluetooth function On/Off
2. Set Bluetooth name
3. Set Bluetooth pairing PIN code
4. Set Auto Link On/Off
5. Set Auto Answer On/Off

16
SYSTEM SETTINGS

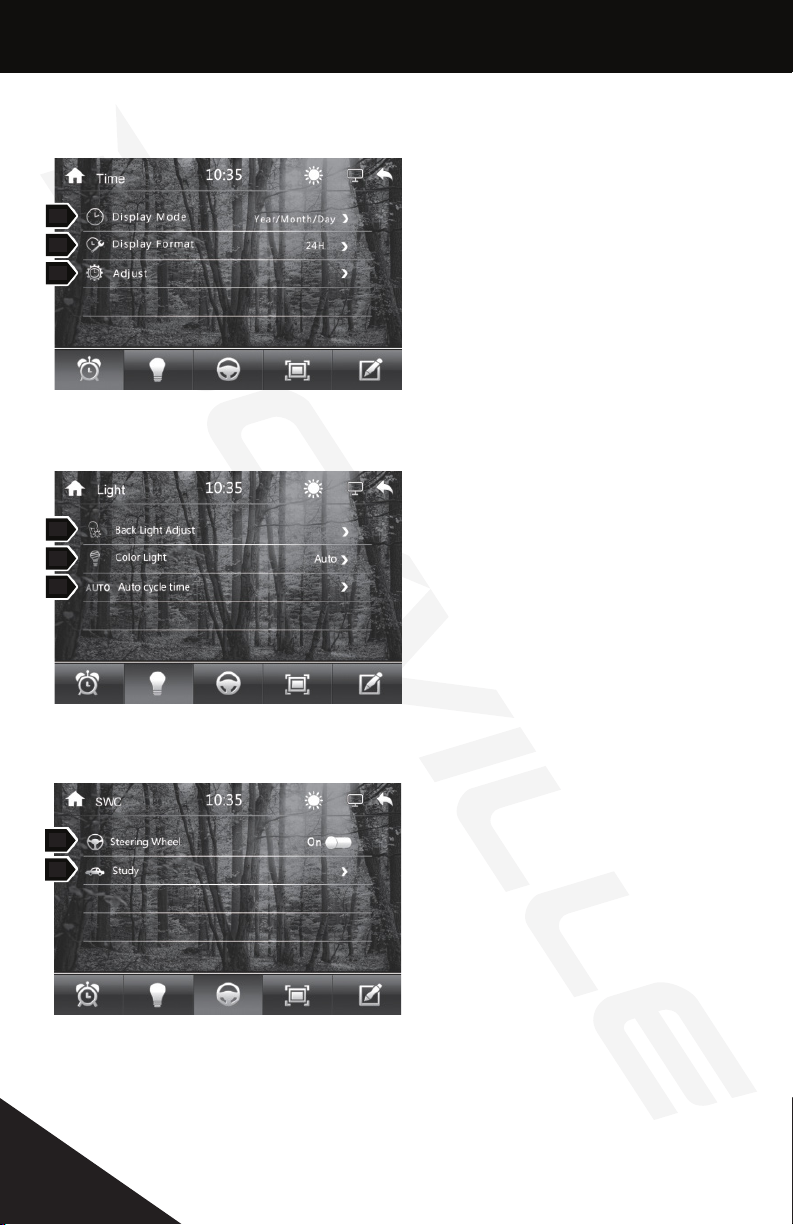

Time
Light
1. Set Time display mode
2. Set Time display format
3. Set day and time
1. Adjust back-light brightness
2. Select back-light color
3. Adjust the automatic back-light color cycle time
5
5
5
1
2
3
5
5
5
1
2
3
Steering Wheel (see page 20 for set-up)
1. Steering Wheel function On/Off
2. Set steering wheel buttons
5
5
1
2

16 17
SYSTEM SETTINGS
Time
Factory
Version
Using your nger or a stylus, touch the calibration
interface symbol and hold until the next symbol
appears. Touch the next symbol and continue re-
peating the above steps. Once the calibration is
complete the system will prompt the word OK.
Touch it to nalize the settings.
Default password: 123456
Here you can adjust the factory password and
change the start-up car logo.
System information overview

18
STEERING WHEEL CONTROL SET-UP
Perform the following steps to set up the steering wheel controls:
1. There are 2 wires for the steering wheel control: Steering Wheel 1 – brown/black
and Steering Wheel 2 – yellow/ black. If the car has two wires from the steering
wheel, they can be connected to Steering Wheel 1 and Steering Wheel 2 random-
ly. If the car has only one wire from the steering wheel, it can be connected with
either Steering Wheel 1 or Steering Wheel 2, just be sure to not connect to both
at once.
2. In the system settings nd the Steering Wheel Controls interface (see page 16).
3. Press the “Study” tab to enter into set up mode. If any of the function buttons
are white, this means that the system has been previously paired. To clear any
previous pairings, rst press the button and then the button.
4. Now press and hold the desired function button on the steering wheel and then
press the corresponding function button on the screen. For example, if you press
and hold the “Mode” button on the steering wheel, press the “Mode” button on
the screen. Once the button is programmed, it will turn white. Repeat this process
until all the buttons have been programmed.

18 19

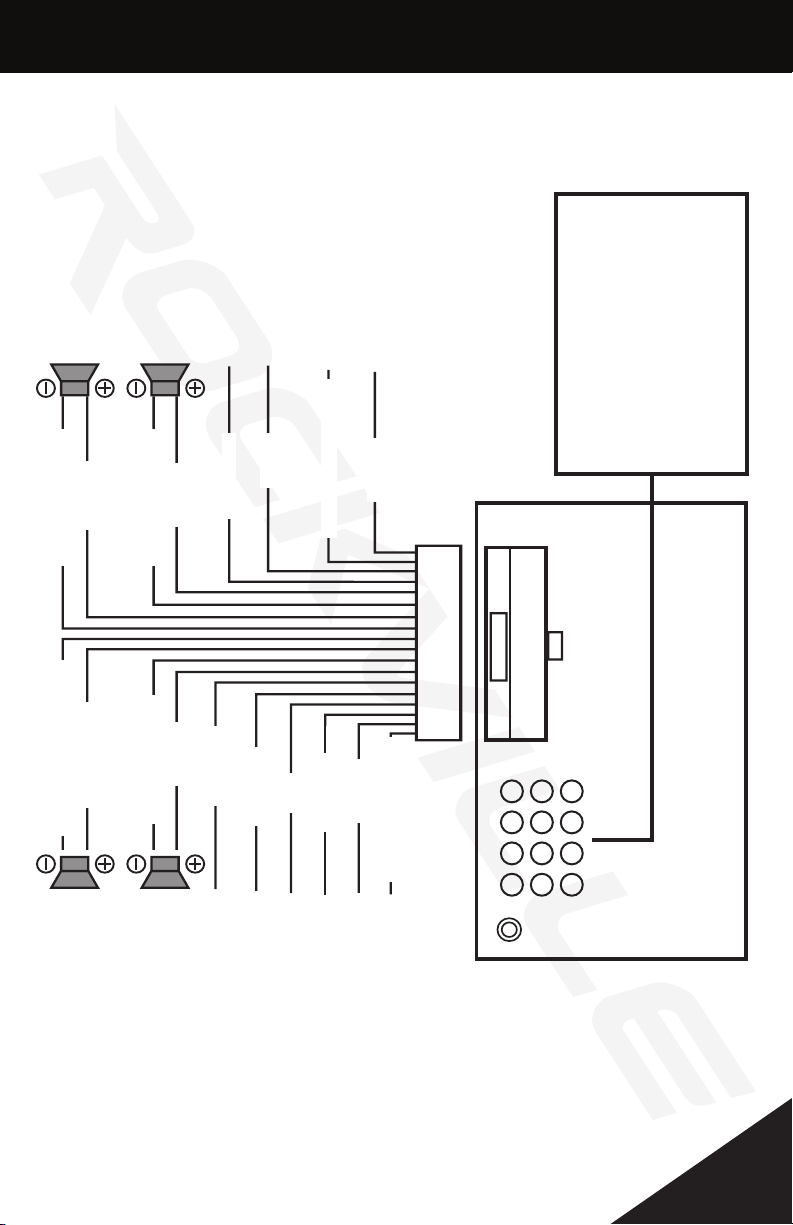

ACC Connect to +12V accessory turn-on
ANTENNA INPUT CONNECTOR
WIRING HARNESS
FUSE
1 4 7 10 2 5 8 11 3 6 9 12
ANTENNA CONTROL
ILL
STEERING WHEEL 1
STEERING WHEEL 2
BRAKE
FRONT LEFT SPEAKER FRONT RIGHT SPEAKER
AMP REMOTE TURN ON REARVIEW CAM
GROUND
MEMORY BACK-UP Connect to constant power source.
REAR LEFT SPEAKER REAR RIGHT SPEAKER
BLUE
ORANGE
BROWN/BLACK
WHITE GRAY
BLACK
BLACK
YELLOW
RED
GREEN PURPLE
WHITE/BLACK GRAY/BLACK
GREEN/BLACK PURPLE/BLACK
YELLOW/BLACK
BROWN
PINK
1. Video Out 2. FL 3. FR 4. Video Out 5. RL 6. RR
7. Rear Cam 8. SUB 1 9. SUB 2 10. Video In 11. Aux In (L) 12. Aux In (R)
WIRING DIAGRAM

20
TROUBLE SHOOTING
PROBLEM SOLUTION
No Power
Remote control does
not work
Low or no sound
Inferior sound quality
or distortion
Settings reset when
unit is powered off
Weak radio signal
Improper CD/DVD/
USB/SD playback
SD card unreadable
Bluetooth pairing
fails
Check fuses. Ensure they are not blown and that they are of the correct
amperage and type.
Adjust voltage.
Reset the system by pressing the reset key.
Check battery. Ensure that it is the proper battery type and that it is new.
Make sure the battery is installed properly.
Check all connections.
Check the volume settings. Check the Balance setting. Make sure it is
centered.
Make sure speakers and cables are in good working order.
Use high quality CDs and DVDs.
Check that speaker impedances match those of the head unit.
Check speaker connections.
Check and reconnect ACC and B+ cables in wiring harness.
Check all antenna connections.
Check LOC status. Turn off if necessary
Check CD/DVD for cracks or scratches.
Check USB ash drive/SD card for damage.
Media les may be corrupted or may not be in proper format.
Check SD card for damage.
Due to system limitations and compatibility issues, not all SD cards can
be read by the system.
Check to see that both devices are turned on and that your Blue-
tooth device is discoverable.
Turn both devices off and then on again.
Make sure you’ve selected the proper source.
Make sure that the Bluetooth device is within 5 feet of the unit.
Make sure that the unit is not paired to a previously paired device.
FUSE REPLACEMENT: If the fuse blows, check the power connection and replace the
fuse. If the fuse blows again, there may be an internal malfunction. In this case consult
your local installer or call our technical help line at 1-646-758-0144, Monday through
Friday, 9am to 5pm EST.
MAINTENANCE
